1.0" SS Hole Plug NEMA 4X
- Description 1" Conduit
$30.90In stock
Buy now
Hole Plugs · HPN4SS Series
Brand: Hammond Manufacturing · 8 part numbers
Type 4X Stainless Steel - UR/cUR
- ■Designed to seal unused pushbutton holes, conduit openings and knockout holes against dust, oil and water.
- ■Standard Pushbutton size is 30.5mm
- ■Available in 8 sizes.
- ■Finished in brushed natural 304 stainless steel.
- ■Oil resistant gasket.

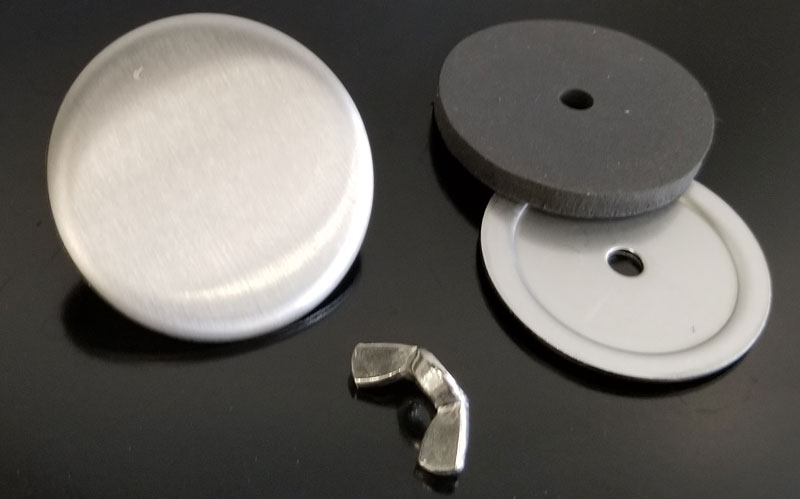

- ■Secured with an 10-24 x 0.55" threaded stud and stainless steel wing nut.
from $18.06
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HPN4SS Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
1.25" SS Hole Plug NEMA 4X
- Description 1.25" Conduit
$35.51In stock
Buy now1.5" SS Hole Plug NEMA 4X
- Description 1.5" Conduit
$39.93In stock
Buy now2.0" SS Hole Plug NEMA 4X
- Description 2" Conduit
$44.20In stock
Buy now22MM SS Hole Plug NEMA 4X
- Description 22mm Pushbutton
$18.06In stock
Buy now0.5" SS Hole Plug NEMA 4X
- Description .5" Conduit
$18.06In stock
Buy now0.75" SS Hole Plug NEMA 4X
- Description .75" Conduit
$23.13In stock
Buy now30MM SS Hole Plug NEMA 4X
- Description 30mm Pushbutton
$25.41In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Description | Max Hole · Diameter | Plug · Diameter | Price | Order |
|---|---|---|---|---|---|
| HP22SSN4 | 22mm Pushbutton | 0.88 | 1.22 | $18.06In stock | Buy now |
| HP50SSN4 | .5" Conduit | 0.88 | 1.38 | $18.06In stock | Buy now |
| HP75SSN4 | .75" Conduit | 1.06 | 1.56 | $23.13In stock | Buy now |
| HPBSSN4 | 30mm Pushbutton | 1.25 | 1.75 | $25.41In stock | Buy now |
| HP100SSN4 | 1" Conduit | 1.38 | 1.88 | $30.90In stock | Buy now |
| HP125SSN4 | 1.25" Conduit | 1.69 | 2.19 | $35.51In stock | Buy now |
| HP150SSN4 | 1.5" Conduit | 2.00 | 2.50 | $39.93In stock | Buy now |
| HP200SSN4 | 2" Conduit | 2.50 | 3.00 | $44.20In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Designed to seal unused pushbutton holes, conduit openings and knockout holes against dust, oil and water.
- ■Standard Pushbutton size is 30.5mm
- ■Available in 8 sizes.
- ■Finished in brushed natural 304 stainless steel.
- ■Oil resistant gasket.
- ■Secured with an 10-24 x 0.55" threaded stud and stainless steel wing nut.
- ■Recognized component UR & cUR Type 1, 3, 3R, 4, 4X, 12 and 13
- ■Type 1, 3, 3R, 4, 4X, 12 and 13
Documents
Additional information
Part Details
| Part No. | Description | Max Hole · Diameter | Plug · Diameter |
|---|---|---|---|
| HP22SSN4 | 22mm Pushbutton | 0.88 | 1.22 |
| HP50SSN4 | .5" Conduit | 0.88 | 1.38 |
| HP75SSN4 | .75" Conduit | 1.06 | 1.56 |
| HPBSSN4 | 30mm Pushbutton | 1.25 | 1.75 |
| HP100SSN4 | 1" Conduit | 1.38 | 1.88 |
| HP125SSN4 | 1.25" Conduit | 1.69 | 2.19 |
| HP150SSN4 | 1.5" Conduit | 2.00 | 2.50 |
| HP200SSN4 | 2" Conduit | 2.50 | 3.00 |
