20X16X10 Frp Type 4X Wlmnt
$971.10In stock
Buy now

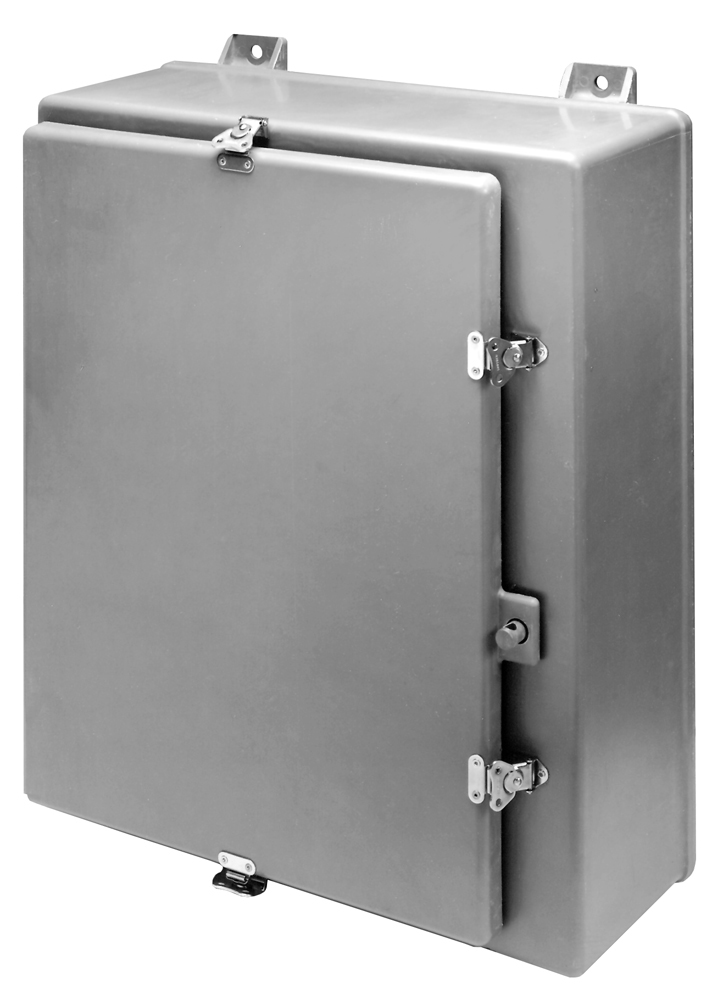

Type 4X Polyester Wallmount Enclosure · PHW Series
Brand: Hammond Manufacturing · 25 part numbers
Continuous Hinge Door with Twist Latches
- ■These enclosures are specially designed to accommodate electrical, electronic, instrumentation and mechanical controls indoors and outdoors.
- ■For use where corrosion resistant watertight enclosures are needed to provide protection against windblown dust and rain, splashing and hose directed water.
- ■UL 508A 1, 3, 3R, 4, 4X, 12
- ■CSA 1, 3, 3R, 4, 4X, 12
- ■Complies with NEMA 1, 3, 3R, 4, 4X, 12 IEC 60529, IP 66
- ■NEMA 1, 3, 3R, 4, 4X, 12
from $41.18
22 of 25 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your PHW Series part number
Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
16 of 16 part numbers · 13 priced online
20X16X12 Frp Type 4X Wlmnt
QuoteRequest a quote
20X16X6 Frp Type 4X Wlmnt
$775.39In stock
Buy now20X16X8 Frp Type 4X Wlmnt
$876.96In stock
Buy now24X12X10 Frp Type 4X Wlmnt
$1,153.45Backorder
Buy now24X20X8 Frp Type 4X Wlmnt
$1,311.11In stock
Buy now24X24X10 Frp Type 4X Wlmnt
$1,518.31In stock
Buy now30X20X10 Frp Type 4X Wlmnt
$1,696.38Backorder
Buy now30X20X8 Frp Type 4X Wlmnt
$1,399.32In stock
Buy now30X24X10 Frp Type 4X Wlmnt
$1,588.57In stock
Buy now30X24X12 Frp Type 4X Wlmnt
QuoteRequest a quote
30X24X7 Frp Type 4X Wlmnt
QuoteRequest a quote
36X30X10 Frp Type 4X Wlmnt
$2,056.55In stock
Buy now36X30X12 Frp Type 4X Wlmnt
$2,205.17In stock
Buy now48X36X16 Frp Type 4X Wlmnt
$4,380.35In stock
Buy now60X36X16 Frp Type 4X Wlmnt
$6,032.37Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. | col8 | col9 | col10 | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PHW20166 | 22.75 | 16.87 | 7.77 | 17.00 | 13.00 | 18P1713 | $775.39In stockPHW20166 | Buy now | |||
| PHW30247 | 33.41 | 26.32 | 8.81 | 27.00 | 21.00 | 18P2721 | $90.95In stock18P2721 | Buy now | |||
| PHW20168 | 22.75 | 16.87 | 9.77 | 17.00 | 13.00 | 18P1713 | $876.96In stockPHW20168 | Buy now | |||
| PHW24208 | 27.00 | 21.24 | 9.90 | 21.00 | 17.00 | 18P2117 | $1,311.11In stockPHW24208 | Buy now | |||
| PHW30208 | 32.86 | 20.99 | 9.89 | 27.00 | 17.00 | 18P2717 | $1,399.32In stockPHW30208 | Buy now | |||
| PHW201610 | 22.75 | 16.87 | 11.77 | 17.00 | 13.00 | 18P1713 | $971.10In stockPHW201610 | Buy now | |||
| PHW241210 | 26.95 | 13.72 | 11.99 | 21.00 | 9.00 | 18P2109 | $1,153.45BackorderPHW241210 | Buy now | |||
| PHW242410 | 27.00 | 25.25 | 11.90 | 21.00 | 21.00 | 18P2121 | $1,518.31In stockPHW242410 | Buy now | |||
| PHW302010 | 32.86 | 20.99 | 11.89 | 27.00 | 17.00 | 18P2717 | $1,696.38BackorderPHW302010 | Buy now | |||
| PHW302410 | 33.41 | 26.32 | 11.95 | 27.00 | 21.00 | 18P2721 | $1,588.57In stockPHW302410 | Buy now | |||
| PHW363010 | 39.31 | 32.50 | 12.05 | 33.00 | 27.00 | 18P3327 | $2,056.55In stockPHW363010 | Buy now | |||
| PHW201612 | 22.75 | 16.87 | 13.77 | 17.00 | 13.00 | 18P1713 | $41.18In stock18P1713 | Buy now | |||
| PHW302412 | 33.41 | 26.32 | 13.79 | 27.00 | 21.00 | 18P2721 | $90.95In stock18P2721 | Buy now | |||
| PHW363012 | 39.31 | 32.50 | 14.05 | 33.00 | 27.00 | 18P3327 | $2,205.17In stockPHW363012 | Buy now | |||
| PHW483616 | 51.29 | 36.62 | 17.93 | 45.00 | 33.00 | 18P4533 | $4,380.35In stockPHW483616 | Buy now | |||
| PHW603616 | 63.50 | 36.50 | 18.12 | 57.00 | 33.00 | 18P5733 | $6,032.37BackorderPHW603616 | Buy now |
Application
- ■These enclosures are specially designed to accommodate electrical, electronic, instrumentation and mechanical controls indoors and outdoors.
- ■For use where corrosion resistant watertight enclosures are needed to provide protection against windblown dust and rain, splashing and hose directed water.
Standards
- ■UL 508A 1, 3, 3R, 4, 4X, 12
- ■CSA 1, 3, 3R, 4, 4X, 12
- ■Complies with NEMA 1, 3, 3R, 4, 4X, 12 IEC 60529, IP 66
- ■NEMA 1, 3, 3R, 4, 4X, 12
- ■IEC 60529, IP 66
Construction
- ■Compression molded, fiberglass reinforced polyester.
- ■Memory retaining, continuous door gasket standard.
- ■Molded in panel mounting inserts (except where noted).
- ■Integral mounting feet.
- ■Stainless steel hardware.
- ■Padlocking provision.
- ■Stainless steel butterfly type "twist latch" door fasteners.
- ■Ported with a continuous hinge.
- ■For corrosion resistance information, please refer to table in the Technical Information section.
Finish
- ■Fiberglass reinforced material is finished in light gray.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. | col8 | col9 | col10 |
|---|---|---|---|---|---|---|---|---|---|
| PHW20166 | 22.75 | 16.87 | 7.77 | 17.00 | 13.00 | 18P1713 | |||
| PHW30247 | 33.41 | 26.32 | 8.81 | 27.00 | 21.00 | 18P2721 | |||
| PHW20168 | 22.75 | 16.87 | 9.77 | 17.00 | 13.00 | 18P1713 | |||
| PHW24208 | 27.00 | 21.24 | 9.90 | 21.00 | 17.00 | 18P2117 | |||
| PHW30208 | 32.86 | 20.99 | 9.89 | 27.00 | 17.00 | 18P2717 | |||
| PHW201610 | 22.75 | 16.87 | 11.77 | 17.00 | 13.00 | 18P1713 | |||
| PHW241210 | 26.95 | 13.72 | 11.99 | 21.00 | 9.00 | 18P2109 | |||
| PHW242410 | 27.00 | 25.25 | 11.90 | 21.00 | 21.00 | 18P2121 | |||
| PHW302010 | 32.86 | 20.99 | 11.89 | 27.00 | 17.00 | 18P2717 | |||
| PHW302410 | 33.41 | 26.32 | 11.95 | 27.00 | 21.00 | 18P2721 | |||
| PHW363010 | 39.31 | 32.50 | 12.05 | 33.00 | 27.00 | 18P3327 | |||
| PHW201612 | 22.75 | 16.87 | 13.77 | 17.00 | 13.00 | 18P1713 | |||
| PHW302412 | 33.41 | 26.32 | 13.79 | 27.00 | 21.00 | 18P2721 | |||
| PHW363012 | 39.31 | 32.50 | 14.05 | 33.00 | 27.00 | 18P3327 | |||
| PHW483616 | 51.29 | 36.62 | 17.93 | 45.00 | 33.00 | 18P4533 | |||
| PHW603616 | 63.50 | 36.50 | 18.12 | 57.00 | 33.00 | 18P5733 |
