PC Non Met Nmlatch Clr Feet
$81.40In stock
Buy now

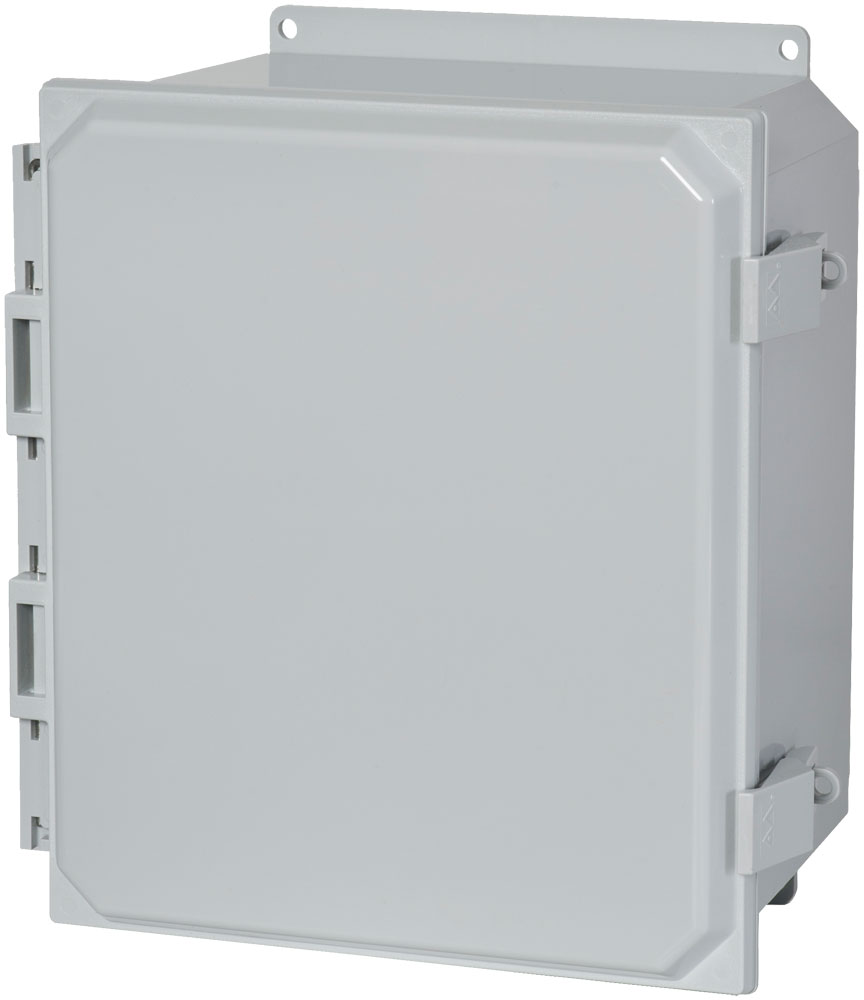

Type 4X Polycarbonate Junction Box (Solid and Clear Cover) · PCJ Series
Brand: Hammond Manufacturing · 61 part numbers
Non-Metallic Latch Cover
- ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
- ■Ideal for industrial pump controls, waste water, and irrigation control along with solar/wind and chemical plants
- ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
- ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 Flammability V-0 per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
- ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
from $7.52
58 of 61 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your PCJ Series part number
Filter 50 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
50 of 50 part numbers · 47 priced online
PC Non Met Nmlatch Clr Flange
$85.49In stock
Buy nowPC Non Met Nmlatch Feet
$73.96Backorder
Buy nowPC Non Met Nmlatch Flange
$77.75Backorder
Buy nowPC Non Met Nmlatch Clr Feet
$86.36In stock
Buy nowPC Non Met Nmlatch Clr Flange
$90.73In stock
Buy nowPC Non Met Nmlatch Feet
$78.50Backorder
Buy nowPC Non Met Nmlatch Flange
$82.47In stock
Buy nowPC Non Met Nm Latch Flr Feet
$89.10Backorder
Buy nowPC Non Met Nm Latch Clr Flange
$93.60Backorder
Buy nowPC Non Met Nm Latch Feet
$81.00Backorder
Buy nowPC Non Met Nm Latch Flange
$85.05In stock
Buy nowPC Non Met Nmlatch Clr Feet
$96.84Backorder
Buy nowPC Non Met Nmlatch Clr Flange
$101.74In stock
Buy nowPC Non Met Nmlatch Feet
$88.07In stock
Buy nowPC Non Met Nmlatch Flange
$92.49In stock
Buy nowPC Non Met Nmlatch Clr Feet
$109.80Backorder
Buy nowPC Non Met Nmlatch Clr Flange
$115.32Backorder
Buy nowPC Non Met Nmlatch Feet
$100.55Backorder
Buy nowPC Non Met Nmlatch Flange
$105.59Backorder
Buy nowPC Non Met Nmlatch Clr Feet
$117.19In stock
Buy nowPC Non Met Nmlatch Clr Flange
$123.40In stock
Buy nowPC Non Met Nmlatch Feet
$107.50In stock
Buy nowPC Non Met Nmlatch Flange
$113.18In stock
Buy nowPC Non Met Nm Latch Flr Feet
$154.21In stock
Buy nowPC Non Met Nm Latch Flange
$161.96In stock
Buy nowPC Non Met Nm Latch Feet
QuoteRequest a quote
PC Non Met Nm Latch Flange
$148.53In stock
Buy nowPC Non Met Nm Latch Flr Feet
$185.09Backorder
Buy nowPC Non Met Nm Latch Flange
$194.34Backorder
Buy nowPC Non Met Nm Latch Feet
$169.79In stock
Buy nowPC Non Met Nm Latch Flange
QuoteRequest a quote
PC Non Met Nmlatch Clr Feet
$262.78Backorder
Buy nowPC Non Met Nmlatch Clr Flange
$271.65Backorder
Buy nowPC Non Met Nmlatch Feet
$248.25Backorder
Buy nowPC Non Met Nmlatch Flange
$256.34Backorder
Buy nowPC Non Met Nmlatch Clr Feet
$49.86Backorder
Buy nowPC Non Met Nmlatch Feet
$45.36Backorder
Buy nowPC Non Met Nmlatch Clr Feet
$72.94Backorder
Buy nowPC Non Met Nmlatch Clr Flange
$76.59Backorder
Buy nowPC Non Met Nmlatch Feet
$66.31Backorder
Buy nowPC Non Met Nmlatch Flange
QuoteRequest a quote
PC Non Met Nmlatch Clr Feet
$75.64In stock
Buy nowPC Non Met Nmlatch Clr Flange
$79.41Backorder
Buy nowPC Non Met Nmlatch Feet
$68.76Backorder
Buy nowPC Non Met Nmlatch Flange
$72.18Backorder
Buy nowPC Non Met Nm Latch Flr Feet
$78.98Backorder
Buy nowPC Non Met Nm Latch Clr Flange
$82.83Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Solid Cover · w/Flange · Part No. | Solid Cover · w/Feet · Part No. | Clear Cover · w/Flange · Part No. | Clear Cover · w/Feet · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PCJ443NL | PCJ443CCNL | 3.95 | 3.95 | 3.31 | 3.56 | 3.56 | PCJR0303 | $45.36BackorderPCJ443NL | Buy now | ||
| PCJ664NLF | PCJ664NL | PCJ664CCNLF | PCJ664CCNL | 5.93 | 6.16 | 3.98 | 4.81 | 4.81 | PCJR0505 | $66.31BackorderPCJ664NL | Buy now |
| PCJ864NLF | PCJ864NL | PCJ864CCNLF | PCJ864CCNL | 7.94 | 6.16 | 3.98 | 6.75 | 4.88 | PCJR0705 | $72.18BackorderPCJ864NLF | Buy now |
| PCJ884NLF | PCJ884NL | PCJ884CCNLF | PCJ884CCNL | 7.94 | 8.15 | 3.98 | 6.75 | 6.88 | PCJR0808 | $75.33BackorderPCJ884NLF | Buy now |
| PCJ1084NLF | PCJ1084NL | PCJ1084CCNLF | PCJ1084CCNL | 9.93 | 8.15 | 3.98 | 8.75 | 6.88 | PCJR0907 | $77.75BackorderPCJ1084NLF | Buy now |
| PCJ1086NLF | PCJ1086NL | PCJ1086CCNLF | PCJ1086CCNL | 9.93 | 8.15 | 5.98 | 8.75 | 6.88 | PCJR0907 | $82.47In stockPCJ1086NLF | Buy now |
| PCJ12104NLF | PCJ12104NL | PCJ12104CCNLF | PCJ12104CCNL | 11.92 | 10.15 | 3.98 | 10.75 | 8.88 | PCJR1109 | $85.05In stockPCJ12104NLF | Buy now |
| PCJ12106NLF | PCJ12106NL | PCJ12106CCNLF | PCJ12106CCNL | 11.92 | 10.15 | 5.98 | 10.75 | 8.88 | PCJR1109 | $92.49In stockPCJ12106NLF | Buy now |
| PCJ12126NLF | PCJ12126NL | PCJ12126CCNLF | PCJ12126CCNL | 11.92 | 12.16 | 5.98 | 10.75 | 10.88 | PCJR1111 | $105.59BackorderPCJ12126NLF | Buy now |
| PCJ14126NLF | PCJ14126NL | PCJ14126CCNLF | PCJ14126CCNL | 13.94 | 12.16 | 5.98 | 12.75 | 10.88 | PCJR1311 | $113.18In stockPCJ14126NLF | Buy now |
| PCJ16148NLF | PCJ16148NL | PCJ16148CCNLF | PCJ16148CCNL | 15.98 | 13.98 | 7.81 | 14.75 | 12.88 | 14R1513 | $148.53In stockPCJ16148NLF | Buy now |
| PCJ181610NLF | PCJ181610NL | PCJ181610CCNLF | PCJ181610CCNL | 18.04 | 16.04 | 9.81 | 16.88 | 14.88 | P1868 | $169.79In stockPCJ181610NL | Buy now |
| PCJ201610NLF | PCJ201610NL | PCJ201610CCNLF | PCJ201610CCNL | 19.76 | 15.98 | 10.13 | 18.88 | 14.88 | P2068 | $256.34BackorderPCJ201610NLF | Buy now |
Application
- ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
- ■Ideal for industrial pump controls, waste water, and irrigation control along with solar/wind and chemical plants
Standards
- ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
- ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 Flammability V-0 per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
- ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
- ■Flammability V-0 per UL 94
- ■UV rating (f1) per UL746C - UV stabilized for outdoor use
- ■Compliant with RoHS directive
Construction
- ■Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled
- ■Enhanced UV inhibitors protect against outdoor weathering
- ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included
- ■Stainless steel 316 screw fasteners
- ■Door fasteners include a provision for padlocking on Snap Latches

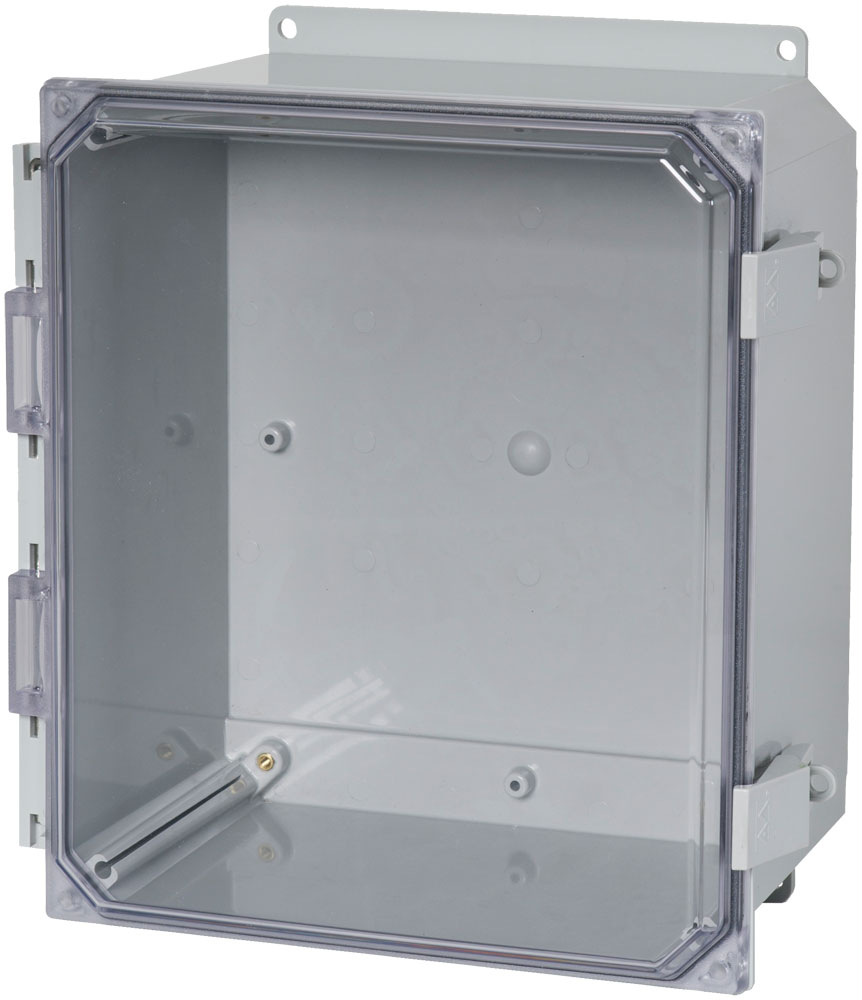

- ■Enclosure available with clear polycarbonate cover
- ■Molded hinge
- ■Captive oil resistant gasket provides a positive seal
- ■Available with polycarbonate flange or foot mount brackets for multi-directional mounting
- ■Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
- ■Impact index of 16 J (12 ft/lb)
- ■For corrosion resistance information, please refer to table in the Technical Information section
Finish
- ■Polycarbonate material has a light gray finish
- ■Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or fiberglass
Documents
Additional information
Part Details
| Solid Cover · w/Flange · Part No. | Solid Cover · w/Feet · Part No. | Clear Cover · w/Flange · Part No. | Clear Cover · w/Feet · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · H | Optional Inner Panel · W | Optional Inner Panel · Part No. |
|---|---|---|---|---|---|---|---|---|---|
| PCJ443NL | PCJ443CCNL | 3.95 | 3.95 | 3.31 | 3.56 | 3.56 | PCJR0303 | ||
| PCJ664NLF | PCJ664NL | PCJ664CCNLF | PCJ664CCNL | 5.93 | 6.16 | 3.98 | 4.81 | 4.81 | PCJR0505 |
| PCJ864NLF | PCJ864NL | PCJ864CCNLF | PCJ864CCNL | 7.94 | 6.16 | 3.98 | 6.75 | 4.88 | PCJR0705 |
| PCJ884NLF | PCJ884NL | PCJ884CCNLF | PCJ884CCNL | 7.94 | 8.15 | 3.98 | 6.75 | 6.88 | PCJR0808 |
| PCJ1084NLF | PCJ1084NL | PCJ1084CCNLF | PCJ1084CCNL | 9.93 | 8.15 | 3.98 | 8.75 | 6.88 | PCJR0907 |
| PCJ1086NLF | PCJ1086NL | PCJ1086CCNLF | PCJ1086CCNL | 9.93 | 8.15 | 5.98 | 8.75 | 6.88 | PCJR0907 |
| PCJ12104NLF | PCJ12104NL | PCJ12104CCNLF | PCJ12104CCNL | 11.92 | 10.15 | 3.98 | 10.75 | 8.88 | PCJR1109 |
| PCJ12106NLF | PCJ12106NL | PCJ12106CCNLF | PCJ12106CCNL | 11.92 | 10.15 | 5.98 | 10.75 | 8.88 | PCJR1109 |
| PCJ12126NLF | PCJ12126NL | PCJ12126CCNLF | PCJ12126CCNL | 11.92 | 12.16 | 5.98 | 10.75 | 10.88 | PCJR1111 |
| PCJ14126NLF | PCJ14126NL | PCJ14126CCNLF | PCJ14126CCNL | 13.94 | 12.16 | 5.98 | 12.75 | 10.88 | PCJR1311 |
| PCJ16148NLF | PCJ16148NL | PCJ16148CCNLF | PCJ16148CCNL | 15.98 | 13.98 | 7.81 | 14.75 | 12.88 | 14R1513 |
| PCJ181610NLF | PCJ181610NL | PCJ181610CCNLF | PCJ181610CCNL | 18.04 | 16.04 | 9.81 | 16.88 | 14.88 | P1868 |
| PCJ201610NLF | PCJ201610NL | PCJ201610CCNLF | PCJ201610CCNL | 19.76 | 15.98 | 10.13 | 18.88 | 14.88 | P2068 |
