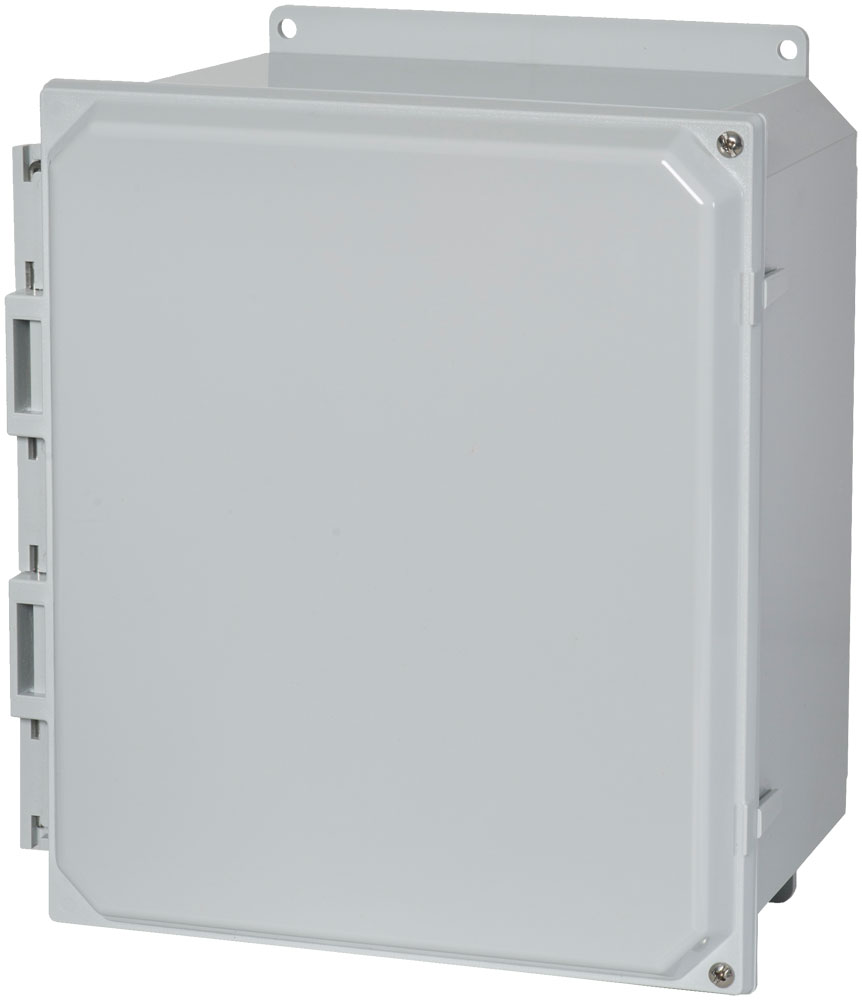

Type 4X Polycarbonate Junction Box (Solid and Clear Cover) PCJ Series

Type 4X Polycarbonate Junction Box (Solid and Clear Cover) · PCJ Series

Brand: Hammond Manufacturing · 65 part numbers

Hinged Screw Cover

  • ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
  • ■Ideal for industrial pump controls, waste water, and irrigation control along with solar/wind and chemical plants
  • ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 Flammability V-0 per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
  • ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13

from $7.52

61 of 65 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PCJ Series part number

Filter 54 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

54 of 54 part numbers · 50 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PCJ443HPCJ443CCH3.953.953.313.563.56PCJR0303$39.45In stockPCJ443HBuy now
PCJ664HFPCJ664HPCJ664CCHFPCJ664CCH5.936.163.984.814.81PCJR0505$60.46In stockPCJ664HFBuy now
PCJ864HFPCJ864HPCJ864CCHFPCJ864CCH7.946.163.986.754.88PCJR0705$62.80In stockPCJ864HFBuy now
PCJ884HFPCJ884HPCJ884CCHFPCJ884CCH7.948.153.986.756.88PCJR0808$65.55In stockPCJ884HFBuy now
PCJ1082HFPCJ1082HPCJ1082CCHFPCJ1082CCH9.938.152.708.756.88PCJR0907$63.60BackorderPCJ1082HFBuy now
PCJ1084HFPCJ1084HPCJ1084CCHFPCJ1084CCH9.938.153.988.756.88PCJR0907$67.46In stockPCJ1084HFBuy now
PCJ1086HFPCJ1086HPCJ1086CCHFPCJ1086CCH9.938.155.988.756.88PCJR0907$68.18In stockPCJ1086HBuy now
PCJ12104HFPCJ12104HPCJ12104CCHFPCJ12104CCH11.9210.153.9810.758.88PCJR1109$79.53In stockPCJ12104HFBuy now
PCJ12106HFPCJ12106HPCJ12106CCHFPCJ12106CCH11.9210.155.9810.758.88PCJR1109$86.48In stockPCJ12106HFBuy now
PCJ12126HFPCJ12126HPCJ12126CCHFPCJ12126CCH11.9212.165.9810.7510.88PCJR1111$96.81In stockPCJ12126HFBuy now
PCJ14126HFPCJ14126HPCJ14126CCHFPCJ14126CCH13.9412.165.9812.7510.88PCJR1311$101.66In stockPCJ14126HFBuy now
PCJ16148HFPCJ16148HPCJ16148CCHFPCJ16148CCH15.9813.987.8114.7512.8814R1513$132.88In stockPCJ16148HFBuy now
PCJ181610HFPCJ181610HPCJ181610CCHFPCJ181610CCH18.0416.049.8116.8814.88P1868$159.50In stockPCJ181610HFBuy now
PCJ201610HFPCJ201610HPCJ201610CCHFPCJ201610CCH19.7615.9810.1318.8814.88P2068$238.63In stockPCJ201610HFBuy now

Application

  • ■Designed to insulate and protect controls and components in both indoor and outdoor conditions
  • ■Ideal for industrial pump controls, waste water, and irrigation control along with solar/wind and chemical plants

Standards

  • ■UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • ■cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 IEC 60529, IP66 Flammability V-0 per UL 94 UV rating (f1) per UL746C - UV stabilized for outdoor use Compliant with RoHS directive
  • ■NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • ■IEC 60529, IP66
  • ■Flammability V-0 per UL 94
  • ■UV rating (f1) per UL746C - UV stabilized for outdoor use
  • ■Compliant with RoHS directive

Construction

  • ■Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled
  • ■Enhanced UV inhibitors protect against outdoor weathering
  • ■Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included
  • ■Stainless steel 316 screw fasteners
  • ■Door fasteners include a provision for padlocking on Snap Latches
  • ■Enclosure available with clear Polycarbonate cover
  • ■Molded hinge
  • ■Captive oil resistant gasket provides a positive seal
  • ■Available with Polycarbonate flange or foot mount brackets for multi-directional mounting
  • ■Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
  • ■Impact index of 16 J (12 ft/lb)
  • ■For corrosion resistance information, please refer to table in the Technical Information section

Finish

  • ■Polycarbonate material has a light gray finish
  • ■Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or fiberglass

Documents

Specification Sheet

Additional information

Part Details

Solid Cover · w/Flange · Part No.Solid Cover · w/Feet · Part No.Clear Cover · w/Flange · Part No.Clear Cover · w/Feet · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PCJ443HPCJ443CCH3.953.953.313.563.56PCJR0303
PCJ664HFPCJ664HPCJ664CCHFPCJ664CCH5.936.163.984.814.81PCJR0505
PCJ864HFPCJ864HPCJ864CCHFPCJ864CCH7.946.163.986.754.88PCJR0705
PCJ884HFPCJ884HPCJ884CCHFPCJ884CCH7.948.153.986.756.88PCJR0808
PCJ1082HFPCJ1082HPCJ1082CCHFPCJ1082CCH9.938.152.708.756.88PCJR0907
PCJ1084HFPCJ1084HPCJ1084CCHFPCJ1084CCH9.938.153.988.756.88PCJR0907
PCJ1086HFPCJ1086HPCJ1086CCHFPCJ1086CCH9.938.155.988.756.88PCJR0907
PCJ12104HFPCJ12104HPCJ12104CCHFPCJ12104CCH11.9210.153.9810.758.88PCJR1109
PCJ12106HFPCJ12106HPCJ12106CCHFPCJ12106CCH11.9210.155.9810.758.88PCJR1109
PCJ12126HFPCJ12126HPCJ12126CCHFPCJ12126CCH11.9212.165.9810.7510.88PCJR1111
PCJ14126HFPCJ14126HPCJ14126CCHFPCJ14126CCH13.9412.165.9812.7510.88PCJR1311
PCJ16148HFPCJ16148HPCJ16148CCHFPCJ16148CCH15.9813.987.8114.7512.8814R1513
PCJ181610HFPCJ181610HPCJ181610CCHFPCJ181610CCH18.0416.049.8116.8814.88P1868
PCJ201610HFPCJ201610HPCJ201610CCHFPCJ201610CCH19.7615.9810.1318.8814.88P2068
