N4,12 Enclosure 24X16X8 Steel/Gray
$473.75In stock
Buy now
Type 4 Mild Steel Wallmount Enclosure · HWHK Series
Brand: Hammond Manufacturing · 43 part numbers
Hinge Door with Handle
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with NEMA 3R, 4, 12 and 13 IEC 60529, IP 66
from $47.82
43 of 43 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HWHK Series part number
Filter 30 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
30 of 30 part numbers · 30 priced online
N4,12 Enclosure 24X20X10 Steel/Gra
$535.37In stock
Buy now
N4,12 Enclosure 24X20X6 Steel/Gray
$486.50Backorder
Buy now
N4,12 Enclosure 24X20X8 Steel/Gray
$511.03In stock
Buy now
N4,12 Enclosure 24X24X12 Steel/Gra
$604.49In stock
Buy now
N4,12 Enclosure 24X24X6 Steel/Gray
$524.91In stock
Buy now
N4,12 Enclosure 24X24X8 Steel/Gray
$551.45In stock
Buy now
N4,12 Enclosure 24X30X8 Steel/Gray
$616.43In stock
Buy now
N4,12 Enclosure 30X20X8 Steel/Gray
$584.66In stock
Buy now
N4,12 Enclosure 30X24X10 Steel/Gra
$646.65Backorder
Buy now
N4,12 Enclosure 30X24X12 Steel/Gra
$676.20In stock
Buy now
N4,12 Enclosure 30X24X16 Steel/Gra
$754.95Backorder
Buy now
N4,12 Enclosure 30X24X8 Steel/Gray
$616.43Backorder
Buy now
N4,12 Enclosure 30X30X8 Steel/Gray
$689.32In stock
Buy now
N4,12 Enclosure 36X24X10 Steel/Gra
$710.85In stock
Buy now
N4,12 Enclosure 36X24X8 Steel/Gray
$677.79In stock
Buy now
N4,12 Enclosure 36X30X10 Steel/Gra
$798.38In stock
Buy now
N4,12 Enclosure 36X30X12 Steel/Gra
$835.30In stock
Buy now
N4,12 Enclosure 36X30X16 Steel/Gra
$934.40In stock
Buy now
N4,12 Enclosure 36X30X8 Steel/Gray
$761.97In stock
Buy now
N4,12 Enclosure 36X36X12 Steel/Gra
$939.28In stock
Buy now
N4,12 Enclosure 42X30X10 Steel/Gra
$900.39Backorder
Buy now
N4,12 Enclosure 42X36X12 Steel/Gra
$1,031.43In stock
Buy now
N4,12 Enclosure 42X36X8 Steel/Gray
$858.84Backorder
Buy now
N4,12 Enclosure 48X36X10 Steel/Gra
$1,062.95Backorder
Buy now
N4,12 Enclosure 48X36X12 Steel/Gra
$1,110.34In stock
Buy now
N4,12 Enclosure 48X36X16 Steel/Gra
$1,205.06In stock
Buy now
N4,12 Enclosure 48X36X68STEEL/GRAY
$1,016.39In stock
Buy now
N4,12 Enclosure 60X36X12 Steel/Gra
$1,308.75Backorder
Buy now
N4,12 Enclosure 60X36X16 Steel/ Gr
$1,453.79In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · H | Overall Dimensions · W | Overall Dimensions · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|

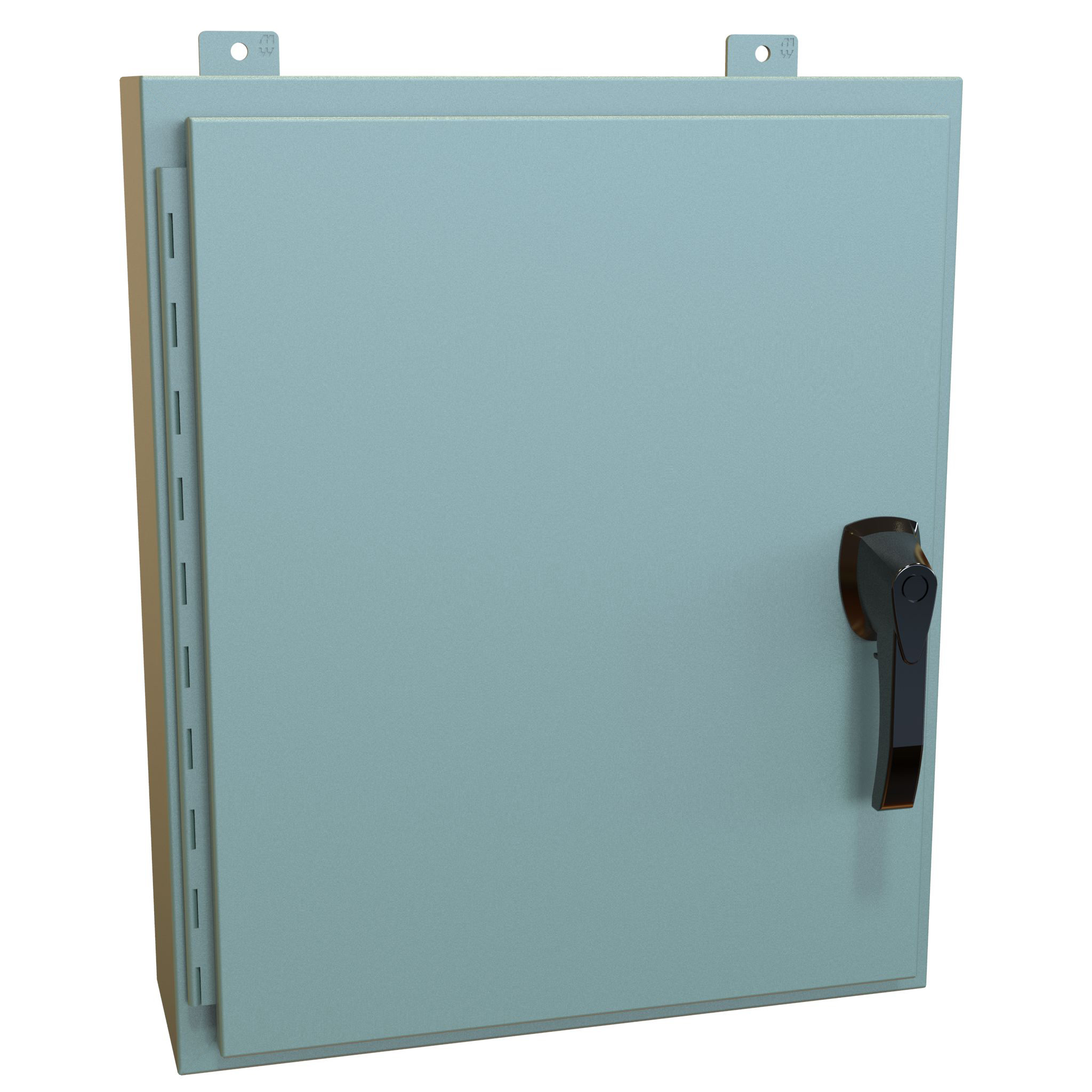

| HW24206GYHK | 24.00 | 20.00 | 6.00 | 18P2117 | 21.00 | 17.00 | $486.50BackorderHW24206GYHK | Buy now |

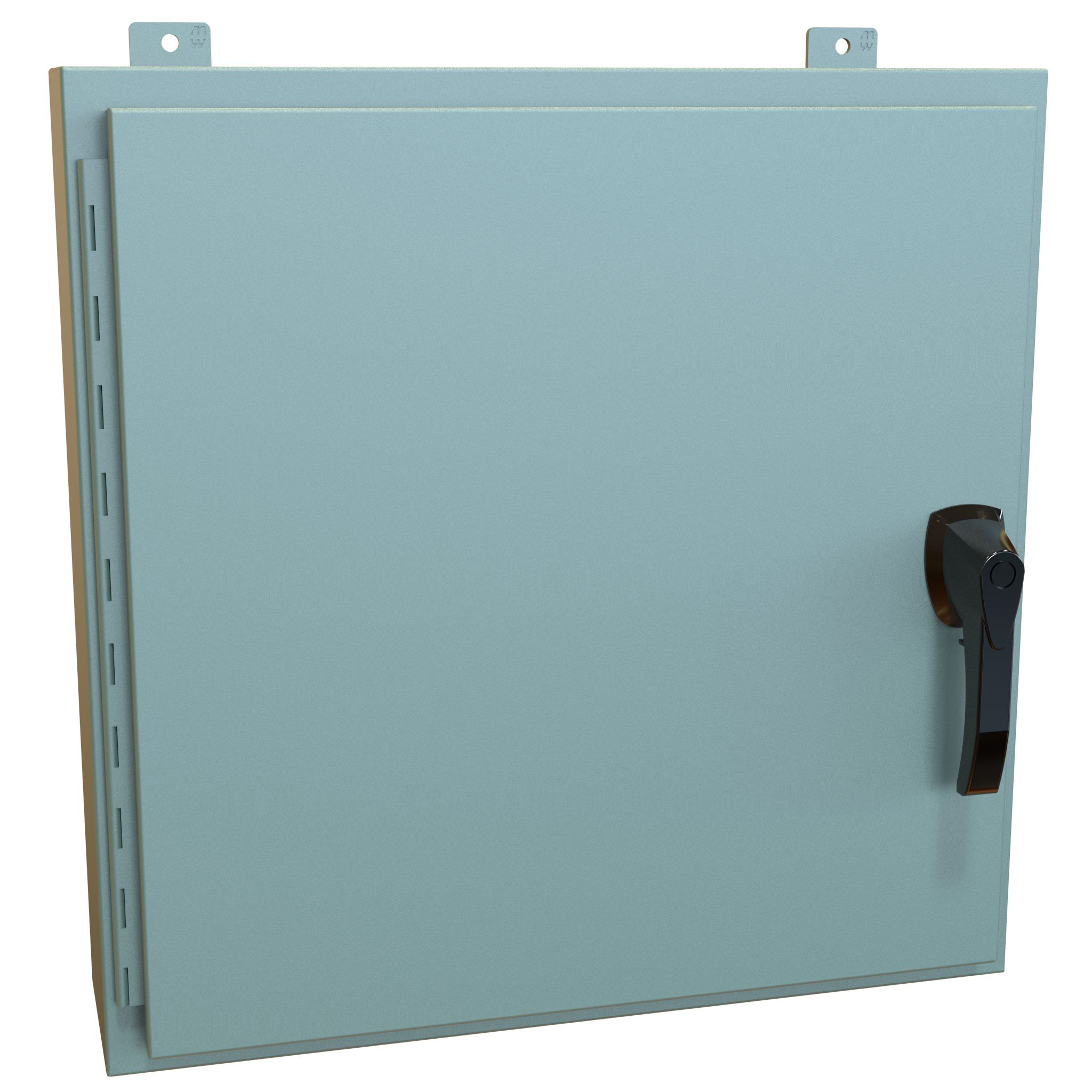

| HW24246GYHK | 24.00 | 24.00 | 6.00 | 18P2121 | 21.00 | 21.00 | $524.91In stockHW24246GYHK | Buy now |

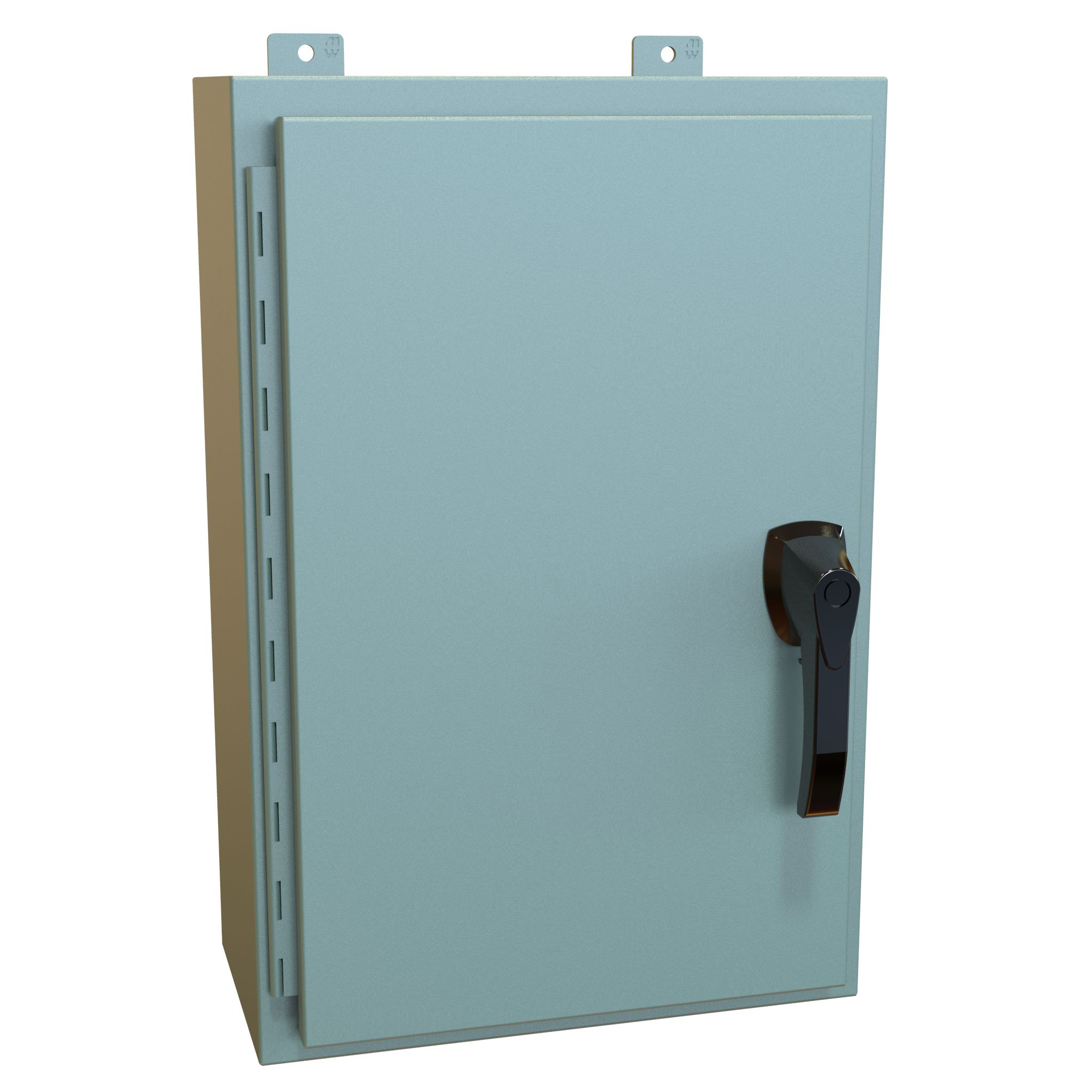

| HW24168GYHK | 24.00 | 16.00 | 8.00 | 18P2113 | 21.00 | 13.00 | $473.75In stockHW24168GYHK | Buy now |
| HW24208GYHK | 24.00 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 | $511.03In stockHW24208GYHK | Buy now |
| HW24248GYHK | 24.00 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 | $551.45In stockHW24248GYHK | Buy now |

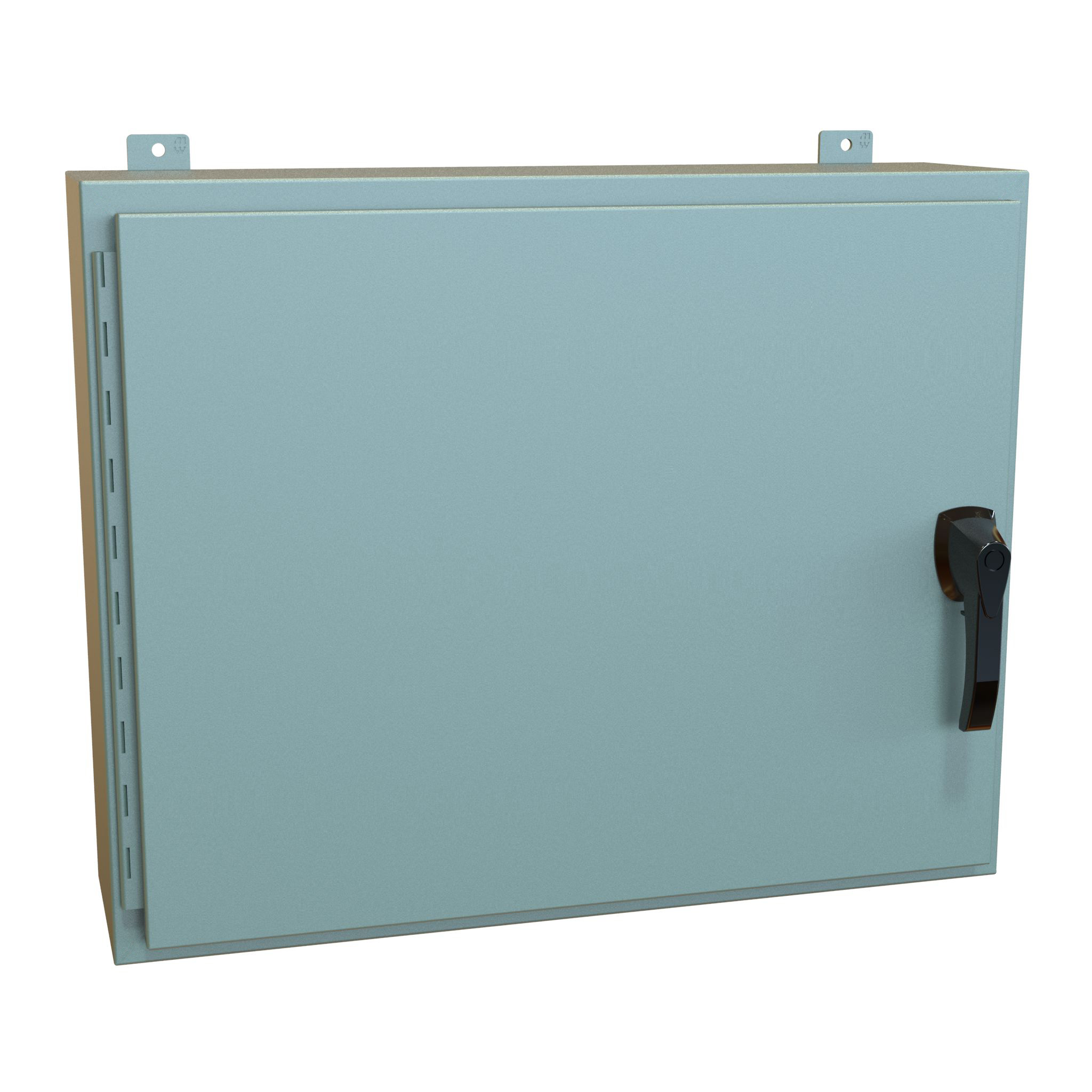

| HW24308GYHK | 24.00 | 30.00 | 8.00 | 18P2721 | 27.00 | 21.00 | $616.43In stockHW24308GYHK | Buy now |

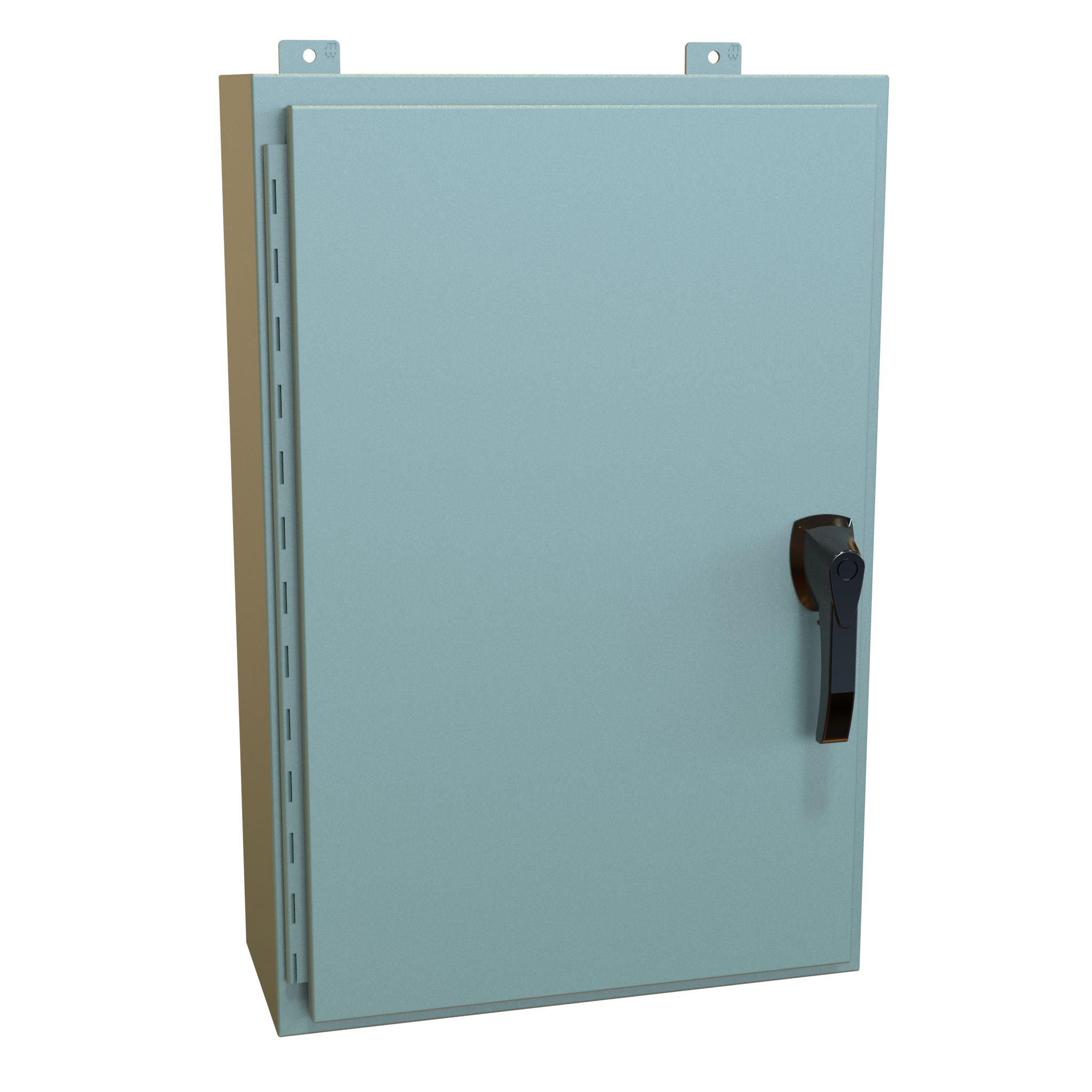

| HW30208GYHK | 30.00 | 20.00 | 8.00 | 18P2717 | 27.00 | 17.00 | $584.66In stockHW30208GYHK | Buy now |

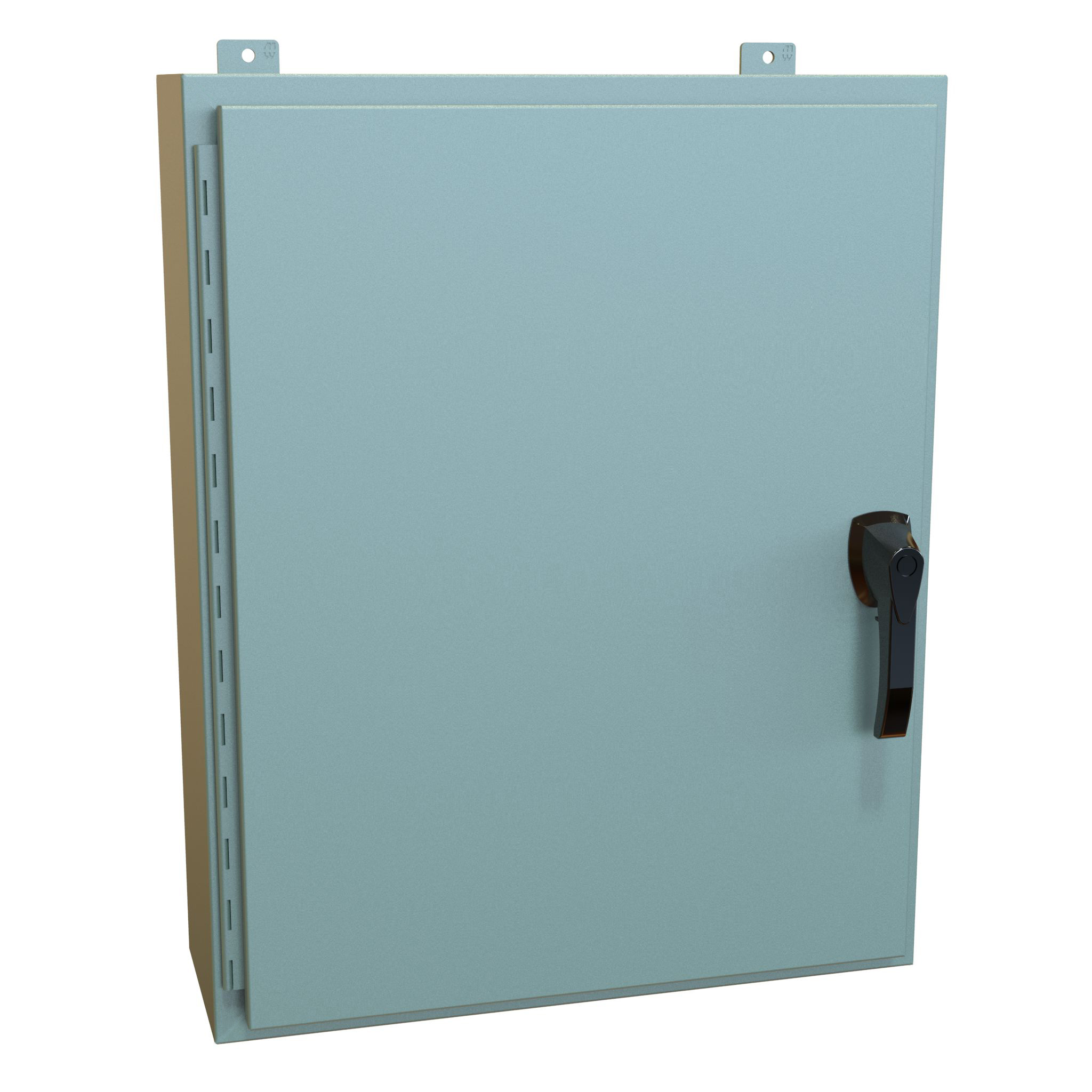

| HW30248GYHK | 30.00 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 | $616.43BackorderHW30248GYHK | Buy now |

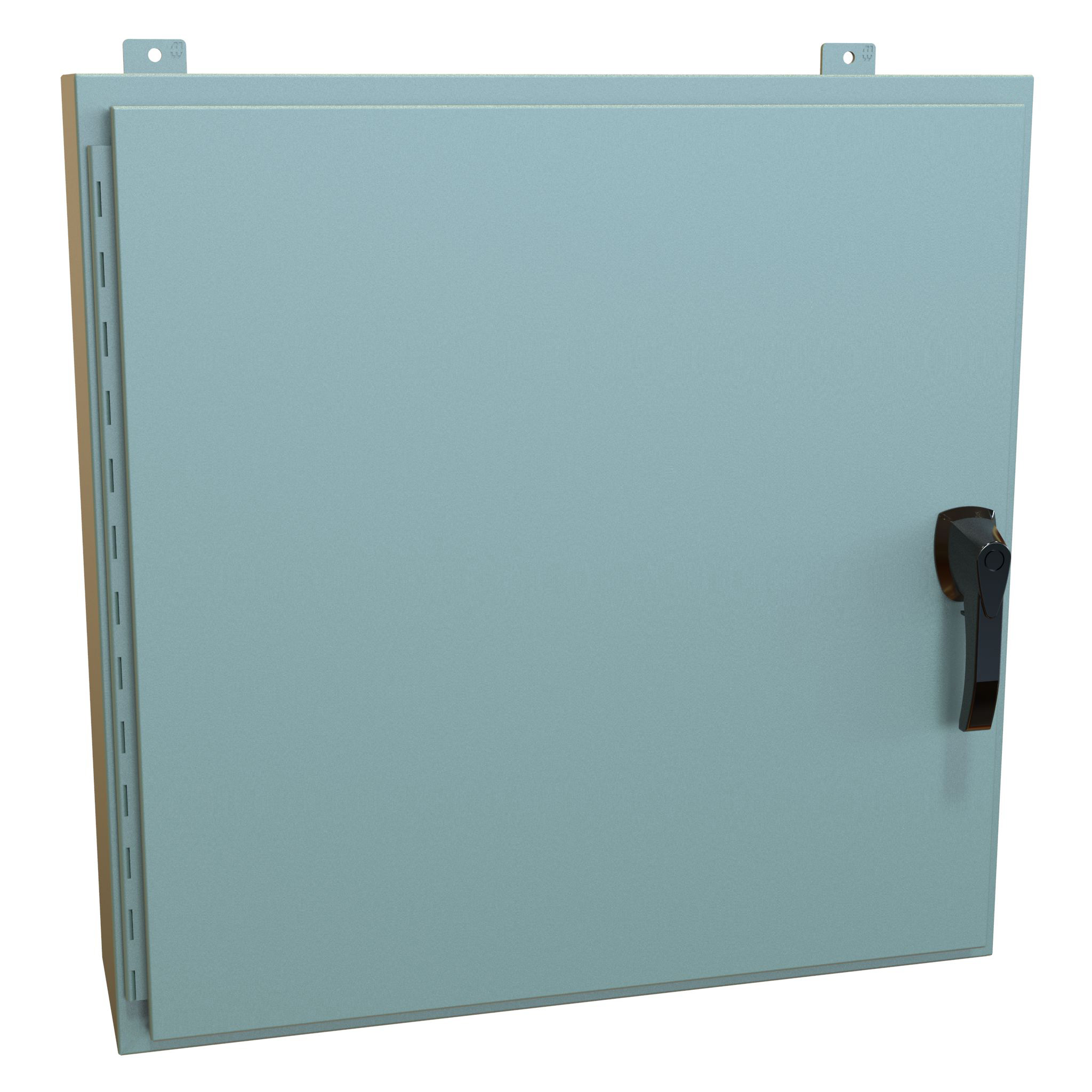

| HW30308GYHK | 30.00 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 | $689.32In stockHW30308GYHK | Buy now |

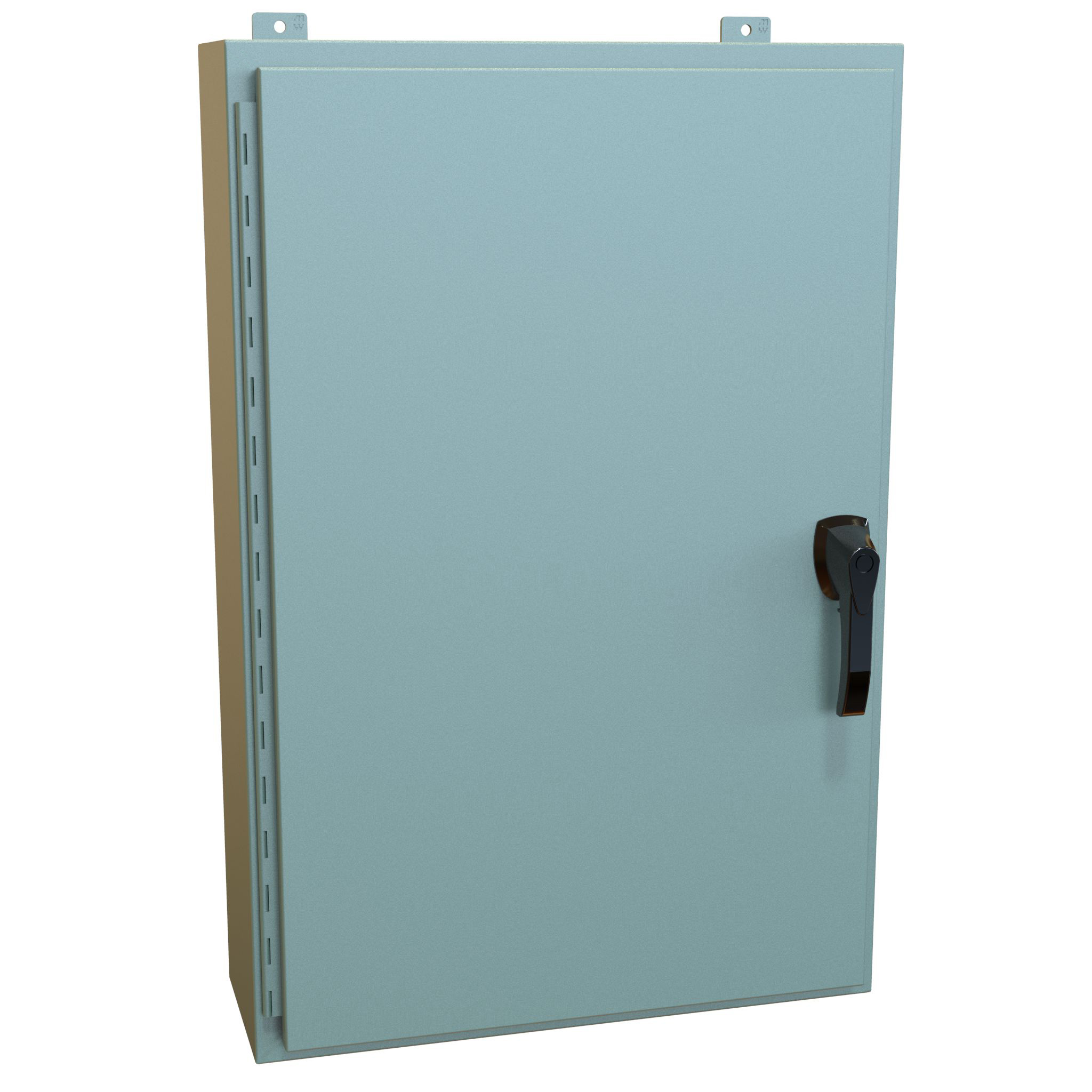

| HW36248GYHK | 36.00 | 24.00 | 8.00 | 18P3321 | 33.00 | 21.00 | $677.79In stockHW36248GYHK | Buy now |
| HW36308GYHK | 36.00 | 30.00 | 8.00 | 18P3327 | 33.00 | 27.00 | $761.97In stockHW36308GYHK | Buy now |

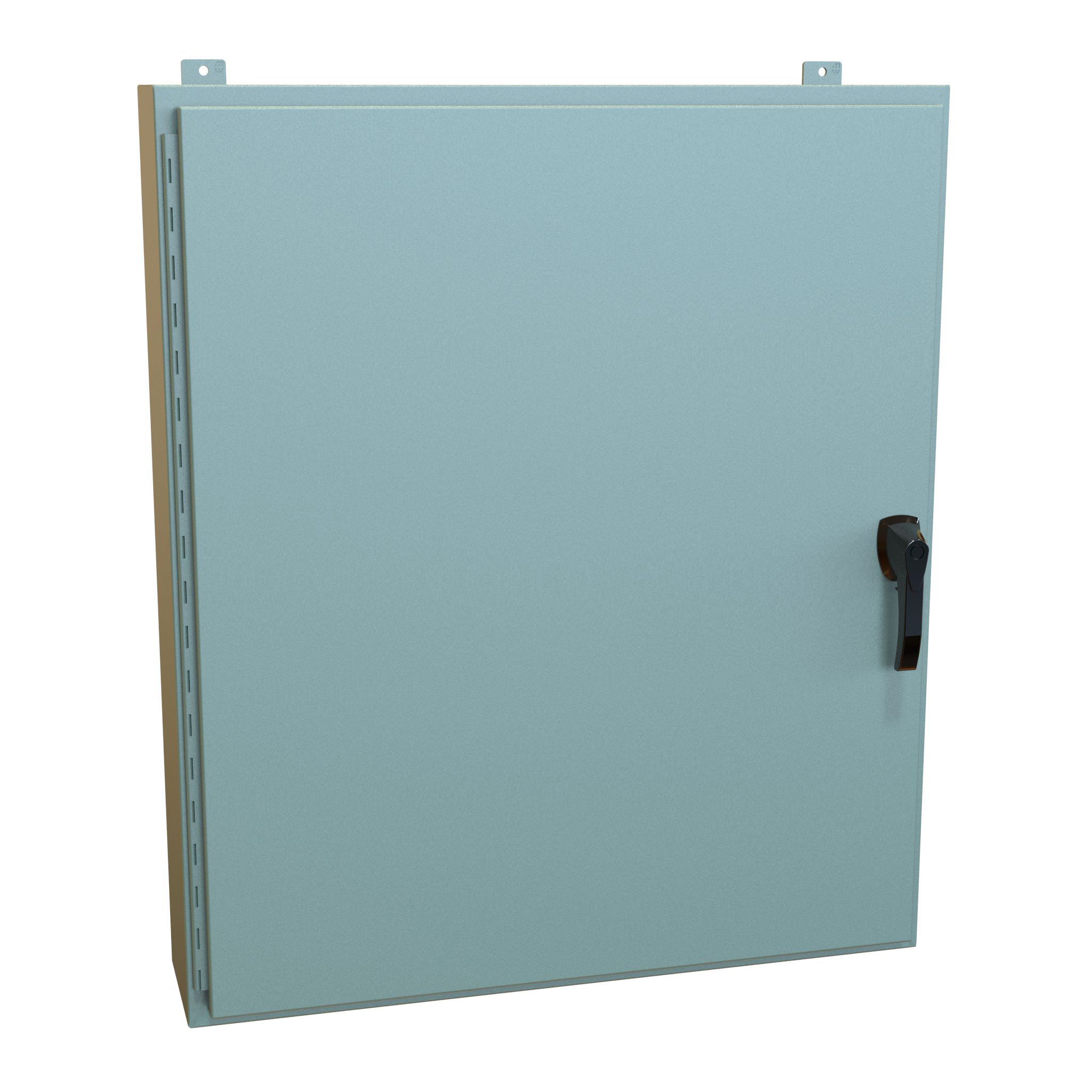

| HW42368GYHK | 42.00 | 36.00 | 8.00 | 18P3933 | 39.00 | 33.00 | $858.84BackorderHW42368GYHK | Buy now |

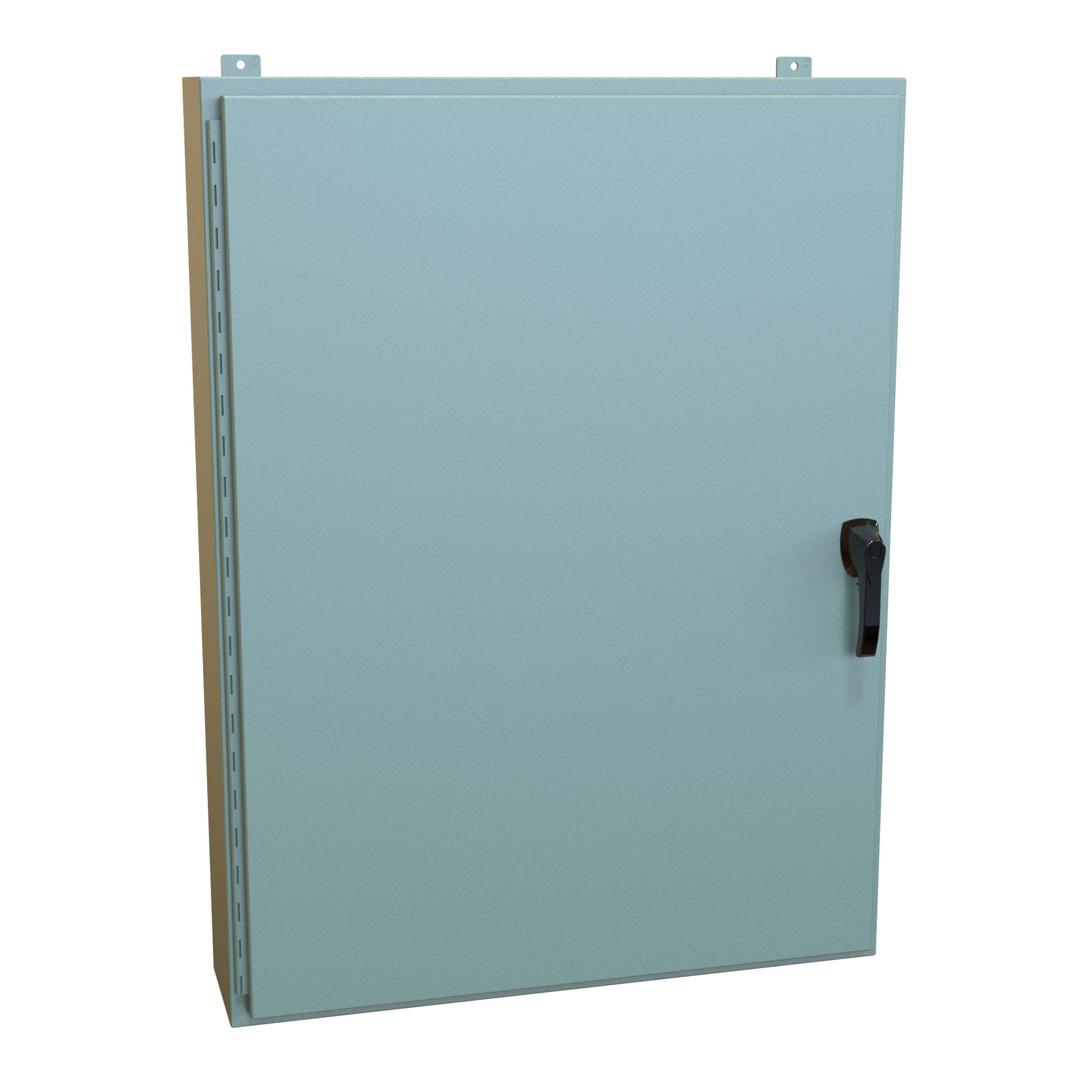

| HW48368GYHK | 48.00 | 36.00 | 8.00 | 18P4533 | 45.00 | 33.00 | $1,016.39In stockHW48368GYHK | Buy now |

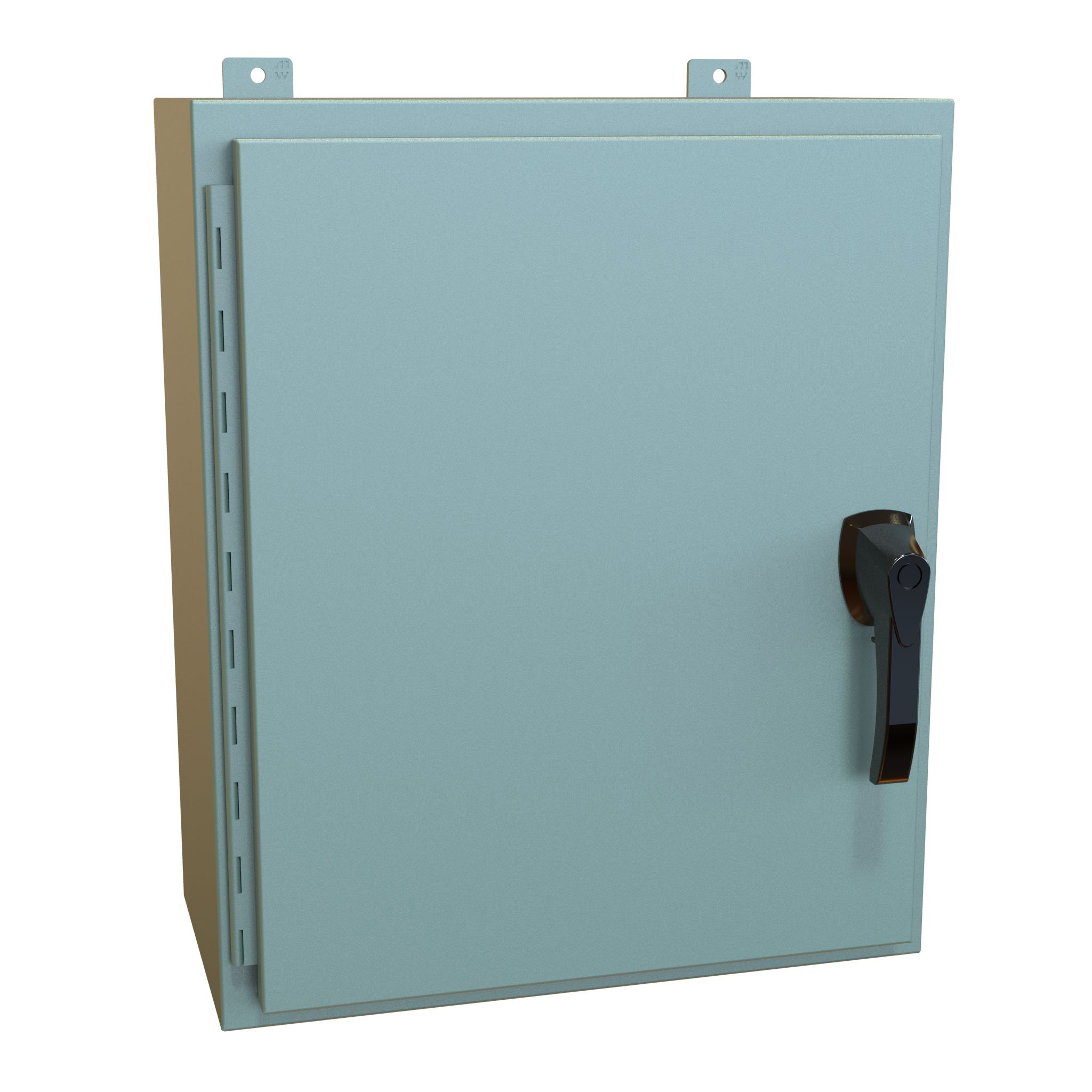

| HW242010GYHK | 24.00 | 20.00 | 10.00 | 18P2117 | 21.00 | 17.00 | $535.37In stockHW242010GYHK | Buy now |

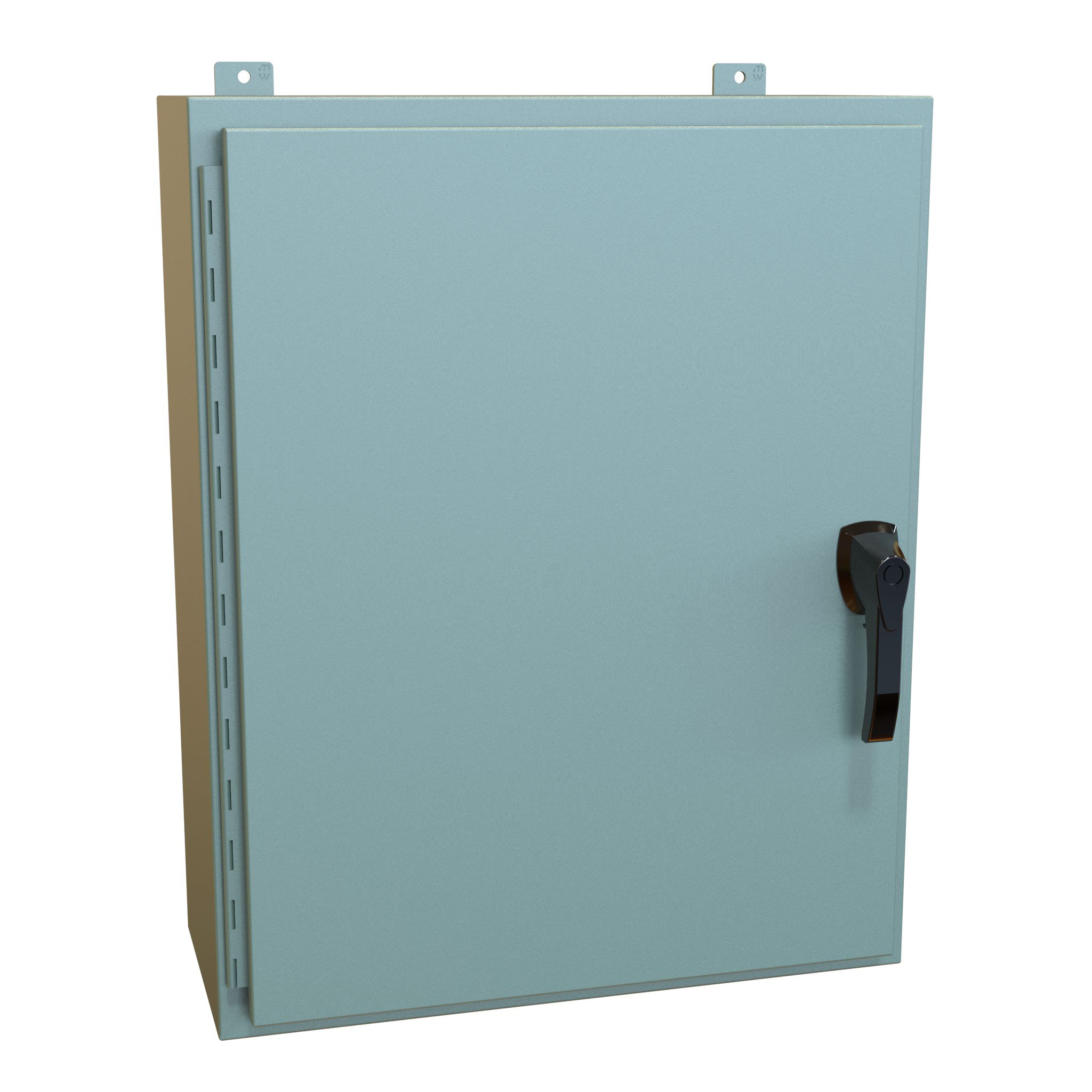

| HW302410GYHK | 30.00 | 24.00 | 10.00 | 18P2721 | 27.00 | 21.00 | $646.65BackorderHW302410GYHK | Buy now |

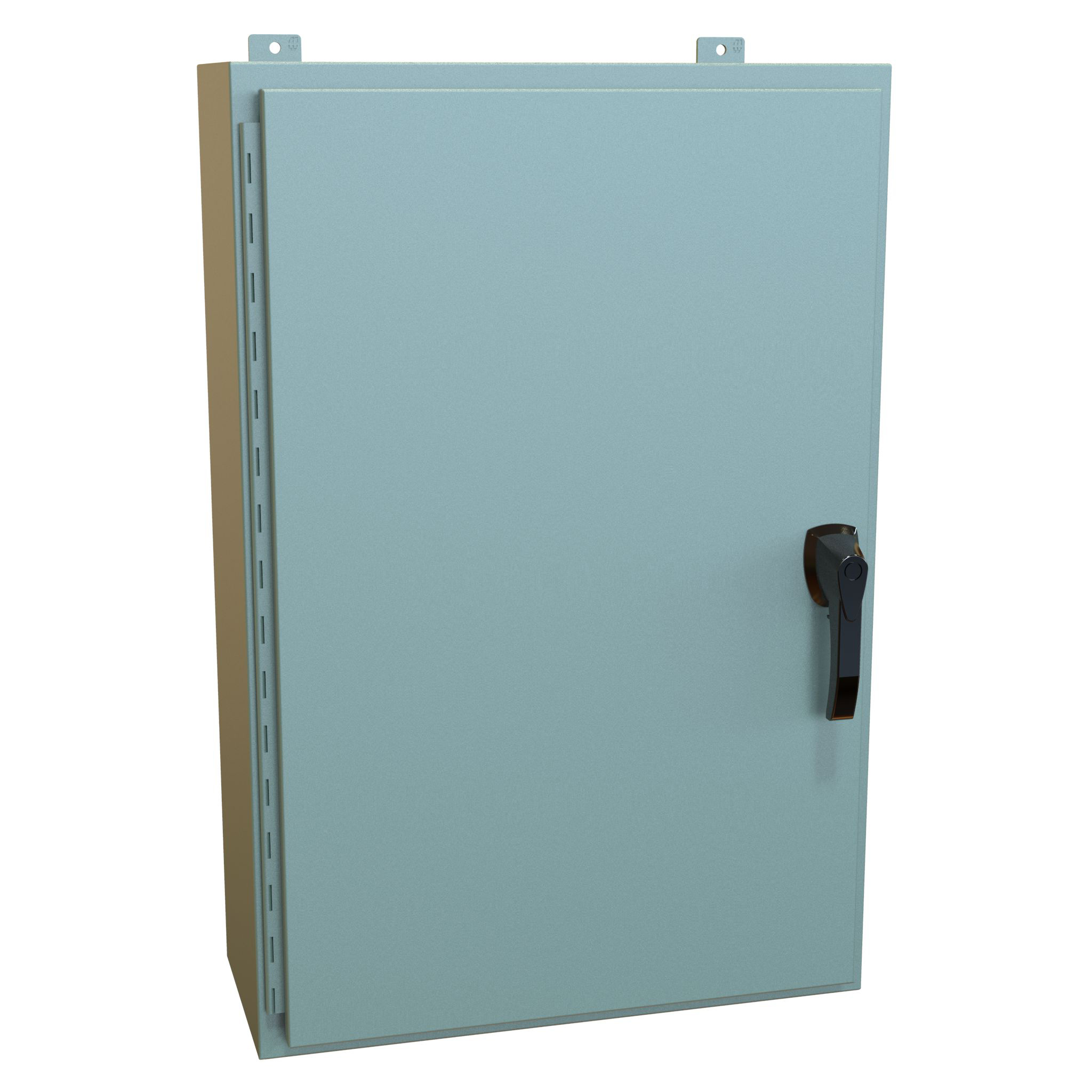

| HW362410GYHK | 36.00 | 24.00 | 10.00 | 18P3321 | 33.00 | 21.00 | $710.85In stockHW362410GYHK | Buy now |

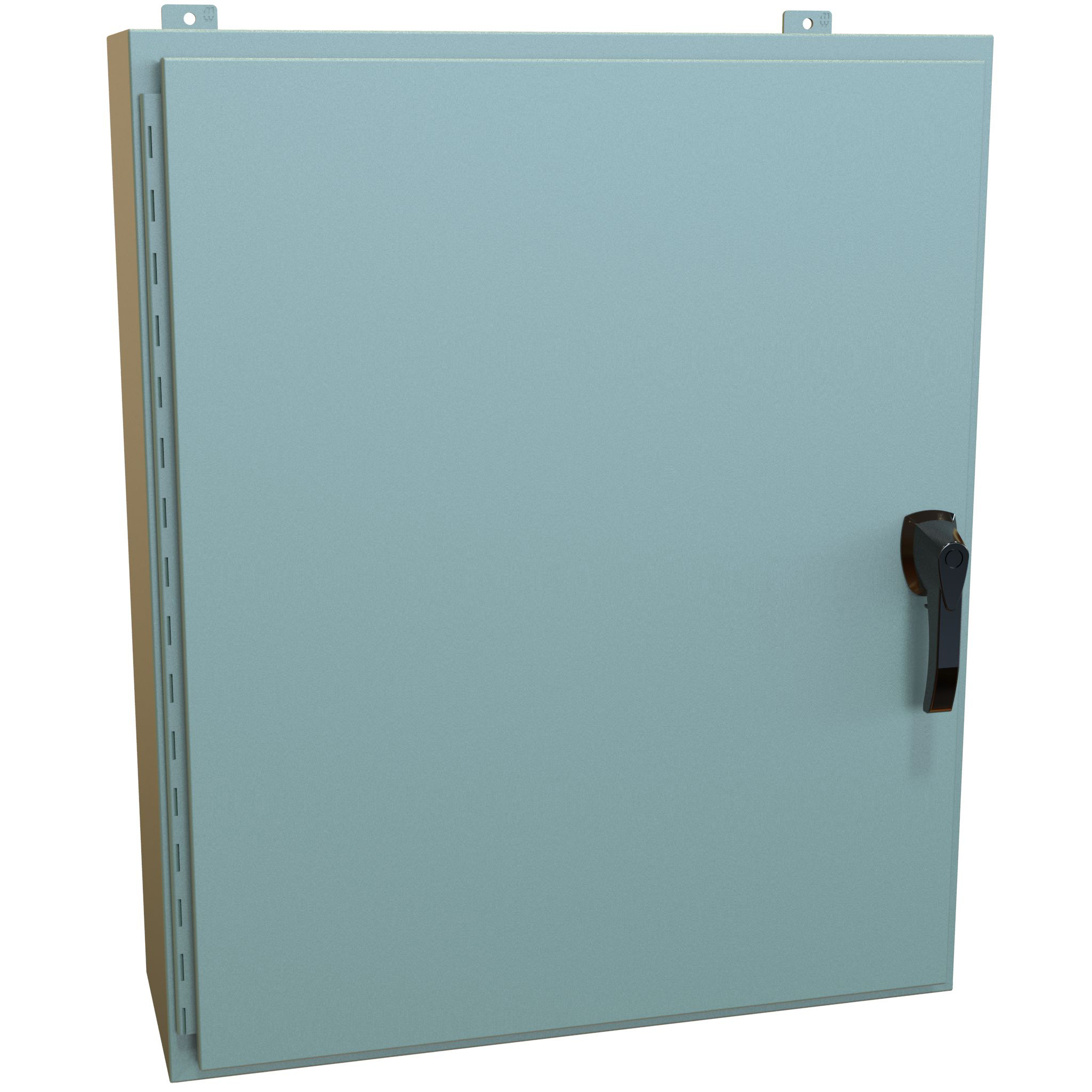

| HW363010GYHK | 36.00 | 30.00 | 10.00 | 18P3327 | 33.00 | 27.00 | $798.38In stockHW363010GYHK | Buy now |

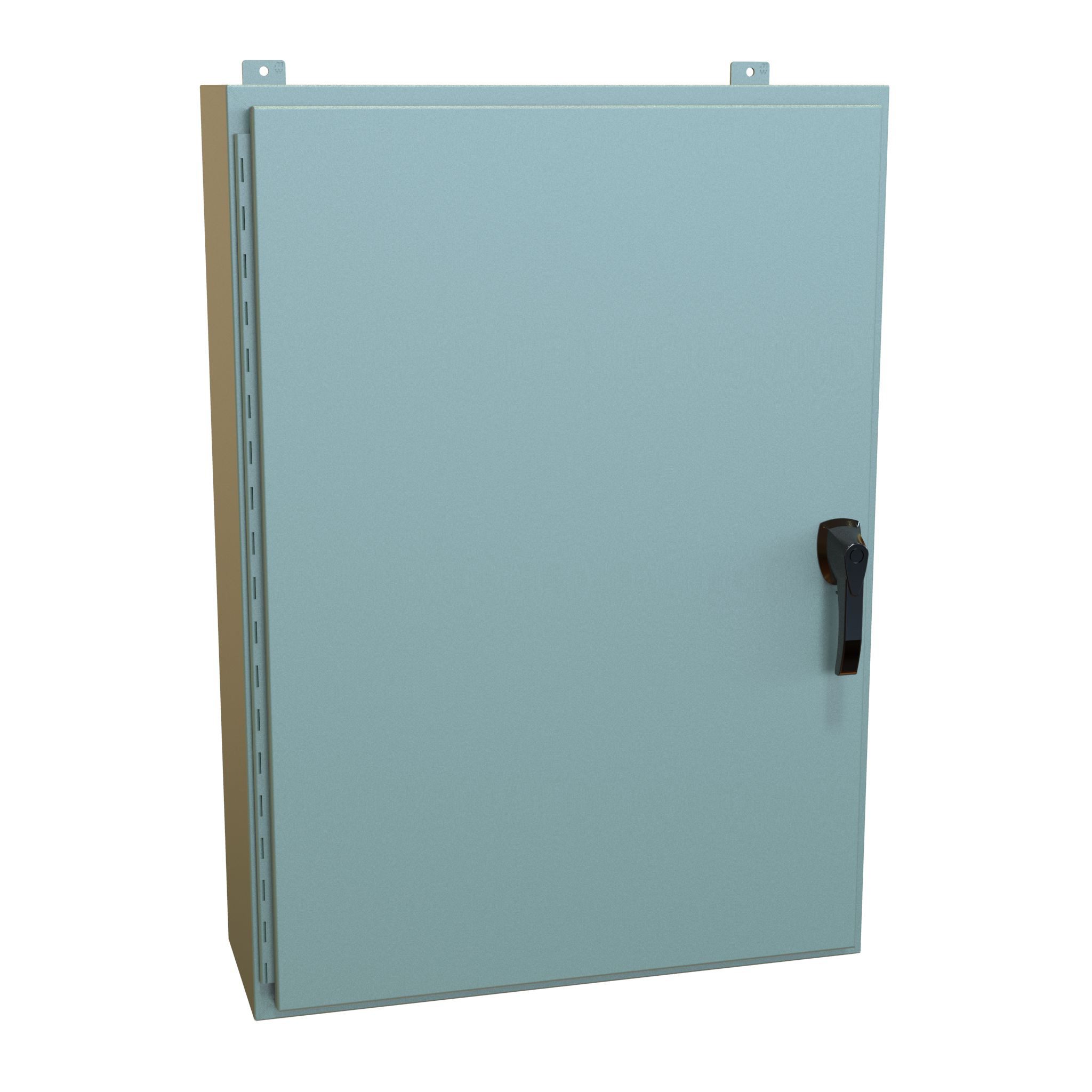

| HW423010GYHK | 42.00 | 30.00 | 10.00 | 18P3927 | 39.00 | 27.00 | $900.39BackorderHW423010GYHK | Buy now |

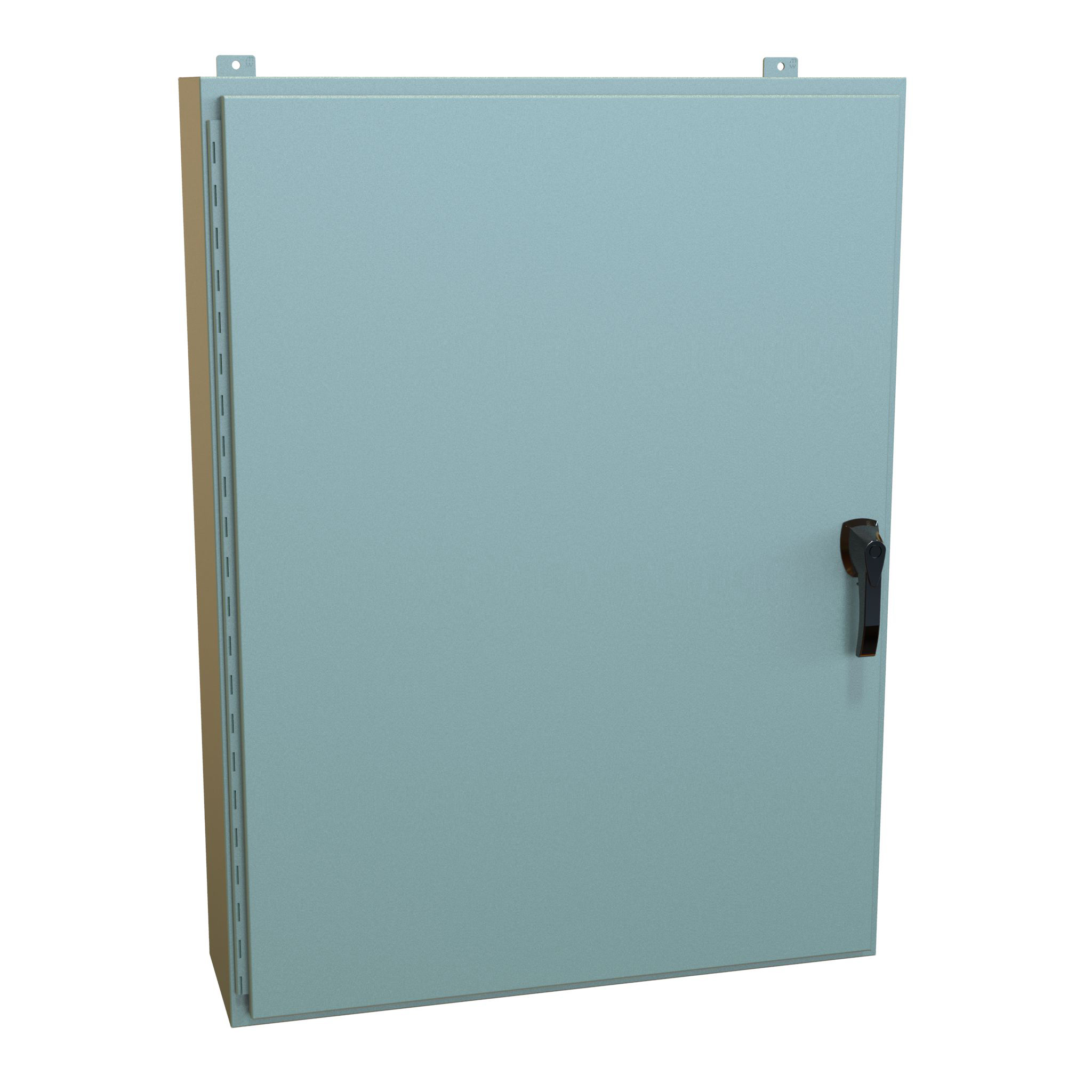

| HW483610GYHK | 48.00 | 36.00 | 10.00 | 18P4533 | 45.00 | 33.00 | $1,062.95BackorderHW483610GYHK | Buy now |

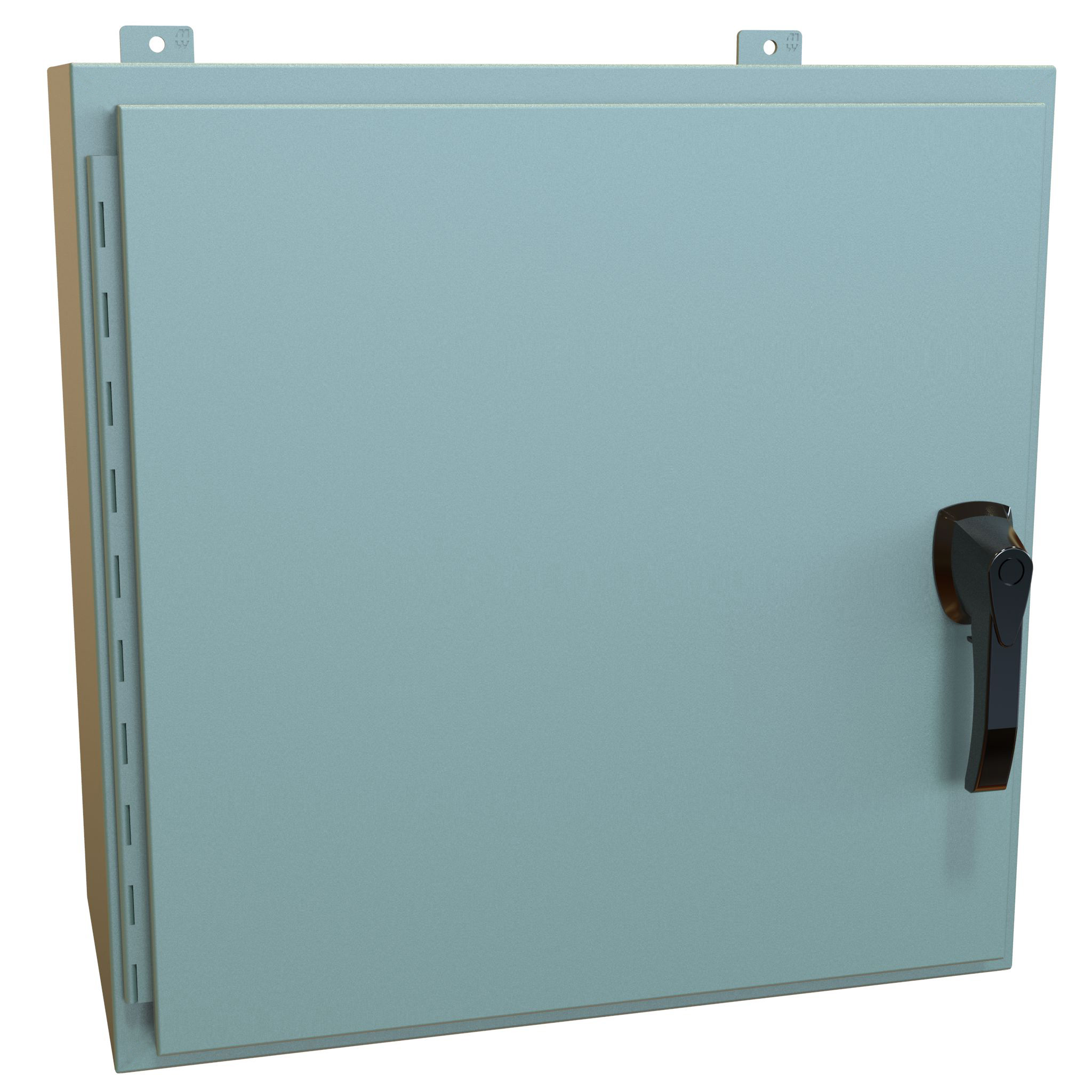

| HW242412GYHK | 24.00 | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 | $604.49In stockHW242412GYHK | Buy now |

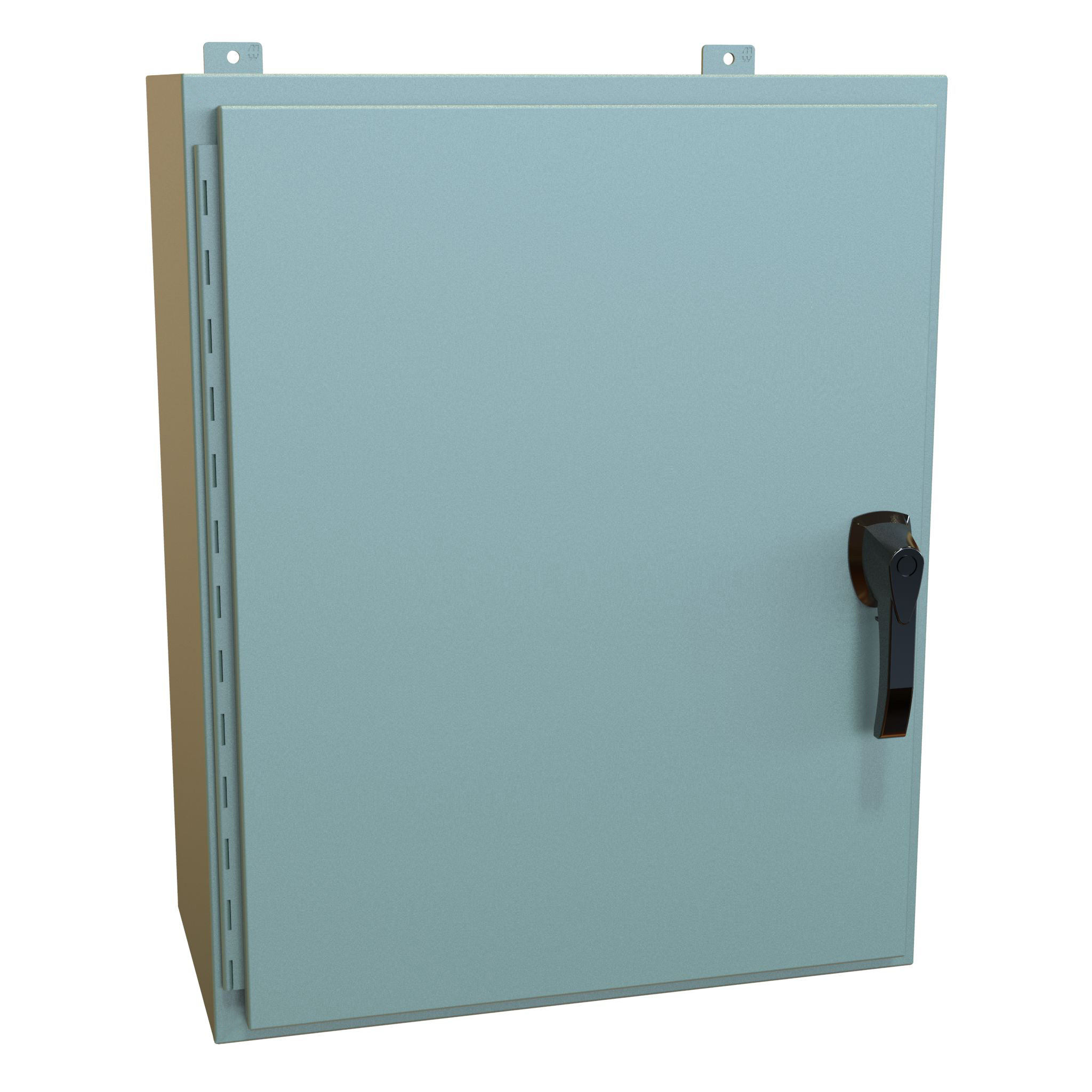

| HW302412GYHK | 30.00 | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 | $676.20In stockHW302412GYHK | Buy now |

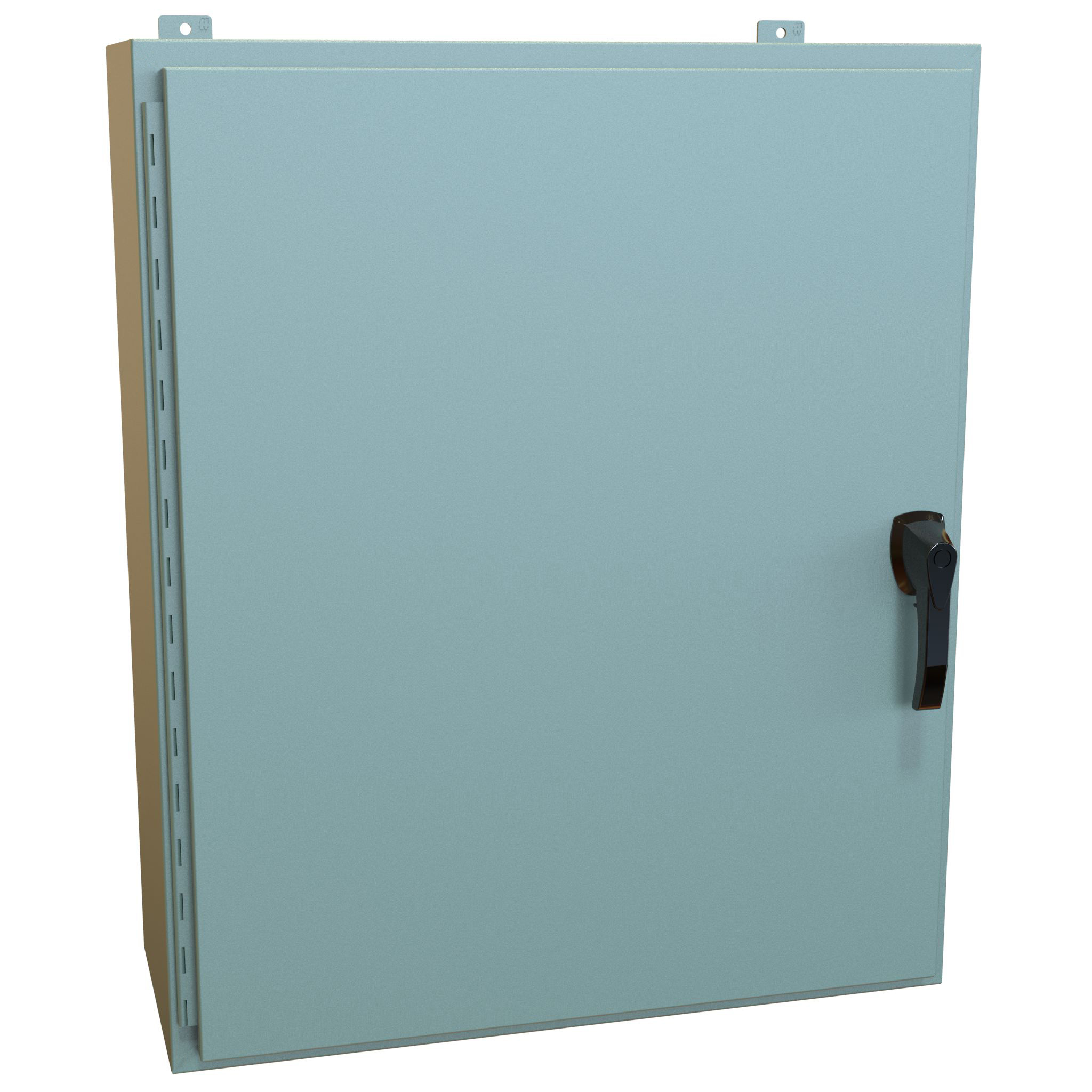

| HW363012GYHK | 36.00 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 | $835.30In stockHW363012GYHK | Buy now |

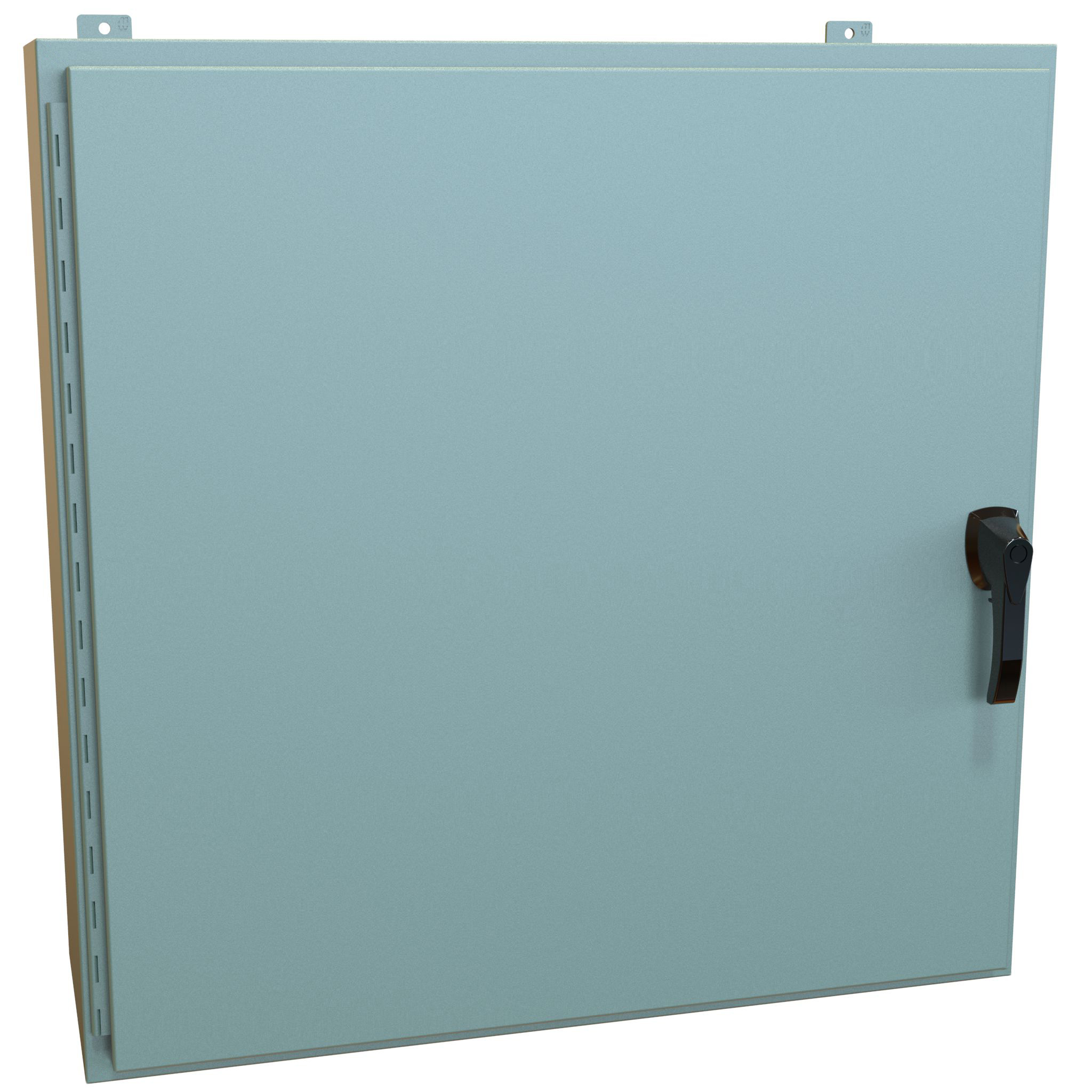

| HW363612GYHK | 36.00 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 | $939.28In stockHW363612GYHK | Buy now |

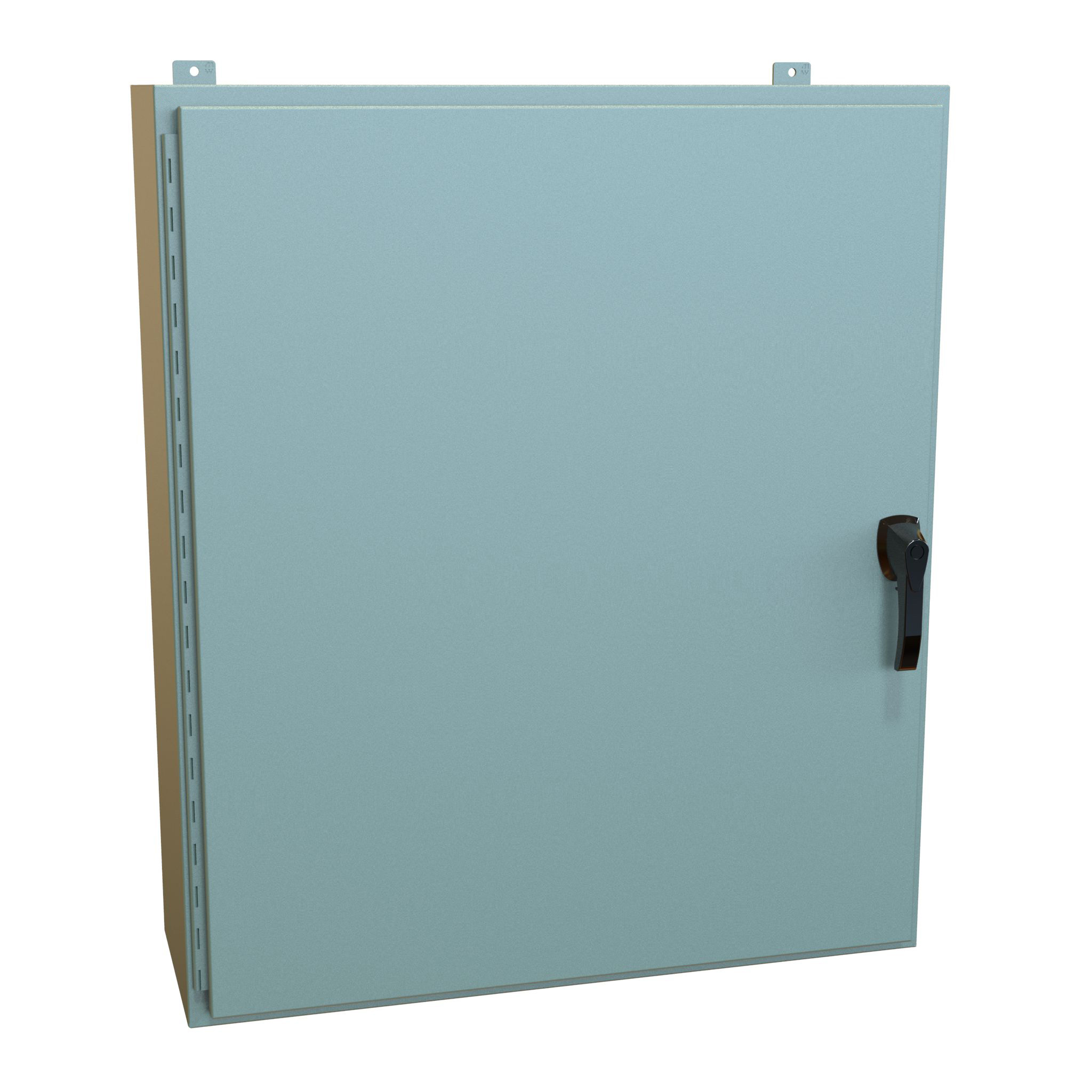

| HW423612GYHK | 42.00 | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 | $1,031.43In stockHW423612GYHK | Buy now |

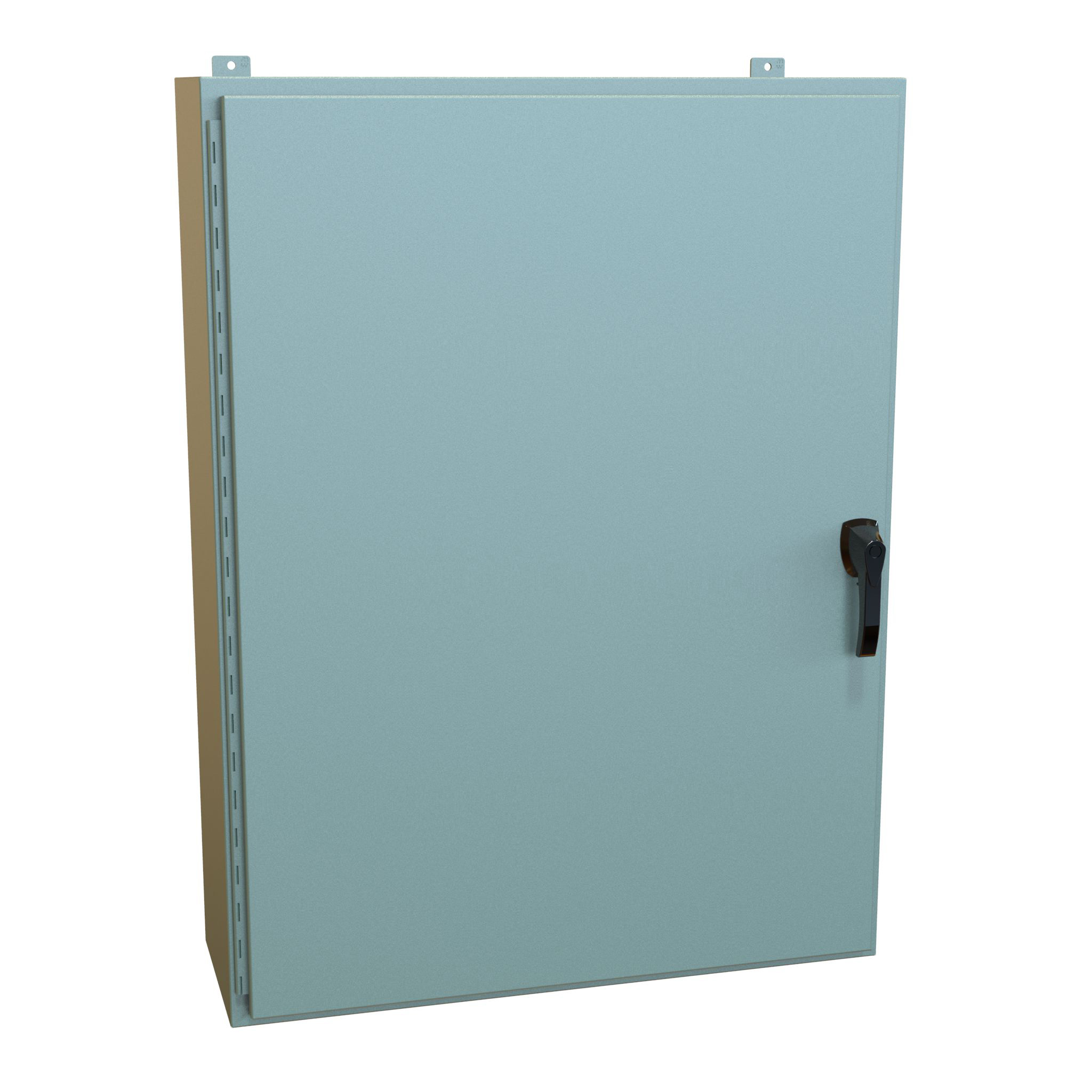

| HW483612GYHK | 48.00 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 | $1,110.34In stockHW483612GYHK | Buy now |

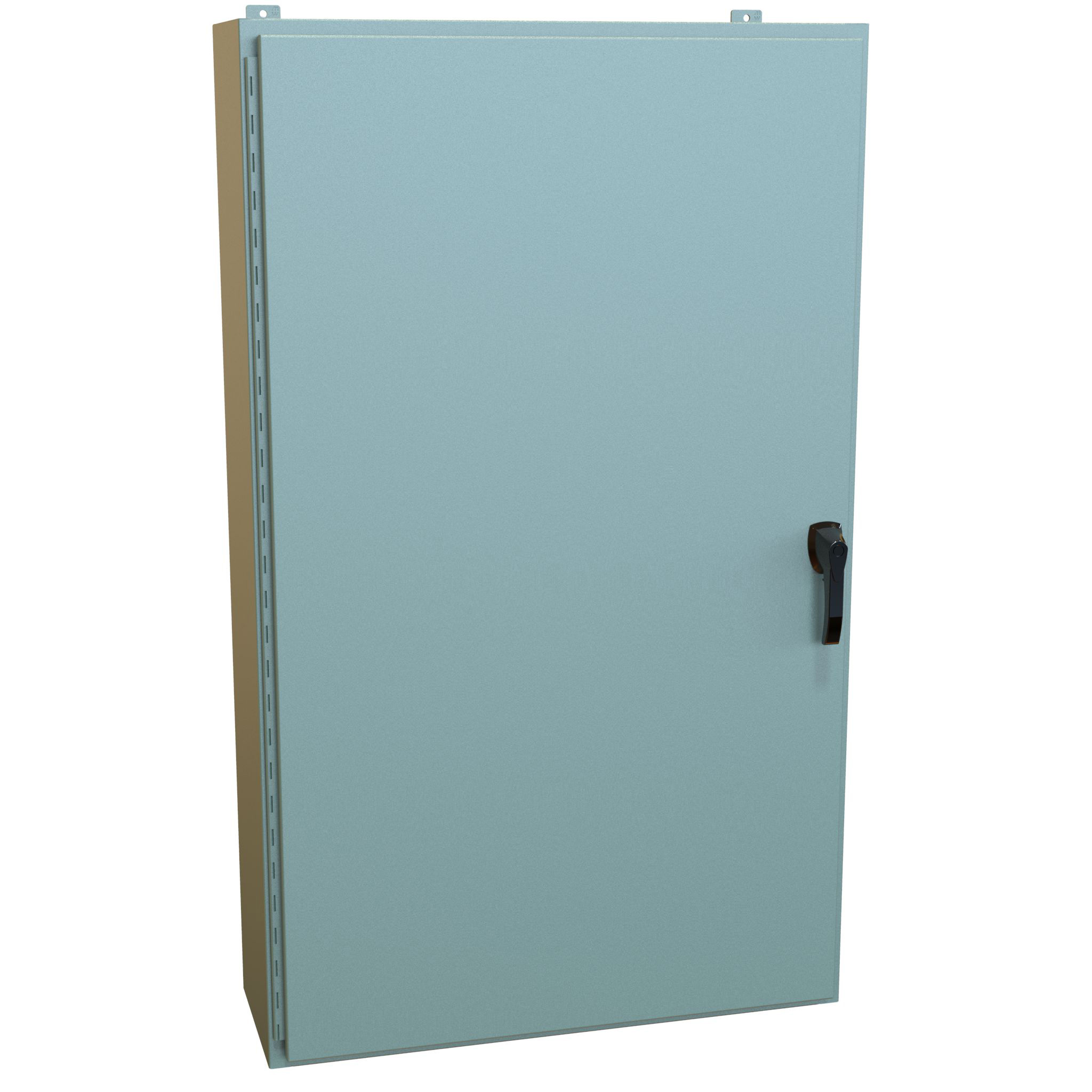

| HW603612GYHK | 60.00 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 | $1,308.75BackorderHW603612GYHK | Buy now |

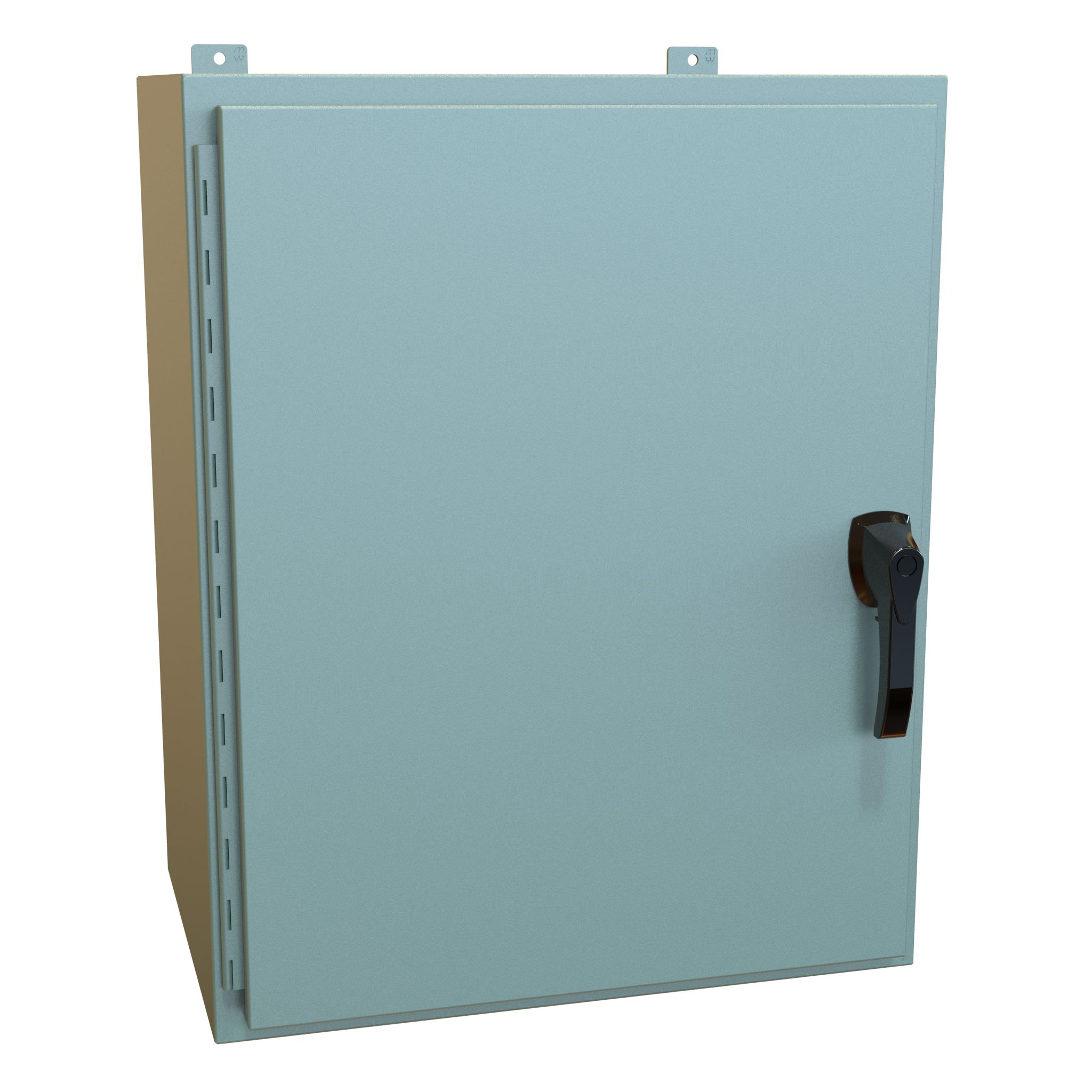

| HW302416GYHK | 30.00 | 24.00 | 16.00 | 18P2721 | 27.00 | 21.00 | $754.95BackorderHW302416GYHK | Buy now |

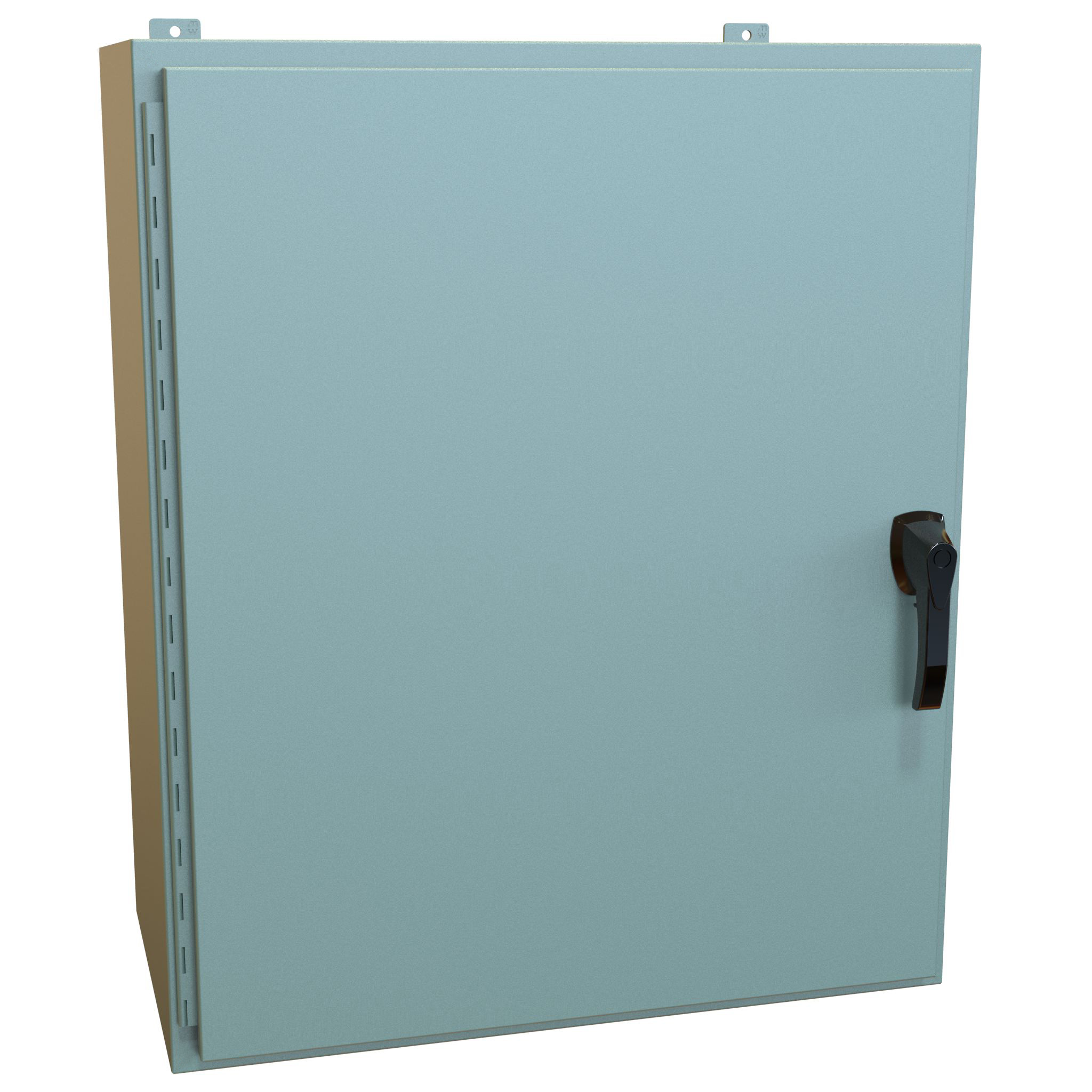

| HW363016GYHK | 36.00 | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 | $934.40In stockHW363016GYHK | Buy now |

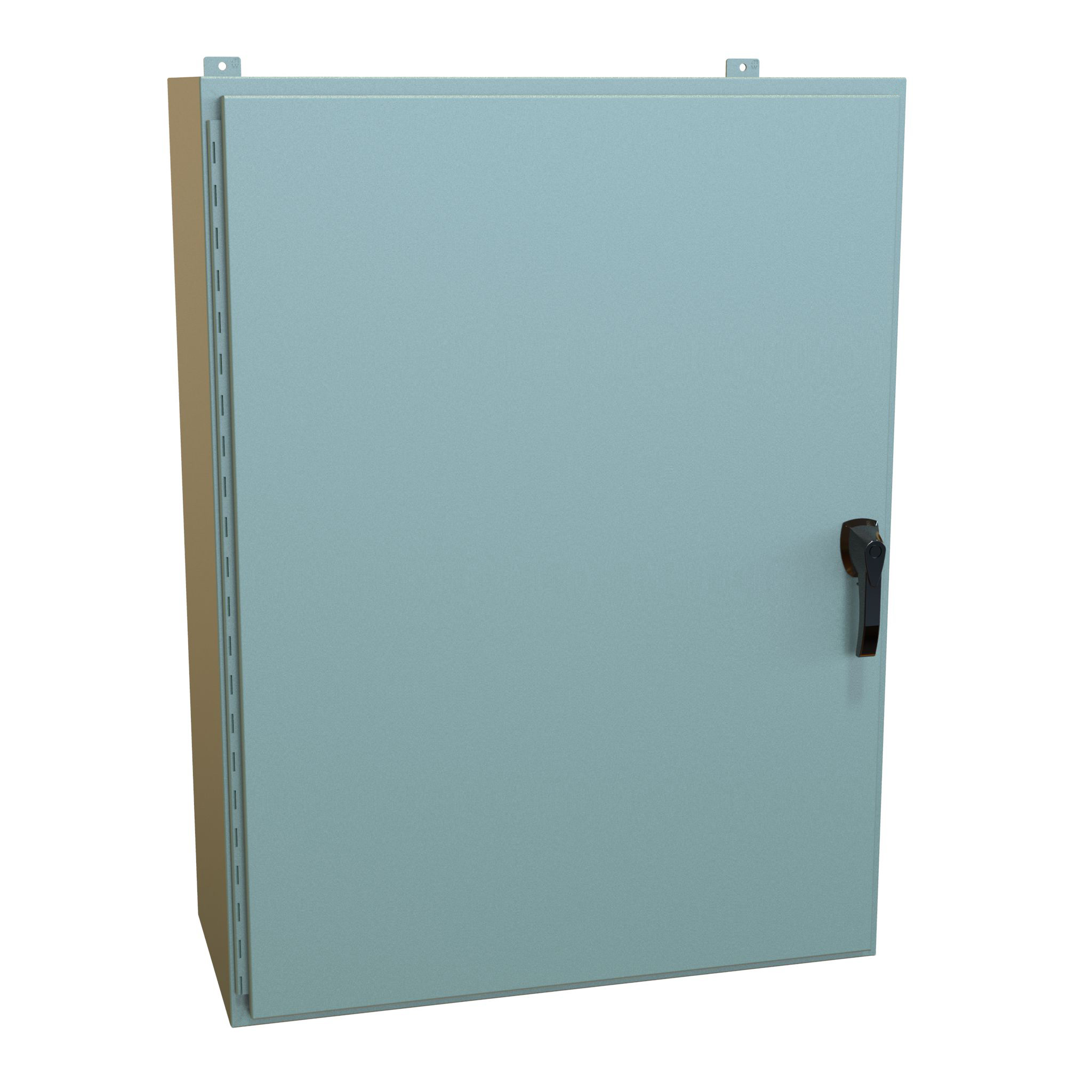

| HW483616GYHK | 48.00 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 | $1,205.06In stockHW483616GYHK | Buy now |
| HW603616GYHK | 60.00 | 36.00 | 16.00 | 18P5733 | 57.00 | 33.00 | $1,453.79In stockHW603616GYHK | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.
Standards
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with NEMA 3R, 4, 12 and 13 IEC 60529, IP 66
- ■NEMA 3R, 4, 12 and 13
- ■IEC 60529, IP 66
Construction
- ■Formed 14 gauge steel bodies and doors.
- ■Continuously welded seams ground smooth.
- ■Formed lip on enclosure to exclude flowing liquids and contaminants.
- ■Powder coated black zinc diecast pad lockable handle with 3 point roller latching system secures door.
- ■Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- ■Seamless poured-in place gasket.
- ■Collar studs provided for mounting inner panel.
- ■Bonding stud provided on door and grounding stud installed in enclosure.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating interior and exterior.
Documents
Additional information
Part Details
| Part No. | Overall Dimensions · H | Overall Dimensions · W | Overall Dimensions · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|
| HW24206GYHK | 24.00 | 20.00 | 6.00 | 18P2117 | 21.00 | 17.00 |
| HW24246GYHK | 24.00 | 24.00 | 6.00 | 18P2121 | 21.00 | 21.00 |
| HW24168GYHK | 24.00 | 16.00 | 8.00 | 18P2113 | 21.00 | 13.00 |
| HW24208GYHK | 24.00 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 |
| HW24248GYHK | 24.00 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 |
| HW24308GYHK | 24.00 | 30.00 | 8.00 | 18P2721 | 27.00 | 21.00 |
| HW30208GYHK | 30.00 | 20.00 | 8.00 | 18P2717 | 27.00 | 17.00 |
| HW30248GYHK | 30.00 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 |
| HW30308GYHK | 30.00 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 |
| HW36248GYHK | 36.00 | 24.00 | 8.00 | 18P3321 | 33.00 | 21.00 |
| HW36308GYHK | 36.00 | 30.00 | 8.00 | 18P3327 | 33.00 | 27.00 |
| HW42368GYHK | 42.00 | 36.00 | 8.00 | 18P3933 | 39.00 | 33.00 |
| HW48368GYHK | 48.00 | 36.00 | 8.00 | 18P4533 | 45.00 | 33.00 |
| HW242010GYHK | 24.00 | 20.00 | 10.00 | 18P2117 | 21.00 | 17.00 |
| HW302410GYHK | 30.00 | 24.00 | 10.00 | 18P2721 | 27.00 | 21.00 |
| HW362410GYHK | 36.00 | 24.00 | 10.00 | 18P3321 | 33.00 | 21.00 |
| HW363010GYHK | 36.00 | 30.00 | 10.00 | 18P3327 | 33.00 | 27.00 |
| HW423010GYHK | 42.00 | 30.00 | 10.00 | 18P3927 | 39.00 | 27.00 |
| HW483610GYHK | 48.00 | 36.00 | 10.00 | 18P4533 | 45.00 | 33.00 |
| HW242412GYHK | 24.00 | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 |
| HW302412GYHK | 30.00 | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 |
| HW363012GYHK | 36.00 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 |
| HW363612GYHK | 36.00 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 |
| HW423612GYHK | 42.00 | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 |
| HW483612GYHK | 48.00 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 |
| HW603612GYHK | 60.00 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 |
| HW302416GYHK | 30.00 | 24.00 | 16.00 | 18P2721 | 27.00 | 21.00 |
| HW363016GYHK | 36.00 | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 |
| HW483616GYHK | 48.00 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 |
| HW603616GYHK | 60.00 | 36.00 | 16.00 | 18P5733 | 57.00 | 33.00 |
