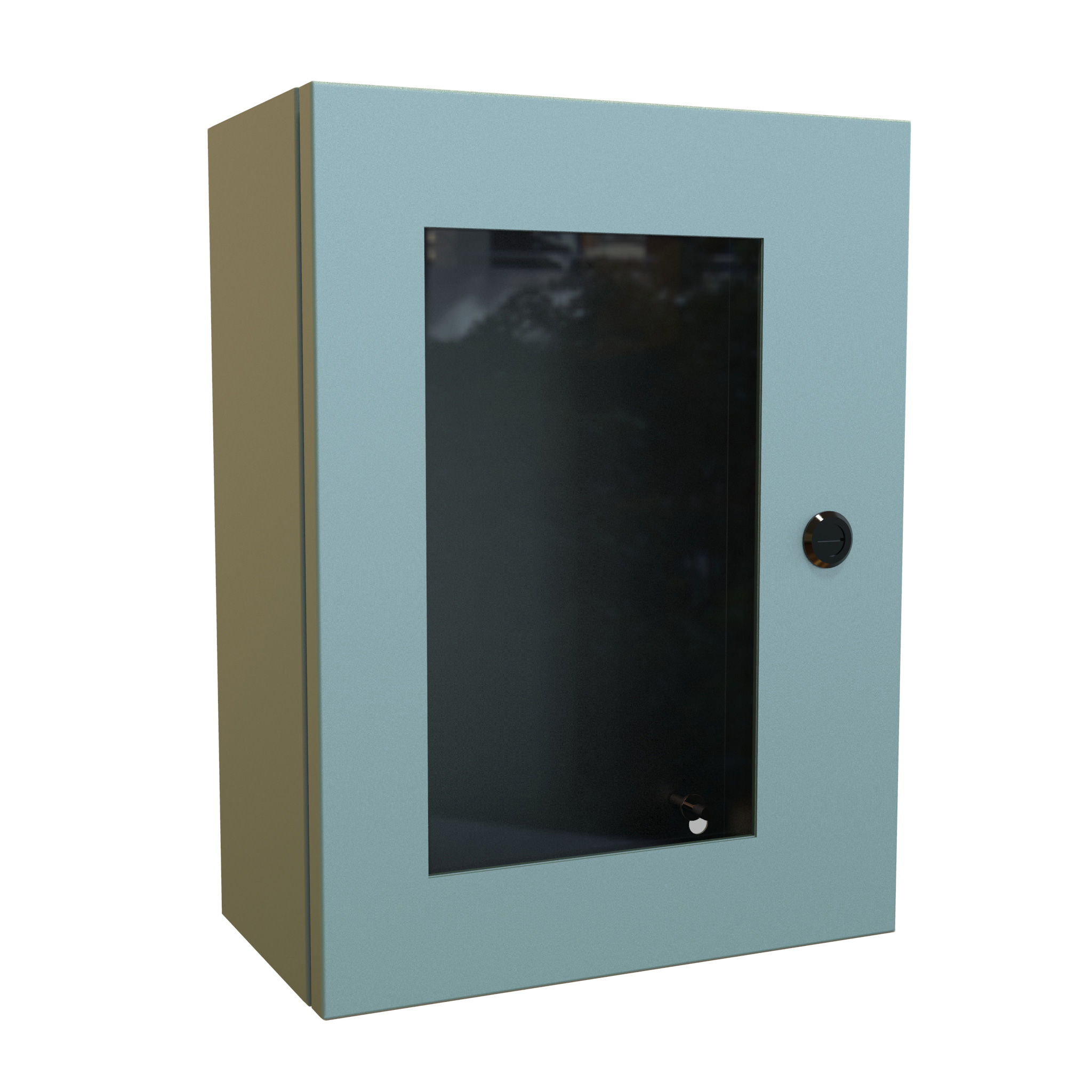

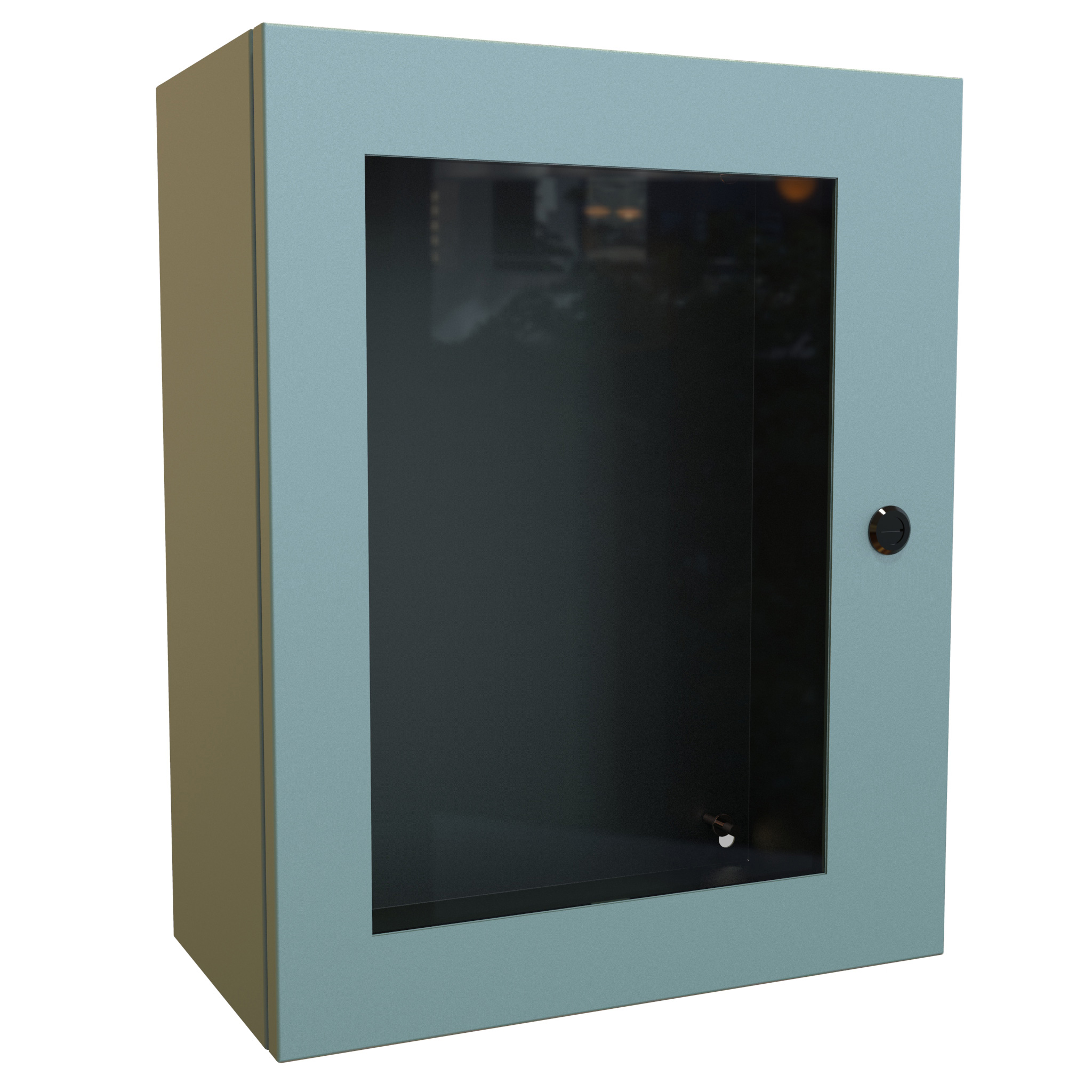

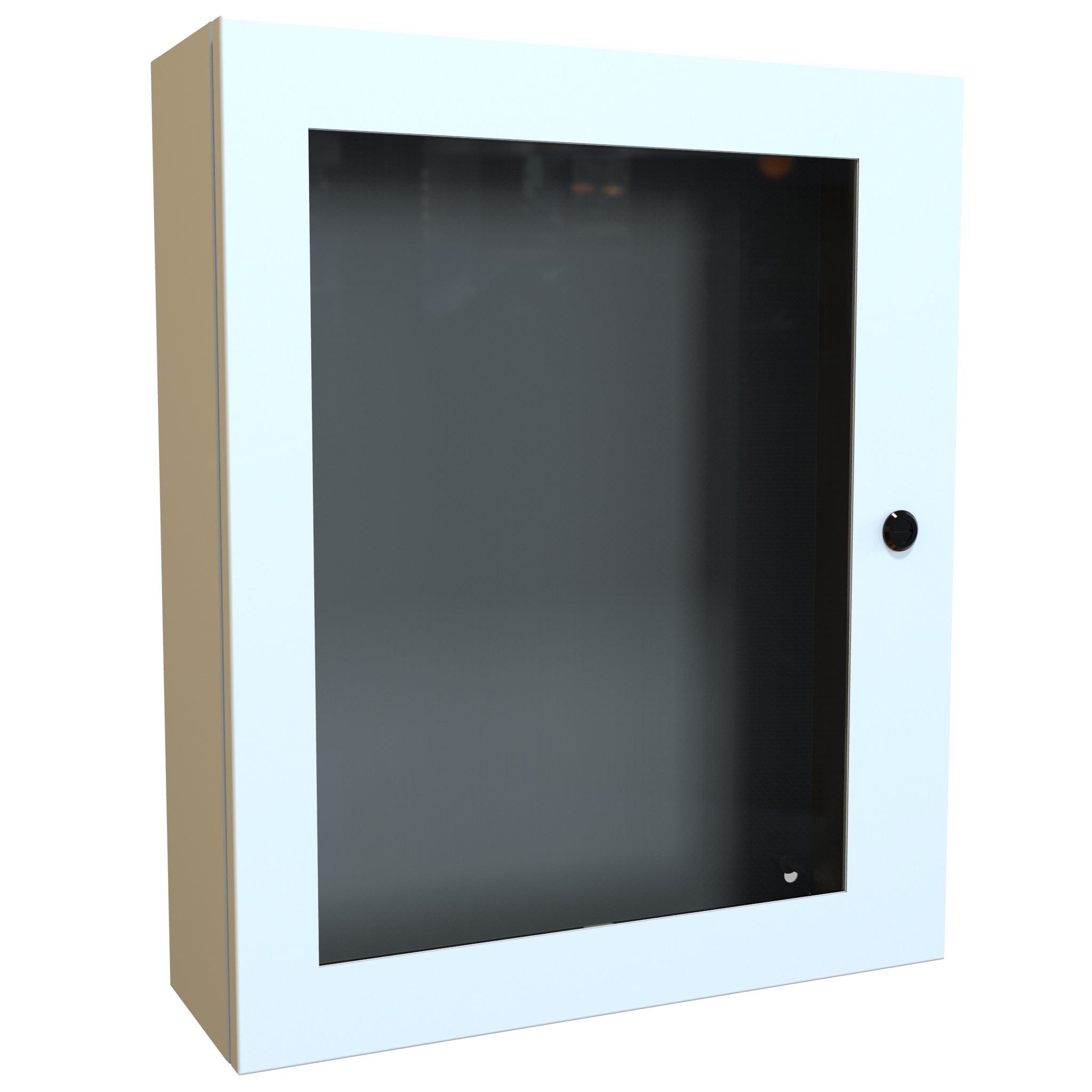

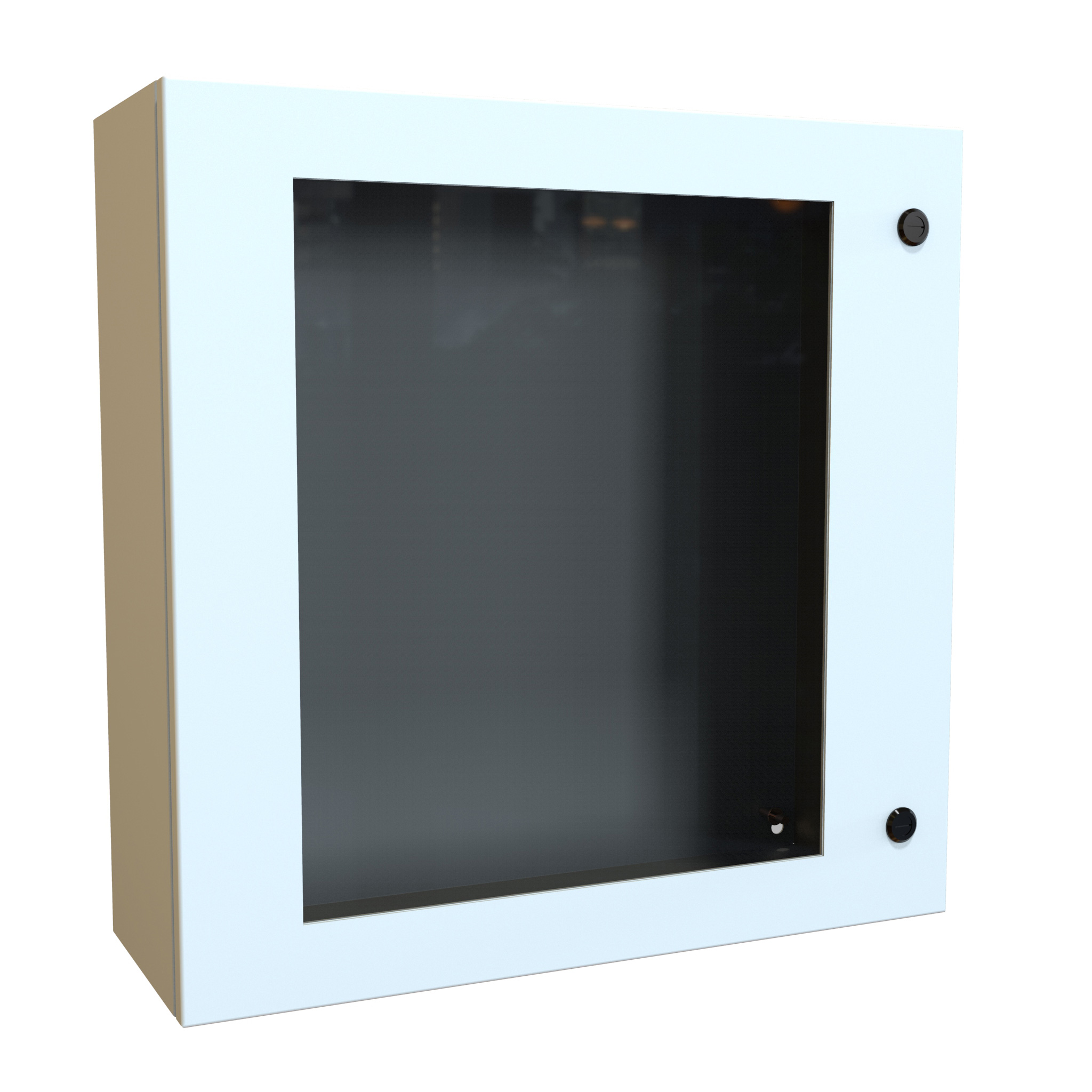

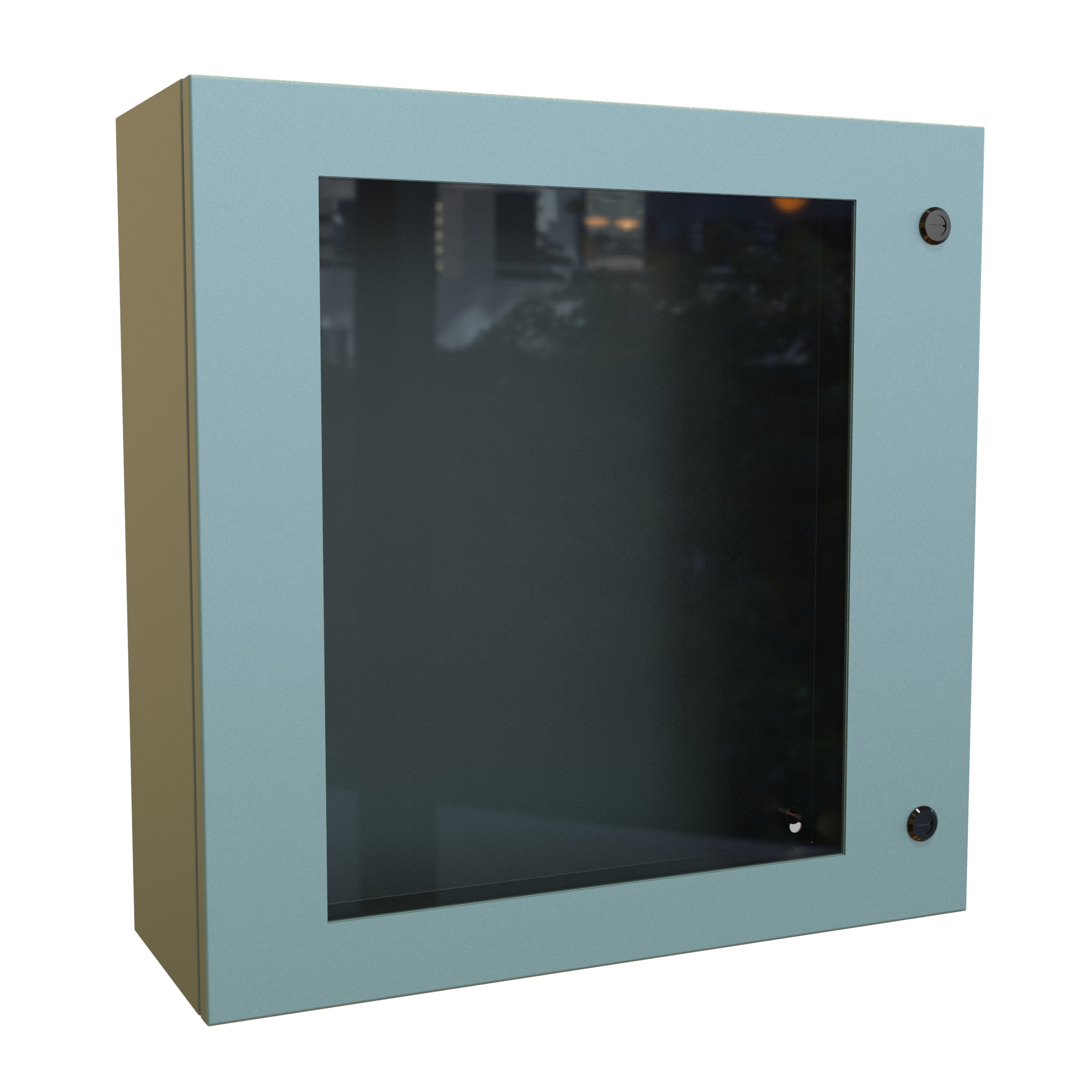

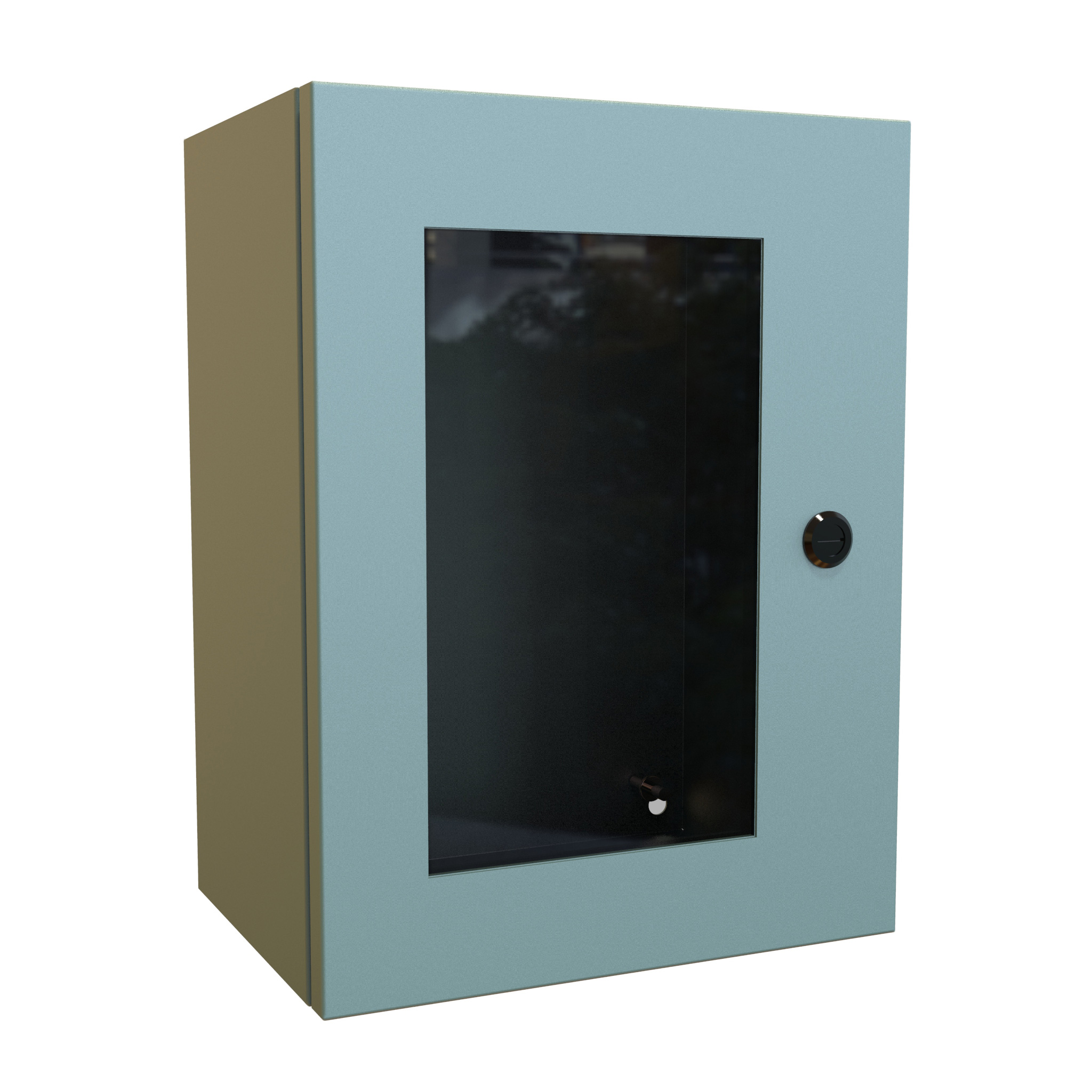

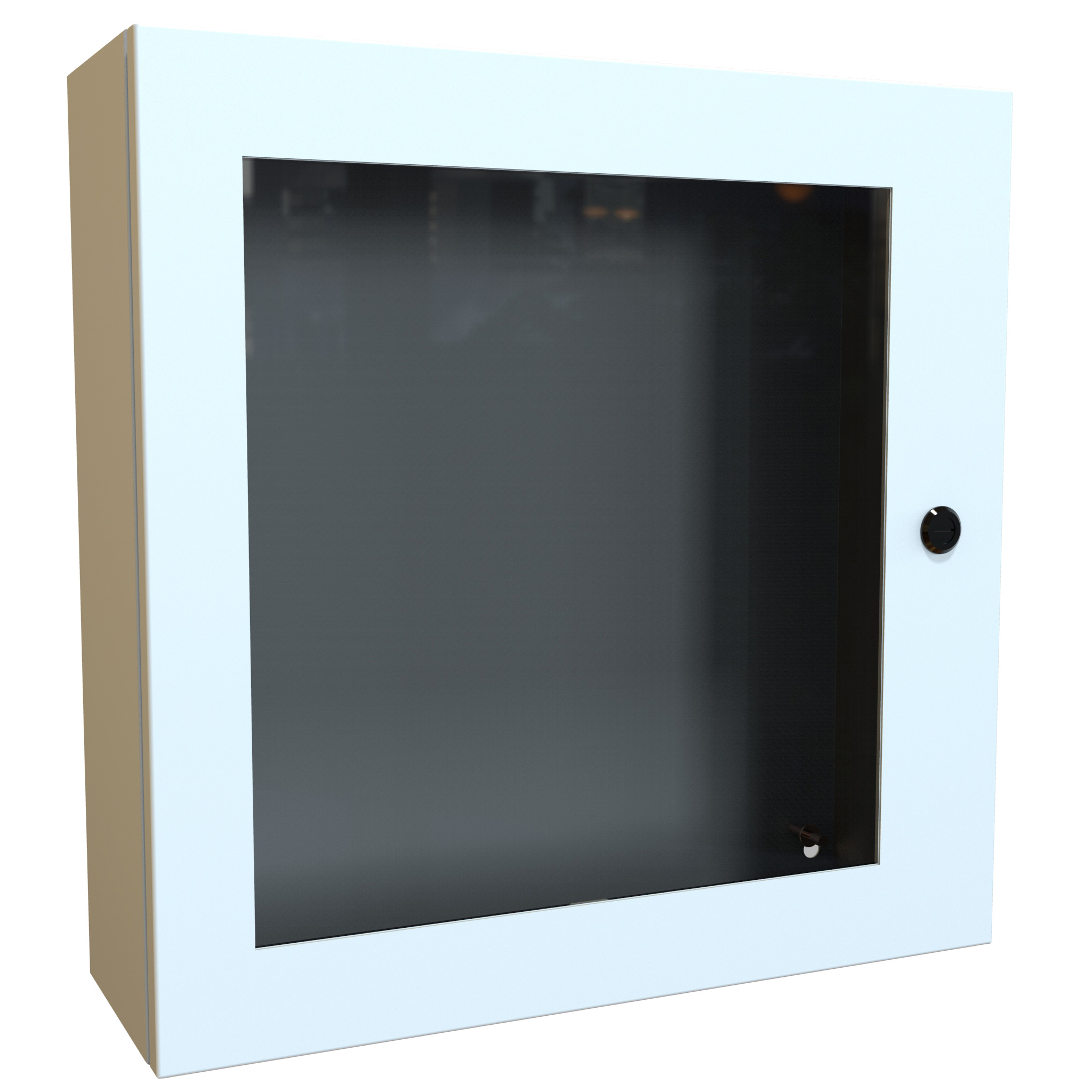

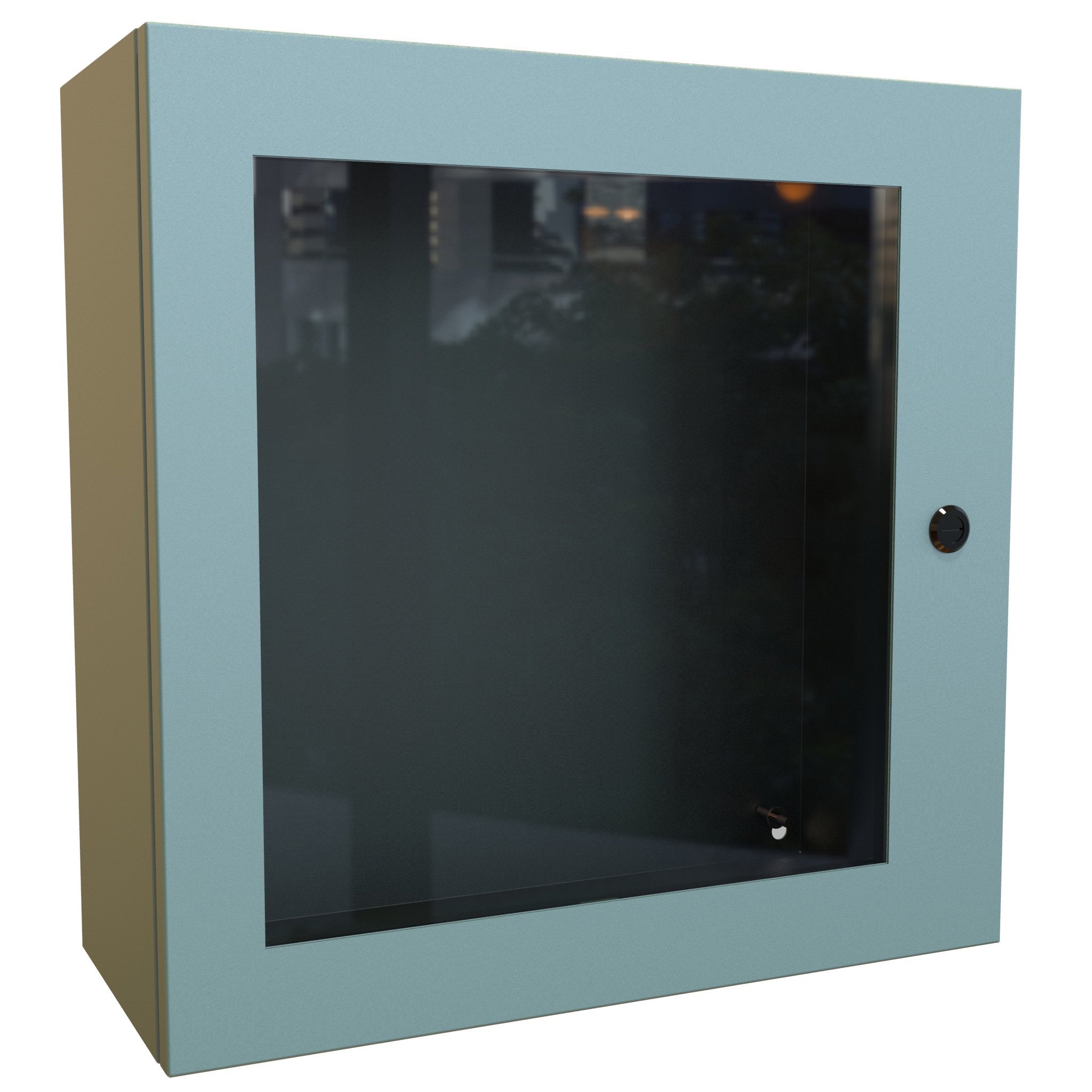

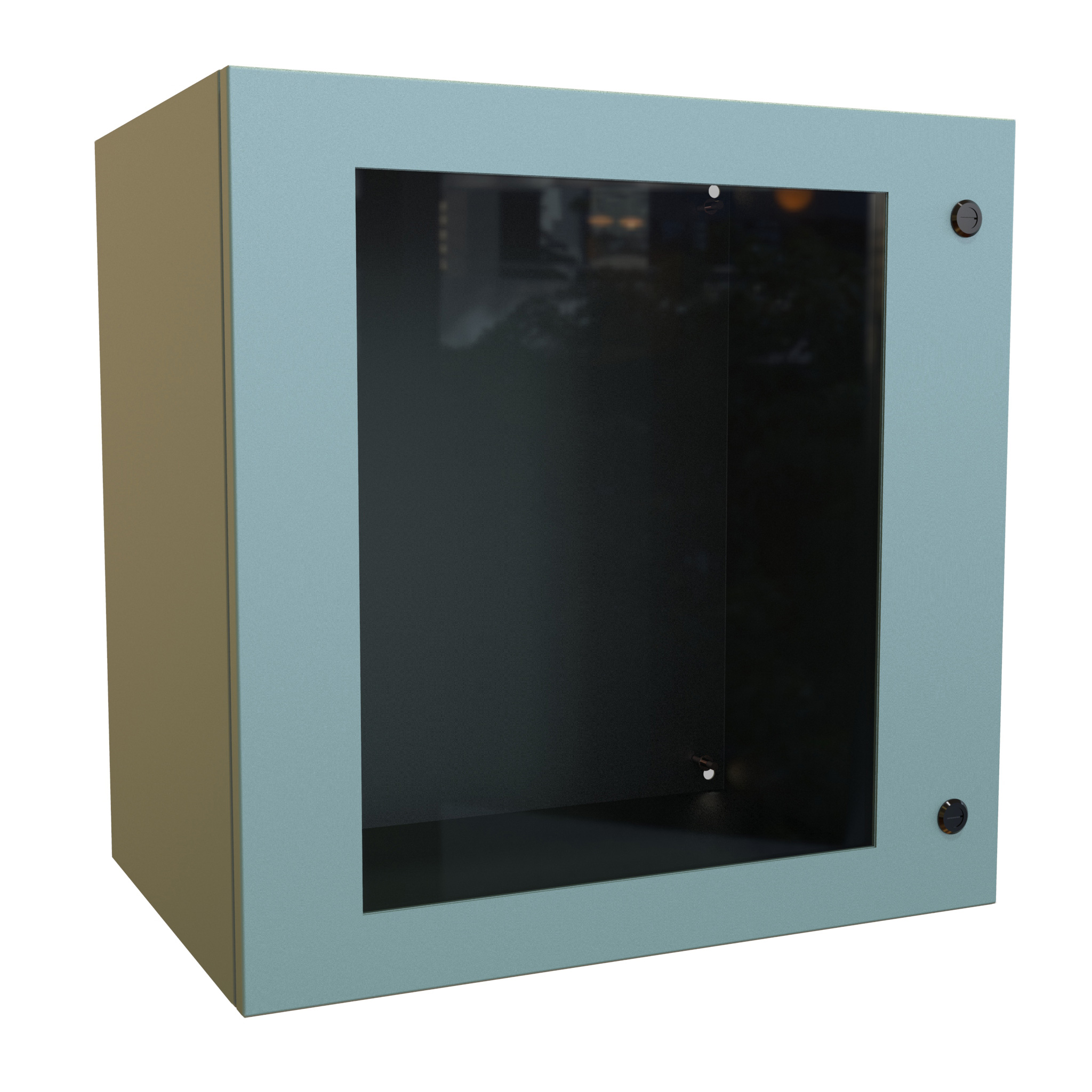

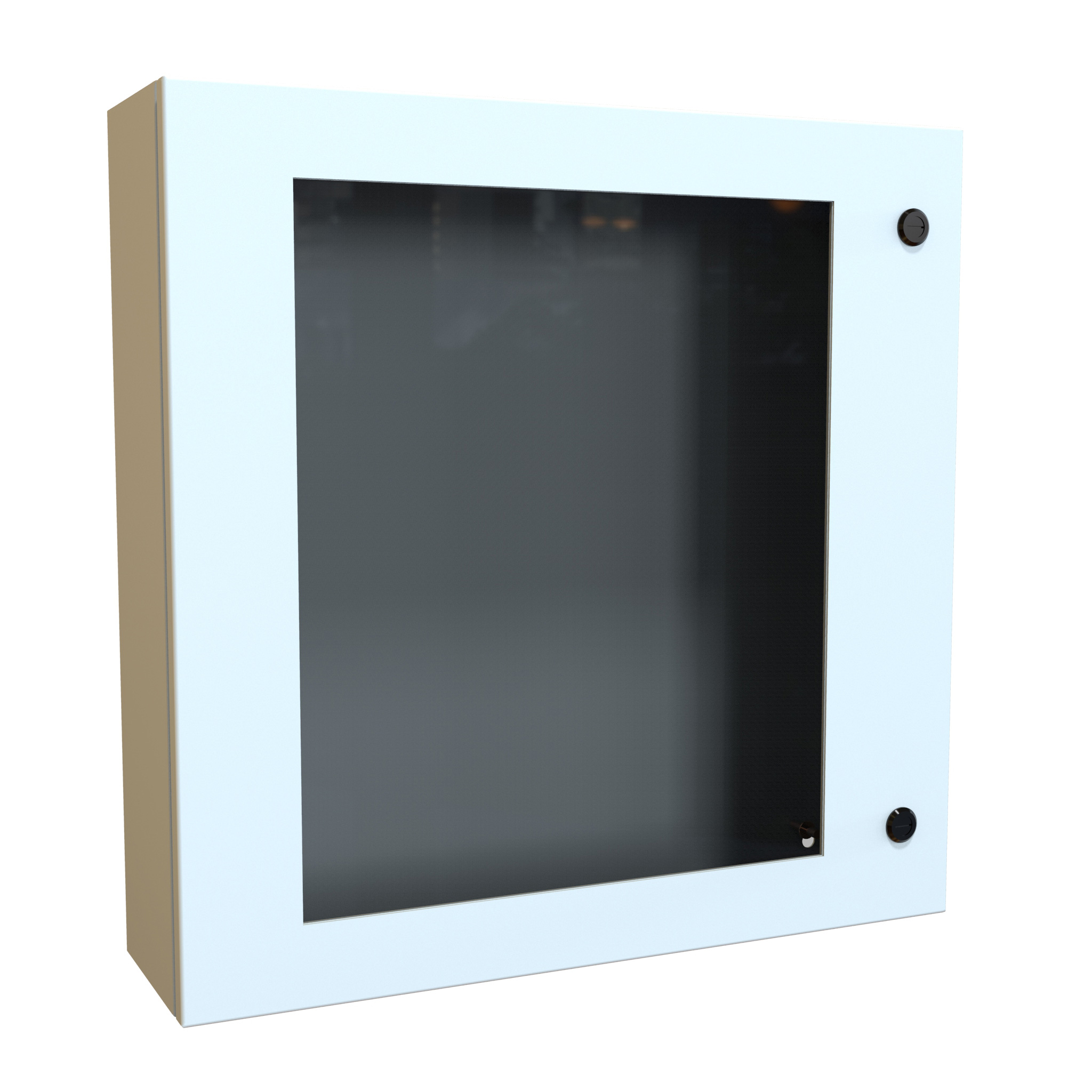

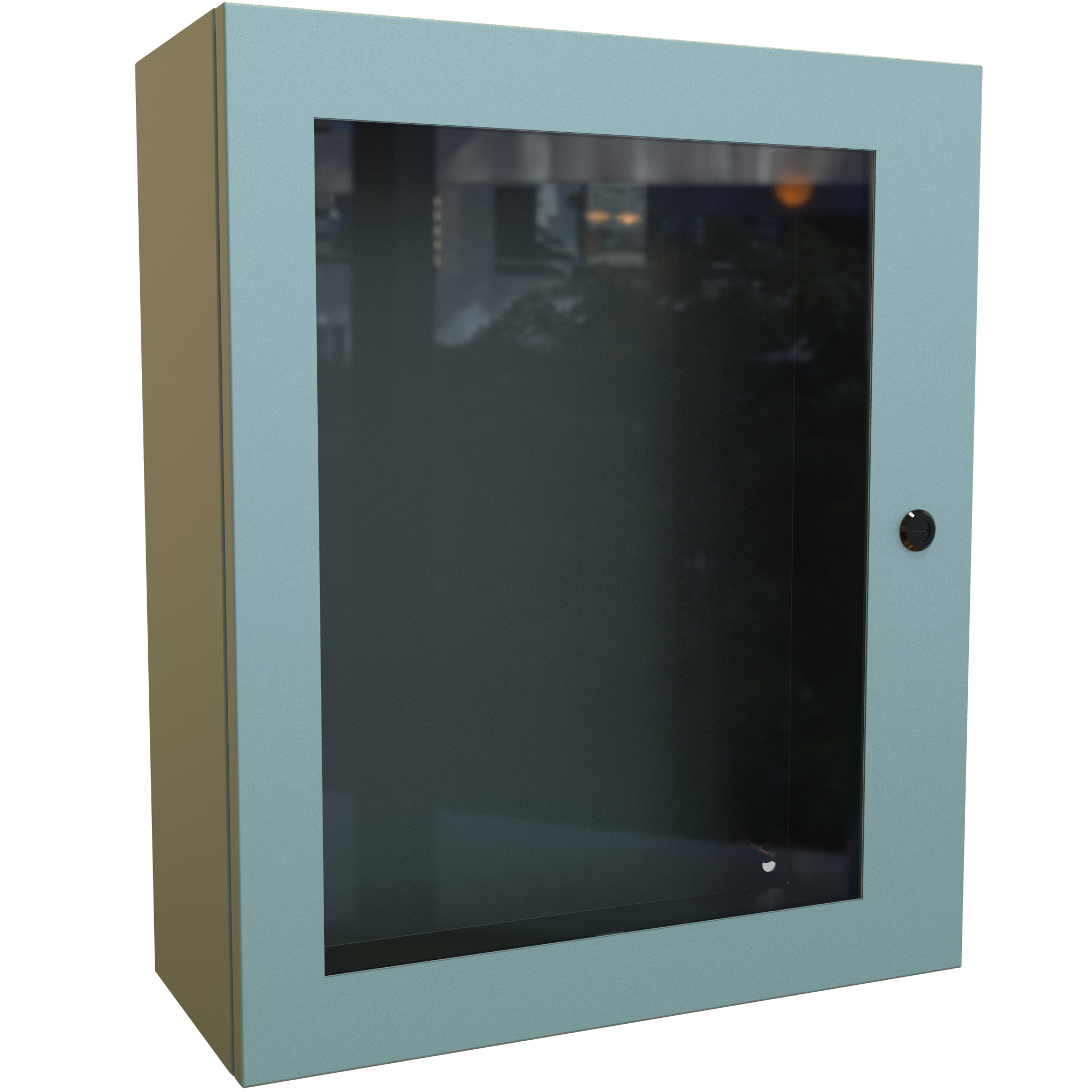

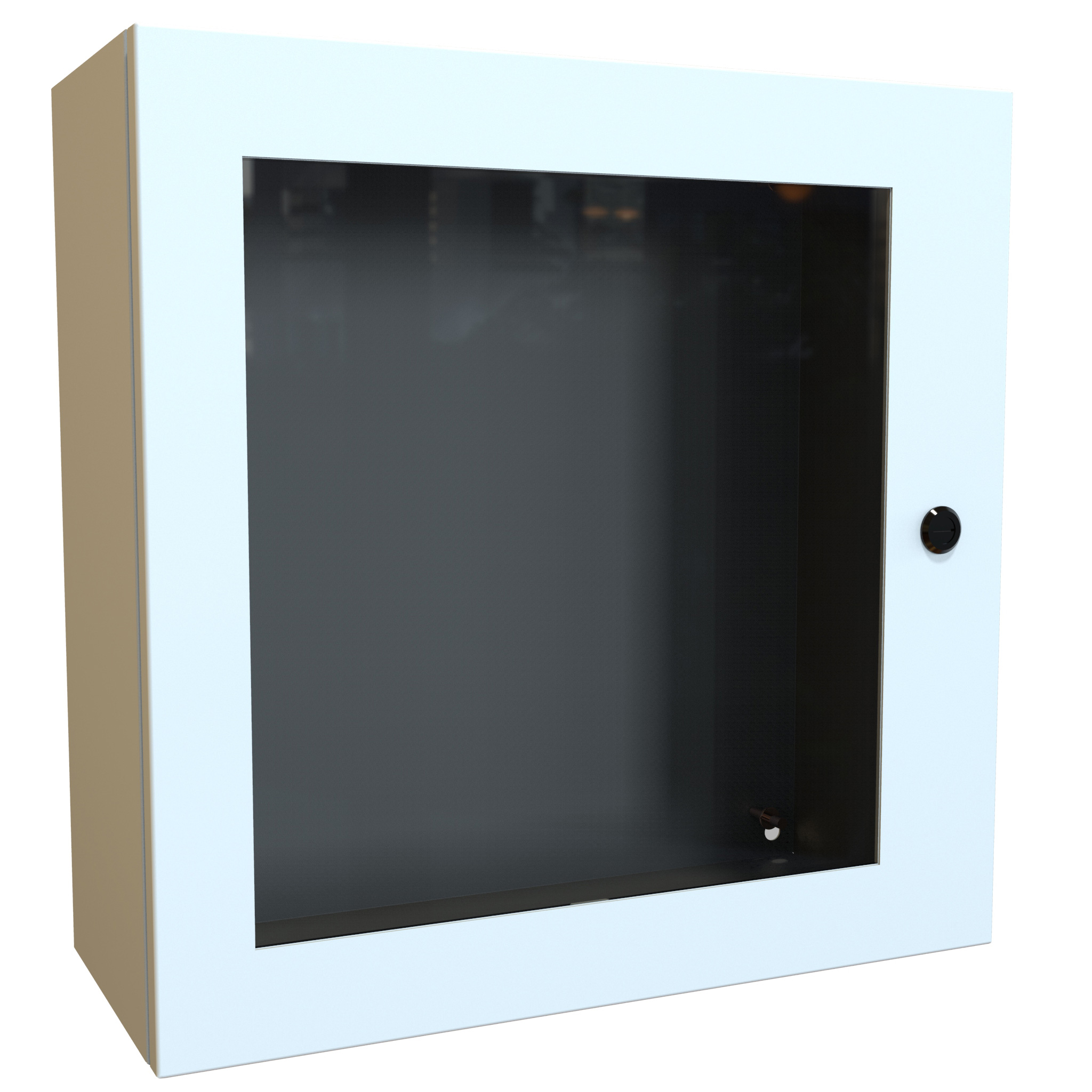

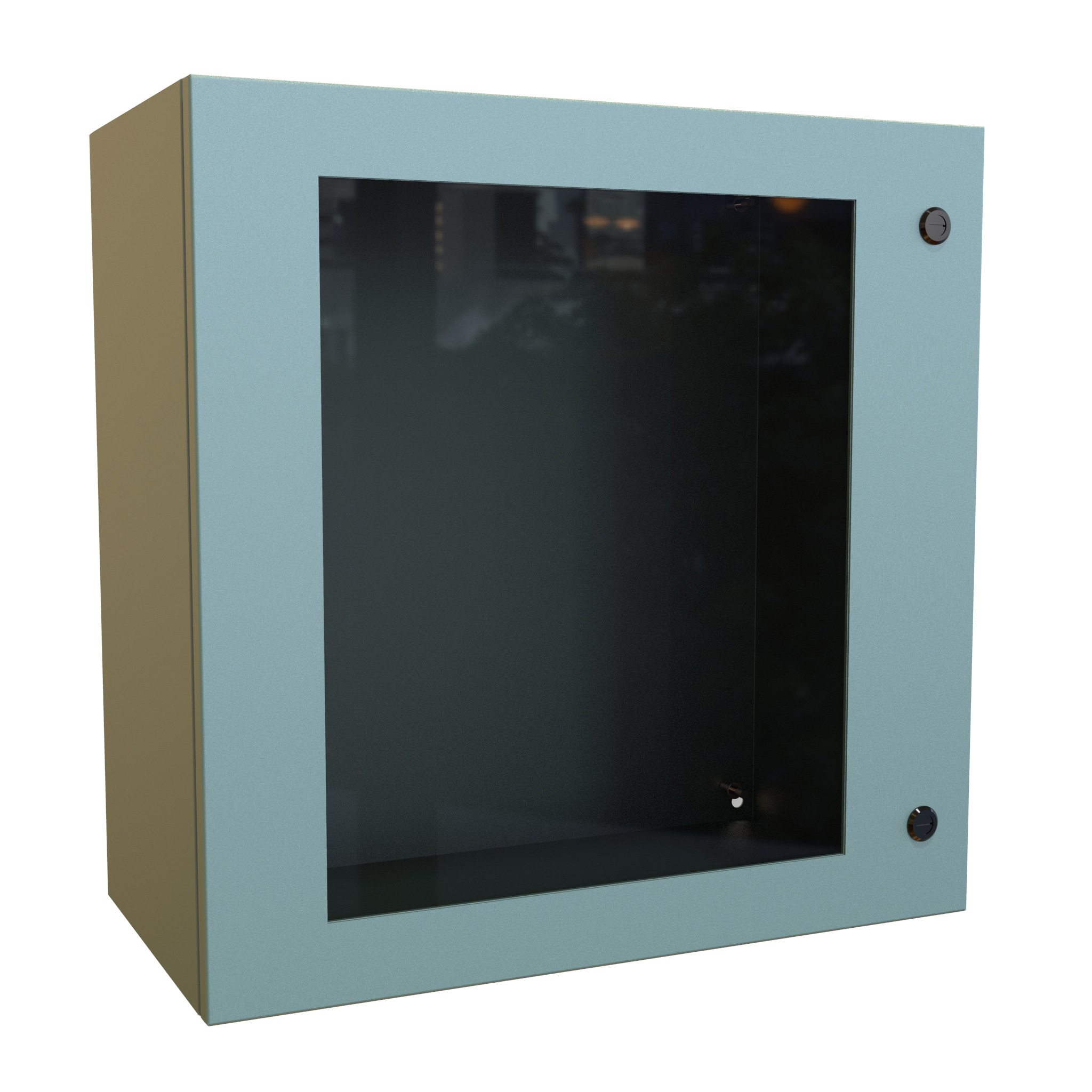

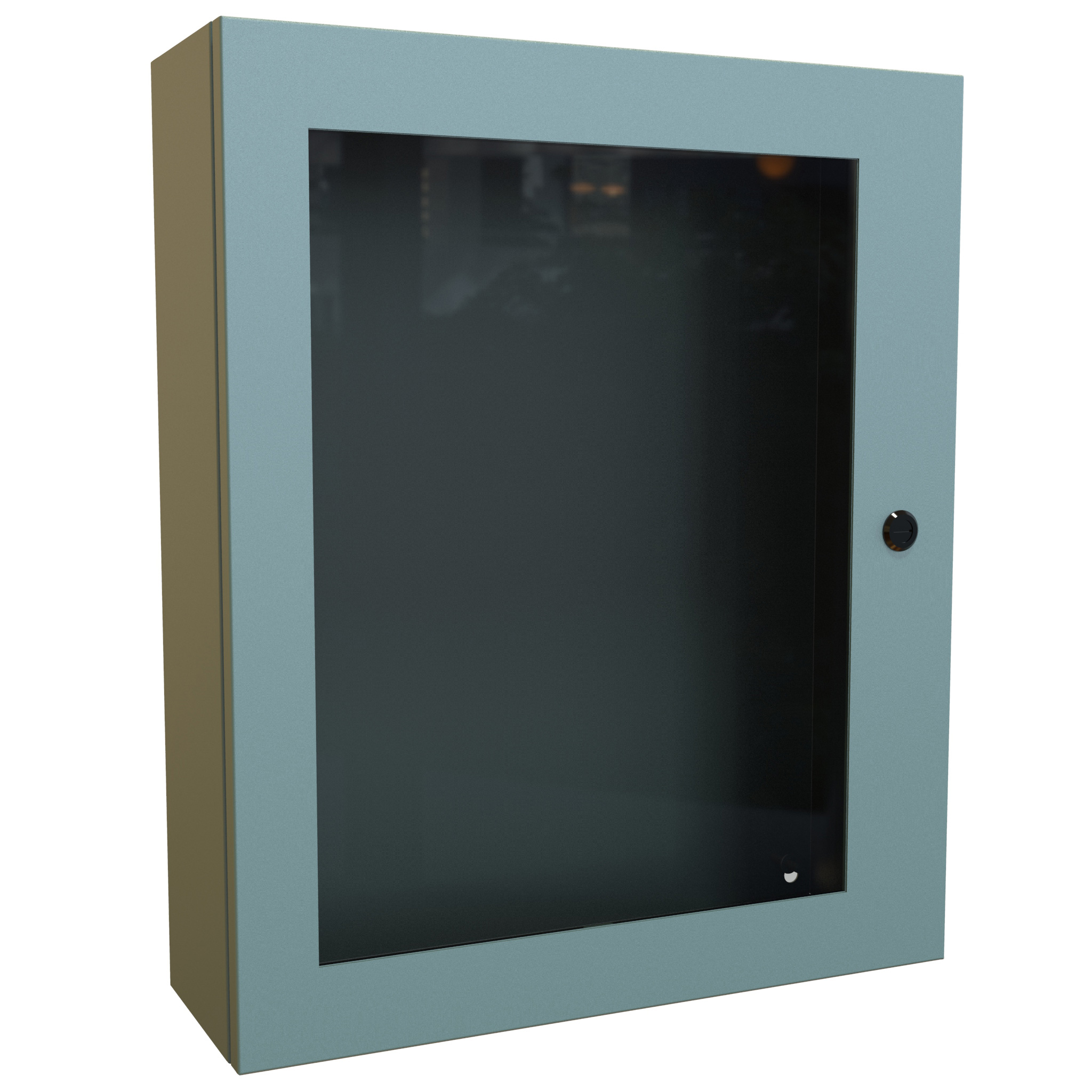

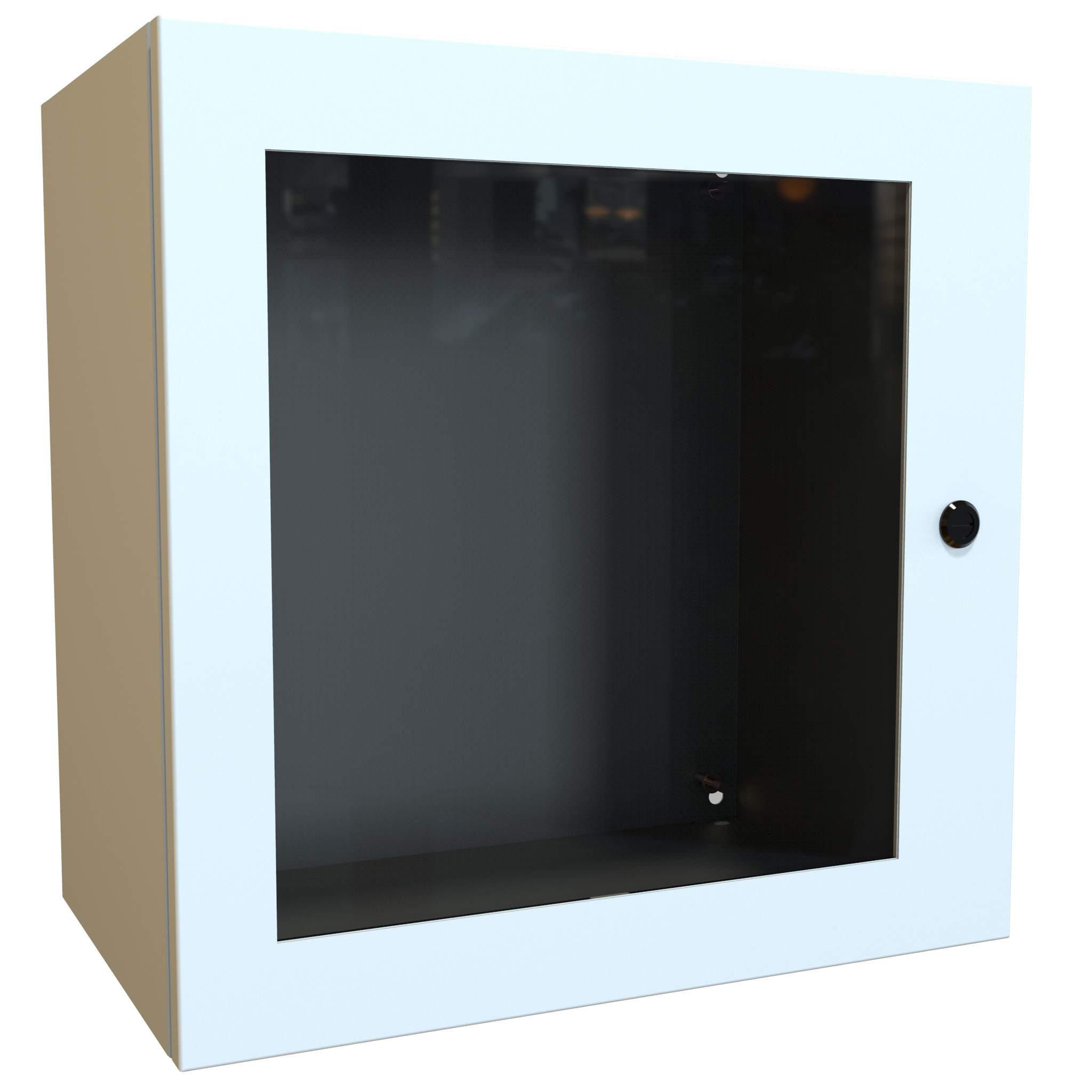

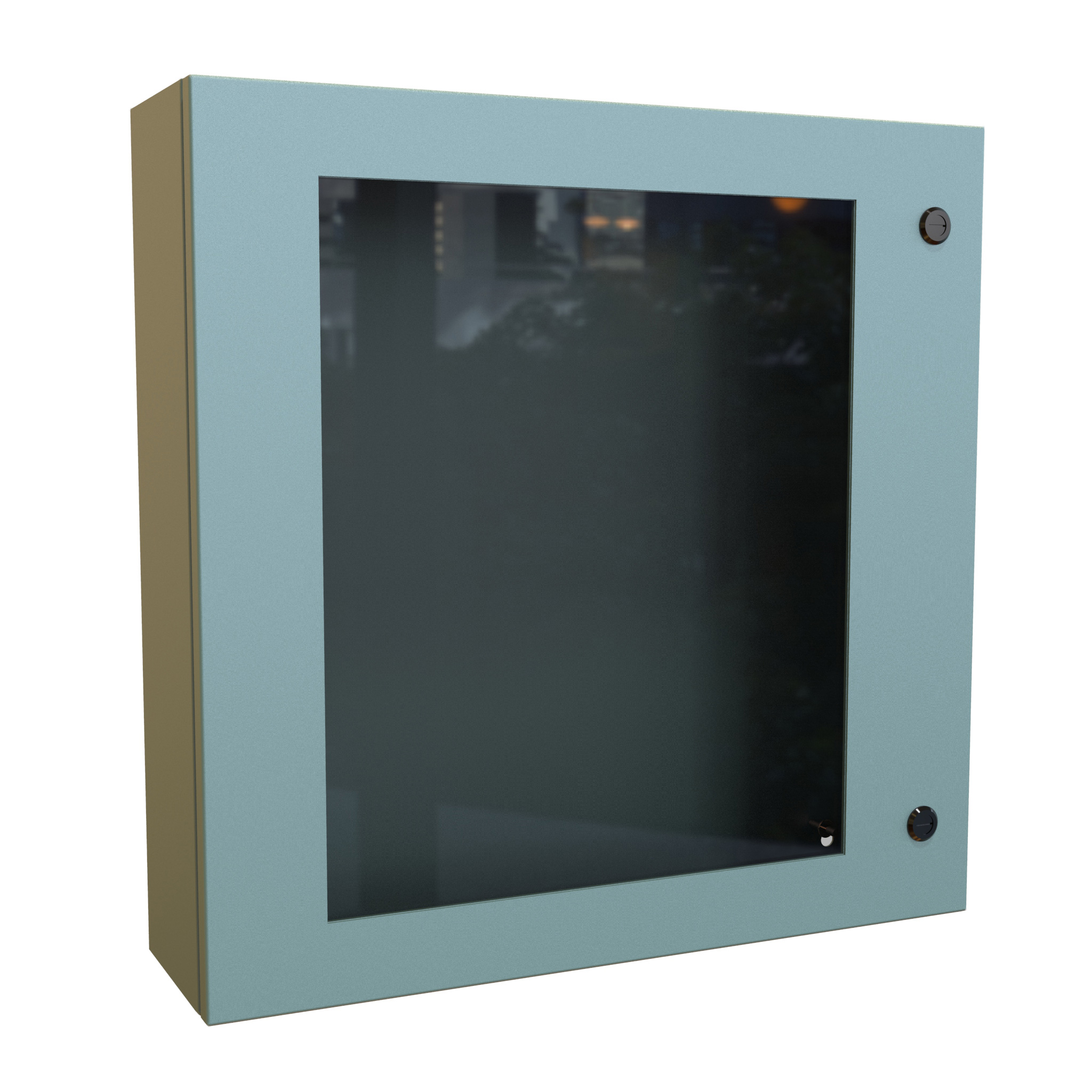

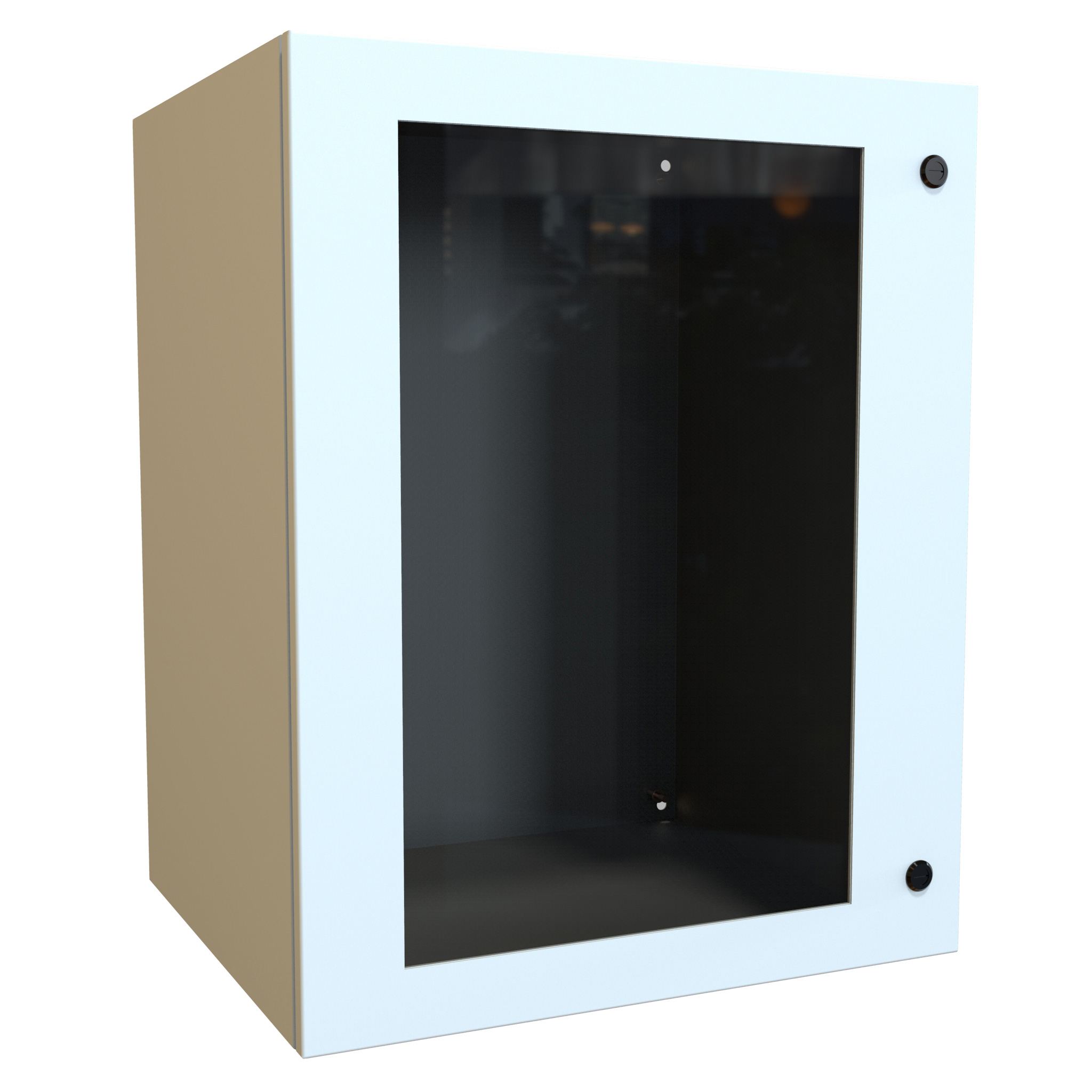

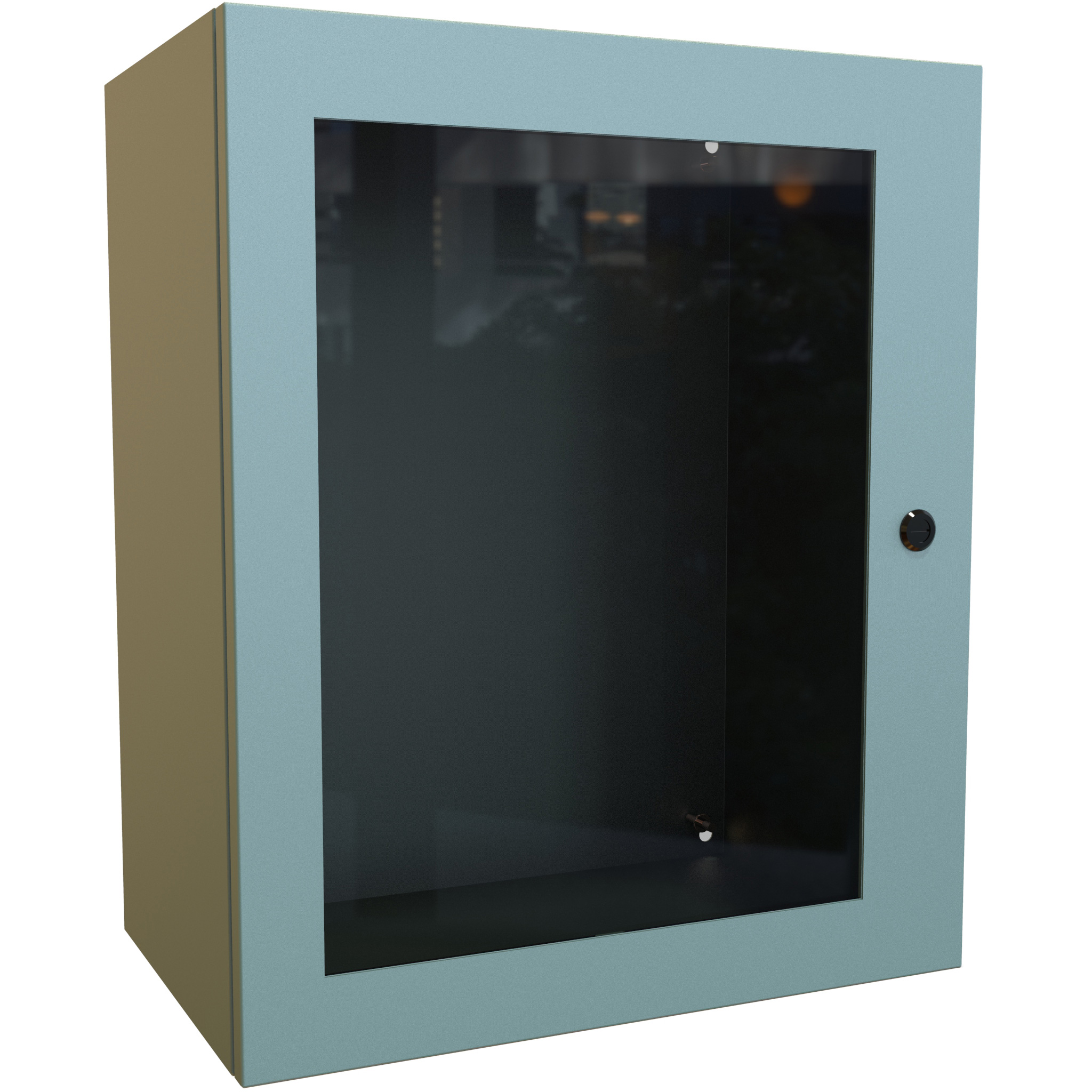

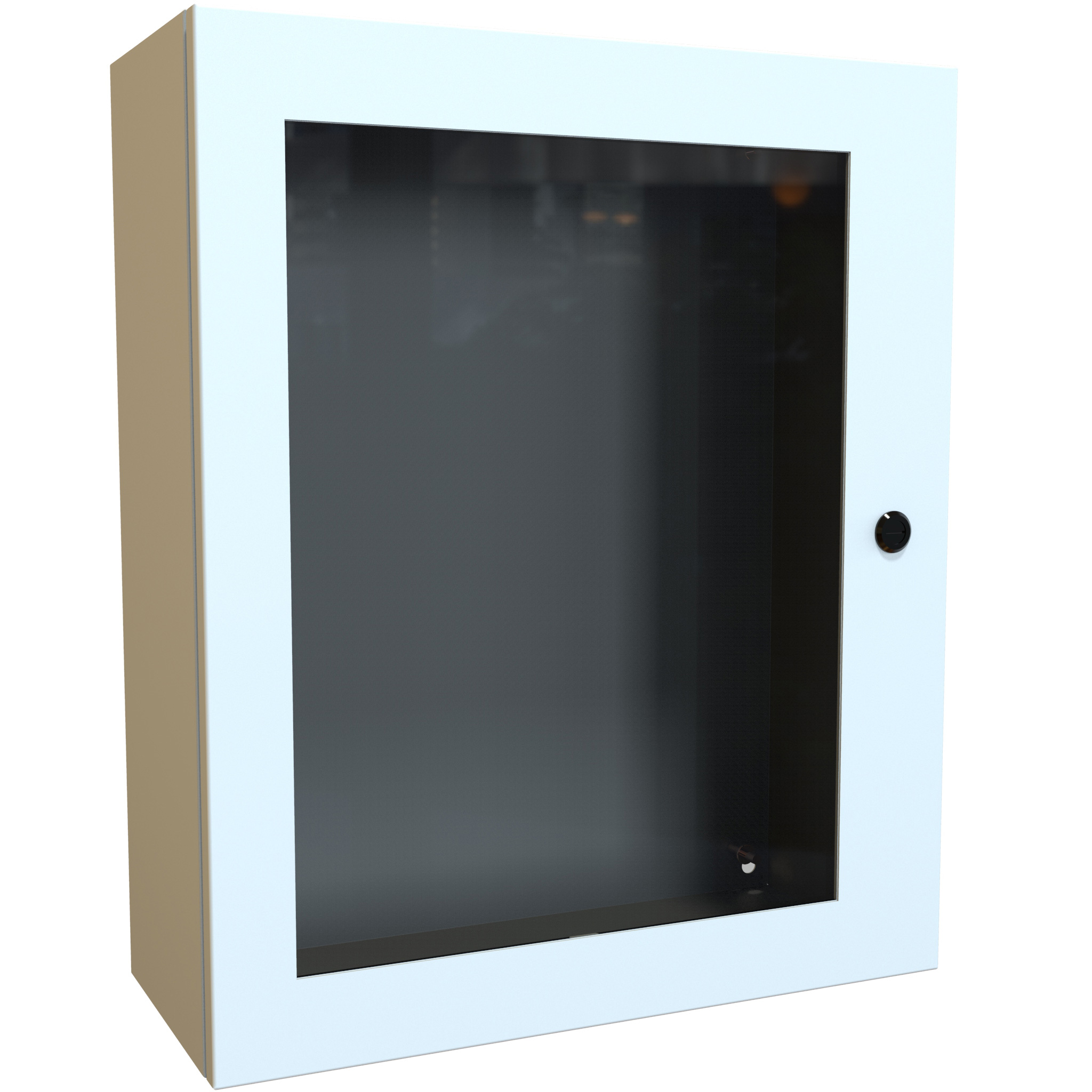

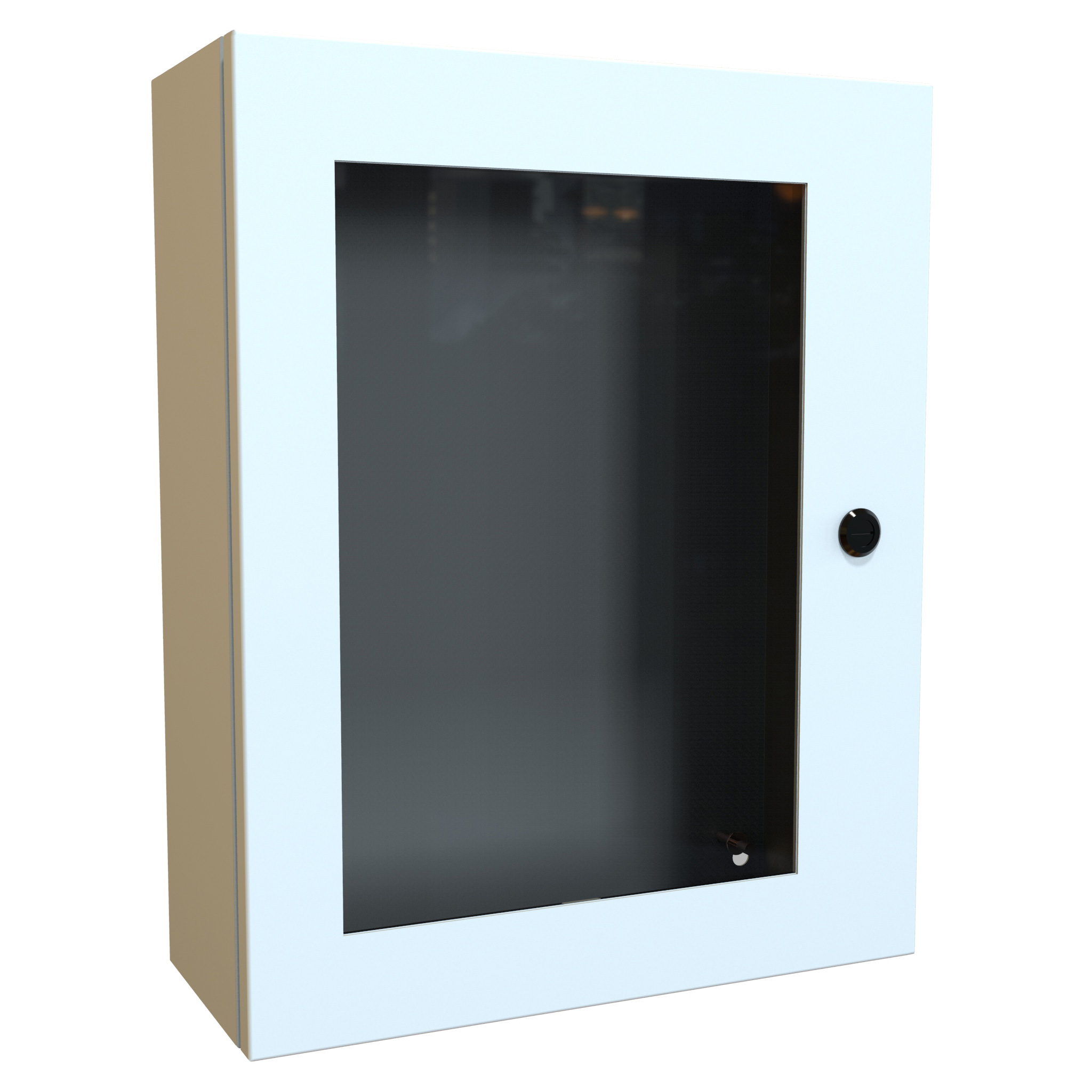

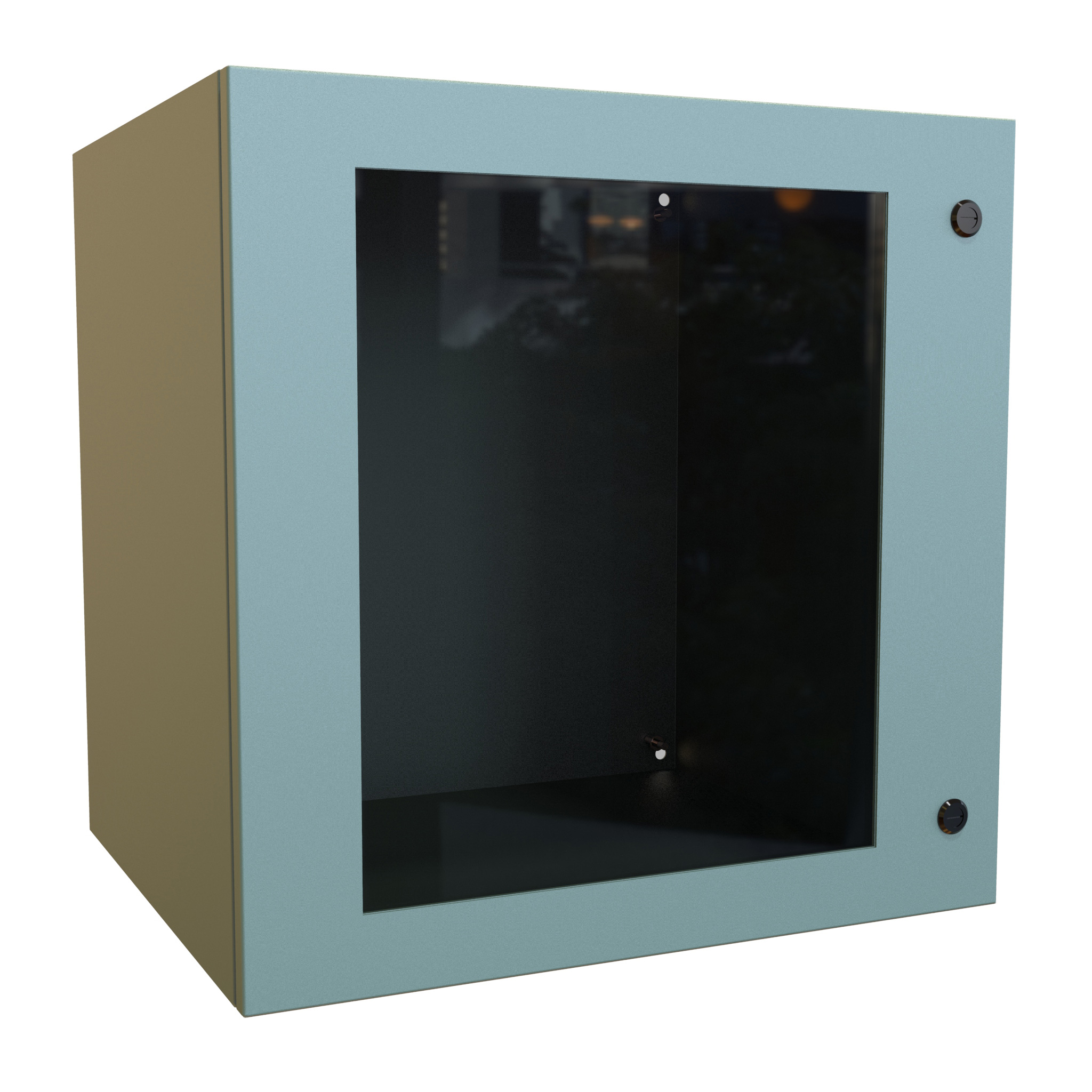

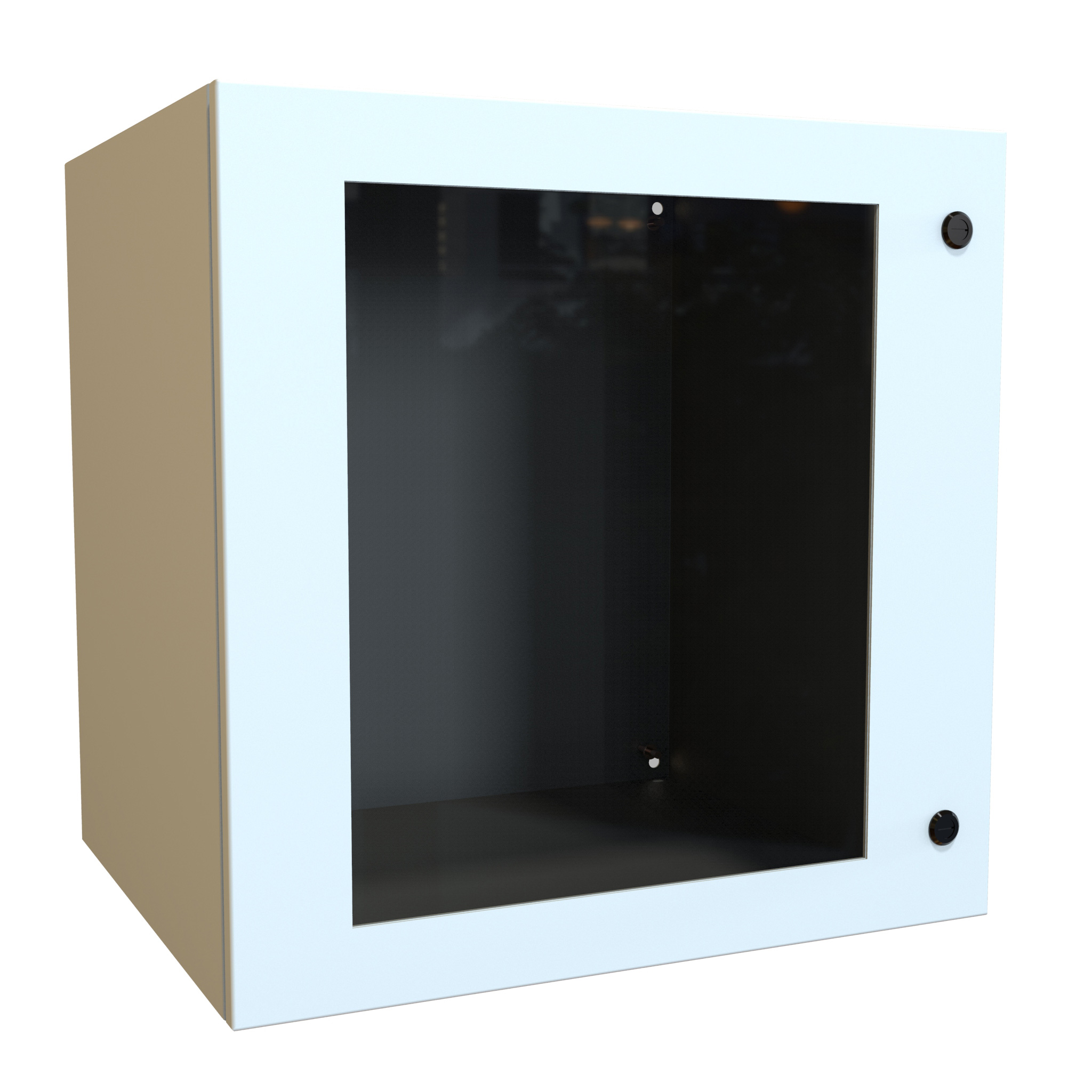

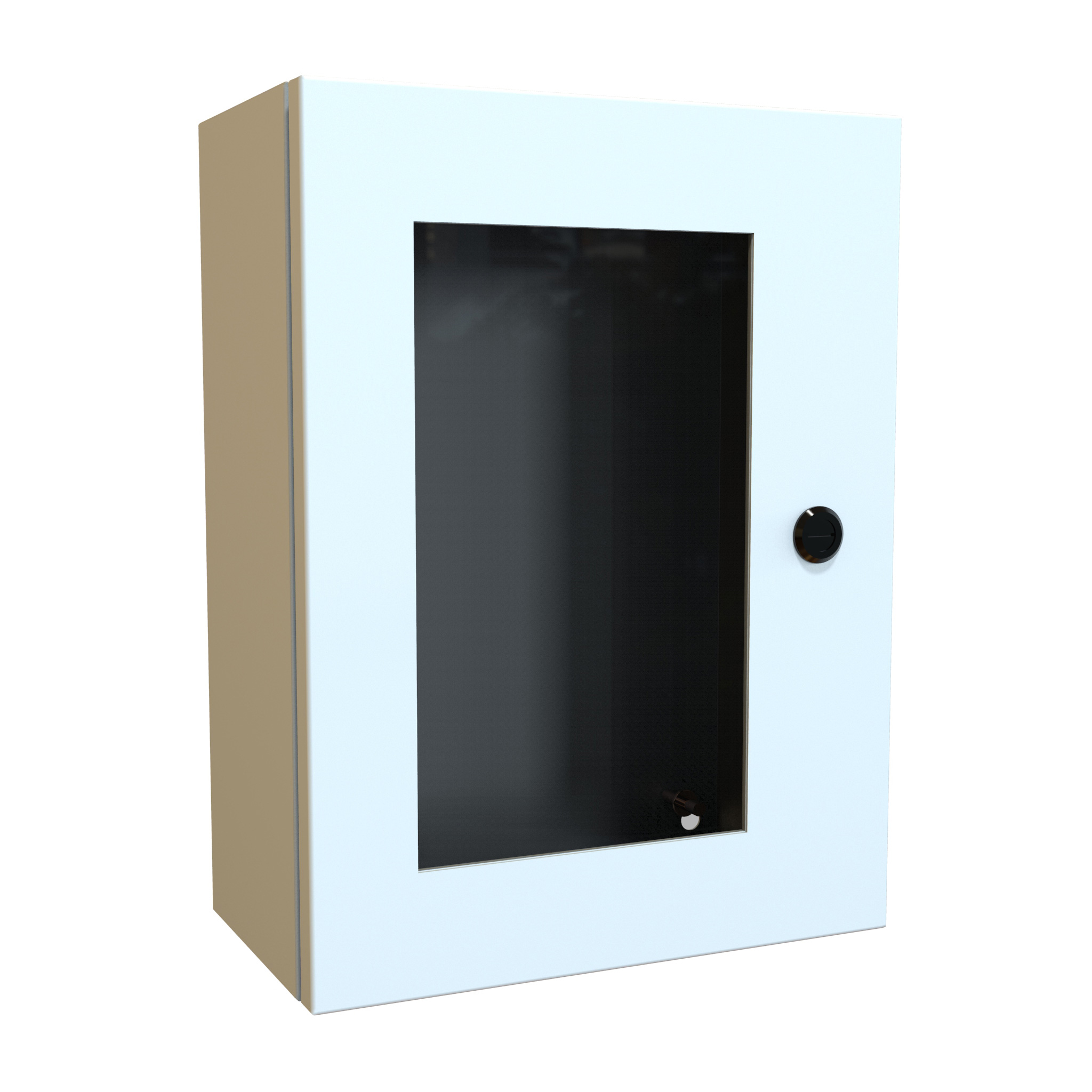

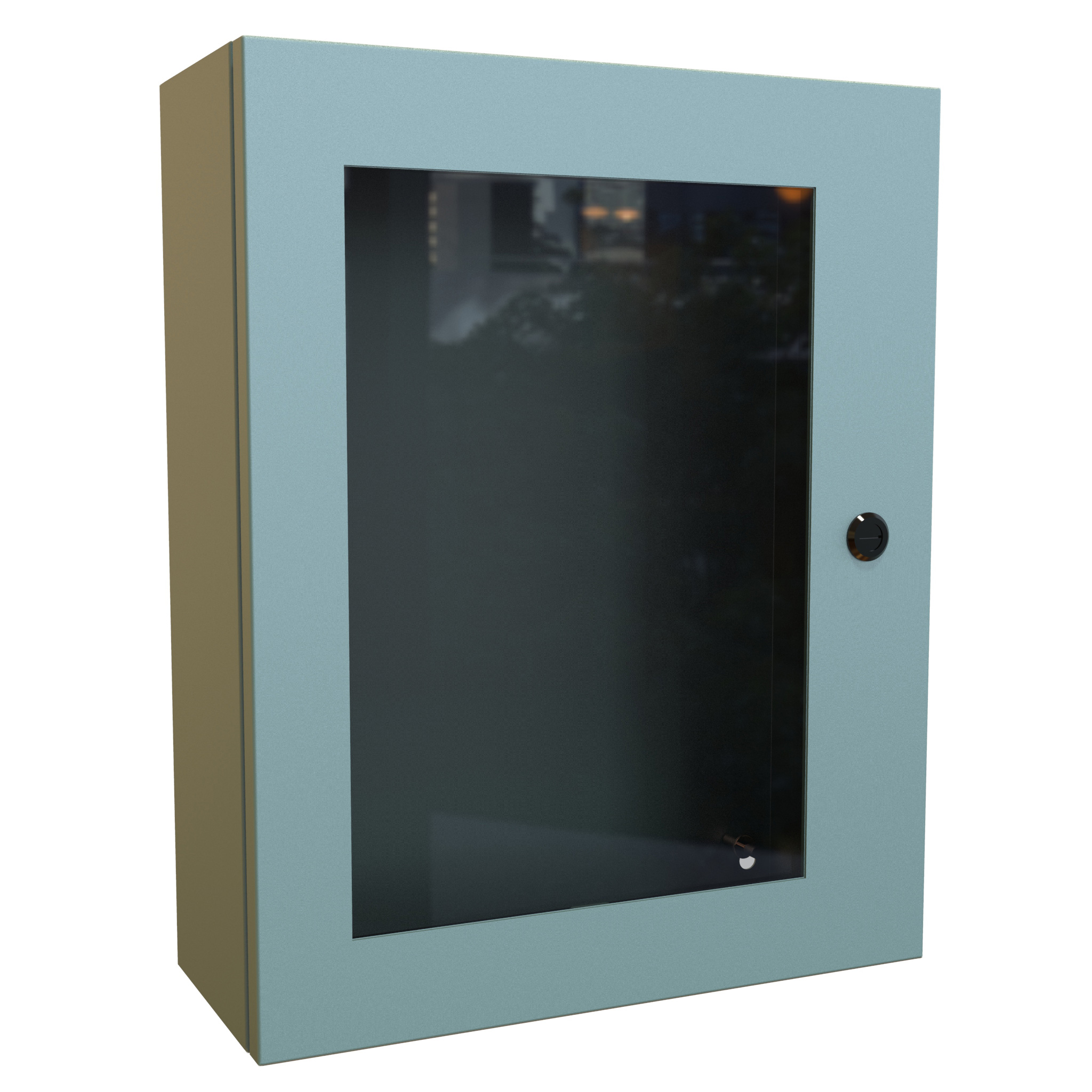

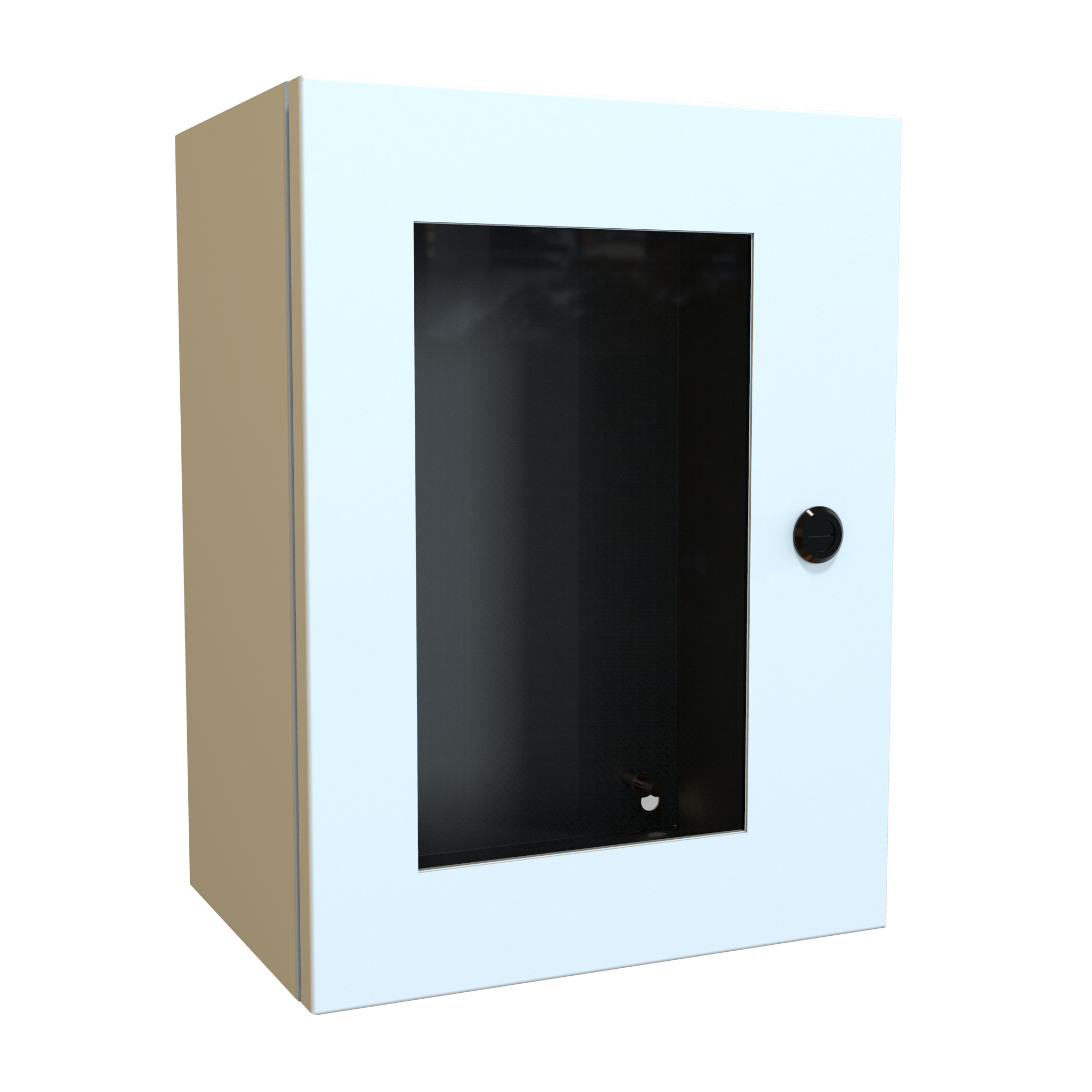

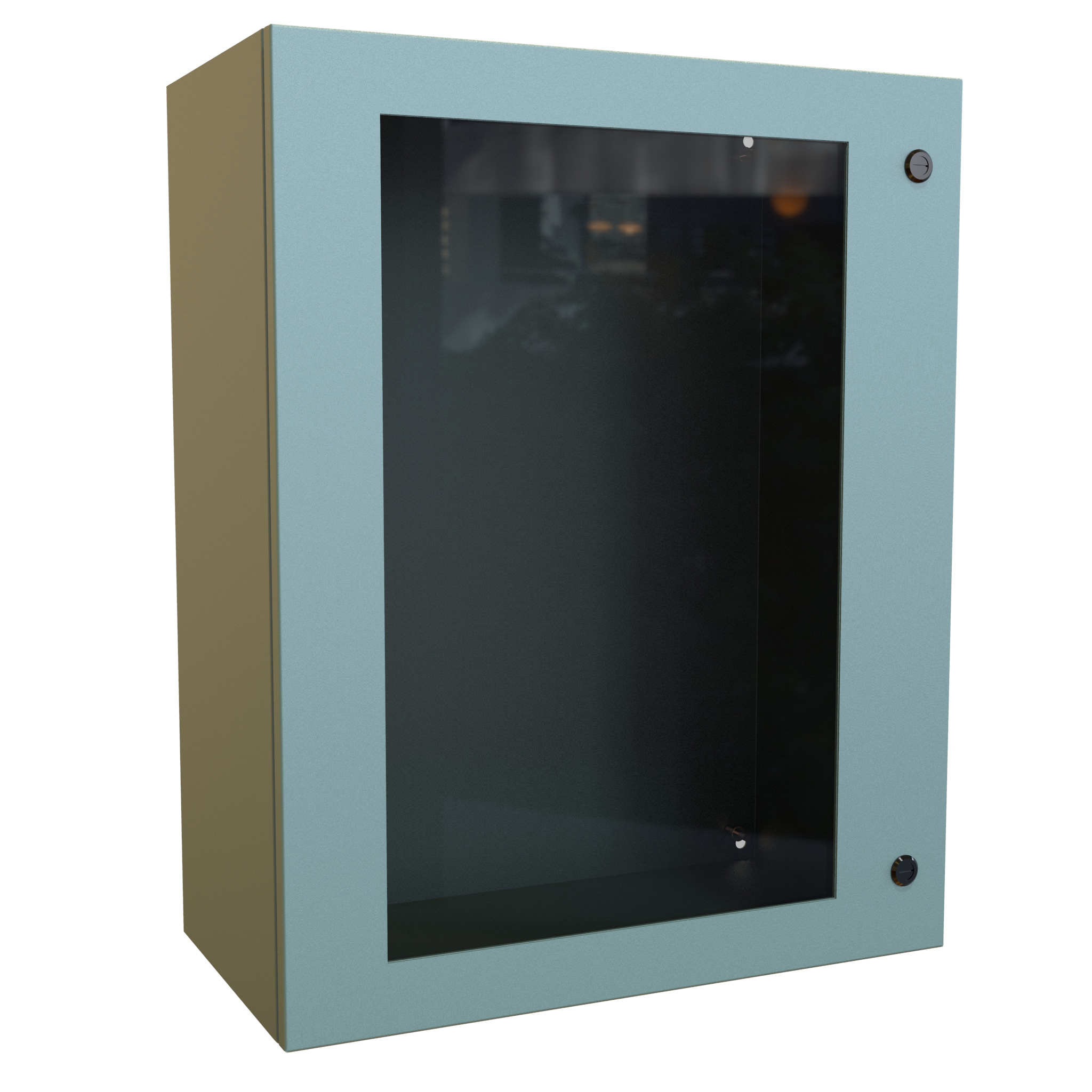

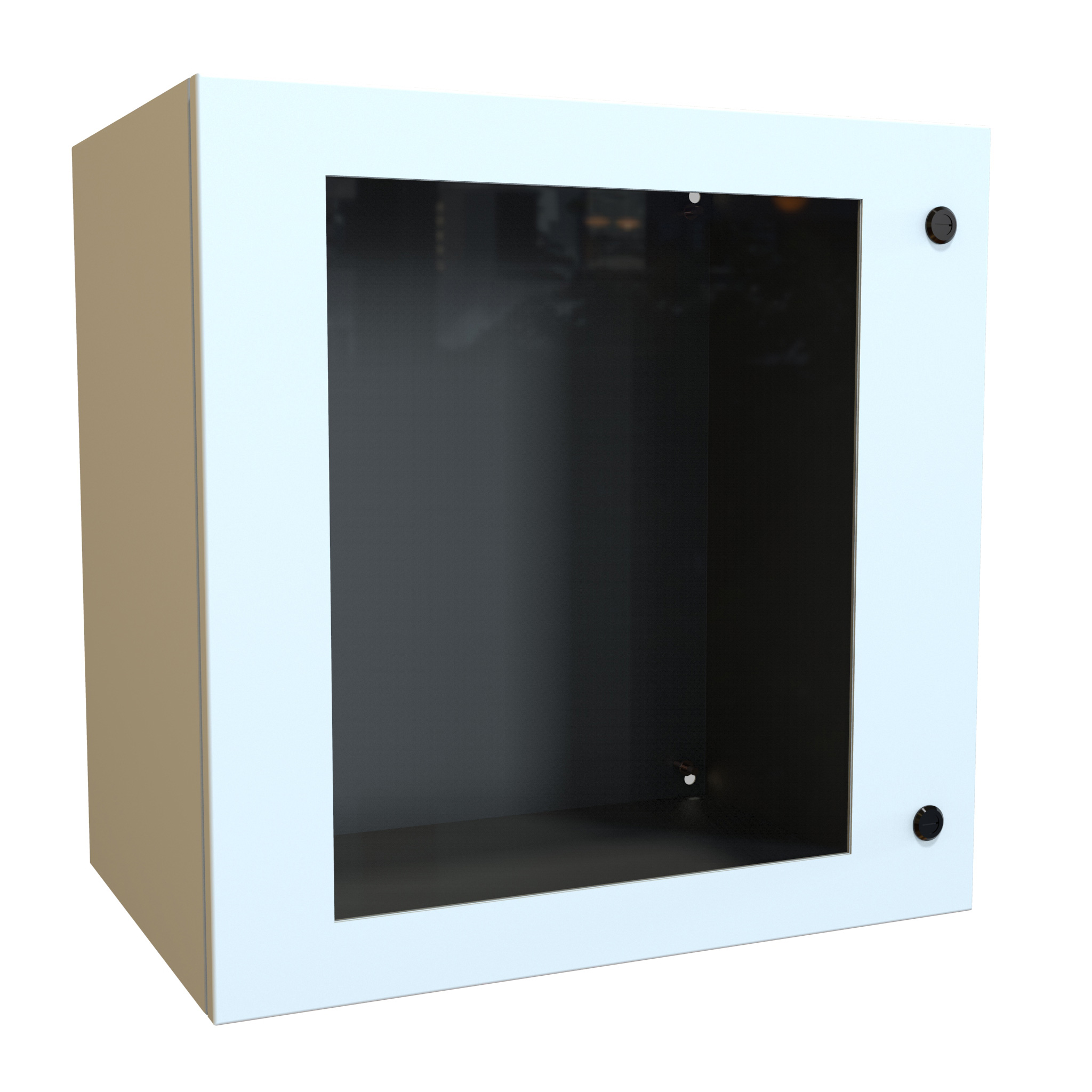

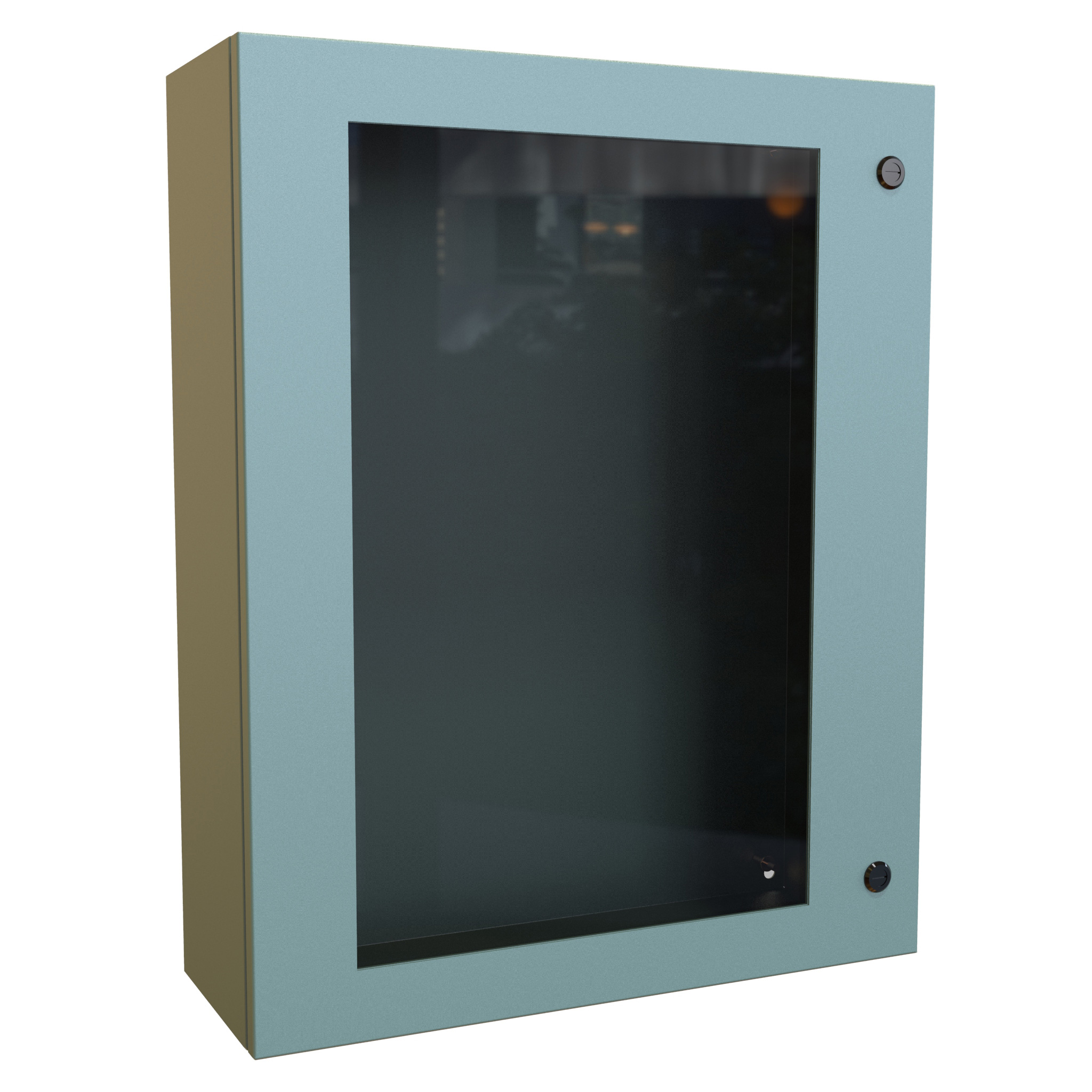

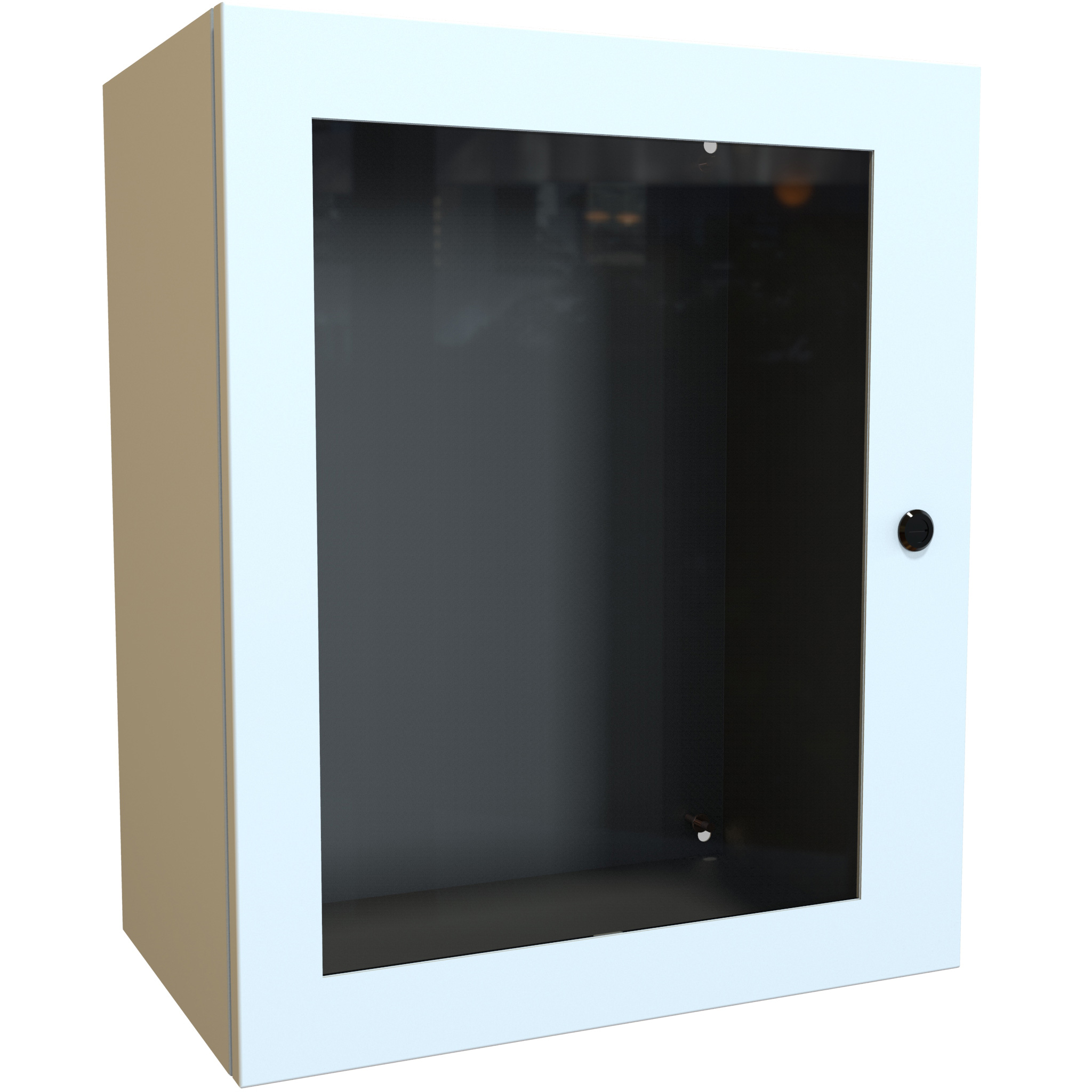

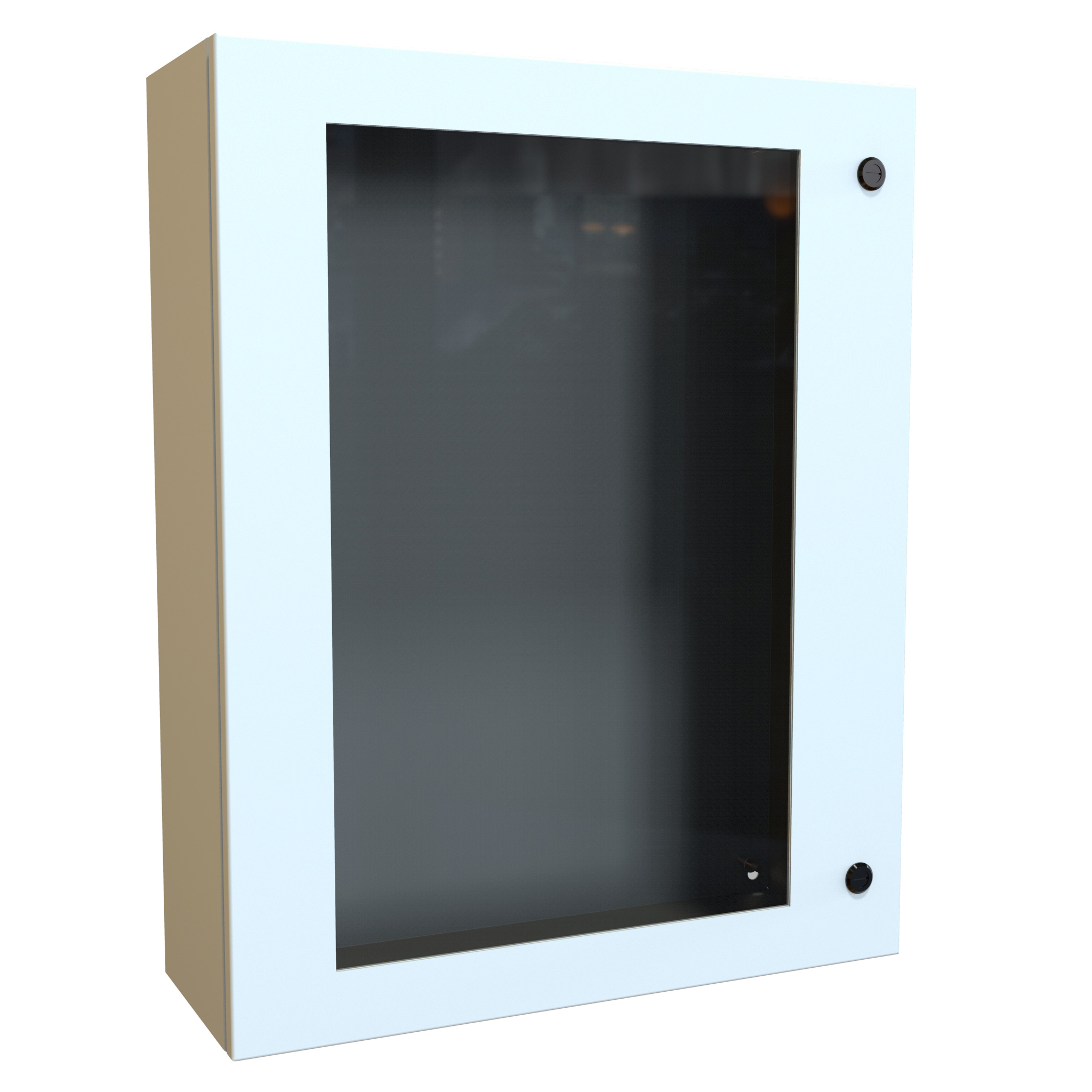

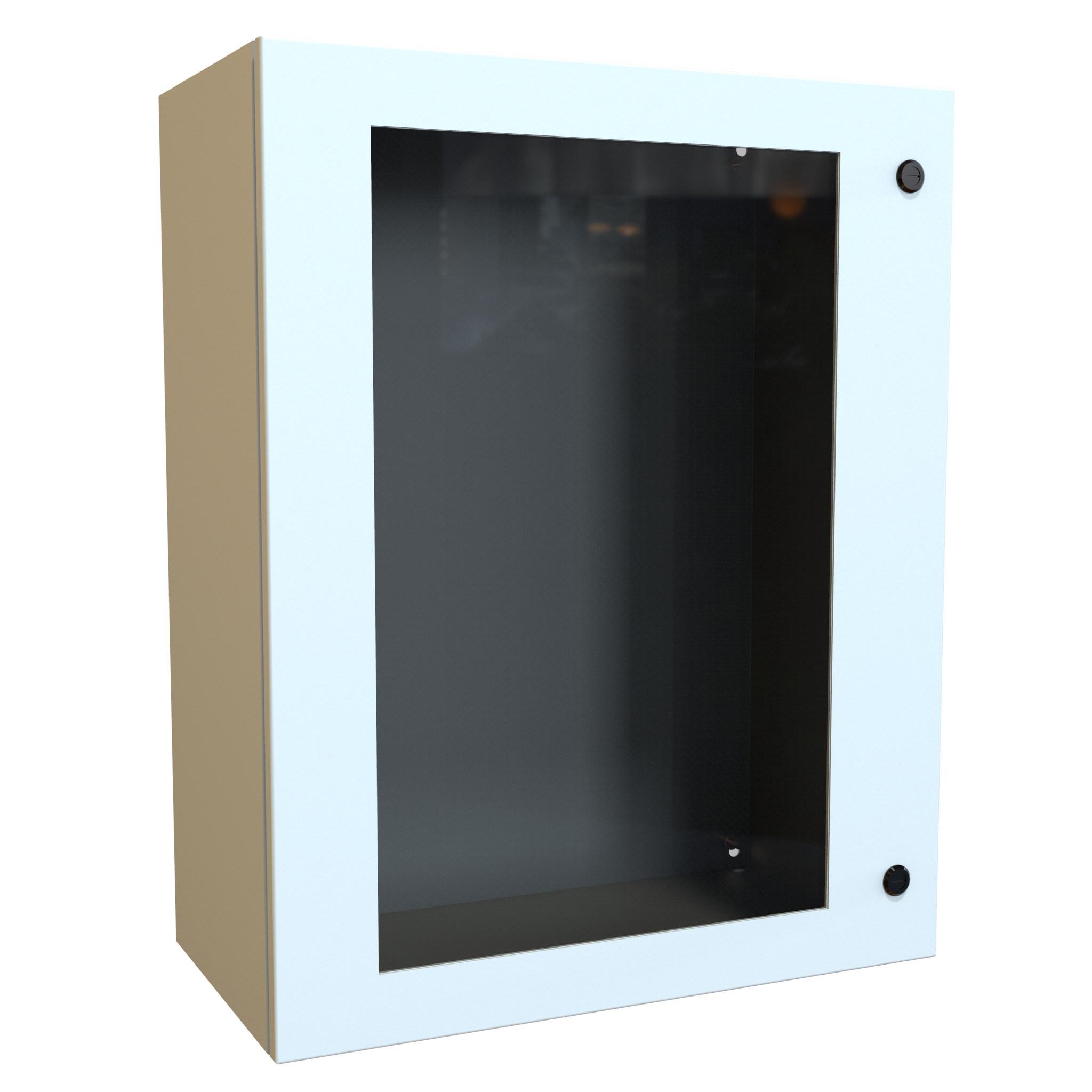

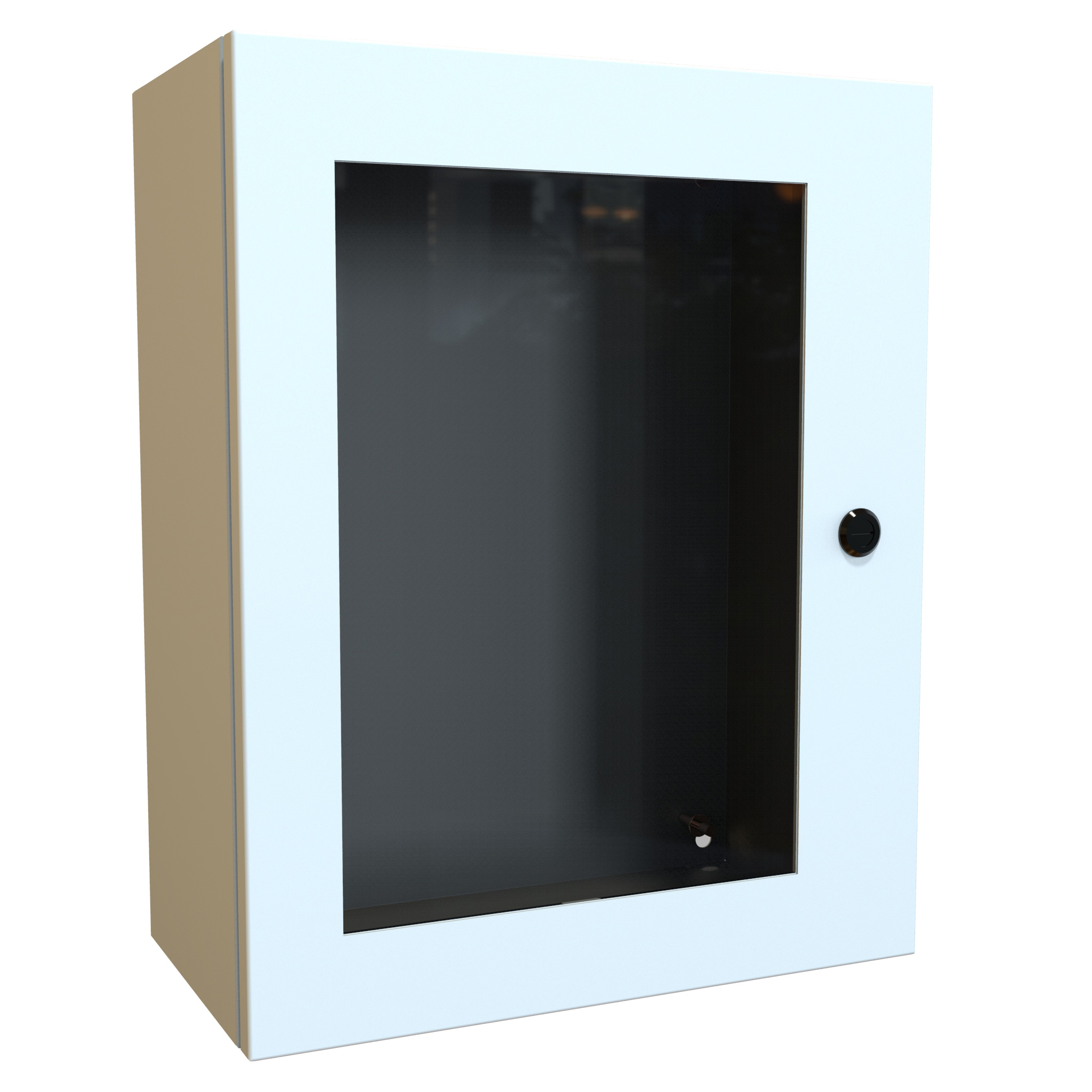

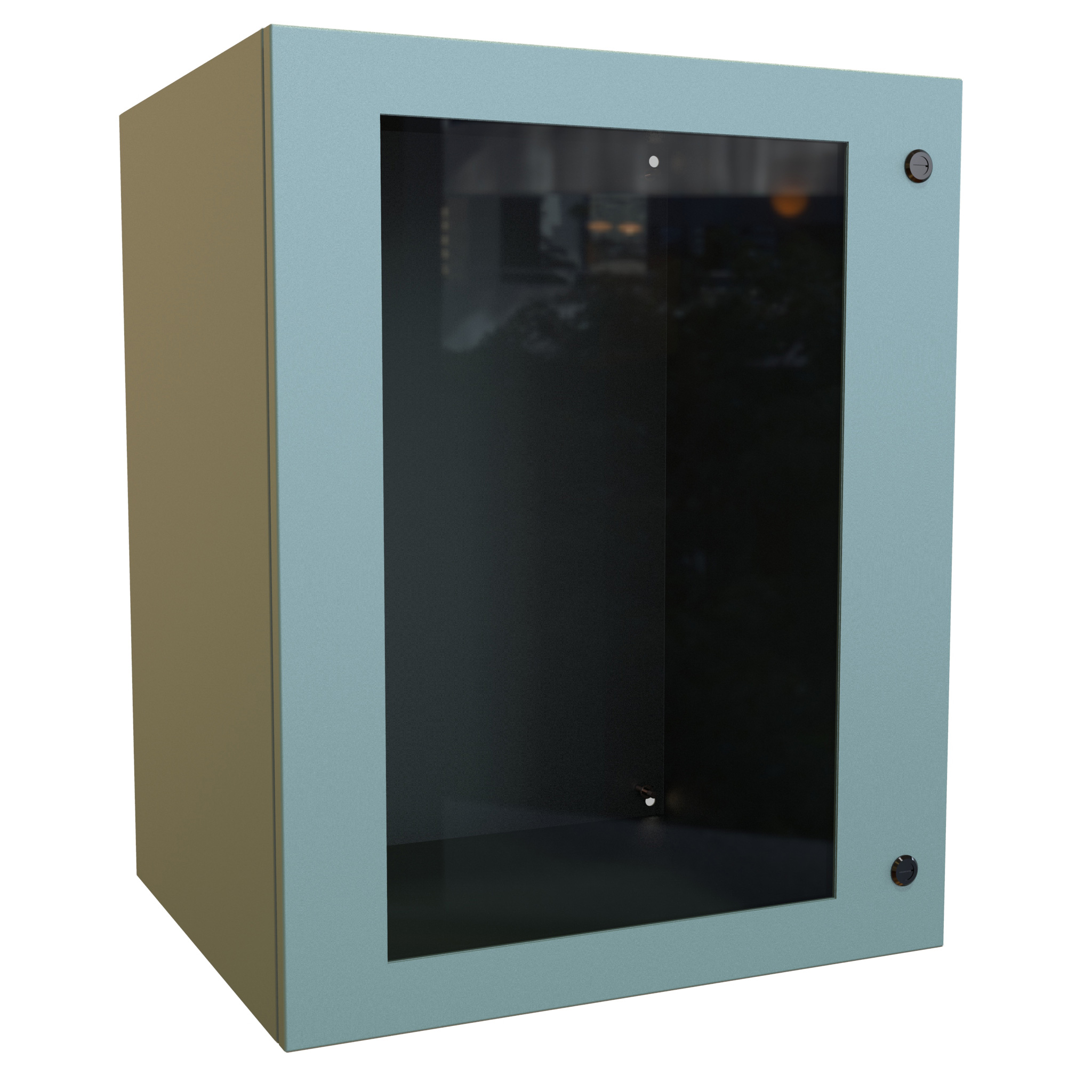

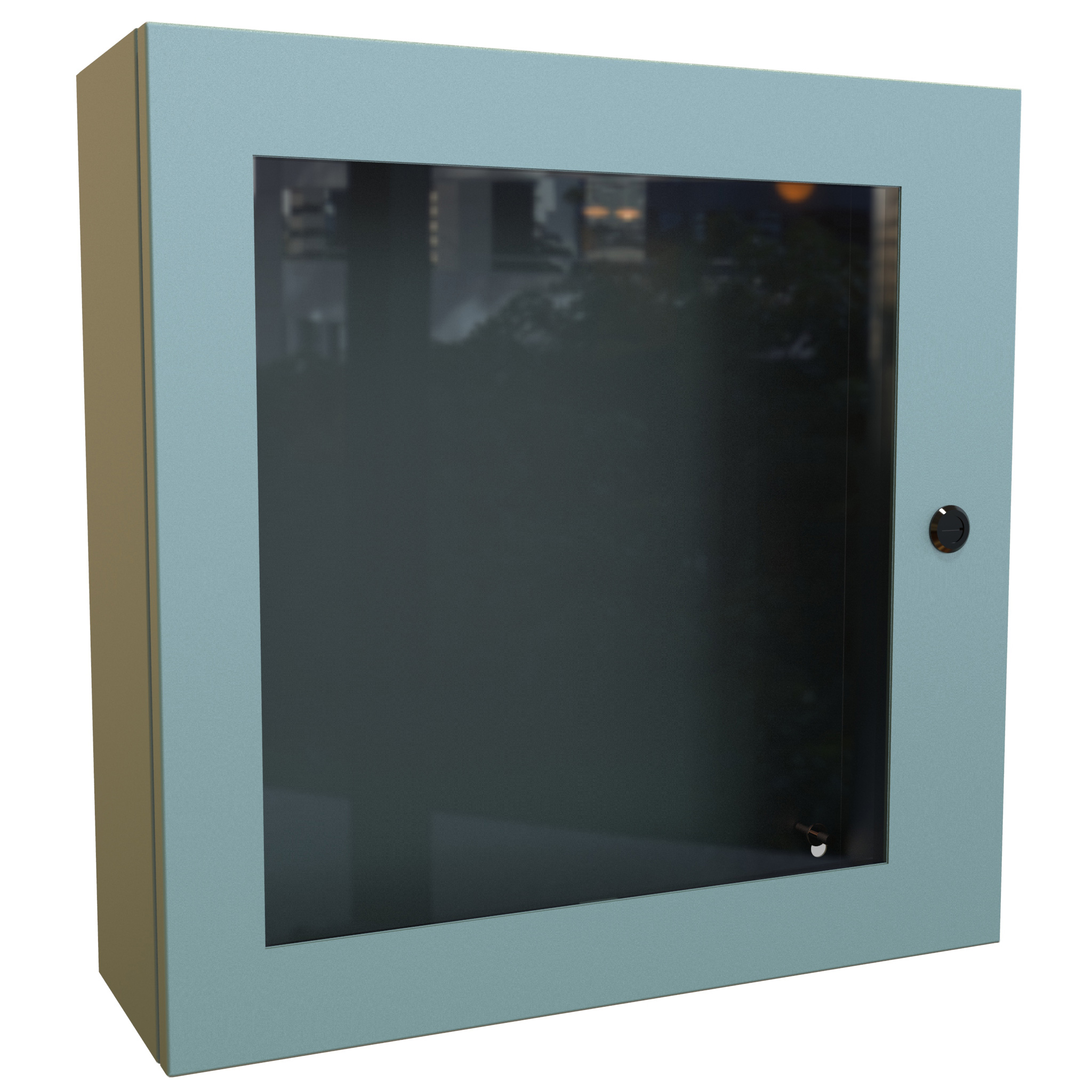

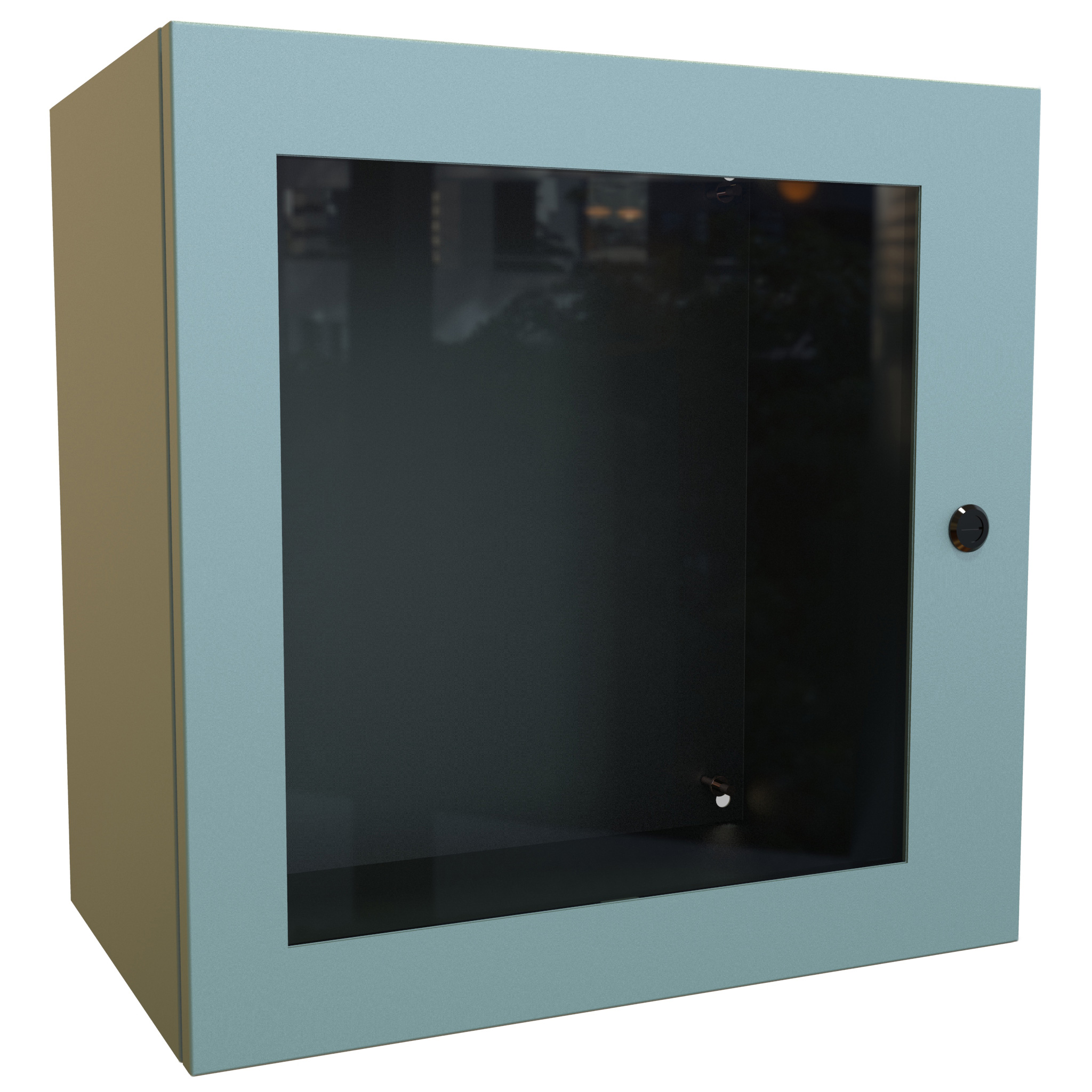

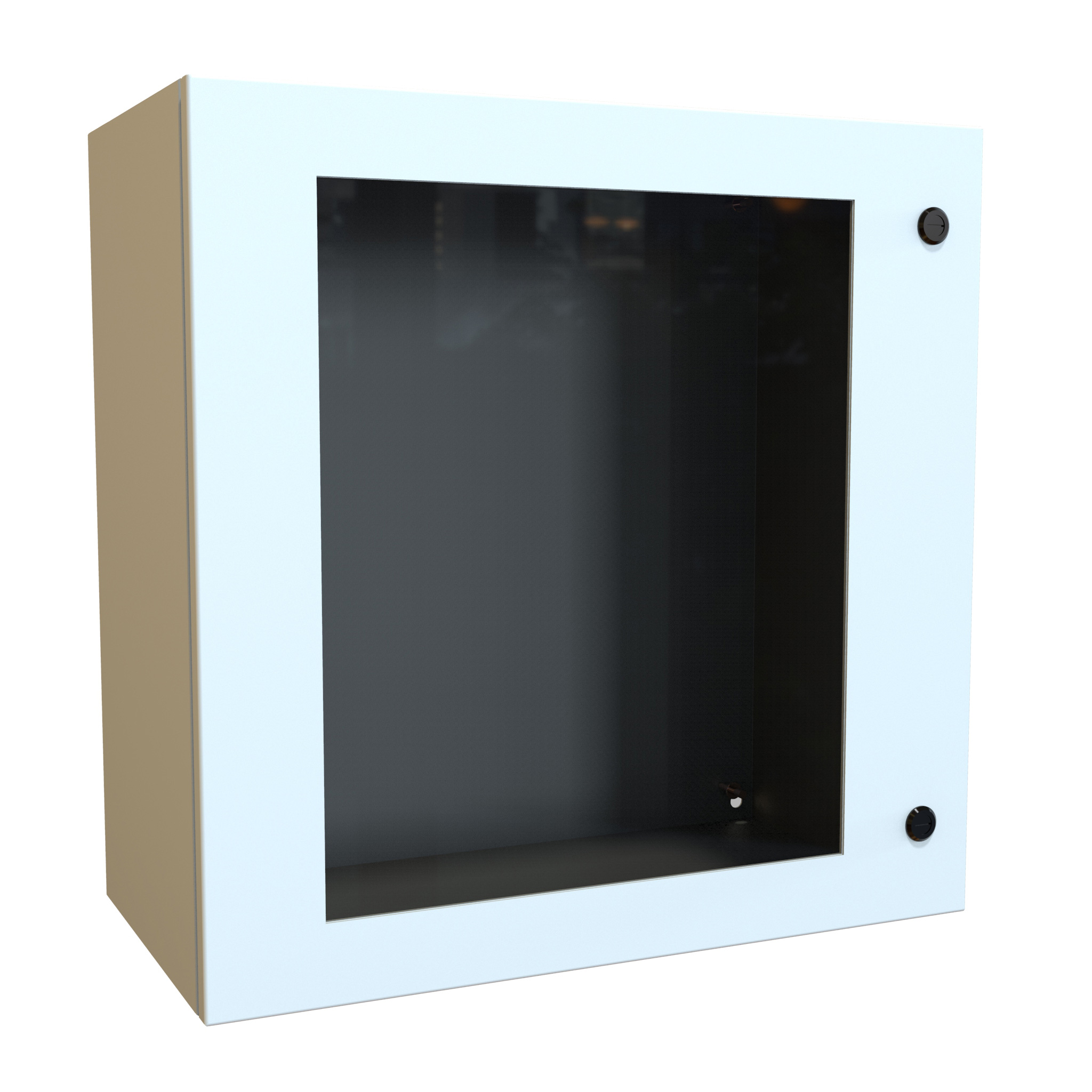

Type 4 Mild Steel Wallmount Enclosure w/ Window Eclipse Series

Type 4 Mild Steel Wallmount Enclosure w/ Window · Eclipse Series

Brand: Hammond Manufacturing · 38 part numbers

Hinge Door with Quarter Turn

  • ■Designed to enclose electrical and/or electronic equipment in wallmount applications where viewing of component operation is necessary while maintaining protection ratings.
  • ■Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • ■A wide range of sizes and practical accessories make this product line a complete package.
  • ■UL 508A Type 3R, 4 and 12
  • ■CSA Type 3R, 4 and 12
  • ■Complies with NEMA 3R, 4 and 12 IEC 60529, IP66

from $19.32

38 of 38 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your Eclipse Series part number

Filter 36 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

36 of 36 part numbers · 36 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

ANSI 61 Gray · Part No.RAL7035 Light Gray · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · Part No.Optional Inner Panel · HOptional Inner Panel · WPriceOrder
EN4SD16126WGYEN4SD16126WLG16.0012.006.00EP161214.2010.20$352.42In stockEN4SD16126WGYBuy now
EN4SD20166WGYEN4SD20166WLG20.0016.006.00EP201618.2014.20$404.58In stockEN4SD20166WGYBuy now
EN4SD20206WGYEN4SD20206WLG20.0020.006.00EP202018.2018.20$437.34In stockEN4SD20206WGYBuy now
EN4SD24206WGYEN4SD24206WLG24.0020.006.00EP242022.2018.20$469.44In stockEN4SD24206WGYBuy now
EN4SD24246WGYEN4SD24246WLG24.0024.006.00EP242422.2022.20$506.89In stockEN4SD24246WGYBuy now
EN4SD16128WGYEN4SD16128WLG16.0012.008.00EP161214.2010.20$369.13In stockEN4SD16128WGYBuy now
EN4SD20168WGYEN4SD20168WLG20.0016.008.00EP201618.2014.20$426.65In stockEN4SD20168WGYBuy now
EN4SD20208WGYEN4SD20208WLG20.0020.008.00EP202018.2018.20$462.08In stockEN4SD20208WGYBuy now
EN4SD24208WGYEN4SD24208WLG24.0020.008.00EP242022.2018.20$495.52In stockEN4SD24208WGYBuy now
EN4SD24248WGYEN4SD24248WLG24.0024.008.00EP242422.2022.20$536.31In stockEN4SD24248WGYBuy now
EN4SD30248WGYEN4SD30248WLG30.0024.008.00EP302428.2022.20$594.50In stockEN4SD30248WGYBuy now
EN4SD202012WGYEN4SD202012WLG20.0020.0012.00EP202018.2018.20$511.57In stockEN4SD202012WGYBuy now
EN4SD242012WGYEN4SD242012WLG24.0020.0012.00EP242022.2018.20$551.69In stockEN4SD242012WGYBuy now
EN4SD242412WGYEN4SD242412WLG24.0024.0012.00EP242422.2022.20$594.50In stockEN4SD242412WGYBuy now
EN4SD302412WGYEN4SD302412WLG30.0024.0012.00EP302428.2022.20$662.04In stockEN4SD302412WGYBuy now
EN4SD242416WGYEN4SD242416WLG24.0024.0016.00EP242422.2022.20$653.33In stockEN4SD242416WGYBuy now
EN4SD242420WGYEN4SD242420WLG24.0024.0020.00EP242422.2022.20$713.52BackorderEN4SD242420WGYBuy now
EN4SD302420WGYEN4SD302420WLG30.0024.0020.00EP302428.2022.20$796.44In stockEN4SD302420WGYBuy now

Application

  • ■Designed to enclose electrical and/or electronic equipment in wallmount applications where viewing of component operation is necessary while maintaining protection ratings.
  • ■Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • ■A wide range of sizes and practical accessories make this product line a complete package.

Standards

  • ■UL 508A Type 3R, 4 and 12
  • ■CSA Type 3R, 4 and 12
  • ■Complies with NEMA 3R, 4 and 12 IEC 60529, IP66
  • ■NEMA 3R, 4 and 12
  • ■IEC 60529, IP66

Construction

  • ■Formed 14 (24x24" and larger) or 16 (24x20" and smaller) gauge steel.
  • ■Full view UV resistant polycarbonate window allow maximum viewing area of inner panel.
  • ■Smooth, continuously welded seams ground smooth.
  • ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • ■Formed lip on enclosure to exclude flowing liquids and contaminants.
  • ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • ■Doors may be easily removed for modifications and are interchangeable.
  • ■Seamless poured-in place gasket.
  • ■Collar studs provided for mounting inner panel.
  • ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • ■Bonding stud provided on door and grounding stud installed in enclosure.
  • ■Hinges are constructed from 304 stainless steel.
  • ■Hinge pins are stainless steel.
  • ■Quarter turn latches are zinc diecast with black epoxy finish.

Finish

  • ■Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).

Documents

Specification SheetCE Declaration

Additional information

Part Details

ANSI 61 Gray · Part No.RAL7035 Light Gray · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · Part No.Optional Inner Panel · HOptional Inner Panel · W
EN4SD16126WGYEN4SD16126WLG16.0012.006.00EP161214.2010.20
EN4SD20166WGYEN4SD20166WLG20.0016.006.00EP201618.2014.20
EN4SD20206WGYEN4SD20206WLG20.0020.006.00EP202018.2018.20
EN4SD24206WGYEN4SD24206WLG24.0020.006.00EP242022.2018.20
EN4SD24246WGYEN4SD24246WLG24.0024.006.00EP242422.2022.20
EN4SD16128WGYEN4SD16128WLG16.0012.008.00EP161214.2010.20
EN4SD20168WGYEN4SD20168WLG20.0016.008.00EP201618.2014.20
EN4SD20208WGYEN4SD20208WLG20.0020.008.00EP202018.2018.20
EN4SD24208WGYEN4SD24208WLG24.0020.008.00EP242022.2018.20
EN4SD24248WGYEN4SD24248WLG24.0024.008.00EP242422.2022.20
EN4SD30248WGYEN4SD30248WLG30.0024.008.00EP302428.2022.20
EN4SD202012WGYEN4SD202012WLG20.0020.0012.00EP202018.2018.20
EN4SD242012WGYEN4SD242012WLG24.0020.0012.00EP242022.2018.20
EN4SD242412WGYEN4SD242412WLG24.0024.0012.00EP242422.2022.20
EN4SD302412WGYEN4SD302412WLG30.0024.0012.00EP302428.2022.20
EN4SD242416WGYEN4SD242416WLG24.0024.0016.00EP242422.2022.20
EN4SD242420WGYEN4SD242420WLG24.0024.0020.00EP242422.2022.20
EN4SD302420WGYEN4SD302420WLG30.0024.0020.00EP302428.2022.20
