NEMA12 Panel Enclosure 12X24X6
$389.13In stock
Buy now
Type 12 Mild Steel Wallmount Enclosure · 1418 Series
Brand: Hammond Manufacturing · 90 part numbers
Continuous Hinge Door with Clamps
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $329.58
38 of 90 part numbers priced · in stock · ships by ground · volume pricing on request
NOTICE of Product Transition - This series is being discontinued and will be replaced by the 1418LP Series . Availability of individual part numbers is now limited to inventory on hand. Please consult Customer Service for availability or further information.
Configure & price
Find your 1418 Series part number
Filter 90 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
90 of 90 part numbers · 38 priced online
NEMA12 Panel Enclosure 12X24X8
$406.88In stock
Buy now
NEMA12 Panel Enclosure 24X12X10
QuoteRequest a quote
NEMA12 Panel Enclosure 24X12X6
$389.13In stock
Buy now
NEMA12 Panel Enclosure 24X12X8
QuoteRequest a quote
NEMA12 Panel Enclosure 16X12X10
$368.47In stock
Buy now
NEMA12 Panel Enclosure 16X12X6
$329.58In stock
Buy now
NEMA12 Panel Enclosure 16X12X8
QuoteRequest a quote
NEMA12 Panel Enclosure 20X16X10
$426.04In stock
Buy now
NEMA12 Panel Enclosure 20X16X12
QuoteRequest a quote
NEMA12 Panel Enclosure 20X16X6
QuoteRequest a quote
NEMA12 Panel Enclosure 20X16X8
QuoteRequest a quote
NEMA12 Panel Enclosure 20X12X6
$362.81In stock
Buy now
NEMA12 Panel Enclosure 20X12X8
QuoteRequest a quote
NEMA12 Panel Enclosure 16X20X6
$398.76In stock
Buy now
NEMA12 Panel Enclosure 16X20X8
QuoteRequest a quote
NEMA12 Panel Enclosure 20X20X10
QuoteRequest a quote
NEMA12 Panel Enclosure 20X20X6
$425.78In stock
Buy now
NEMA12 Panel Enclosure 20X20X8
QuoteRequest a quote
NEMA12 Panel Enclosure 24X20X10
QuoteRequest a quote
NEMA12 Panel Enclosure 24X20X12
QuoteRequest a quote
NEMA 12 Enclosure
$596.89In stock
Buy now
NEMA12 Panel Enclosure 24X20X6
$465.94In stock
Buy now
NEMA12 Panel Enclosure 24X20X8
QuoteRequest a quote
NEMA12 Panel Enclosure 20X24X6
$477.53In stock
Buy now
NEMA12 Panel Enclosure 20X24X8
$489.80In stock
Buy now
NEMA12 Panel Enclosure 30X20X10
QuoteRequest a quote
NEMA12 Panel Enclosure 30X20X6
QuoteRequest a quote
NEMA12 Panel Enclosure 30X20X8
QuoteRequest a quote
NEMA12 Panel Enclosure 30X16X6
QuoteRequest a quote
NEMA12 Panel Enclosure 16X16X6
QuoteRequest a quote
NEMA12 Panel Enclosure 16X16X8
$375.75In stock
Buy now
NEMA12 Panel Enclosure 24X16X6
$430.06In stock
Buy now
NEMA12 Panel Enclosure 24X16X8
QuoteRequest a quote
NEMA12 Panel Enclosure 24X24X10
QuoteRequest a quote
NEMA12 Panel Enclosure 24X24X12
QuoteRequest a quote
NEMA12 Panel Enclosure 24X24X16
$648.66In stock
Buy now
NEMA12 Panel Enclosure 24X24X6
QuoteRequest a quote
NEMA12 Panel Enclosure 24X24X8
QuoteRequest a quote
NEMA12 Panel Enclosure 30X24X10
QuoteRequest a quote
NEMA12 Panel Enclosure 30X24X12
QuoteRequest a quote
NEMA12 Panel Enclosure 30X24X16
$730.51In stock
Buy now
Panel Encl. 30X24X20
$789.86In stock
Buy now
NEMA12 Panel Enclosure 30X24X24
QuoteRequest a quote
NEMA12 Panel Enclosure 30X24X6
$586.60In stock
Buy now
NEMA12 Panel Enclosure 30X24X8
QuoteRequest a quote
NEMA12 Panel Enclosure 30X12X8
QuoteRequest a quote
NEMA12 Panel Enclosure 30X16X8
$544.53In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1418A6 | 12.00 | 24.00 | 6.00 | 9.00 | 21.00 | $389.13In stock | Buy now |
| 1418B6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 | $329.58In stock | Buy now |
| 1418G6 | 16.00 | 16.00 | 6.00 | 13.00 | 13.00 | Quote | Quote |

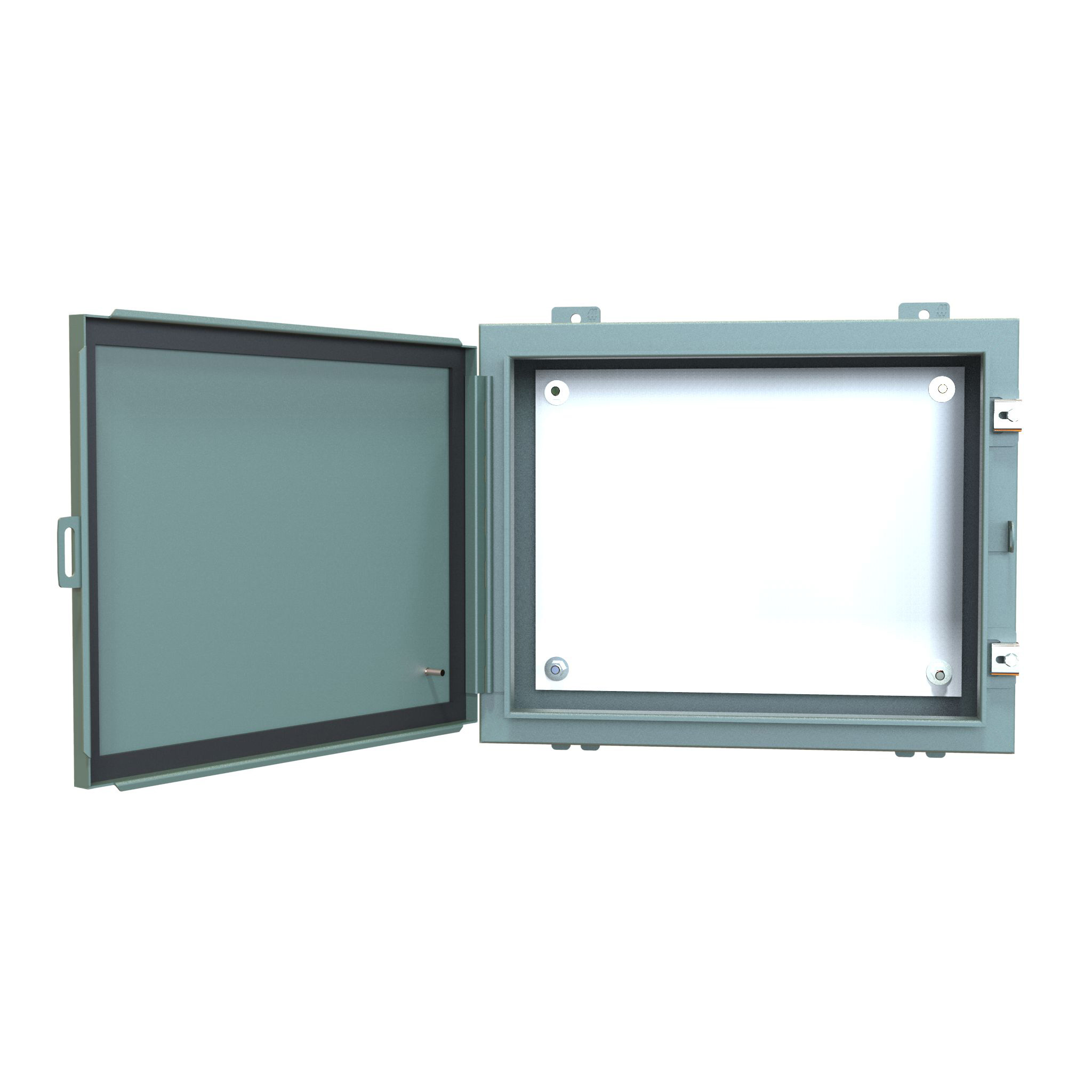

| 1418CR6 | 16.00 | 20.00 | 6.00 | 13.00 | 17.00 | $398.76In stock | Buy now |
| 1418CA6 | 20.00 | 12.00 | 6.00 | 17.00 | 9.00 | $362.81In stock | Buy now |
| 1418C6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 | Quote | Quote |
| 1418D6 | 20.00 | 20.00 | 6.00 | 17.00 | 17.00 | $425.78In stock | Buy now |
| 1418ER6 | 20.00 | 24.00 | 6.00 | 17.00 | 21.00 | $477.53In stock | Buy now |
| 1418AR6 | 24.00 | 12.00 | 6.00 | 21.00 | 9.00 | $389.13In stock | Buy now |
| 1418H6 | 24.00 | 16.00 | 6.00 | 21.00 | 13.00 | $430.06In stock | Buy now |
| 1418E6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 | $465.94In stock | Buy now |
| 1418J6 | 24.00 | 24.00 | 6.00 | 21.00 | 21.00 | Quote | Quote |

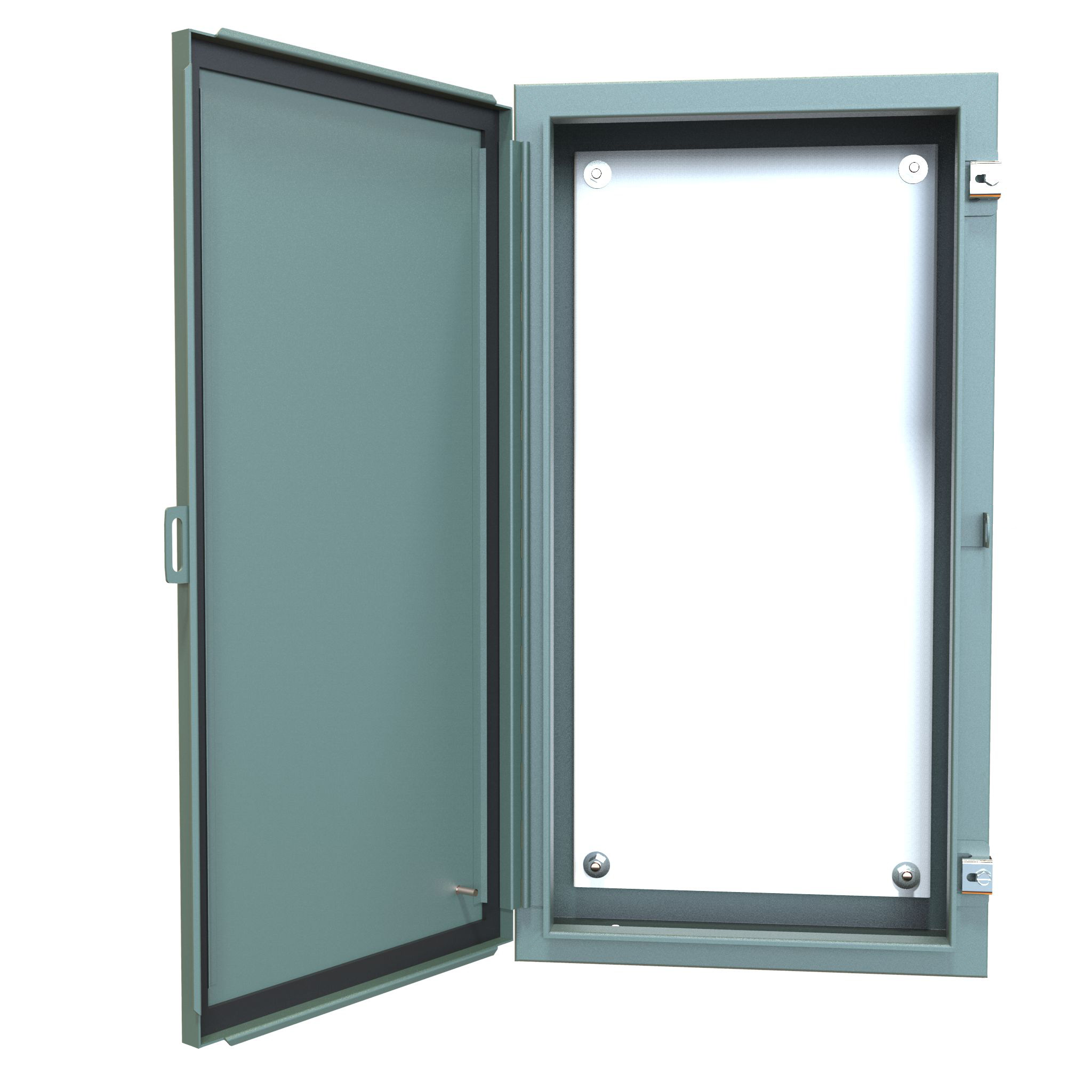

| 1418FG6 | 30.00 | 16.00 | 6.00 | 27.00 | 13.00 | Quote | Quote |
| 1418F6 | 30.00 | 20.00 | 6.00 | 27.00 | 17.00 | Quote | Quote |
| 1418K6 | 30.00 | 24.00 | 6.00 | 27.00 | 21.00 | $586.60In stock | Buy now |
| 1418L6 | 36.00 | 24.00 | 6.00 | 33.00 | 21.00 | Quote | Quote |
| 1418M6 | 36.00 | 30.00 | 6.00 | 33.00 | 27.00 | $757.12In stock | Buy now |
| 1418A8 | 12.00 | 24.00 | 8.00 | 9.00 | 21.00 | $406.88In stock | Buy now |
| 1418B8 | 16.00 | 12.00 | 8.00 | 13.00 | 9.00 | Quote | Quote |
| 1418G8 | 16.00 | 16.00 | 8.00 | 13.00 | 13.00 | $375.75In stock | Buy now |
| 1418CR8 | 16.00 | 20.00 | 8.00 | 13.00 | 17.00 | Quote | Quote |
| 1418CA8 | 20.00 | 12.00 | 8.00 | 17.00 | 9.00 | Quote | Quote |
| 1418C8 | 20.00 | 16.00 | 8.00 | 17.00 | 13.00 | Quote | Quote |
| 1418D8 | 20.00 | 20.00 | 8.00 | 17.00 | 17.00 | Quote | Quote |
| 1418ER8 | 20.00 | 24.00 | 8.00 | 17.00 | 21.00 | $489.80In stock | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
Construction
- ■Formed 14 gauge steel bodies and doors.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Door and body stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting.
- ■Formed lip on door and enclosure exclude flowing liquids and contaminants.
- ■Continuously hinged door may be removed by pulling the hinge pin.
- ■Door is secured with easily operated stainless steel clamps.
- ■Provision for padlocking.
- ■Oil resistant gaskets are permanently secured.
- ■A removable 12 gauge inner panel is included.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the inside and outside.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1418A6 | 12.00 | 24.00 | 6.00 | 9.00 | 21.00 |
| 1418B6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 |
| 1418G6 | 16.00 | 16.00 | 6.00 | 13.00 | 13.00 |
| 1418CR6 | 16.00 | 20.00 | 6.00 | 13.00 | 17.00 |
| 1418CA6 | 20.00 | 12.00 | 6.00 | 17.00 | 9.00 |
| 1418C6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 |
| 1418D6 | 20.00 | 20.00 | 6.00 | 17.00 | 17.00 |
| 1418ER6 | 20.00 | 24.00 | 6.00 | 17.00 | 21.00 |
| 1418AR6 | 24.00 | 12.00 | 6.00 | 21.00 | 9.00 |
| 1418H6 | 24.00 | 16.00 | 6.00 | 21.00 | 13.00 |
| 1418E6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 |
| 1418J6 | 24.00 | 24.00 | 6.00 | 21.00 | 21.00 |
| 1418FG6 | 30.00 | 16.00 | 6.00 | 27.00 | 13.00 |
| 1418F6 | 30.00 | 20.00 | 6.00 | 27.00 | 17.00 |
| 1418K6 | 30.00 | 24.00 | 6.00 | 27.00 | 21.00 |
| 1418L6 | 36.00 | 24.00 | 6.00 | 33.00 | 21.00 |
| 1418M6 | 36.00 | 30.00 | 6.00 | 33.00 | 27.00 |
| 1418A8 | 12.00 | 24.00 | 8.00 | 9.00 | 21.00 |
| 1418B8 | 16.00 | 12.00 | 8.00 | 13.00 | 9.00 |
| 1418G8 | 16.00 | 16.00 | 8.00 | 13.00 | 13.00 |
| 1418CR8 | 16.00 | 20.00 | 8.00 | 13.00 | 17.00 |
| 1418CA8 | 20.00 | 12.00 | 8.00 | 17.00 | 9.00 |
| 1418C8 | 20.00 | 16.00 | 8.00 | 17.00 | 13.00 |
| 1418D8 | 20.00 | 20.00 | 8.00 | 17.00 | 17.00 |
| 1418ER8 | 20.00 | 24.00 | 8.00 | 17.00 | 21.00 |
| 1418AR8 | 24.00 | 12.00 | 8.00 | 21.00 | 9.00 |
| 1418H8 | 24.00 | 16.00 | 8.00 | 21.00 | 13.00 |
| 1418E8 | 24.00 | 20.00 | 8.00 | 21.00 | 17.00 |
| 1418J8 | 24.00 | 24.00 | 8.00 | 21.00 | 21.00 |
| 1418KR8 | 24.00 | 30.00 | 8.00 | 21.00 | 27.00 |
| 1418KA8 | 30.00 | 12.00 | 8.00 | 27.00 | 9.00 |
| 1418KG8 | 30.00 | 16.00 | 8.00 | 27.00 | 13.00 |
| 1418F8 | 30.00 | 20.00 | 8.00 | 27.00 | 17.00 |
| 1418K8 | 30.00 | 24.00 | 8.00 | 27.00 | 21.00 |
| 1418KK8 | 30.00 | 30.00 | 8.00 | 27.00 | 27.00 |
| 1418MR8 | 30.00 | 36.00 | 8.00 | 27.00 | 33.00 |
| 1418L8 | 36.00 | 24.00 | 8.00 | 33.00 | 21.00 |
| 1418M8 | 36.00 | 30.00 | 8.00 | 33.00 | 27.00 |
| 1418LL8 | 36.00 | 36.00 | 8.00 | 33.00 | 33.00 |
| 1418N8 | 42.00 | 24.00 | 8.00 | 39.00 | 21.00 |
| 1418O8 | 42.00 | 30.00 | 8.00 | 39.00 | 27.00 |
| 1418P8 | 42.00 | 36.00 | 8.00 | 39.00 | 33.00 |
| 1418Q8 | 48.00 | 24.00 | 8.00 | 45.00 | 21.00 |
| 1418R8 | 48.00 | 30.00 | 8.00 | 45.00 | 27.00 |
| 1418S8 | 48.00 | 36.00 | 8.00 | 45.00 | 33.00 |
| 1418T8 | 60.00 | 36.00 | 8.00 | 57.00 | 33.00 |
| 1418B10 | 16.00 | 12.00 | 10.00 | 13.00 | 9.00 |
| 1418C10 | 20.00 | 16.00 | 10.00 | 17.00 | 13.00 |
| 1418D10 | 20.00 | 20.00 | 10.00 | 17.00 | 17.00 |
| 1418AR10 | 24.00 | 12.00 | 10.00 | 21.00 | 9.00 |
| 1418E10 | 24.00 | 20.00 | 10.00 | 21.00 | 17.00 |

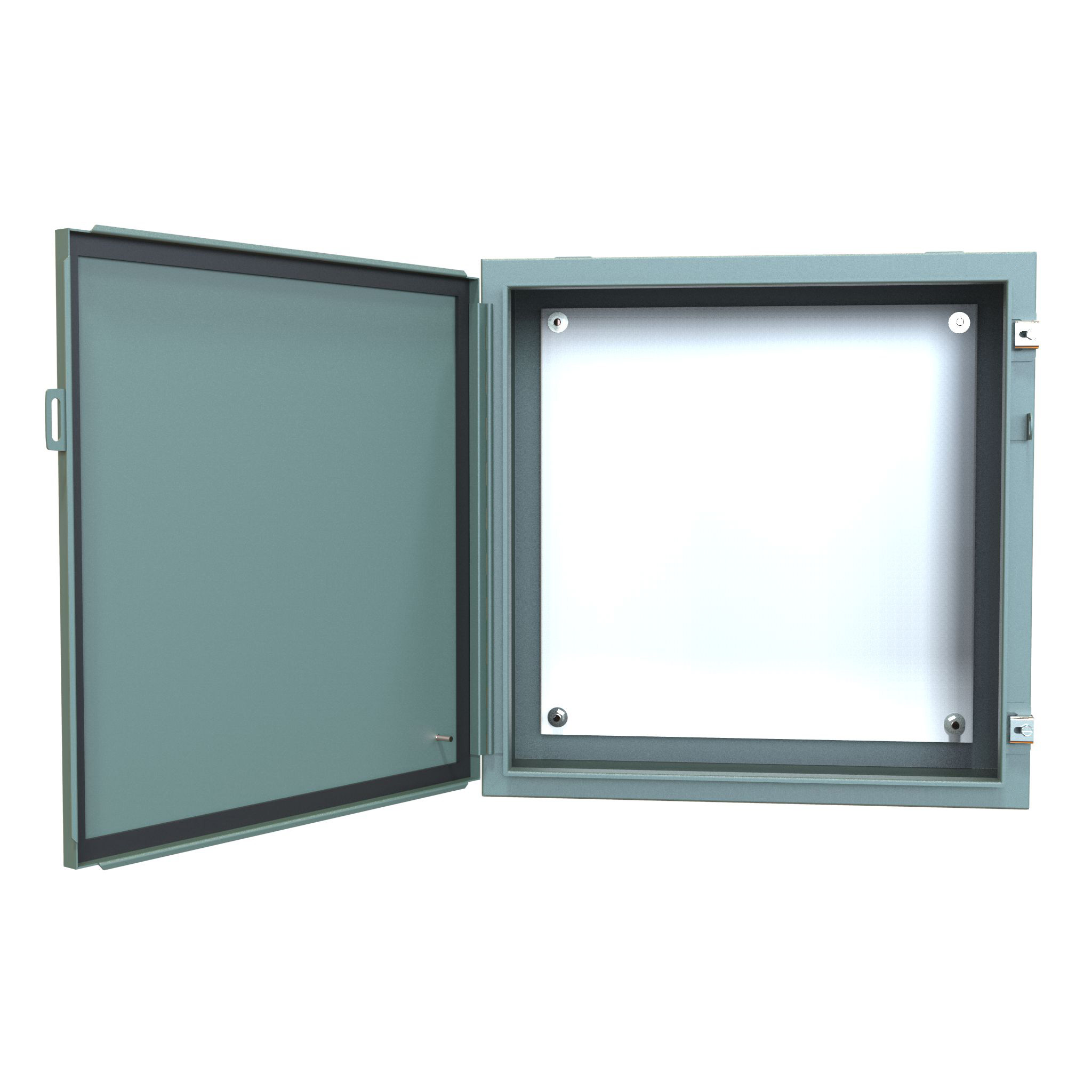

| 1418J10 | 24.00 | 24.00 | 10.00 | 21.00 | 21.00 |
| 1418F10 | 30.00 | 20.00 | 10.00 | 27.00 | 17.00 |

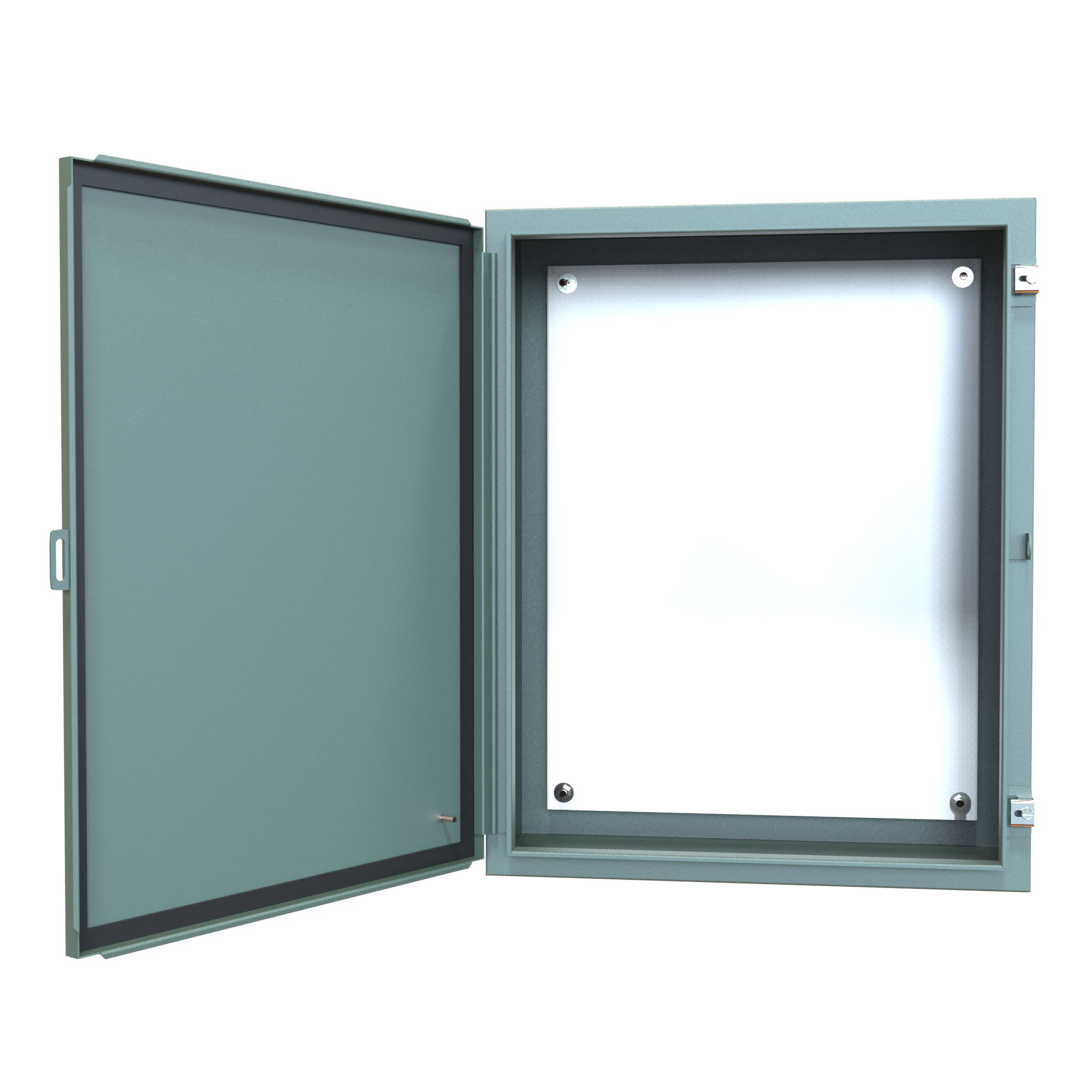

| 1418K10 | 30.00 | 24.00 | 10.00 | 27.00 | 21.00 |
| 1418L10 | 36.00 | 24.00 | 10.00 | 33.00 | 21.00 |
| 1418M10 | 36.00 | 30.00 | 10.00 | 33.00 | 27.00 |
| 1418O10 | 42.00 | 30.00 | 10.00 | 39.00 | 27.00 |
| 1418P10 | 42.00 | 36.00 | 10.00 | 39.00 | 33.00 |
| 1418R10 | 48.00 | 30.00 | 10.00 | 45.00 | 27.00 |
| 1418S10 | 48.00 | 36.00 | 10.00 | 45.00 | 33.00 |
| 1418T10 | 60.00 | 36.00 | 10.00 | 57.00 | 33.00 |
| 1418C12 | 20.00 | 16.00 | 12.00 | 17.00 | 13.00 |

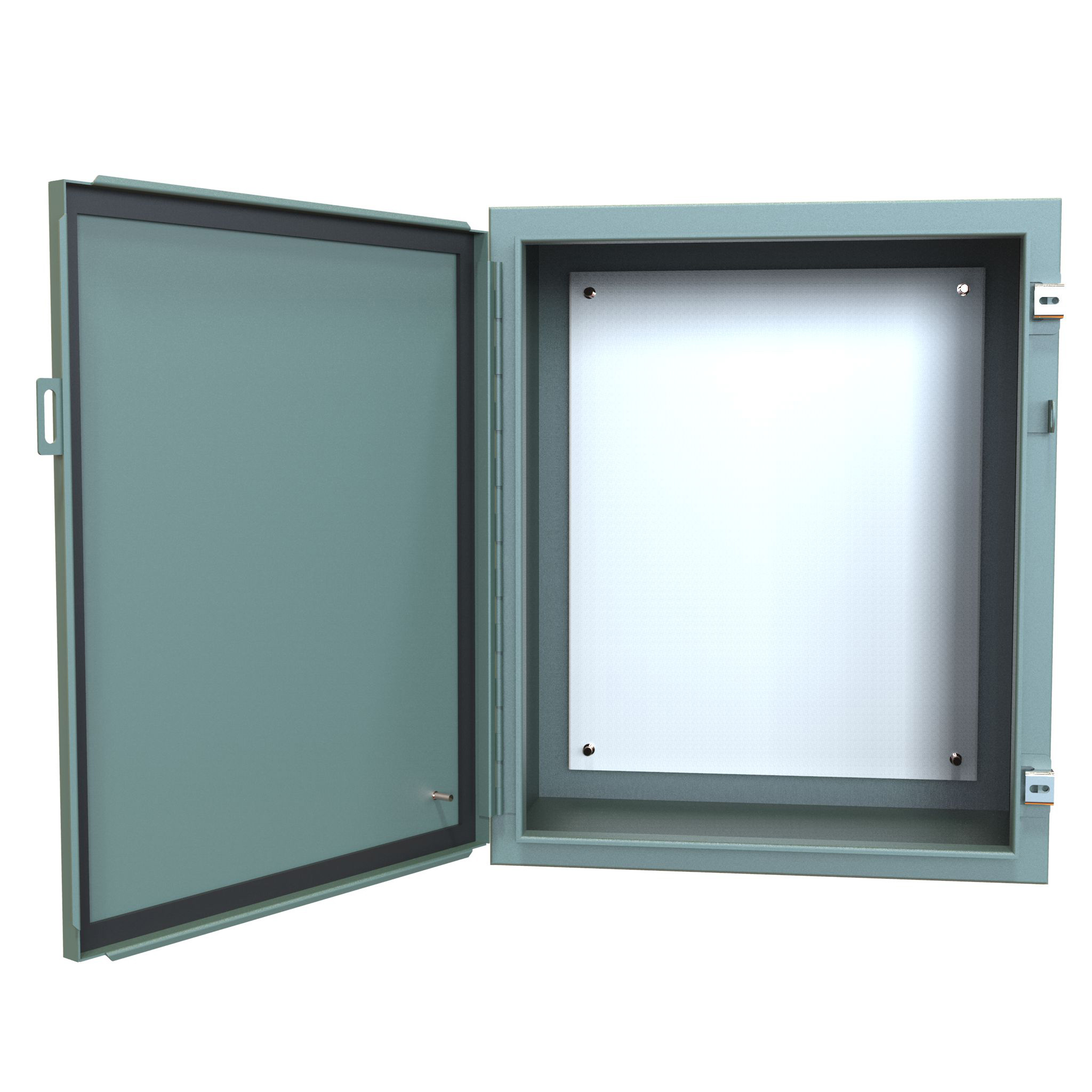

| 1418E12 | 24.00 | 20.00 | 12.00 | 21.00 | 17.00 |
| 1418J12 | 24.00 | 24.00 | 12.00 | 21.00 | 21.00 |
| 1418K12 | 30.00 | 24.00 | 12.00 | 27.00 | 21.00 |
| 1418KK12 | 30.00 | 30.00 | 12.00 | 27.00 | 27.00 |
| 1418L12 | 36.00 | 24.00 | 12.00 | 33.00 | 21.00 |
| 1418M12 | 36.00 | 30.00 | 12.00 | 33.00 | 27.00 |
| 1418LL12 | 36.00 | 36.00 | 12.00 | 33.00 | 33.00 |
| 1418O12 | 42.00 | 30.00 | 12.00 | 39.00 | 27.00 |
| 1418P12 | 42.00 | 36.00 | 12.00 | 39.00 | 33.00 |
| 1418S12 | 48.00 | 36.00 | 12.00 | 45.00 | 33.00 |
| 1418T12 | 60.00 | 36.00 | 12.00 | 57.00 | 33.00 |
| 1418U12 | 72.00 | 30.00 | 12.00 | 69.00 | 27.00 |
| 1418V12 | 72.00 | 36.00 | 12.00 | 69.00 | 33.00 |
| 1418E16 | 24.00 | 20.00 | 16.00 | 21.00 | 17.00 |
| 1418J16 | 24.00 | 24.00 | 16.00 | 21.00 | 21.00 |
| 1418K16 | 30.00 | 24.00 | 16.00 | 27.00 | 21.00 |
| 1418M16 | 36.00 | 30.00 | 16.00 | 33.00 | 27.00 |
| 1418P16 | 42.00 | 36.00 | 16.00 | 39.00 | 33.00 |
| 1418S16 | 48.00 | 36.00 | 16.00 | 45.00 | 33.00 |
| 1418T16 | 60.00 | 36.00 | 16.00 | 57.00 | 33.00 |
| 1418U16 | 72.00 | 30.00 | 16.00 | 69.00 | 27.00 |
| 1418K20 | 30.00 | 24.00 | 20.00 | 27.00 | 21.00 |
| 1418M20 | 36.00 | 30.00 | 20.00 | 33.00 | 27.00 |
| 1418S20 | 48.00 | 36.00 | 20.00 | 45.00 | 33.00 |
| 1418T20 | 60.00 | 36.00 | 20.00 | 57.00 | 33.00 |
| 1418U20 | 72.00 | 30.00 | 20.00 | 69.00 | 27.00 |
| 1418K24 | 30.00 | 24.00 | 24.00 | 27.00 | 21.00 |
| 1418U24 | 72.00 | 30.00 | 24.00 | 69.00 | 27.00 |
Any questions? Talk with an expert
Call us (224) 955-1644Accessories for this series
Inner Panels · 18P Series
from $12.71
Shop parts
Perforated Inner Panels · 18PP Series
from $26.69
Shop parts
Swing Panel Kit · SPB Series
from $57.18
Shop parts
Door Stop Kit
from $107.66
Shop parts
Door Clamping Hardware - Heavy Duty
from $38.52
Shop parts
Wallmount Quick Release Clamp
from $27.02
Shop parts
Type 4, 12 Lock Kit
from $85.60
Shop parts
Floor Stand Kit · 1481F Series
from $167.85
Shop partsRelated products
Type 4 Mild Steel Junction Box · Eclipse Junior Series
from $52.20
Shop parts
Type 12 Mild Steel Junction Box · 1414 Series
from $48.15
Shop parts
Type 4 Mild Steel Junction Box · 1414 N4 Series
from $58.85
Shop parts
Type 4, 12 Mild Steel Junction Box · HJ Series
from $4.35
Shop parts
Type 12 Mild Steel Junction Box · 1414 PH Series
from $47.48
Shop parts
Type 4 Mild Steel Junction Box · 1414 N4 PH Series
from $68.21
Shop parts
Type 4, 12 Mild Steel Junction Box · HJ H Series
from $4.35
Shop parts
Type 12 Mild Steel Junction Box · 1414 SC Series
from $48.08
Shop parts
