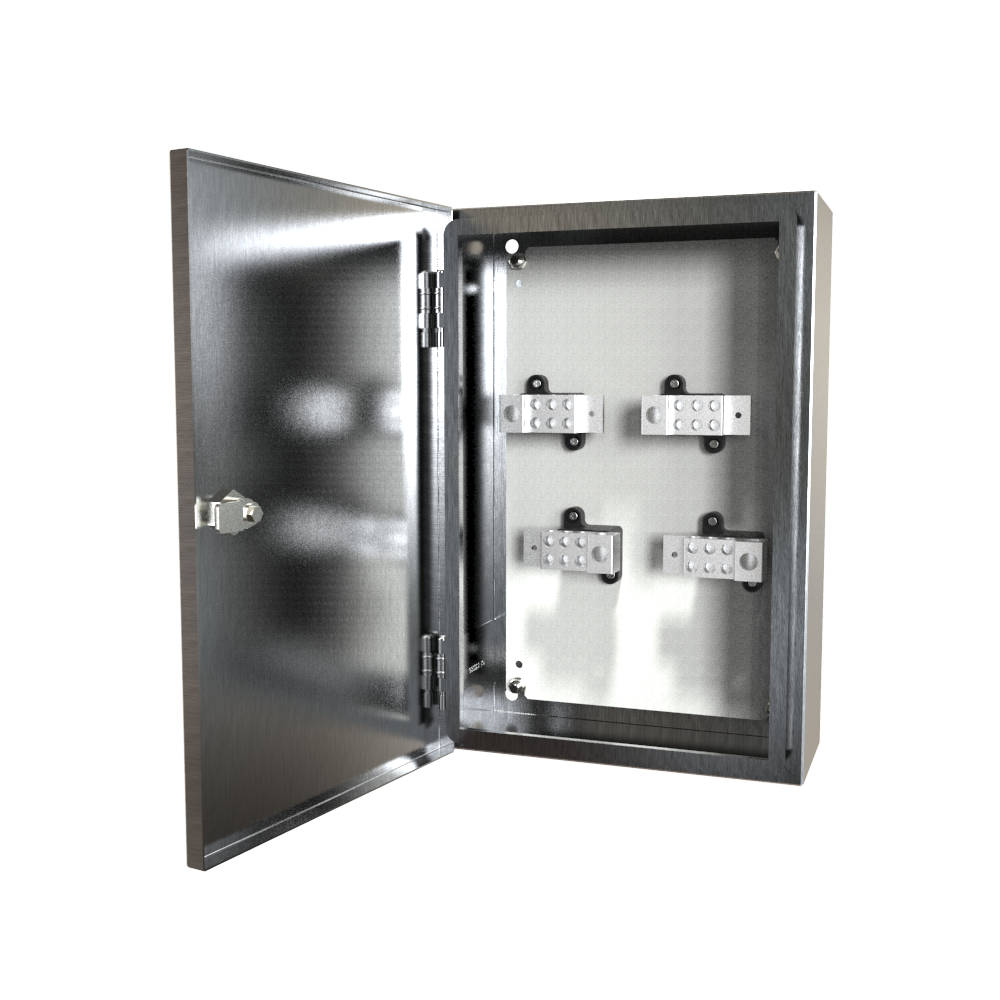

Type 4X Stainless Steel Splitter Box · CN4SBSS Series

Application

• ■The splitter boxes are designed for distribution of up to 600 A (max) service (600V max) using either 3 or 4 wires. 75° C conductor ampacity permitted.

Standards

• ■CSA Type 3R, 12, 4X
• ■Complies with IEC 60529, IP66
• ■IEC 60529, IP66

Construction

• ■Formed 16 gauge Type 304 stainless steel (14 gauge on 30x24)
• ■Factory installed splitter blocks.
• ■Smooth, continuously welded seams ground smooth.
• ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• ■Formed lip on enclosure to exclude flowing liquids and contaminants.
• ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• ■Doors may be easily removed for modifications and are interchangeable.
• ■Seamless poured-in place gasket.
• ■Collar studs provided for mounting inner panel.
• ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• ■Hinges are constructed from 304 stainless steel.
• ■Hinge pins are stainless steel.
• ■Inner panel is included.

Finish

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
• ■Inner panel is finished in white powder coating.
