Type 4X Wrg Trough - 2.5X2.5X1
$272.56In stock
Buy now

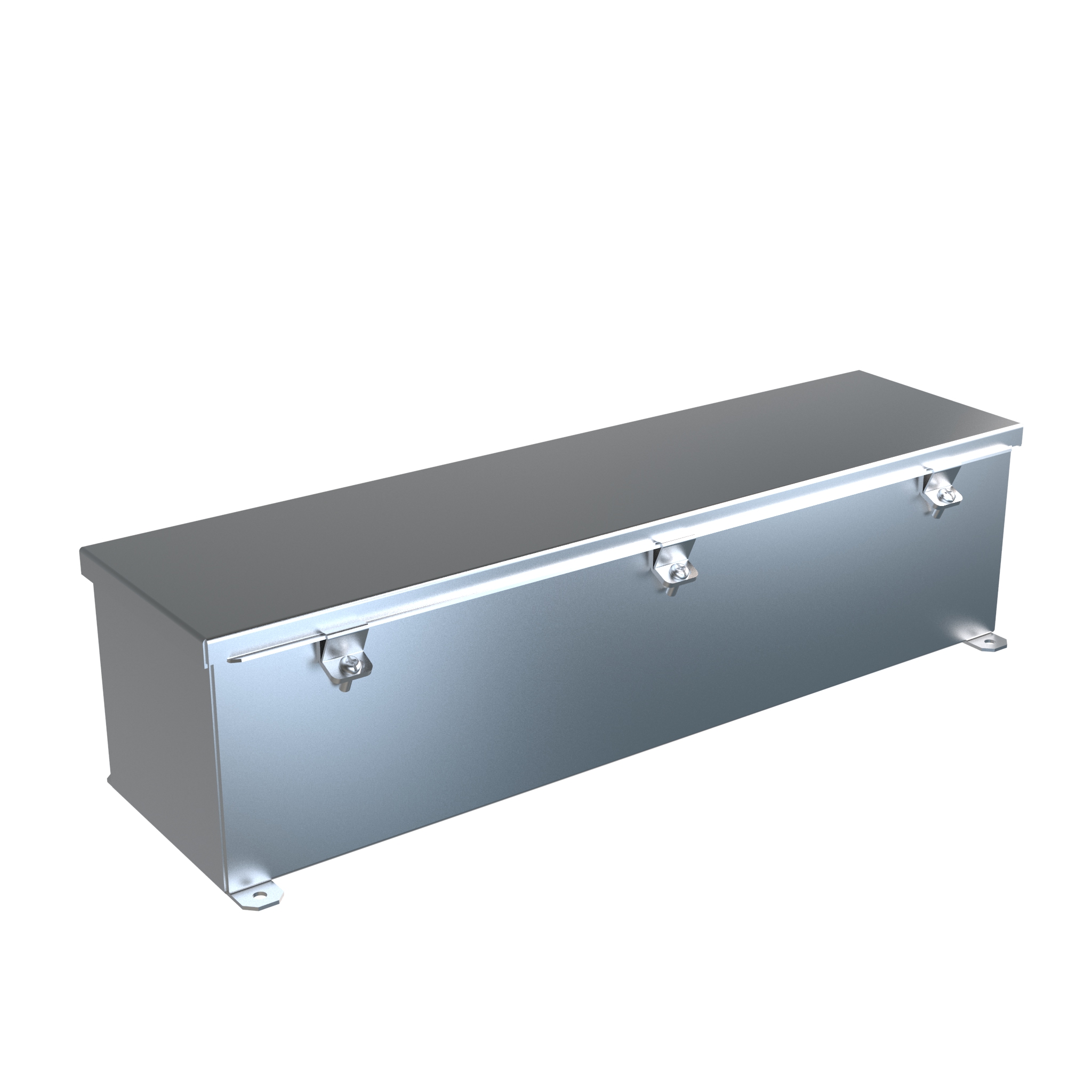

Type 4X Wiring Trough · 1486SS Series
Brand: Hammond Manufacturing · 32 part numbers
1486SS Series
- ■Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water while providing a measure of corrosion protection.
- ■UL 870 Type 1, 12, 4, 4X
- ■CSA Type 1, 12, 4, 4X
- ■Complies with NEMA Type 12, 4, 4X IEC 60529, IP66
- ■NEMA Type 12, 4, 4X
- ■IEC 60529, IP66
from $272.56
32 of 32 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1486SS Series part number
Filter 33 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
33 of 33 part numbers · 32 priced online
Type 4X Wrg Trough - 2.5X2.5X1
$293.52In stock
Buy nowType 4X Wrg Trough - 2.5X2.5X2
$316.11Backorder
Buy nowType 4X Wrg Trough - 2.5X2.5X3
$358.04Backorder
Buy nowType 4X Wrg Trough - 2.5X2.5X4
$401.59Backorder
Buy nowType 4X Wrg Trough - 2.5X2.5X6
$442.44Backorder
Buy nowType 4X Wrg Trough - 2.5X2.5X7
$481.69Backorder
Buy nowType 4X Wrg Trough - 4X4X12
$318.25In stock
Buy nowType 4X Wrg Trough - 4X4X18
$358.04In stock
Buy nowType 4X Wrg Trough - 4X4X24
$398.89In stock
Buy nowType 4X Wrg Trough - 4X4X30
$440.29In stock
Buy nowType 4X Wrg Trough - 4X4X36
$476.85In stock
Buy nowType 4X Wrg Trough - 4X4X48
$577.92In stock
Buy nowType 4X Wrg Trough - 4X4X60
$658.02Backorder
Buy nowType 4X Wrg Trough - 4X4X72
$719.84Backorder
Buy nowType 4X Wrg Trough - 6X6X12
$375.78In stock
Buy nowType 4X Wrg Trough - 6X6X18
$435.46In stock
Buy now
Type 4X Wrg Trough - 6X6X24
$496.74In stock
Buy nowType 4X Wrg Trough - 6X6X30
$554.80In stock
Buy nowType 4X Wrg Trough - 6X6X36
$616.63In stock
Buy nowType 4X Wrg Trough - 6X6X48
$735.97In stock
Buy nowType 4X Wrg Trough - 6X6X60
$884.35In stock
Buy nowType 4X Wrg Trough - 6X6X72
$1,009.06In stock
Buy nowType 4X Wrg Trough - 8X8X12
$462.87In stock
Buy nowType 4X Wrg Trough - 8X8X24
$610.71In stock
Buy nowType 4X Wrg Trough - 8X8X36
$778.98In stock
Buy nowType 4X Wrg Trough - 8X8X48
$970.90In stock
Buy nowType 4X Wrg Trough - 8X8X60
$1,140.25In stock
Buy nowType 4X Wrg Trough - 12X12X24
$848.33In stock
Buy nowType 4X Wrg Trough - 12X12X36
$1,091.86Backorder
Buy nowType 4X Wrg Trough - 12X12X48
$1,377.86In stock
Buy nowType 4X Wrg Trough - 12X12X60
$1,590.75In stock
Buy now1486B30SS
Type 4X Wrg Trough -2.5X2.5X30
QuoteRequest a quote
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · D | Enclosure · L | Price | Order |
|---|---|---|---|---|---|
| 1486B12SS | 2.50 | 2.50 | 12.00 | $272.56In stock | Buy now |
| 1486B18SS | 2.50 | 2.50 | 18.00 | $293.52In stock | Buy now |
| 1486B24SS | 2.50 | 2.50 | 24.00 | $316.11Backorder | Buy now |
| 1486B36SS | 2.50 | 2.50 | 36.00 | $358.04Backorder | Buy now |
| 1486B48SS | 2.50 | 2.50 | 48.00 | $401.59Backorder | Buy now |
| 1486B60SS | 2.50 | 2.50 | 60.00 | $442.44Backorder | Buy now |
| 1486B72SS | 2.50 | 2.50 | 72.00 | $481.69Backorder | Buy now |
| 1486C12SS | 4.00 | 4.00 | 12.00 | $318.25In stock | Buy now |
| 1486C18SS | 4.00 | 4.00 | 18.00 | $358.04In stock | Buy now |
| 1486C24SS | 4.00 | 4.00 | 24.00 | $398.89In stock | Buy now |
| 1486C30SS | 4.00 | 4.00 | 30.00 | $440.29In stock | Buy now |
| 1486C36SS | 4.00 | 4.00 | 36.00 | $476.85In stock | Buy now |
| 1486C48SS | 4.00 | 4.00 | 48.00 | $577.92In stock | Buy now |
| 1486C60SS | 4.00 | 4.00 | 60.00 | $658.02Backorder | Buy now |
| 1486C72SS | 4.00 | 4.00 | 72.00 | $719.84Backorder | Buy now |
| 1486D12SS | 6.00 | 6.00 | 12.00 | $375.78In stock | Buy now |
| 1486D18SS | 6.00 | 6.00 | 18.00 | $435.46In stock | Buy now |
| 1486D24SS | 6.00 | 6.00 | 24.00 | $496.74In stock | Buy now |
| 1486D30SS | 6.00 | 6.00 | 30.00 | $554.80In stock | Buy now |
| 1486D36SS | 6.00 | 6.00 | 36.00 | $616.63In stock | Buy now |
| 1486D48SS | 6.00 | 6.00 | 48.00 | $735.97In stock | Buy now |
| 1486D60SS | 6.00 | 6.00 | 60.00 | $884.35In stock | Buy now |
| 1486D72SS | 6.00 | 6.00 | 72.00 | $1,009.06In stock | Buy now |
| 1486E12SS | 8.00 | 8.00 | 12.00 | $462.87In stock | Buy now |
| 1486E24SS | 8.00 | 8.00 | 24.00 | $610.71In stock | Buy now |
| 1486E36SS | 8.00 | 8.00 | 36.00 | $778.98In stock | Buy now |
| 1486E48SS | 8.00 | 8.00 | 48.00 | $970.90In stock | Buy now |
| 1486E60SS | 8.00 | 8.00 | 60.00 | $1,140.25In stock | Buy now |
| 1486G24SS | 12.00 | 12.00 | 24.00 | $848.33In stock | Buy now |
| 1486G36SS | 12.00 | 12.00 | 36.00 | $1,091.86Backorder | Buy now |
| 1486G48SS | 12.00 | 12.00 | 48.00 | $1,377.86In stock | Buy now |
| 1486G60SS | 12.00 | 12.00 | 60.00 | $1,590.75In stock | Buy now |
Application
- ■Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water while providing a measure of corrosion protection.
Standards
- ■UL 870 Type 1, 12, 4, 4X
- ■CSA Type 1, 12, 4, 4X
- ■Complies with NEMA Type 12, 4, 4X IEC 60529, IP66
- ■NEMA Type 12, 4, 4X
- ■IEC 60529, IP66
Construction
- ■Formed 14 gauge 304 stainless steel.
- ■Smooth continuously welded seams.

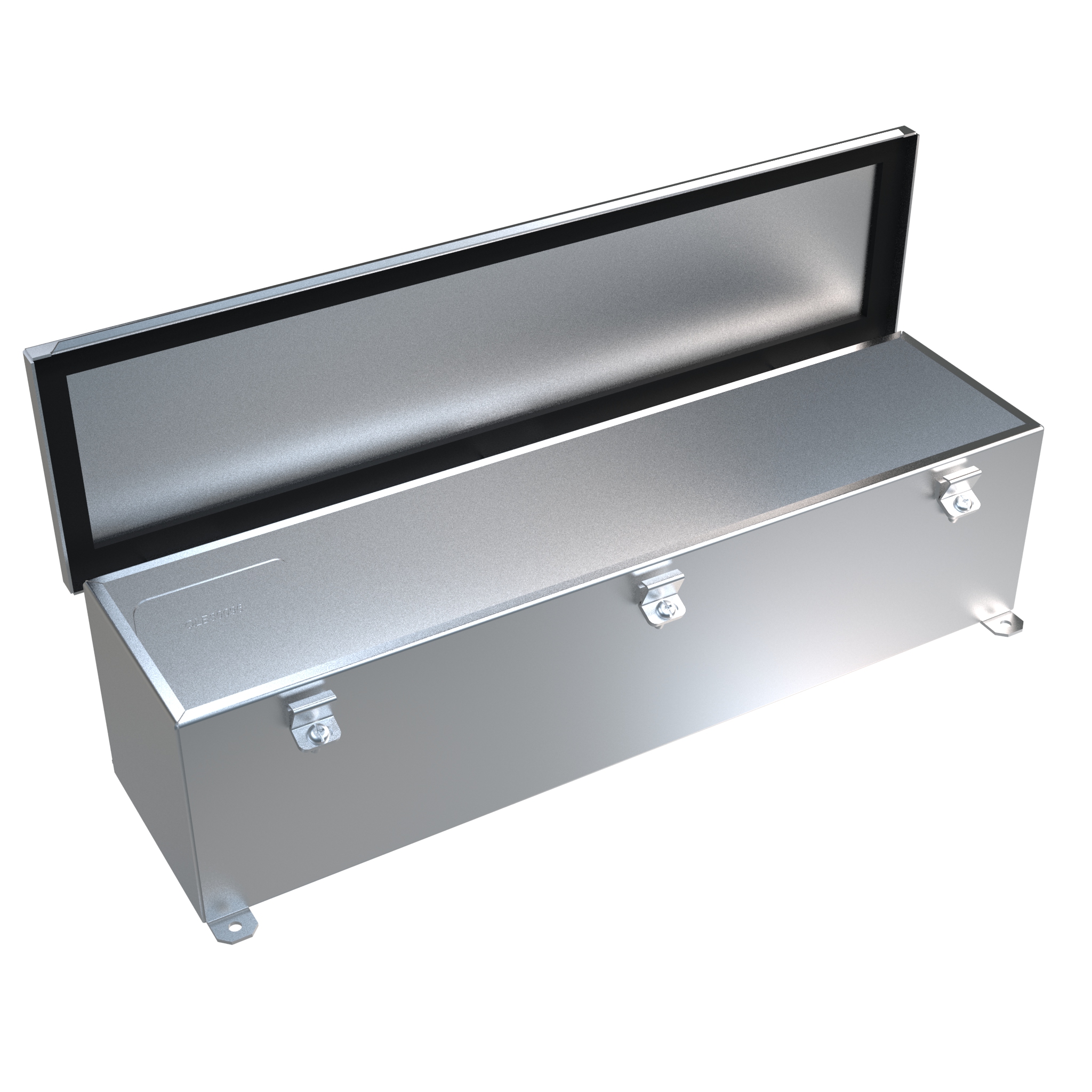

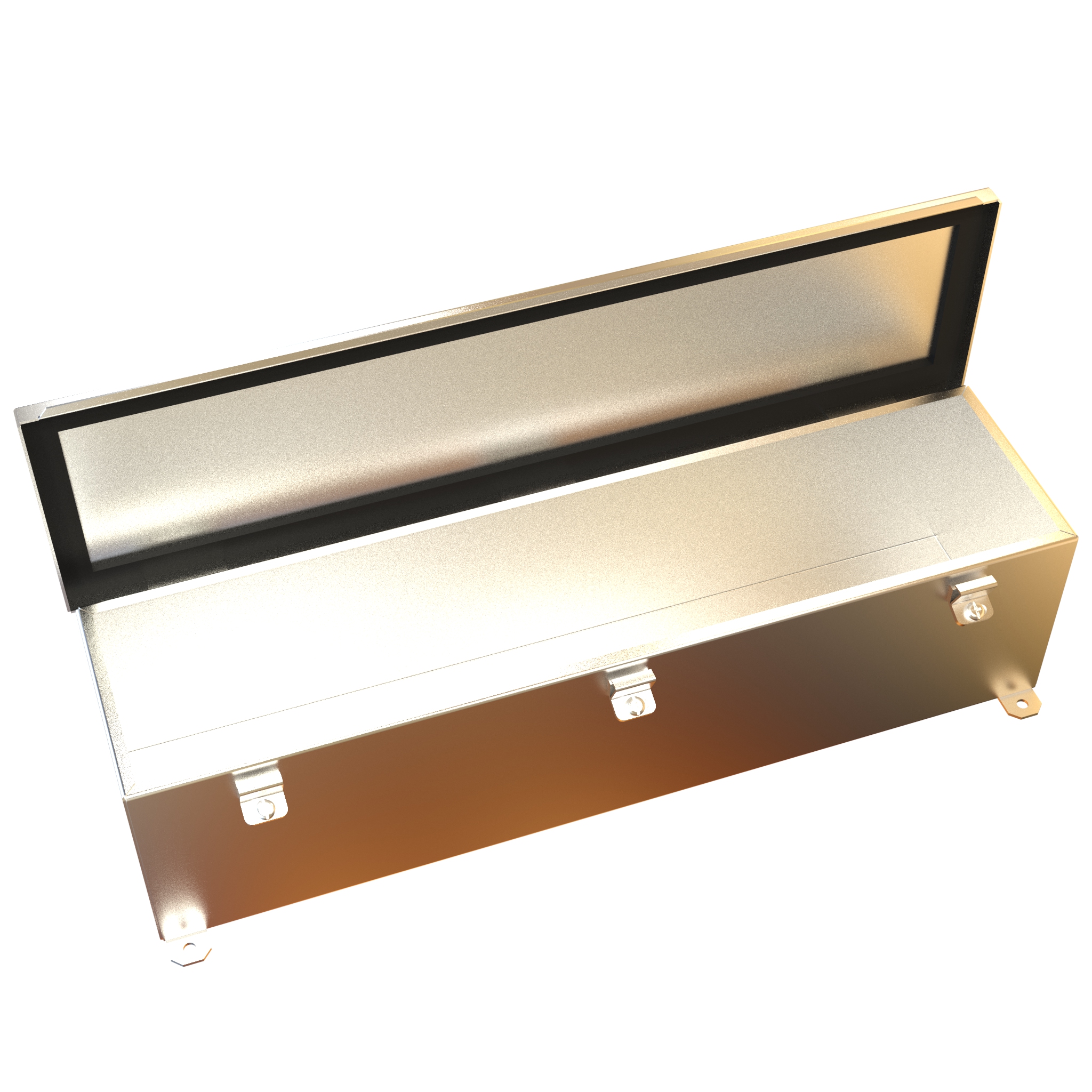

- ■Butt hinged cover is secured with easily operated screw clamps.
- ■Oil resistant gaskets are permanently secured.
- ■12 gauge external mounting feet are welded to the back.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Troughs and covers are natural stainless steel with a smooth brushed finish.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · D | Enclosure · L |
|---|---|---|---|
| 1486B12SS | 2.50 | 2.50 | 12.00 |
| 1486B18SS | 2.50 | 2.50 | 18.00 |
| 1486B24SS | 2.50 | 2.50 | 24.00 |
| 1486B36SS | 2.50 | 2.50 | 36.00 |
| 1486B48SS | 2.50 | 2.50 | 48.00 |
| 1486B60SS | 2.50 | 2.50 | 60.00 |
| 1486B72SS | 2.50 | 2.50 | 72.00 |
| 1486C12SS | 4.00 | 4.00 | 12.00 |
| 1486C18SS | 4.00 | 4.00 | 18.00 |
| 1486C24SS | 4.00 | 4.00 | 24.00 |
| 1486C30SS | 4.00 | 4.00 | 30.00 |
| 1486C36SS | 4.00 | 4.00 | 36.00 |
| 1486C48SS | 4.00 | 4.00 | 48.00 |
| 1486C60SS | 4.00 | 4.00 | 60.00 |
| 1486C72SS | 4.00 | 4.00 | 72.00 |
| 1486D12SS | 6.00 | 6.00 | 12.00 |
| 1486D18SS | 6.00 | 6.00 | 18.00 |
| 1486D24SS | 6.00 | 6.00 | 24.00 |
| 1486D30SS | 6.00 | 6.00 | 30.00 |
| 1486D36SS | 6.00 | 6.00 | 36.00 |
| 1486D48SS | 6.00 | 6.00 | 48.00 |
| 1486D60SS | 6.00 | 6.00 | 60.00 |
| 1486D72SS | 6.00 | 6.00 | 72.00 |
| 1486E12SS | 8.00 | 8.00 | 12.00 |
| 1486E24SS | 8.00 | 8.00 | 24.00 |
| 1486E36SS | 8.00 | 8.00 | 36.00 |
| 1486E48SS | 8.00 | 8.00 | 48.00 |
| 1486E60SS | 8.00 | 8.00 | 60.00 |
| 1486G24SS | 12.00 | 12.00 | 24.00 |
| 1486G36SS | 12.00 | 12.00 | 36.00 |
| 1486G48SS | 12.00 | 12.00 | 48.00 |
| 1486G60SS | 12.00 | 12.00 | 60.00 |
