N4 2DR Enclosure 60X48X10
$3,356.38Backorder
Buy now
Type 4 Mild Steel Two Door Floormount Enclosure · 1422 N4 FM QT Series
Brand: Hammond Manufacturing · 5 part numbers
Continuous Hinge Door with Quarter Turn
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with NEMA Type 3R, 4 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4 12 and 13
from $3,356.38
5 of 5 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your 1422 N4 FM QT Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|

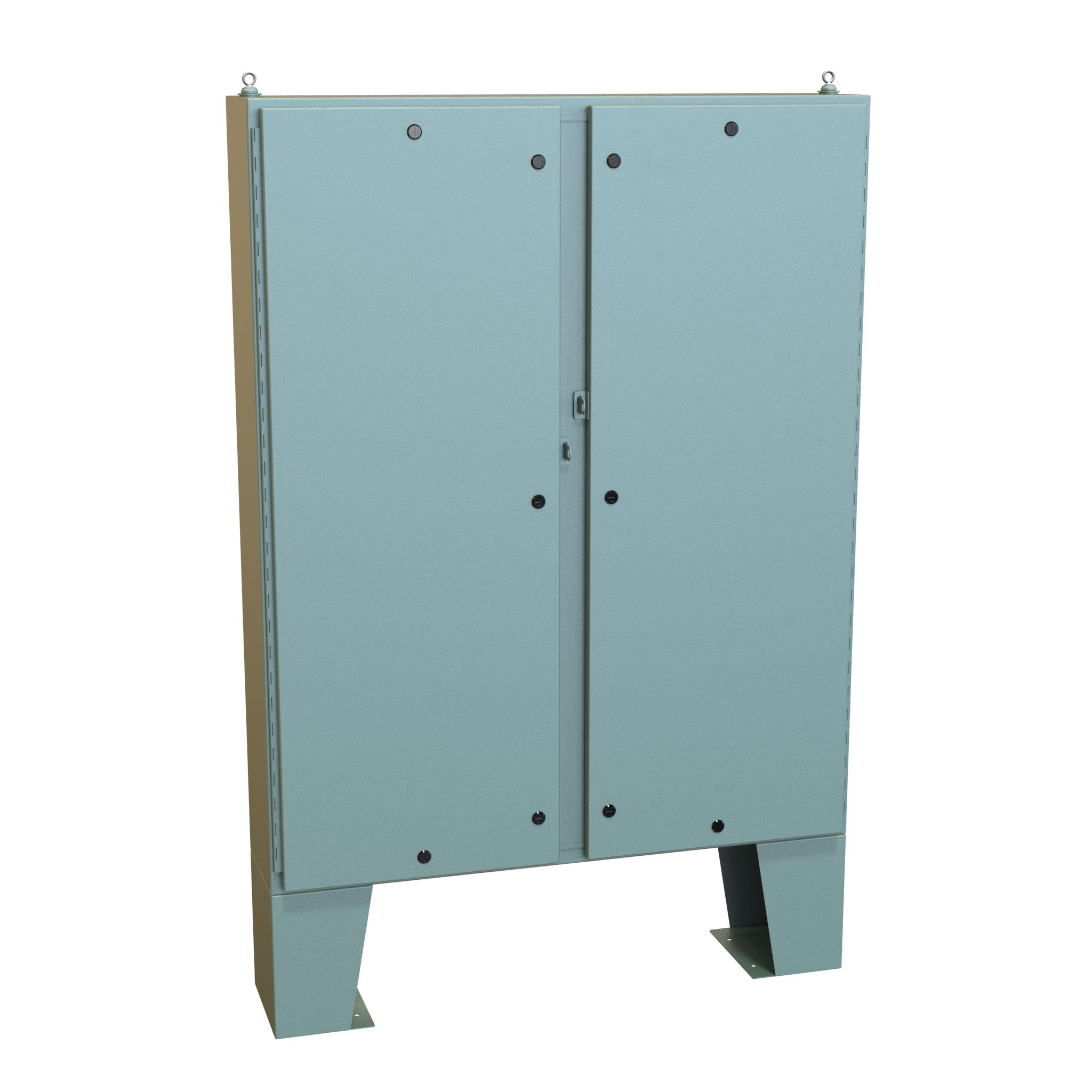

| 1422N4B10FQT | 60.13 | 48.06 | 10.69 | 56.00 | 44.00 | $3,356.38Backorder | Buy now |

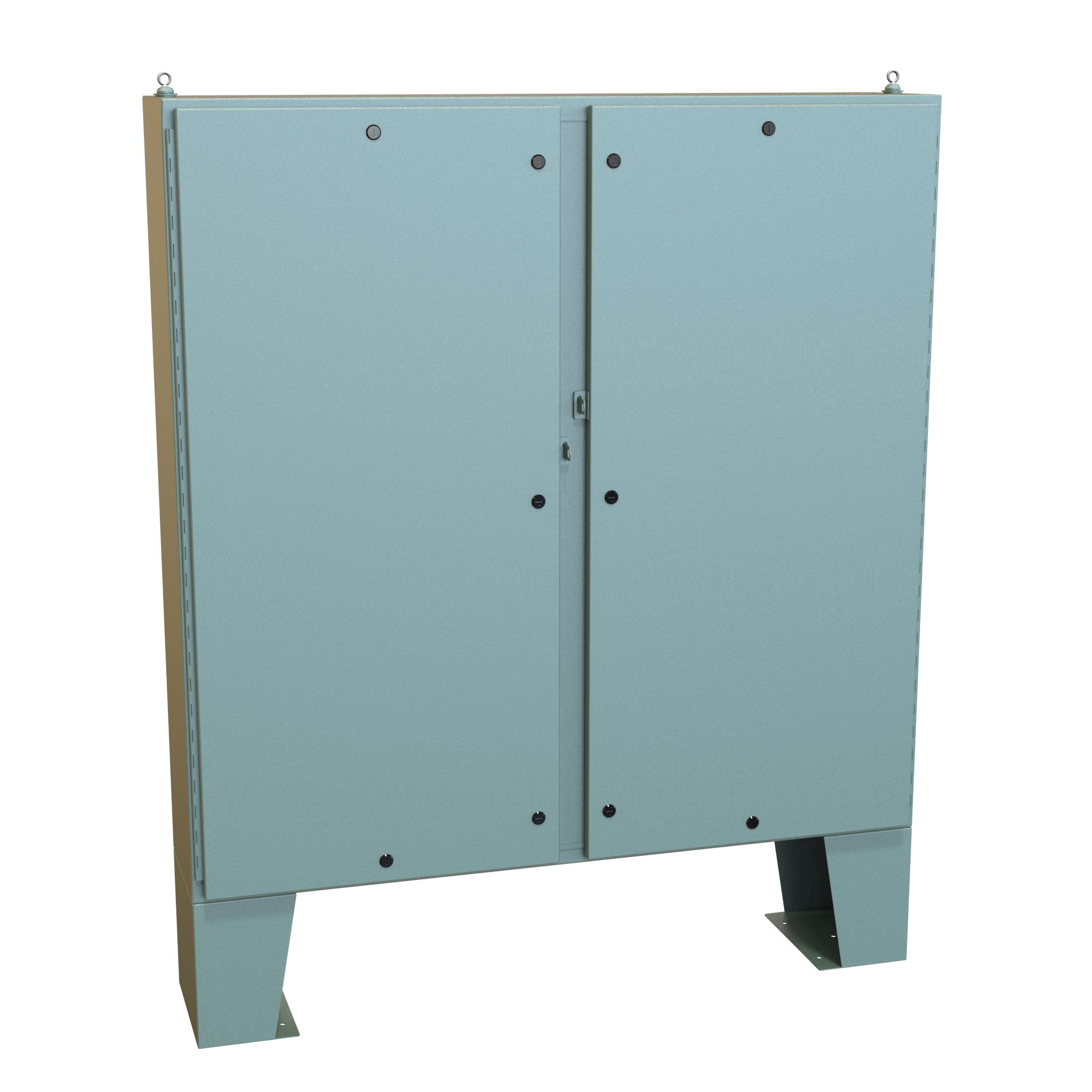

| 1422N4D12FQT | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 | $3,913.27Backorder | Buy now |

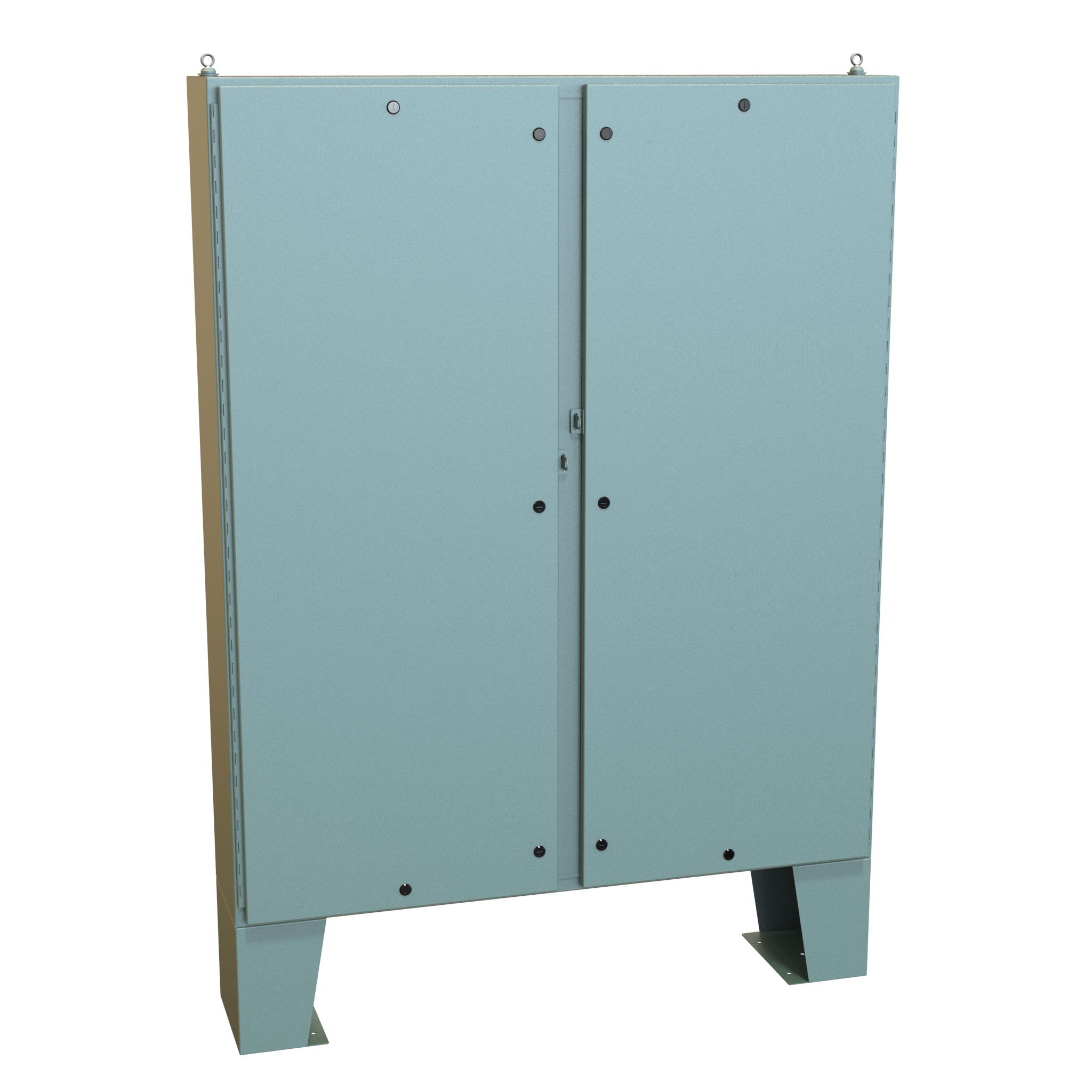

| 1422N4E12FQT | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 | $4,378.91Backorder | Buy now |

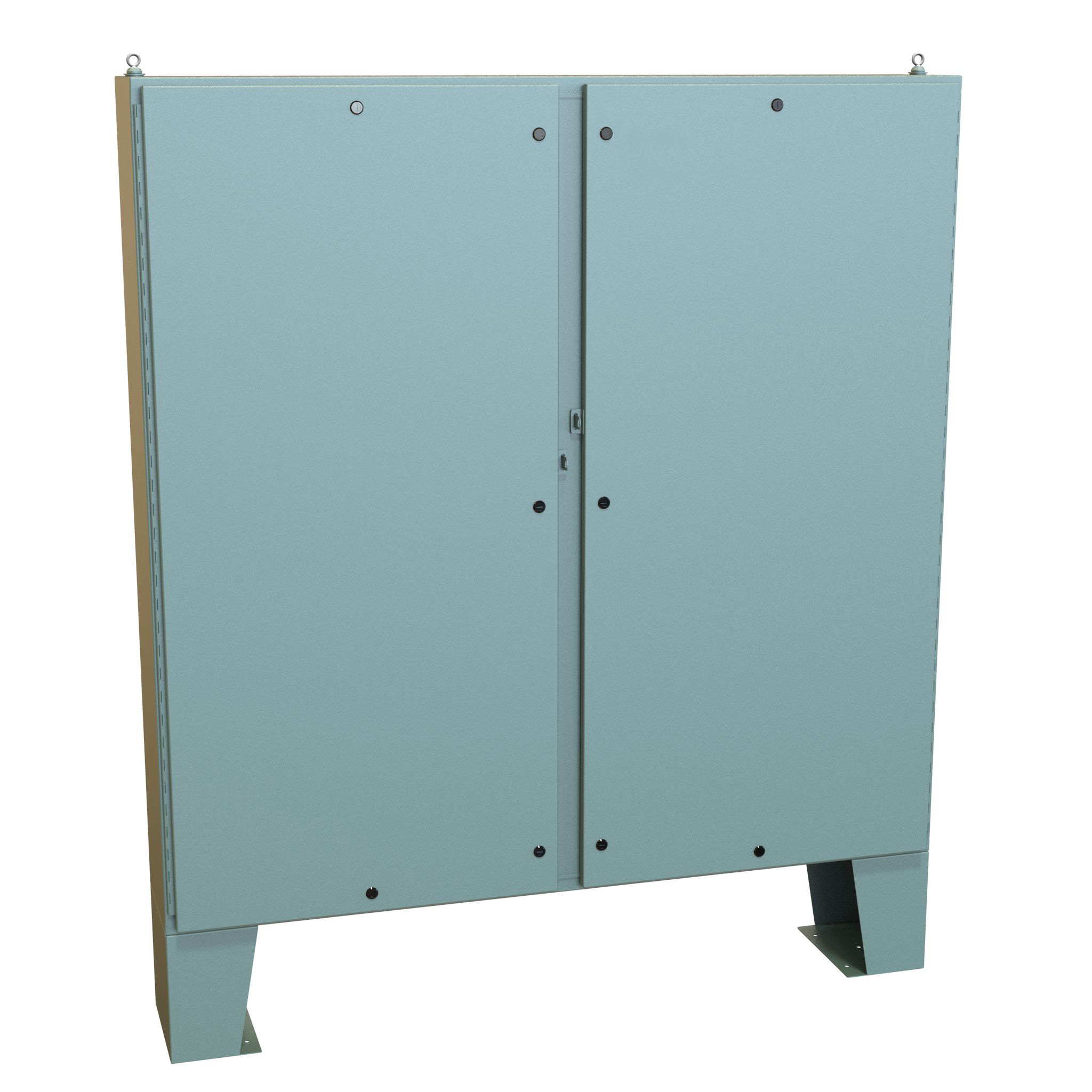

| 1422N4F12FQT | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 | $4,922.31Backorder | Buy now |

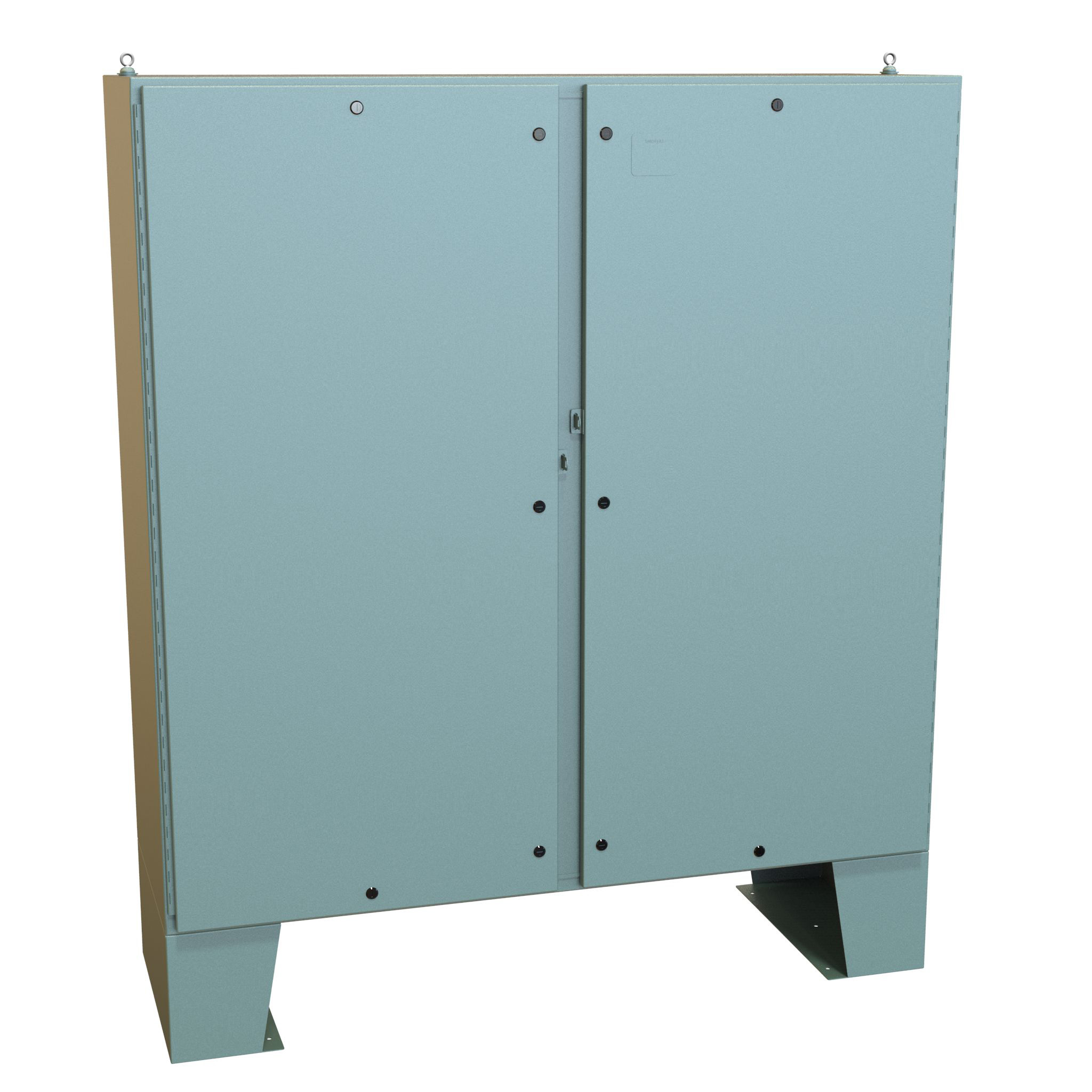

| 1422N4F24FQT | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 | $5,657.69Backorder | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Standards
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with NEMA Type 3R, 4 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4 12 and 13
- ■IEC 60529, IP66
Construction
- ■Enclosures are formed steel - 12 gauge (60" high) or combination 10/12 gauge (72" high).
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Body stiffeners are provided in the larger enclosures for extra rigidity.
- ■Heavy duty lifting eyebolts are provided with reinforcing support angles.
- ■Center post is removable for easy installation of the inner panel.
- ■Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.
- ■Continuously hinged doors may be removed by pulling the stainless steel hinge pin.
- ■Doors are secured with quarter turn latches.
- ■Provision for padlocking.
- ■12" floor stands are welded to the enclosure.
- ■Seamless poured-in place gasket.
- ■Provision for light kit mounting.
- ■A removable 10 gauge inner panel is included.
- ■Panel supports are provided for easy panel installation.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable white inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1422N4B10FQT | 60.13 | 48.06 | 10.69 | 56.00 | 44.00 |
| 1422N4D12FQT | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 |
| 1422N4E12FQT | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 |
| 1422N4F12FQT | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 |
| 1422N4F24FQT | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 |
