NEMA12 Two Dr ENC52X42X8.688
$1,739.67Backorder
Buy now
Type 12 Mild Steel Two Door Floormount Enclosure · 1422 FM Series
Brand: Hammond Manufacturing · 42 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
from $1,739.67
42 of 42 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1422 FM Series part number
Filter 42 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
42 of 42 part numbers · 42 priced online
NEMA12 Two Dr Enc.C/W Mounting Ft
$1,775.36In stock
Buy now
NEMA12 Two Dr ENC60X48X10
$2,346.53Backorder
Buy now
1422GY - Assembly
$2,394.13Backorder
Buy now
NEMA12 Two Dr ENC60X48X12
$2,408.41Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$2,457.59Backorder
Buy now
NEMA12 Two Dr ENC60X48X16
$2,528.20Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$2,579.75Backorder
Buy now
NEMA12 Two Dr Enclosure 60X48X20
$2,713.82In stock
Buy now
NEMA 12 Two Dr Enclosure C/W Mounting Ft
$2,769.35In stock
Buy now
NEMA12 Two Dr Enclosure 60X48X24
$2,841.54Backorder
Buy now
NEMA 12 Two Dr Enclosure C/W Mounting Ft
$2,899.45Backorder
Buy now
NEMA12 Two Dr ENC60X48X8
$2,340.98Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$2,388.57Backorder
Buy now
NEMA12 Two Dr ENC60X60X10
$2,736.83In stock
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$2,792.35Backorder
Buy now
NEMA12 Two Dr ENC60X60X12
$2,740.00In stock
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$2,795.53In stock
Buy now
NEMA 12 Two Dr Enclosure 60X60X16
$2,874.85Backorder
Buy now
NEMA12 Two Dr Enclosure C/W Mounting Ft
$2,933.56Backorder
Buy now
NEMA 12 Two Dr Enclosure 60X60X24
$3,218.35Backorder
Buy now
NEMA 12 Two Dr Enclosure C/W Mounting Ft
$3,284.19Backorder
Buy now
NEMA 12 Two Dr ENC72X60X10
$3,151.71Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$3,215.96In stock
Buy now
NEMA12 Two Dr ENC72X60X12
$3,153.30Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$3,217.56In stock
Buy now
NEMA 12 Two Dr Enclosure 72X60X16
$3,307.19Backorder
Buy now
NEMA 12 Two Dr Enclosure C/W Mounting Ft
$3,374.62In stock
Buy now
NEMA12 Two Dr Enclosure 72X60X20
$3,543.58Backorder
Buy now
NEMA 12 Two Dr Enclosure C/W Mounting Ft
$3,615.78Backorder
Buy now
NEMA 12 Two Dr Enclosure 72X60X24
$3,696.69Backorder
Buy now
NEMA12 Two Dr Enclosure C/W Mounting Ft
$3,772.05Backorder
Buy now
NEMA12 Two Dr ENC72X72X10
$3,552.32Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$3,624.51Backorder
Buy now
NEMA12 Two Dr Enc 72X72X12
$3,557.08Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$3,629.27In stock
Buy now
NEMA12 Two Dr Enc 72X72X16
$3,722.08Backorder
Buy now
NEMA12 Two Dr Encl.C/W Mounting Ft
$3,798.23Backorder
Buy now
Dbl Door Wall Mount Enclosure
$3,983.86Backorder
Buy now
Panel Enclosure Cw 12" Floor Mounting Ft
$4,064.79Backorder
Buy now
Dbl Door Wall Mount Enclosure
$4,149.66Backorder
Buy now
Panel Enclosure Cw 12" Floor Mounting Ft
$4,234.54Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| with Feet · Part No. | w/o Feet · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|
| 1422A8F | 1422A8 | 54.13 | 42.06 | 8.69 | 50.00 | 38.00 | $1,775.36In stock1422A8F | Buy now |

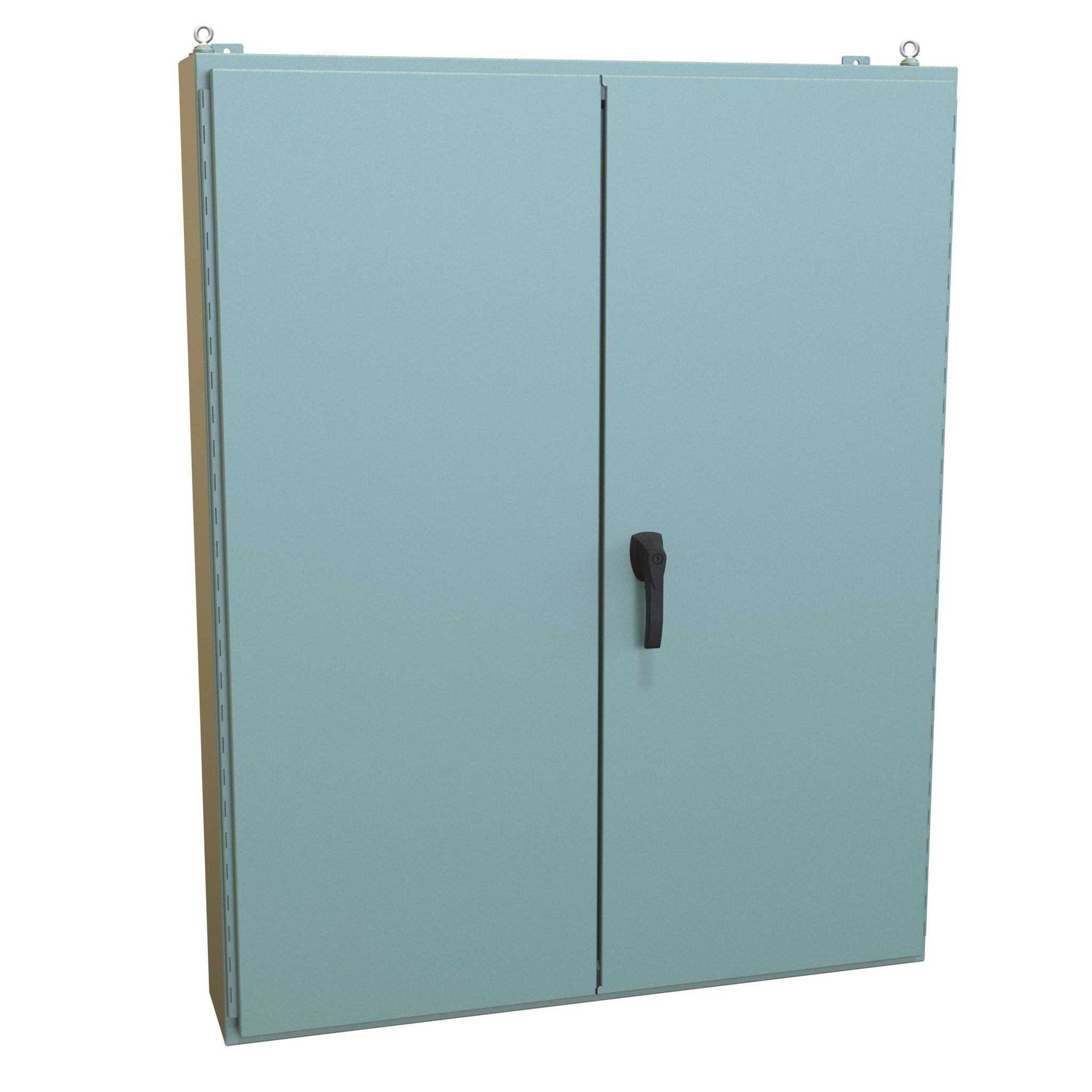

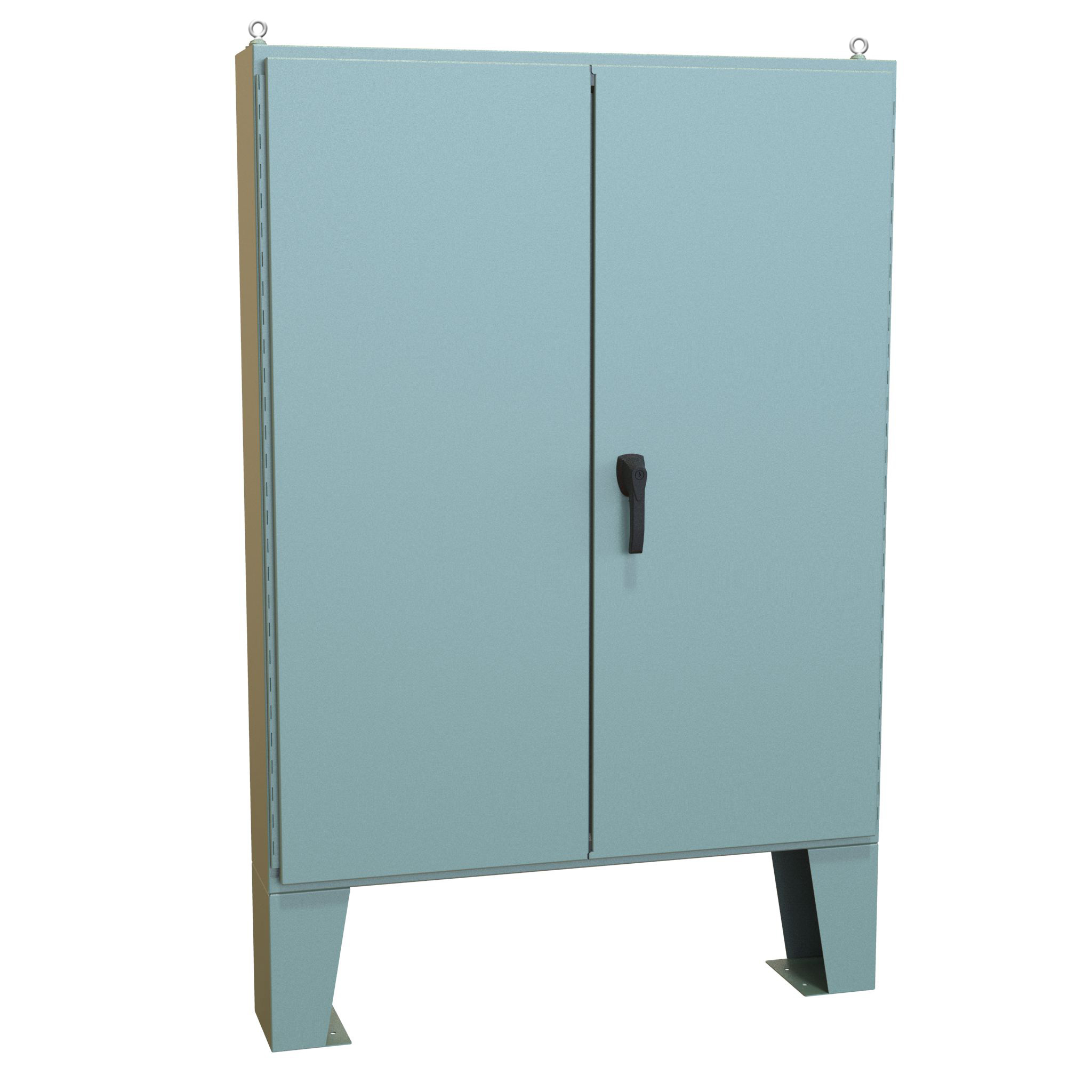

| 1422B8F | 1422B8 | 60.13 | 48.06 | 8.69 | 56.00 | 44.00 | $2,388.57Backorder1422B8F | Buy now |

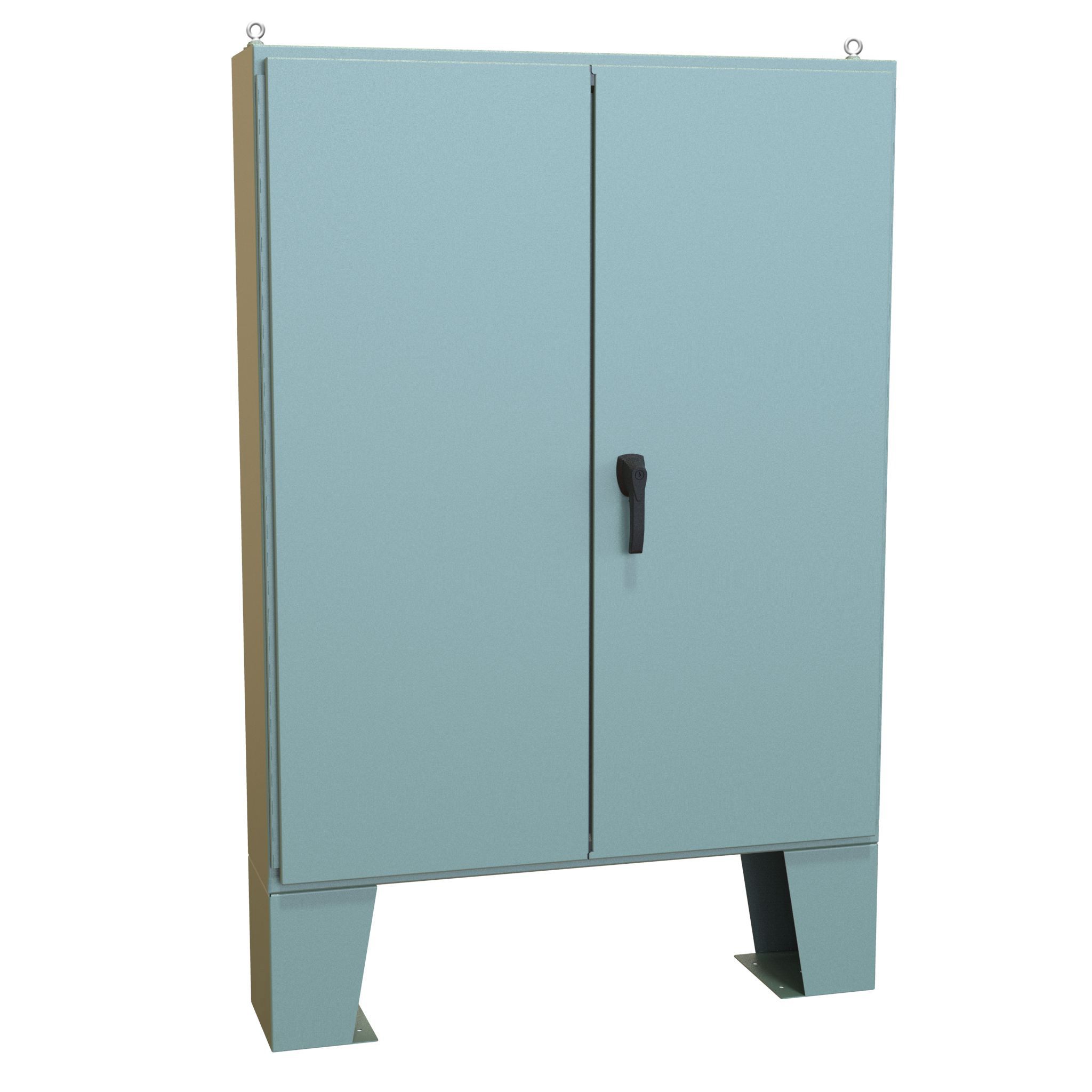

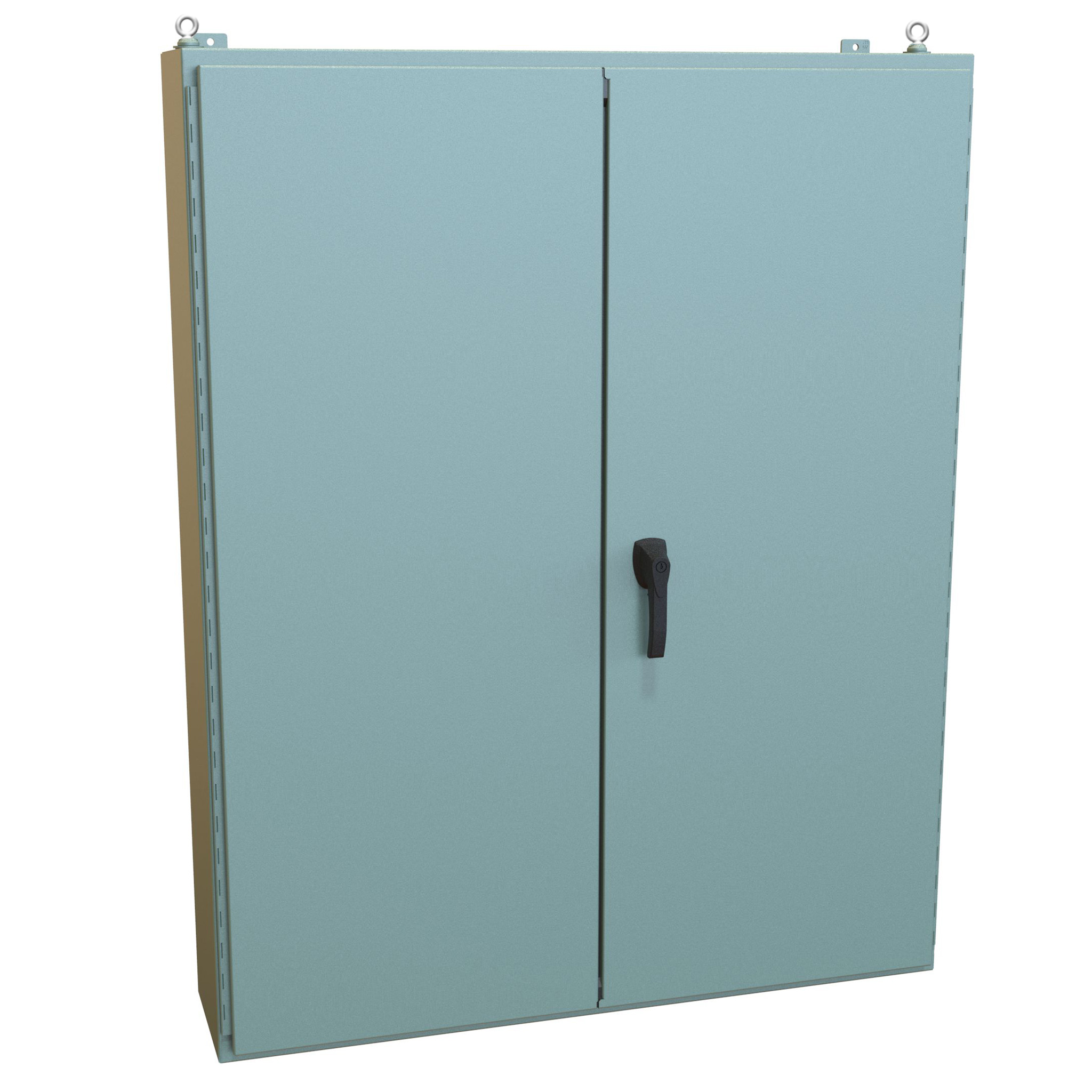

| 1422B10F | 1422B10 | 60.13 | 48.06 | 10.69 | 56.00 | 44.00 | $2,394.13Backorder1422B10F | Buy now |

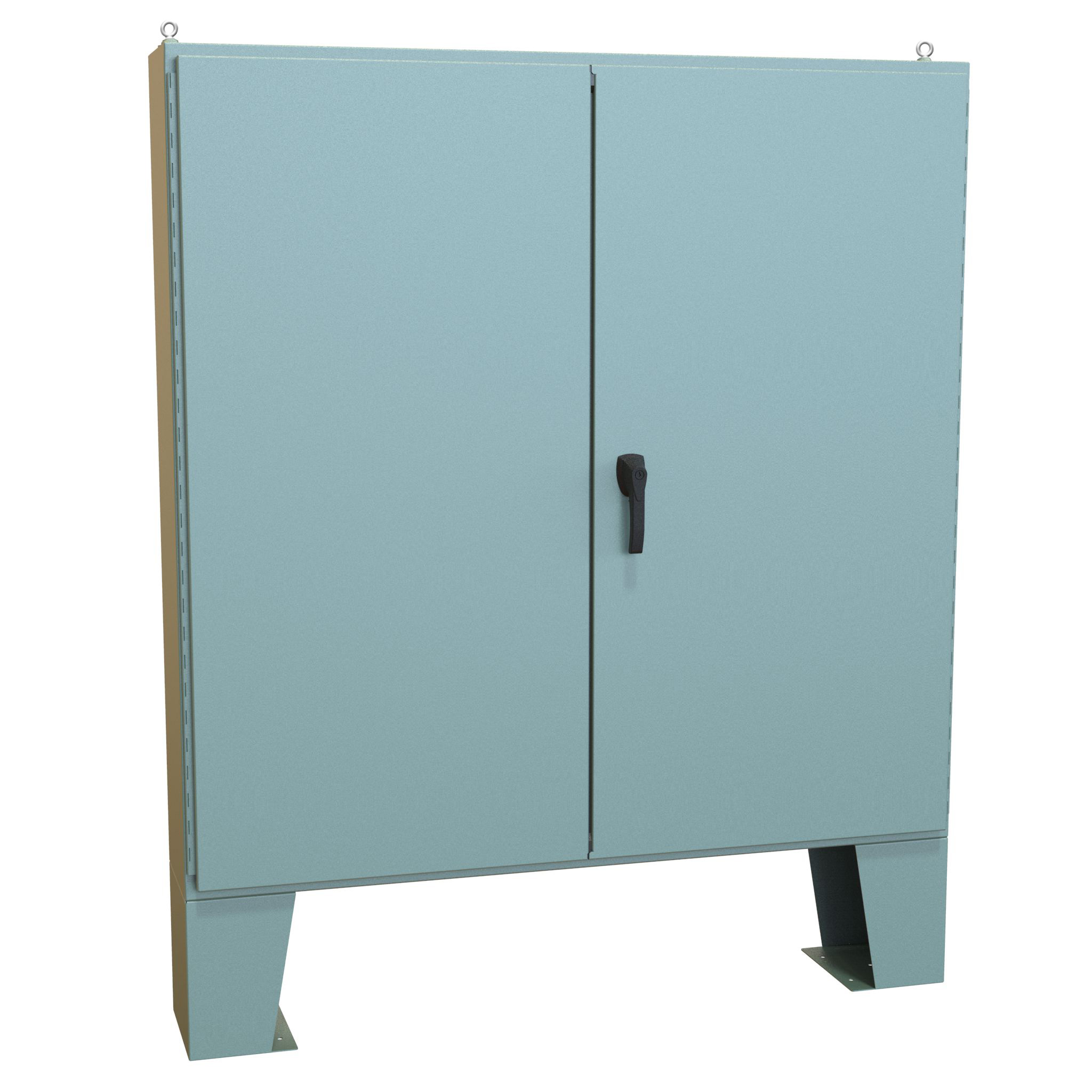

| 1422D10F | 1422D10 | 60.13 | 60.06 | 10.69 | 56.00 | 56.00 | $2,792.35Backorder1422D10F | Buy now |

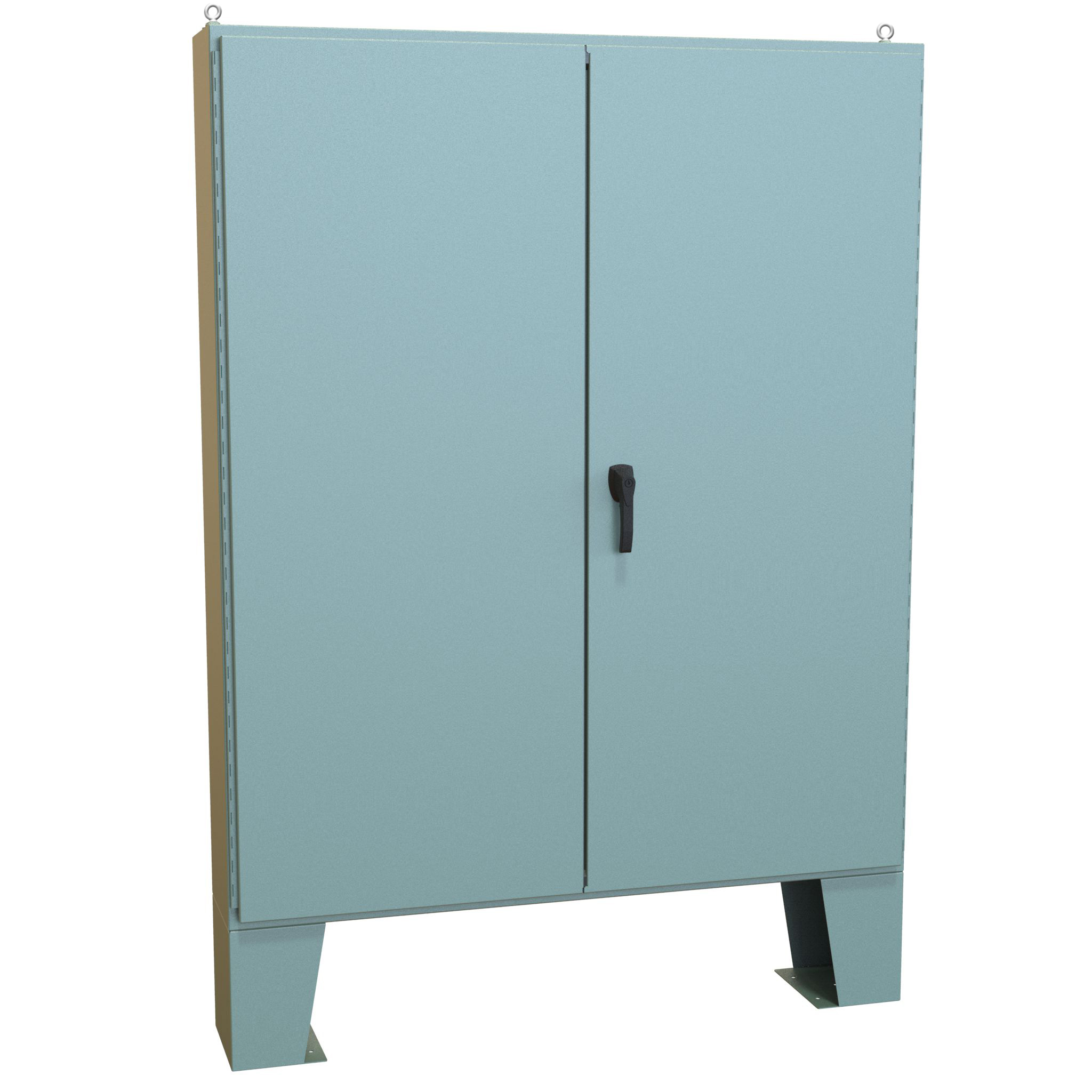

| 1422E10F | 1422E10 | 72.13 | 60.06 | 10.69 | 68.00 | 56.00 | $3,215.96In stock1422E10F | Buy now |

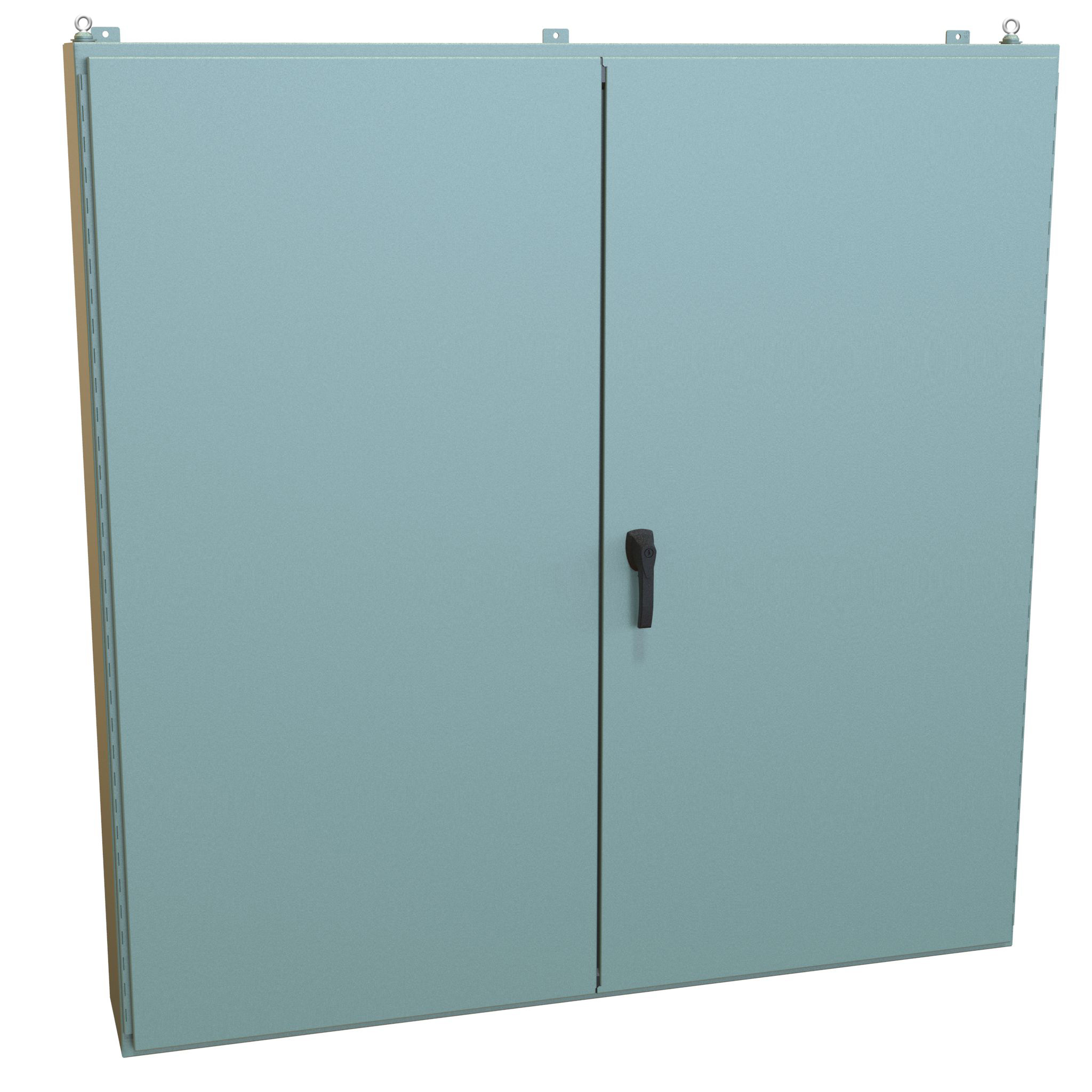

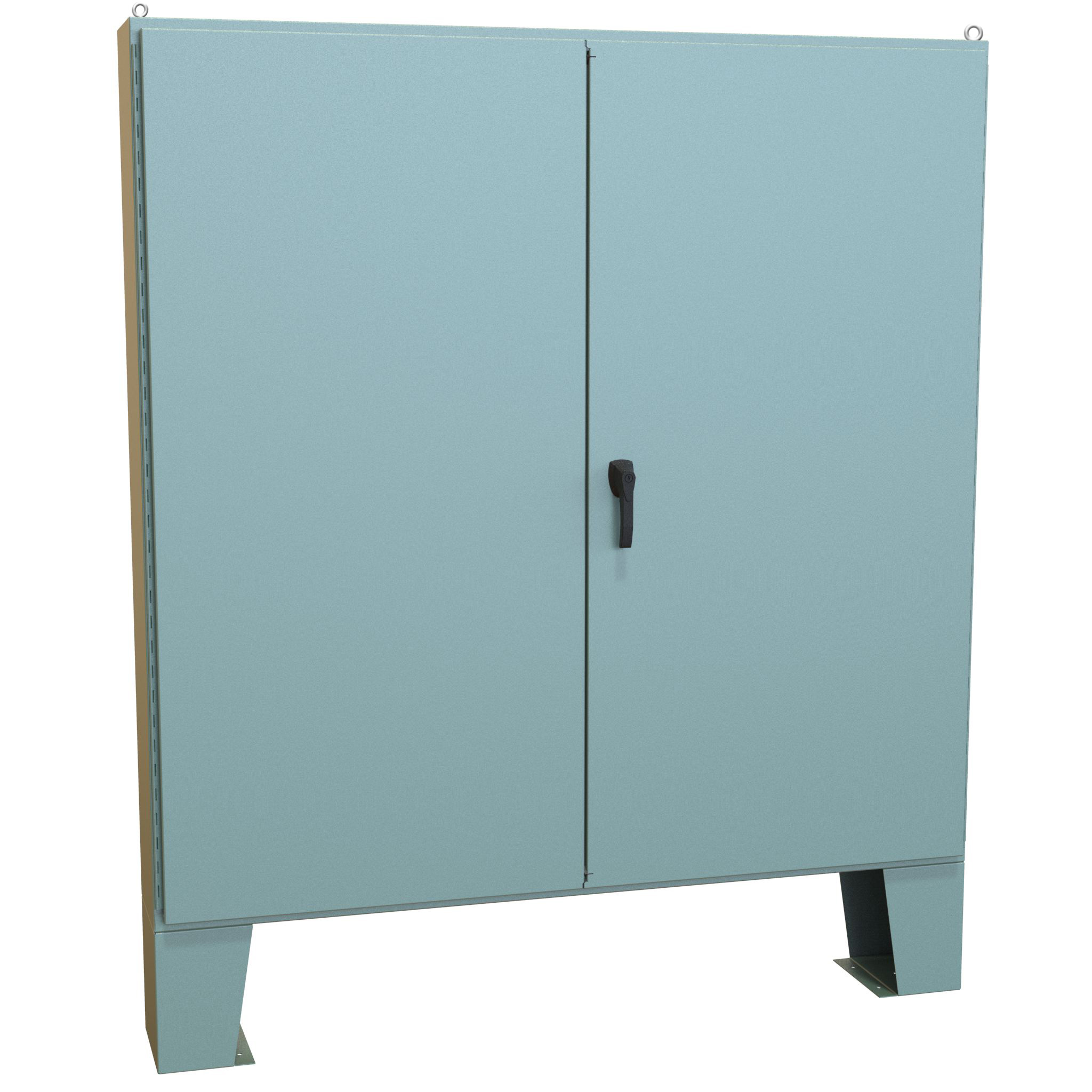

| 1422F10F | 1422F10 | 72.13 | 72.06 | 10.69 | 68.00 | 38.00 | $3,624.51Backorder1422F10F | Buy now |

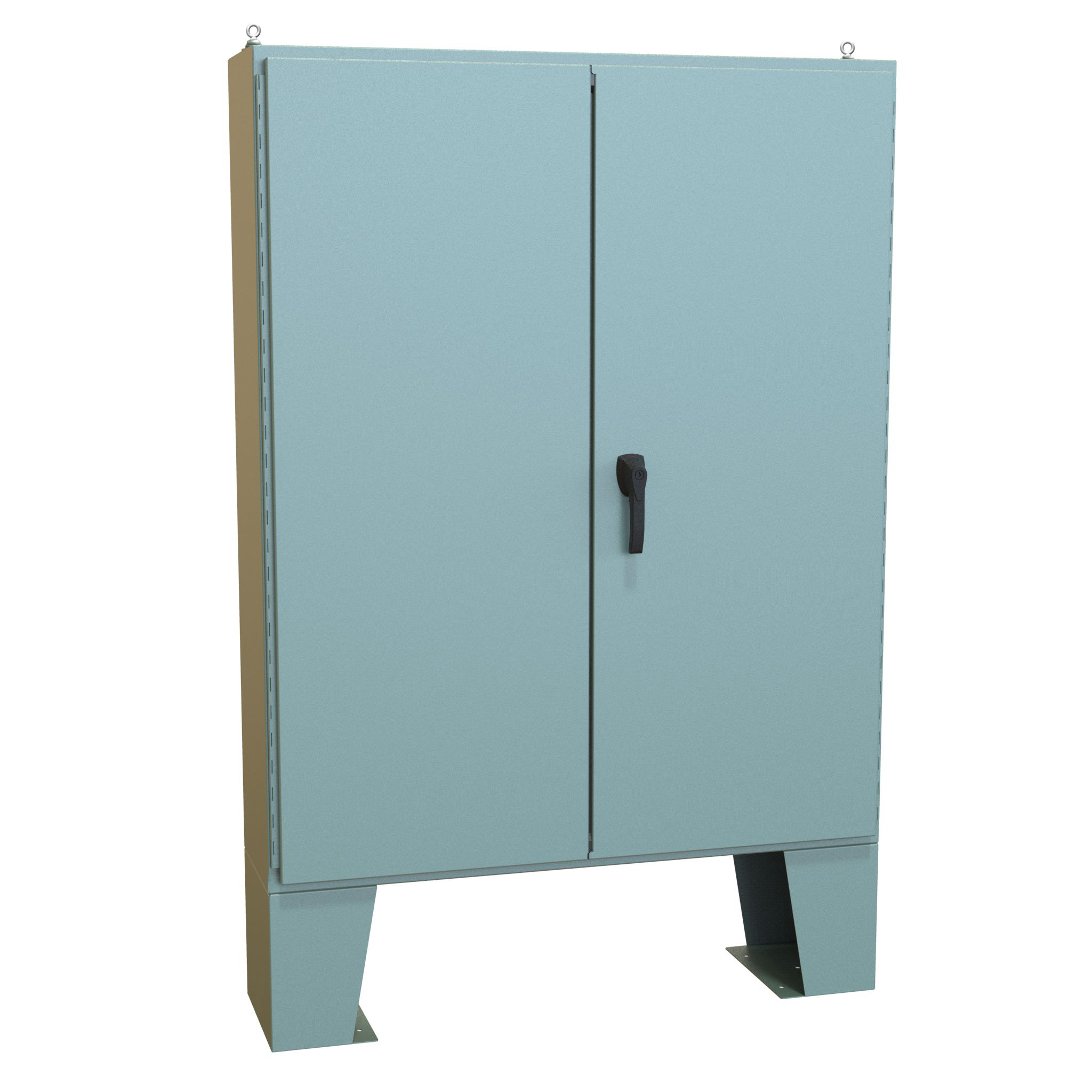

| 1422B12F | 1422B12 | 60.13 | 48.06 | 12.69 | 56.00 | 44.00 | $2,457.59Backorder1422B12F | Buy now |
| 1422D12F | 1422D12 | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 | $2,795.53In stock1422D12F | Buy now |

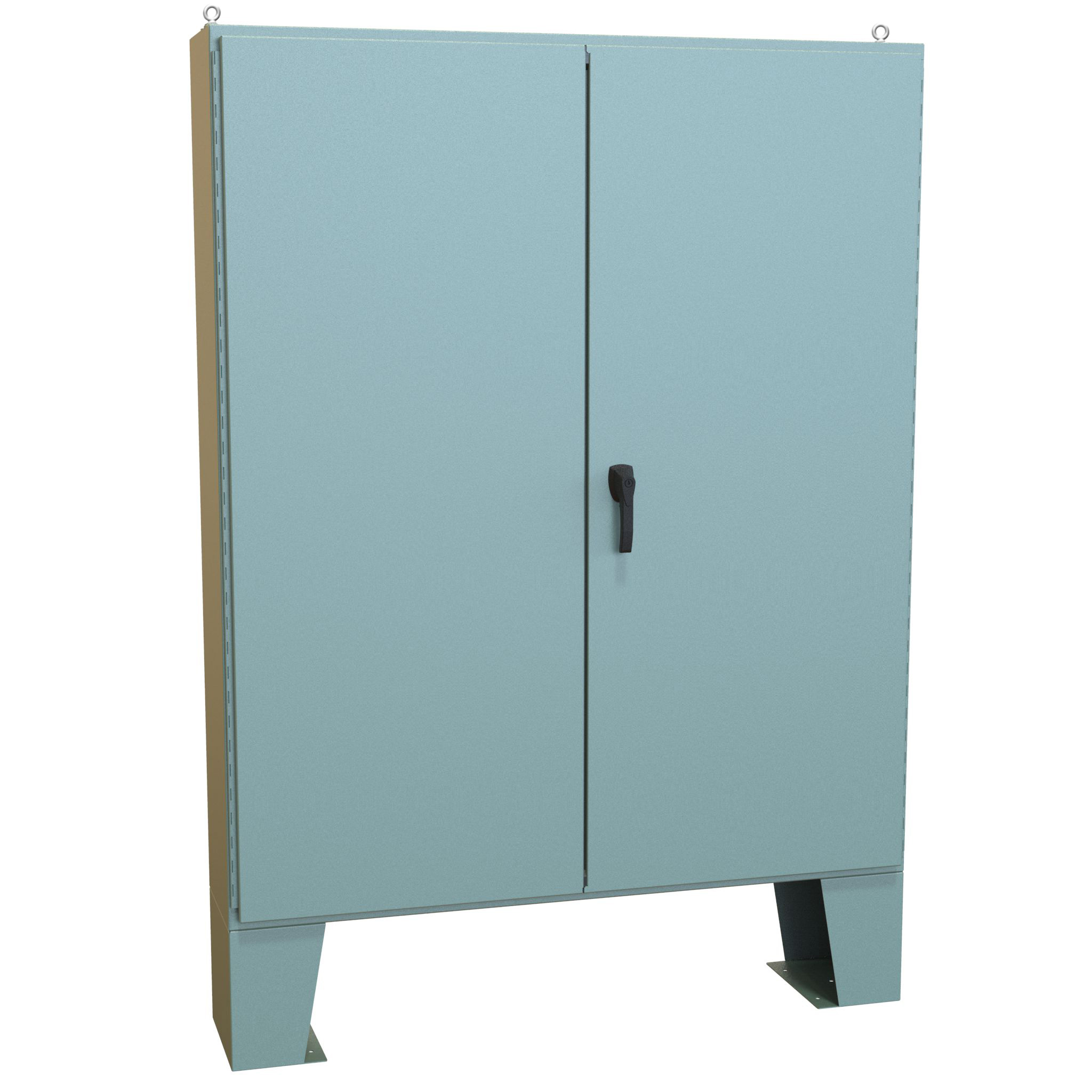

| 1422E12F | 1422E12 | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 | $3,217.56In stock1422E12F | Buy now |

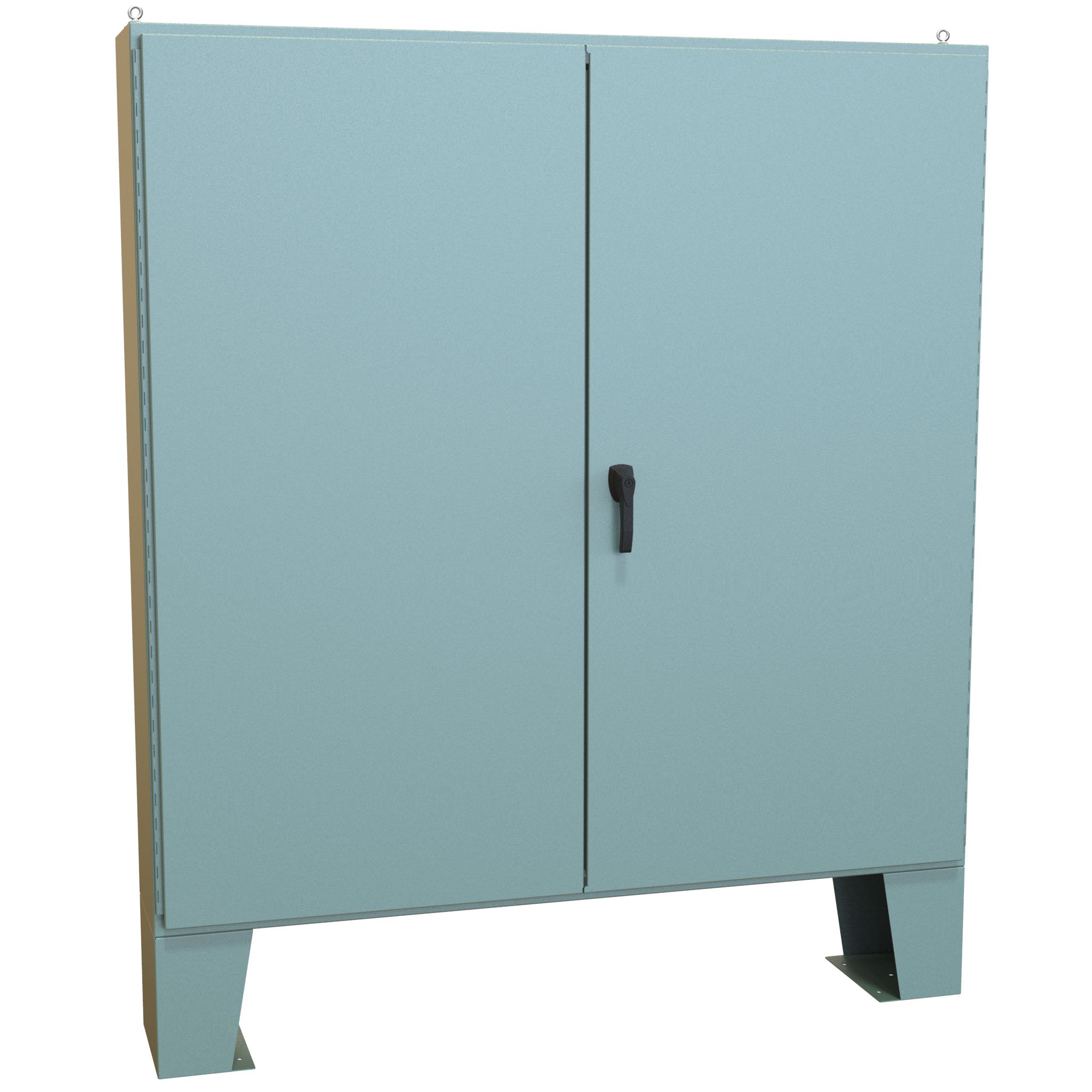

| 1422F12F | 1422F12 | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 | $3,629.27In stock1422F12F | Buy now |

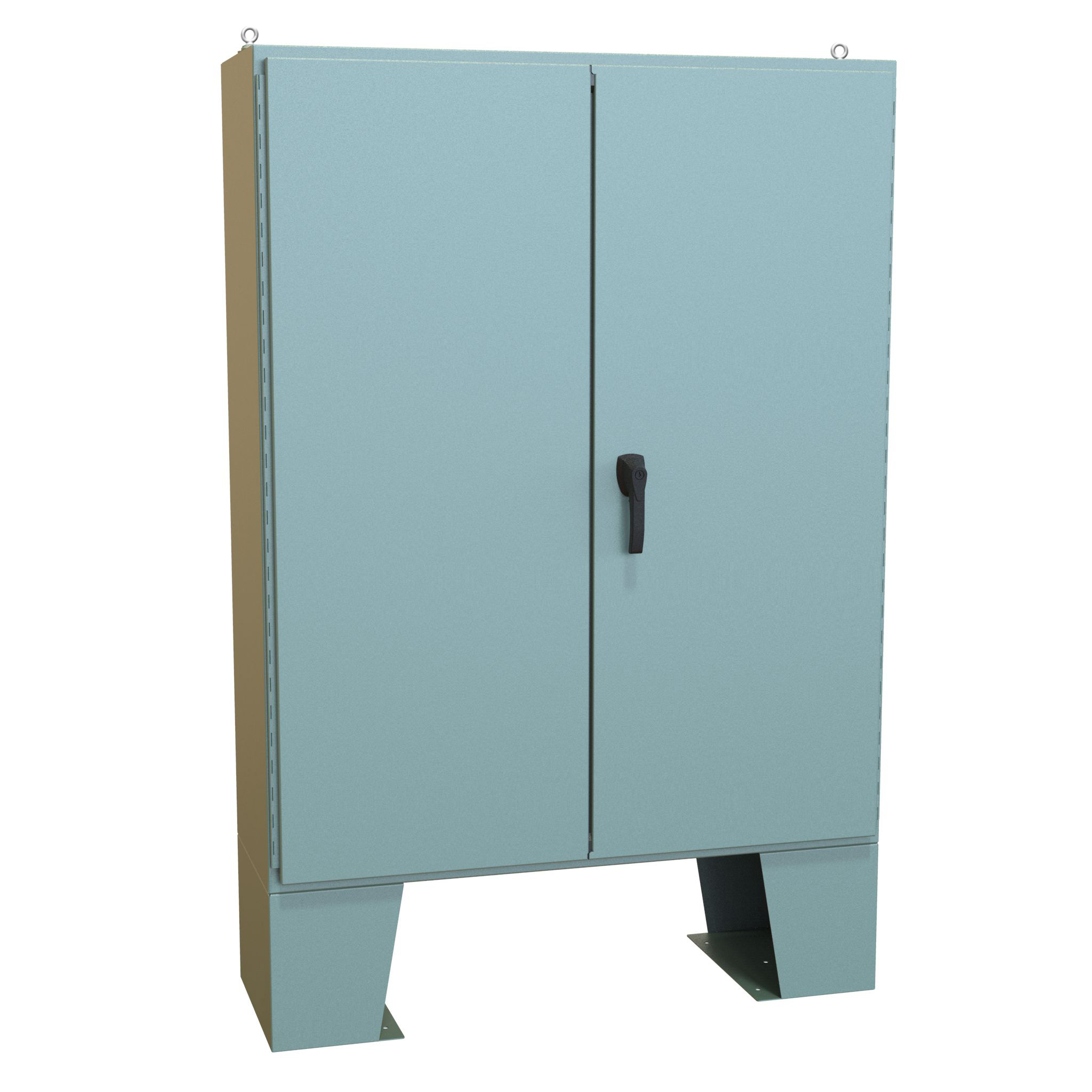

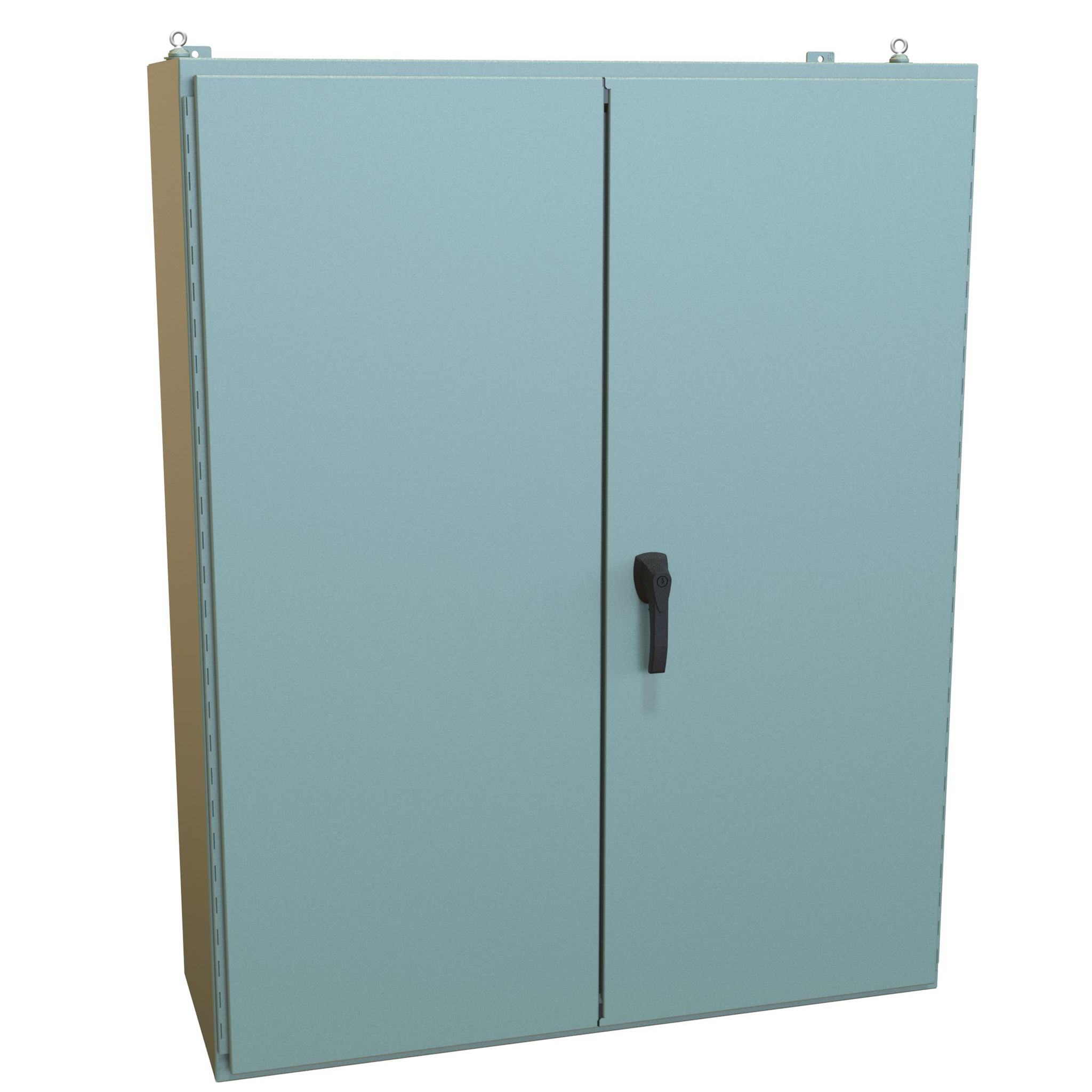

| 1422B16F | 1422B16 | 60.13 | 48.06 | 16.69 | 56.00 | 44.00 | $2,579.75Backorder1422B16F | Buy now |

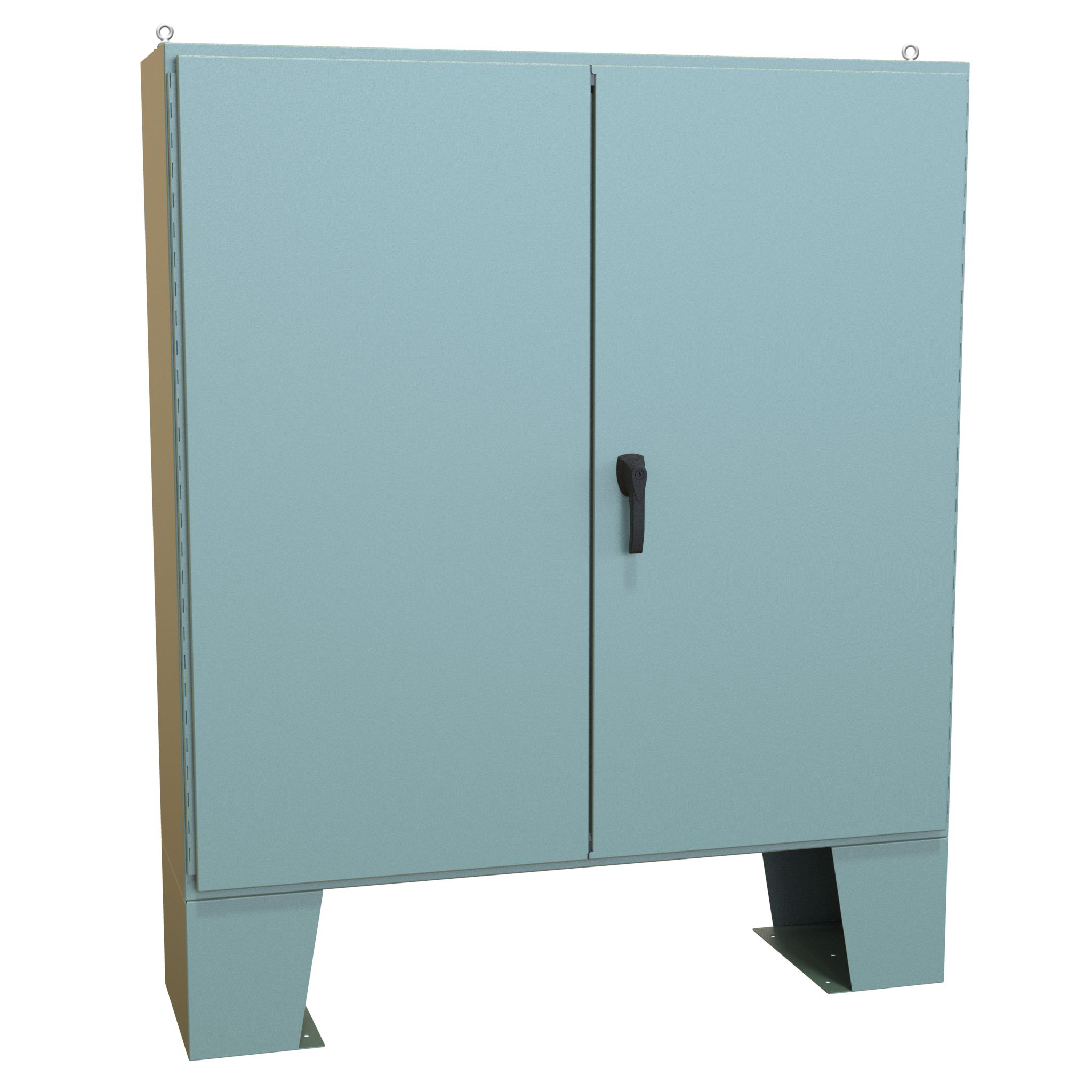

| 1422D16F | 1422D16 | 60.13 | 60.06 | 16.69 | 56.00 | 56.00 | $2,933.56Backorder1422D16F | Buy now |

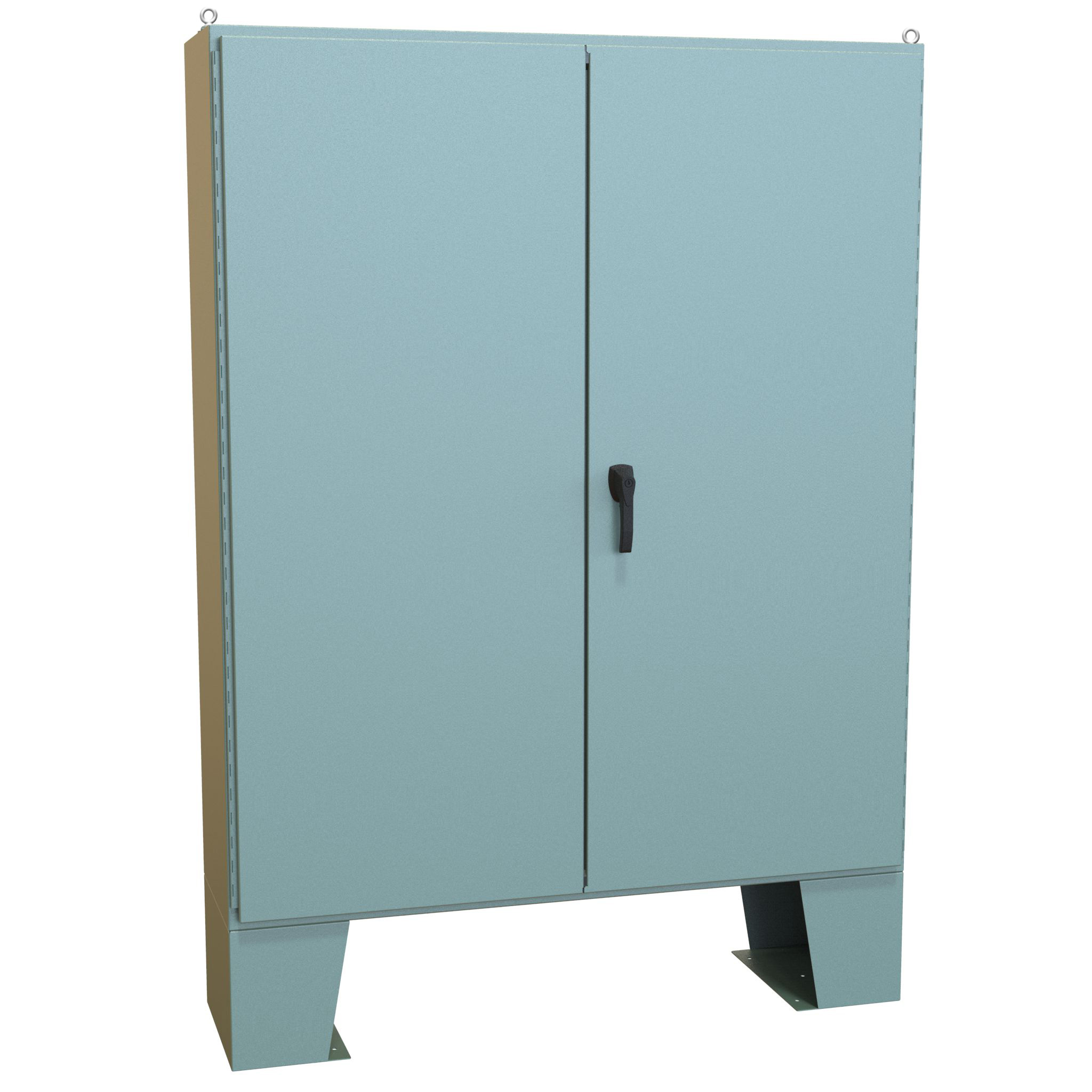

| 1422E16F | 1422E16 | 72.13 | 60.06 | 16.69 | 68.00 | 56.00 | $3,374.62In stock1422E16F | Buy now |

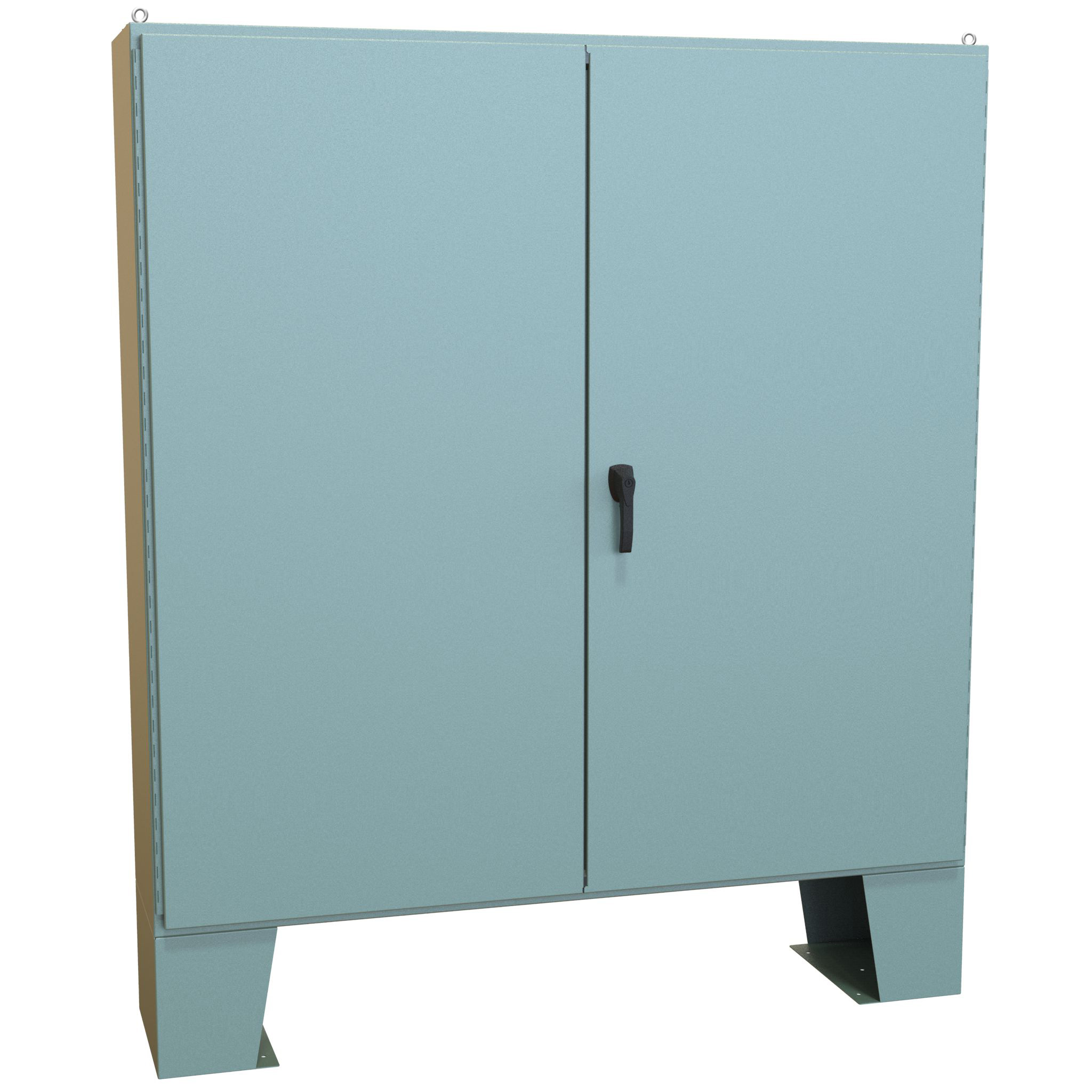

| 1422F16F | 1422F16 | 72.13 | 72.06 | 16.69 | 68.00 | 68.00 | $3,798.23Backorder1422F16F | Buy now |

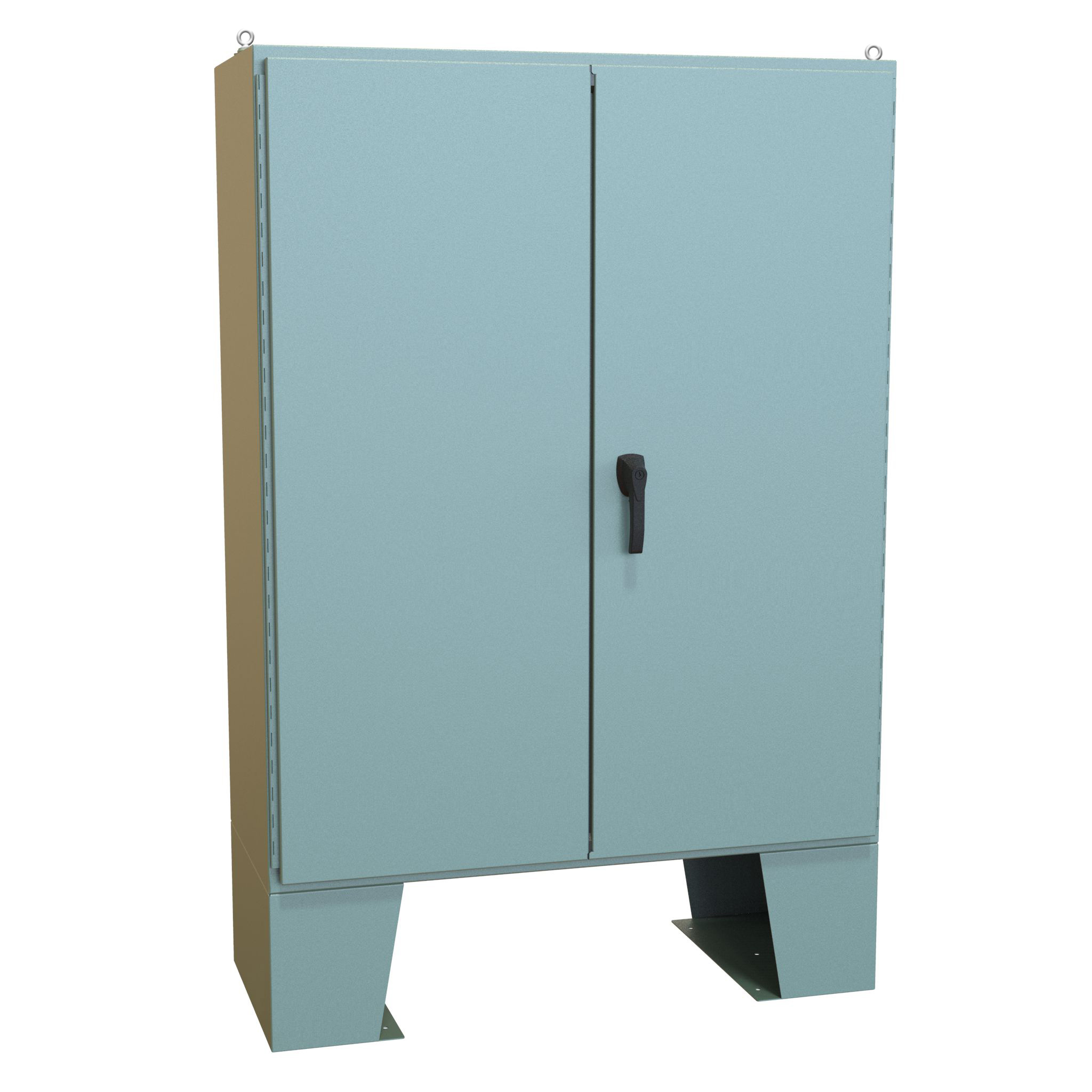

| 1422B20F | 1422B20 | 60.13 | 48.06 | 20.69 | 56.00 | 44.00 | $2,769.35In stock1422B20F | Buy now |

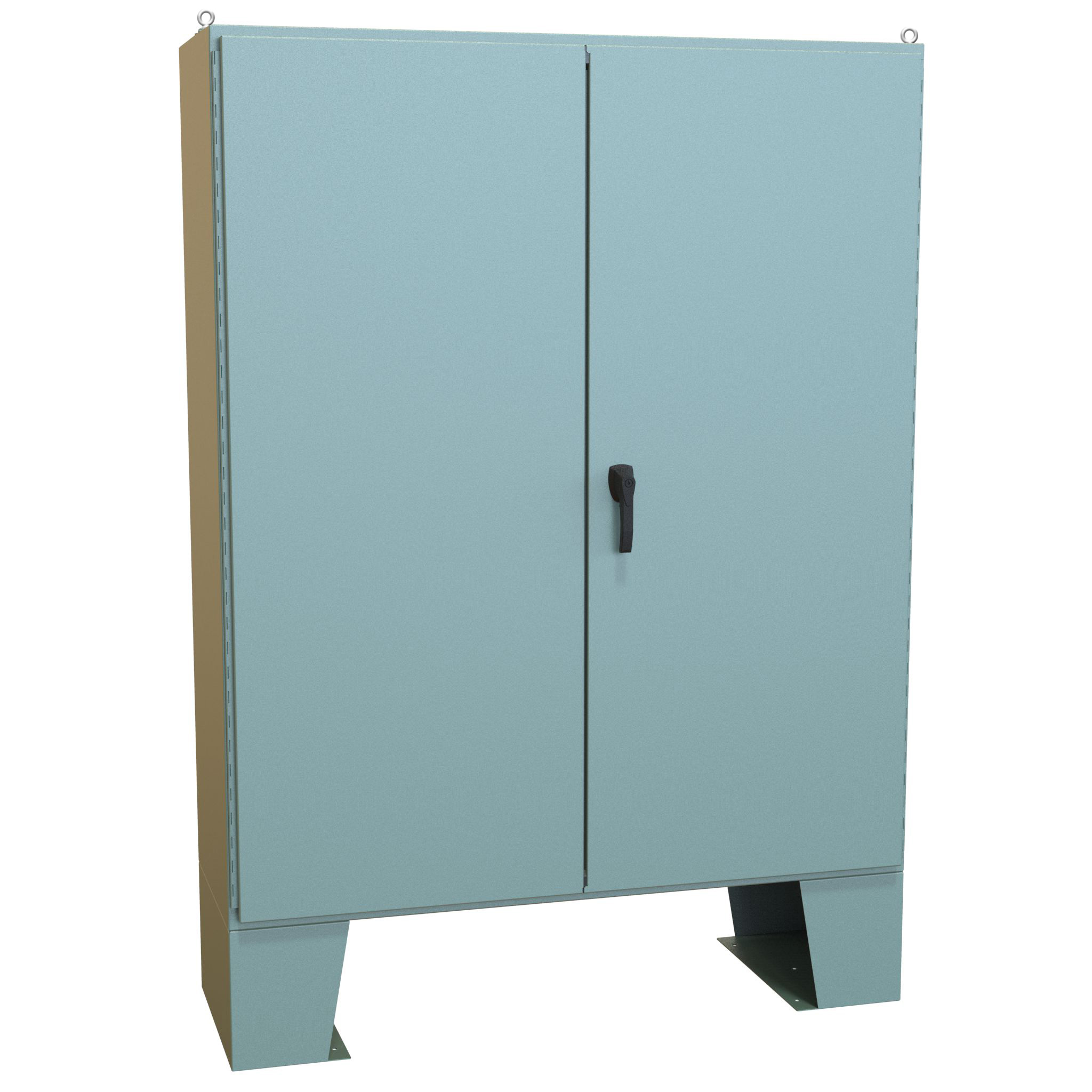

| 1422E20F | 1422E20 | 72.13 | 60.06 | 20.69 | 68.00 | 56.00 | $3,615.78Backorder1422E20F | Buy now |

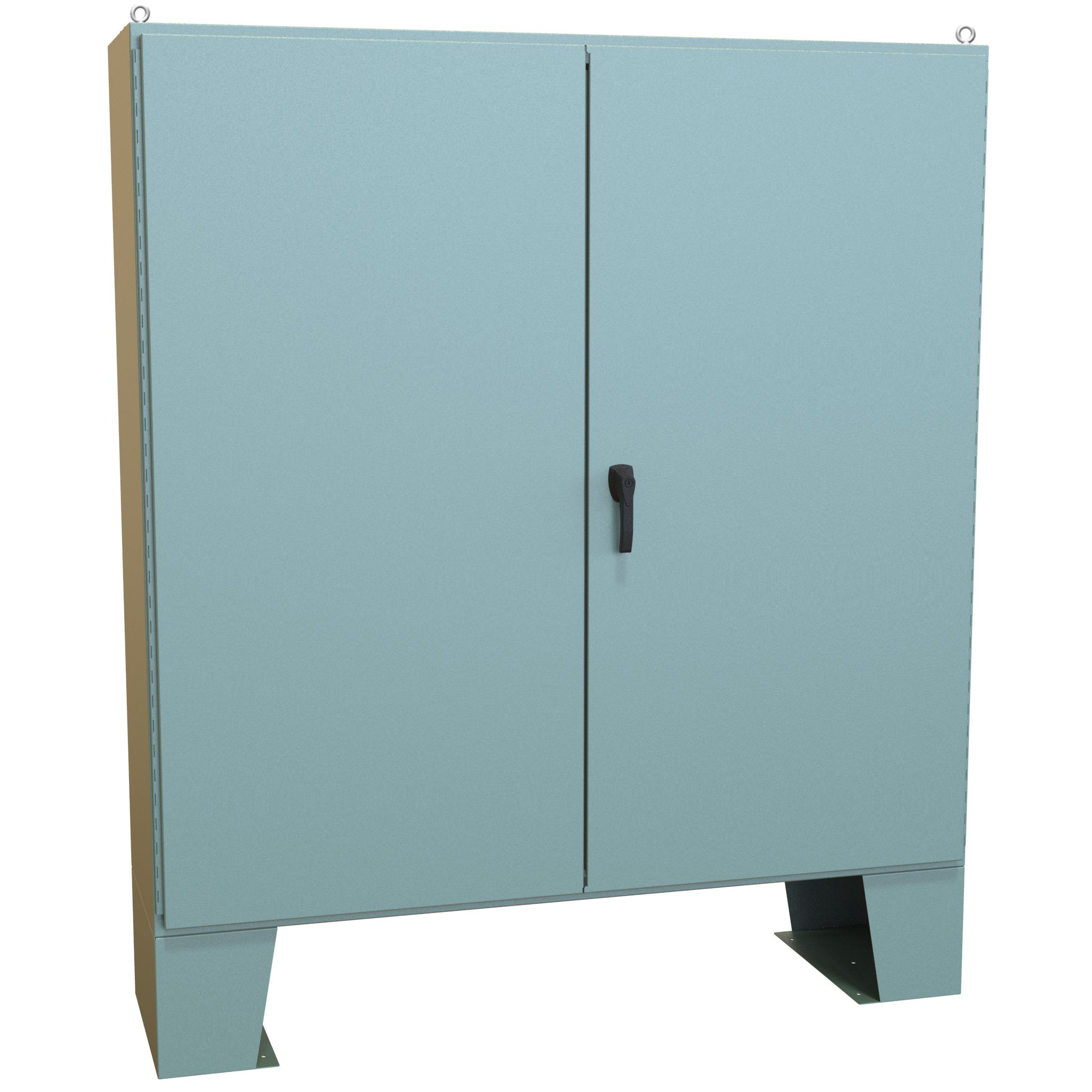

| 1422F20F | 1422F20 | 72.13 | 72.06 | 20.69 | 68.00 | 68.00 | $4,064.79Backorder1422F20F | Buy now |

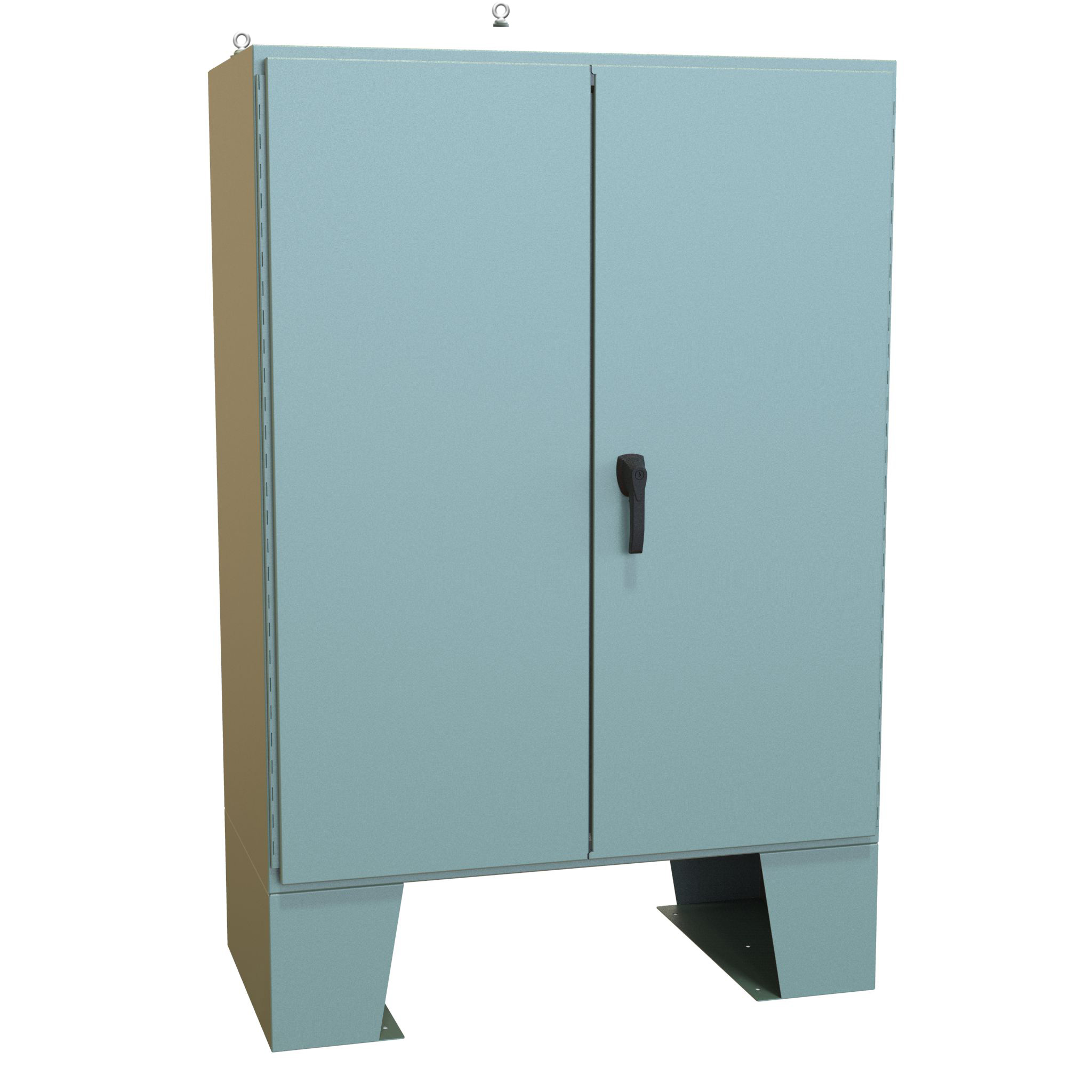

| 1422B24F | 1422B24 | 60.13 | 48.06 | 24.69 | 56.00 | 44.00 | $2,899.45Backorder1422B24F | Buy now |

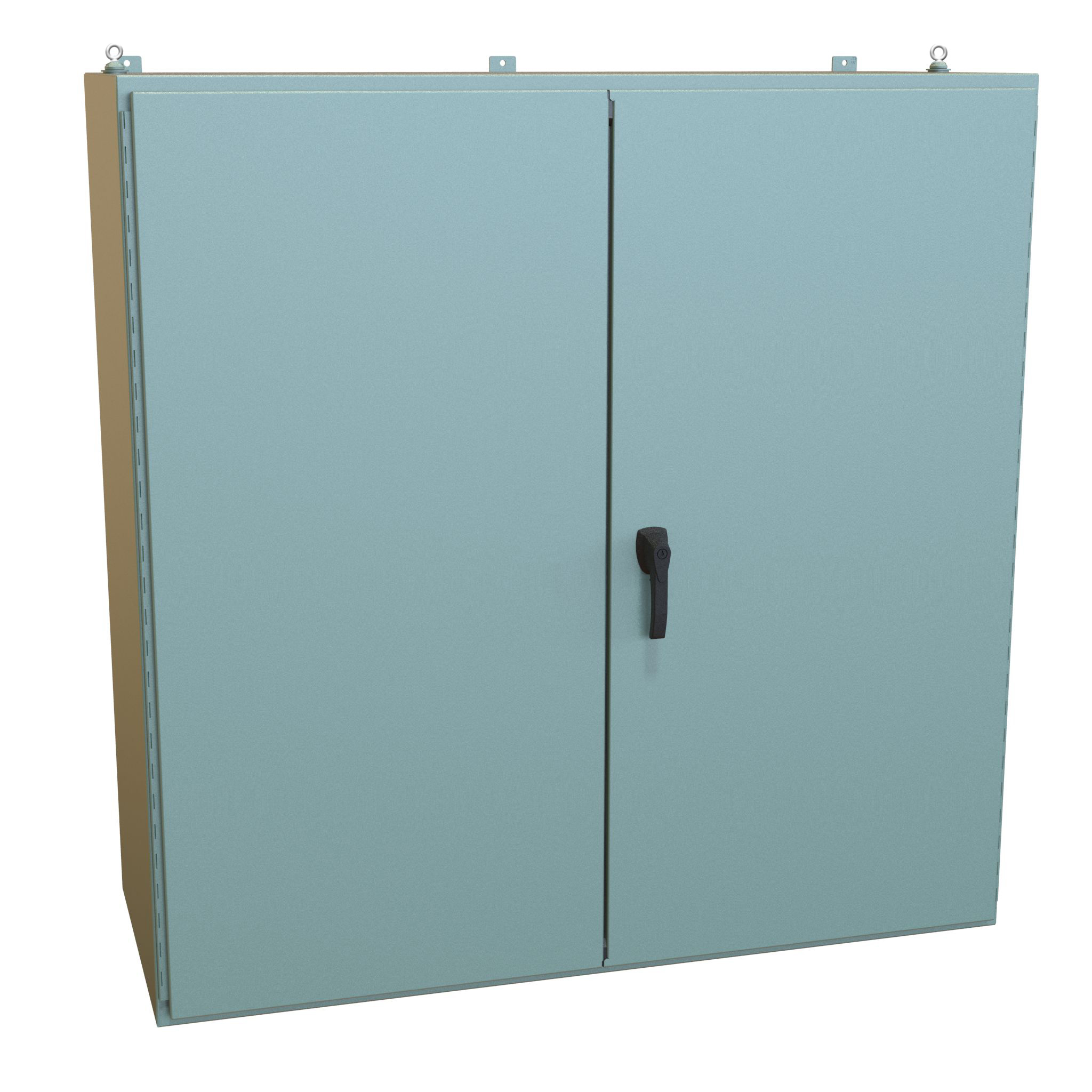

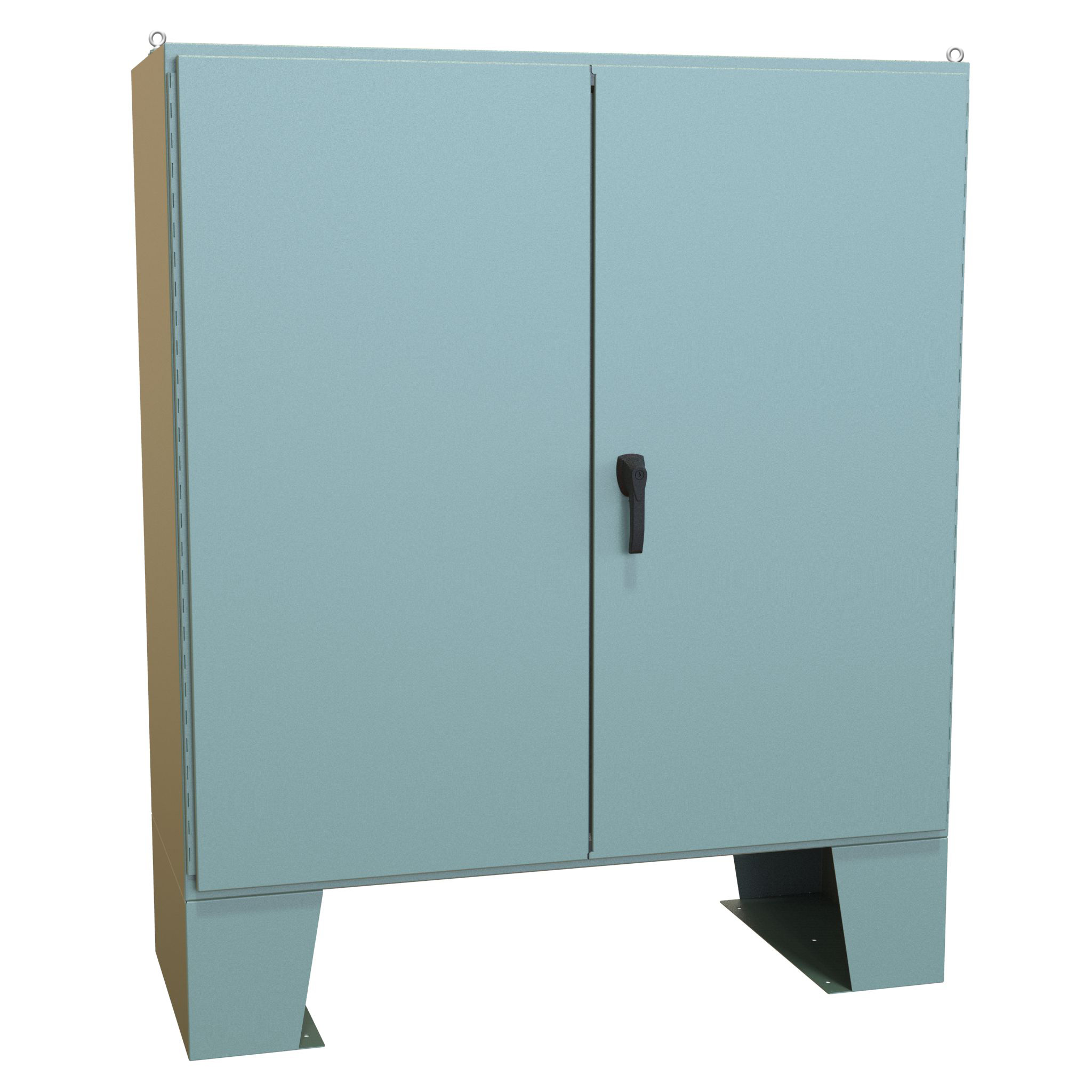

| 1422D24F | 1422D24 | 60.13 | 60.06 | 24.69 | 56.00 | 56.00 | $3,284.19Backorder1422D24F | Buy now |

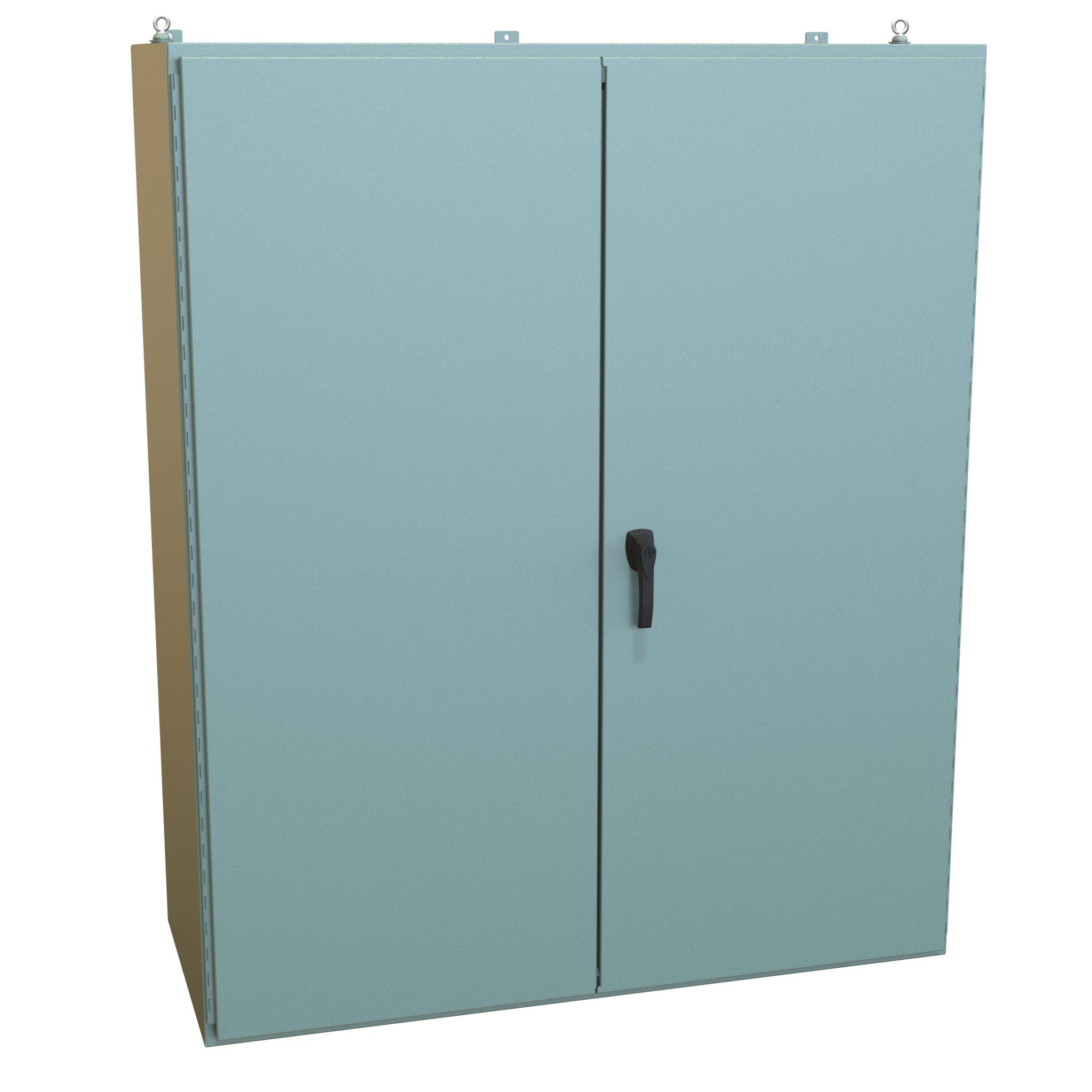

| 1422E24F | 1422E24 | 72.13 | 60.06 | 24.69 | 68.00 | 56.00 | $3,772.05Backorder1422E24F | Buy now |

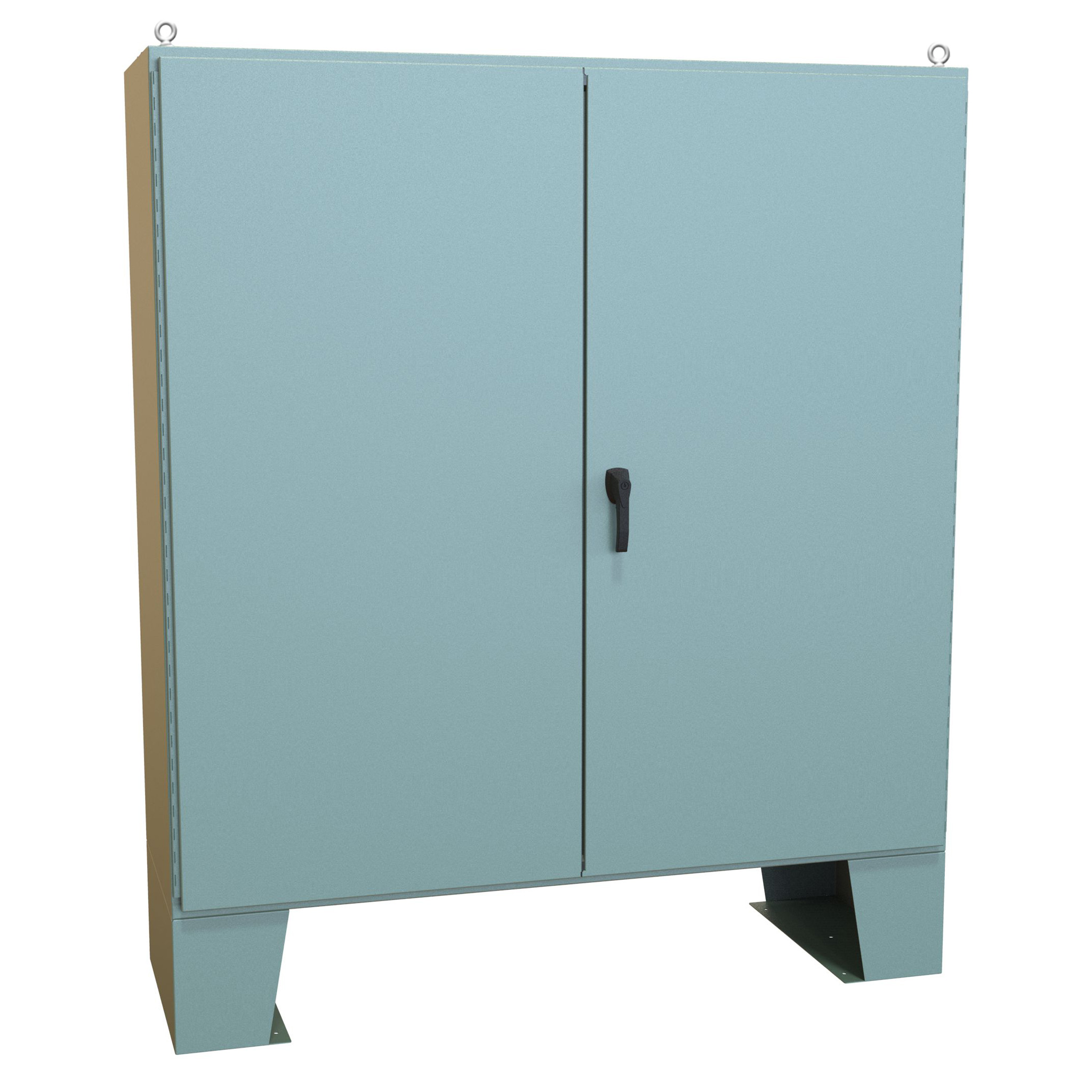

| 1422F24F | 1422F24 | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 | $4,234.54Backorder1422F24F | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
- ■IEC 60529, IP54
Construction
- ■Enclosures are formed steel - 14 gauge (54" high), 12 gauge (60" high), or combination 10/12 gauge (72" high).
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Body stiffeners are provided in enclosures for extra rigidity.
- ■Heavy duty lifting eyebolts are provided with reinforced support angles.
- ■12" floor stands are welded to the enclosure. (w/ feet Part No.).
- ■Welded brackets provide for enclosure mounting (w/o feet Part No.).
- ■Gasketed overlapping doors eliminate the need for a center post.
- ■Continuously hinged doors may be removed by pulling the hinge pin.
- ■Doors are secured with a three point latch and operated with a key locking, padlockable handle.
- ■Latch rods are equipped with rollers for easier door closing.
- ■Oil resistant gaskets are permanently secured.
- ■A removable 10 gauge inner panel is included in enclosures 60" and larger. Smaller sizes include a 12 gauge inner panel.
- ■Provision for light kit mounting.
- ■Panel supports are provided in enclosures 60" and larger for easy panel installation.
- ■Collar studs are provided for mounting inner panels.
- ■A grounding stud is provided in the enclosure for each door and a bonding stud is provided on the door.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| with Feet · Part No. | w/o Feet · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|---|
| 1422A8F | 1422A8 | 54.13 | 42.06 | 8.69 | 50.00 | 38.00 |
| 1422B8F | 1422B8 | 60.13 | 48.06 | 8.69 | 56.00 | 44.00 |
| 1422B10F | 1422B10 | 60.13 | 48.06 | 10.69 | 56.00 | 44.00 |
| 1422D10F | 1422D10 | 60.13 | 60.06 | 10.69 | 56.00 | 56.00 |
| 1422E10F | 1422E10 | 72.13 | 60.06 | 10.69 | 68.00 | 56.00 |
| 1422F10F | 1422F10 | 72.13 | 72.06 | 10.69 | 68.00 | 38.00 |
| 1422B12F | 1422B12 | 60.13 | 48.06 | 12.69 | 56.00 | 44.00 |
| 1422D12F | 1422D12 | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 |
| 1422E12F | 1422E12 | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 |
| 1422F12F | 1422F12 | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 |
| 1422B16F | 1422B16 | 60.13 | 48.06 | 16.69 | 56.00 | 44.00 |
| 1422D16F | 1422D16 | 60.13 | 60.06 | 16.69 | 56.00 | 56.00 |
| 1422E16F | 1422E16 | 72.13 | 60.06 | 16.69 | 68.00 | 56.00 |
| 1422F16F | 1422F16 | 72.13 | 72.06 | 16.69 | 68.00 | 68.00 |
| 1422B20F | 1422B20 | 60.13 | 48.06 | 20.69 | 56.00 | 44.00 |
| 1422E20F | 1422E20 | 72.13 | 60.06 | 20.69 | 68.00 | 56.00 |
| 1422F20F | 1422F20 | 72.13 | 72.06 | 20.69 | 68.00 | 68.00 |
| 1422B24F | 1422B24 | 60.13 | 48.06 | 24.69 | 56.00 | 44.00 |
| 1422D24F | 1422D24 | 60.13 | 60.06 | 24.69 | 56.00 | 56.00 |
| 1422E24F | 1422E24 | 72.13 | 60.06 | 24.69 | 68.00 | 56.00 |
| 1422F24F | 1422F24 | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 |
