Type 12 Mild Steel Freestanding Enclosure 1418 FS Series

Type 12 Mild Steel Freestanding Enclosure · 1418 FS Series

Brand: Hammond Manufacturing · 31 part numbers

Continuous Hinge Door with Handle

  • ■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
  • ■Provides a degree of protection from falling dirt, dust, oil and water.
  • ■Available with front access only or both front and rear access.
  • ■A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
  • ■UL 508A Type 12
  • ■CSA Type 12

from $332.39

31 of 31 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your 1418 FS Series part number

Filter 24 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

24 of 24 part numbers · 24 priced online

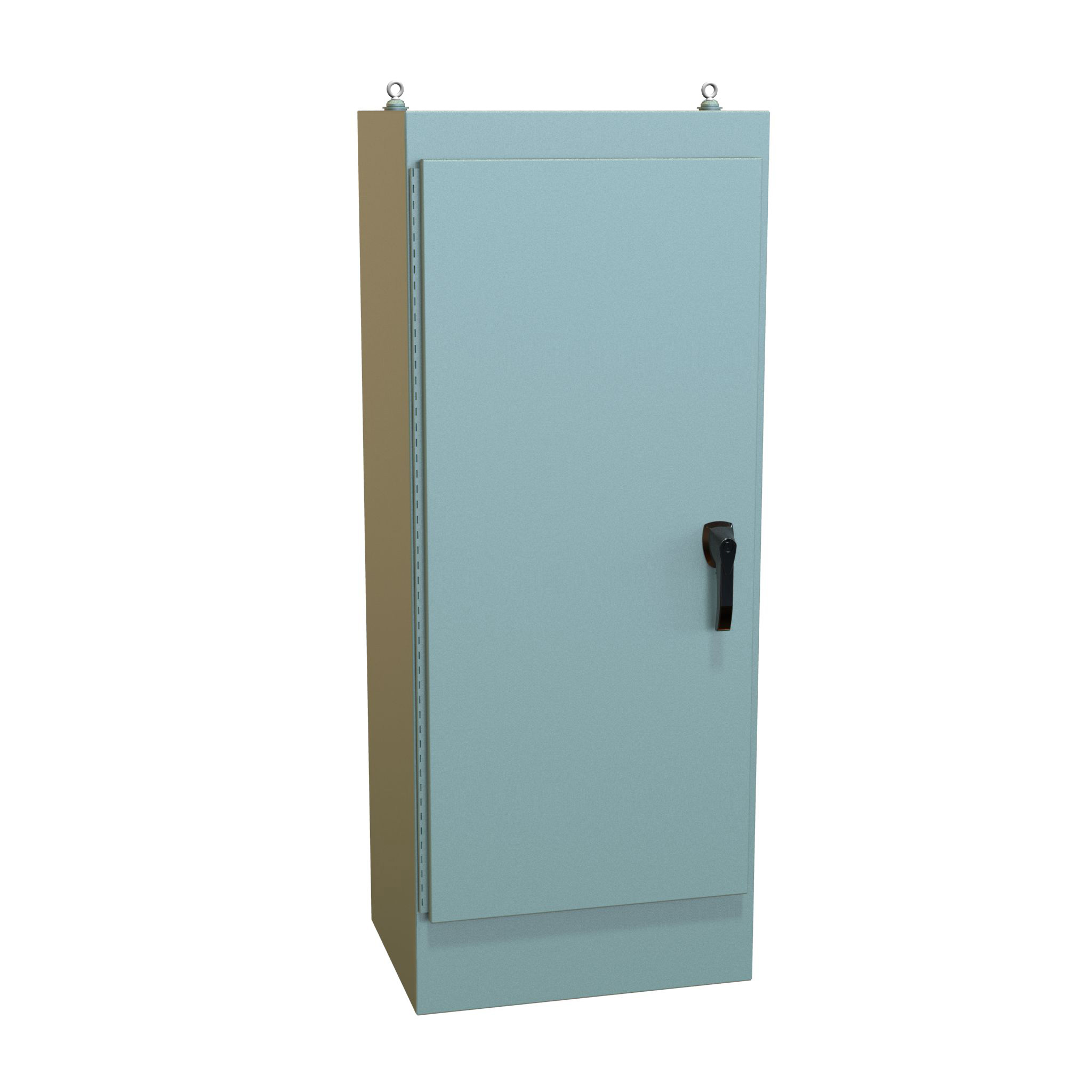

1418TW18

Free Stand Enclosure 60X24X18

$1,422.36In stock
Buy now

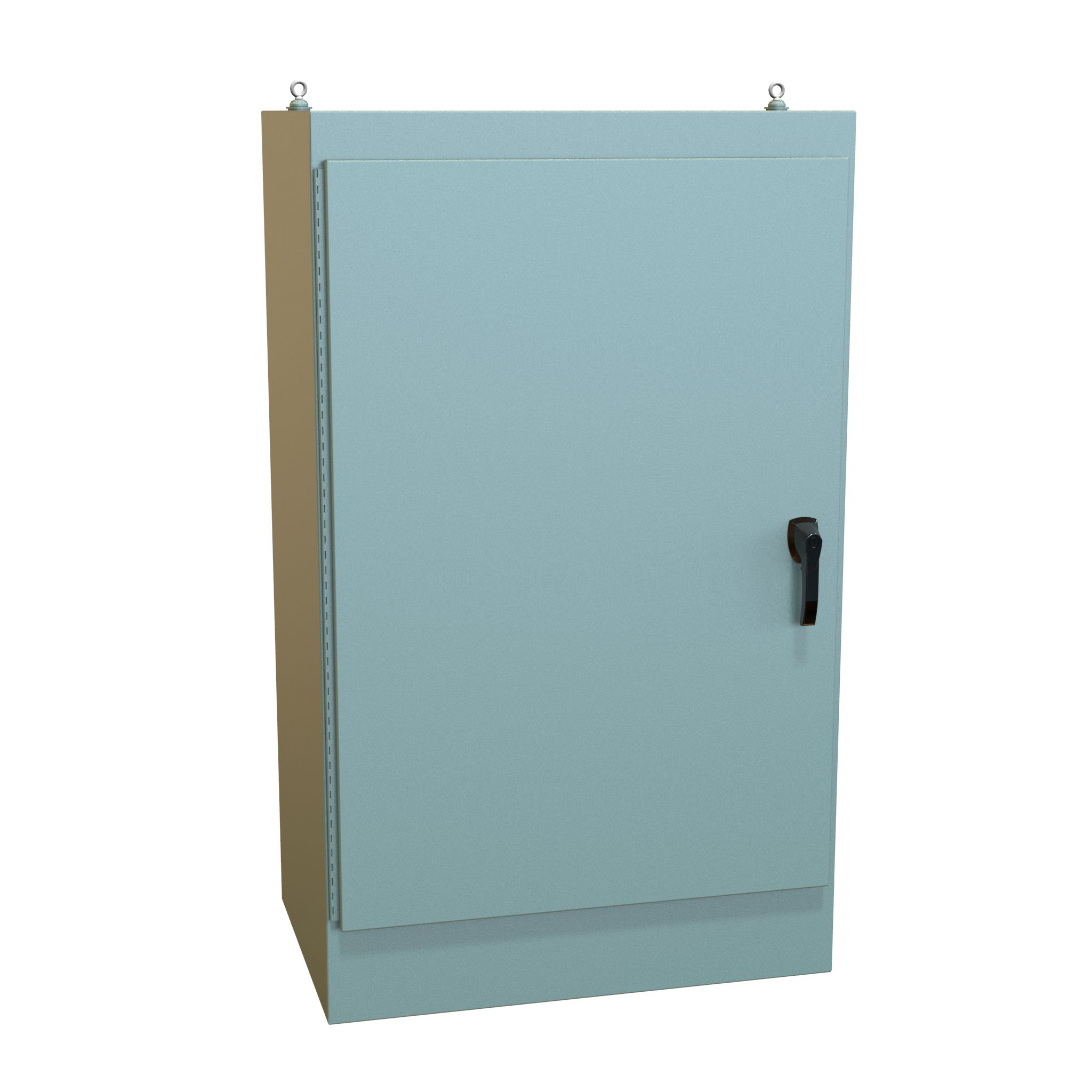

1418TY24

Free Stand Enclosure 60X36X24

$1,934.02Backorder
Buy now

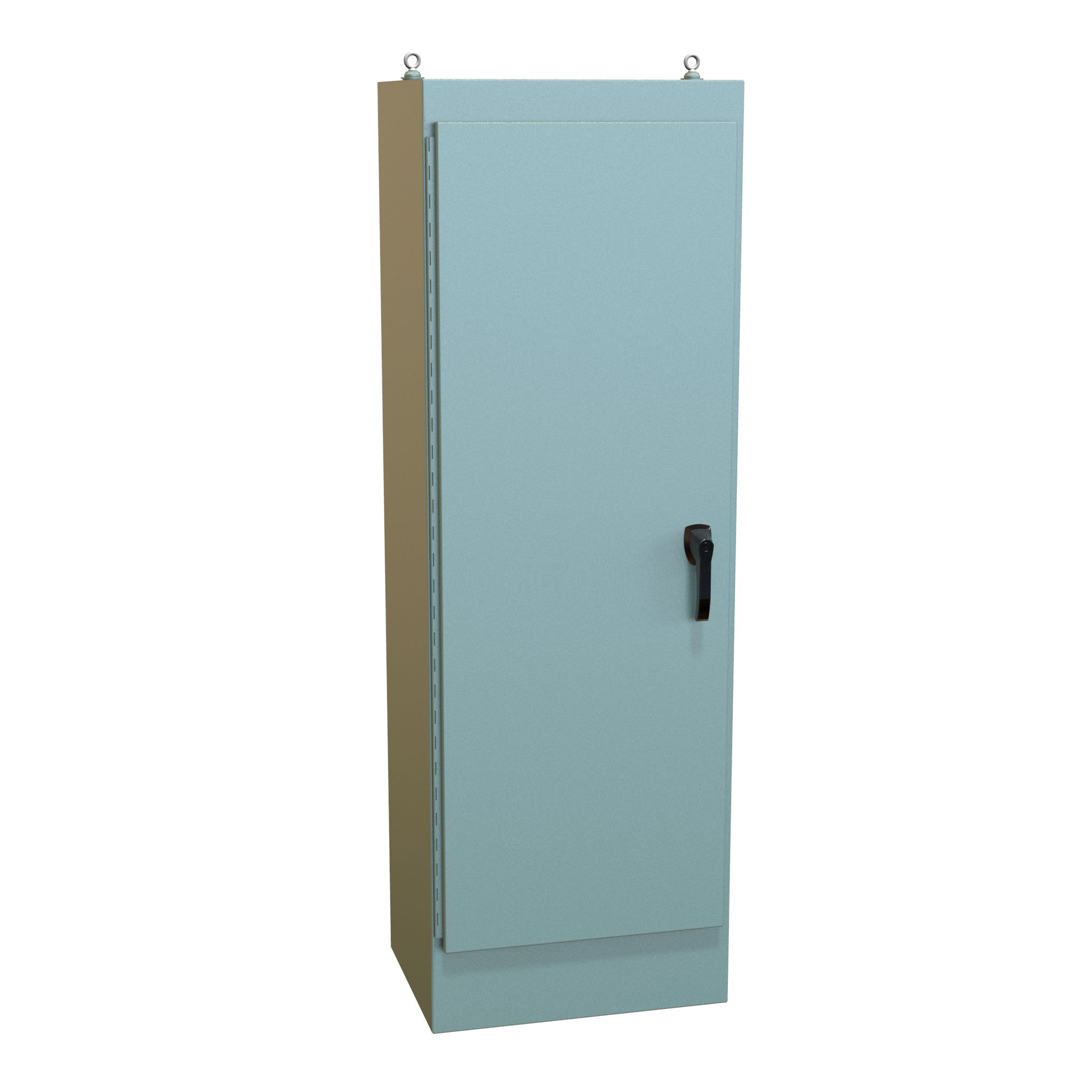

1418W18

N12FREE Stdg Box 71.87X24X18

$1,619.09In stock
Buy now
1418W24

N12FREE Stdg Box 71.87X24X24

$1,796.78In stock
Buy now
1418W30

Free Stand Enclosure 72X24X30

$1,952.27Backorder
Buy now

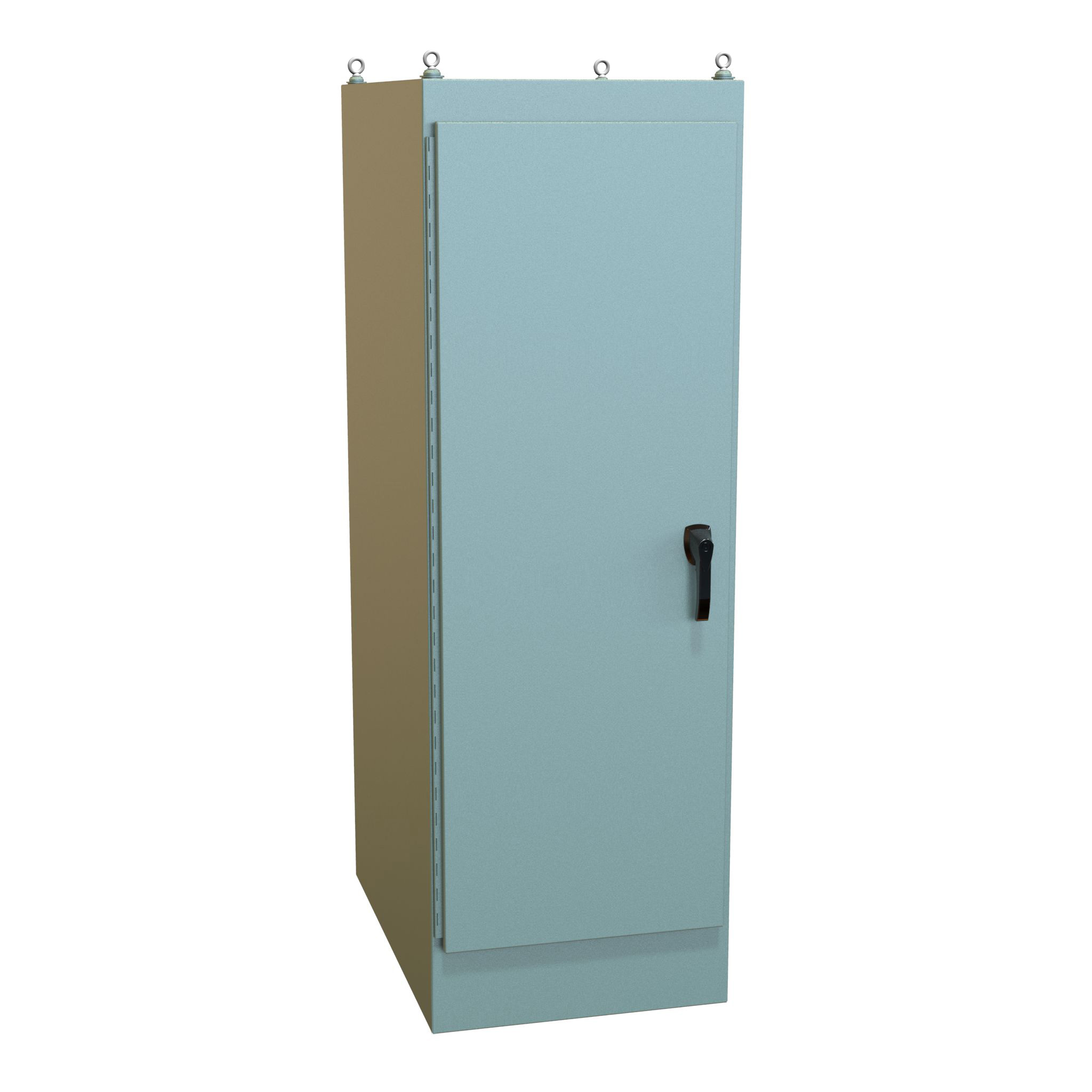

1418W36

Free Stand Enclosure

$2,136.31Backorder
Buy now

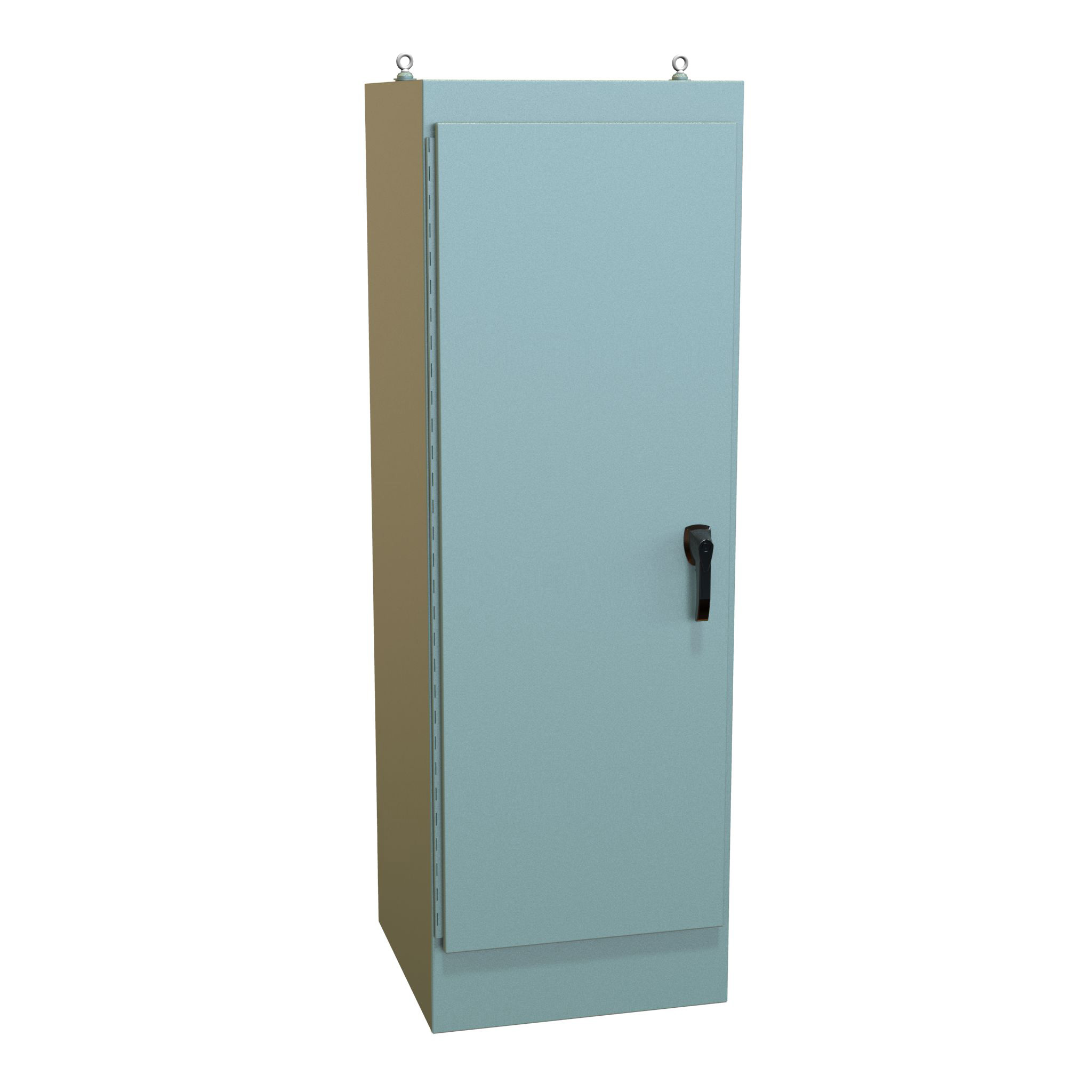

1418WD24

Freestng Panel Encl. Sngl Dr

$2,003.03In stock
Buy now

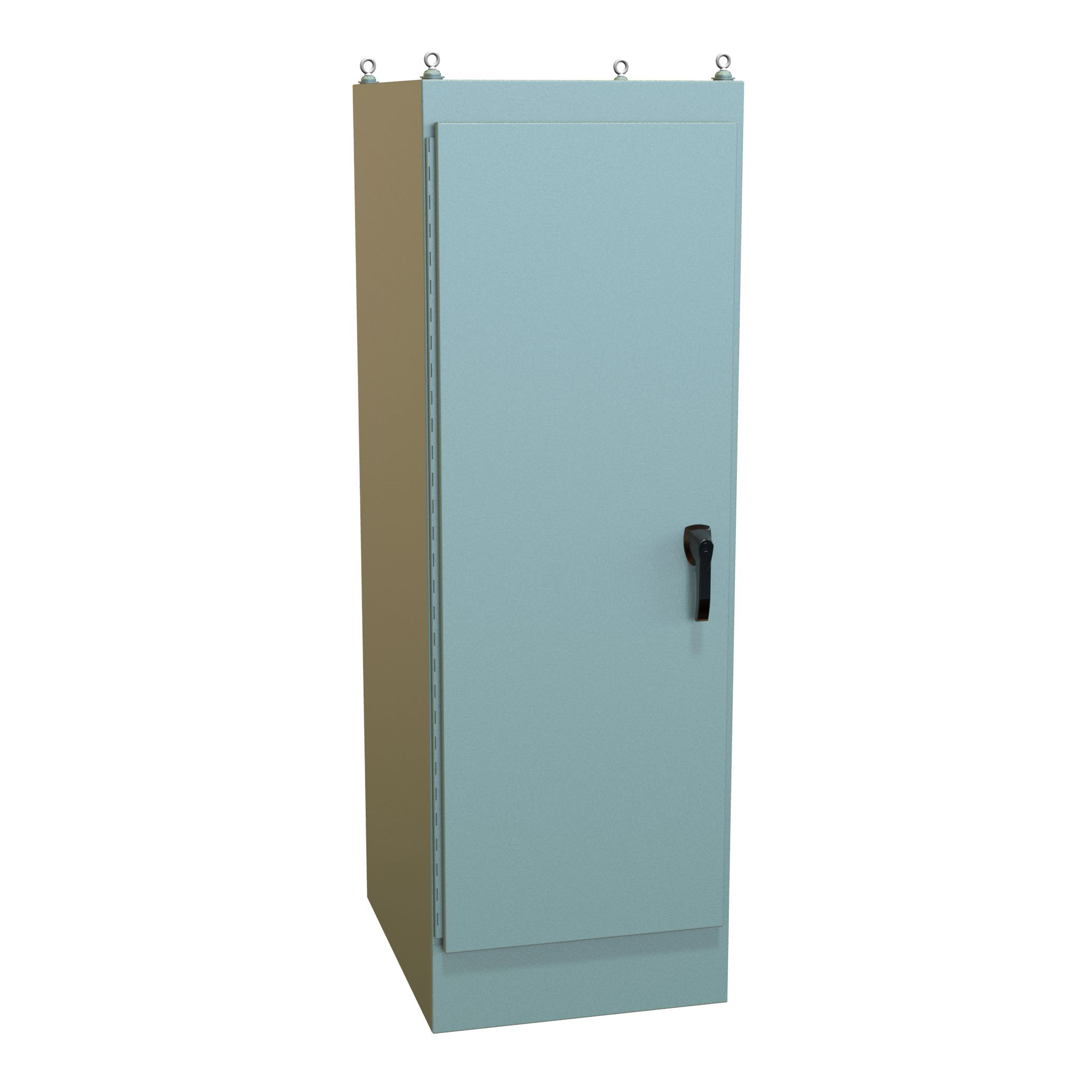

1418WD30

Free Stand Enclosure 72X24X30

$2,202.16Backorder
Buy now
1418WD36

Free Stand Enclosure 72X24X36

$2,398.89In stock
Buy now

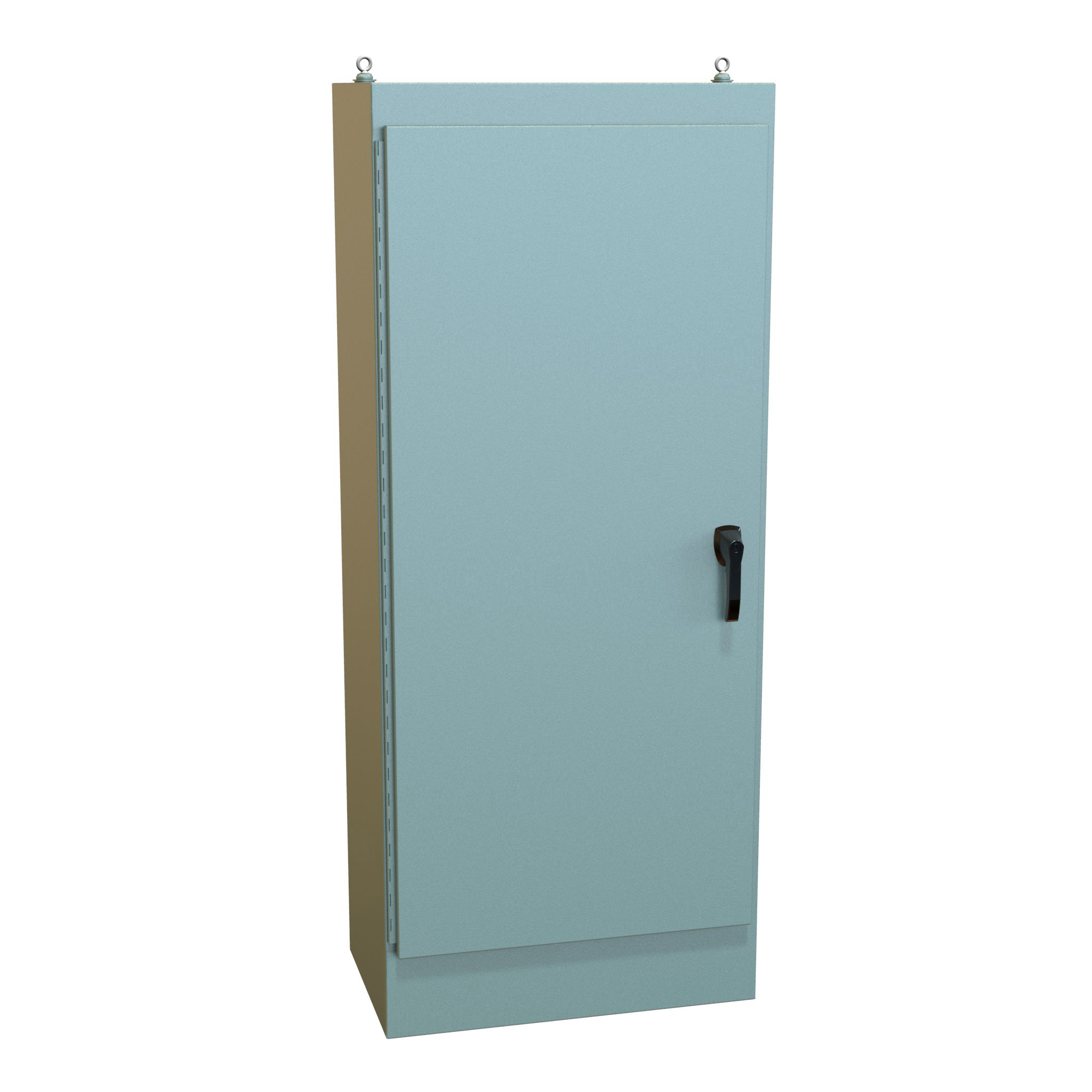

1418X18

Free Standing Encl. 72X30X18

$1,736.49In stock
Buy now

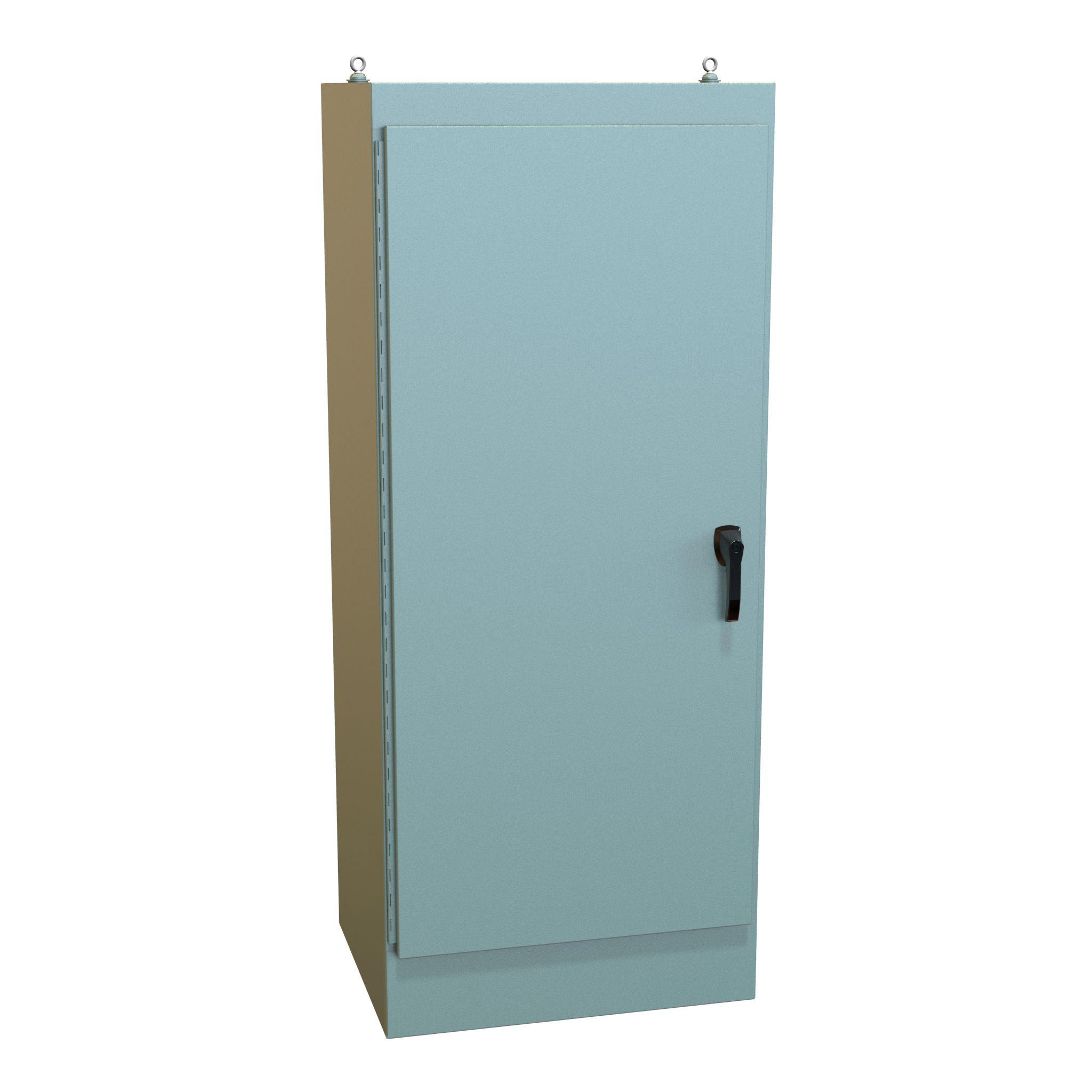

1418X24

N12FREE Stdg Box 71.87X30X24

$1,921.34Backorder
Buy now

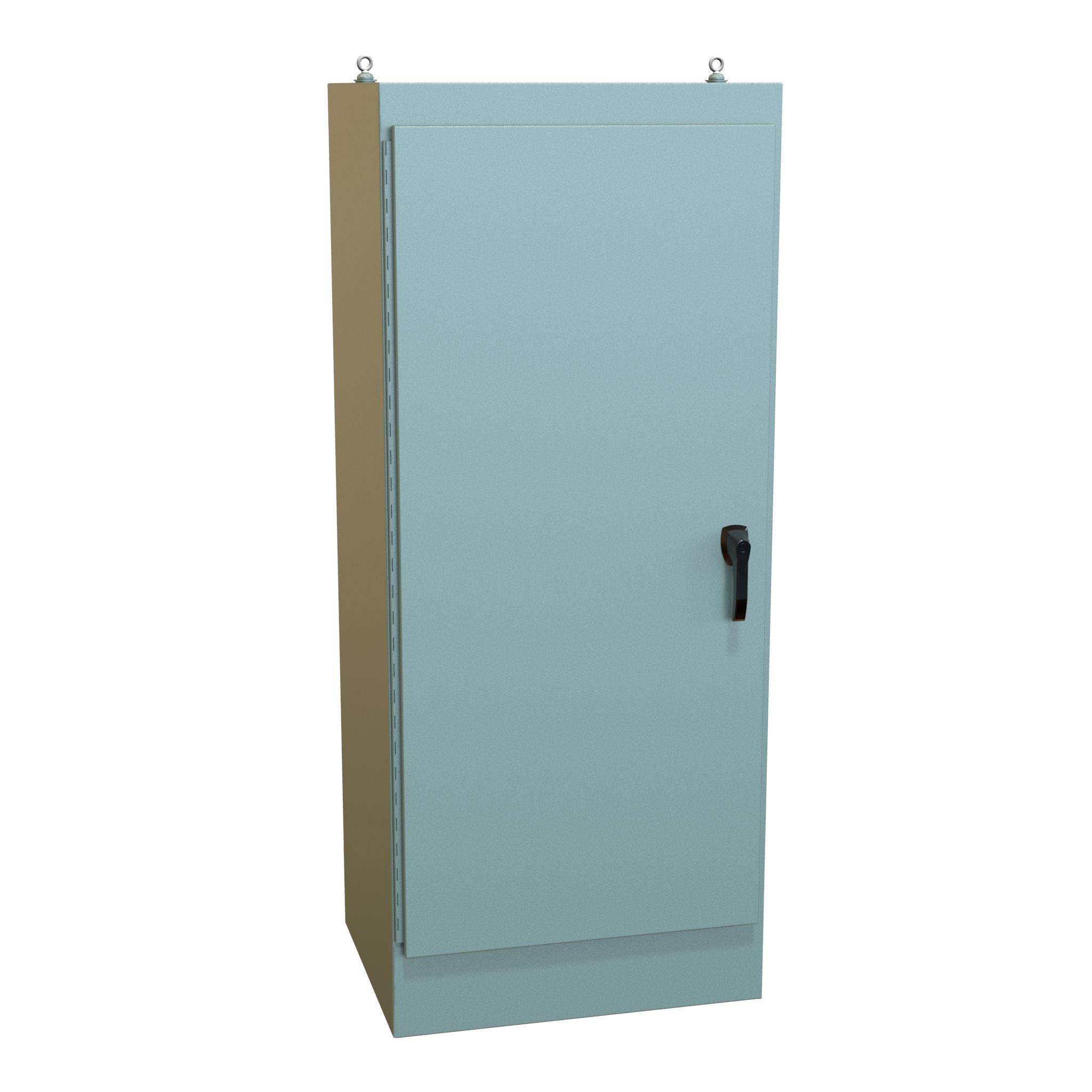

1418XD24

N12FREE Stdg Box 71.87X30X24

$2,202.16In stock
Buy now

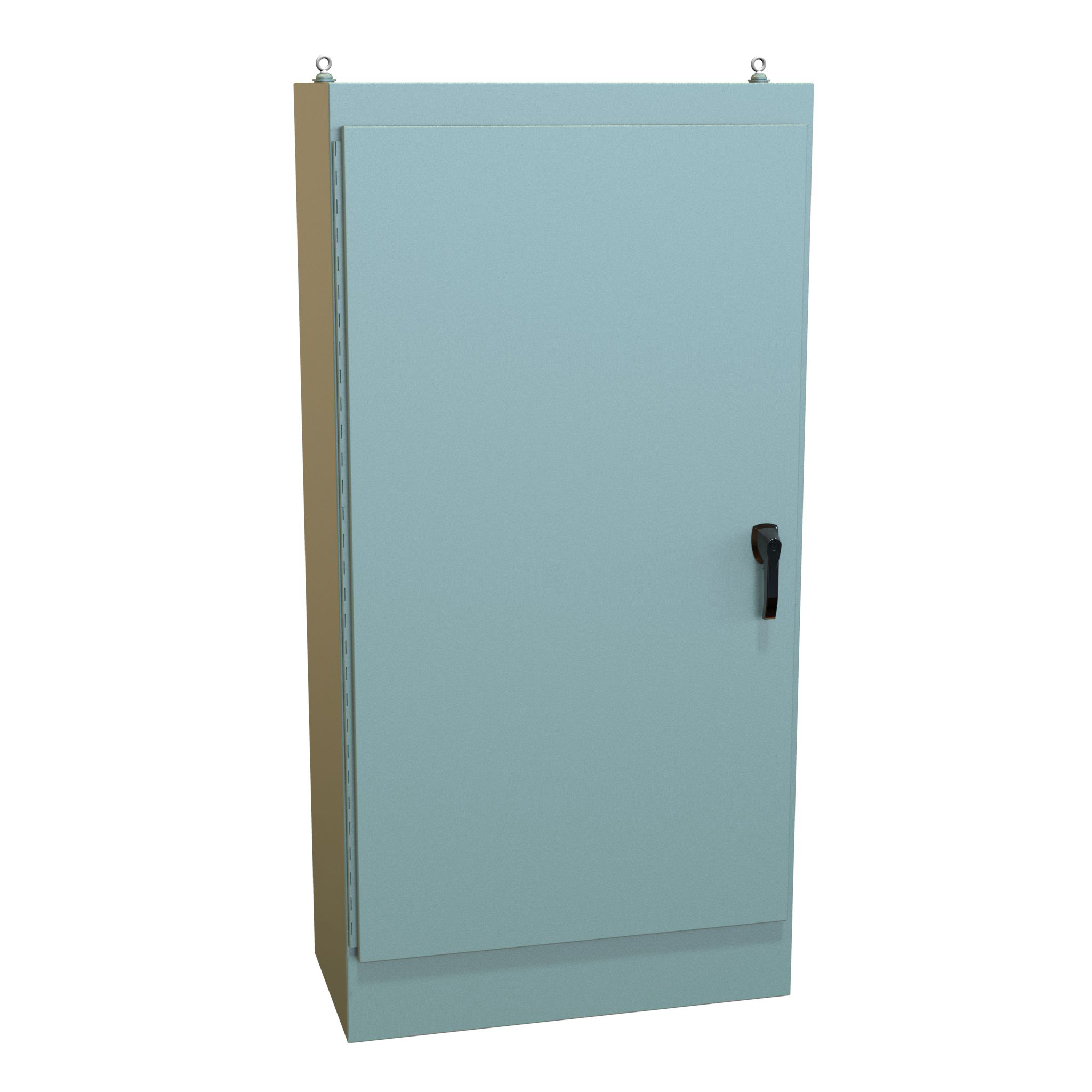

1418Y18

N12FREE Stdg Box 71.87X36X18

$1,900.70Backorder
Buy now

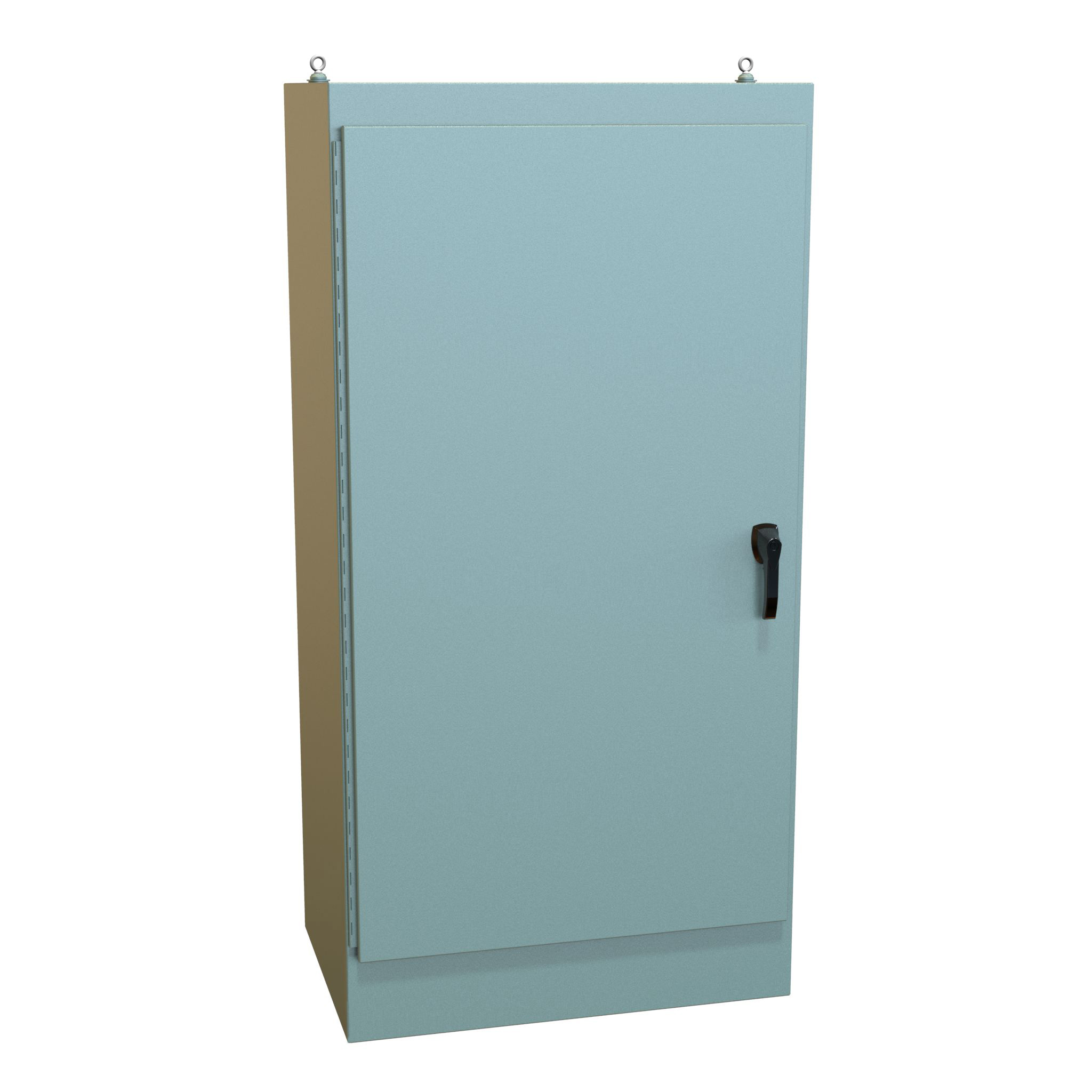

1418Y24

N12FREE Stdg Box 72.06X36X24

$2,097.44Backorder
Buy now

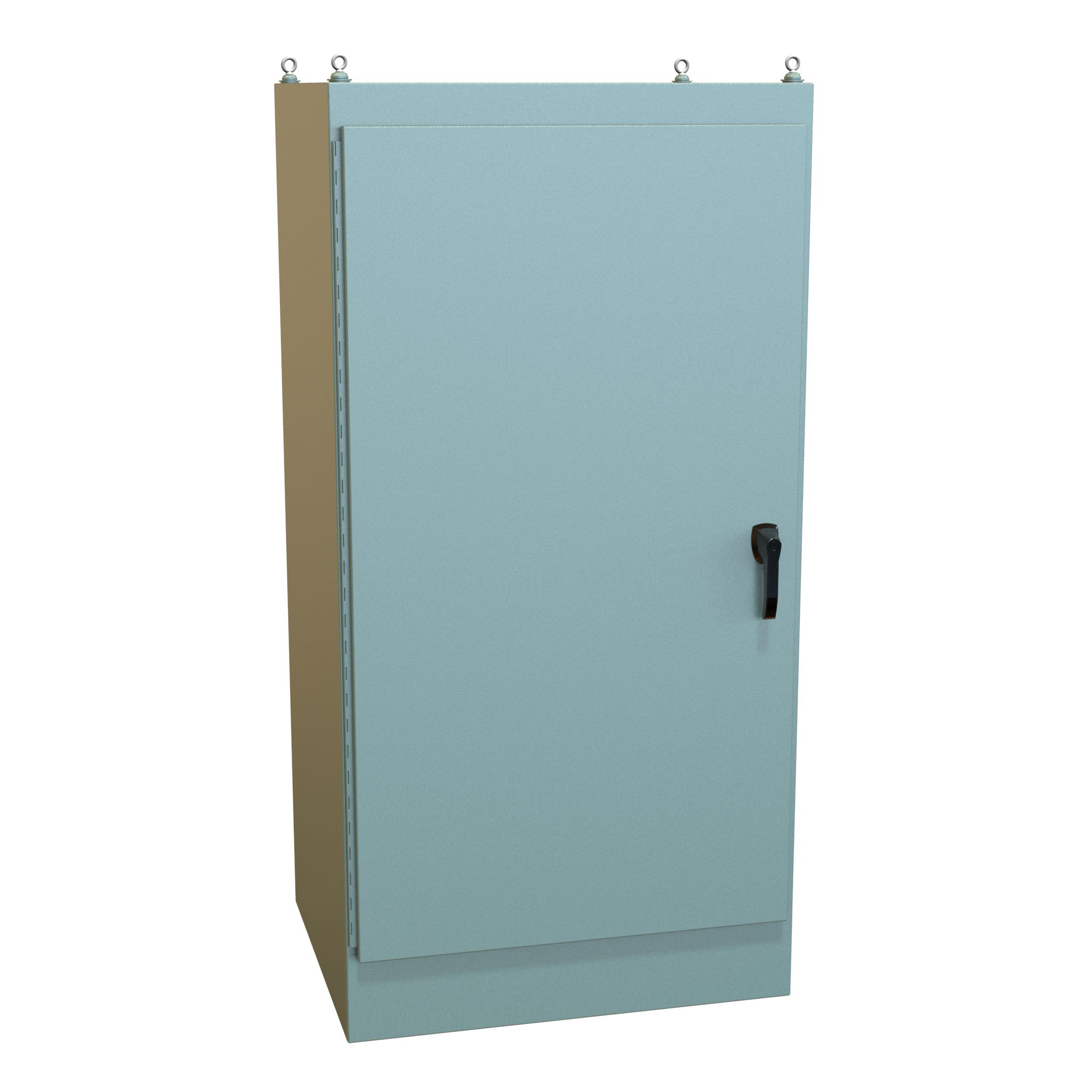

1418Y30

N12FREE Stdg Box 71.87X36X30

$2,359.23Backorder
Buy now

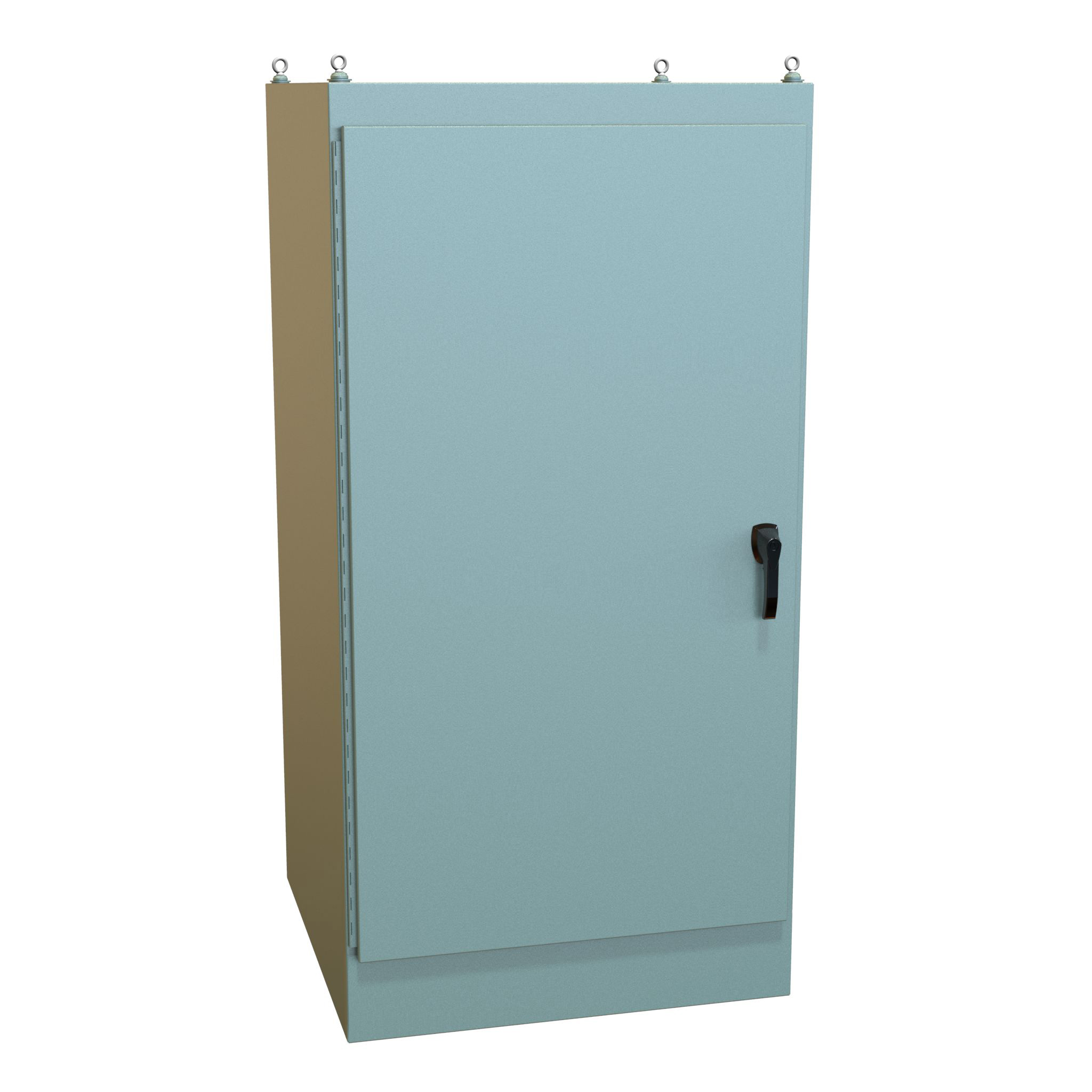

1418Y36

Free Standing Panel Enclosure

$2,562.31Backorder
Buy now

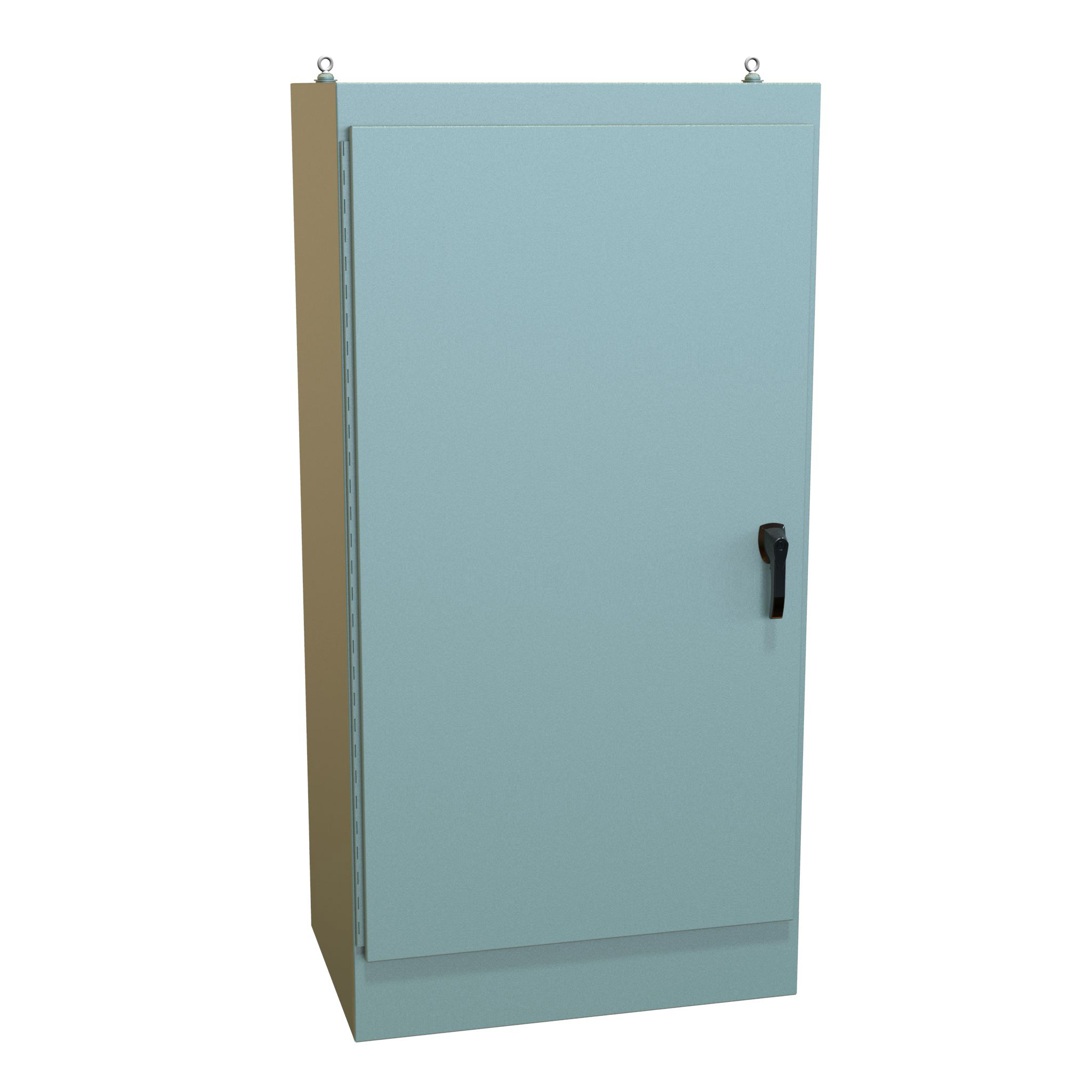

1418YD24

N12FREE Stdg Box 71.87X36X24

$2,398.89In stock
Buy now

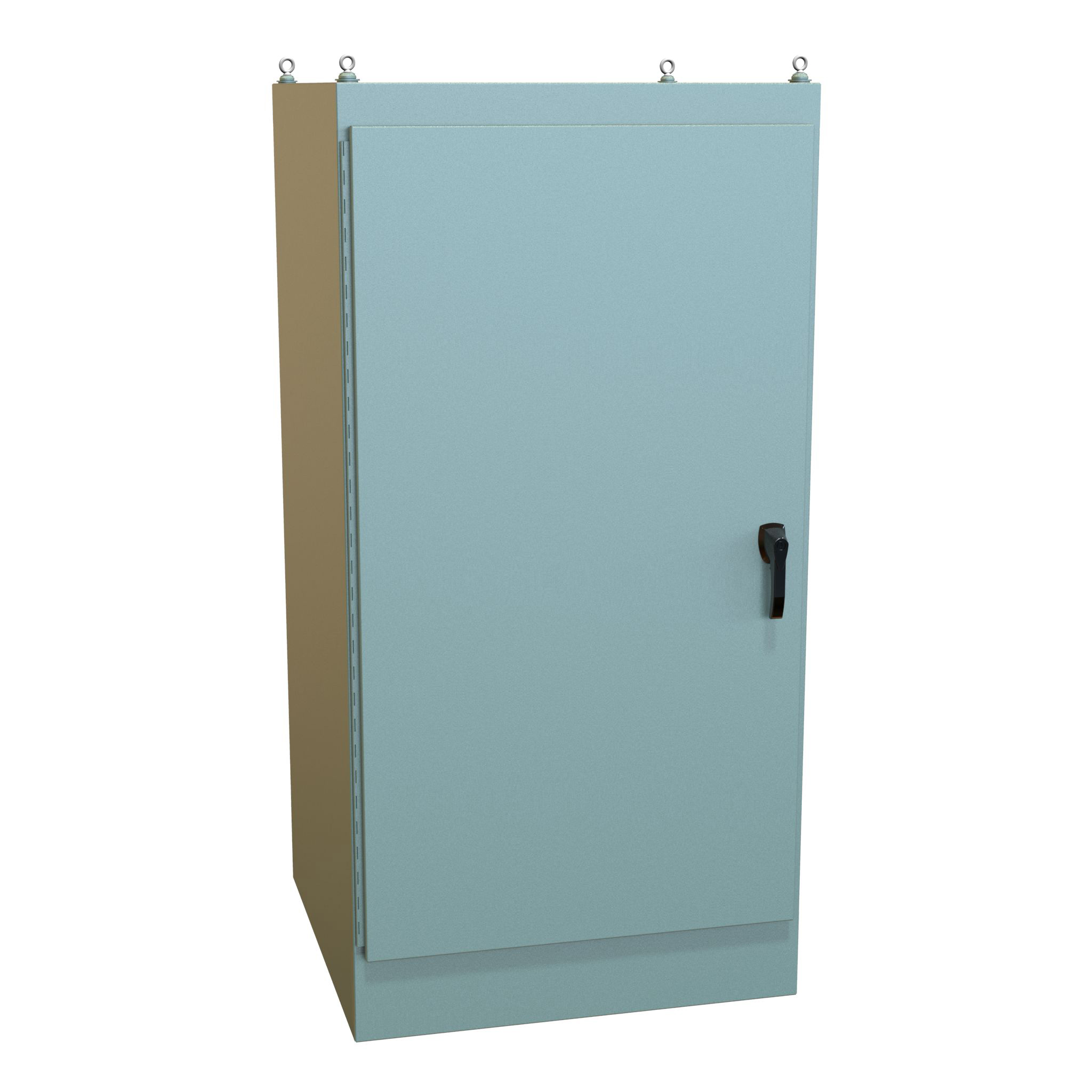

1418YD36

Free Standing Panel Enclosure

$2,854.23Backorder
Buy now

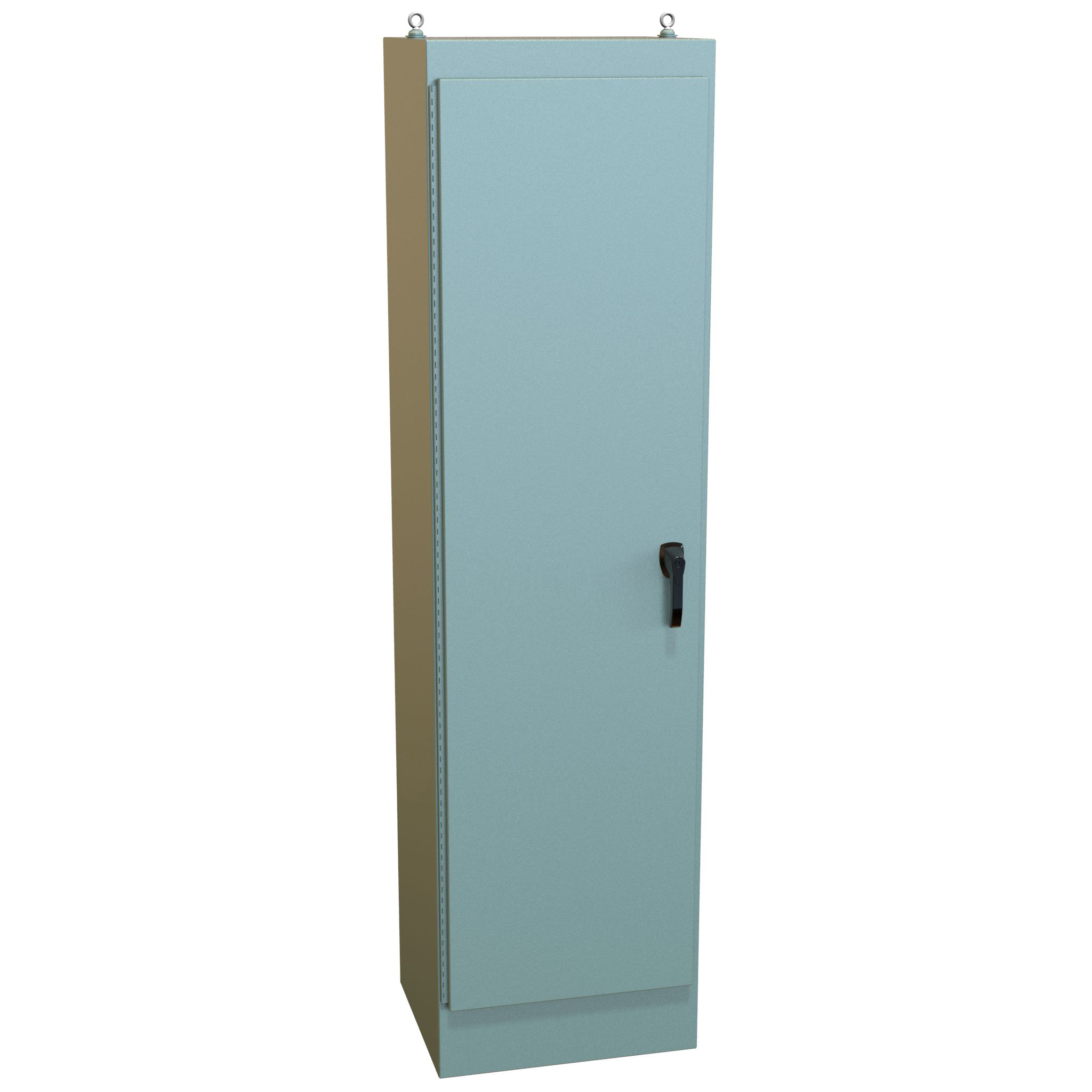

1418YW20

Free Stand Enclosure 90X24X20

$1,922.92In stock
Buy now

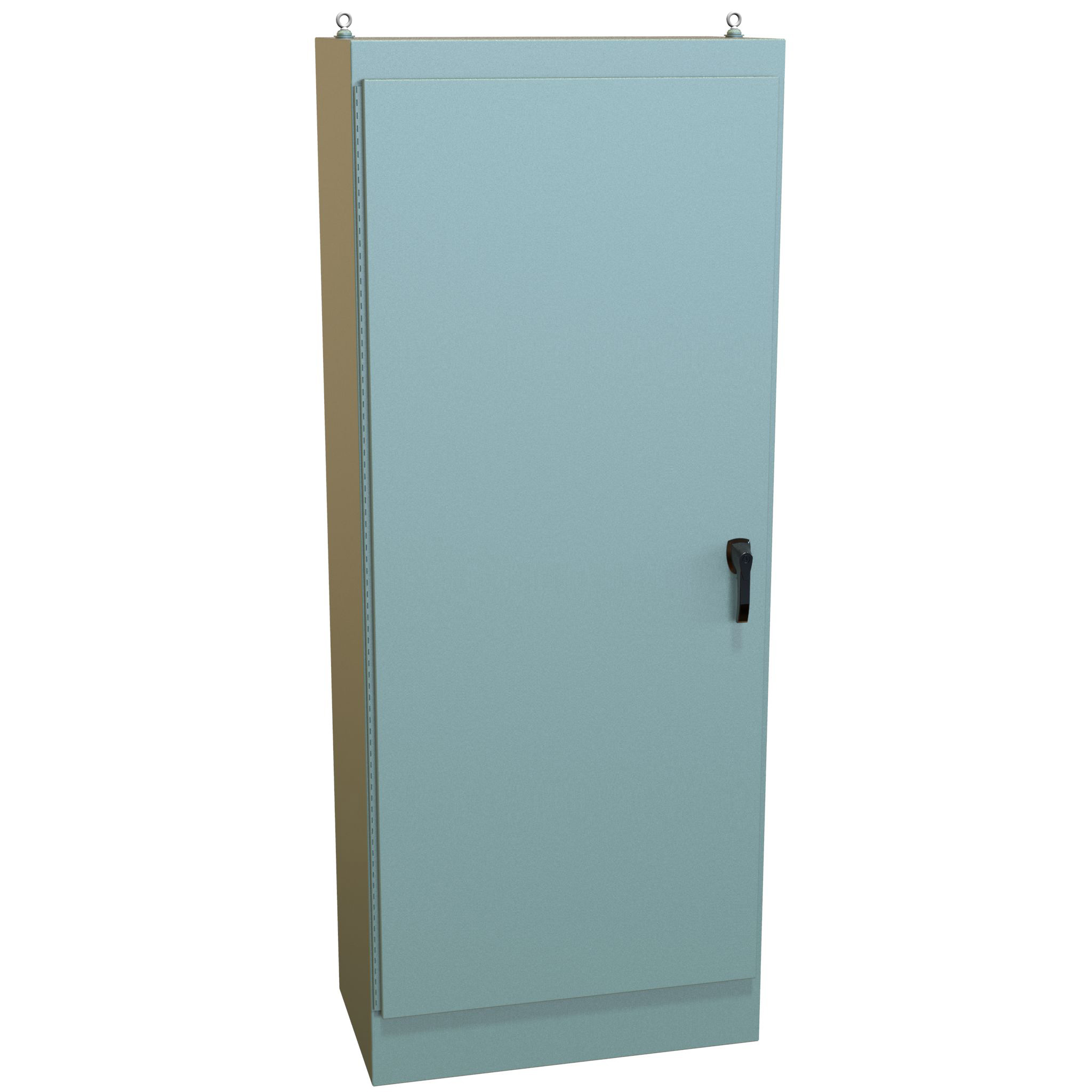

1418YY20

Free Stand Enclosure 90X36X20

$2,271.96Backorder
Buy now

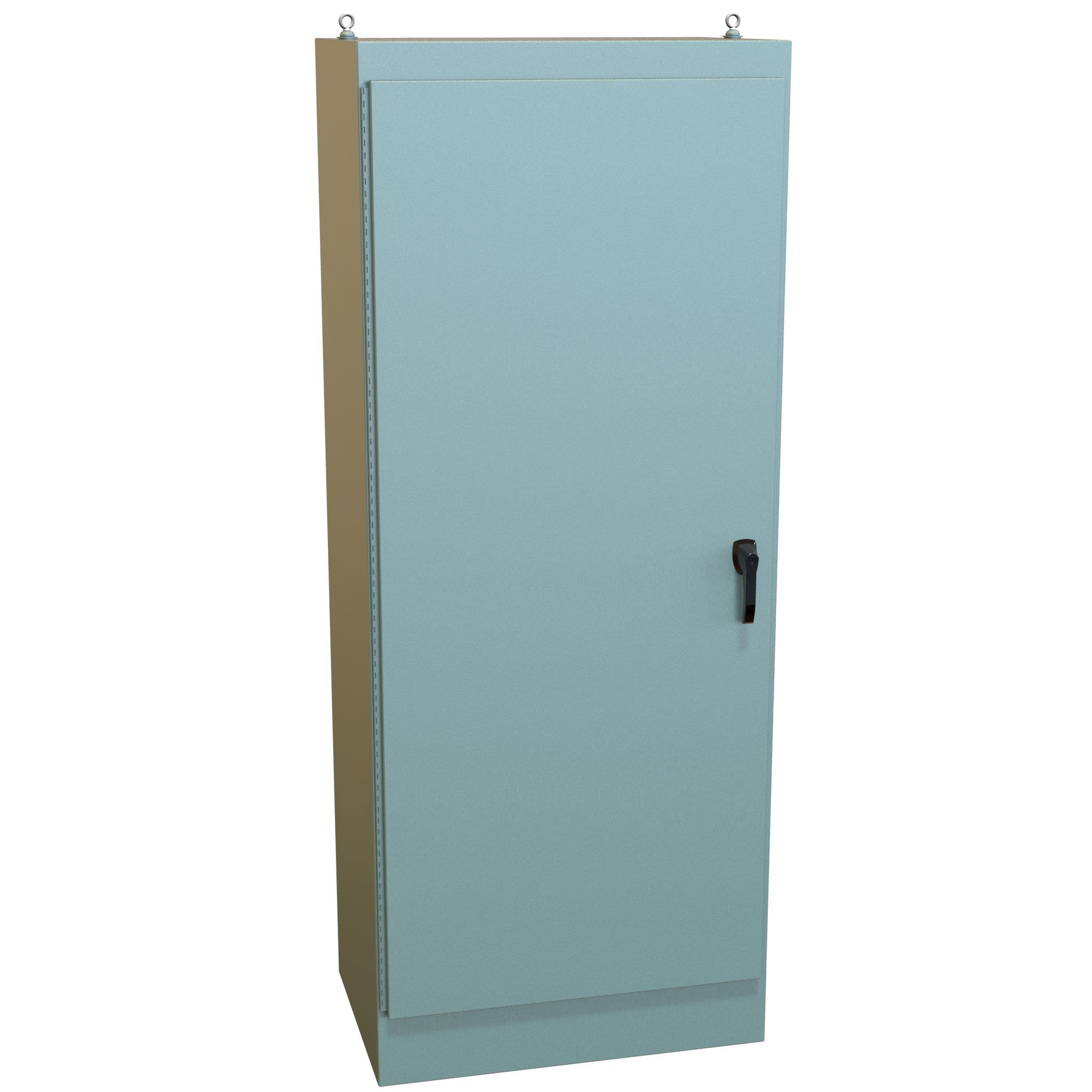

1418YY24

N12FREE Stdg Box 90.06X36X24

$2,425.07In stock
Buy now

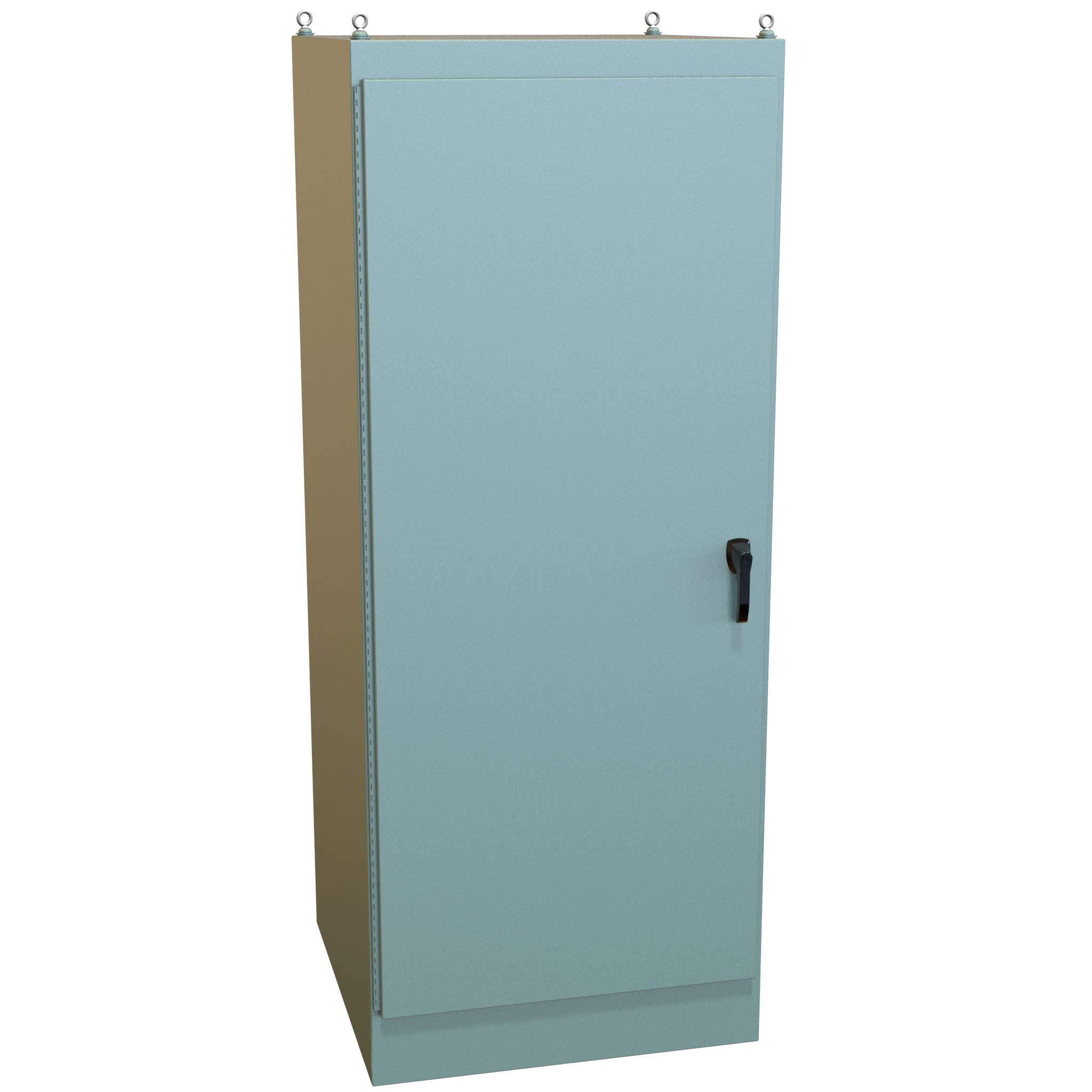

1418YY36

Free Standing Panel Enclosure

$2,969.25Backorder
Buy now

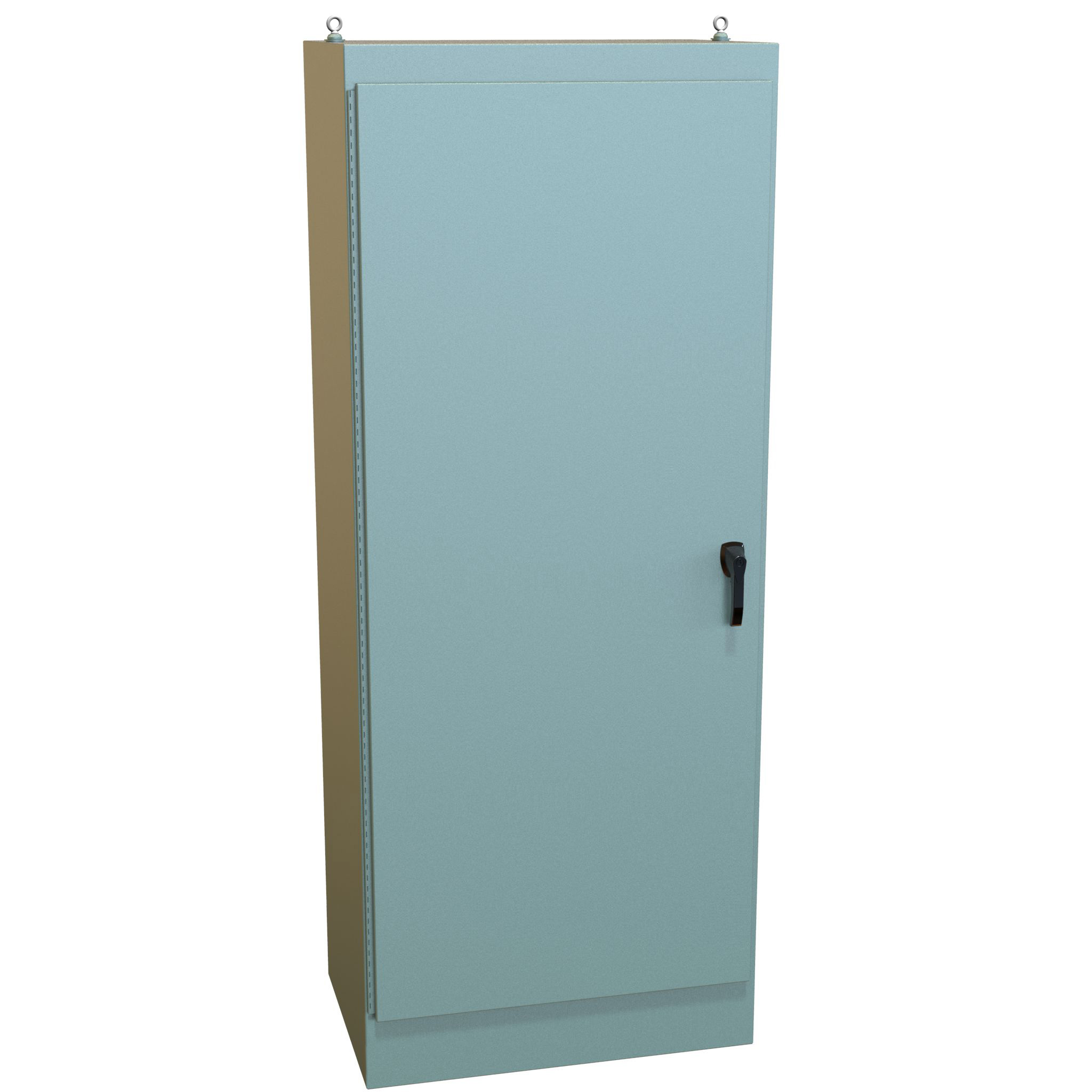

1418YYD24

Free Stand Enclosure 90X36X24

$2,777.28Backorder
Buy now

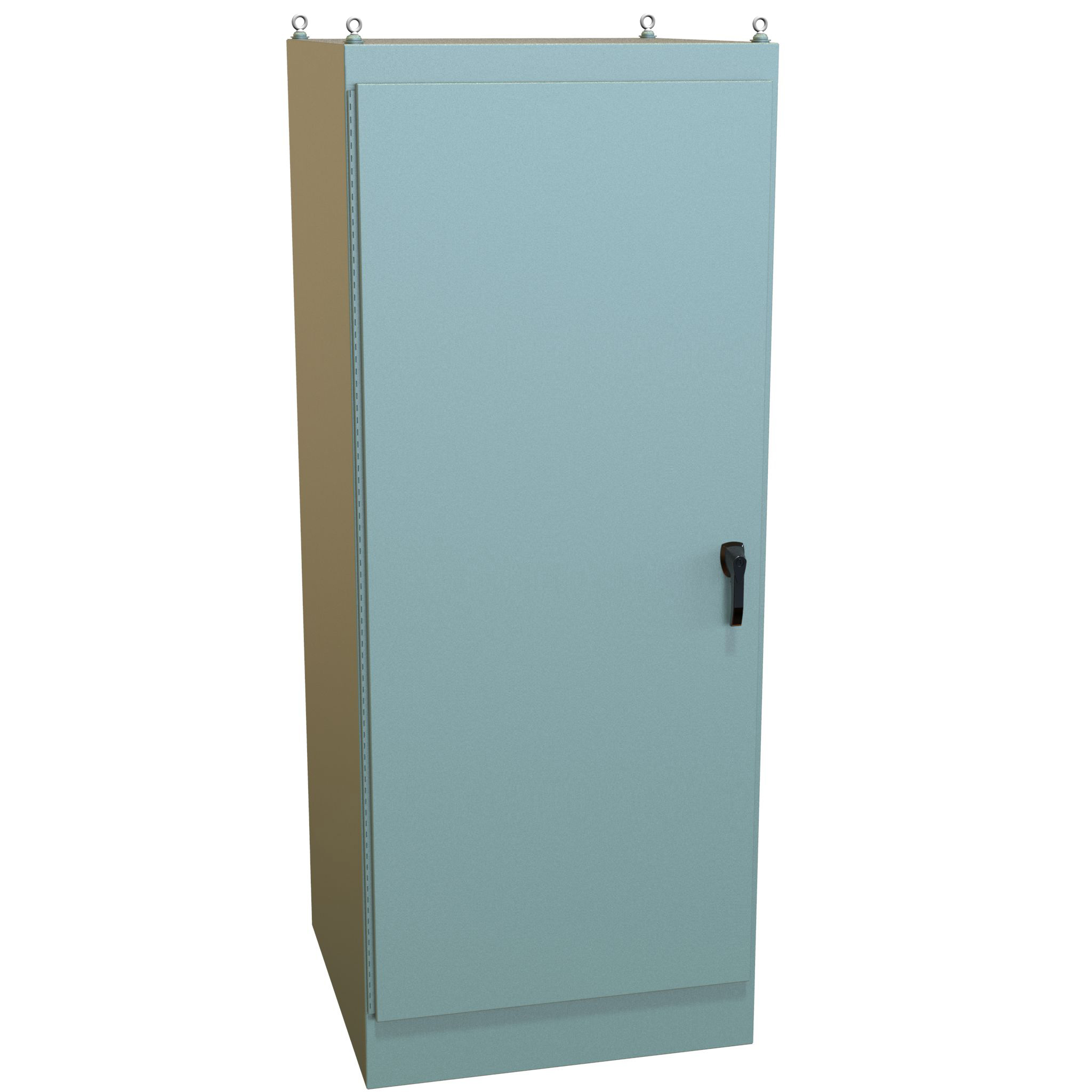

1418YYD36

Free Standing Panel Enclosure

$3,303.23Backorder
Buy now
Dimension tables (inches / mm)

Maximum Usable Depth

Units shown: inch . Switch units to: mm

Enclosure DepthMax Usable DepthPriceOrder
18.0617.80QuoteQuote
20.0619.80QuoteQuote
24.0623.80QuoteQuote
30.0629.80QuoteQuote
36.0635.80QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Single Access

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DOptional · Full Panel¹ (Part No.)PriceOrder
1418TW1860.0624.0618.0660TWFW$1,422.36In stock1418TW18Buy now
1418W1872.0624.0618.0672WFW$1,619.09In stock1418W18Buy now
1418X1872.0630.0618.0672XFW$1,736.49In stock1418X18Buy now
1418Y1872.0636.0618.0672YFW$1,900.70Backorder1418Y18Buy now
1418YW2090.0624.0620.0690YWFW$1,922.92In stock1418YW20Buy now
1418YY2090.0636.0620.0690YFW$2,271.96Backorder1418YY20Buy now
1418TY2460.0636.0624.0660TYFW$1,934.02Backorder1418TY24Buy now
1418W2472.0624.0624.0672WFW$1,796.78In stock1418W24Buy now
1418X2472.0630.0624.0672XFW$1,921.34Backorder1418X24Buy now
1418Y2472.0636.0624.0672YFW$2,097.44Backorder1418Y24Buy now
1418YY2490.0636.0624.0690YFW$2,425.07In stock1418YY24Buy now
1418W3072.0624.0630.0672WFW$1,952.27Backorder1418W30Buy now
1418Y3072.0636.0630.0672YFW$2,359.23Backorder1418Y30Buy now
1418W3672.0624.0636.0672WFW$2,136.31Backorder1418W36Buy now
1418Y3672.0636.0636.0672YFW$2,562.31Backorder1418Y36Buy now
1418YY3690.0636.0636.0690YFW$2,969.25Backorder1418YY36Buy now

Dual Access

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DOptional · Full Panel¹ (Part No.)PriceOrder
1418WD2472.0624.0624.0672WFW$2,003.03In stock1418WD24Buy now
1418XD2472.0630.0624.0672XFW$2,202.16In stock1418XD24Buy now
1418YD2472.0636.0624.0672YFW$2,398.89In stock1418YD24Buy now
1418YYD2490.0636.0624.0690YFW$2,777.28Backorder1418YYD24Buy now
1418WD3072.0624.0630.0372WFW$2,202.16Backorder1418WD30Buy now
1418WD3672.0624.0636.0672WFW$2,398.89In stock1418WD36Buy now
1418YD3672.0636.0636.0672YFW$2,854.23Backorder1418YD36Buy now
1418YYD3690.0636.0636.0690YFW$3,303.23Backorder1418YYD36Buy now

Application

  • ■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
  • ■Provides a degree of protection from falling dirt, dust, oil and water.
  • ■Available with front access only or both front and rear access.
  • ■A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.

Standards

  • ■UL 508A Type 12
  • ■CSA Type 12
  • ■Complies with NEMA Type 12 IEC 60529, IP54
  • ■NEMA Type 12
  • ■IEC 60529, IP54

Construction

  • ■Formed 12 gauge steel.
  • ■Smooth, continuously welded seams without knockouts, cutouts or holes.
  • ■Lifting eyes provide for easy enclosure handling.
  • ■Doors are supported with heavy gauge continuous hinges.
  • ■Doors are secured with a three point latch and operated with a key locking automotive type handle.
  • ■Latch rods are equipped with rollers for easier door closing.
  • ■Oil resistant gaskets are permanently secured .
  • ■Provision for light kit mounting.
  • ■Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
  • ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
  • ■A literature pocket is provided for the inside of the door (Two pockets are provided for dual access units).

Finish

  • ■Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
  • ■Optional inner panels, rails, frames and supports are available in white powder coating.

Documents

Specification SheetCE Declaration

Additional information

Maximum Usable Depth

Enclosure DepthMax Usable Depth
18.0617.80
20.0619.80
24.0623.80
30.0629.80
36.0635.80

Single Access

Part No.Enclosure · HEnclosure · WEnclosure · DOptional · Full Panel¹
1418TW1860.0624.0618.0660TWFW
1418W1872.0624.0618.0672WFW
1418X1872.0630.0618.0672XFW
1418Y1872.0636.0618.0672YFW
1418YW2090.0624.0620.0690YWFW
1418YY2090.0636.0620.0690YFW
1418TY2460.0636.0624.0660TYFW
1418W2472.0624.0624.0672WFW
1418X2472.0630.0624.0672XFW
1418Y2472.0636.0624.0672YFW
1418YY2490.0636.0624.0690YFW
1418W3072.0624.0630.0672WFW
1418Y3072.0636.0630.0672YFW
1418W3672.0624.0636.0672WFW
1418Y3672.0636.0636.0672YFW
1418YY3690.0636.0636.0690YFW

Dual Access

Part No.Enclosure · HEnclosure · WEnclosure · DOptional · Full Panel¹
1418WD2472.0624.0624.0672WFW
1418XD2472.0630.0624.0672XFW
1418YD2472.0636.0624.0672YFW
1418YYD2490.0636.0624.0690YFW
1418WD3072.0624.0630.0372WFW
1418WD3672.0624.0636.0672WFW
1418YD3672.0636.0636.0672YFW
1418YYD3690.0636.0636.0690YFW
