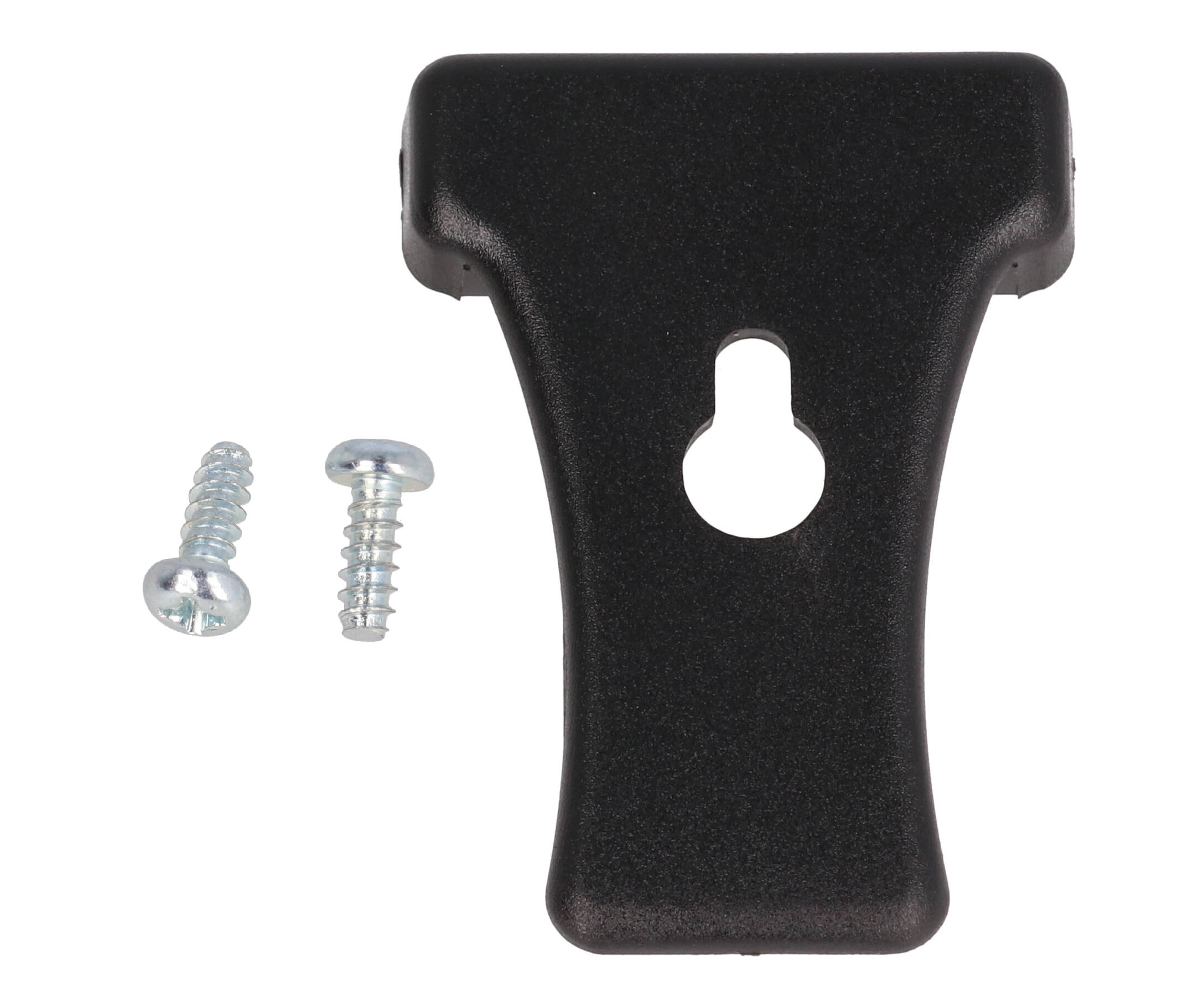

Rh Series Belt Clip Black
$0.96In stock
Buy now
ABS Plastic Hand Held Enclosures with Battery Door · RH Series
Brand: Hammond Manufacturing · 10 part numbers
- ■Electronic hand-held enclosures ideally suited for mounting printed circuit boards.
- ■Ergonomically designed for a comfortable fit into the user’s hand.
- ■Lap joint construction provides protection against dust accumulation and splashing water.
- ■Available with or without a gasket. Gasketed versions are rated IP65.
- ■Gasketed version includes a factory-installed gasket around top and bottom half and around battery door.
- ■Molded in a general purpose ABS plastic which carries a UL flammability rating of UL94 HB.
from $0.91
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RH Series part number
Filter 11 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
11 of 11 part numbers · 10 priced online

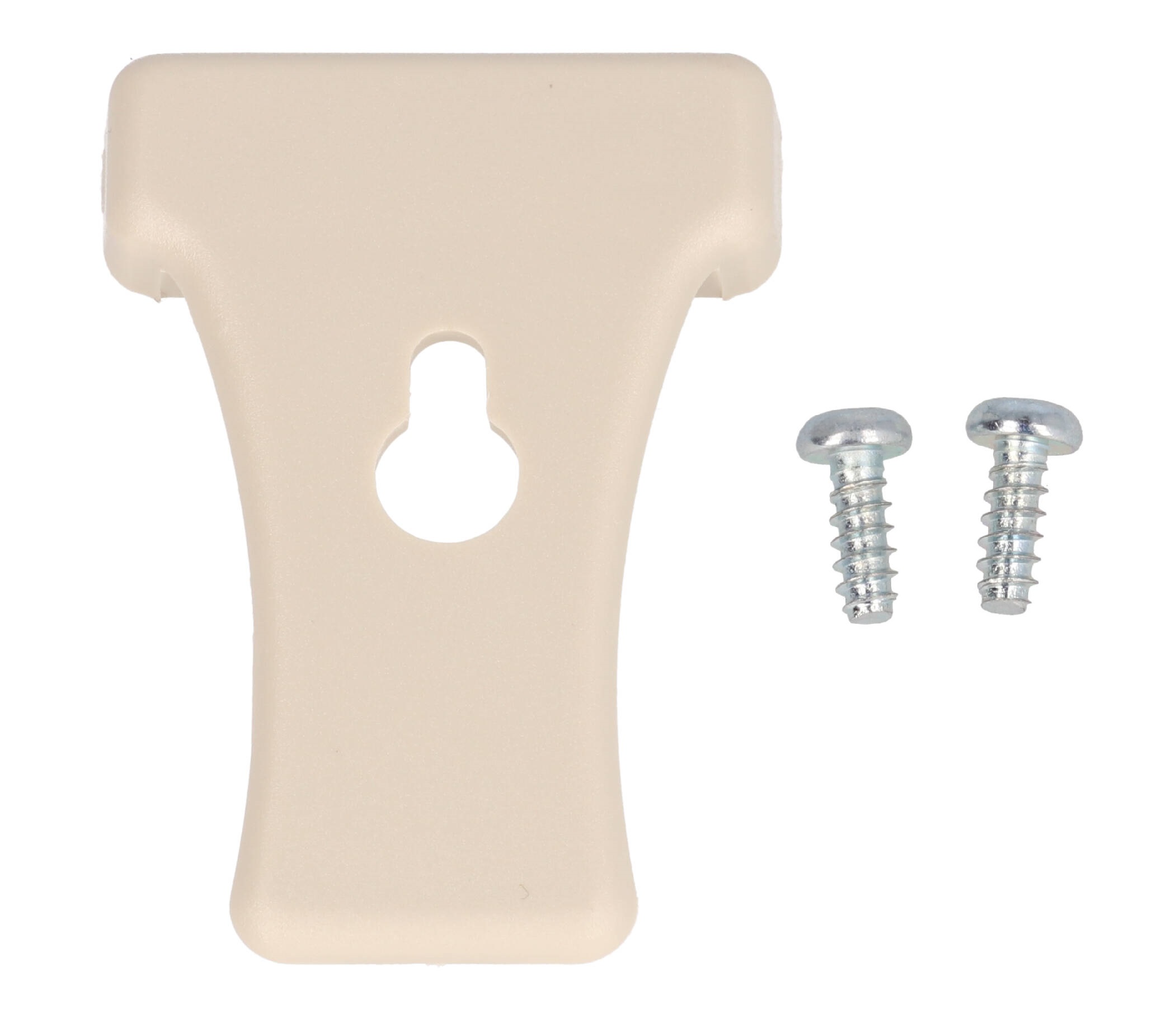

Rh Series Belt Clip Grey
$0.91In stock
Buy now
ABS Handheld IP65 Black
- Color Black
- IP Rating IP65
- Gasket yes
$5.35In stock
Buy now
ABS Handheld IP65
- Color Light Gray
- IP Rating IP65
- Gasket yes
$5.35Backorder
Buy now
ABS Handheld Black
- Color Black
- IP Rating IP54
- Gasket no
$3.80In stock
Buy now
ABS Handheld
- Color Light Gray
- IP Rating IP54
- Gasket no
$3.80In stock
Buy now
ABS Handheld IP65
- Color Light Gray
- IP Rating IP65
- Gasket yes
$6.25In stock
Buy now
ABS Handheld IP65 Black
- Color Black
- IP Rating IP65
- Gasket yes
$6.14In stock
Buy now
ABS Handheld Black
- Color Black
- IP Rating IP54
- Gasket no
$4.47In stock
Buy now
ABS Handheld
- Color Light Gray
- IP Rating IP54
- Gasket no
$4.47In stock
Buy now

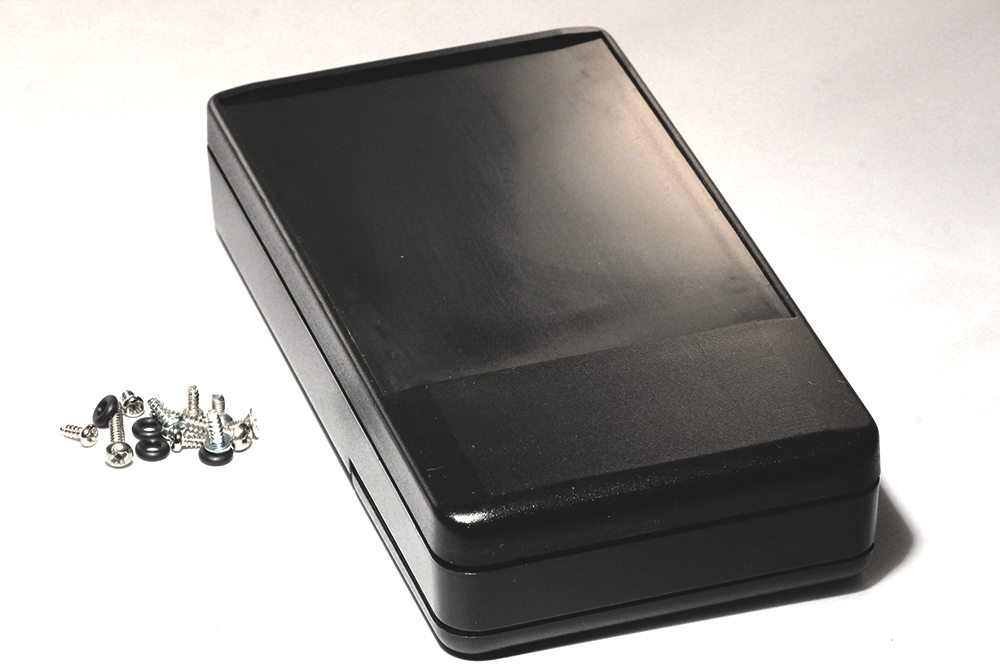

RH3041BK
Changed To RH3045BK Part #
- Color Black
- IP Rating IP65
QuoteRequest a quote
Dimension tables (inches / mm)
| Black · Enclosure (Part No.) | Gray · Enclosure (Part No.) | Gasket | Length (mm) | Width (mm) | Height (mm) | Max PCB · Length (mm) | Max PCB · Width (mm) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| RH3011BK | RH3015 | no | 130 | 67.5 | 25 | 67.3 | 61.33 | $3.80In stockRH3011BK | Buy now |

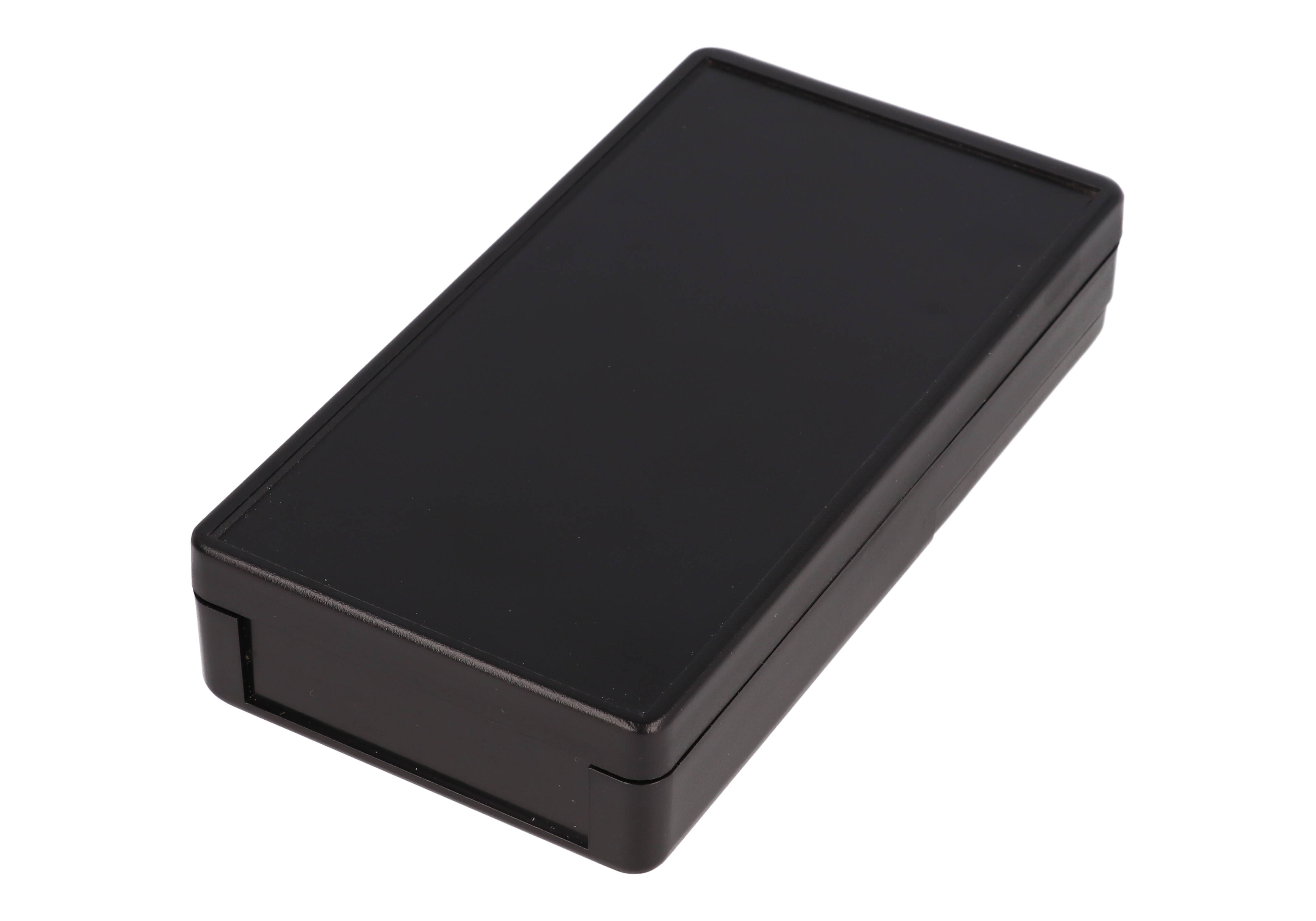

| RH3001BK | RH3005 | yes | 130 | 67.5 | 25 | 67.3 | 61.33 | $5.35In stockRH3001BK | Buy now |
| RH3051BK | RH3055 | no | 160 | 85 | 30 | 94.27 | 78.57 | $4.47In stockRH3051BK | Buy now |

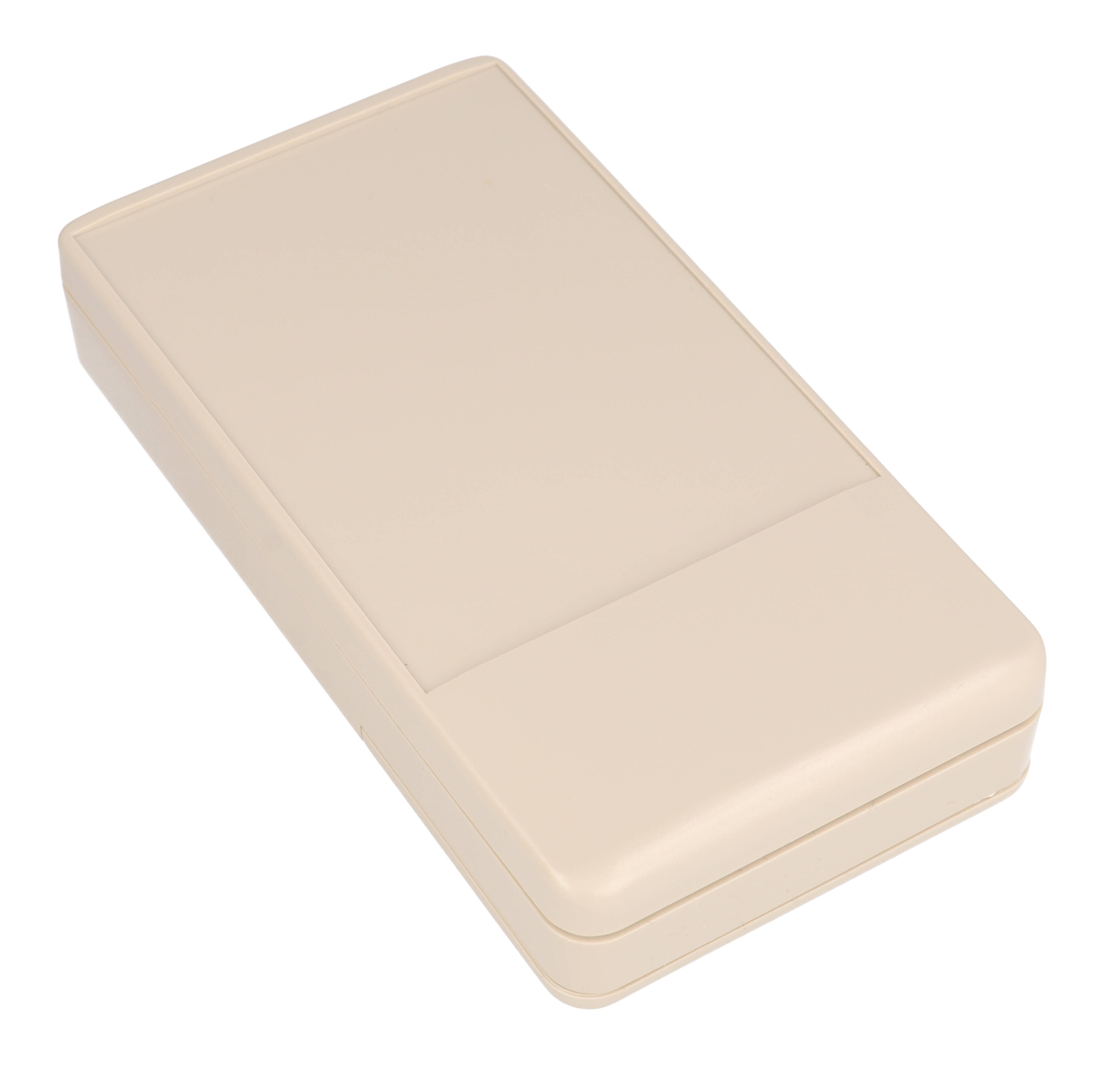

| RH3045BK | RH3045 | yes | 160 | 85 | 31 | 94.27 | 78.57 | $6.14In stockRH3045BK | Buy now |
Key Features:
- ■Electronic hand-held enclosures ideally suited for mounting printed circuit boards.
- ■Ergonomically designed for a comfortable fit into the user’s hand.
- ■Lap joint construction provides protection against dust accumulation and splashing water.
- ■Available with or without a gasket. Gasketed versions are rated IP65.

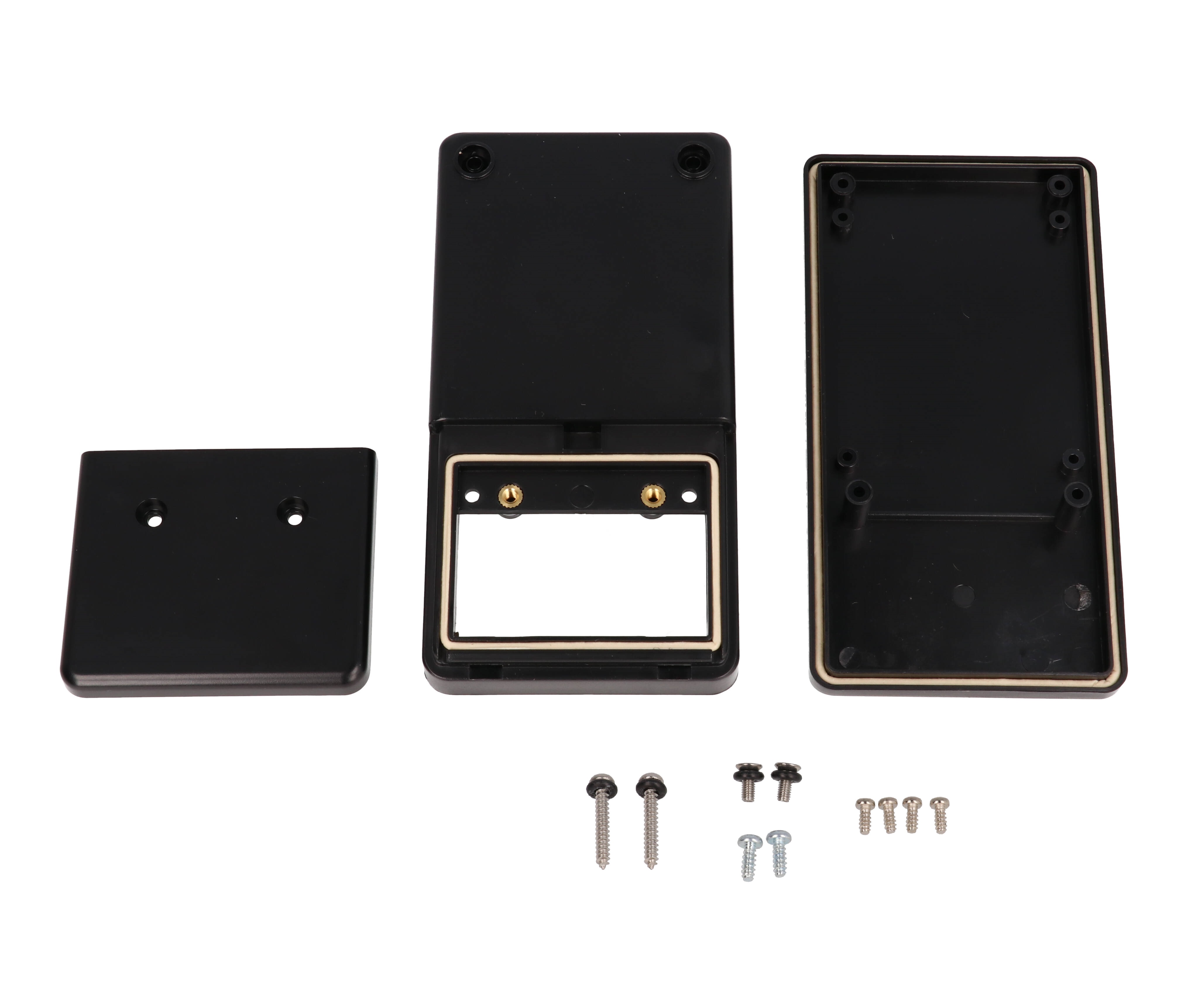

- ■Gasketed version includes a factory-installed gasket around top and bottom half and around battery door.
- ■Molded in a general purpose ABS plastic which carries a UL flammability rating of UL94 HB.
- ■The top half includes a smooth recessed area for membranes, keypads, labels, and more.
- ■Assembled with M3 Philips self-tapping screws.
- ■Both top and bottom halves contain molded PC board standoffs.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
Belt Clips:
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■Choice of either black or grey color
- ■Made from tough nylon material
- ■Includes mounting hardware
Documents
Additional information
Part Details
| Black · Enclosure | Gray · Enclosure | Gasket | Length (mm) | Width (mm) | Height (mm) | Max PCB · Length (mm) | Max PCB · Width (mm) |
|---|---|---|---|---|---|---|---|
| RH3011BK | RH3015 | no | 130 | 67.5 | 25 | 67.3 | 61.33 |
| RH3001BK | RH3005 | yes | 130 | 67.5 | 25 | 67.3 | 61.33 |
| RH3051BK | RH3055 | no | 160 | 85 | 30 | 94.27 | 78.57 |
| RH3045BK | RH3045 | yes | 160 | 85 | 31 | 94.27 | 78.57 |
Belt Clips
| Black | Gray |
|---|---|
| CP-001BK | CP-001G |
