Hammond RH3051BK Black IP54 Handheld ABS Enclosure with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Built-in battery door for portable, battery-powered designs
- Black general purpose ABS with UL94 HB flammability rating
- IP54 rating per part page; non-gasketed lap joint construction
- 160 x 85 x 30 mm body shaped for a comfortable hand-held fit
- Recessed top area for a membrane, keypad or label
- Molded PCB standoffs in both halves accept M2.6 self-tapping screws
- Includes box, lid, battery door, 4 PCB screws and 4 cover screws

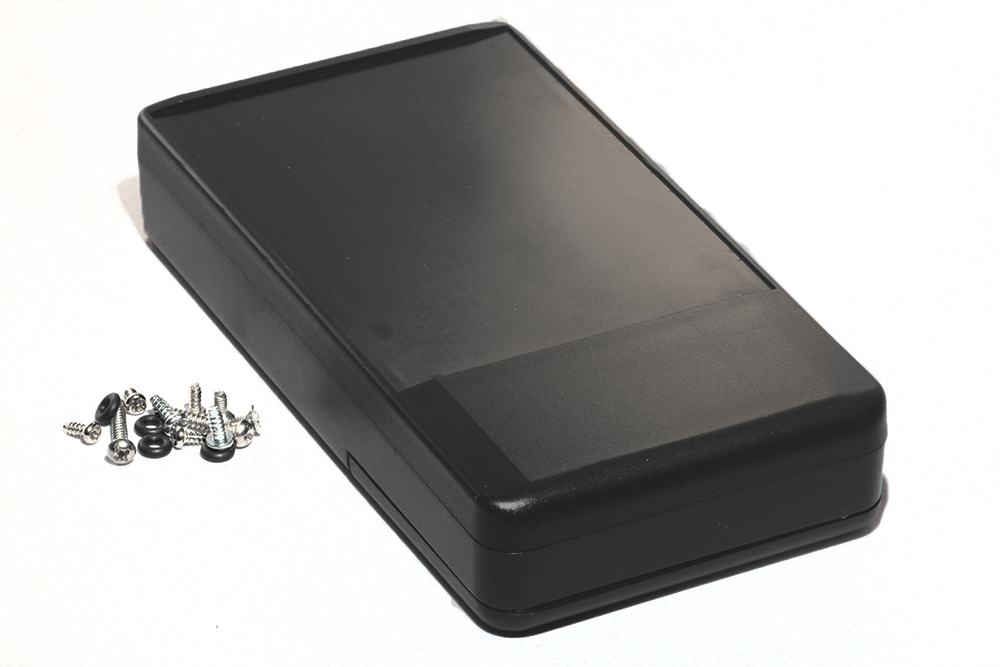

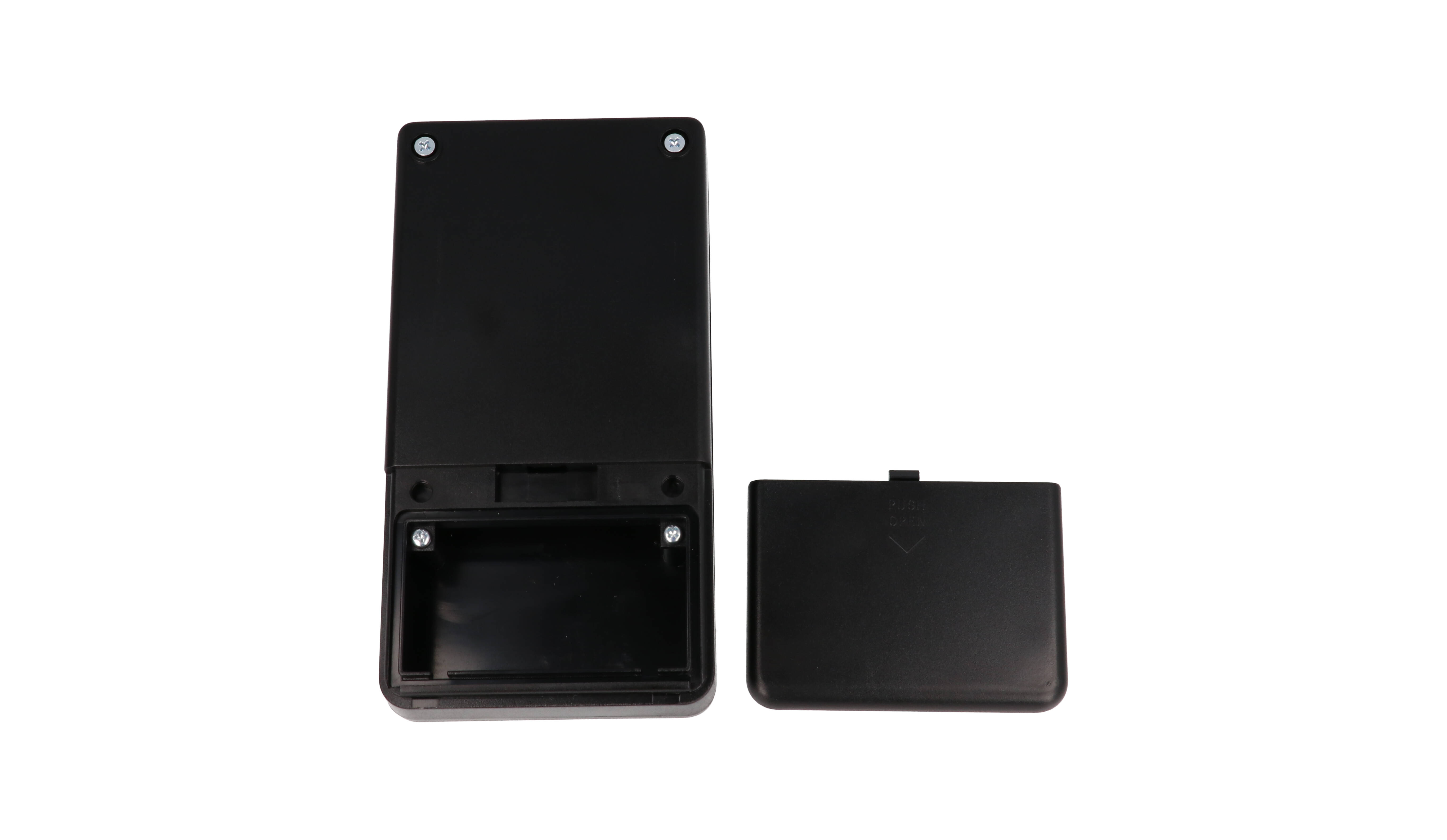

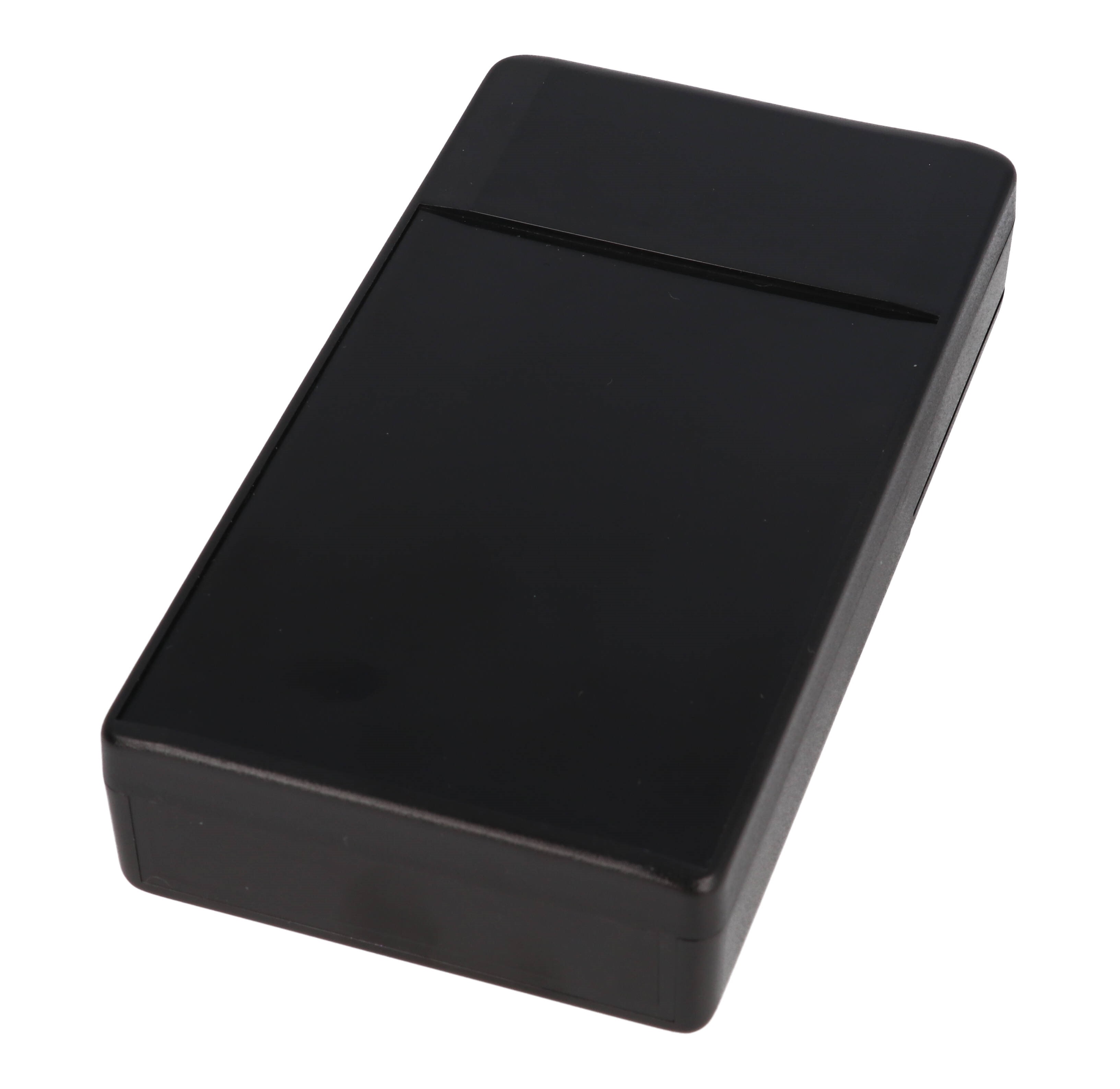

The RH3051BK is the black, non-gasketed member of the RH Series hand-held enclosures with a battery door. It gives product designers and OEM engineers a ready-made ergonomic housing for a printed circuit board plus batteries, shaped for a comfortable fit in the hand.
It is molded in general purpose black ABS plastic with a UL94 HB flammability rating. Lap joint construction protects against dust accumulation and splashing water, and the part page lists an IP54 rating for this version. The top half includes a smooth recessed area for a membrane, keypad or label, and both halves have molded PCB standoffs that accept M2.6 self-tapping screws. The halves are assembled with M3 Philips self-tapping screws at a recommended torque of (43-50) Ozf.in / (30-35) cN.m.
Nominal size is 160 x 84 x 30 mm (6.3 x 3.3 x 1.2 in); the series table lists 160 x 85 x 30 mm. Board capacity is listed as 129.27 x 73.14 mm on the part page and 94.27 x 78.57 mm in the series table, so check the drawing against your board outline.

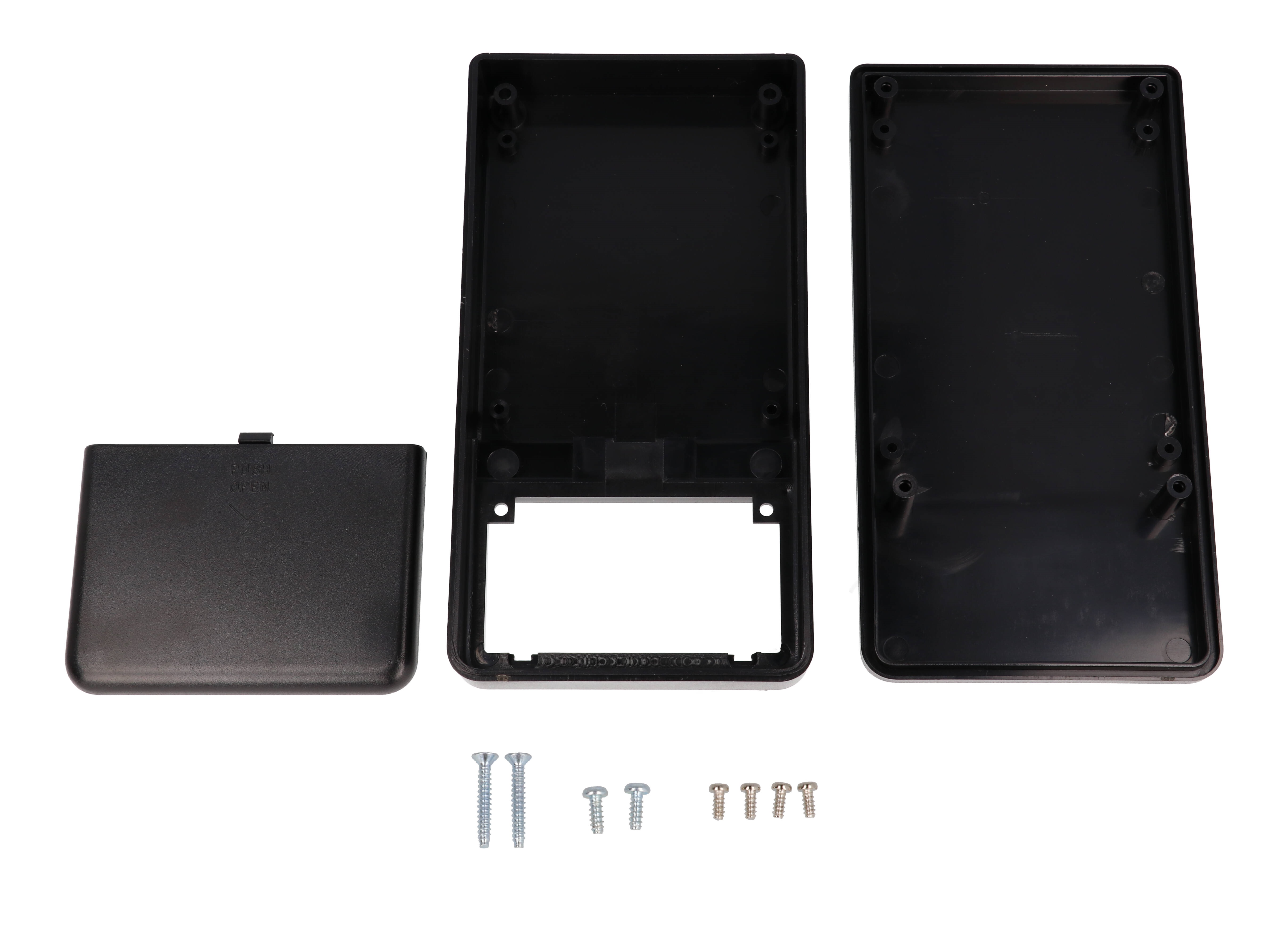

Each RH3051BK assembly includes the box, lid, 4 PCB screws, battery door and 4 cover screws. Replacement packs are SC616-50 (M3 x 20 mm cover screws), SC623-50 (M3 x 8 mm) and SC519-50 (PCB screws), with CP-001BK and CP-001G nylon belt clip kits available. It is REACH and RoHS compliant, bagged at 0.24 lbs (0.11 kg), and the light gray equivalent is RH3055.
Ideal For
- Hand-held electronic instruments
- Battery-powered remote controls
- Keypad or membrane-front devices
- Portable PCB-based prototypes
Overview
| Type | Hand-held, general purpose |
| Series | RH Series - ABS Plastic Hand Held Enclosures with Battery Door |
| CAD Models | Solid models available in .stp or .x_t |
| Description | ABS HANDHELD BLACK |
| Part Number | RH3051BK |
| Product Type | Enclosure - plastic |
| Color Alternative | Light gray version: RH3055 |
| Included In Assembly | Box, lid, 4 PCB screws, battery door and 4 cover screws |
Dimensions
| Drawing Overall Width | 85.00 mm [3.35 in] |
| Drawing Overall Height | 30.00 mm [1.18 in] |
| Drawing Overall Length | 160.00 mm [6.30 in] |
| Nominal Size (L X W X H) | 6.3 in x 3.3 in x 1.2 in (160 mm x 84 mm x 30 mm) |
| Max. PCB Width (Series Table) | 78.57 mm |
| Series Table Size (L X W X H) | 160 mm x 85 mm x 30 mm |
| Max. PCB Length (Series Table) | 94.27 mm |
| Max. P.C. Board Width (Part Page) | 73.14 mm |
| Max. P.C. Board Length (Part Page) | 129.27 mm |
Accessories
| Self-Tapping Screws M3 X 8 Mm (50 Pkg) | SC623-50 |
| PCB Screw M2.6 X 6 Mm Self-Tapping (50 Pkg) | SC519-50 |
| Cover Screws M3 X 20 Mm Self-Tapping (50 Pkg) | SC616-50 |
| Belt Clip Kit (Nylon, Includes Mounting Hardware) | CP-001BK (black), CP-001G (gray) |
Identifiers
| UPC | 623980179063 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.24 lbs (0.11 kg) |
Construction & Finish
| Color | Black |
| Joint | Lap joint construction (protection against dust accumulation and splashing water) |
| Material | ABS Plastic (general purpose ABS) |
| Top Half | Smooth recessed area for membranes, keypads, labels |
| Battery Door | Yes |
| PCB Standoffs | Molded into both top and bottom halves; accept M2.6 self-tapping screws |
| Assembly Screws | M3 Philips self-tapping screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request (quote) |
| Recommended Screw Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| Gasket | No |
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the RH3051BK have a gasket?▾
No. RH3051BK is the non-gasketed version; the part page lists it as IP54. The gasketed IP65 black version of this size is RH3045BK.
What size PCB fits?▾
The part page lists a maximum board of 129.27 x 73.14 mm, while the series ordering table lists 94.27 x 78.57 mm. Confirm against the part drawing before finalising your board.
What hardware is included?▾
The assembly includes the box, lid, 4 PCB screws, battery door and 4 cover screws.
Which replacement screws does it use?▾
Cover screws M3 x 20 mm self-tapping (SC616-50), M3 x 8 mm self-tapping (SC623-50) and PCB screws M2.6 x 6 mm self-tapping (SC519-50), each in packs of 50.
Can a belt clip be added?▾
Yes, the drawing lists nylon belt clip kits CP-001BK and CP-001G as accessories.
