Hammond RH3045BK Black IP65 Gasketed Handheld Enclosure, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 rated with factory-installed gasket around both halves and the battery door
- Integrated battery door with 2 battery door screws and 2 O-rings included
- 160 x 85 mm footprint; accepts PCBs up to 94.27 x 78.57 mm
- Black general purpose ABS, UL94 HB flammability rating
- Recessed top area for membranes, keypads or labels
- Molded PCB standoffs in both halves accept M2.6 self-tapping screws
- Ergonomic hand-held shape; optional nylon belt clip kits CP-001BK / CP-001G
- REACH and RoHS compliant

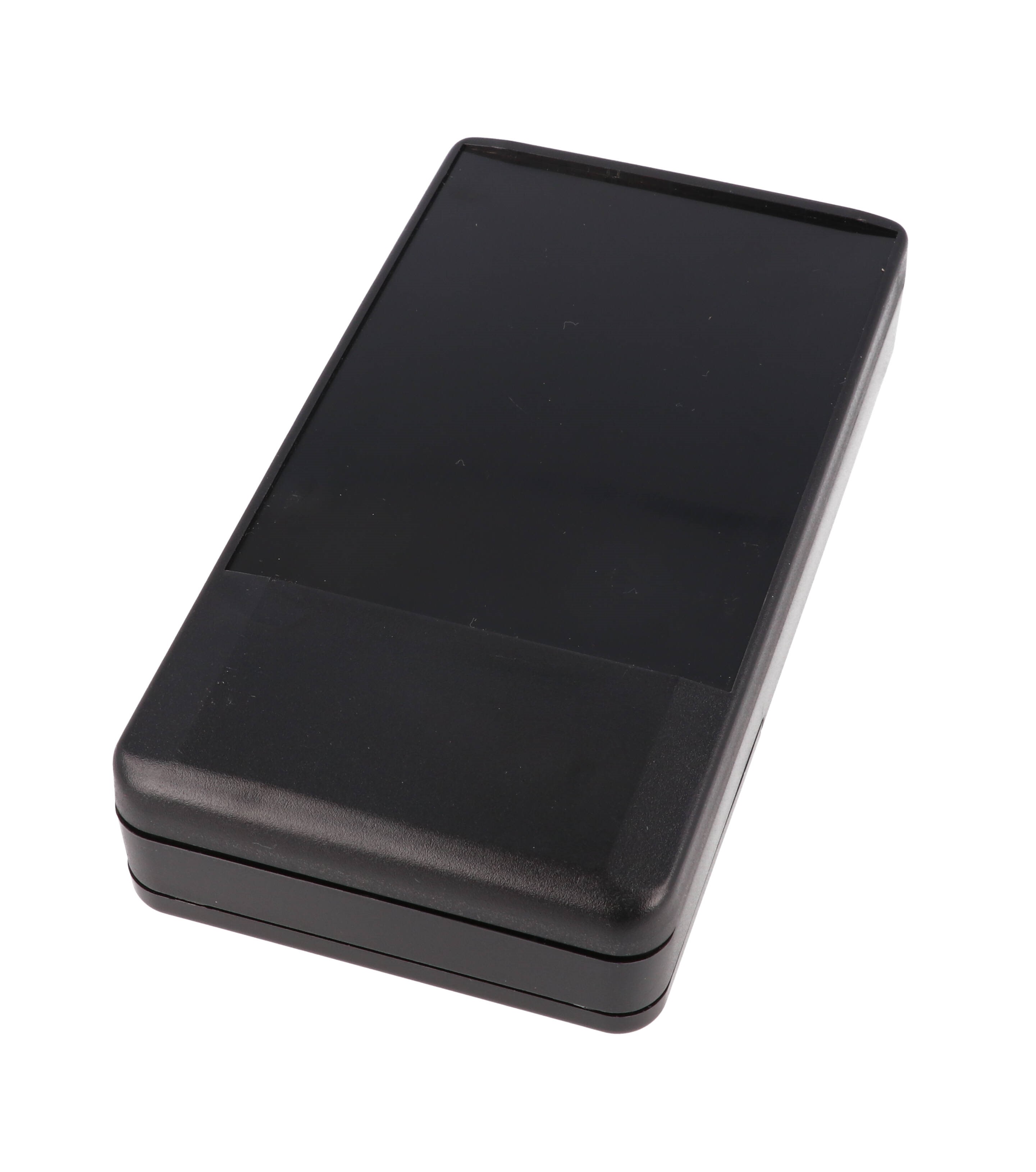

The RH3045BK is a black ABS hand-held enclosure with a battery door and a factory-installed gasket, rated IP65. It belongs to the RH Series of battery-door enclosures designed for mounting printed circuit boards, and is shaped for a comfortable fit in the user's hand, making it a practical housing for OEM engineers building portable meters, remotes and other hand-held electronics.

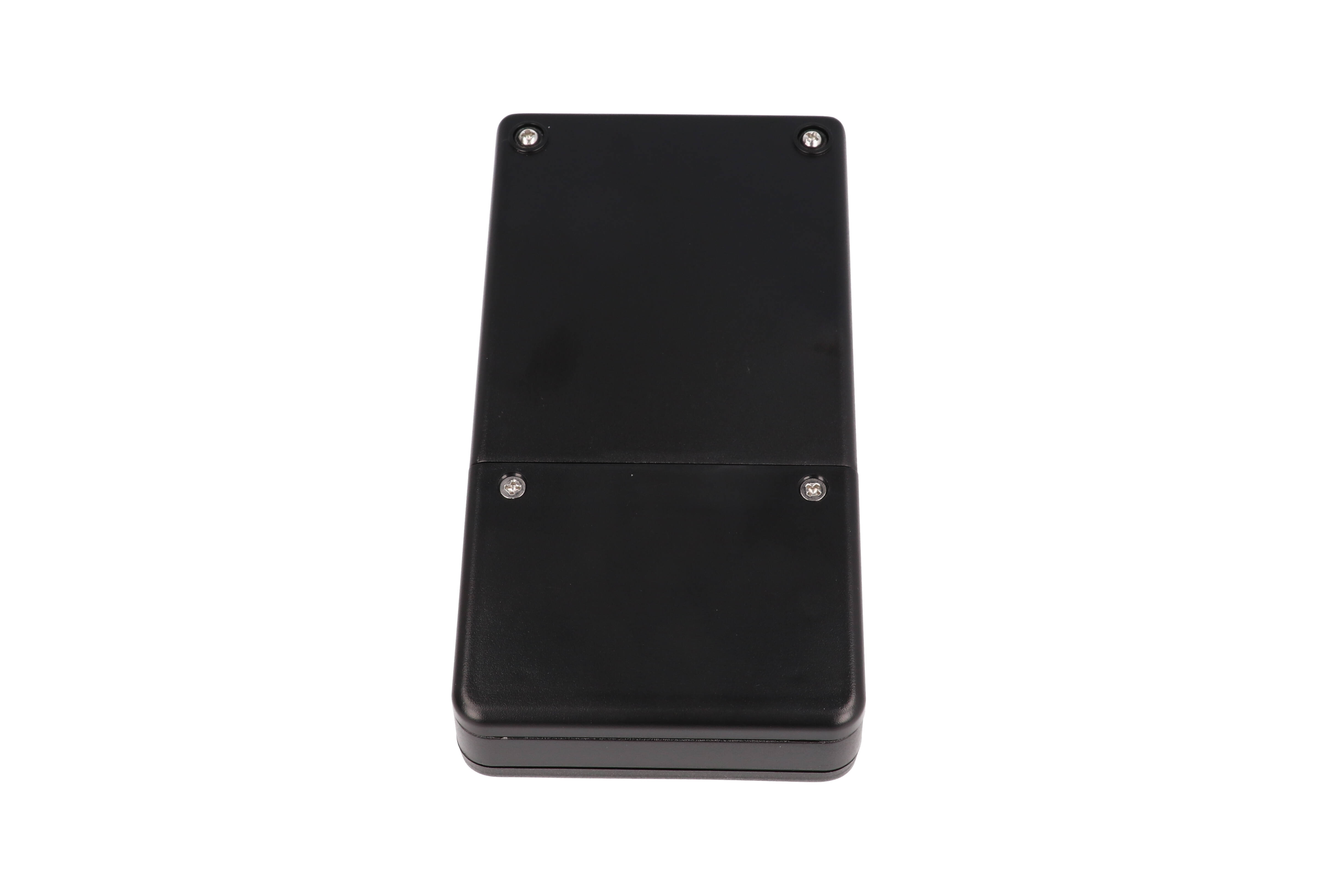

The case is molded in general purpose ABS plastic carrying a UL94 HB flammability rating. Lap joint construction guards against dust accumulation and splashing water, and on this gasketed version the gasket runs around the top and bottom halves and around the battery door. The top half has a smooth recessed area for a membrane, keypad or label, and both halves include molded PCB standoffs that accept M2.6 self-tapping screws.
The part page lists a nominal size of 160 x 84 x 30 mm (6.3 x 3.3 x 1.2 in); the series table gives 160 x 85 x 31 mm and the drawing shows an overall height of 30.80 mm. Maximum PCB size is 94.27 x 78.57 mm.

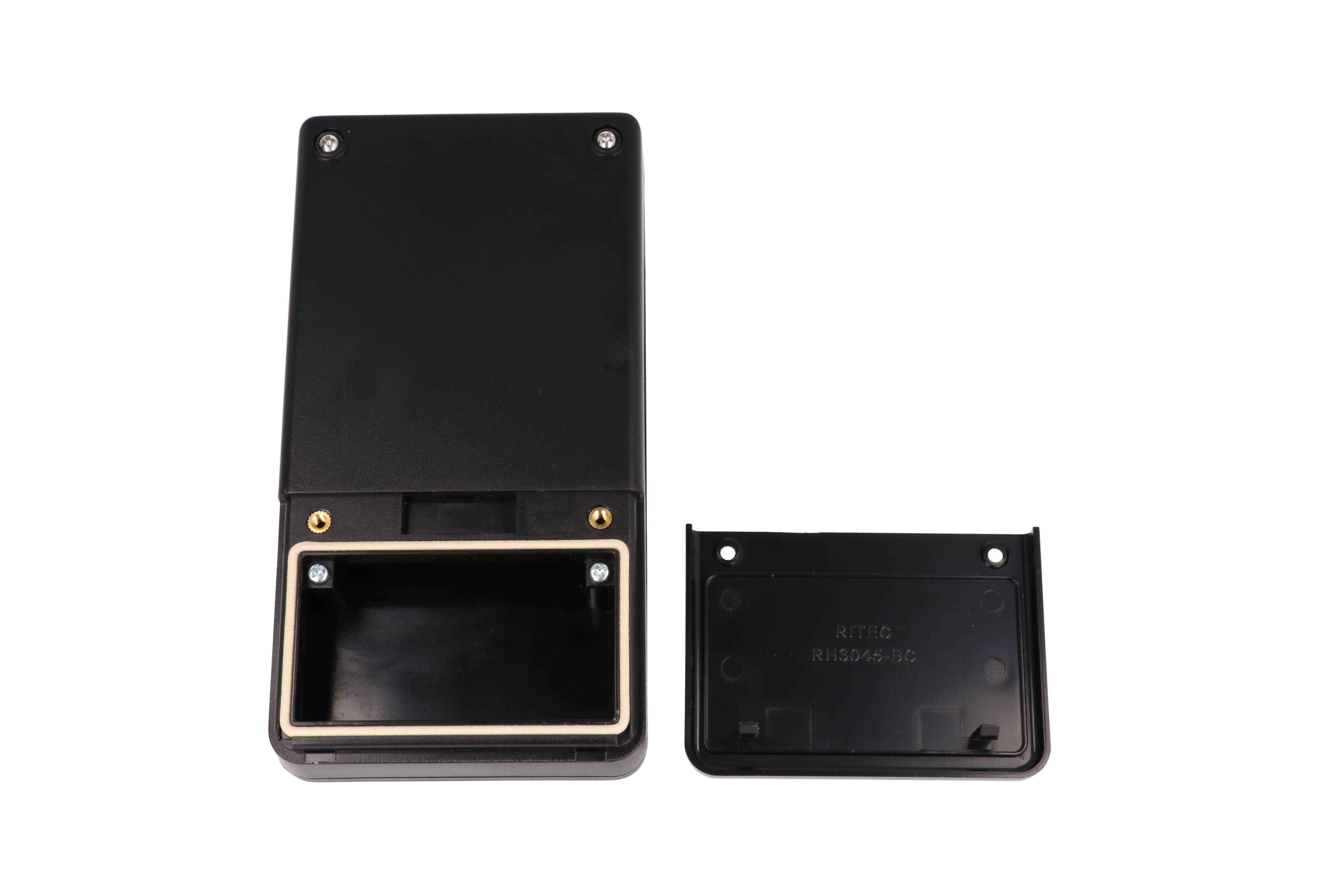

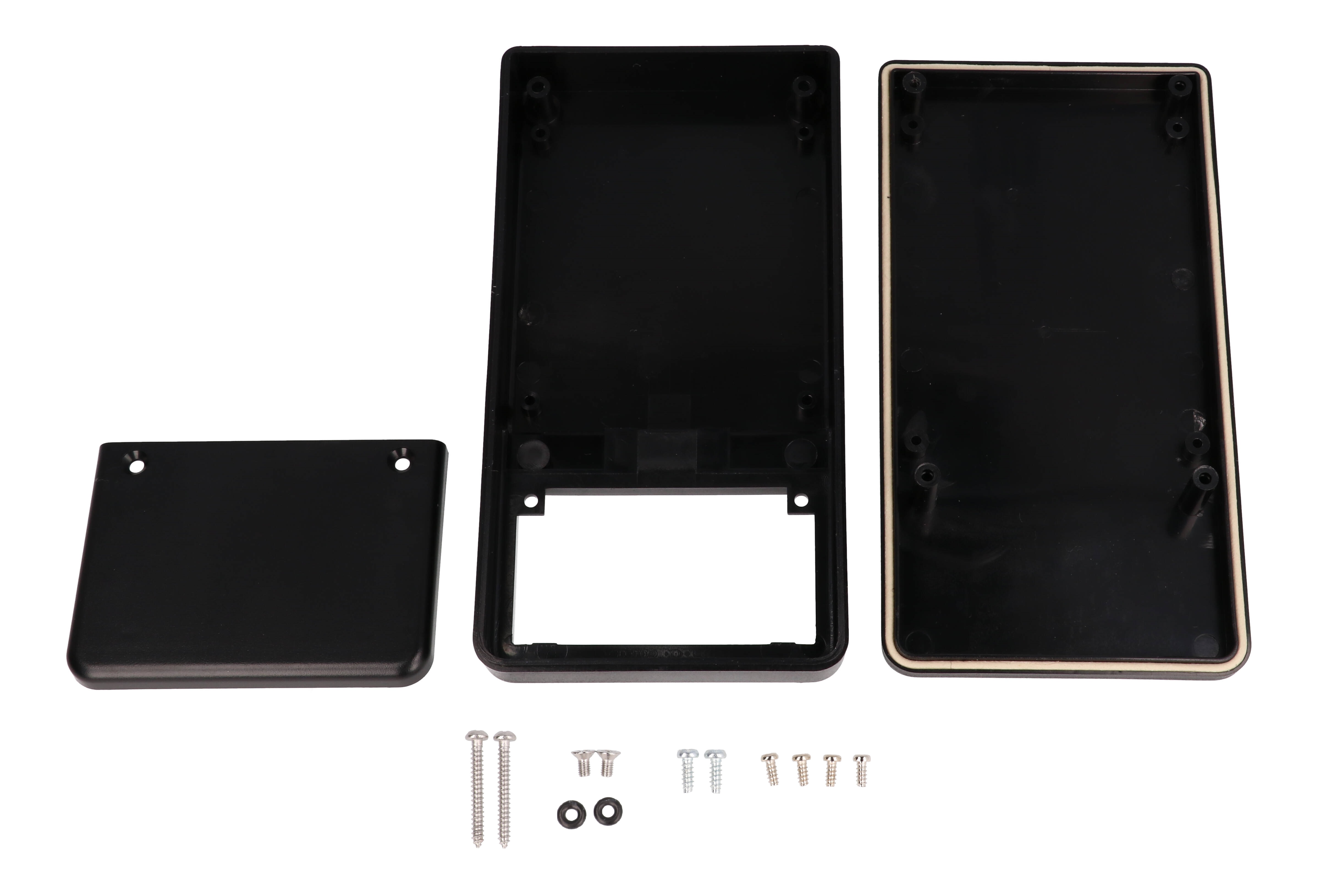

- Included: box, lid, 4 PCB screws, gasket, 2 O-rings, 2 battery door screws, battery door and 4 lid screws
- Recommended screw torque: (43-50) Ozf.in / (30-35) cN.m
- Optional nylon belt clip kits CP-001BK and CP-001G
RH3045BK is REACH and RoHS compliant, ships in shrink wrap at 0.26 lbs (0.12 kg), and is also offered in light gray as RH3045. Enclosures can be factory modified (milling, drilling, printing) and solid models are available in .stp or .x_t.
Ideal For
- Hand-held electronic instruments
- Battery-powered portable devices
- Membrane keypad controllers
- Dust and splash exposed hand-held electronics
Overview
| Type | Hand-held, general purpose |
| Series | RH Series - ABS Plastic Hand Held Enclosures with Battery Door |
| CAD Models | Solid models available in .stp or .x_t |
| Description | ABS HANDHELD IP65 BLACK |
| Part Number | RH3045BK |
| Product Type | Enclosure - plastic |
| Color Alternative | Light gray version: RH3045 |
| Included In Assembly | Box, lid, 4 PCB screws, gasket, 2 O-rings, 2 battery door screws, battery door and 4 lid screws |
Dimensions
| Drawing Overall Width | 85.00 mm [3.35 in] |
| Max. P.C. Board Width | 78.57 mm |
| Drawing Overall Height | 30.80 mm [1.21 in] |
| Drawing Overall Length | 160.00 mm [6.30 in] |
| Max. P.C. Board Length | 94.27 mm |
| Nominal Size (L X W X H) | 6.3 in x 3.3 in x 1.2 in (160 mm x 84 mm x 30 mm) |
| Series Table Size (L X W X H) | 160 mm x 85 mm x 31 mm |
Accessories
| Self-Tapping Screws M3 X 8 Mm (50 Pkg) | SC623-50 |
| Battery Door Screw M3-0.5 X 6 Mm (50 Pkg) | SC615-50 |
| PCB Screw M2.6 X 6 Mm Self-Tapping (50 Pkg) | SC519-50 |
| Cover Screws M3 X 25 Mm Self-Tapping (50 Pkg) | SC621-50 |
| Belt Clip Kit (Nylon, Includes Mounting Hardware) | CP-001BK (black), CP-001G (gray) |
| Replacement Gasket (2 String Gasket For Box And Battery Door, Plus 4 Screw O-rings) | RH304 |
Identifiers
| UPC | 623980675817 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Color | Black |
| Joint | Lap joint construction (protection against dust accumulation and splashing water) |
| Material | ABS Plastic (general purpose ABS) |
| Top Half | Smooth recessed area for membranes, keypads, labels |
| Battery Door | Yes |
| PCB Standoffs | Molded into both top and bottom halves; accept M2.6 self-tapping screws |
| Assembly Screws | M3 Philips self-tapping screws |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request (quote) |
| Recommended Screw Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| Gasket | Yes - factory-installed gasket around top and bottom half and around battery door |
| IP Rating | IP65 |
| Flame Rating | UL94 HB |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents/cleaners and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the RH3045BK gasketed?▾
Yes. It is the gasketed version of this size, with a factory-installed gasket around the top and bottom halves and around the battery door, and it is rated IP65.
What is the largest circuit board it will hold?▾
The maximum PCB size is 94.27 mm long by 78.57 mm wide.
What comes in the box?▾
The purchased assembly includes the box, lid, 4 PCB screws, gasket, 2 O-rings, 2 battery door screws, the battery door and 4 lid screws.
Can I get replacement screws or a replacement gasket?▾
Yes. The drawing lists cover screws M3 x 25 mm (SC621-50), M3 x 8 mm self-tapping screws (SC623-50), battery door screws M3-0.5 x 6 mm (SC615-50), PCB screws M2.6 x 6 mm (SC519-50), and the RH304 gasket set with 4 screw O-rings.
Is there a gray version?▾
Yes, the light gray version of this gasketed enclosure is RH3045.
