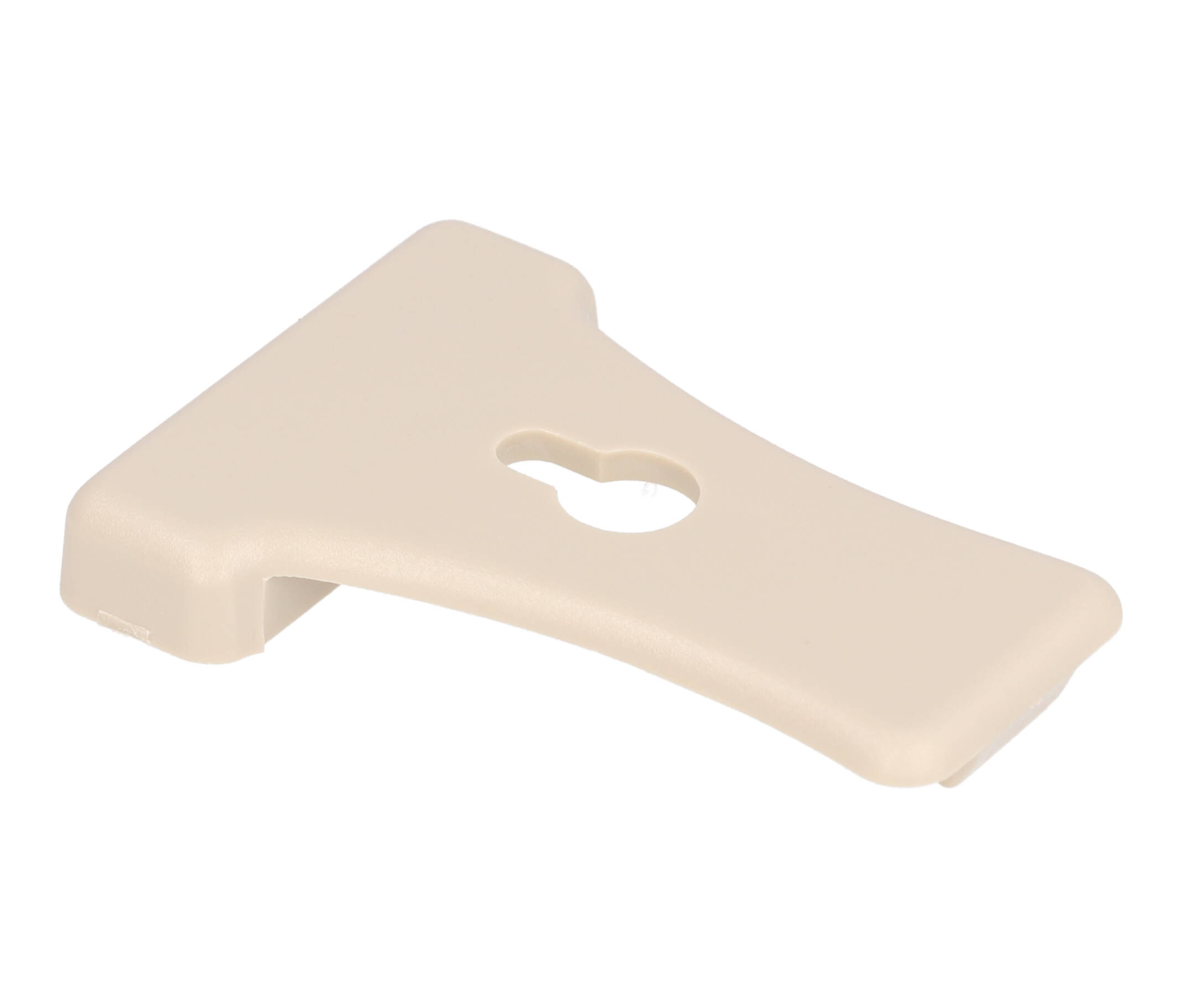

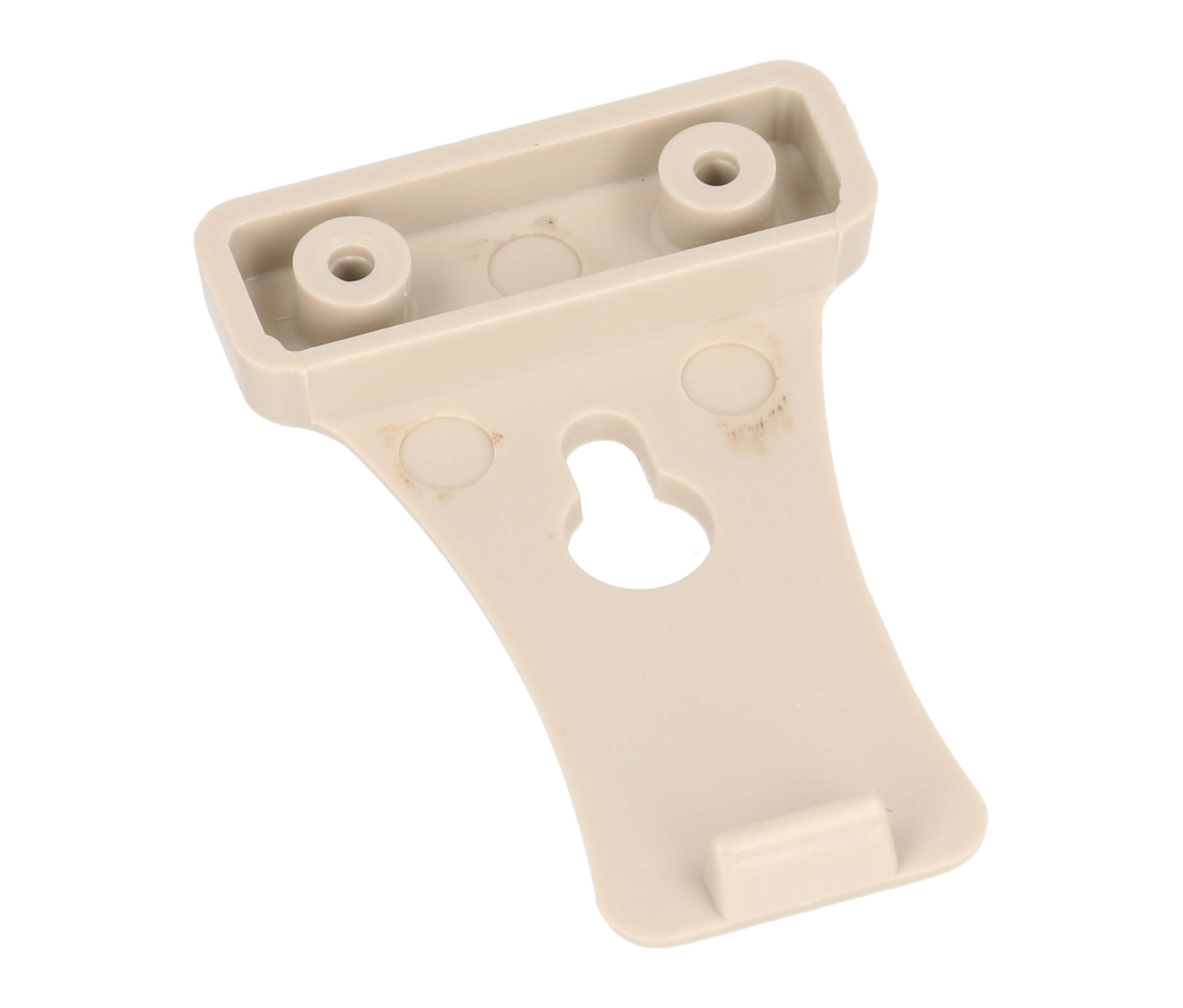

Hammond CP-001G Grey Nylon Belt Clip for RH Hand-Held Enclosures

The CP-001G is the grey belt clip for the RH Series of ABS plastic hand-held enclosures with battery door. Listed in the RH Series ordering table as the gray option (the black version is CP-001BK), it gives designers of portable electronics a simple way to make an RH hand-held unit belt-wearable.

Made from tough nylon material, the clip comes with mounting hardware. It measures 2 x 1.25 x 0.25 in (51 x 32 x 6 mm) per the part page and has a shipping weight of 0.02 lbs (0.01 kg), so it adds very little bulk to a hand-held product. The same clip design is also offered in black, so the colour can be matched to the enclosure or chosen for contrast.

The RH enclosures are offered in light grey and black ABS, so the CP-001G pairs naturally with the grey enclosures such as the RH3005, RH3015 and RH3045. The clip is RoHS and REACH compliant.

Order it alongside the RH hand-held enclosure that matches your board size and sealing needs: the series offers gasketed IP65 versions and non-gasketed versions, each with a battery door and molded PC board standoffs. As with other plastic parts, avoid harsh solvents, some greases and thread locking compounds, which can damage or weaken plastic.
