ABS Plastic Tablet Enclosures · 1599TAB Series

Brand: Hammond Manufacturing · 12 part numbers

Ergonomic Design, PC Board Standoffs, Battery Compartments

■Low profile, ergonomically designed for a comfortable fit into the user’s hands.
■Perfect for instrument or mobile data enclosures requiring a touch screen.

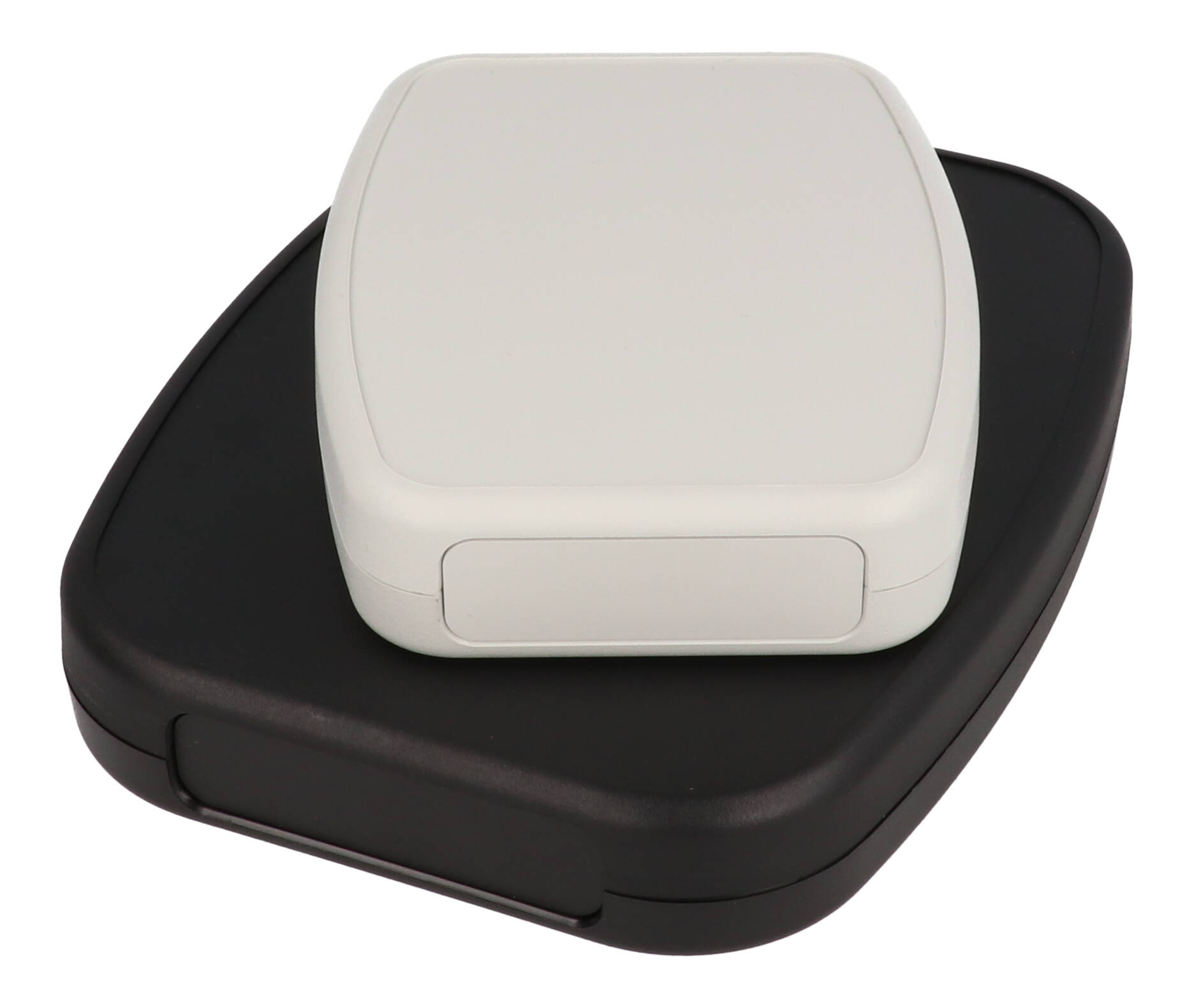

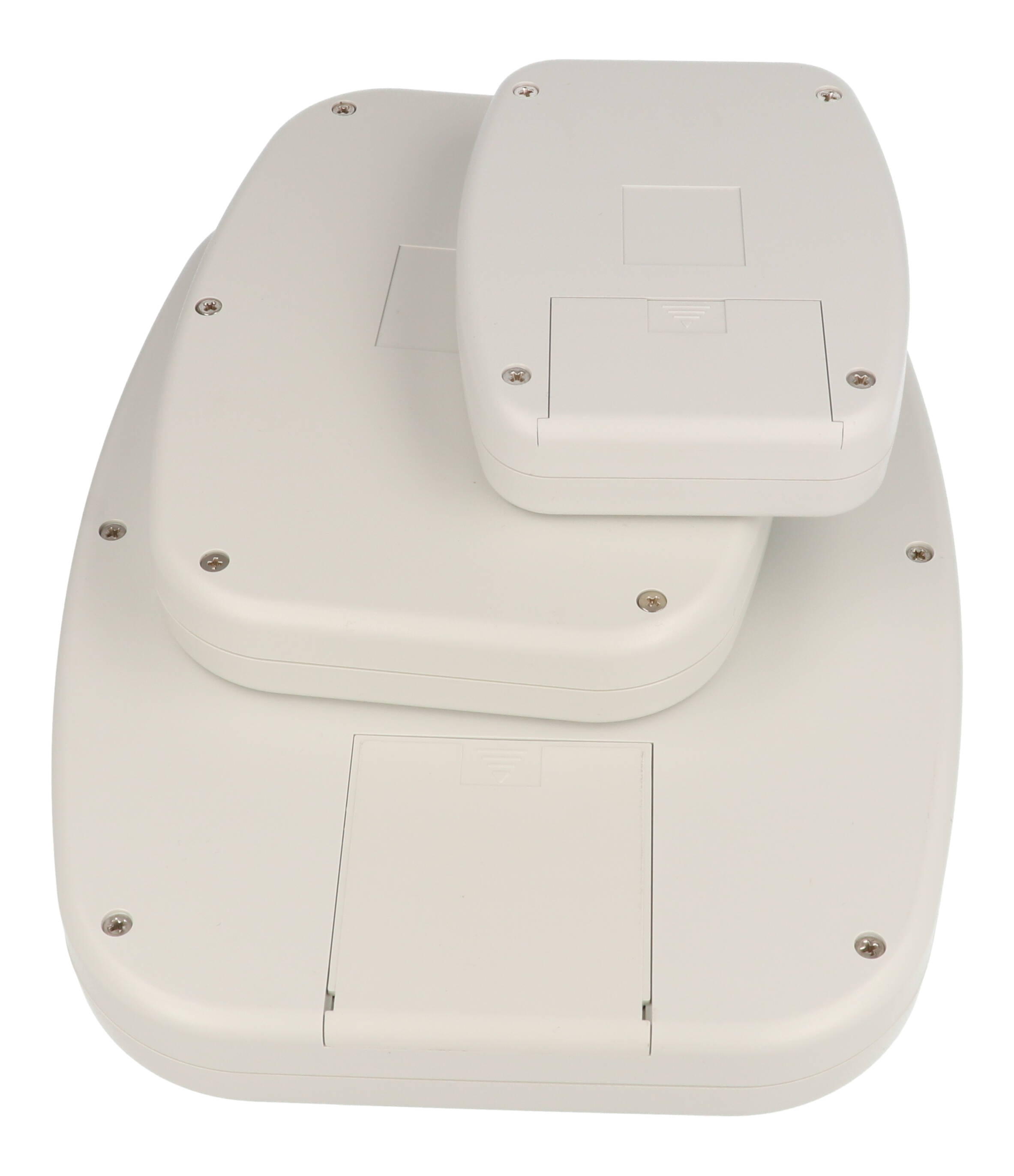

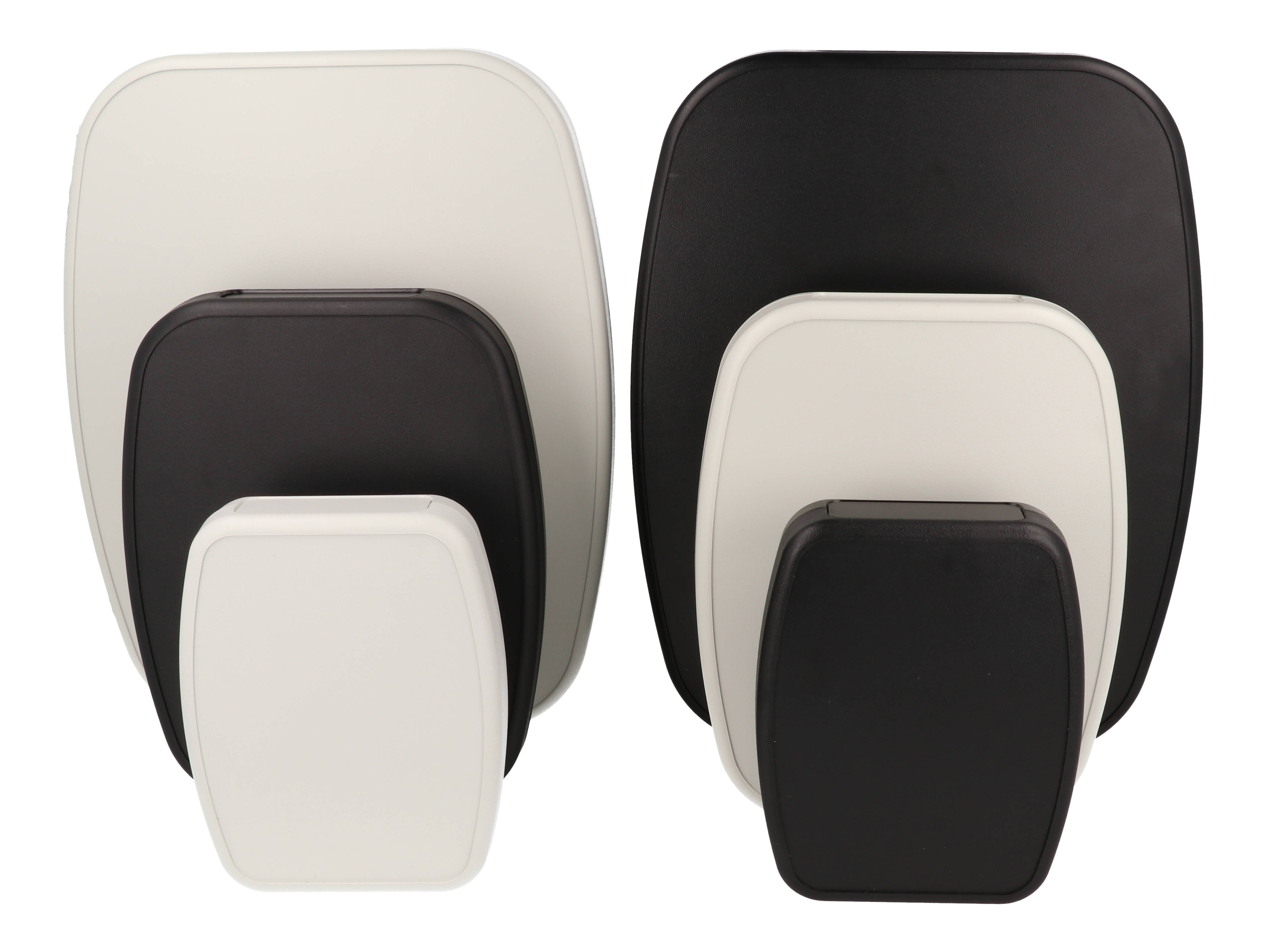

■Choice of three sizes and black or light gray color. All sizes available with or without battery compartment.
■Molded from flame retardant ABS plastic which carries a UL flammability rating of UL94V-0.
■Enclosure is assembled with 6x M3-0.5 x 18mm Phillips machine screws threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
■Integral brass bushings are factory inserted into the top half of the enclosure.

from $8.03

12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1599TAB Series part number

Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

12 of 12 part numbers · 12 priced online

1599TABLBK

Frabs Large Tablet

Type Tablet
Color Black
Color Black
Battery Door and C No

$12.74In stock

Buy now

1599TABLBKBAT

Frabs Large Tablet w/ Bat

Type Tablet, battery compartment
Color Black
Color Black
Battery Door and C Yes

$15.91In stock

Buy now

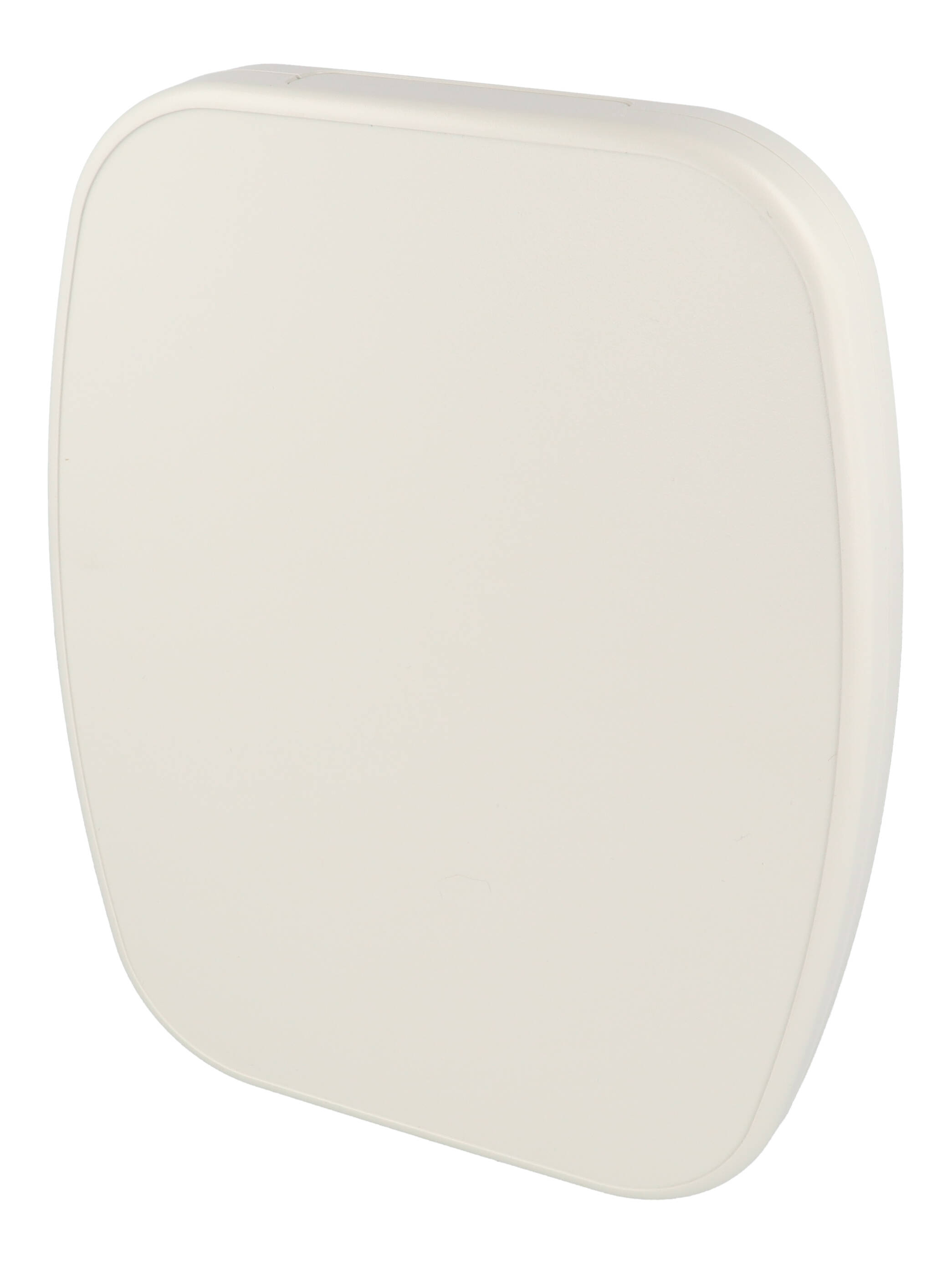

1599TABLGY

Frabs Large Tablet

Type Tablet
Color Light Gray
Color Grey
Battery Door and C No

$12.74In stock

Buy now

1599TABLGYBAT

Frabs Large Tablet w/ Bat

Type Tablet, battery compartment
Color Light Gray
Color Grey
Battery Door and C Yes

$15.91In stock

Buy now

1599TABMBK

Frabs Medium Tablet

Type Tablet
Color Black
Color Black
Battery Door and C No

$11.17In stock

Buy now

1599TABMBKBAT

Frabs Medium Tablet w/ Bat

Type Tablet, battery compartment
Color Light Gray
Color Black
Battery Door and C Yes

$14.34In stock

Buy now

1599TABMGY

Frabs Medium Tablet

Type Tablet
Color Black
Color Grey
Battery Door and C No

$11.17In stock

Buy now

1599TABMGYBAT

Frabs Medium Tablet w/ Bat

Type Tablet, battery compartment
Color Light Gray
Color Grey
Battery Door and C Yes

$14.34In stock

Buy now

1599TABSBK

Frabs Small Tablet

Type Tablet
Color Black
Color Black
Battery Door and C No

$8.03In stock

Buy now

1599TABSBKBAT

Frabs Small Tablet w/ Bat

Type Tablet, battery compartment
Color Black
Color Black
Battery Door and C Yes

$10.74In stock

Buy now

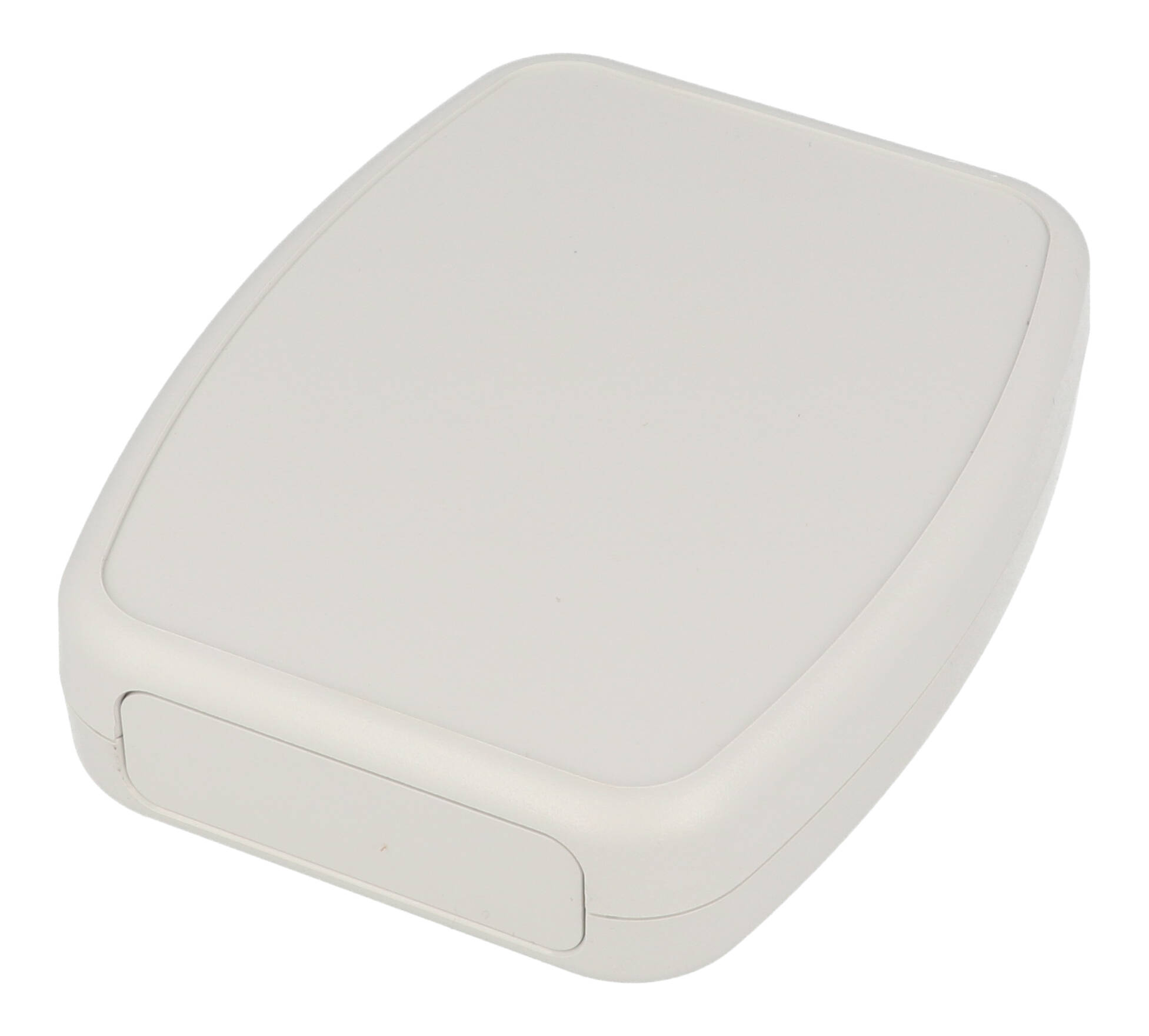

1599TABSGY

Frabs Small Tablet

Type Tablet
Color Light Gray
Color Grey
Battery Door and C No

$8.03In stock

Buy now

1599TABSGYBAT

Frabs Small Tablet w/ Bat

Type Tablet, battery compartment
Color Light Gray
Color Grey
Battery Door and C Yes

$10.74In stock

Buy now

Dimension tables (inches / mm)

Tablet Enclosures

Units shown: mm . Switch units to: inch

Part · Number	Color	Battery Door · and Compartment	Removable · End Panel	Length	Width	Depth	Price	Order
1599TABSBK	Black	No	Yes	4.72	3.74	1.06	$8.03In stock	Buy now
1599TABSGY	Grey	No	Yes	4.72	3.74	1.06	$8.03In stock	Buy now
1599TABSBKBAT	Black	Yes	Yes	4.72	3.74	1.06	$10.74In stock	Buy now
1599TABSGYBAT	Grey	Yes	Yes	4.72	3.74	1.06	$10.74In stock	Buy now
1599TABMBK	Black	No	Yes	6.69	5.31	1.06	$11.17In stock	Buy now
1599TABMGY	Grey	No	Yes	6.69	5.31	1.06	$11.17In stock	Buy now
1599TABMBKBAT	Black	Yes	Yes	6.69	5.31	1.06	$14.34In stock	Buy now
1599TABMGYBAT	Grey	Yes	Yes	6.69	5.31	1.06	$14.34In stock	Buy now
1599TABLBK	Black	No	Yes	9.45	7.48	1.18	$12.74In stock	Buy now
1599TABLGY	Grey	No	Yes	9.45	7.48	1.18	$12.74In stock	Buy now
1599TABLBKBAT	Black	Yes	Yes	9.45	7.48	1.18	$15.91In stock	Buy now
1599TABLGYBAT	Grey	Yes	Yes	9.45	7.48	1.18	$15.91In stock	Buy now

Features:

100 pack of silver replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100

100 pack of black replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100BK

50 pack of optional PC board screws (#4 x 1/4" Self-tapping), part number 1593ATS50

100 pack of optional PC board screws (#4 x 1/4" Self-tapping), part number 1593ATS100

■Low profile, ergonomically designed for a comfortable fit into the user’s hands.
■Perfect for instrument or mobile data enclosures requiring a touch screen.
■Choice of three sizes and black or light gray color. All sizes available with or without battery compartment.
■Molded from flame retardant ABS plastic which carries a UL flammability rating of UL94V-0.
■Enclosure is assembled with 6x M3-0.5 x 18mm Phillips machine screws threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
■Integral brass bushings are factory inserted into the top half of the enclosure.
■Lap joint construction provides protection against access of dust and splashing water. Versions without a battery door are designed to meet IP54 ratings.
■PC board standoffs are molded into top and bottom halves of case.
■Contains one removable end panel for easy modification.
■Bottom half of enclosure includes molded inlay for labels.

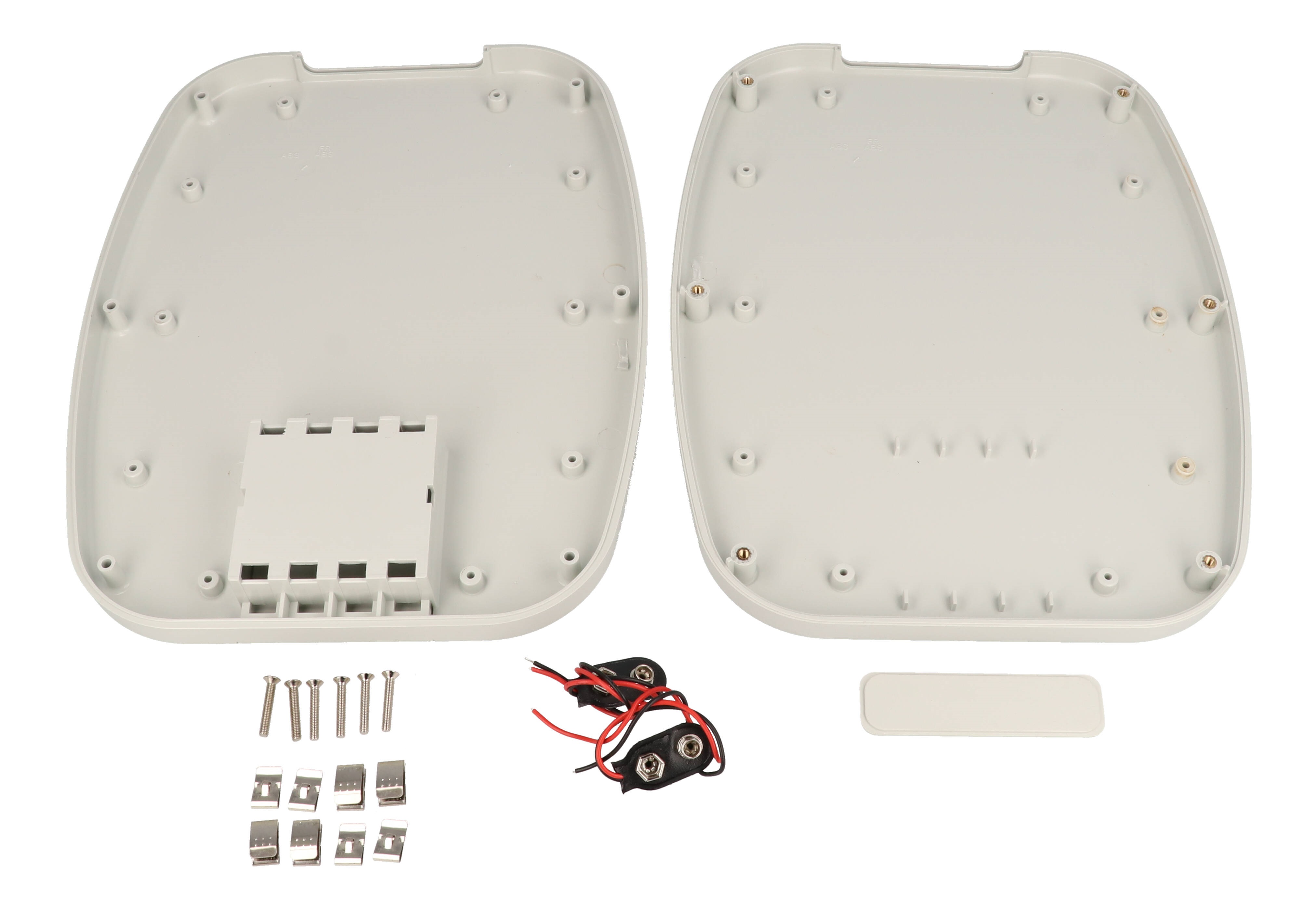

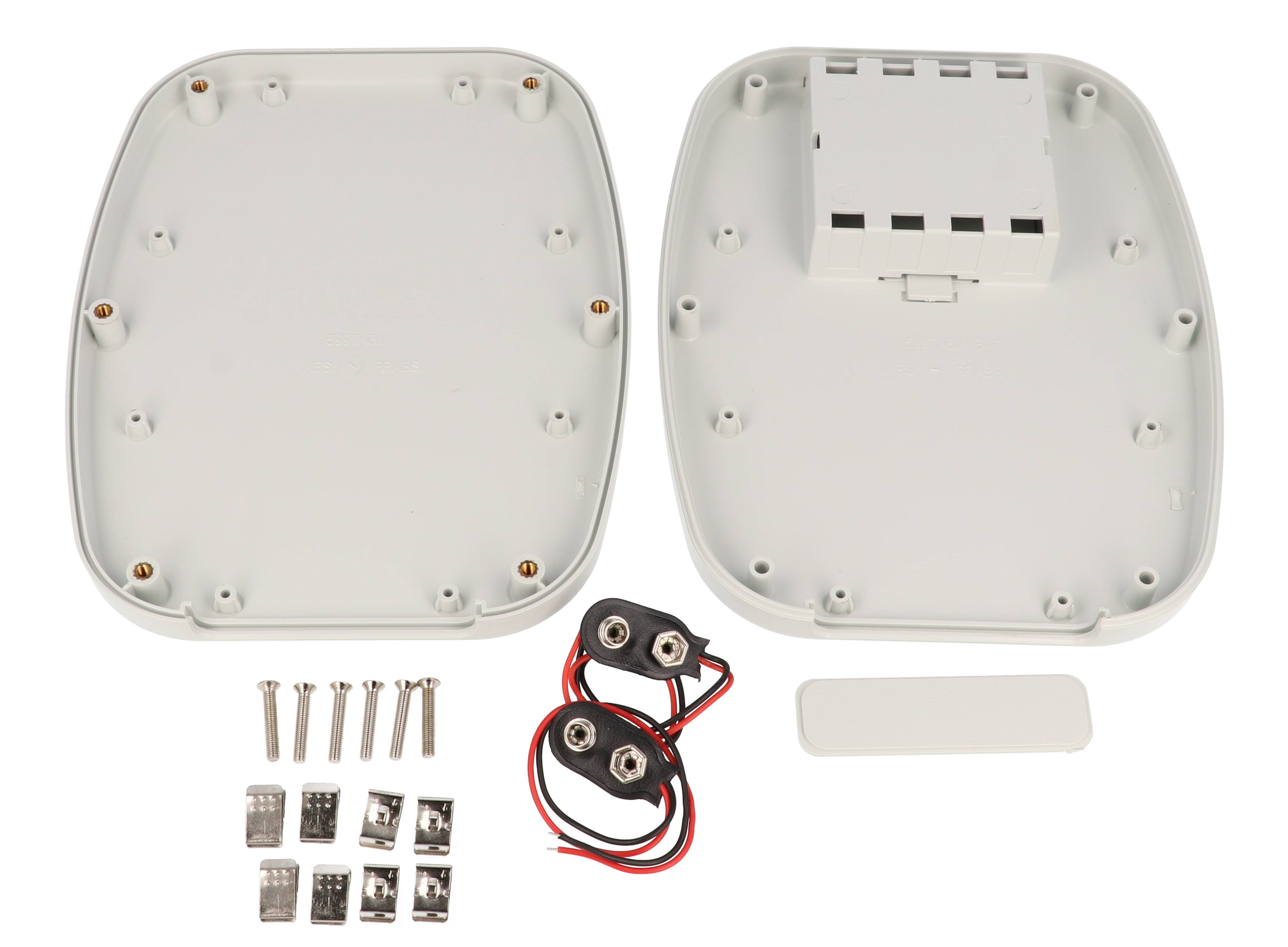

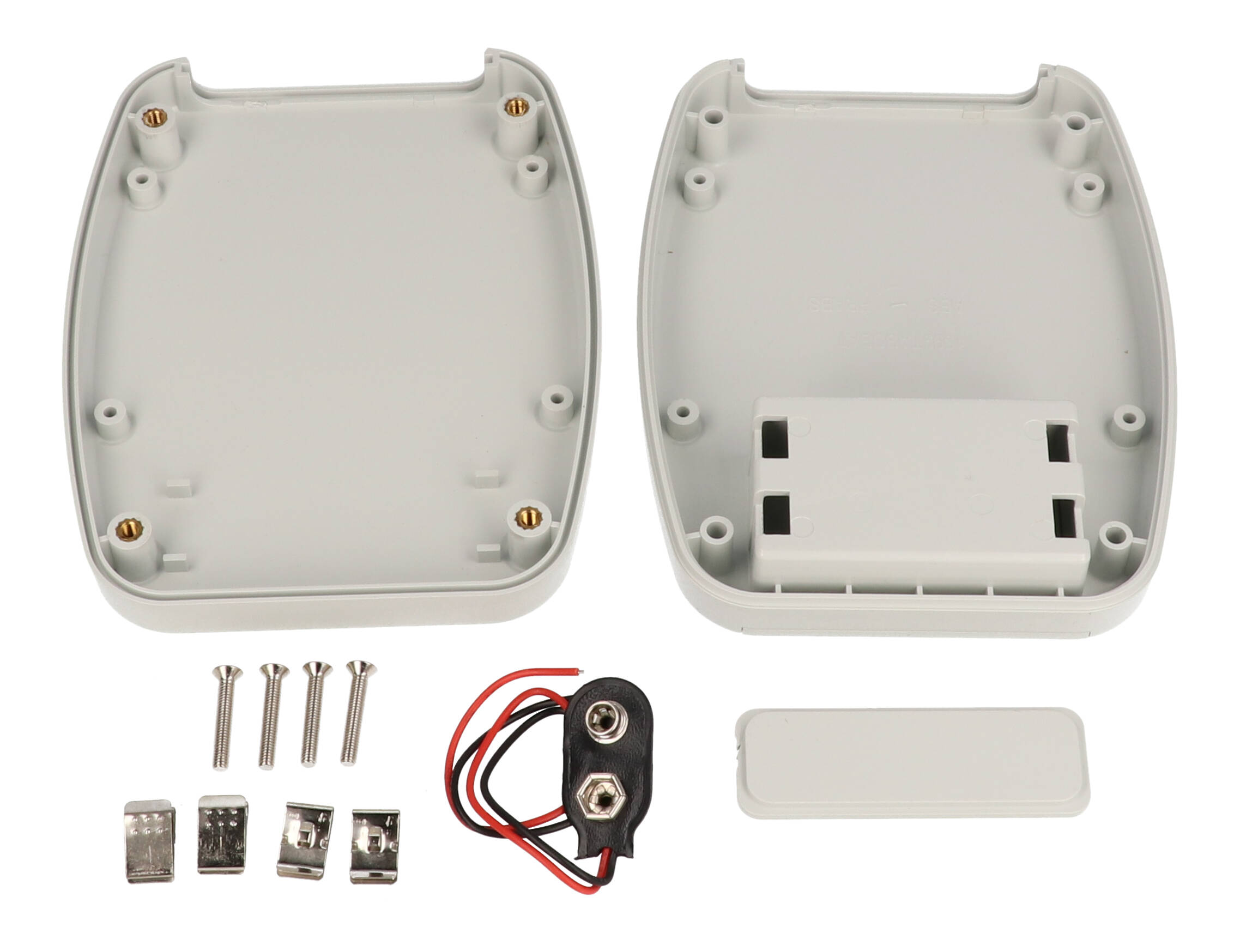

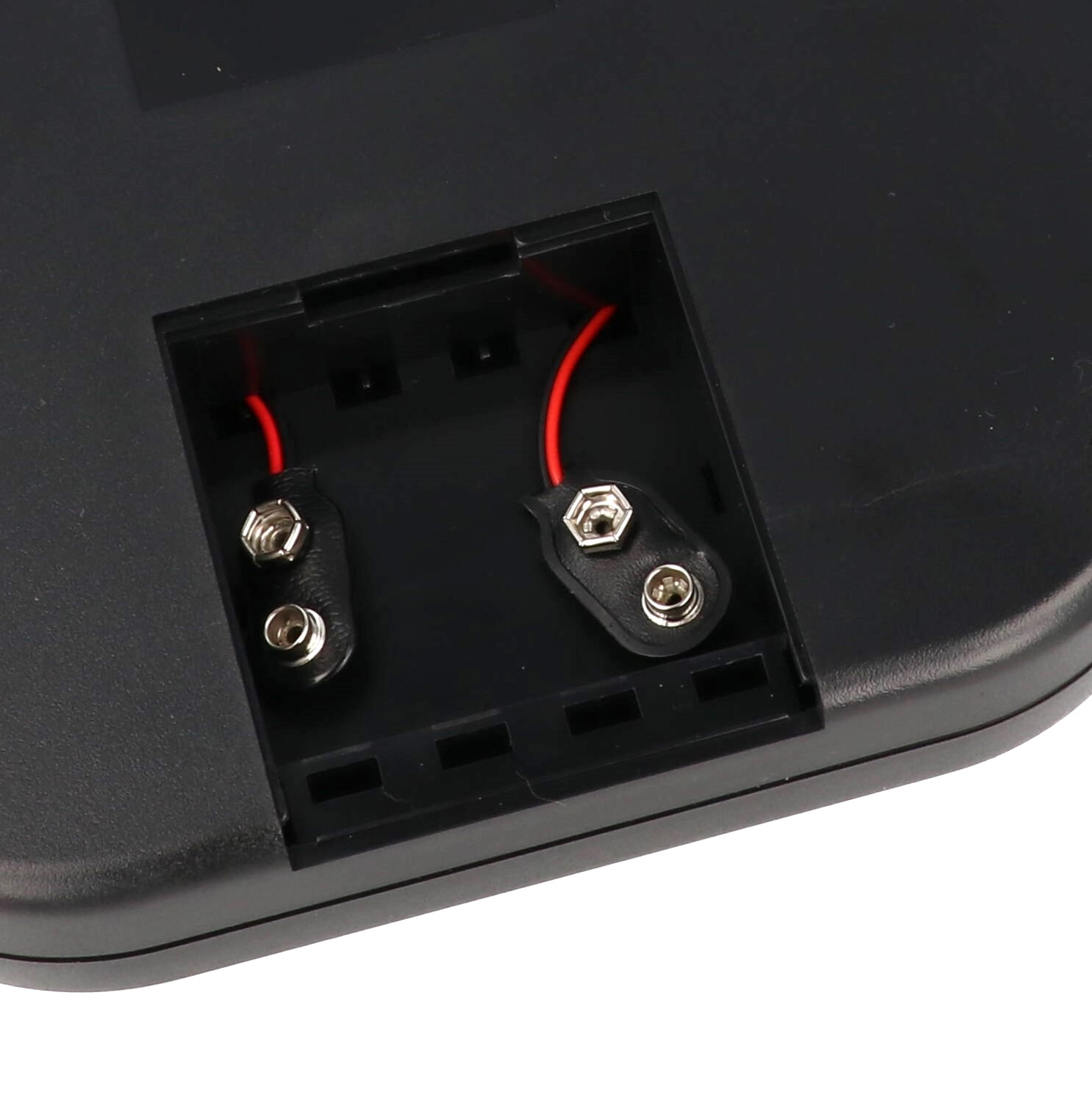

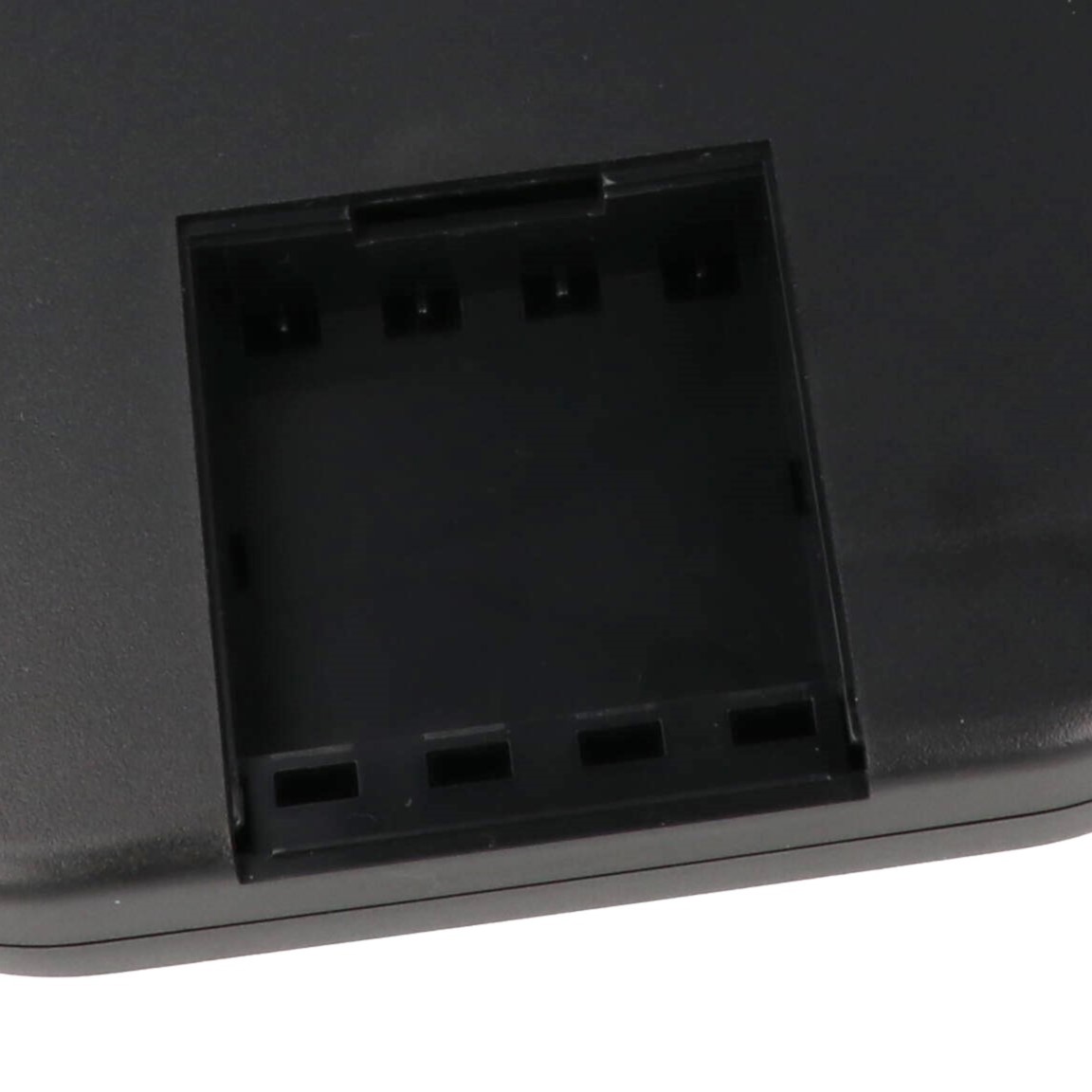

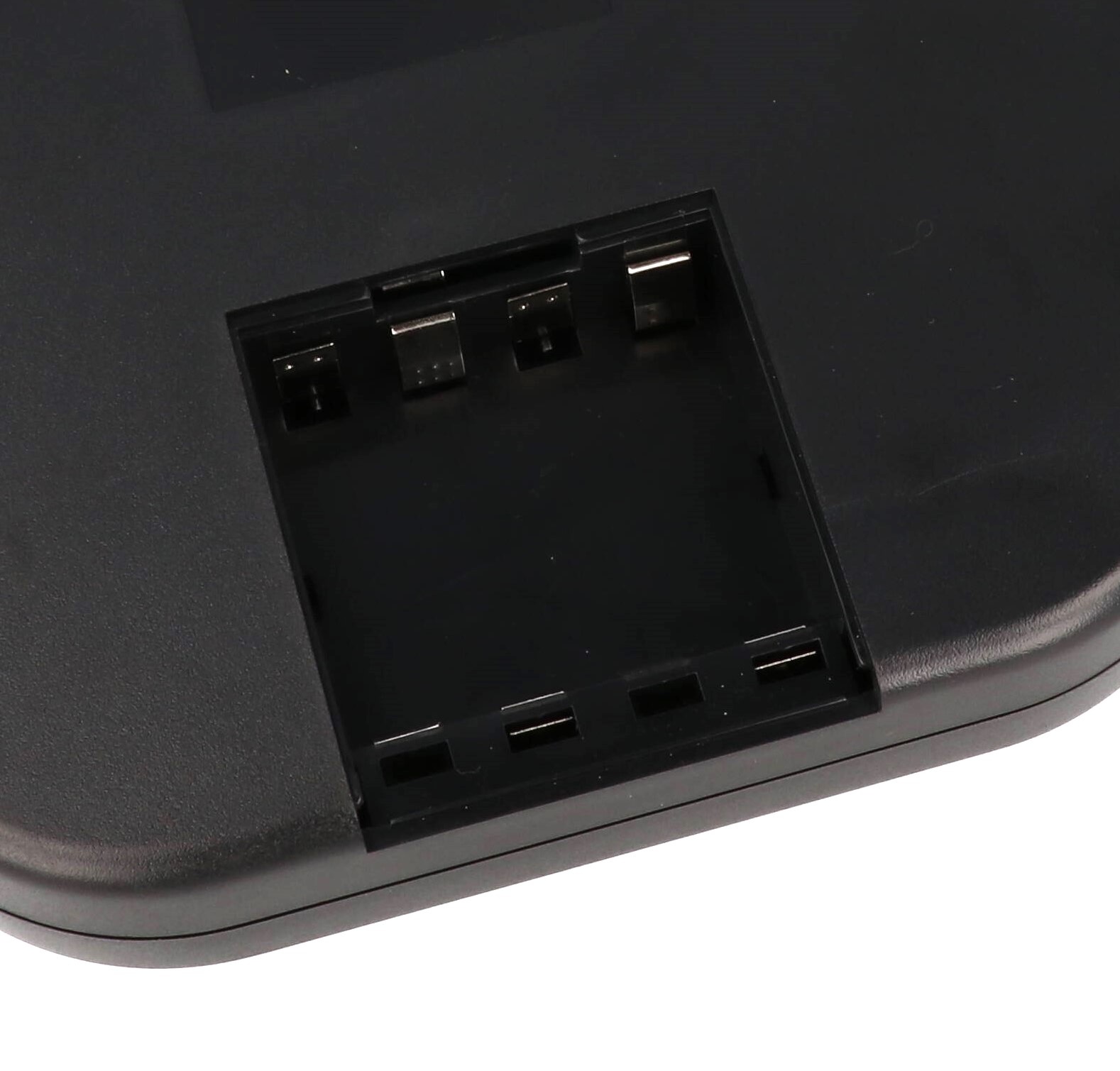

■"M" and "L" size battery door versions include 8x battery clips (for 4x AA batteries) and 2x 9 volt (PP3) battery clips. "S" size battery door version includes 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip.
■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
