Hammond 1599TABSBKBAT Small Black Tablet Enclosure with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Integrated battery door and compartment in a small 120 x 95 x 27 mm black case
- Includes 4 battery spring clips (2 x AA) and one 9V (PP3) adapter
- Flame retardant ABS, UL94 V-0
- Four M3-0.5 x 18mm cover screws into installed brass inserts
- Max PC board 87.94 x 97.95 mm; posts accept #4 self-tapping screws
- Removable end panel and molded bottom label inlay
- RoHS and REACH compliant

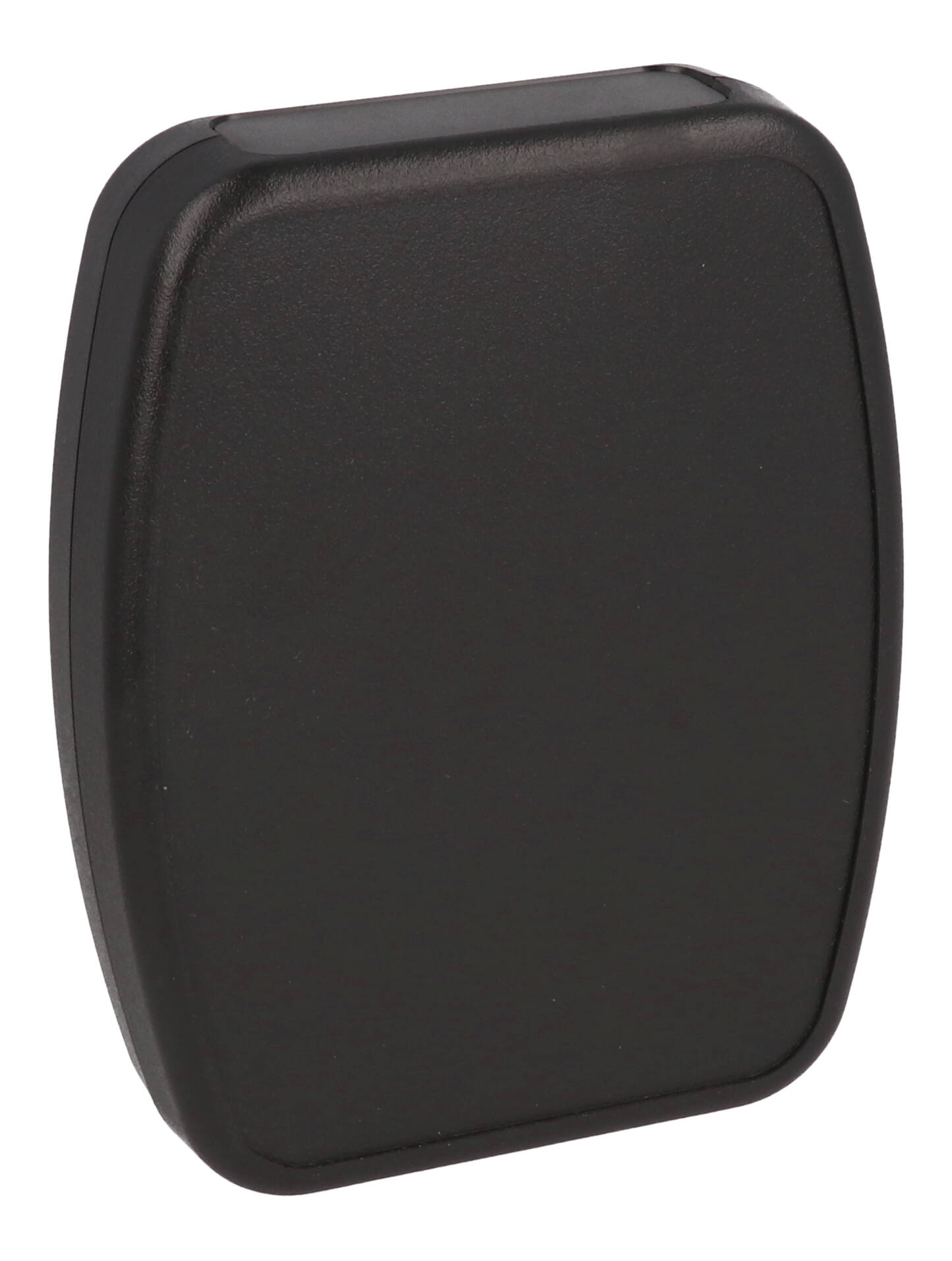

The 1599TABSBKBAT is the small black 1599TAB tablet enclosure fitted with a battery door and compartment. It is intended for battery-powered handheld instruments and mobile data devices, especially designs with a touch screen, where a comfortable low-profile shape matters.
The case is molded from flame retardant ABS with a UL94 V-0 rating. Its two halves are joined by four M3-0.5 x 18mm cover screws that thread into installed M3 brass inserts, allowing repeated opening for battery or board service. The battery version includes a battery door, four battery spring clips for 2 x AA batteries and one 9V (PP3) adapter clip.
Overall size is 4.72 x 3.74 x 1.06 in (120 x 95 x 27 mm). The drawing gives inside dimensions of 111.48 mm long, 88.51 mm wide and 20.75 mm high, with a 2.75 mm wall. Because space is shared with the battery compartment, the listed maximum PC board dimensions are 87.94 mm by 97.95 mm. PCB standoffs are molded into both halves and accept #4 self-tapping screws.
A removable end panel allows connectors to be added without machining the main shell, and a molded 25 x 25 mm inlay on the bottom takes a label. The 1599TABSBKBAT ships shrink wrapped at 0.22 lbs (0.10 kg) and is RoHS and REACH compliant. Spare 9V battery kits (53BATCLIP9V-B) and AA battery clip kits (1553HDR-BKIT) are listed as accessories.
Ideal For
- Battery-powered handheld instruments
- Portable data terminals
- Handheld touch screen devices
- Handheld keypads and displays
Overview
| Type | Tablet, battery compartment |
| Series | 1599TAB Series ABS Plastic Tablet Enclosures |
| Long Description | enclosure - plastic |
| Short Description | FRABS SMALL TABLET W BAT |
| Removable End Panel | Yes |

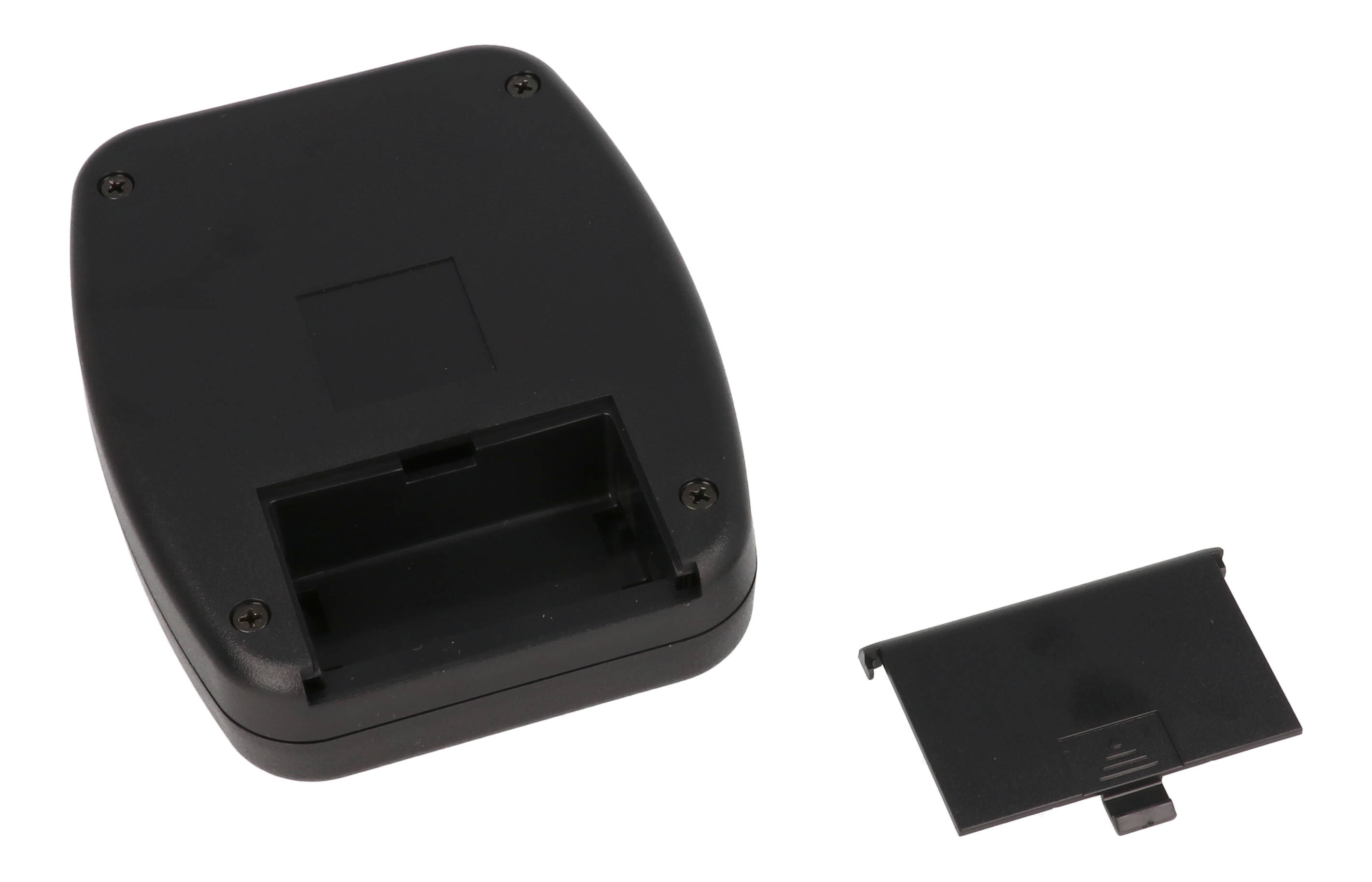

| Battery Door And Compartment | Yes |
Dimensions
| Inside Width | 88.51 mm [3.48 in] |
| Inside Height | 20.75 mm [.82 in] |
| Size L X W X H | 4.72 in x 3.74 in x 1.06 in (120 mm x 95 mm x 27 mm) |
| Wall Thickness | 2.75 mm [.11 in] |
| Max. P.C. Board Width | 97.95 mm |
| Depth (Ordering Table) | 1.06 in (27 mm) |
| Max. P.C. Board Length | 87.94 mm |
| Width (Ordering Table) | 3.74 in (95 mm) |
| Length (Ordering Table) | 4.72 in (120 mm) |
| Overall Width (Drawing) | 95.00 mm [3.74 in] |
| Overall Height (Drawing) | 27.00 mm [1.06 in] |
| Overall Length (Drawing) | 119.90 mm [4.72 in] |
Accessories
| 9V Battery Kit | 53BATCLIP9V-B |
| 1599TABS End Panel, Grey (Single Panel) | 1599TABSPLGY-B |
| 1599TABS End Panel, Black (Single Panel) | 1599TABSPLBK-B |
| AA Battery Clip Kit (4 Positive And 4 Negative) | 1553HDR-BKIT |
| P.C. Board Screws (#4 X 1/4" Self Tapping, Pkg 50) | 1593ATS50 |
| P.C. Board Screws (#4 X 1/4" Self Tapping, Pkg 100) | 1593ATS100 |
| Replacement Cover Screws, Black (M3-0.5 X 18mm, Pkg 100) | 1594MS100BK |
| Replacement Cover Screws, Silver (M3-0.5 X 18mm, Pkg 100) | 1594MS100 |
Identifiers
| UPC | 623980845234 |
| UNSPSC | 39121301 |
| Part Number | 1599TABSBKBAT |
Included Items

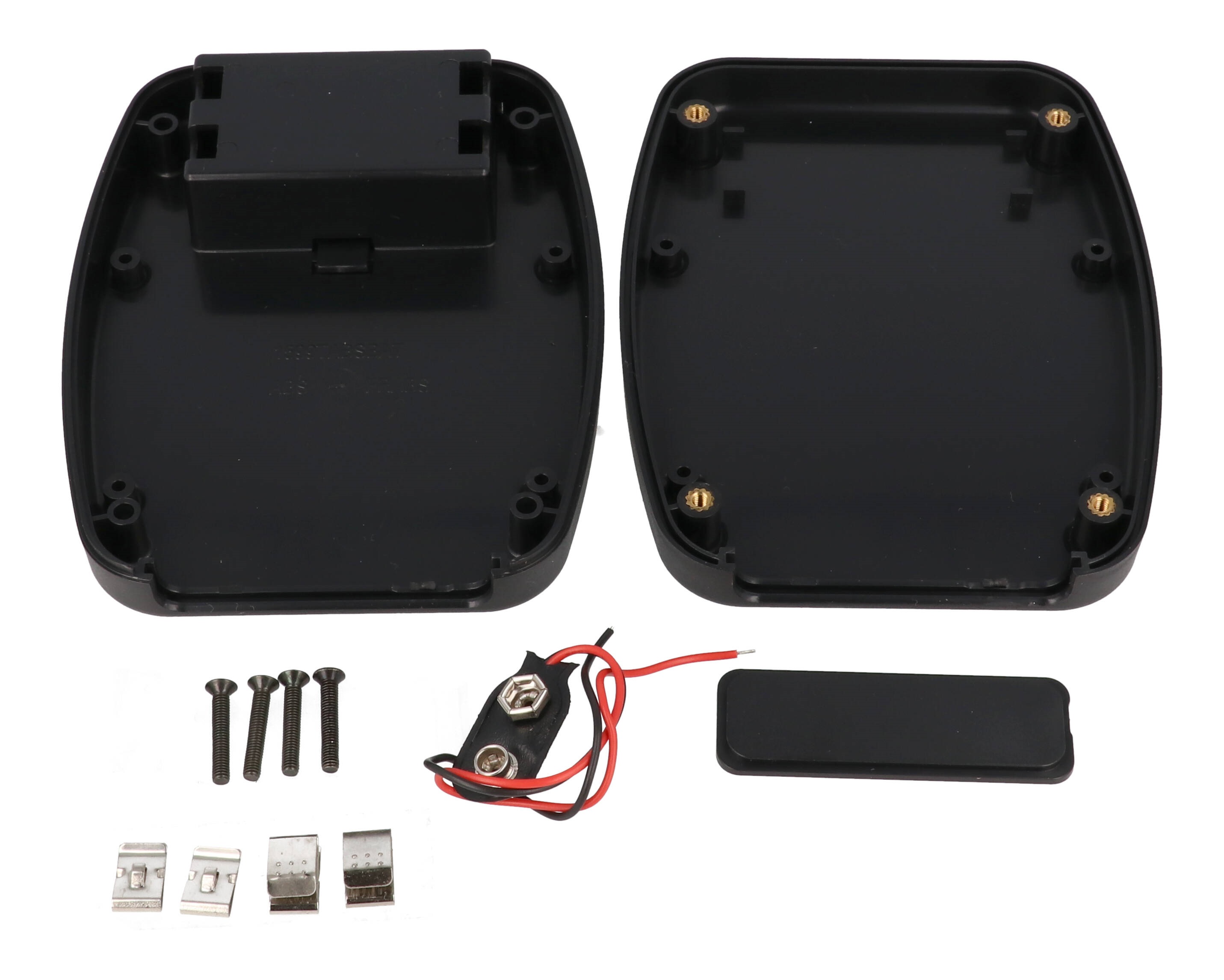

| Purchased Assembly Includes | Top and bottom cover, 1 removable panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 4 cover screws (M3-0.5 x 18mm) |
Modification & CAD
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.22 lbs (0.10 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic (flame retardant FR ABS) |
| Label Area | Molded inlay for labels on bottom half |
| Cover Screws | 4 x M3-0.5 x 18mm |
| PCB Mounting | PC board posts in top and bottom halves accept #4 self-tapping screws |
| Battery Provision | Battery door and compartment; 4 battery clips (for 2 x AA batteries) and 1 x 9 volt (PP3) battery clip |
| Joint Construction | Lap joint, protection against access of dust and splashing water |
| Cover Screw Inserts | M3 brass inserts installed for cover screws (factory inserted into the top half) |
| Recommended Cover Screw Torque | 43-50 ozf.in (30-35 cN-m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance Note | Some chemicals can damage or weaken plastic; see the manufacturer's Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
