Hammond 1599TABMGYBAT Medium Light Gray Tablet Enclosure, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Medium 169 x 135 x 27 mm light gray handheld tablet enclosure with battery door
- Includes 8 battery spring clips (4 x AA) and two 9V (PP3) adapters
- Maximum PC board 126.02 mm long x 87.94 mm wide
- Flame retardant ABS, UL94 V-0
- Six M3-0.5 x 18mm cover screws into factory-installed brass inserts
- Molded PCB posts accept #4 x 1/4" self-tapping screws
- Top inlay area 158.57 x 123.57 mm; bottom label inlay 44 x 33 x 0.5 mm
- One removable end panel for connectors

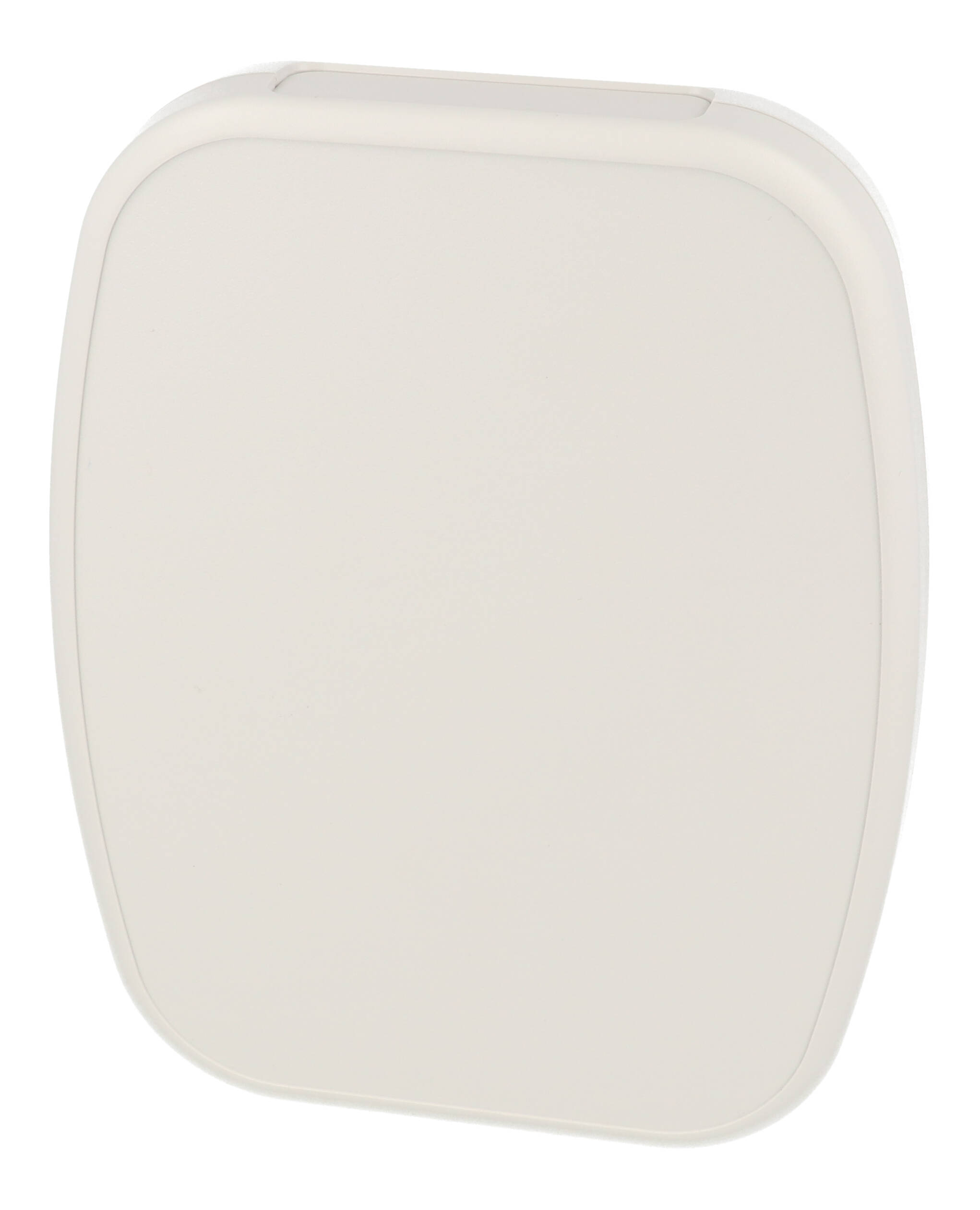

The 1599TABMGYBAT is the medium-size 1599TAB tablet enclosure in light gray with a battery door and compartment. Its low, ergonomic profile is made to be held comfortably, and it is a good fit for instruments or mobile data devices with a touch screen that run on AA or 9V batteries.
The enclosure is molded from flame retardant ABS rated UL94 V-0. Six M3-0.5 x 18mm Phillips cover screws thread into integral brass inserts factory installed in the top half, so the case can be assembled and disassembled repeatedly. PCB standoffs are molded into both the top and bottom halves and accept #4 x 1/4" self-tapping screws.
Listed size is 6.67 x 5.31 x 1.06 in (169 x 135 x 27 mm); the ordering table gives 170 x 135 x 27 mm and the drawing shows 169.98 x 135.00 x 27.00 mm. Inner height is 20.75 mm, PCB post height is 4.75 mm, and the maximum PC board is 126.02 mm long by 87.94 mm wide. The top carries a 158.57 x 123.57 mm inlay area and the bottom a 44 x 33 x 0.5 mm label inlay.

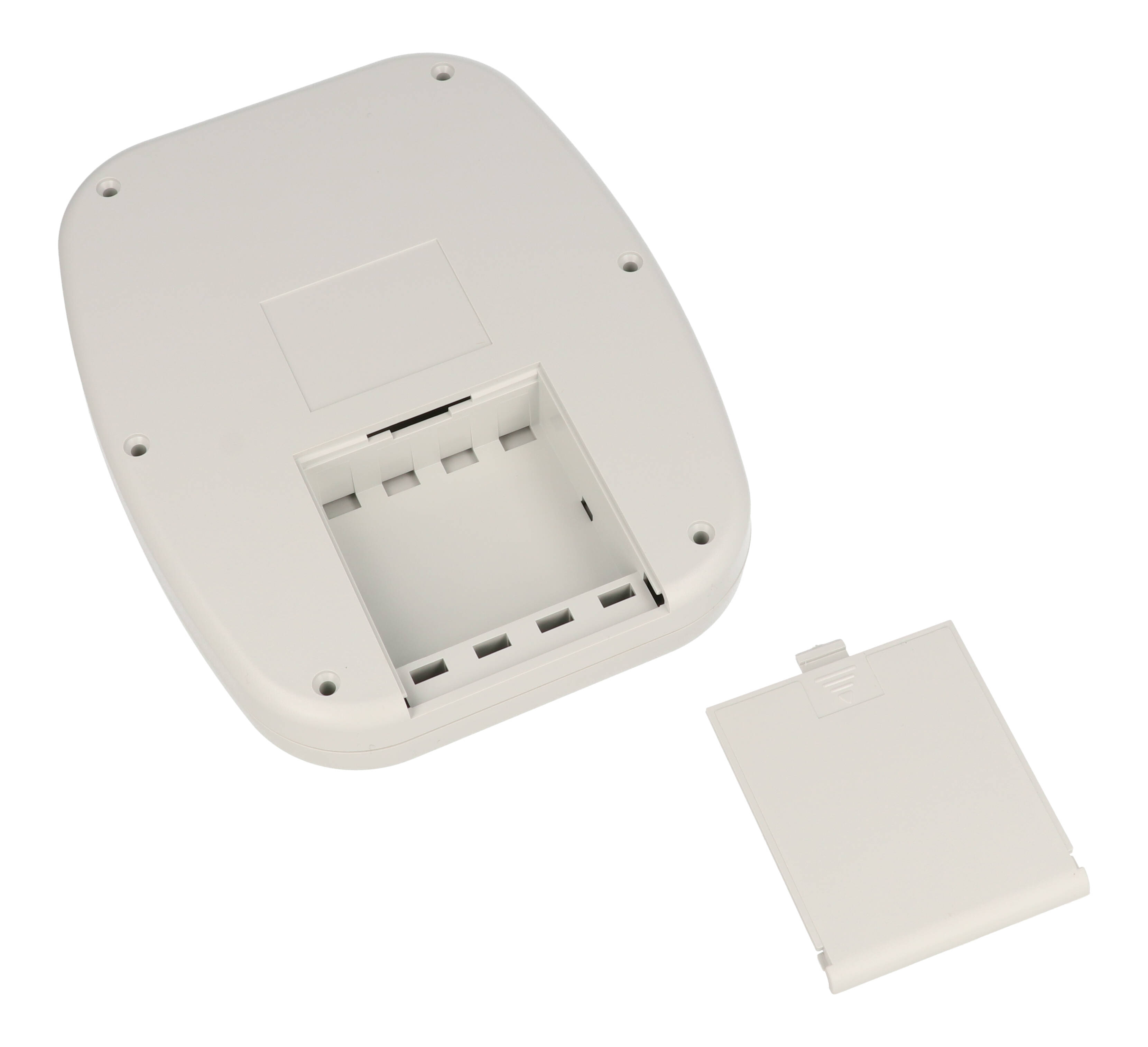

Each 1599TABMGYBAT includes top and bottom cover, one removable end panel, the battery door, eight battery spring clips (for 4 x AA), two 9V adapters and six cover screws. It ships shrink wrapped at 0.46 lbs (0.21 kg) and is RoHS and REACH compliant. Solid models are available in .stp or .x_t.
Ideal For
- Touch screen handheld instruments
- Battery-powered mobile data terminals
- Portable control panels with display
- Handheld test equipment
Overview
| Type | Tablet, battery compartment |
| Series | 1599TAB Series ABS Plastic Tablet Enclosures |
| Long Description | enclosure - plastic |
| Short Description | FRABS MEDIUM TABLET W BAT |
| Removable End Panel | Yes |
| Battery Door And Compartment | Yes |
Dimensions
| Inlay Width | 123.57 mm [4.86 in] |
| Bottom Inlay | 44 x 33 x 0.5 mm |
| Inlay Length | 158.57 mm [6.24 in] |
| Inner Height | 20.75 mm [.82 in] |
| Size L X W X H | 6.67 in x 5.31 in x 1.06 in (169 mm x 135 mm x 27 mm) |
| PCB Post Height | 4.75 mm [.19 in] |
| Top Inlay Depth | .75 mm [.03 in] |
| Max. P.C. Board Width | 87.94 mm |
| Depth (Ordering Table) | 1.06 in (27 mm) |
| Max. P.C. Board Length | 126.02 mm |
| Width (Ordering Table) | 5.31 in (135 mm) |
| Length (Ordering Table) | 6.69 in (170 mm) |
| Overall Width (Drawing) | 135.00 mm [5.31 in] |
| Overall Height (Drawing) | 27.00 mm [1.06 in] |
| Overall Length (Drawing) | 169.98 mm [6.69 in] |
Accessories
| 9V Battery Kit | 53BATCLIP9V-B |
| 1599TABM End Panel, Grey (Single Panel) | 1599TABMPLGY-B |
| 1599TABM End Panel, Black (Single Panel) | 1599TABMPLBK-B |
| AA Battery Clip Kit (4 Positive And 4 Negative) | 1553HDR-BKIT |
| P.C. Board Screws (#4 X 1/4" Self Tapping, Pkg 50) | 1593ATS50 |
| P.C. Board Screws (#4 X 1/4" Self Tapping, Pkg 100) | 1593ATS100 |
| Replacement Cover Screws, Black (M3-0.5 X 18mm, Pkg 100) | 1594MS100BK |
| Replacement Cover Screws, Silver (M3-0.5 X 18mm, Pkg 100) | 1594MS100 |
Identifiers
| UPC | 623980401195 |
| UNSPSC | 39121301 |
| Part Number | 1599TABMGYBAT |
Included Items
| Purchased Assembly Includes | Top and bottom cover, 1 removable panel, battery door, battery spring clips (8 pcs), 9V adapter (2 pcs) and 6 cover screws (M3-0.5 x 18mm) |
Modification & CAD
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.46 lbs (0.21 kg) |
Construction & Finish
| Color | Light Gray (Grey in ordering table) |
| Material | ABS Plastic (flame retardant FR ABS) |
| Label Area | Molded inlay for labels on bottom half |
| Cover Screws | 6 x M3-0.5 x 18mm Phillips machine screws |
| PCB Mounting | PCB posts x 6 and PCB posts x 8 (inside views), each accepting #4 x 1/4" self-tapping screws |
| Battery Provision | Battery door and compartment; 8 battery clips (for 4 x AA batteries) and 2 x 9 volt (PP3) battery clips |
| Joint Construction | Lap joint, protection against access of dust and splashing water |
| Cover Screw Inserts | M3 brass inserts installed for cover screws (factory inserted into the top half) |
| Recommended Cover Screw Torque | 35-40 cN-m (50-57 ozf.in) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance Note | Some chemicals can damage or weaken plastic; see the manufacturer's Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1599TABMGYBAT?▾
The part page lists 6.67 x 5.31 x 1.06 in (169 x 135 x 27 mm); the ordering table lists 6.69 x 5.31 x 1.06 in (170 x 135 x 27 mm).
How many batteries does it hold?▾
The medium battery door version includes 8 battery clips for 4 x AA batteries and 2 x 9 volt (PP3) battery clips.
What is included?▾
Top and bottom cover, 1 removable panel, battery door, battery spring clips (8 pcs), 9V adapter (2 pcs) and 6 cover screws (M3-0.5 x 18mm).
What is the recommended cover screw torque?▾
35-40 cN-m (50-57 ozf.in).
Is a black version available?▾
Yes, the black medium battery enclosure is 1599TABMBKBAT.
Can I order a spare end panel?▾
The drawing lists the single 1599TABM end panel as 1599TABMPLGY-B (grey) and 1599TABMPLBK-B (black).
