Hammond 1599TABLBK 240 x 190 mm Large Tablet Enclosure, Black FR Abs

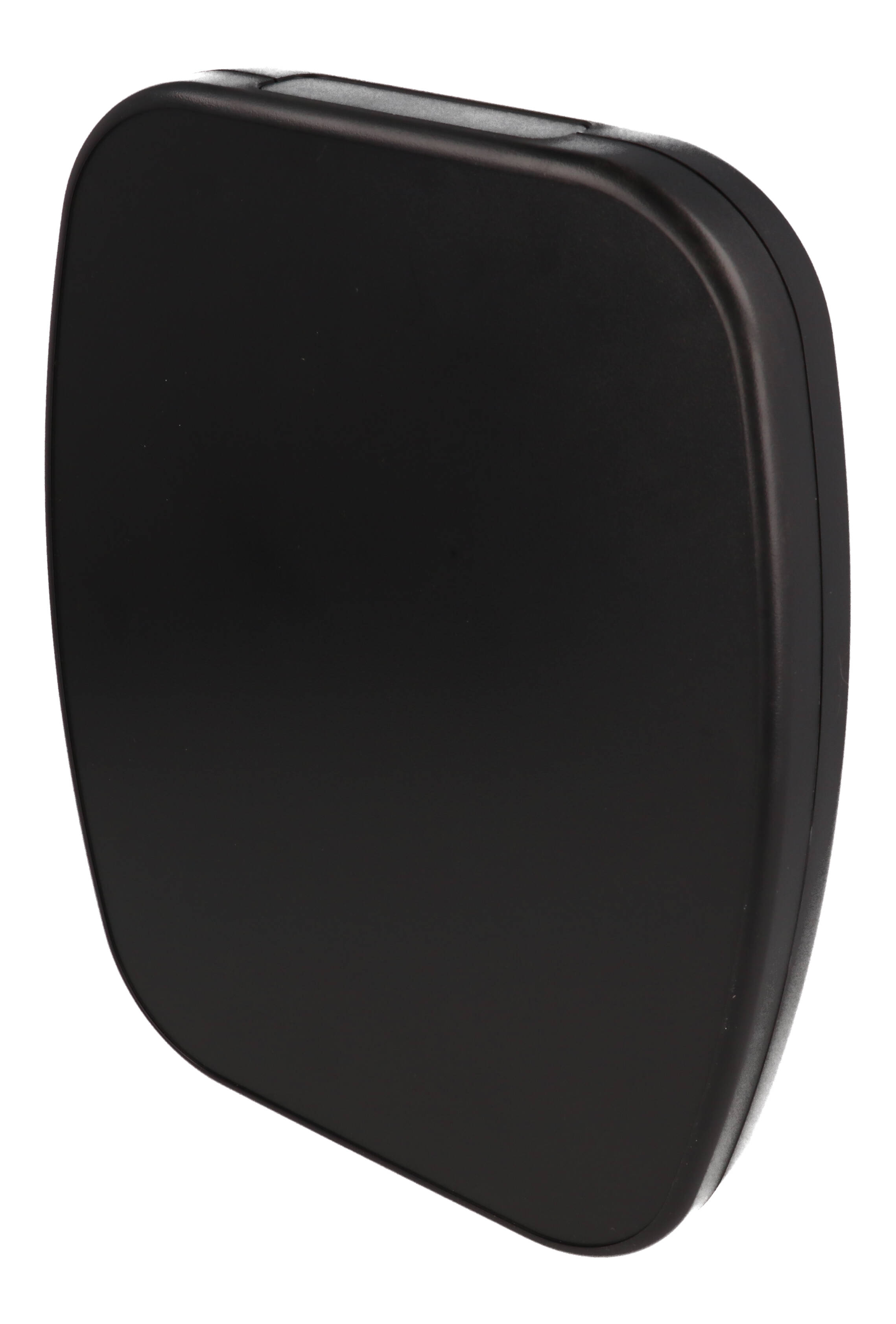

The 1599TABLBK is the large-size 1599TAB tablet enclosure in black, without a battery compartment. It is a low profile, ergonomically shaped case that fits comfortably in the hands, suited to instrument and mobile data enclosures, particularly those requiring a touch screen.

Both halves are molded from flame retardant ABS with a UL94 V-0 rating. The case is closed with 6 M3-0.5 x 18 mm Phillips machine screws that thread into integral brass bushings factory inserted into the top half, so it holds up to repeated assembly and disassembly; the drawing gives a recommended cover screw torque of 43-50 ozf.in (30-35 cN-m). Lap joint construction protects against dust and splashing water, and this version without a battery door is designed to meet IP54.

Outside dimensions are 9.45 in (240 mm) long, 7.48 in (190 mm) wide and 1.18 in (30 mm) deep. The top has a recessed inlay of 229.78 mm [9.05 in] by 179.78 mm [7.08 in], and the bottom half carries a molded 50.0 mm x 50.0 mm label inlay. Inside, the inner height is 23.25 mm [0.92 in] and PC board standoffs are molded into both the top and bottom halves; the maximum P.C. board size is 227.57 mm by 179.56 mm.

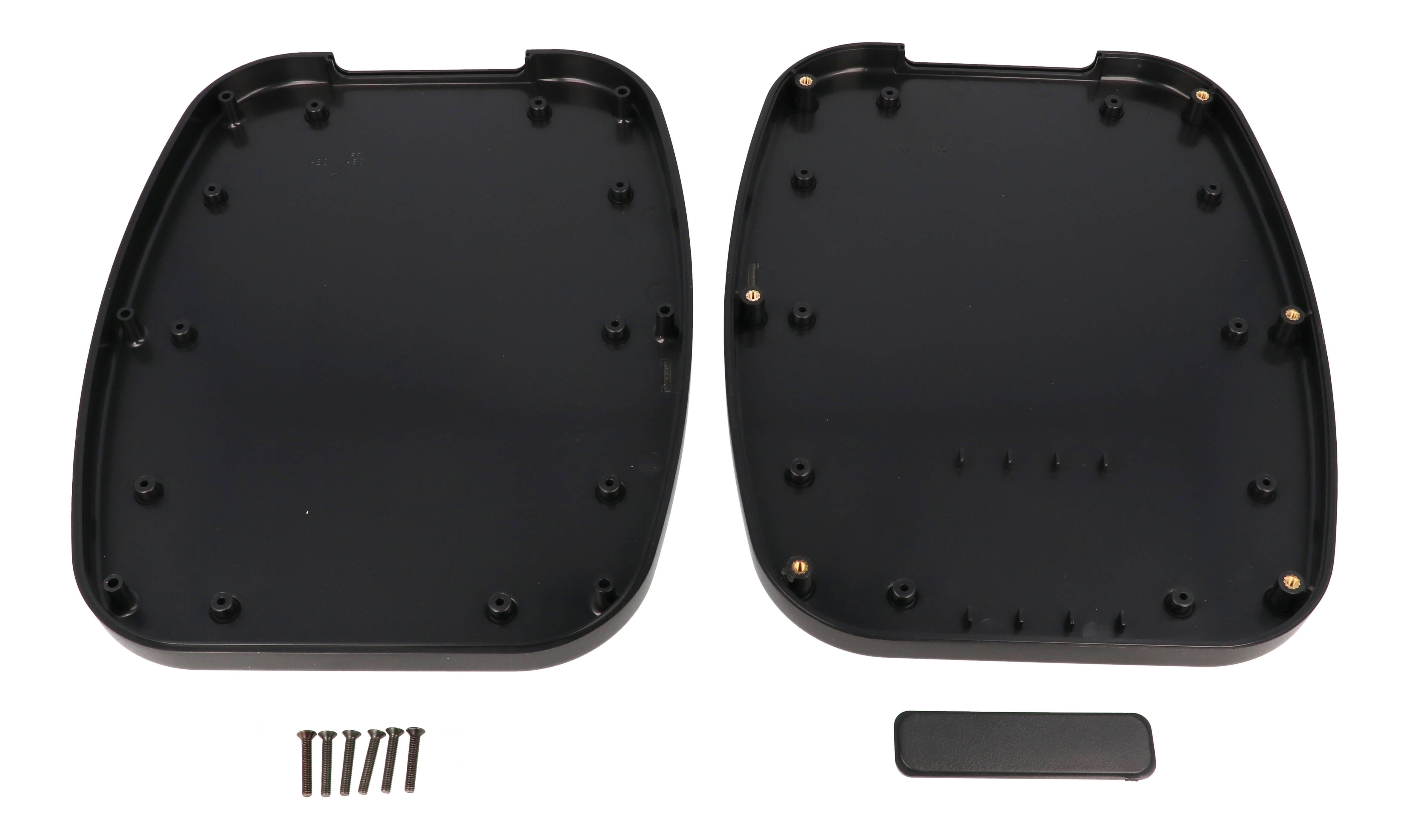

The assembly includes top and bottom covers, one removable end panel for connector or switch cut-outs, and the 6 cover screws. The replacement end panel is 1599TABLPLBK-B (black) or 1599TABLPLGY-B (grey). The 1599TABLBK is RoHS and REACH compliant and ships shrink-wrapped at 0.83 lbs (0.38 kg).
