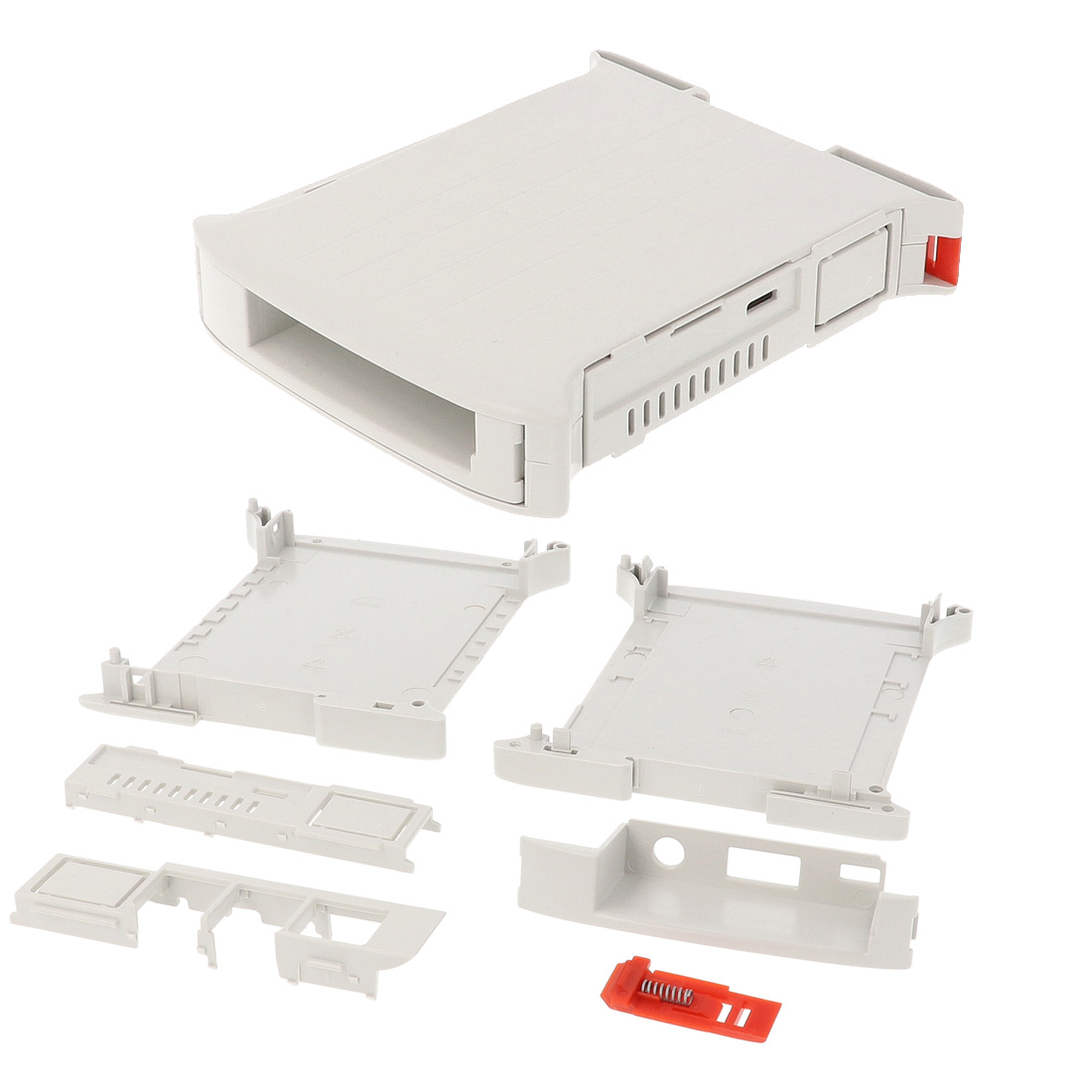

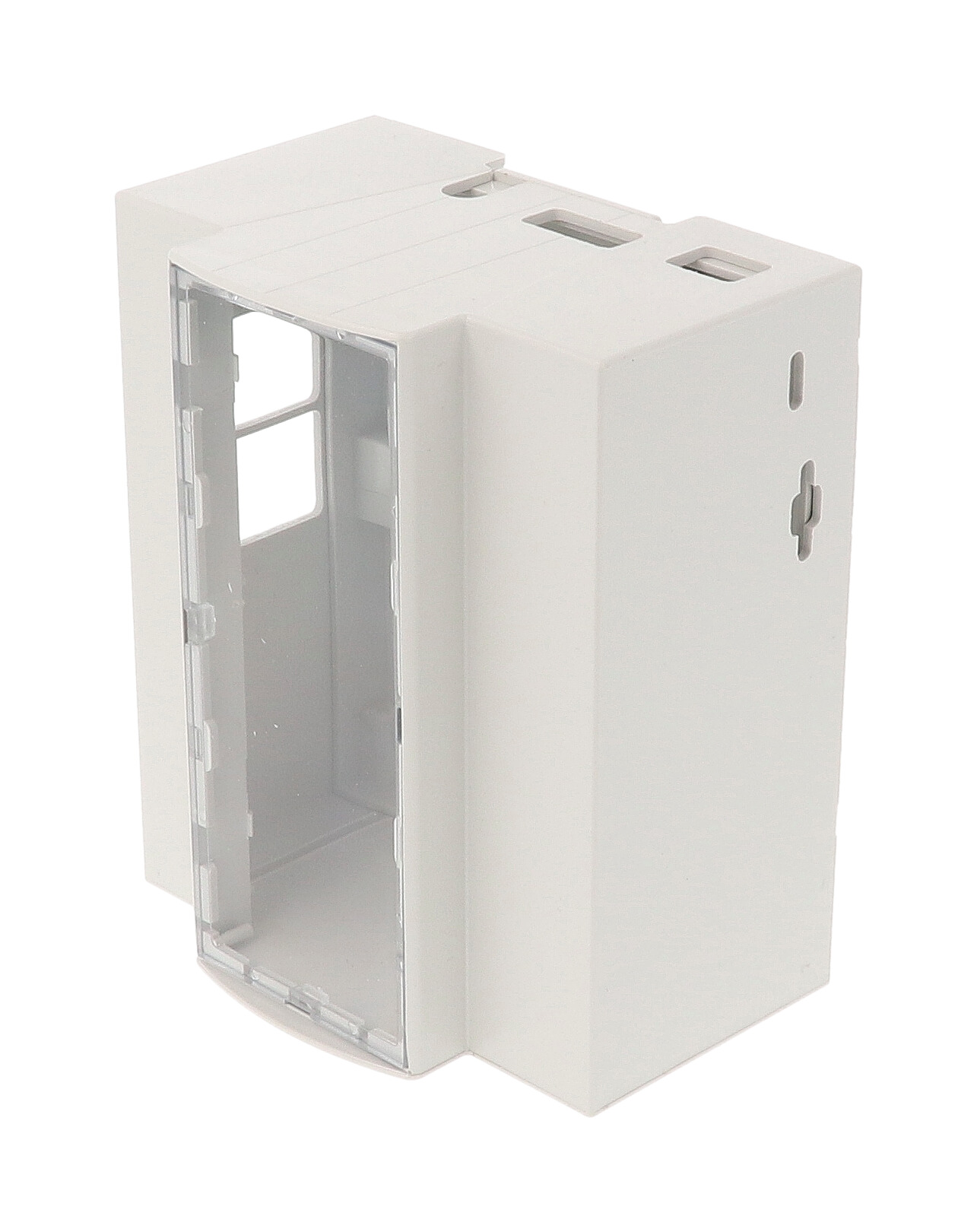

Embedded DIN Rail Mounted Enclosures · 1597KIT Series

Key Features:

• ■Electronic enclosures by Italtronic, an official Raspberry Pi Design Partner
• ■Designed to mount onto standard 35mm DIN rails using integrated DIN rail mounting clip
• ■Designed for use with a variety of Raspberry Pi and Beaglebone development boards
• ■Enclosures come with pre-made cutouts for development board components
• ■Hardware required to install development boards is included. (See 1593ATS50 for replacements)
• ■Enclosures assemble via snap-together construction
• ■Housings are constructed of RAL7035 light grey PC-ABS plastic with UL 94 V-0 flame rating Clear cover plates are made of PC material with UL 94 V-2 flame rating Red rail box DIN clips are made of PA6 material with UL 94 V-2 flame rating. (See 1597DINCLIPRB for replacements) Standard dark gray DIN clips are made of PPO material with UL 94 V-0 flame rating. (See 1597DINCLIPXT for replacements)
• ■Clear cover plates are made of PC material with UL 94 V-2 flame rating
• ■Red rail box DIN clips are made of PA6 material with UL 94 V-2 flame rating. (See 1597DINCLIPRB for replacements)
• ■Standard dark gray DIN clips are made of PPO material with UL 94 V-0 flame rating. (See 1597DINCLIPXT for replacements)
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
