Hammond 1597KIT4MCPIB Compact DIN Rail Case for Raspberry Pi B
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Made for the Raspberry Pi B+ development board (board not included)
- Compact Standard size: 90.00 x 71.10 x 32.20 mm per drawing
- Mounts on standard 35 mm DIN rail with integrated clip
- Pre-made cutouts for development board components

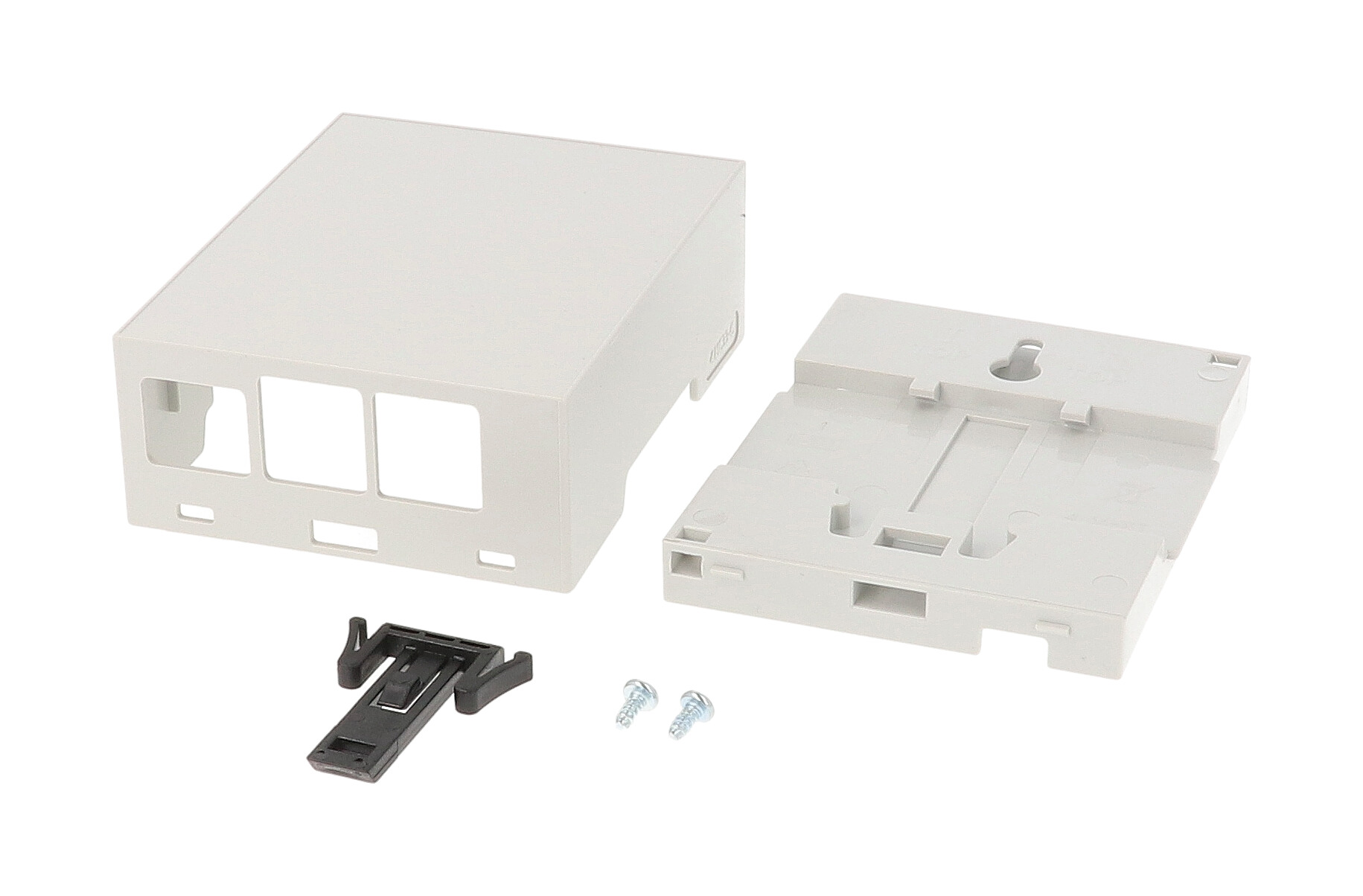

- Includes base, cover, screws and DIN clip
- RAL7035 light grey PC-ABS enclosure, PPO DIN clip
- Snap-together assembly; PCB screw torque 20-25 cN-m
- RoHS and REACH compliant

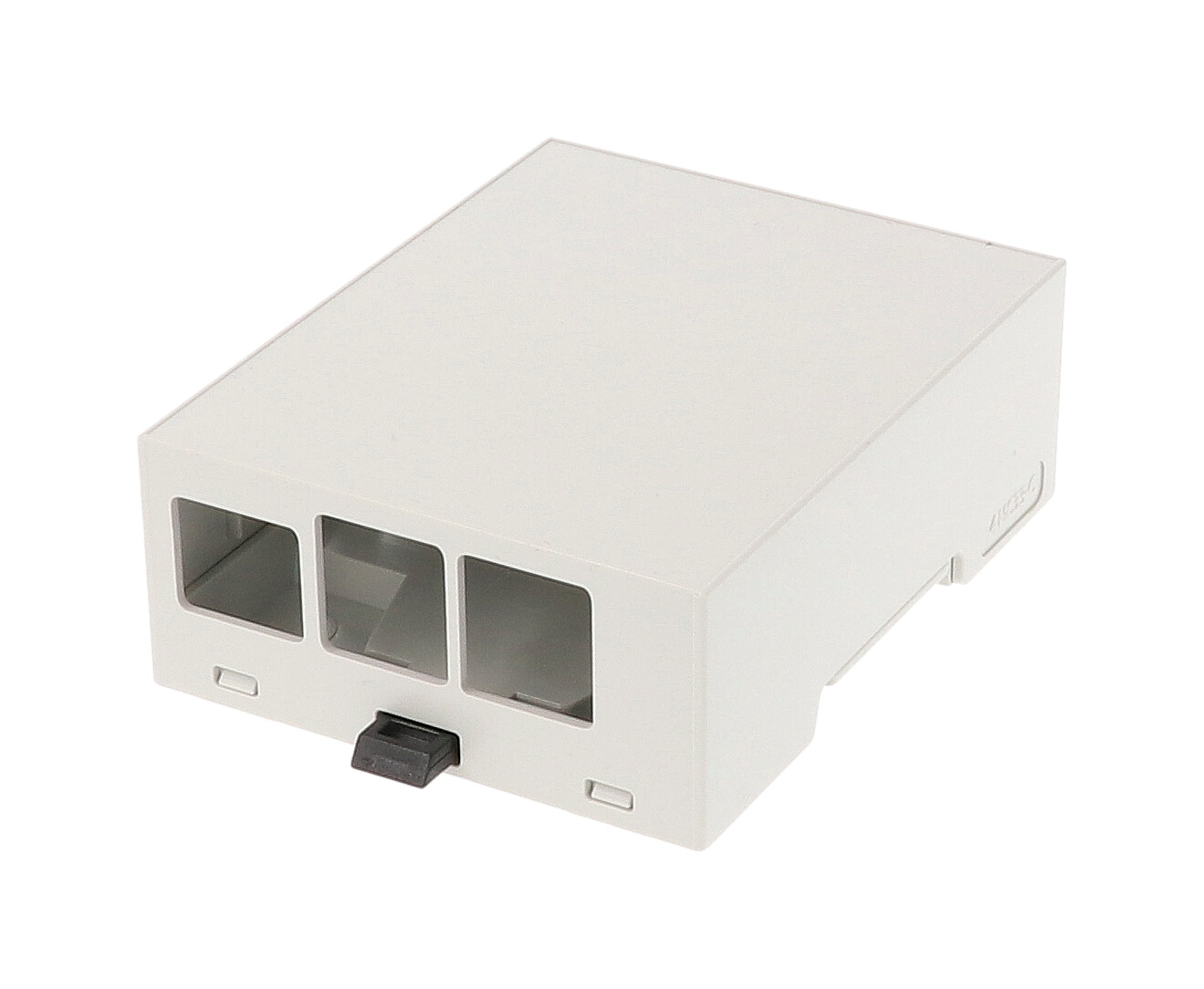

The 1597KIT4MCPIB is a compact DIN rail enclosure kit made for the Raspberry Pi B+ development board, part of the Italtronic 1597KIT Embedded DIN Rail Mounted Enclosures series. It suits OEM engineers, automation integrators and makers who want to put a Raspberry Pi B+ on a standard 35 mm DIN rail inside a control panel. Italtronic is an official Raspberry Pi Design Partner.
The enclosure is PC-ABS in RAL7035 light grey (UL94 V-2 per the part page), and the DIN clip is PPO. It assembles by snap-together construction and comes with pre-made cutouts for the development board components. The purchased enclosure includes the base, cover, screws and DIN clip; the Raspberry Pi B+ itself is not included.
This is the Compact Standard model: 90 x 71 x 32 mm in the series table, 3.54 x 2.8 x 1.27 in on the part page, and 90.00 mm [3.54 in] by 71.10 mm [2.80 in] by 32.20 mm [1.27 in] on the drawing. Shipping weight is 0.09 lbs (0.04 kg).
The hardware needed to install the board is included; the recommended PCB screw torque is 28.0-35.5 ozf-in (20-25 cN-m). Replacement #4 x 1/4" (6.4 mm) plated self-tapping PCB screws are 1593ATS50 (pack of 50) and 1593ATS100 (pack of 100), and the replacement DIN clip is 1597DINCLIPXT. Other Raspberry Pi B+ options in the series include 62 mm-deep Standard kits and rail box styles.
The 1597KIT4MCPIB is RoHS and REACH compliant. Hammond can factory modify it (milling, drilling, printing), and solid models are available in .stp or .x_t.
Ideal For
- DIN rail mounting a Raspberry Pi B+ in a control panel
- Embedded controllers and gateways on DIN rail
- Industrial automation prototypes
- Compact development board housing
Overview
| Model | Compact Standard |
| Series | 1597KIT Embedded DIN Rail Mounted Enclosures (Italtronic) |
| Included | Base, cover, screws and DIN clip |
| Description | Italtronic DIN enclosure kit for Raspberry Pi B+ |
| Solid Models | .stp or .x_t |
| Board Cutouts | Pre-made cutouts for development board components |
| Compatible Board | Raspberry Pi B+ (not included) |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Replacement DIN Clip | 1597DINCLIPXT |
| Replacement PCB Screws | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100); P.C. board self tapping screw #4 x 1/4" (6.4 mm) plated |
| Recommended PCB Screw Torque | 28.0-35.5 ozf-in (20-25 cN-m) |
Dimensions
| Overall Depth (Drawing) | 32.20 mm [1.27 in] |
| Overall Width (Drawing) | 71.10 mm [2.80 in] |
| Nominal Size (L X W X H) | 3.54 in x 2.8 in x 1.27 in (90 mm x 71 mm x 32 mm) |
| Overall Height (Drawing) | 90.00 mm [3.54 in] |
| Series Table Size (H X W X D) | 90 mm x 71 mm x 32 mm |
Identifiers
| UPC | 623980046112 |
| UNSPSC | 39121301 |
Rack Mounting
| Mounting | Standard 35 mm DIN rail, integrated DIN rail mounting clip |
Packaging & Shipping
| Shipping Weight | 0.09 lbs (0.04 kg) |
Construction & Finish
| Colour | RAL7035 light grey |
| Assembly | Snap-together construction |
| Flame Rating | UL94 V-2 |
| DIN Clip Material | PPO |
| Enclosure Material | PC-ABS |
Environmental & Protection
| Chemical Resistance | Some chemicals can damage or weaken plastic; the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the Raspberry Pi B+ included with the 1597KIT4MCPIB?▾
No. The drawing marks the Raspberry Pi B+ as not included. The kit includes the base, cover, screws and DIN clip.
How big is the 1597KIT4MCPIB?▾
The drawing shows 90.00 x 71.10 x 32.20 mm [3.54 x 2.80 x 1.27 in]; the series table lists 90 x 71 x 32 mm (Compact Standard).
How does it mount?▾
It mounts onto a standard 35 mm DIN rail using the integrated DIN rail clip. The replacement clip is 1597DINCLIPXT.
What torque should I use on the PCB screws?▾
The recommended PCB screw torque is 28.0-35.5 ozf-in (20-25 cN-m).
Where do I get replacement board screws?▾
Order 1593ATS50 (50 screws) or 1593ATS100 (100 screws), #4 x 1/4" (6.4 mm) plated self-tapping screws.
