Hammond 1597KIT6MPI3 DIN6 Rail Case for Raspberry Pi 3, Clear Cover
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- DIN6 kit made for the Raspberry Pi 3 (board not included)
- 106.31 mm wide, 90.51 mm high, 62.00 mm deep per drawing
- Includes PC holding board and PCB adhesive stick pad
- Clear PC cover plate included
- Mounts on standard 35 mm DIN rail via integrated clip
- Pre-made cutouts for development board components
- Light grey PC-ABS housing, PPO DIN clip
- RoHS and REACH compliant

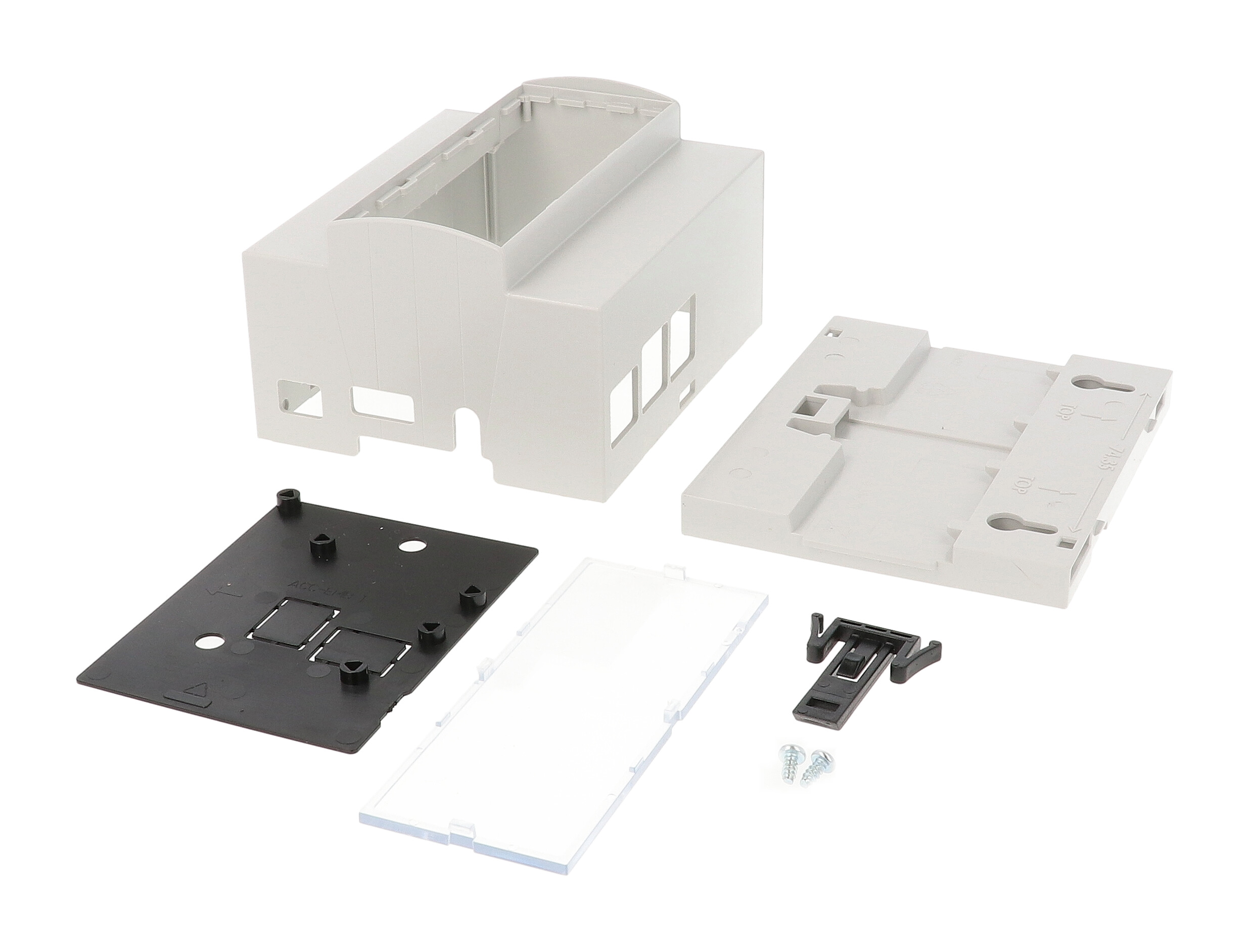

The 1597KIT6MPI3 is a DIN6 enclosure kit for the Raspberry Pi 3 development board in the Italtronic 1597KIT Embedded DIN Rail Mounted Enclosures series. At 106 mm wide it is the wider Standard option for mounting a Raspberry Pi 3 on a standard 35 mm DIN rail, aimed at panel builders, OEM engineers and automation integrators. Italtronic is an official Raspberry Pi Design Partner.
The housing is PC-ABS in RAL7035 light grey (UL94 V-2 per the part page), with a clear PC cover plate (UL 94 V-2 per the series) and a PPO DIN clip. Unlike the DIN4 kits, it uses a PCB base and adhesive pad: the purchased enclosure includes the base, cover, cover plate, PC holding board, PCB stick pad, screws and DIN clip. The Raspberry Pi 3 is not included.
The part page lists 3.56 x 4.19 x 2.44 in (90 x 106 x 62 mm); the series table gives 90.5 mm high, 106 mm wide and 62 mm deep; the drawing shows 90.51 mm [3.56 in] by 106.31 mm [4.19 in] by 62.00 mm [2.44 in]. Shipping weight is 0.19 lbs (0.09 kg).
The series assembly sheet sets out the sequence: place the adhesive pad on the board holder, check orientation, then place the holder into the base with the arrow touching the wall; place the board and install the screws (recommended torque 28.0-35.5 ozf-in, 20-25 cN-m); install the cover, then the clear cover plate, then the DIN rail clip. Replacement #4 x 1/4" (6.4 mm) plated PCB screws are 1593ATS50 and 1593ATS100, and the replacement DIN clip is 1597DINCLIPXT.
The 1597KIT6MPI3 is RoHS and REACH compliant, can be factory modified, and has solid models available in .stp or .x_t.
Ideal For
- DIN rail mounting a Raspberry Pi 3 in a control cabinet
- Industrial IoT and edge controllers
- Embedded development board housing with clear cover
- Automation panels needing a 106 mm wide module
Overview
| Model | Standard |
| Series | 1597KIT Embedded DIN Rail Mounted Enclosures (Italtronic) |
| Included | Base, cover, cover plate, PC holding board, PCB stick pad, screws and DIN clip |
| Description | Italtronic DIN6 kit for Raspberry Pi 3 |
| Solid Models | .stp or .x_t |
| Board Cutouts | Pre-made cutouts for development board components |
| Compatible Board | Raspberry Pi 3 (not included) |
| Assembly Sequence | Adhesive pad on board holder; holder into base with arrow touching wall; place board and install screws; install cover; install clear cover plate; install DIN rail clip |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Replacement DIN Clip | 1597DINCLIPXT |
| Replacement PCB Screws | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100); P.C. board self tapping screw #4 x 1/4" (6.4 mm) plated |
| Recommended PCB Screw Torque | 28.0-35.5 ozf-in (20-25 cN-m) |
Dimensions
| Overall Depth (Drawing) | 62.00 mm [2.44 in] |
| Overall Width (Drawing) | 106.31 mm [4.19 in] |
| Nominal Size (L X W X H) | 3.56 in x 4.19 in x 2.44 in (90 mm x 106 mm x 62 mm) |
| Overall Height (Drawing) | 90.51 mm [3.56 in] |
| Series Table Size (H X W X D) | 90.5 mm x 106 mm x 62 mm |
Identifiers
| UPC | 623980046198 |
| UNSPSC | 39121301 |
Rack Mounting
| Mounting | Standard 35 mm DIN rail, integrated DIN rail mounting clip |
Packaging & Shipping
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Colour | RAL7035 light grey |
| Assembly | Snap-together construction |
| Flame Rating | UL94 V-2 |
| DIN Clip Material | PPO |
| Enclosure Material | PC-ABS |
| Clear Cover Plate Material | PC, UL 94 V-2 flame rating |
Environmental & Protection
| Chemical Resistance | Some chemicals can damage or weaken plastic; the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What comes with the 1597KIT6MPI3?▾
Base, cover, cover plate, PC holding board, PCB stick pad, screws and DIN clip. The Raspberry Pi 3 is not included.
How wide is this enclosure?▾
The drawing shows 106.31 mm [4.19 in]; the series table lists 106 mm.
How is the board held in place?▾
The board sits on a PC holding board fixed with an adhesive pad and is secured with the included screws at a recommended 28.0-35.5 ozf-in (20-25 cN-m).
Does it mount on a standard DIN rail?▾
Yes, a standard 35 mm DIN rail, using the integrated DIN rail clip (replacement 1597DINCLIPXT).
Is it RoHS compliant?▾
Yes, it is RoHS and REACH compliant.
