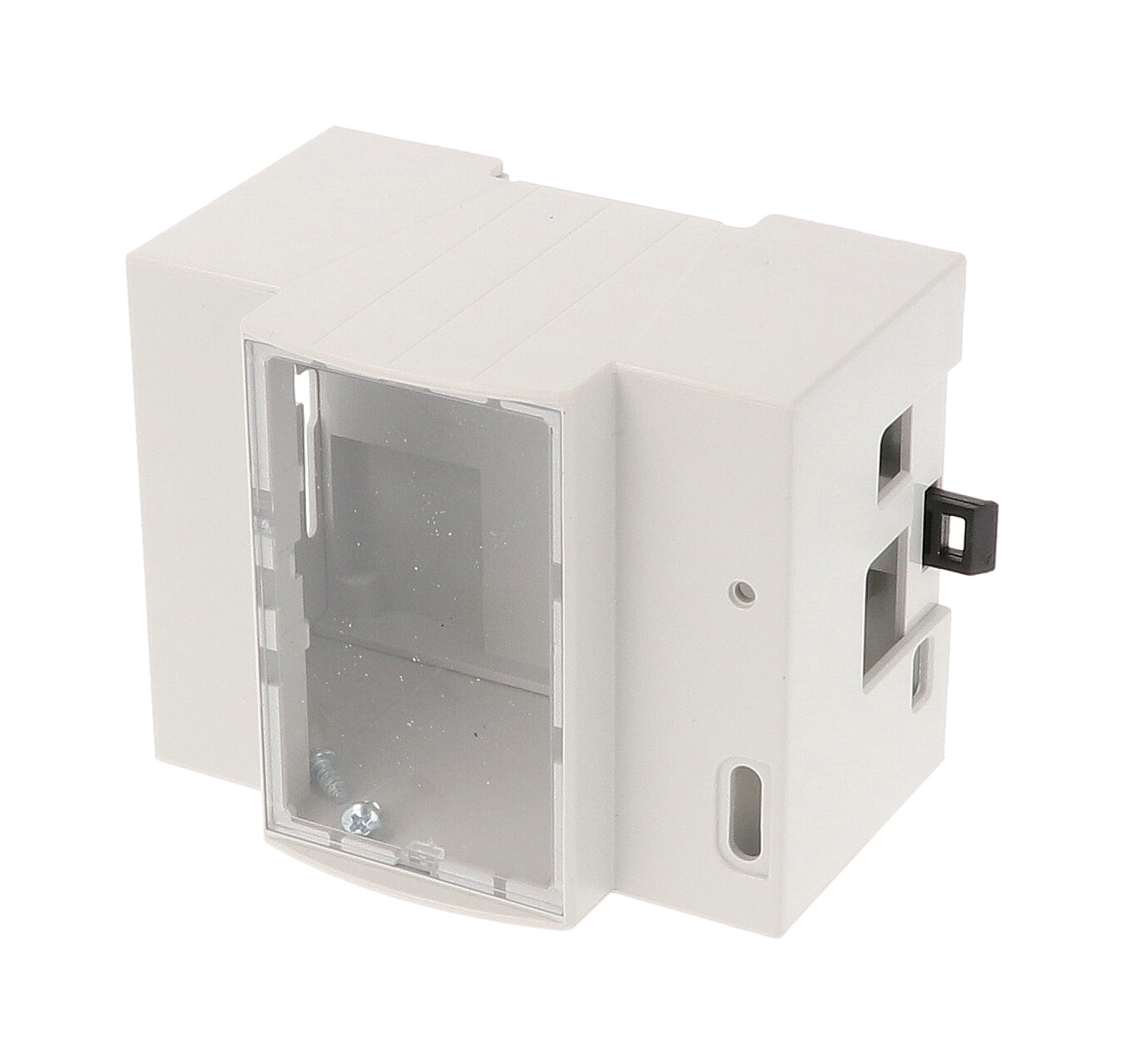

Hammond 1597KIT4MCBB DIN4 Rail Case for Beaglebone Black, Clear Cover
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Made for the Beaglebone Black development board (board not included)
- DIN4 Standard model, 62.00 mm deep per drawing
- Clear PC cover plate included
- Mounts on standard 35 mm DIN rail with integrated clip
- Pre-made cutouts for development board components

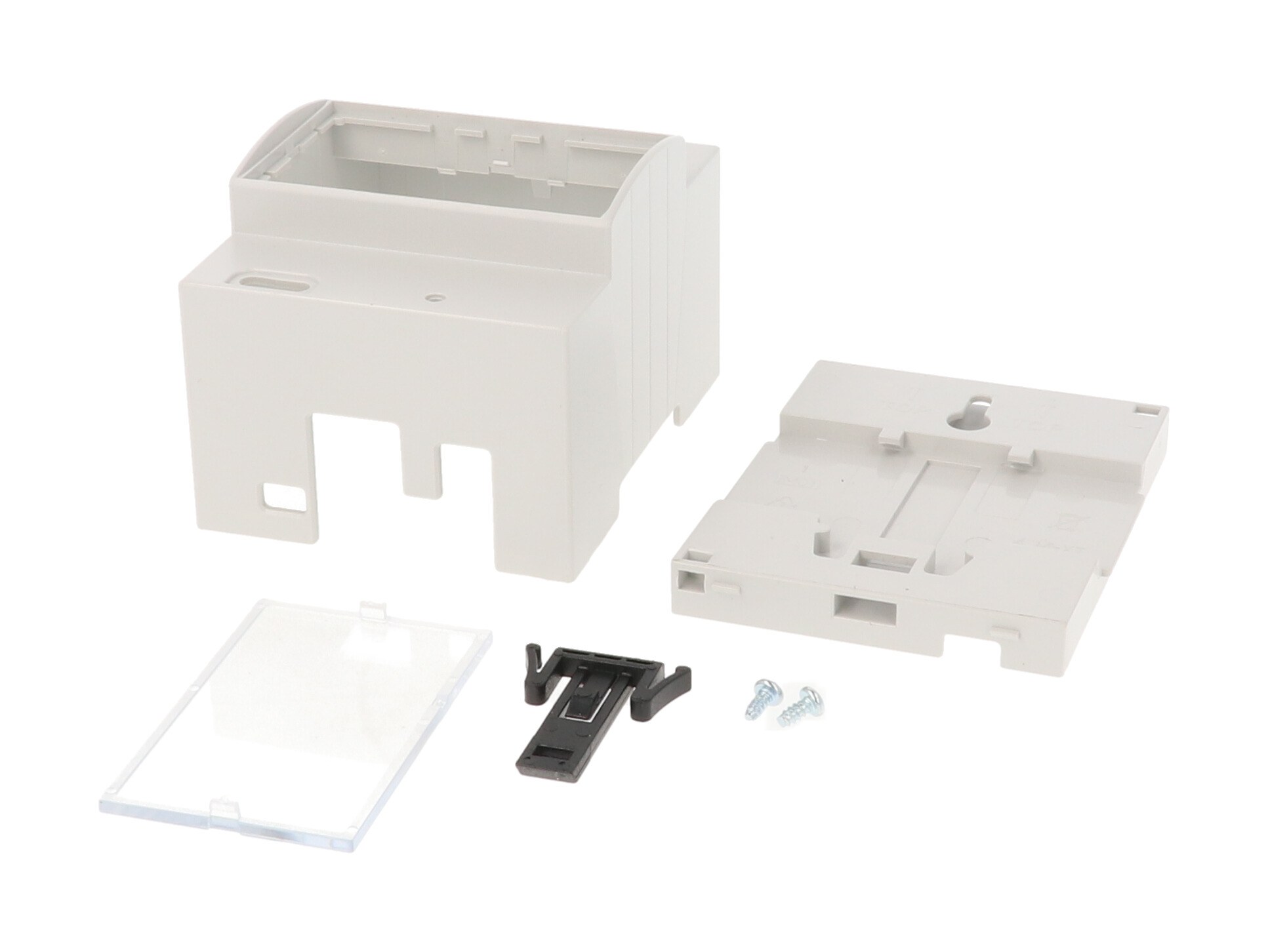

- Includes base, cover, cover plate, screws and DIN clip
- RAL7035 light grey PC-ABS housing, PPO DIN clip
- RoHS and REACH compliant
The 1597KIT4MCBB is a Standard-model DIN4 enclosure kit for the Beaglebone Black development board, from the Italtronic 1597KIT Embedded DIN Rail Mounted Enclosures series. It gives integrators and OEM engineers a way to mount a Beaglebone Black on a standard 35 mm DIN rail alongside other panel hardware. In the series table it is the Standard model for Beaglebone Black, alongside the slimmer 32 mm-deep compact version.
The enclosure is PC-ABS in RAL7035 light grey (UL94 V-2 per the part page), the clear cover plate is PC (rated UL 94 V-2 in the series data), and the DIN clip is PPO. The housing snaps together and has pre-made cutouts for the board's components. The purchased enclosure includes the base, cover, clear cover plate, screws and DIN clip; the Beaglebone Black is not included.
The part page lists 3.54 in x 2.82 in x 2.44 in (90 mm x 72 mm x 62 mm); the series table gives 90.5 mm x 72 mm x 62 mm, and the drawing shows 90.51 mm [3.56 in] tall, 71.71 mm [2.82 in] wide and 62.00 mm [2.44 in] deep. Shipping weight is 0.13 lbs (0.06 kg).
Board installation hardware is included, with a recommended PCB screw torque of 28.0-35.5 ozf-in (20-25 cN-m). Replacement #4 x 1/4" (6.4 mm) plated self-tapping PCB screws are 1593ATS50 (50) and 1593ATS100 (100); the replacement DIN clip is 1597DINCLIPXT.
The 1597KIT4MCBB is RoHS and REACH compliant. Factory modification (milling, drilling, printing) is available, and solid models come in .stp or .x_t.
Ideal For
- DIN rail mounting a Beaglebone Black in an electrical panel
- Industrial IoT gateways and controllers
- Embedded development board housing with visible board area
- Automation and test rigs on DIN rail
Overview
| Model | Standard |
| Series | 1597KIT Embedded DIN Rail Mounted Enclosures (Italtronic) |
| Included | Base, cover, cover plate, screws and DIN clip |
| Description | Italtronic DIN4 kit for Beaglebone Black |
| Solid Models | .stp or .x_t |
| Board Cutouts | Pre-made cutouts for development board components |
| Compatible Board | Beaglebone Black (not included) |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Replacement DIN Clip | 1597DINCLIPXT |
| Replacement PCB Screws | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100); P.C. board self tapping screw #4 x 1/4" (6.4 mm) plated |
| Recommended PCB Screw Torque | 28.0-35.5 ozf-in (20-25 cN-m) |
Dimensions
| Overall Depth (Drawing) | 62.00 mm [2.44 in] |
| Overall Width (Drawing) | 71.71 mm [2.82 in] |
| Nominal Size (L X W X H) | 3.54 in x 2.82 in x 2.44 in (90 mm x 72 mm x 62 mm) |
| Overall Height (Drawing) | 90.51 mm [3.56 in] |
| Series Table Size (H X W X D) | 90.5 mm x 72 mm x 62 mm |
Identifiers
| UPC | 623980046136 |
| UNSPSC | 39121301 |
Rack Mounting
| Mounting | Standard 35 mm DIN rail, integrated DIN rail mounting clip |
Packaging & Shipping
| Shipping Weight | 0.13 lbs (0.06 kg) |
Construction & Finish
| Colour | RAL7035 light grey |
| Assembly | Snap-together construction |
| Flame Rating | UL94 V-2 |
| DIN Clip Material | PPO |
| Enclosure Material | PC-ABS |
| Clear Cover Plate Material | PC, UL 94 V-2 flame rating |
Environmental & Protection
| Chemical Resistance | Some chemicals can damage or weaken plastic; the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1597KIT4MCBB include the Beaglebone Black?▾
No. The board is not included. The kit includes the base, cover, clear cover plate, screws and DIN clip.
What are the dimensions?▾
The drawing shows 90.51 mm [3.56 in] x 71.71 mm [2.82 in] x 62.00 mm [2.44 in]; the series table lists 90.5 mm x 72 mm x 62 mm.
Does it have a clear cover?▾
Yes. It includes a clear cover plate; the series data lists clear cover plates as PC with a UL 94 V-2 flame rating.
What is the recommended PCB screw torque?▾
28.0-35.5 ozf-in (20-25 cN-m).
How does it attach to the rail?▾
Via the integrated DIN rail clip on a standard 35 mm DIN rail; the replacement clip is 1597DINCLIPXT.
