Soft Touch Watertight Case BK
- Type Hand-held, water-tight
- Material ABS Plastic
- Color Black
- Color Black
$11.97In stock
Buy now
Water-Tight Hand-Held Enclosures · 1553W Series
Brand: Hammond Manufacturing · 9 part numbers
IP 65 Protection, Soft Sides
- ■Ergonomically designed for hand-held comfort.
- ■Designed to meet IP65.

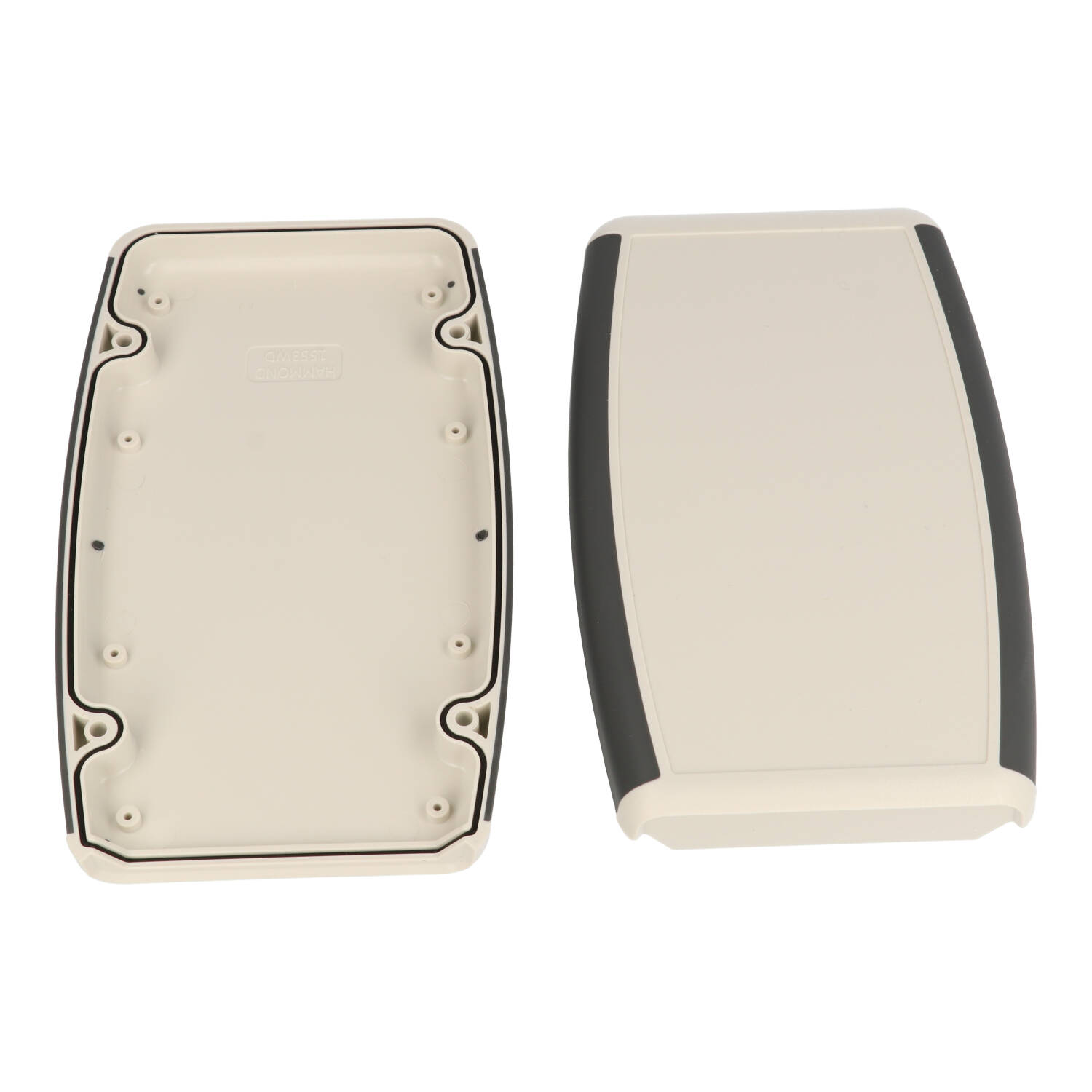

- ■Comes with pre-formed and pre-installed silicone gasket.

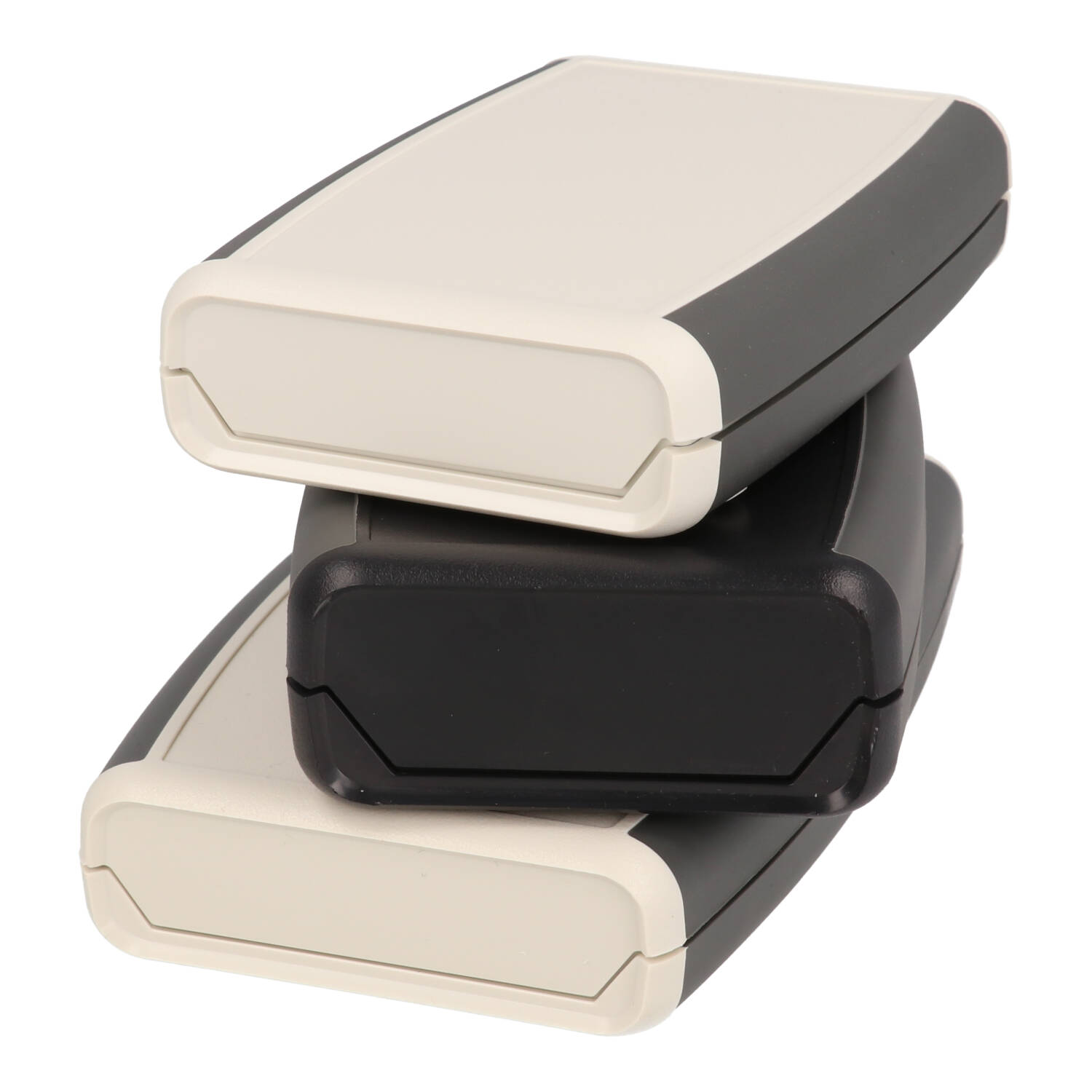

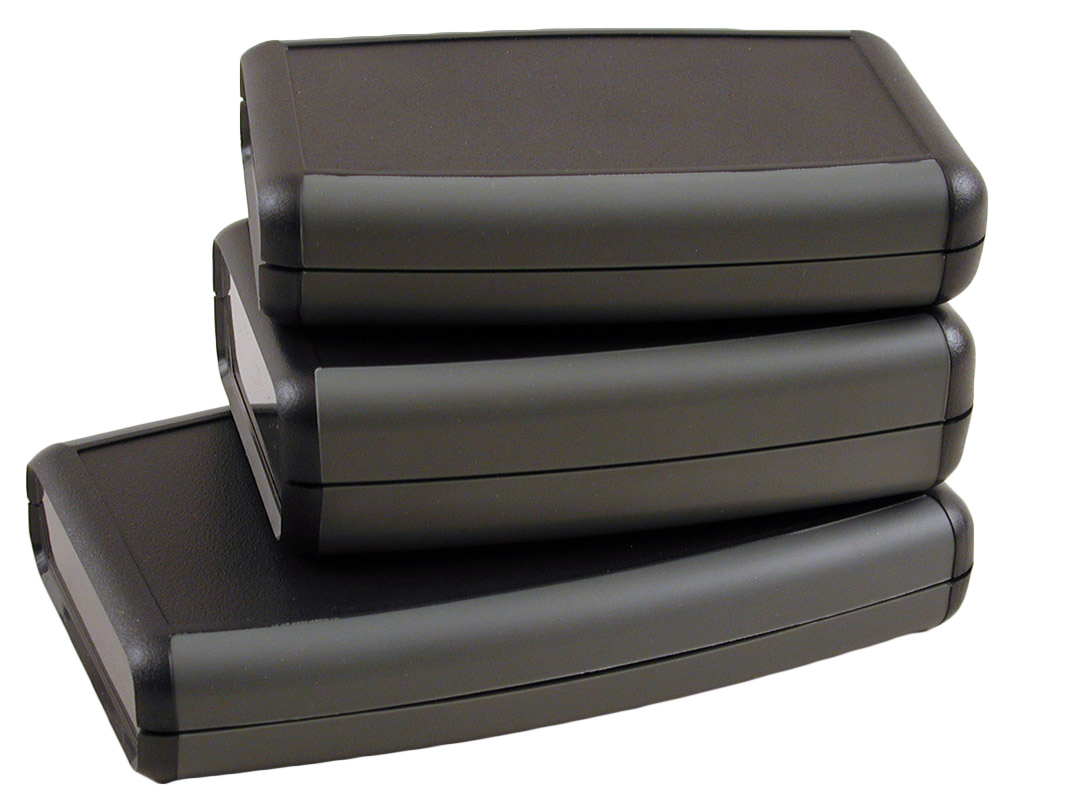

- ■Three sizes and two colors to choose from.
- ■Molded in flame retardant ABS plastic (FRABS) rated UL94 V-0 with a grey TPE overmold serving as a soft grip.
- ■Top cover is recessed for a membrane display or keypad.
from $4.24
9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1553W Series part number
Filter 9 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
9 of 9 part numbers · 9 priced online

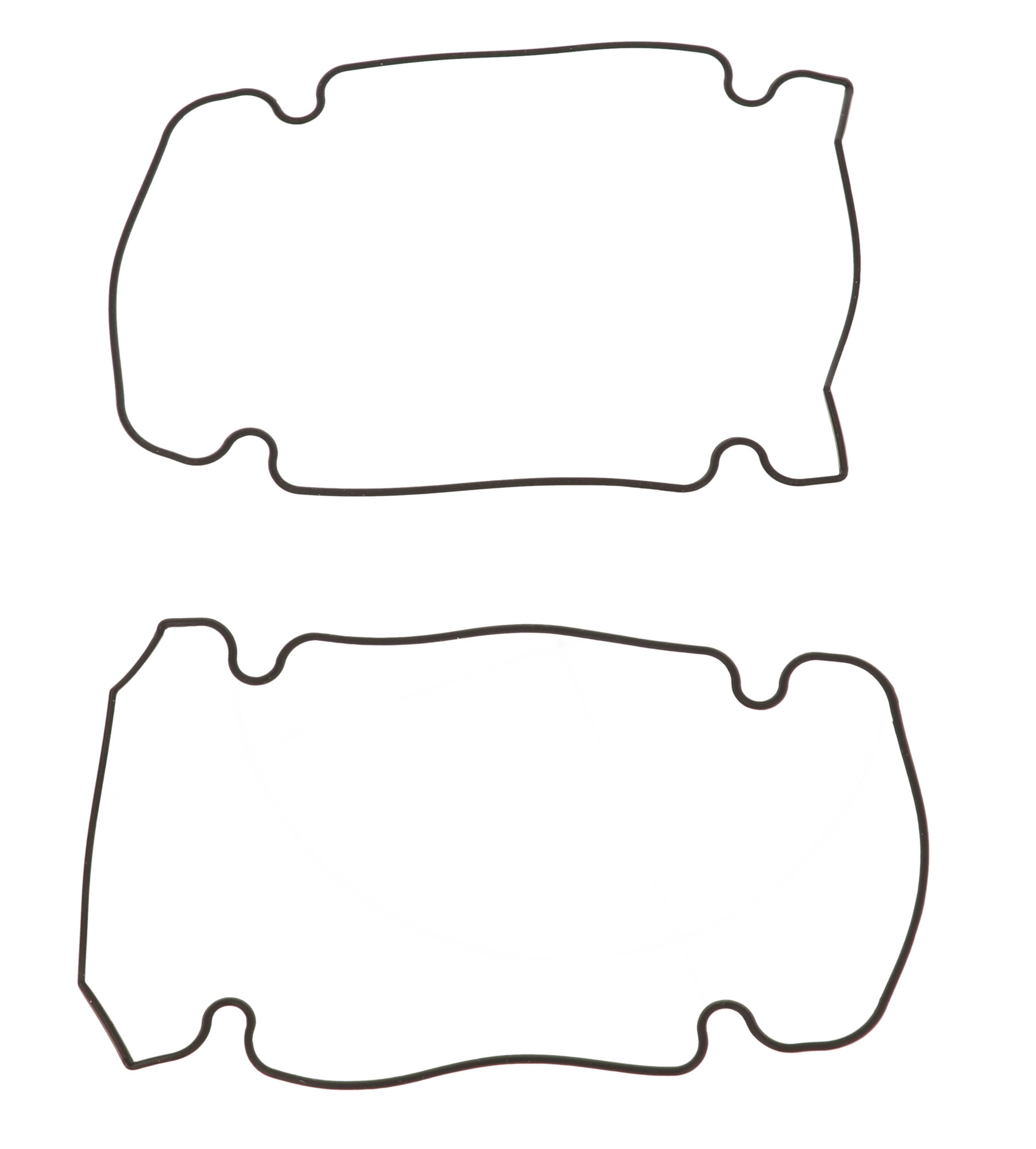

Gasket For 1553WB - 2 Pk
- Type Gasket
- Material Silicone
- Color Black
$4.24In stock
Buy now
Soft Touch Watertight Case GY
- Type Hand-held, water-tight
- Material ABS Plastic
- Color Light Gray
- Color Grey
$11.97In stock
Buy now
Soft Touch Watertight Case BK
- Type Hand-held, water-tight
- Material ABS Plastic
- Color Black
- Color Black
$12.39In stock
Buy now
Gasket For 1553WC - 2 Pk
- Type Gasket
- Material Silicone
- Color Black
$4.24In stock
Buy now
Soft Touch Watertight Case GY
- Type Hand-held, water-tight
- Material ABS Plastic
- Color Light Gray
- Color Grey
$12.39In stock
Buy now
Soft Touch Watertight Case BK
- Type Hand-held, water-tight
- Material ABS Plastic
- Color Black
- Color Black
$12.86In stock
Buy now

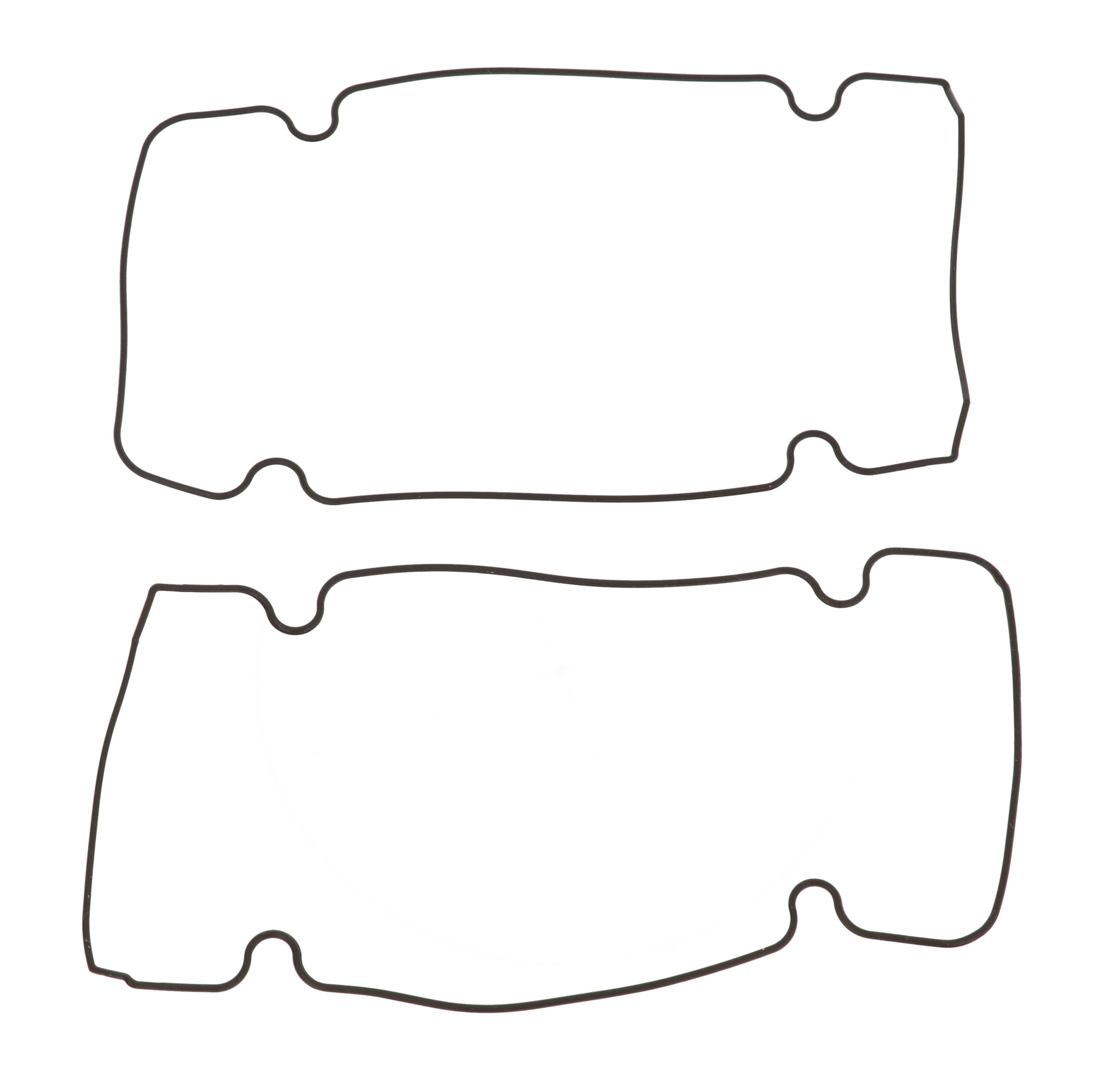

Gasket For 1553WD - 2 Pk
- Type Gasket
- Material Silicone
- Color Black
$4.24In stock
Buy now
Soft Touch Watertight Case GY
- Type Hand-held, water-tight
- Material ABS Plastic
- Color Light Gray
- Color Grey
$12.86In stock
Buy nowDimension tables (inches / mm)
Part Numbers
Units shown: mm . Switch units to: inch
| Part Number | Color | Length | Width | Total Depth | Replacement Gasket · (2-pack) (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|

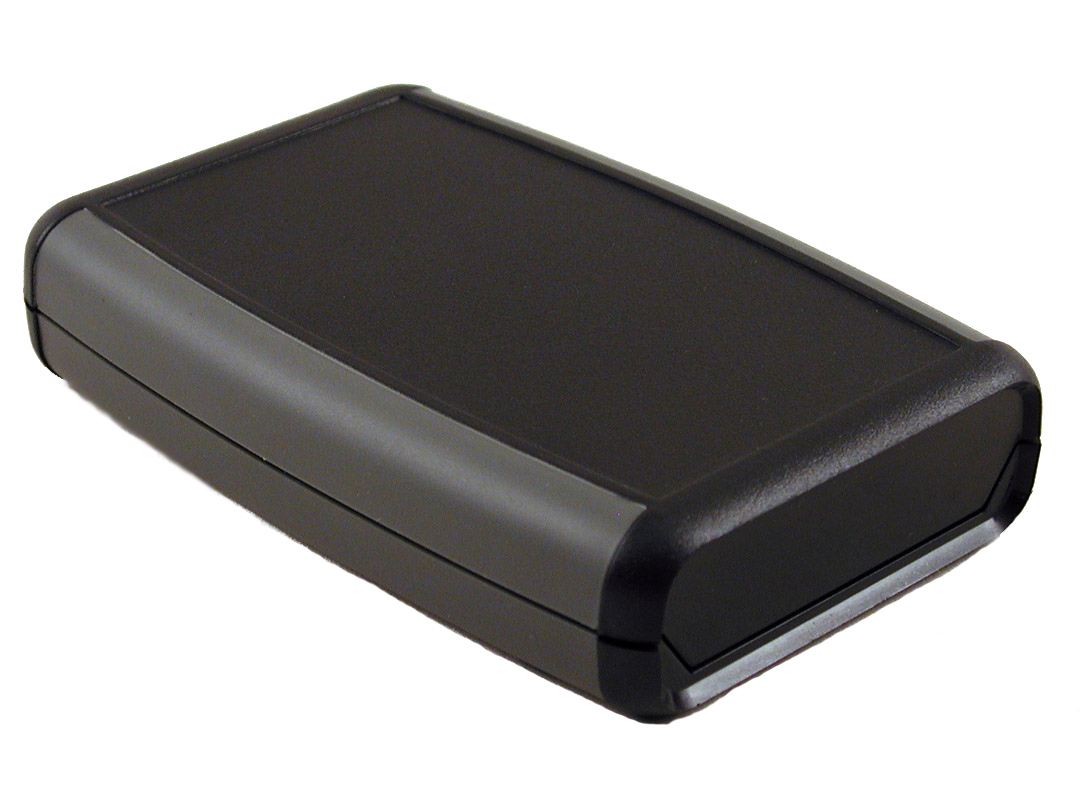

| 1553WBBK | Black | 4.61 | 3.11 | 0.98 | 1553WBGASKET | $11.97In stock1553WBBK | Buy now |

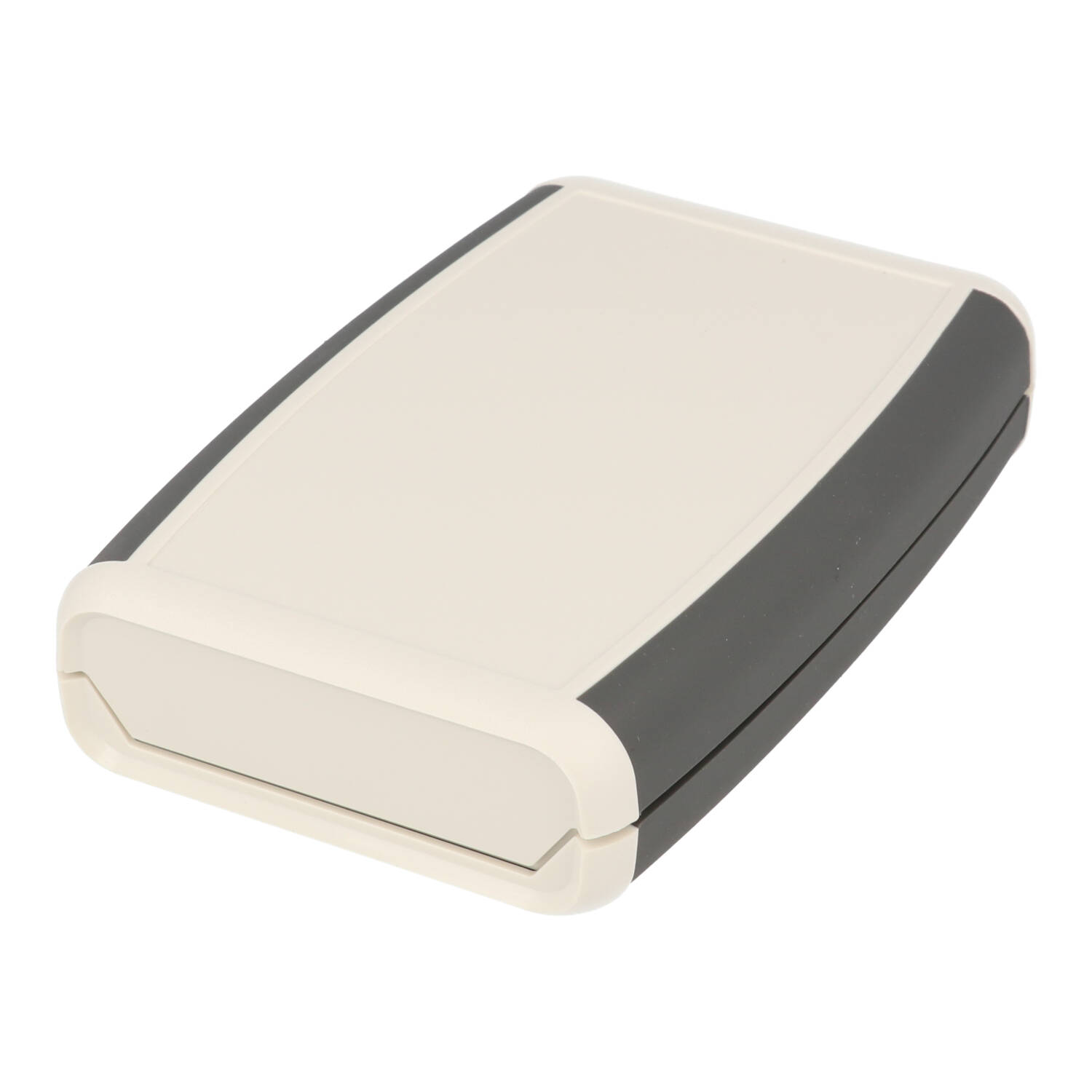

| 1553WBGY | Grey | 4.61 | 3.11 | 0.98 | 1553WBGASKET | $11.97In stock1553WBGY | Buy now |
| 1553WCBK | Black | 4.61 | 3.11 | 1.26 | 1553WCGASKET | $12.39In stock1553WCBK | Buy now |

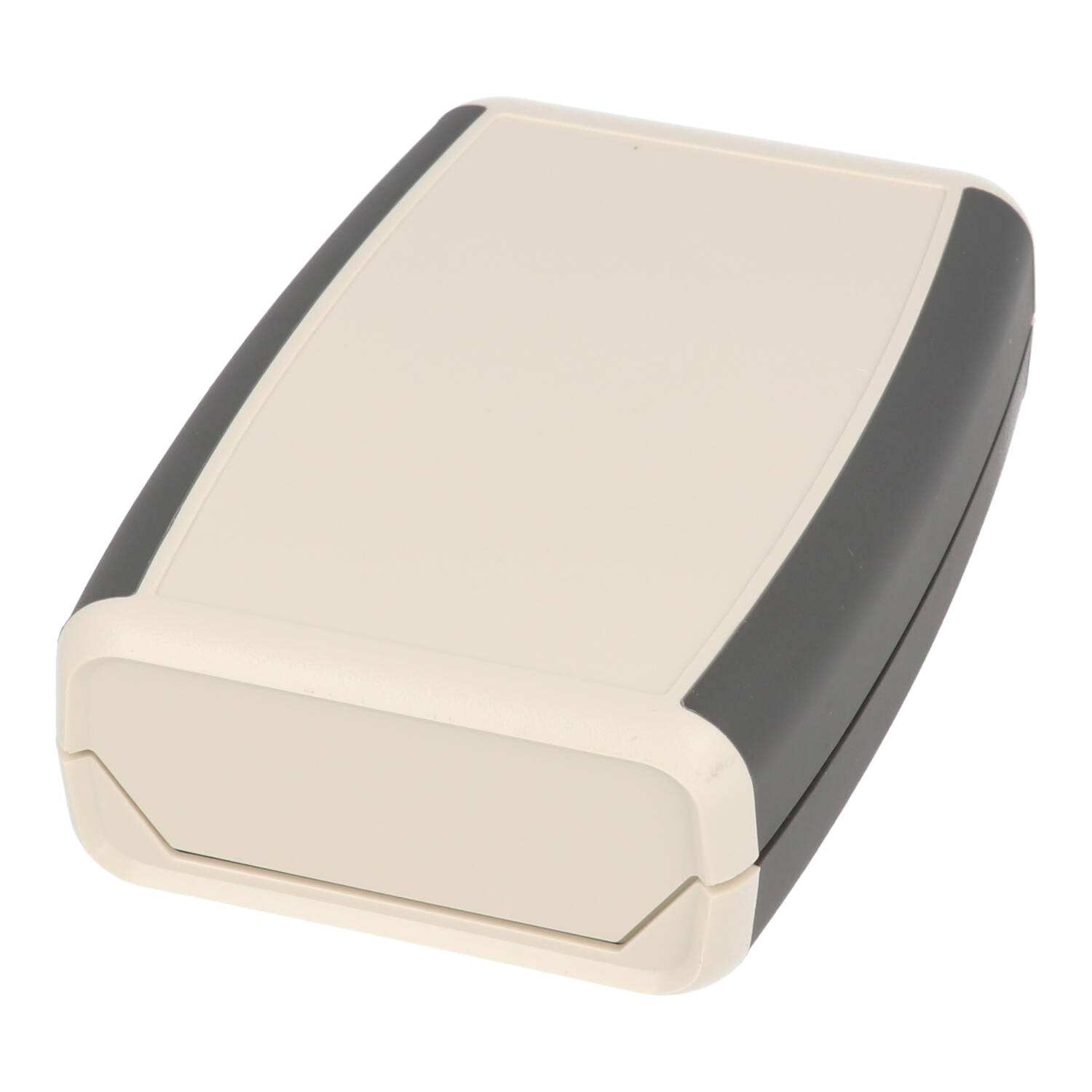

| 1553WCGY | Grey | 4.61 | 3.11 | 1.26 | 1553WCGASKET | $12.39In stock1553WCGY | Buy now |
| 1553WDBK | Black | 5.79 | 3.54 | 0.98 | 1553WDGASKET | $12.86In stock1553WDBK | Buy now |

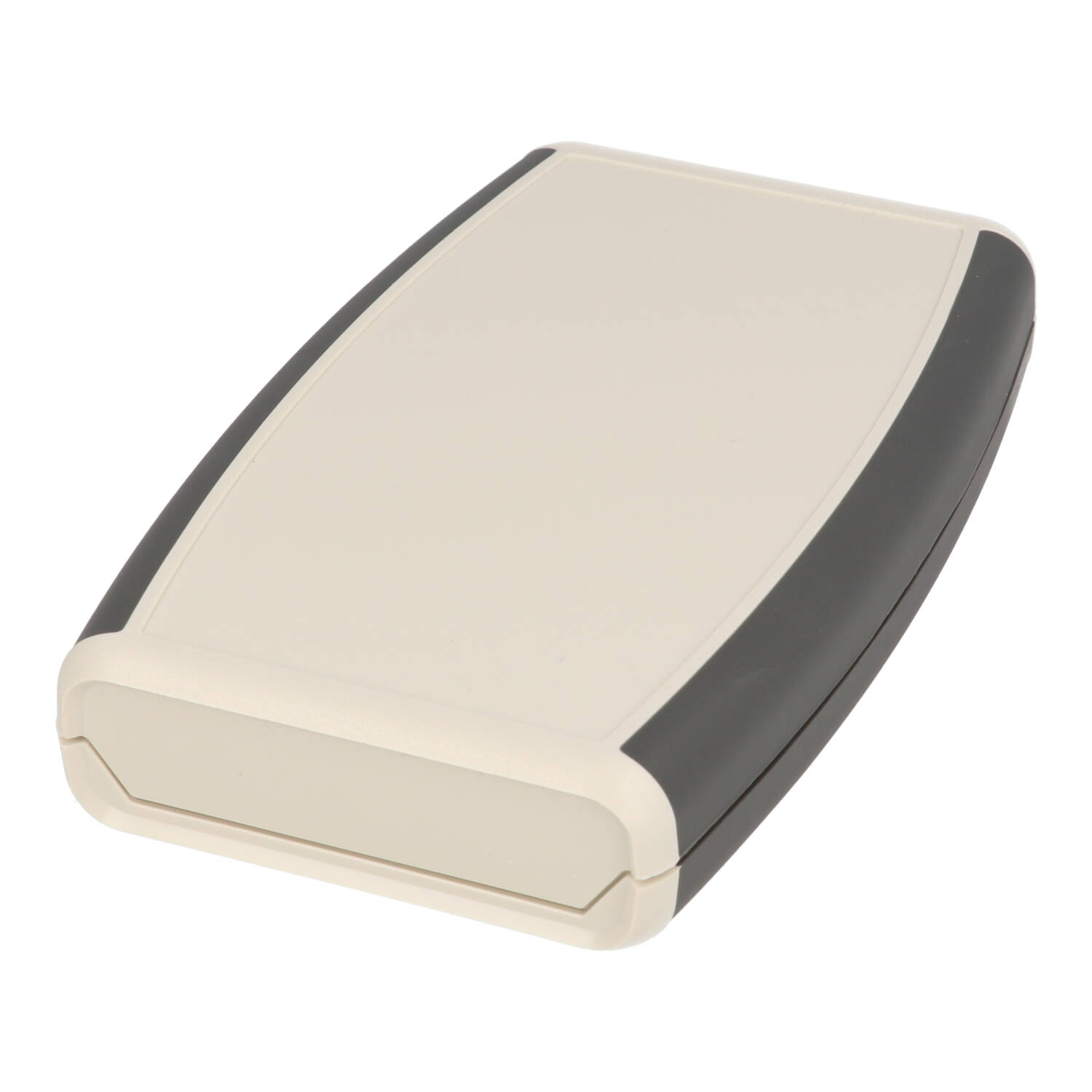

| 1553WDGY | Grey | 5.79 | 3.54 | 0.98 | 1553WDGASKET | $12.86In stock1553WDGY | Buy now |
Key Features:
- ■Ergonomically designed for hand-held comfort.
- ■Designed to meet IP65.
- ■Comes with pre-formed and pre-installed silicone gasket.
- ■Three sizes and two colors to choose from.
- ■Molded in flame retardant ABS plastic (FRABS) rated UL94 V-0 with a grey TPE overmold serving as a soft grip.
- ■Top cover is recessed for a membrane display or keypad.
- ■PC board standoffs are molded into both the top and bottom of the enclosure. Standoff screws (M2) not included. See 1553WTS100 for 100 pack of PCB screws.
- ■Front panel is integrated with top half of the enclosure.

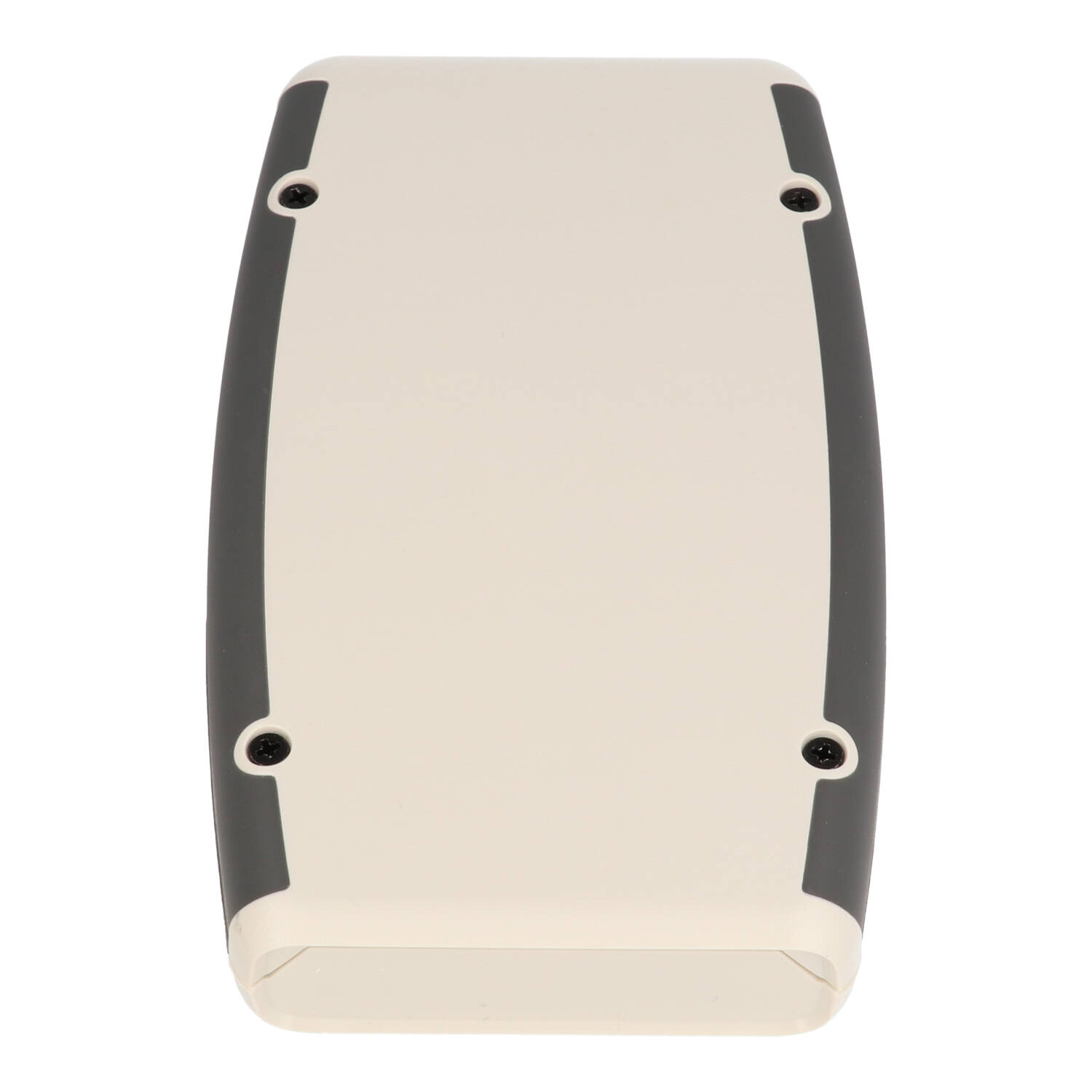

- ■Enclosure is secured with black stainless steel machine screws threaded into brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- ■Replacement assembly screws for sizes "B" and "D", part number SC1553WB100BK (100-pack, black stainless steel).
- ■Replacement assembly screws for size "C", part number SC1553WC100BK (100-pack, black stainless steel).
- ■For similar enclosures designed for general purpose applications, including more size and color options, see series 1553 .
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
Photo Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: mm . Switch units to: inch
Documents
Additional information
Part Numbers
| Part Number | Color | Length | Width | Total Depth | Replacement Gasket · (2-pack) |
|---|---|---|---|---|---|
| 1553WBBK | Black | 117 | 79 | 25 | 1553WBGASKET |
| 1553WBGY | Grey | 117 | 79 | 25 | 1553WBGASKET |
| 1553WCBK | Black | 117 | 79 | 32 | 1553WCGASKET |
| 1553WCGY | Grey | 117 | 79 | 32 | 1553WCGASKET |
| 1553WDBK | Black | 147 | 90 | 25 | 1553WDGASKET |
| 1553WDGY | Grey | 147 | 90 | 25 | 1553WDGASKET |
