Hammond 1553WDGASKET Silicone Replacement Gasket 2-Pack, 143x85 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone replacement gaskets per pack
- For 1553WDBK and 1553WDGY hand-held enclosures (147 x 90 x 25 mm)
- Gasket size 143 x 85 x 1 mm (5.63 x 3.36 x 0.05 in)
- IP65 rated
- REACH and RoHS compliant
- Supplied in a bag, 0.02 lbs (0.01 kg)

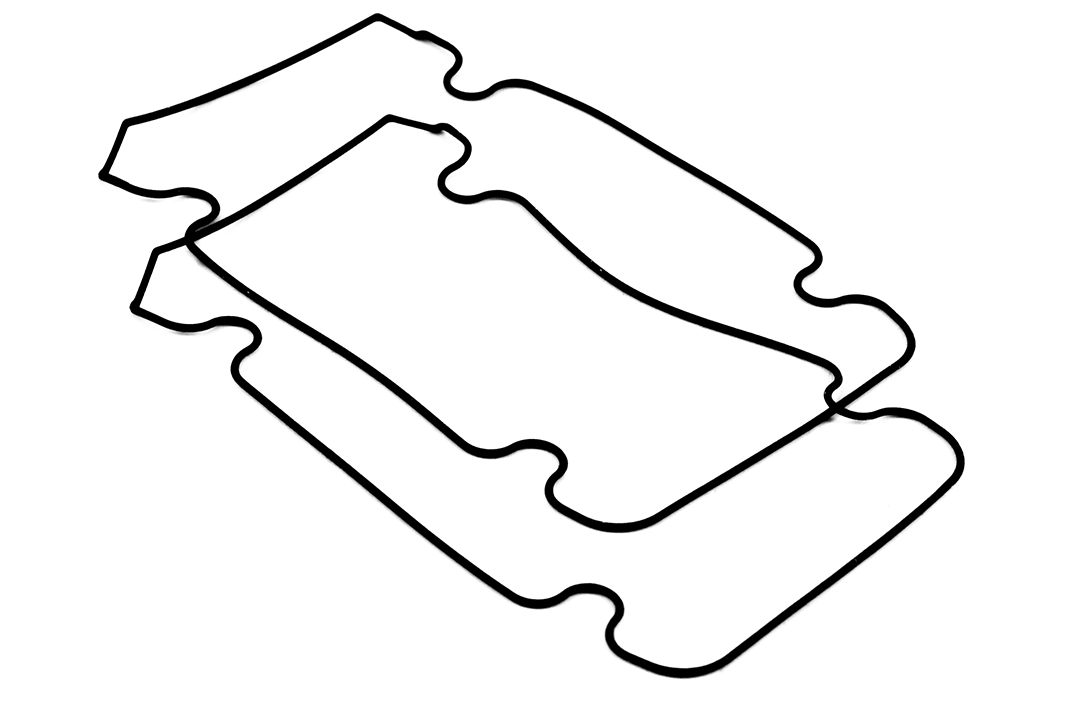

The 1553WDGASKET supplies two pre-formed silicone gaskets for the 1553WD size of water-tight hand-held enclosures, the 147 mm x 90 mm x 25 mm cases sold as 1553WDBK (black) and 1553WDGY (grey). Keep a pack on hand for field repairs, rework, or refurbishing products built in these enclosures.
Each silicone gasket measures 5.63 in x 3.36 in x 0.05 in (143 mm x 85 mm x 1 mm) and the part is rated IP65, the same level the 1553W series is designed to meet. The gasket fits the enclosure's channel, and the series design places the assembly screws outside that channel so the seal line stays uninterrupted.
1553WD enclosures close with black stainless steel machine screws threaded into brass bushings, intended for repetitive assembly and disassembly. When the cover screws also need replacing, the series lists SC1553WB100BK (100-pack, black stainless steel) for sizes B and D.
The 1553WDGASKET is REACH and RoHS compliant, packed in a bag, and ships at 0.02 lbs (0.01 kg). It is sized only for the 1553WD enclosures, whose listed total depth is 0.98 in (25 mm); the 1553WC size uses a different gasket, 1553WCGASKET.
Ideal For
- Replacing seals on 1553WD hand-held enclosures
- Spares for 1553WDBK and 1553WDGY products
- Restoring IP65 protection after rework
Overview
| Type | Gasket |
| Series | 1553W Water-Tight Hand-Held Enclosures |
| Description | replacement gaskets for 1553WD enclosures, 2-pack |
| Part Number | 1553WDGASKET |
| Pack Quantity | 2-pack |
| Short Description | GASKET FOR 1553WD - 2 PK |
Dimensions
| Size (L X W X H) | 5.63 in x 3.36 in x 0.05 in (143 mm x 85 mm x 1 mm) |
| Mating Enclosure Size (L X W X Total Depth) | 5.79 in (147 mm) x 3.54 in (90 mm) x 0.98 in (25 mm) |
Identifiers
| UPC | 623980402765 |
| UNSPSC | 39121301 |
Compatibility
| Fits Enclosures | 1553WDBK (Black), 1553WDGY (Grey) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Form | Pre-formed |
| Material | Silicone |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the 1553WDGASKET?▾
The 1553WD size: 1553WDBK (black) and 1553WDGY (grey).
How many gaskets come in a pack?▾
Two.
How big is each gasket?▾
5.63 in x 3.36 in x 0.05 in (143 mm x 85 mm x 1 mm).
What material is it?▾
Pre-formed silicone, rated IP65.
Is it RoHS compliant?▾
Yes, it is both RoHS and REACH compliant.
