Hammond 1553WBBK Black IP65 Water-Tight Handheld Enclosure, 25 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65 with pre-installed silicone gasket
- 117 x 79 x 25 mm (4.61 x 3.11 x 0.98 in) B size
- UV stabilized flame retardant ABS, UL94 V-0
- Grey TPE overmold soft grip
- Recessed top cover for membrane display or keypad
- Stainless steel screws into brass inserts, outside the gasket channel
- Molded PCB standoffs top and bottom (#2 x 3/16" screws)
- Replacement gasket 1553WBGASKET (2-pack)

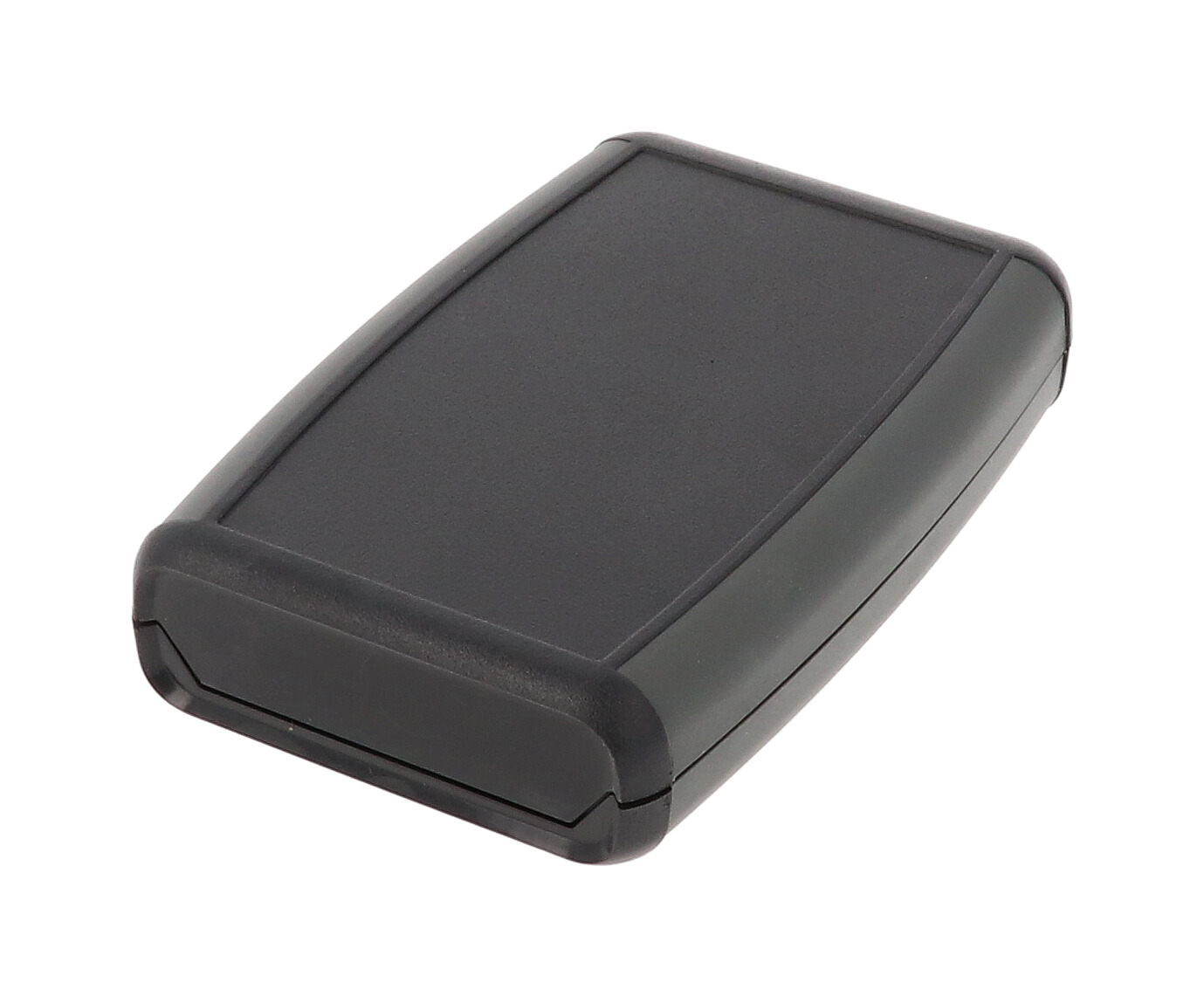

The 1553WBBK is the black, B-size model of the 1553W water-tight hand-held enclosure series. Designed to meet IP65, it comes with a pre-formed, pre-installed silicone gasket and a grey TPE overmold soft grip, giving engineers a comfortable handheld housing for electronics that must stand up to water and dust.

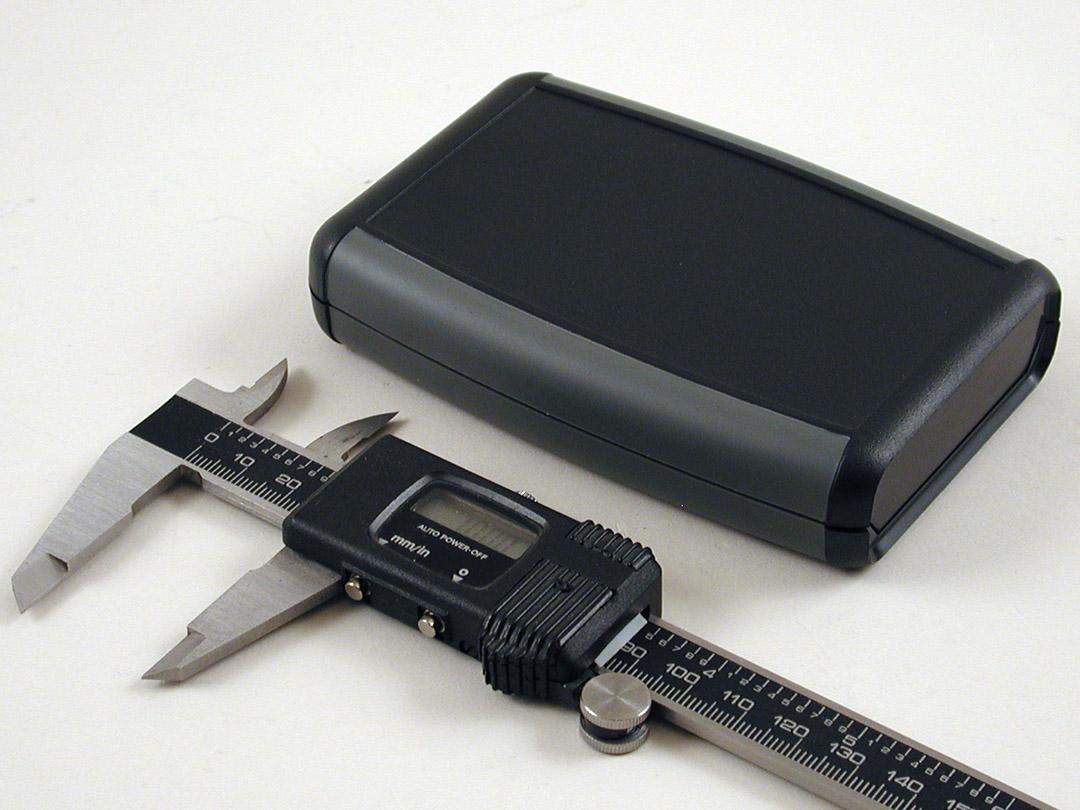

The case measures 4.61 x 3.11 x 0.98 in (117 x 79 x 25 mm); the drawing gives 117.25 x 78.92 x 25.00 mm overall, with an inside length of 110.71 mm in the top and 109.41 mm in the bottom. The part page lists maximum P.C. board figures of 68.49 mm and 107.23 mm.
The enclosure is molded from UV stabilized, flame retardant ABS rated UL94 V-0. The top cover is recessed for a membrane display or keypad, and the front panel is integrated with the top half. PC board standoffs are molded into both the top and bottom and accept #2 x 3/16" self-tapping screws, which are not included; order 1553WTS100 for a 100 pack.

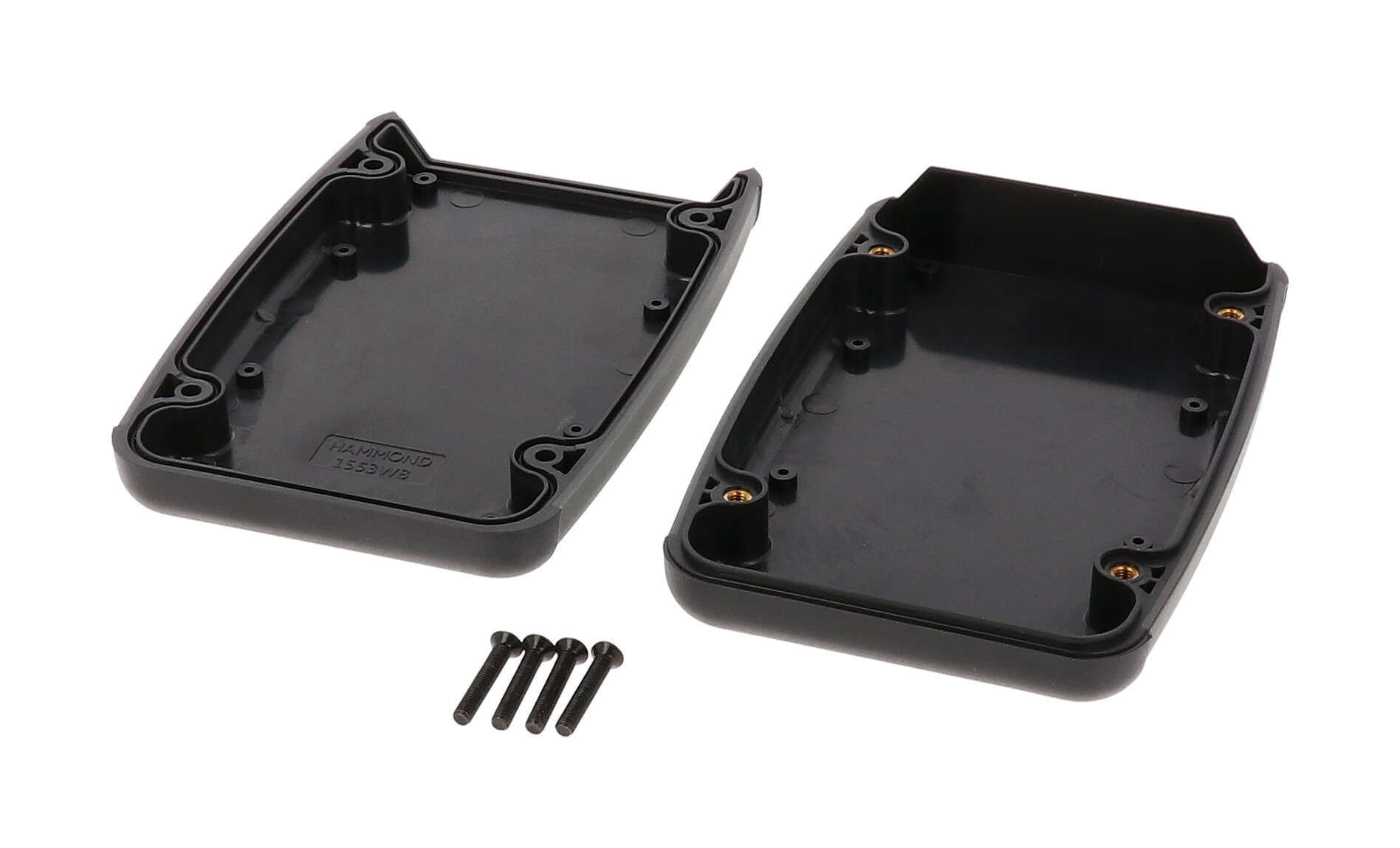

Black stainless steel machine screws thread into pre-installed M3 brass inserts, placed outside the gasket channel, which suits applications with repetitive assembly and disassembly. The 1553WBBK includes the top, bottom, pre-installed silicone gasket and 4 cover screws; recommended torque is 2.5 lbf-in (30 cN-m). Replacement screws are SC1553WB100BK and replacement gaskets 1553WBGASKET (2-pack). It is RoHS and REACH compliant and ships shrink wrapped at 0.21 lbs (0.10 kg).
Ideal For
- Water-tight handheld electronics
- Handheld devices with membrane keypad
- Enclosures opened repeatedly for service
- Handheld units needing IP65 protection
Overview
| Type | Hand-held, water-tight |
| Series | 1553W Series Water-Tight Hand-Held Enclosures |
| Short Description | SOFT TOUCH WATERTIGHT CASE BK |
Dimensions
| Width | 3.11 in (79 mm); drawing 78.92 mm [3.11 in] |
| Length | 4.61 in (117 mm); drawing 117.25 mm [4.62 in] |
| Total Depth | 0.98 in (25 mm); drawing 25.00 mm [.98 in] |
| Size (L X W X H) | 4.62 in x 3.11 in x 0.98 in (117 mm x 79 mm x 25 mm) |
| Inside Length For Top | 110.71 mm [4.36 in] |
| Inside Length For Bottom | 109.41 mm [4.31 in] |
| Nominal Size (Long Description) | 4.62 x 3.11 x 0.95 |
| Max. P.C. Board Width (Part Page) | 107.23 mm |
| Max. P.C. Board Length (Part Page) | 68.49 mm |
Accessories
| Replacement Gasket (2-pack) | 1553WBGASKET |
| Stainless Steel Cover Screw (Pkg 100), Black | SC1553WB100BK [M3-0.5 x 18 mm] |
| P.C. Board Plastite Self Tapping Screw (Pkg 100) | 1553WTS100 [#2 x 3/16" plated] |
Identifiers
| UPC | 623980402628 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Gasket | Pre-formed, pre-installed silicone gasket |
| Material | ABS Plastic (UV stabilized, FR ABS, UL 94-V0) |
| Overmold | Grey TPE overmold serving as a soft grip |
| Top Cover | Recessed for a membrane display or keypad |
| Front Panel | Integrated with top half of the enclosure |
| Solid Models | Available in STEP or IGES |
| Assembly Screws | Black stainless steel machine screws threaded into brass bushings; M3 brass inserts pre-installed; screws located outside the gasket channel |
| Enclosure Color | Black (part page: Black) |
| P.C. Board Mounting | PC board standoffs molded into top and bottom; posts accept #2 x 3/16" self-tapping screw (M2 standoff screws not included) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, pre-installed silicone gasket and 4 cover screws |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP65 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1553WBBK meet?▾
It is designed to meet IP65, using a pre-formed and pre-installed silicone gasket.
What are the dimensions?▾
4.61 x 3.11 x 0.98 in (117 x 79 x 25 mm).
Is the enclosure flame retardant?▾
Yes, it is molded from UV stabilized FR ABS rated UL94 V-0.
Are PCB mounting screws included?▾
No. The posts accept #2 x 3/16" self-tapping screws, available as 1553WTS100 (pack of 100).
What replacement parts are available?▾
Replacement gaskets are 1553WBGASKET (2-pack) and replacement black stainless steel cover screws are SC1553WB100BK (100-pack).
Is there a deeper version?▾
Yes, the C size (1553WCBK) has the same 117 x 79 mm footprint with a 32 mm depth.
