Hammond 1553WBGY Light Grey IP65 Water-Tight Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 design with pre-formed silicone gasket installed
- Light grey ABS with grey TPE soft grip overmold
- 117 x 79 x 25 mm (4.61 x 3.11 x 0.98 in)
- UV stabilized FR ABS rated UL94 V-0
- Front panel integrated with the top half
- Brass inserts and stainless screws for repeat assembly
- Recessed top cover for membrane display or keypad
The 1553WBGY is the grey B-size model in the 1553W series of water-tight hand-held enclosures. It is designed to meet IP65 and ships with a pre-formed, pre-installed silicone gasket, while a grey TPE overmold on the sides gives a soft grip for handheld use.
Overall it measures 4.61 x 3.11 x 0.98 in (117 x 79 x 25 mm), or 117.25 x 78.92 x 25.00 mm on the drawing. Inside, the top has a 110.71 mm length and the bottom 109.41 mm. The part page lists maximum P.C. board figures of 68.49 mm and 107.23 mm, and PC board standoffs are molded into both halves to accept #2 x 3/16" self-tapping screws (1553WTS100, sold separately).
The body is UV stabilized, flame retardant ABS rated UL94 V-0. The top cover is recessed for a membrane display or keypad, and the front panel is integrated with the top half, so there is no separate end panel to seal. Assembly uses black stainless steel machine screws into pre-installed M3 brass inserts, located outside the gasket channel.

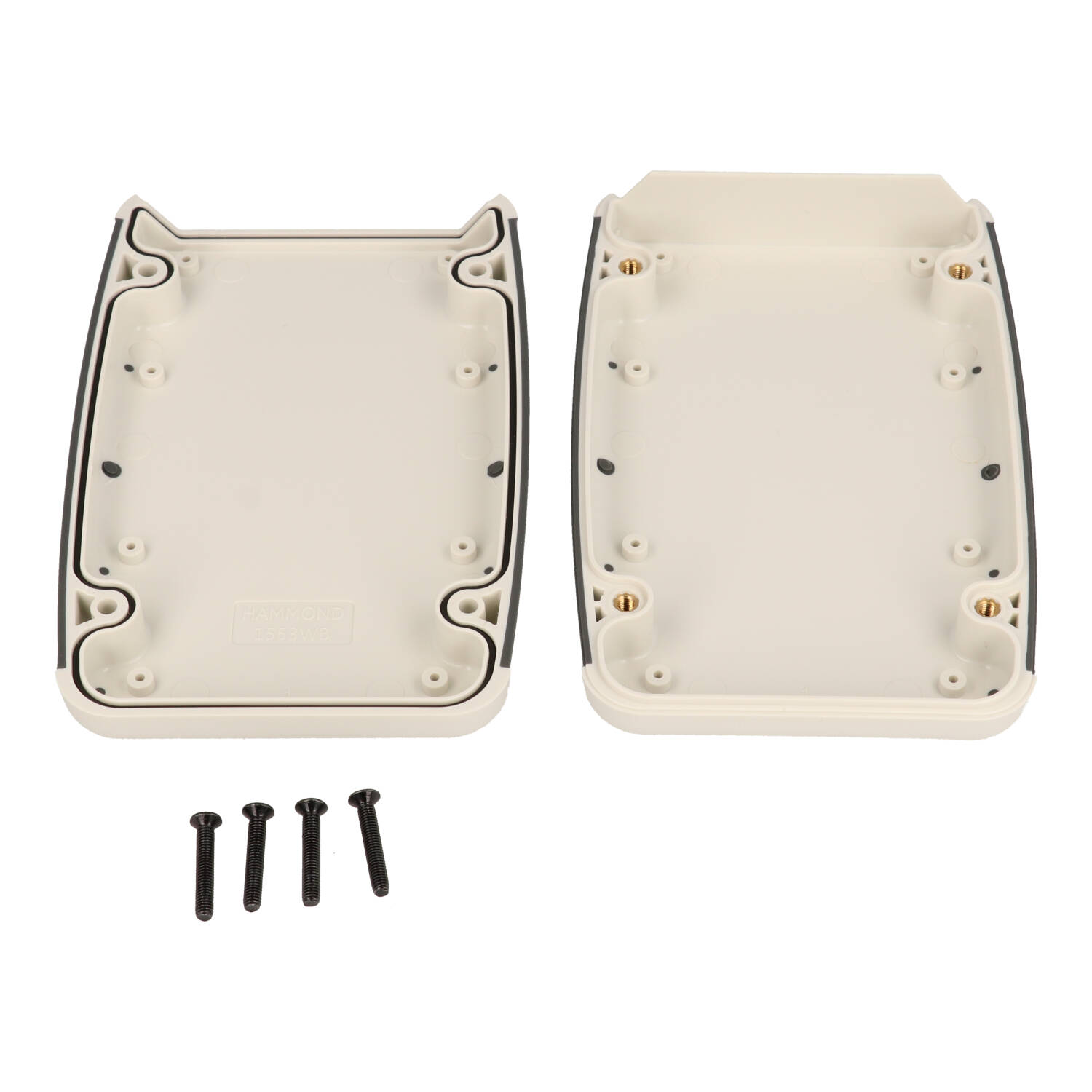

Each 1553WBGY includes the top, bottom, pre-installed silicone gasket and 4 cover screws. Tighten the cover screws to 2.5 lbf-in (30 cN-m). Replacement screws for B and D sizes are SC1553WB100BK, and the replacement gasket 2-pack is 1553WBGASKET. The enclosure is RoHS and REACH compliant and ships shrink wrapped at 0.21 lbs (0.10 kg).
Ideal For
- Water-tight handheld electronics
- Handheld keypad and display units
- Devices serviced through repeated assembly
- Handheld units needing IP65 protection
Overview
| Type | Hand-held, water-tight |
| Series | 1553W Series Water-Tight Hand-Held Enclosures |
| Short Description | SOFT TOUCH WATERTIGHT CASE GY |
Dimensions
| Width | 3.11 in (79 mm); drawing 78.92 mm [3.11 in] |
| Length | 4.61 in (117 mm); drawing 117.25 mm [4.62 in] |
| Total Depth | 0.98 in (25 mm); drawing 25.00 mm [.98 in] |
| Size (L X W X H) | 4.62 in x 3.11 in x 0.98 in (117 mm x 79 mm x 25 mm) |
| Inside Length For Top | 110.71 mm [4.36 in] |
| Inside Length For Bottom | 109.41 mm [4.31 in] |
| Nominal Size (Long Description) | 4.62 x 3.11 x 0.95 |
| Max. P.C. Board Width (Part Page) | 107.23 mm |
| Max. P.C. Board Length (Part Page) | 68.49 mm |
Accessories
| Replacement Gasket (2-pack) | 1553WBGASKET |
| Stainless Steel Cover Screw (Pkg 100), Black | SC1553WB100BK [M3-0.5 x 18 mm] |
| P.C. Board Plastite Self Tapping Screw (Pkg 100) | 1553WTS100 [#2 x 3/16" plated] |
Identifiers
| UPC | 623980402635 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Gasket | Pre-formed, pre-installed silicone gasket |
| Material | ABS Plastic (UV stabilized, FR ABS, UL 94-V0) |
| Overmold | Grey TPE overmold serving as a soft grip |
| Top Cover | Recessed for a membrane display or keypad |
| Front Panel | Integrated with top half of the enclosure |
| Solid Models | Available in STEP or IGES |
| Assembly Screws | Black stainless steel machine screws threaded into brass bushings; M3 brass inserts pre-installed; screws located outside the gasket channel |
| Enclosure Color | Grey (part page: Light Gray) |
| P.C. Board Mounting | PC board standoffs molded into top and bottom; posts accept #2 x 3/16" self-tapping screw (M2 standoff screws not included) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, pre-installed silicone gasket and 4 cover screws |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| IP Rating | IP65 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1553WBGY waterproof?▾
It is designed to meet IP65, sealed with a pre-installed silicone gasket.
What size is it?▾
4.61 x 3.11 x 0.98 in (117 x 79 x 25 mm).
Does it have a removable end panel?▾
No, the front panel is integrated with the top half of the enclosure.
Which gasket replaces the original?▾
1553WBGASKET, a 2-pack of silicone gaskets for 1553WB enclosures.
What screws close the cover?▾
Black stainless steel machine screws into M3 brass inserts; replacements are SC1553WB100BK (M3-0.5 x 18 mm, 100-pack).
What is the flame rating?▾
UL94 V-0.
