Type 4X Sloped Top Stainless Steel Freestanding · 2STFS Series

Brand: Hammond Manufacturing · 6 part numbers

■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for larger applications.
■20° sloped top prevents water from resting on top of enclosure.
■UL 508A Type 3R, 12, 4, 4X
■CSA Type 3R, 12, 4, 4X
■Complies with NEMA Type 3R, 12, 13, 4, 4X IEC 60529, IP66
■NEMA Type 3R, 12, 13, 4, 4X

from $13,618.92

6 of 6 part numbers priced · available on backorder · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 2STFS Series part number

Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

6 of 6 part numbers · 6 priced online

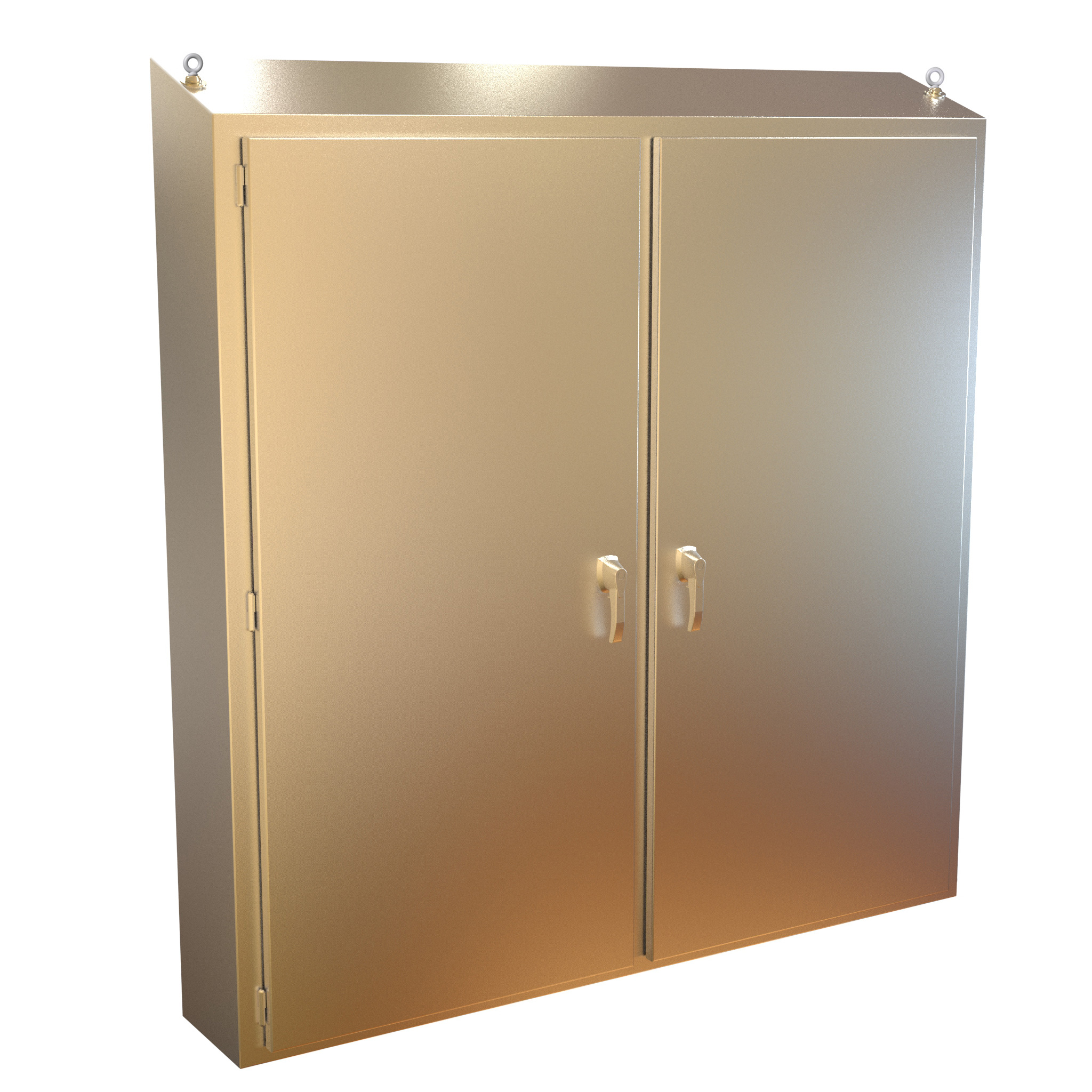

2STFS747512S16

Slope Top 2DR Freest 316SS

$16,287.43Backorder

Buy now

2STFS747512SS

Slope Top 2DR Freest 304SS

$13,618.92Backorder

Buy now

2STFS747518S16

Slope Top 2DR Freest 316SS

$17,759.17Backorder

Buy now

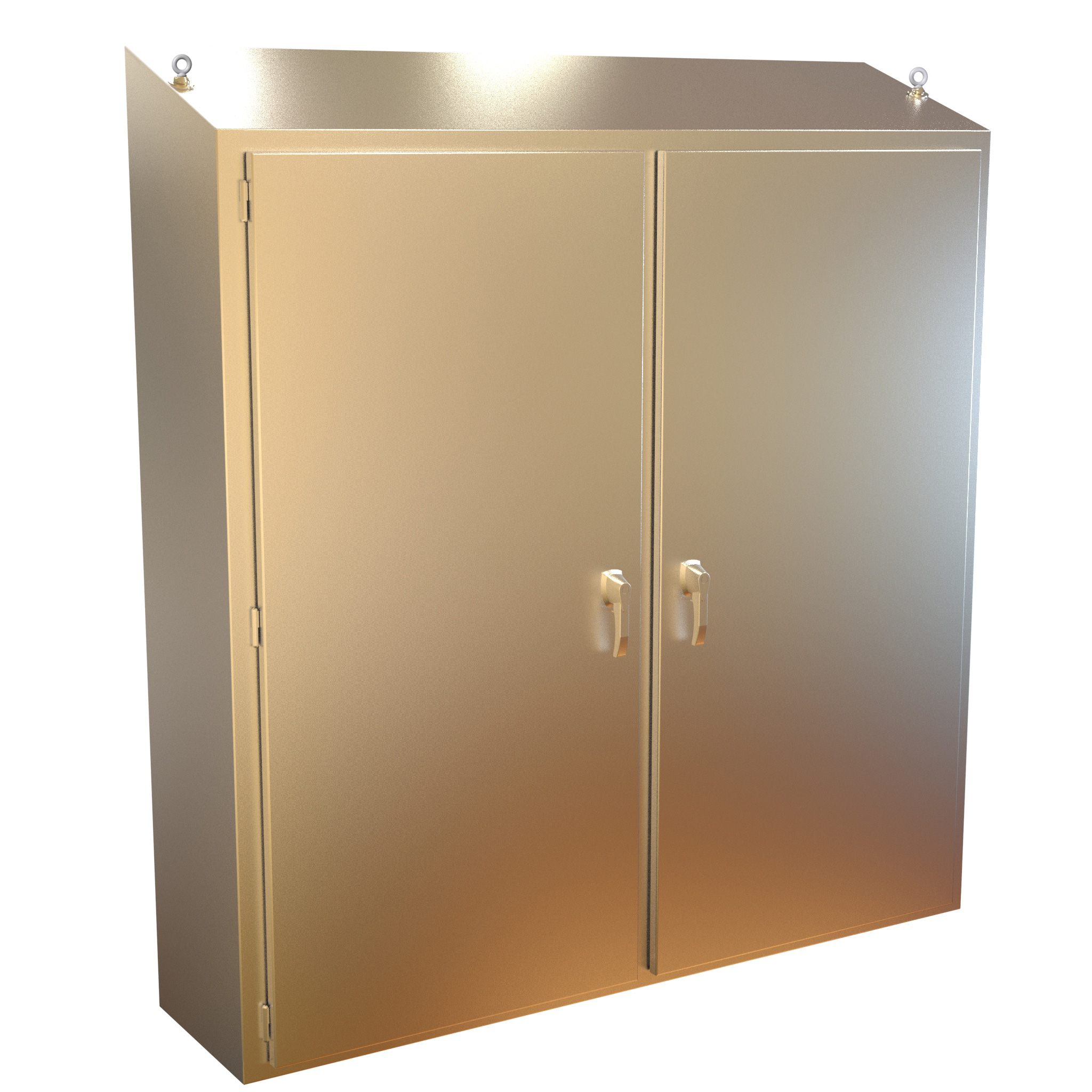

2STFS747518SS

Slope Top 2DR Freest 304SS

$14,844.12Backorder

Buy now

2STFS747524S16

Slope Top 2DR Freest 316SS

$19,131.65Backorder

Buy now

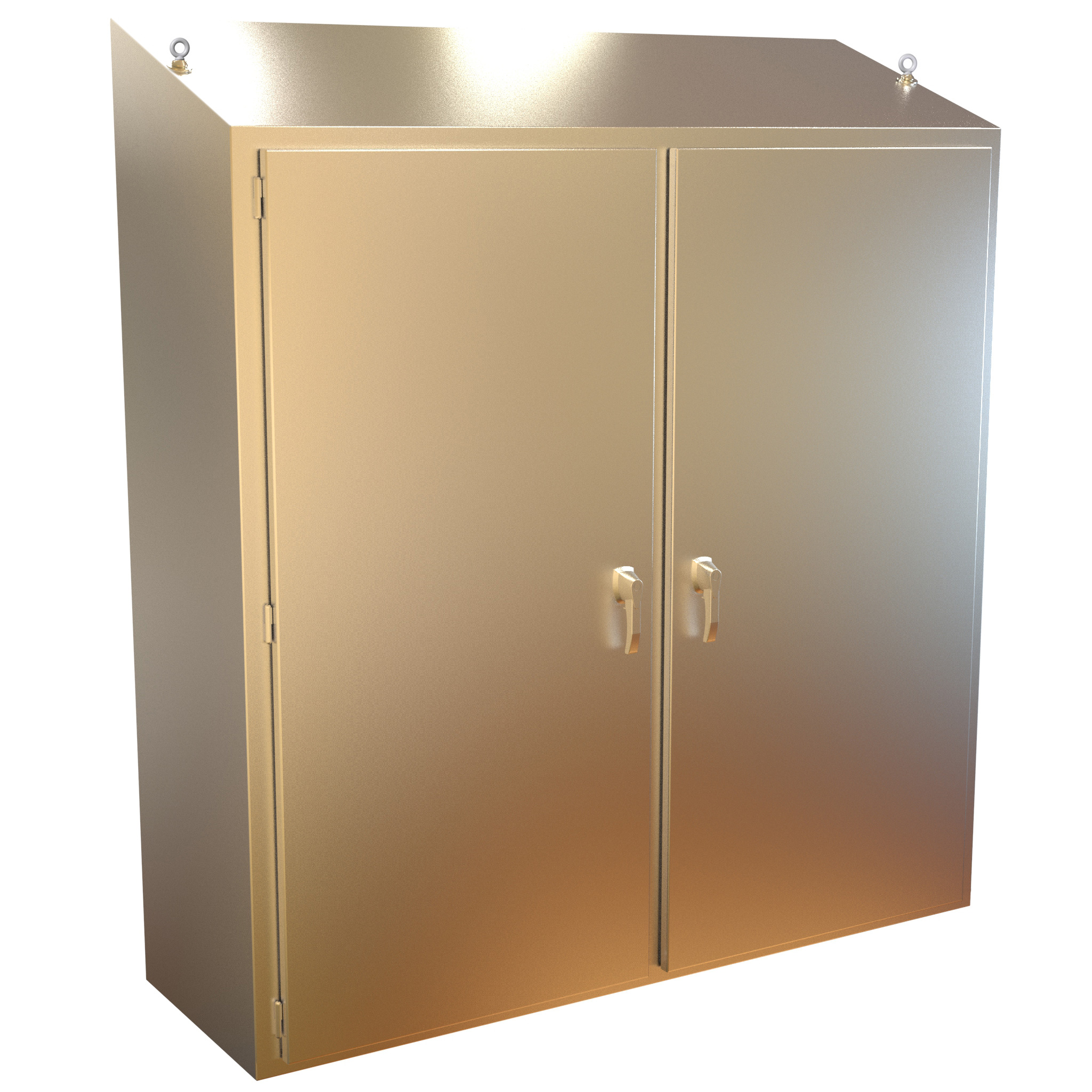

2STFS747524SS

Slope Top 2DR Freest 304SS

$15,985.96Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

304 S.S. · Part Number	316 S.S. · Part Number	Enclosure · H1	Enclosure · H2	Enclosure · W	Enclosure · D	Panel · H	Panel · W	Price	Order
2STFS747512SS	2STFS747512S16	74.13	79.49	75.13	12.13	68.00	68.00	$13,618.92Backorder2STFS747512SS	Buy now
2STFS747518SS	2STFS747518S16	74.13	79.49	75.13	18.13	68.00	68.00	$14,844.12Backorder2STFS747518SS	Buy now
2STFS747524SS	2STFS747524S16	74.13	79.49	75.13	24.13	68.00	68.00	$15,985.96Backorder2STFS747524SS	Buy now

Application

■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for larger applications.
■20° sloped top prevents water from resting on top of enclosure.

Standards

■UL 508A Type 3R, 12, 4, 4X
■CSA Type 3R, 12, 4, 4X
■Complies with NEMA Type 3R, 12, 13, 4, 4X IEC 60529, IP66
■NEMA Type 3R, 12, 13, 4, 4X
■IEC 60529, IP66
■Appropriate components are required to maintain these standards.

Construction

■Formed from 12 gauge 304 or 316L stainless steel with smooth, continuously welded seams.
■Flange trough collar (FTC) around door opening excludes liquids and contaminants.
■Heavy duty lifting eyes are anchored into reinforced top corners.
■Removable doors are secured with bullet style, heavy duty, lift off hinges.
■Formed 10 gauge steel inner panel is provided on collar studs.
■Panel supports are provided.
■Center post is removable, providing easy panel installation.
■Heavy duty three point latching mechanism with heavy duty roller ends is provided for ease of door closing.
■Seamless poured-in place gasket.
■Stainless steel door handles complete with padlock hasp.
■A provision for mounting fluorescent lighting is provided.
■A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door.
■A literature pocket is provided for the inside of the door.

Finish

■Door and enclosure are natural stainless steel with a smooth, brushed finish..
■Inner panel is finished in white powder coating.

Documents

Specification Sheet CE Declaration

Additional information

Part Details

304 S.S. · Part Number	316 S.S. · Part Number	Enclosure · H1	Enclosure · H2	Enclosure · W	Enclosure · D	Panel · H	Panel · W
2STFS747512SS	2STFS747512S16	74.13	79.49	75.13	12.13	68.00	68.00
2STFS747518SS	2STFS747518S16	74.13	79.49	75.13	18.13	68.00	68.00
2STFS747524SS	2STFS747524S16	74.13	79.49	75.13	24.13	68.00	68.00
