Hammond 2STFS747512SS 74x75x12 Slope Top 304 Stainless Freestanding Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Formed 12 gauge 304 stainless steel with continuously welded seams
- 20° sloped top so water cannot rest on the enclosure
- H1 74.13 in / H2 79.49 in x 75.13 in W x 12.13 in D
- UL 508A / CSA Type 3R, 12, 4, 4X; complies with NEMA 13 and IP66
- 68 x 68 in white powder coated 10 gauge inner panel with removable center post
- Three point latching with roller ends and padlockable stainless handles
- Provision for mounting fluorescent lighting

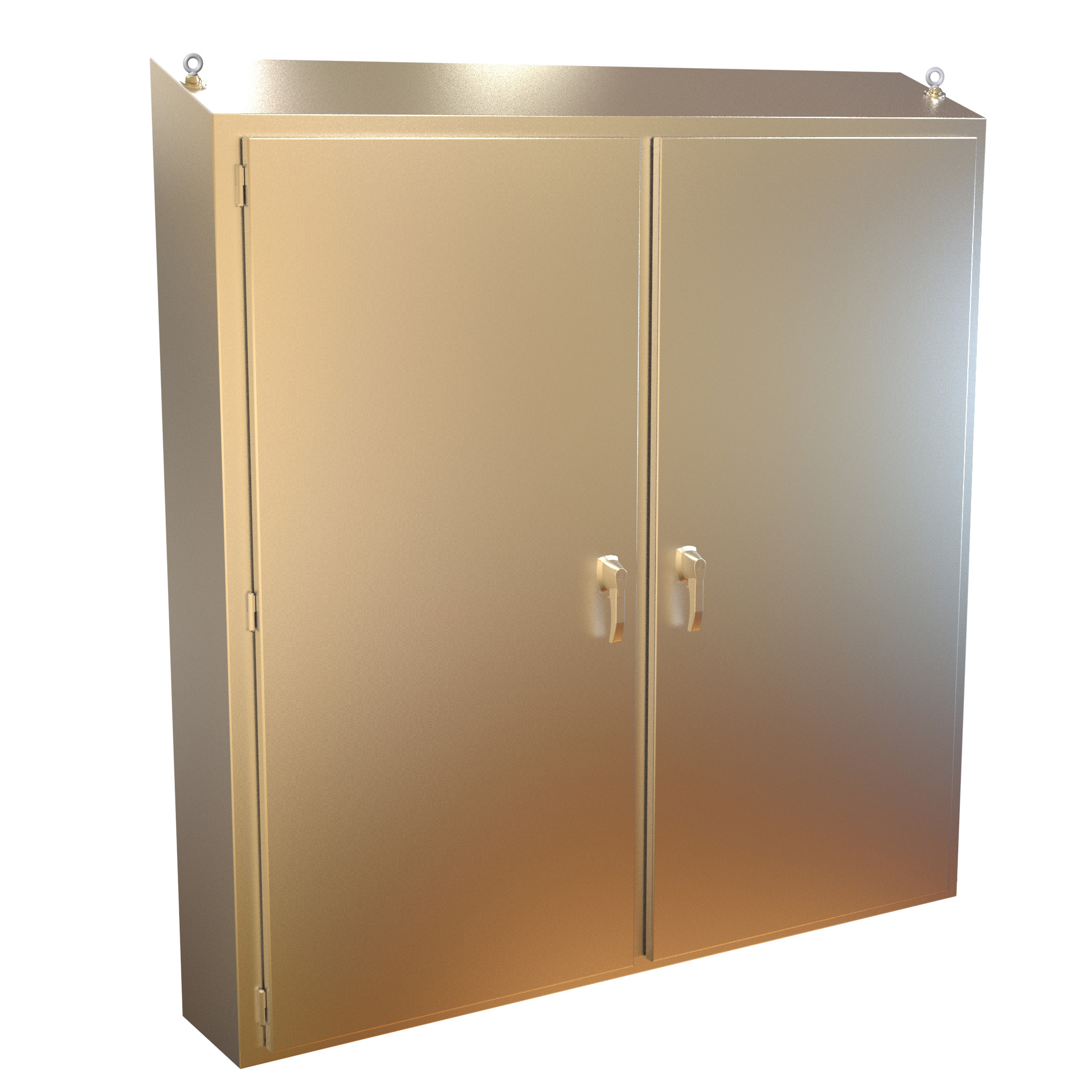

The 2STFS747512SS is the 304 stainless steel, 12 in deep version of the 2STFS sloped top freestanding enclosure. Its two doors and 20° sloped top suit larger applications where electrical and/or electronic equipment must be protected against harsh, industrial environments, and the sloped roof keeps water from resting on top.
This model measures H1 74.13 in (1883 mm) and H2 79.49 in (2019 mm), with a width of 75.13 in (1908 mm) and a depth of 12.13 in (308 mm), listed nominally as 74 x 75 x 12. The drawing shows twin 32.81 in wide door openings, 34.45 in wide doors and 29.93 in of clear space on each door. A formed 10 gauge steel inner panel, 68.00 x 68.00 in (1727 x 1727 mm) in white powder coating, is provided on collar studs with panel supports, and the removable center post simplifies panel installation.
- Formed 12 gauge 304 stainless steel, smooth continuously welded seams, natural brushed finish
- Flange trough collar (FTC) around the door opening and seamless poured-in place gasket
- Removable doors on bullet style, heavy duty lift off hinges
- Heavy duty three point latching with roller ends; stainless handles with padlock hasp
- Lifting eyes anchored into reinforced top corners, fluorescent lighting provision, literature pocket, bonding and grounding studs for each door
Ratings for the 2STFS747512SS are UL 508A and CSA Type 3R, 12, 4, 4X; it complies with NEMA Type 3R, 12, 13, 4, 4X and IEC 60529 IP66, provided appropriate components are used to maintain these standards. It is RoHS and REACH compliant. Shipping weight is 1227 lbs (556.56 kg) on a skid.
Ideal For
- Large electrical control installations
- Harsh industrial environments
- Outdoor locations exposed to rain
- Washdown areas
Overview
| Series | 2STFS Series |
| Material | 304 stainless steel |
| Product Type | Type 4X sloped top stainless steel two door freestanding enclosure with inner panel |
| Long Description | N4X Slope Top 2 Door Freestanding Encl w/panel - 74 x 75 x 12 - 304SS |
| Short Description | SLOPE TOP 2DR FREEST 304SS |
| Available Accessories | Wash down floor stand kit, window kits, lighting, door stop kit, climate control, general accessories |
| Equivalent In 316 S.S. | 2STFS747512S16 |
Dimensions
| Sloped Top | 20° |
| Size H X W X D | 74.13 in x 75.13 in x 12.13 in (1,883 mm x 1,908 mm x 308 mm) |
| Enclosure Depth | 12.13 in (308 mm) |
| Enclosure Width | 75.13 in (1908 mm) |
| Inner Panel Width | 68.00 in (1727 mm) |
| Inner Panel Height | 68.00 in (1727 mm) |
| Door Width (Drawing) | 34.45 in |
| Enclosure Height (H1) | 74.13 in (1883 mm) |
| Enclosure Height (H2) | 79.49 in (2019 mm) |
| Nominal Size (Long Description) | 74 x 75 x 12 in |
| Clear Space Available On Door (Drawing) | 29.93 in |
Identifiers
| UPC | 623980798981 |
| UNSPSC | 39121301 |
| Part Number | 2STFS747512SS |
Packaging & Shipping
| Packaging Type | Skid |
| Shipping Weight | 1227 lbs (556.56 kg) |
Construction & Finish
| Seams | Smooth, continuously welded seams |
| Gasket | Seamless poured-in place gasket |
| Hinges | Removable doors secured with bullet style, heavy duty, lift off hinges |
| Handles | Stainless steel door handles complete with padlock hasp |
| Lifting | Heavy duty lifting eyes anchored into reinforced top corners |
| Latching | Heavy duty three point latching mechanism with heavy duty roller ends |
| Grounding | Bonding stud in the door and grounding stud in the enclosure for each door |
| Center Post | Removable, for easy panel installation |
| Inner Panel | Formed 10 gauge steel inner panel on collar studs, finished in white powder coating |
| Panel Supports | Provided |
| Enclosure Finish | Natural stainless steel with a smooth, brushed finish |
| Liquid Exclusion | Flange trough collar (FTC) around door opening |
| Literature Pocket | Provided for the inside of the door |
| Enclosure Material | Formed 12 gauge 304 stainless steel |
| Lighting Provision | Provision for mounting fluorescent lighting |
Environmental & Protection
| Application | Enclosing electrical and/or electronic equipment in harsh, industrial environments for larger applications |
| Standards Note | Appropriate components are required to maintain these standards |
| Water Shedding | 20° sloped top prevents water from resting on top of enclosure |
| Environmental Rating | Type 4X |
Compliance & Certifications
| UL | UL 508A Type 3R, 12, 4, 4X |
| CSA | CSA Type 3R, 12, 4, 4X |
| IEC 60529 | IP66 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Declared Standards | EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 |
| NEMA (Complies With) | NEMA Type 3R, 12, 13, 4, 4X |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU; RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 2STFS747512SS?▾
H1 74.13 in, H2 79.49 in, 75.13 in wide and 12.13 in deep (1883 / 2019 x 1908 x 308 mm).
What stainless steel grade is it?▾
Formed 12 gauge 304 stainless steel. The 316 stainless equivalent is 2STFS747512S16.
Can the doors be removed?▾
Yes. The removable doors are secured with bullet style, heavy duty, lift off hinges.
Is the enclosure suitable outdoors?▾
It is rated UL 508A and CSA Type 3R, 12, 4, 4X and complies with NEMA Type 3R, 12, 13, 4, 4X and IEC 60529 IP66, with a 20° sloped top that prevents water from resting on it.
What accessories are offered for the series?▾
The series lists a wash down floor stand kit, window kits, lighting, a door stop kit, climate control and general accessories.
