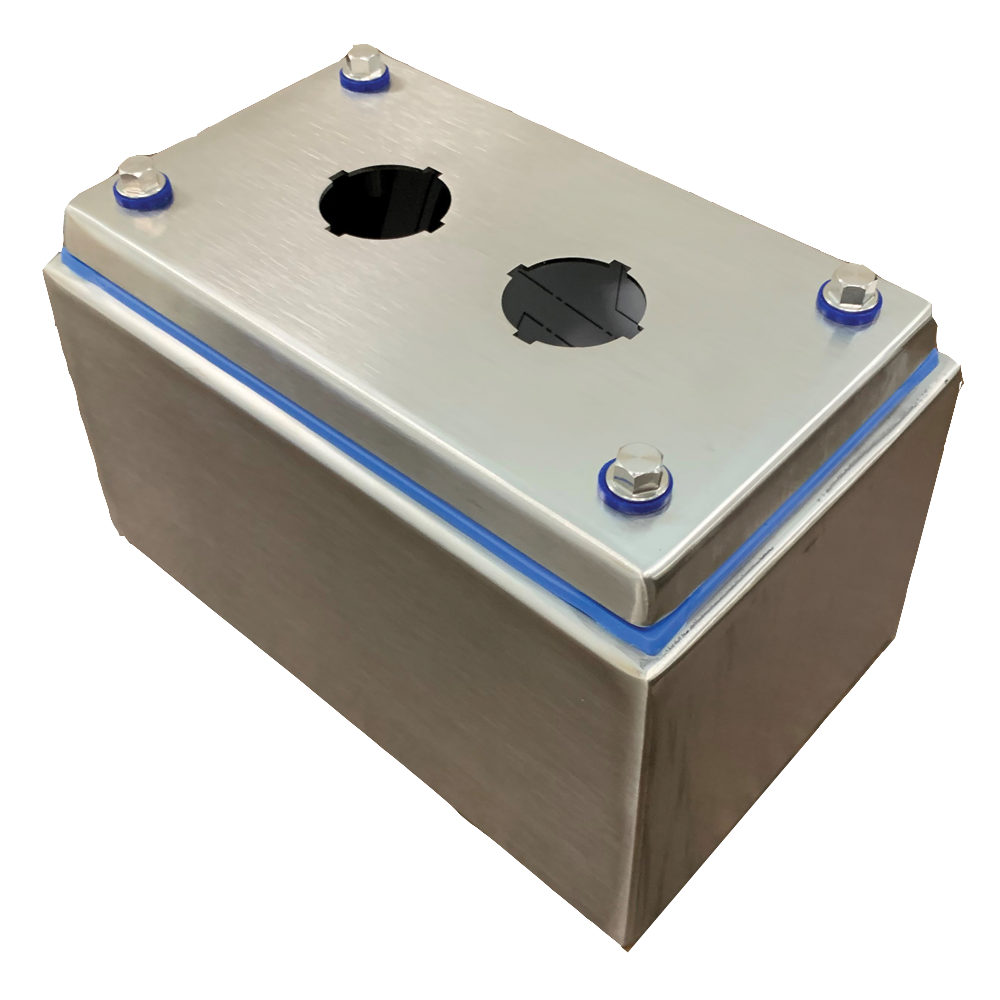

Hygienic Type 4X Stainless Steel Pushbutton Enclosure · HYPB Series
Brand: Hammond Manufacturing · 20 part numbers
Sloped Sides with Silicone Gasket
- ■Designed to enclose pushbuttons and indicators while protecting against harsh, hygienic environments.
- ■Sloped on 4 sides prevent water from resting on top regardless of enclosure orientation.
- ■Hex head design screws and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 12, 4, 4X
- ■CSA Type 3R, 12, 4, 4X
from $98.77
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HYPB Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 17 priced online
Hygienic N4X Gasket
$119.32In stock
Buy nowHygienic N4X Gasket
$102.78In stock
Buy now
Hygienic N4X 22MM 1PB
$739.49In stock
Buy now
Hygienic N4X 22MM 1PB
$702.49In stock
Buy now
Hygienic N4X 22MM 2PB
$777.67In stock
Buy now
Hygienic N4X 22MM 3PB
$820.56In stock
Buy now
Hygienic N4X 22MM 4PB
$930.60In stock
Buy now
Hygienic N4X 22MM 4PB Vertical
$888.71In stock
Buy now
Hygienic N4X 22MM 6PB
$1,083.53In stock
Buy now
Hygienic N4X 30MM 1PB
$739.49In stock
Buy now
Hygienic N4X 30MM 1PB
$702.49In stock
Buy now
Hygienic N4X 30MM 2PB
$777.67In stock
Buy now
Hygienic N4X 30MM 3PB
$820.56In stock
Buy now
Hygienic N4X 30MM 4PB
$930.60In stock
Buy now
Hygienic N4X 30MM 4PB Vertical
$888.71In stock
Buy now
Hygienic N4X 30MM 6PB
$1,083.53In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 22mm Hole · Part No. | 30mm Hole · Part No. | # Holes | Enclosure · H | Enclosure · W | Enclosure · D | Replacement · Gasket (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|

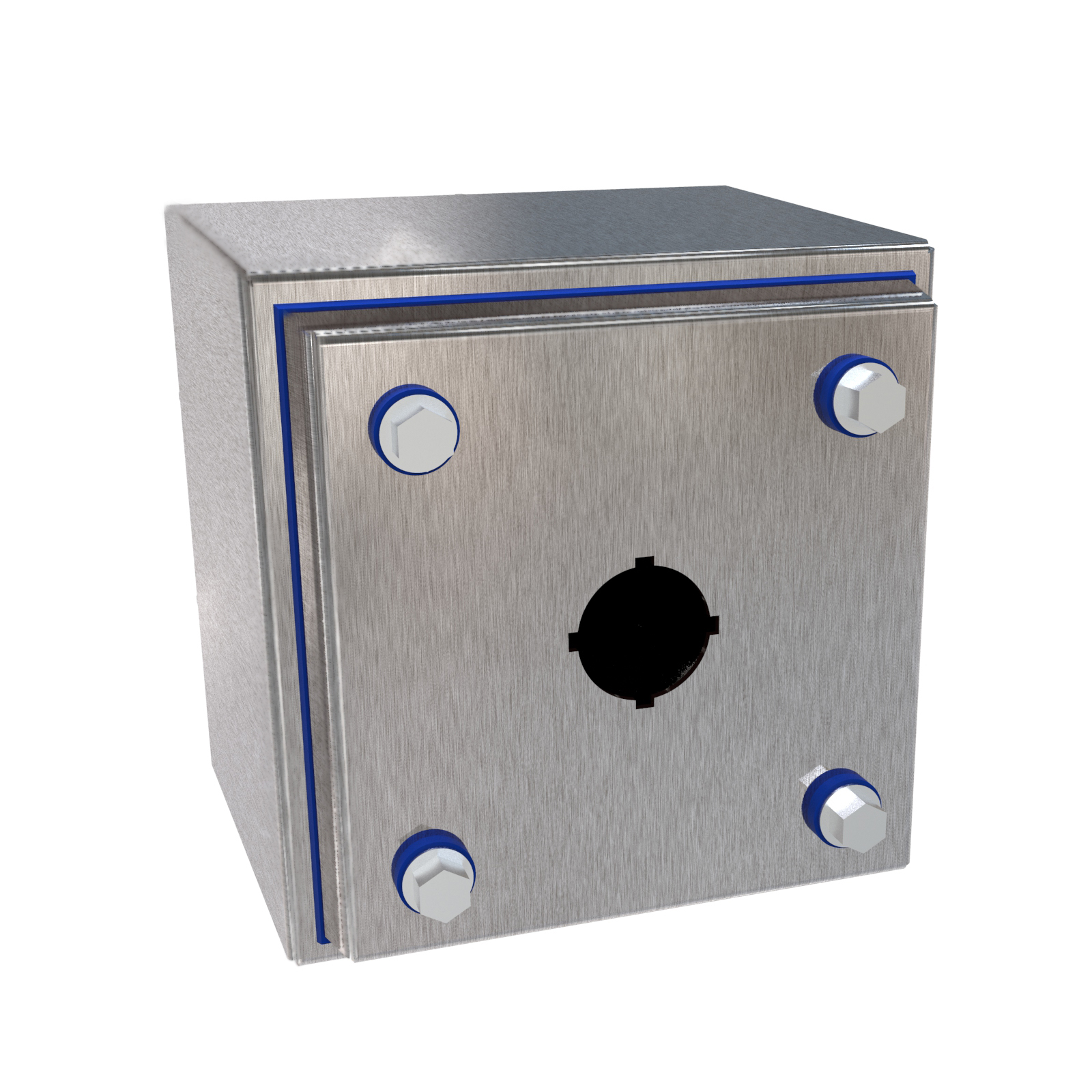

| HYMPB1SSR | HYPB1SSR | 1 | 4.98 | 4.98 | 4.00 | HYG55 | $702.49In stockHYMPB1SSR | Buy now |
| HYMPB1SS | HYPB1SS | 1 | 7.94 | 4.88 | 4.00 | HYG85 | $739.49In stockHYMPB1SS | Buy now |
| HYMPB2SS | HYPB2SS | 2 | 7.94 | 4.88 | 4.00 | HYG85 | $777.67In stockHYMPB2SS | Buy now |

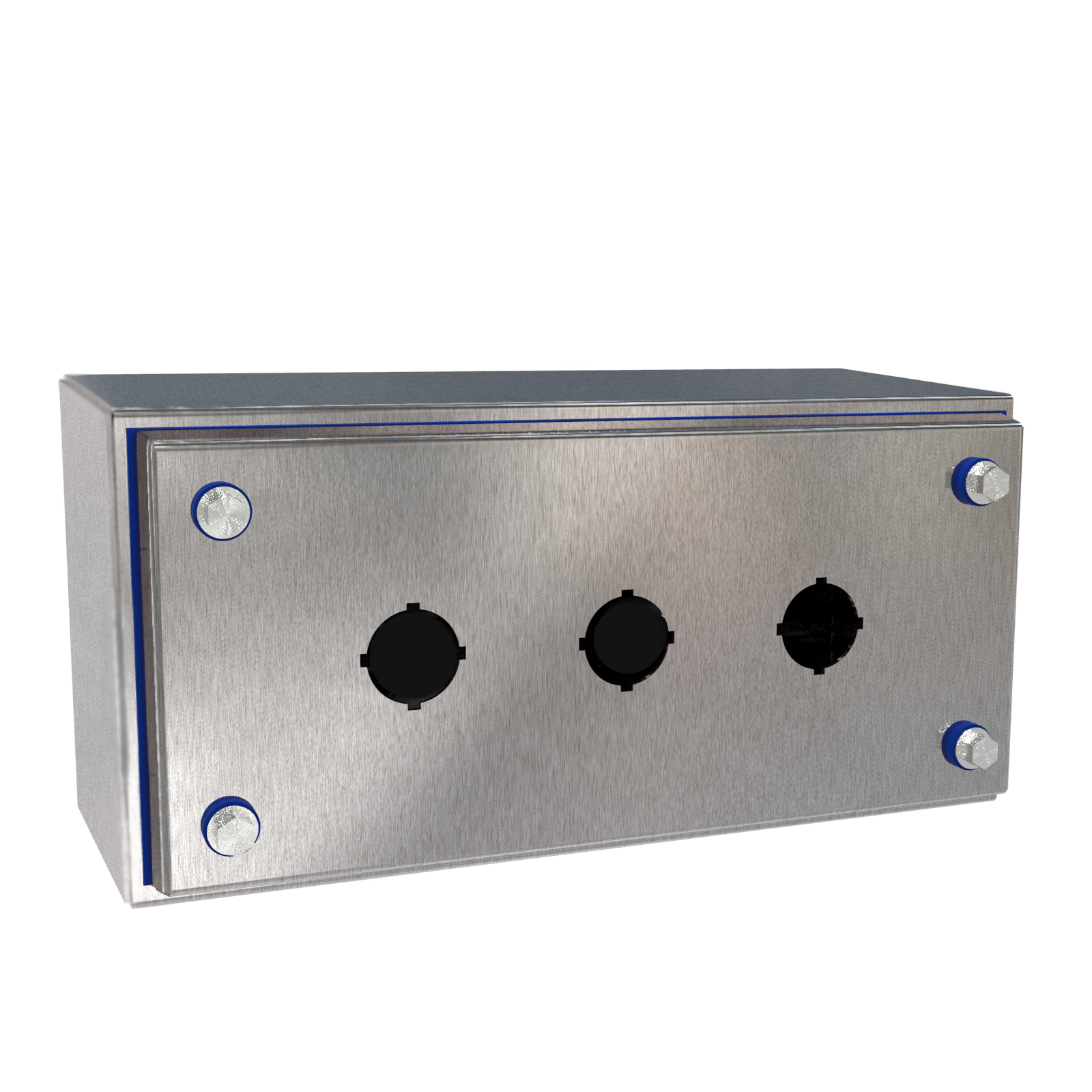

| HYMPB3SS | HYPB3SS | 3 | 9.94 | 4.88 | 4.00 | HYG105 | $820.56In stockHYMPB3SS | Buy now |
| HYMPB4VSS | HYPB4VSS | 4 | 11.94 | 4.88 | 4.00 | HYG125 | $888.71In stockHYMPB4VSS | Buy now |
| HYMPB4SS | HYPB4SS | 4 | 9.94 | 6.88 | 4.00 | HYG107 | $930.60In stockHYMPB4SS | Buy now |
| HYMPB6SS | HYPB6SS | 6 | 11.94 | 8.88 | 4.00 | HYG129 | $1,083.53In stockHYMPB6SS | Buy now |
Application
- ■Designed to enclose pushbuttons and indicators while protecting against harsh, hygienic environments.
- ■Sloped on 4 sides prevent water from resting on top regardless of enclosure orientation.
- ■Hex head design screws and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 12, 4, 4X
- ■CSA Type 3R, 12, 4, 4X
- ■NSF – ANSI 169 Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Complies with NEMA 3R, 12, 4, 4X IEC 60529, IP69, IP69K
- ■NEMA 3R, 12, 4, 4X
- ■IEC 60529, IP69, IP69K
Construction
- ■Formed 304 stainless steel.
- ■Sloped 3° on all 4 sides
- ■Continuously welded seams ground smooth.

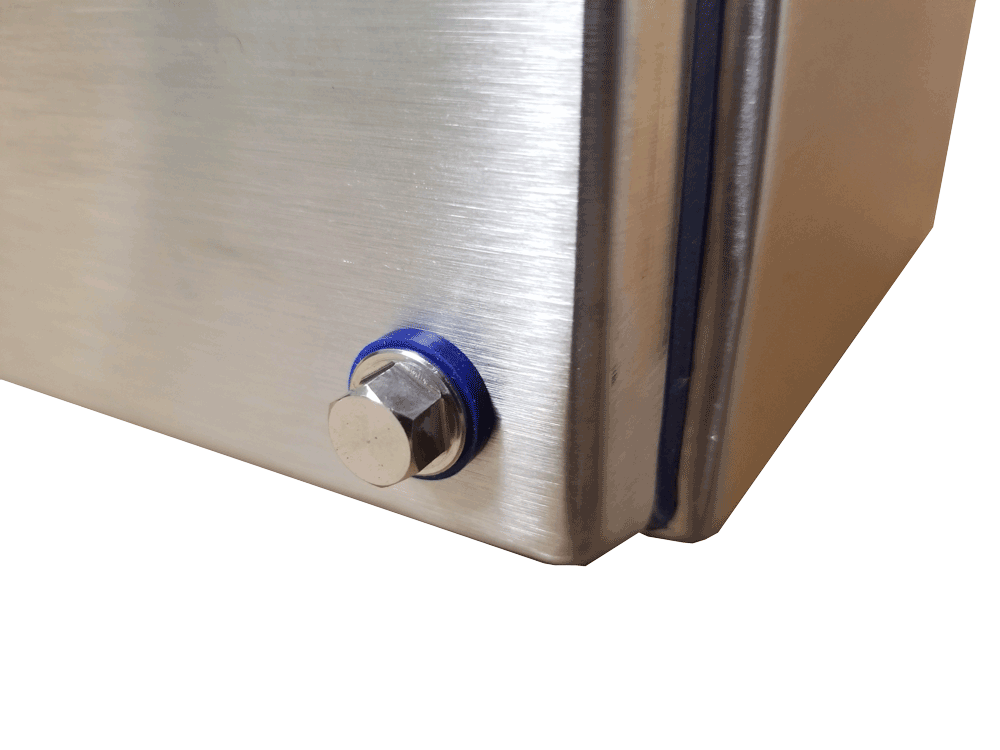

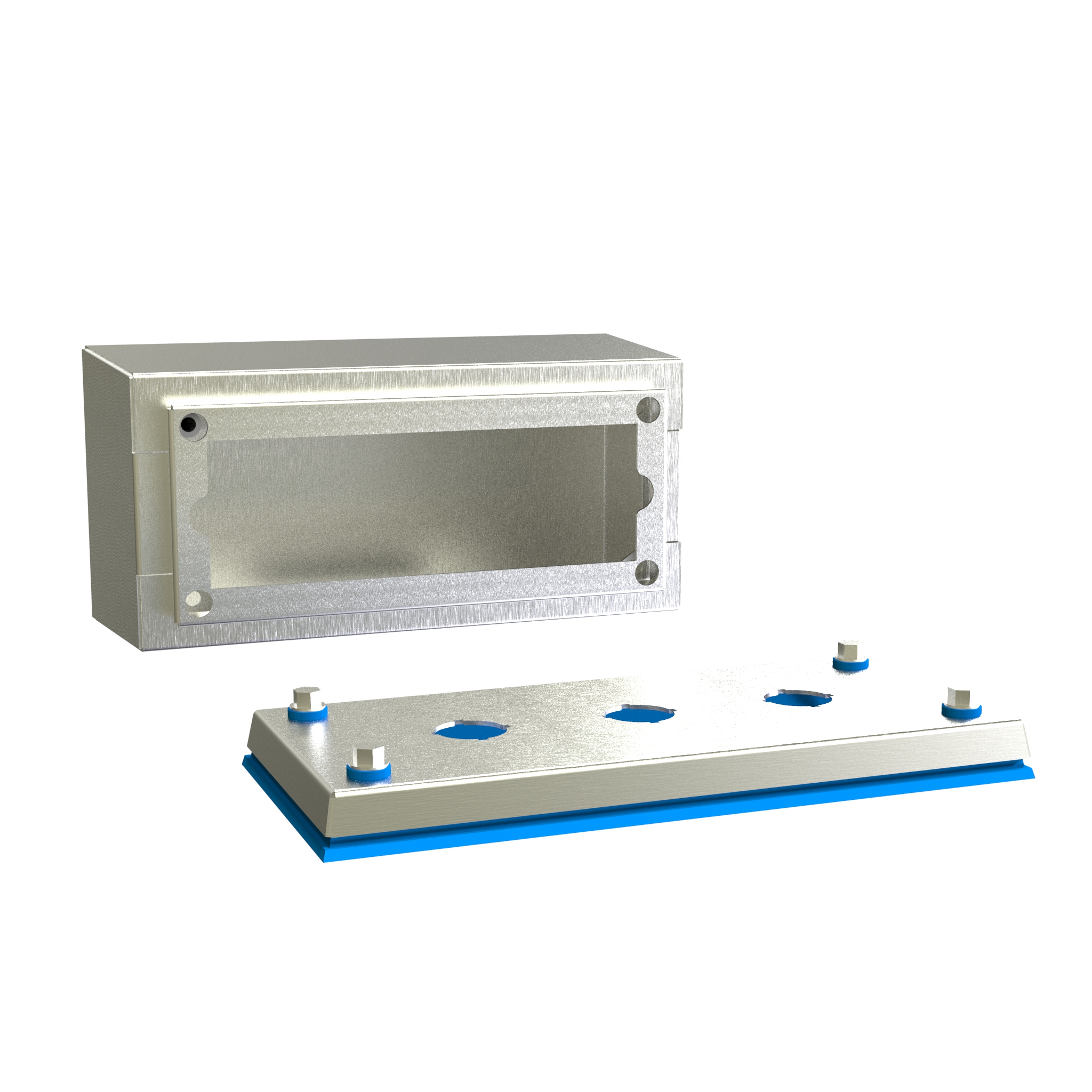

- ■Hex head screw cover can be completely removed for modifications.

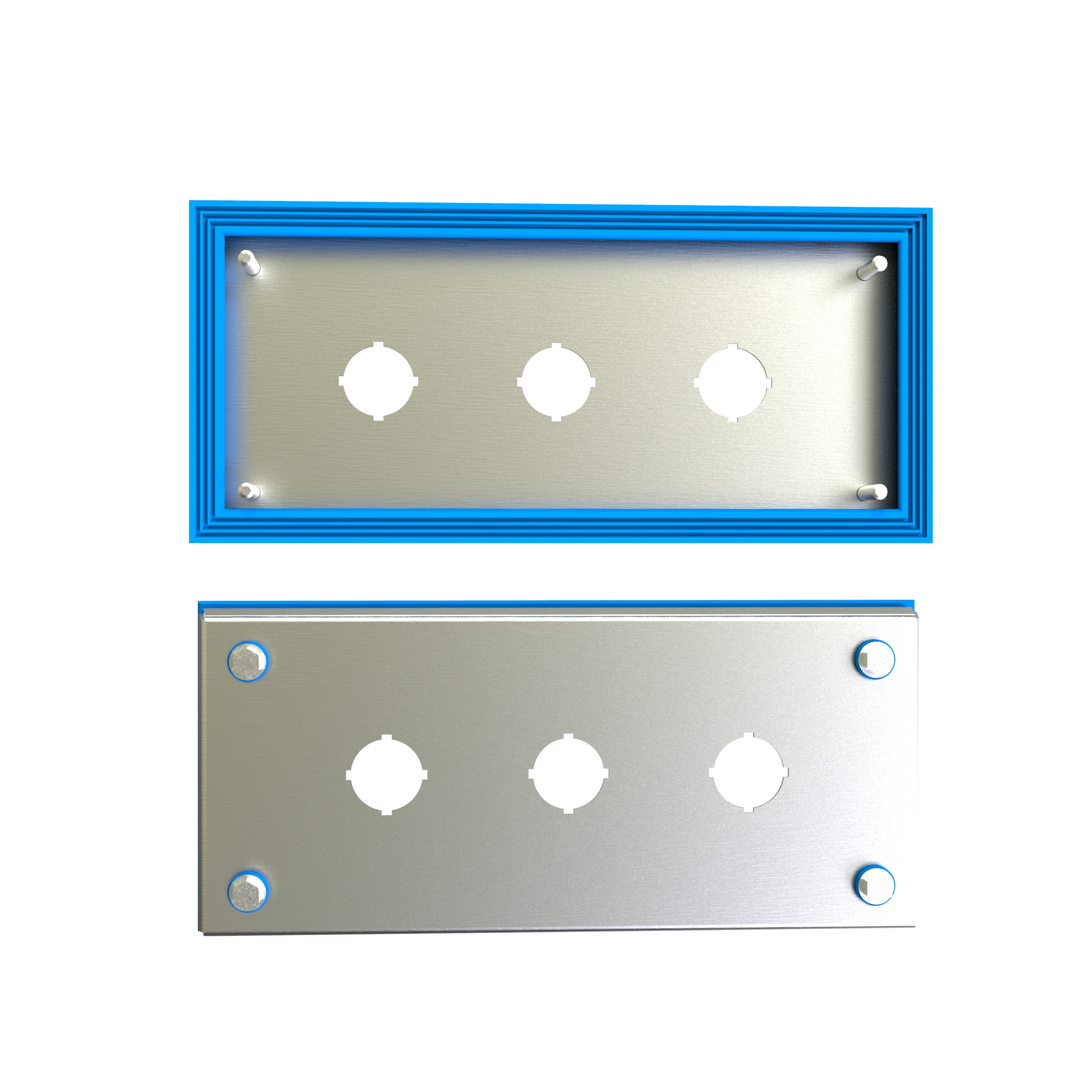

- ■Silicone gasket mounts around entire door edge allowing for efficient cleaning in hygienic environments.

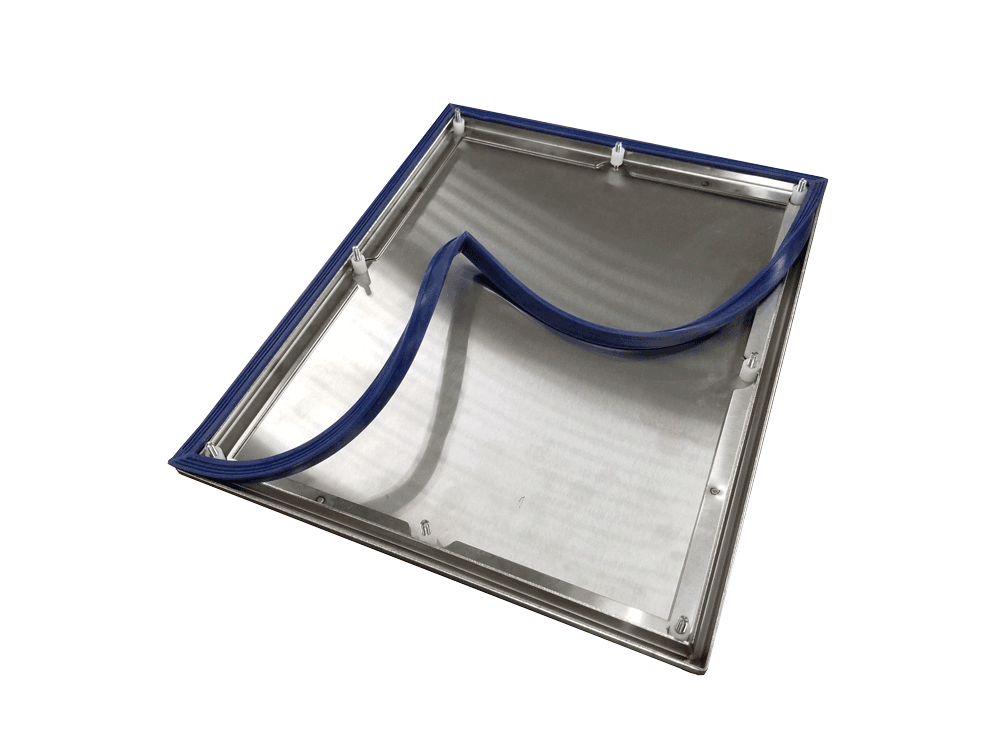

- ■Gasket can be easily removed and re-installed for cleaning or replacement. Additional silicone gaskets can be ordered separately.
- ■Multiple pushbutton hole configurations with either 22.5mm or 30.5mm notched holes.
- ■No pre-drilled wall mounting holes allow for flexible mounting alternatives - weld-in-place, stand-offs
- ■Bonding stud provided on door and grounding stud installed in enclosure.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth #4 dairy finish.
Documents
Additional information
Part Details
| 22mm Hole · Part No. | 30mm Hole · Part No. | # Holes | Enclosure · H | Enclosure · W | Enclosure · D | Replacement · Gasket |
|---|---|---|---|---|---|---|
| HYMPB1SSR | HYPB1SSR | 1 | 4.98 | 4.98 | 4.00 | HYG55 |
| HYMPB1SS | HYPB1SS | 1 | 7.94 | 4.88 | 4.00 | HYG85 |
| HYMPB2SS | HYPB2SS | 2 | 7.94 | 4.88 | 4.00 | HYG85 |
| HYMPB3SS | HYPB3SS | 3 | 9.94 | 4.88 | 4.00 | HYG105 |
| HYMPB4VSS | HYPB4VSS | 4 | 11.94 | 4.88 | 4.00 | HYG125 |
| HYMPB4SS | HYPB4SS | 4 | 9.94 | 6.88 | 4.00 | HYG107 |
| HYMPB6SS | HYPB6SS | 6 | 11.94 | 8.88 | 4.00 | HYG129 |
