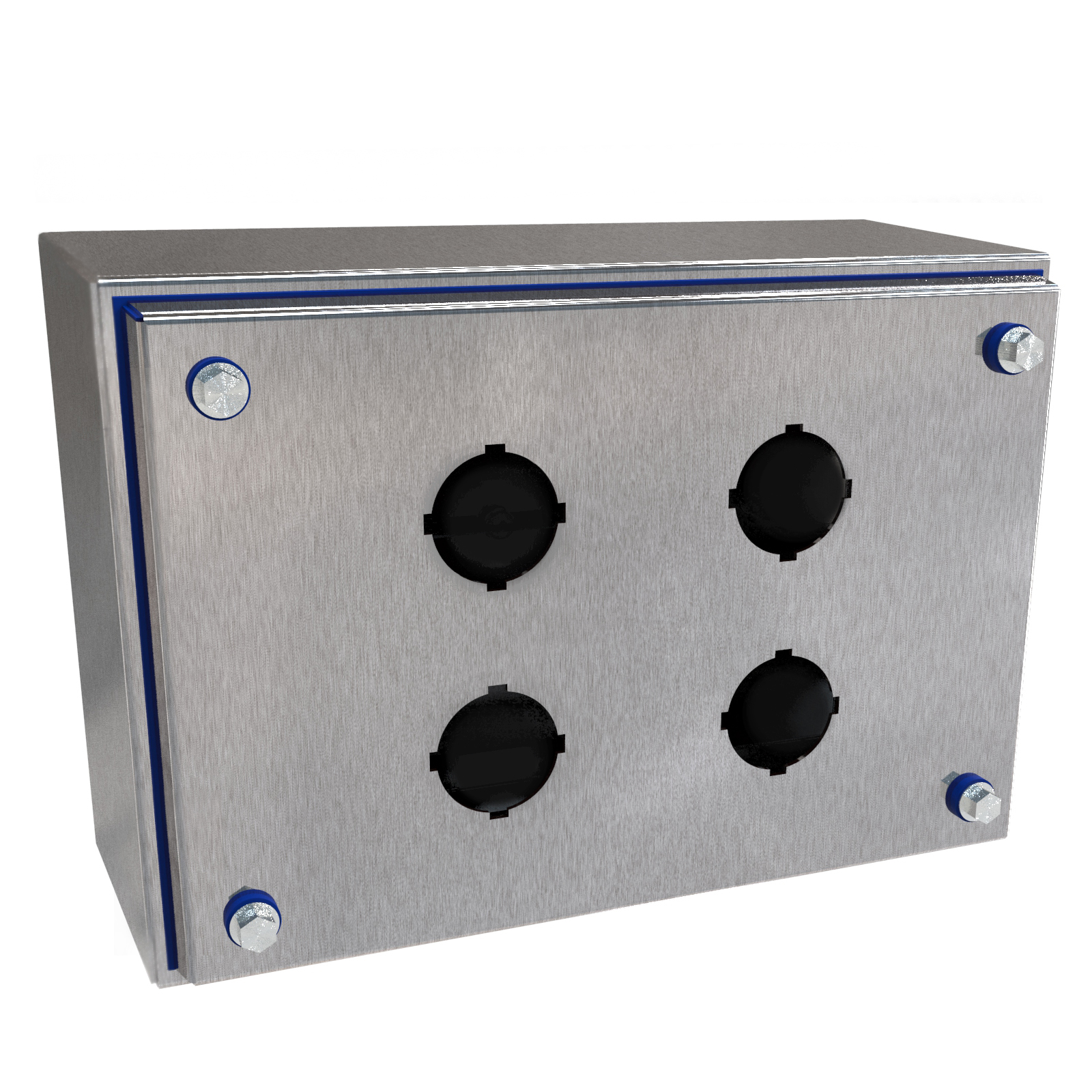

Hammond HYPB4SS 4-Hole 30mm Wide Hygienic Stainless Pushbutton Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Four 30mm notched pushbutton holes in a 6.88 in wide body
- 9.94 x 6.88 x 4.00 in (252 x 175 x 102 mm); 7.37 x 4.31 in clear door space
- UL 508A and CSA Type 3R, 12, 4, 4X; IP69/IP69K; NSF/ANSI 169
- Formed 304 stainless steel, sloped 3° on all 4 sides
- Smooth #4 dairy finish on cover and enclosure
- Door-edge silicone gasket; replacement HYG107
- Weld-in-place or stand-off mounting
The HYPB4SS is the wide-format four-hole enclosure in the HYPB Series of hygienic Type 4X stainless steel pushbutton enclosures, taking four 30mm pushbuttons or indicators in a 9.94 in by 6.88 in body. It is aimed at operator stations on equipment in hose-down environments. The 22mm-hole equivalent is the HYMPB4SS, and a narrow vertical four-hole option is the HYPB4VSS.
The enclosure is formed 304 stainless steel sloped 3° on all four sides to shed water, with continuously welded seams ground smooth and a natural #4 dairy finish. A silicone gasket mounts around the entire door edge for efficient cleaning and is replaceable with the HYG107. The hex head screw cover can be completely removed for modifications, and there is a bonding stud on the door and a grounding stud in the enclosure.
Dimensions are 9.94 in (252 mm) high by 6.88 in (175 mm) wide by 4.00 in (102 mm) deep, nominal 10 x 7 x 4 in. The drawing shows a 9.12 x 6.19 in door, an 8.00 x 5.10 in opening, 7.37 x 4.31 in of clear space available on the door and 3.43 in of usable depth, with 1.21 in notched holes for the 30mm devices.
Without pre-drilled wall mounting holes, the HYPB4SS can be welded in place or mounted on stand-offs. The series is rated UL 508A and CSA Type 3R, 12, 4, 4X, complies with NEMA 3R, 12, 4, 4X and IEC 60529 IP69/IP69K, and meets NSF/ANSI 169. Shipping weight is 14 lb (6.35 kg), packed in a box.
Ideal For
- Four-pushbutton operator station on washdown equipment
- 30mm pushbutton and indicator housing in hose-down areas
- Hygienic machine controls in harsh environments
Overview
| Series | HYPB Series (sloped sides with silicone gasket) |
| Product Type | Hygienic Type 4X stainless steel pushbutton enclosure |
| Short Description | HYGIENIC N4X 30MM 4PB |
| Replacement Gasket | HYG107 |
| 22mm Hole Equivalent | HYMPB4SS |
| Pushbutton Hole Size | 30mm (30.5mm notched hole) |
| Number Of Pushbutton Holes | 4 |
Dimensions
| Enclosure Depth | 4.00 in (102 mm) |
| Enclosure Width | 6.88 in (175 mm) |
| Enclosure Height | 9.94 in (252 mm) |
| Opening (Drawing) | 8.00 in x 5.10 in |
| Door Size (Drawing) | 9.12 in x 6.19 in |
| Usable Depth (Drawing) | 3.43 in |
| Nominal Size (H X W X D) | 10 in x 7 in x 4 in (254 mm x 178 mm x 102 mm) |
| Pushbutton Hole Diameter (Drawing) | 1.21 in |
| Clear Space Available On Door (Drawing) | 7.37 in x 4.31 in |
Identifiers
| UPC | 623980782157 |
| UNSPSC | 39121326 |
| Part Number | HYPB4SS |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 14 lbs (6.35 kg) |
Construction & Finish
| Cover | Hex head screw cover, completely removable for modifications |
| Seams | Continuously welded, ground smooth |
| Sides | Sloped 3° on all 4 sides |
| Finish | Natural stainless steel cover and enclosure, smooth #4 dairy finish |
| Gasket | Silicone gasket mounted around entire door edge; removable and re-installable for cleaning or replacement |
| Material | Formed 304 stainless steel |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Wall Mounting | No pre-drilled wall mounting holes; allows weld-in-place or stand-off mounting |
| Pushbutton Holes | Notched holes |
Compliance & Certifications
| UL | UL 508A Type 3R, 12, 4, 4X |
| CSA | CSA Type 3R, 12, 4, 4X |
| NSF | NSF/ANSI 169 (not all accessories maintain NSF standard) |
| NEMA | Complies with NEMA 3R, 12, 4, 4X |
| IP Rating | IEC 60529, IP69, IP69K |
| UL File # | E517628/E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Additional EU Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU |
| Safety Of Machinery Standard | EN 60204-1: 2006 / IEC 60204-1: 2005-10 (Electrical Equipment of Machines, Part 1: General Requirements) |
| Degrees Of Protection Standard | EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 (IP code) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between HYPB4SS and HYPB4VSS?▾
Both have four 30mm holes. The HYPB4SS is 9.94 x 6.88 x 4.00 in with gasket HYG107; the HYPB4VSS is a vertical 11.94 x 4.88 x 4.00 in version with gasket HYG125.
Which replacement gasket does it use?▾
HYG107.
How much clear space is on the door?▾
The drawing shows 7.37 x 4.31 in of clear space available on the door.
What standards does the series meet?▾
UL 508A and CSA Type 3R, 12, 4, 4X; NEMA 3R, 12, 4, 4X; IEC 60529 IP69, IP69K; NSF/ANSI 169.
What does it weigh?▾
14 lb (6.35 kg) shipping weight.
