Hammond HYPB1SSR Compact 1-Hole 30mm Hygienic Pushbutton Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 4.98 x 4.98 x 4.00 in (126 x 126 x 102 mm) square body
- One 30mm notched pushbutton hole
- Type 3R, 12, 4, 4X (UL 508A, CSA); IP69/IP69K; NSF/ANSI 169
- 304 stainless steel, sloped 3° on all 4 sides, #4 dairy finish
- Door-edge silicone gasket, replaceable with HYG55
- Removable hex head screw cover; bonding and grounding studs
- Weld-in-place or stand-off mounting

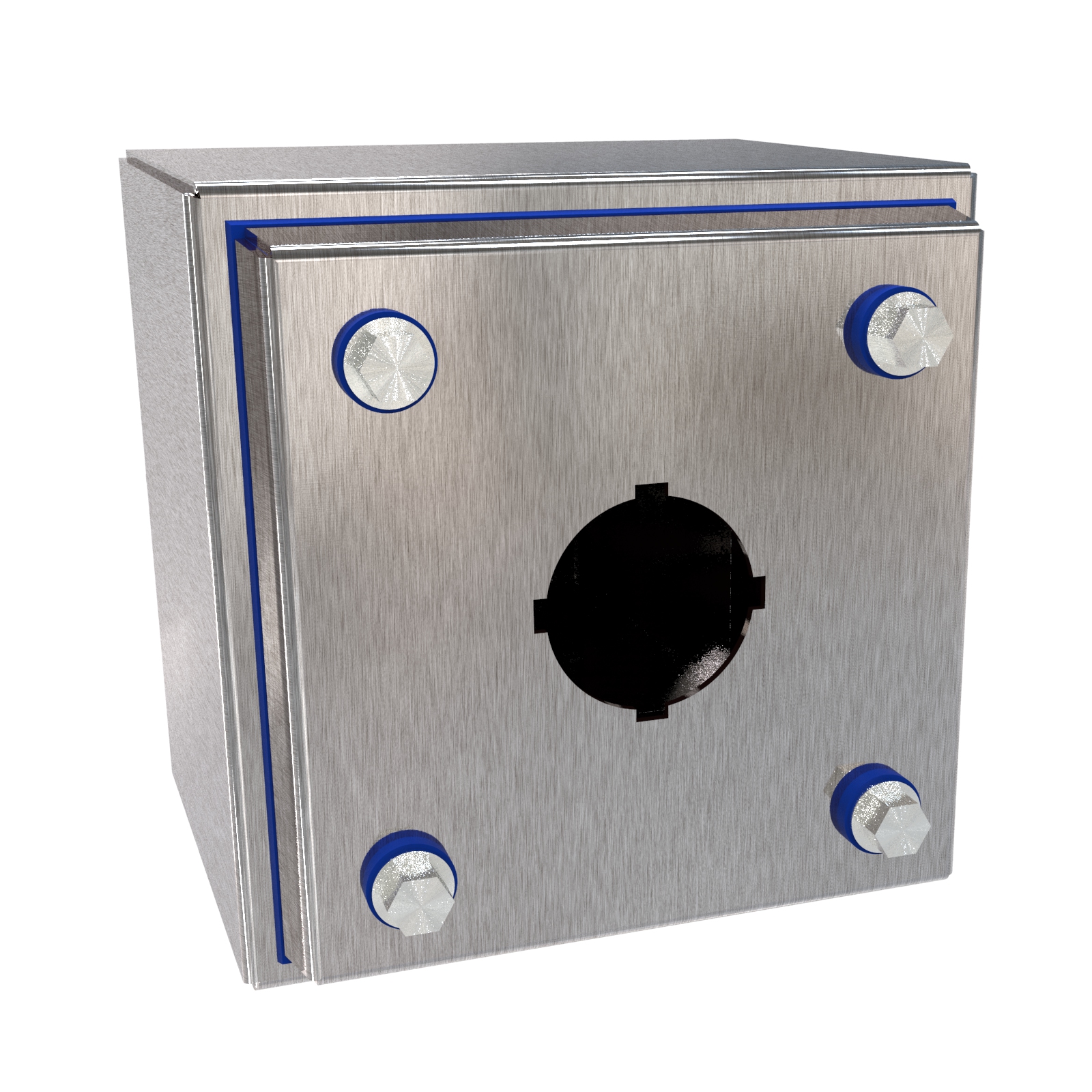

The HYPB1SSR is the compact, square single-hole enclosure in the HYPB Series of hygienic Type 4X stainless steel pushbutton enclosures. It holds one 30mm pushbutton or indicator in a 4.98 in (126 mm) square body, useful where a single operator device must be mounted on washdown equipment with little free space. Its 22mm-hole counterpart is the HYMPB1SSR.
The enclosure is formed 304 stainless steel with all four sides sloped 3° so water runs off regardless of orientation. Seams are continuously welded and ground smooth, and the finish is natural stainless steel with a smooth #4 dairy finish. A silicone gasket around the entire door edge can be removed for cleaning and is replaceable with the HYG55. The hex head screw cover can be completely removed for modifications, and bonding and grounding studs are included.
The HYPB1SSR measures 4.98 in (126 mm) high by 4.98 in (126 mm) wide by 4.00 in (102 mm) deep, nominal 5 x 5 x 4 in. The drawing shows a 4.12 x 4.12 in door, 2.37 in of clear space available on the door and 3.43 in of usable depth, with a 1.21 in notched hole for the 30mm device.
Mounting is flexible because no wall holes are pre-drilled: the enclosure can be welded in place or stood off from the surface. The series is rated UL 508A and CSA Type 3R, 12, 4, 4X, complies with NEMA 3R, 12, 4, 4X and IEC 60529 IP69/IP69K, and meets NSF/ANSI 169. Shipping weight is 6 lb (2.72 kg).
Ideal For
- Compact 30mm pushbutton station on washdown equipment
- Single indicator housing in hose-down areas
- Hygienic operator device where space is limited
Overview
| Series | HYPB Series (sloped sides with silicone gasket) |
| Product Type | Hygienic Type 4X stainless steel pushbutton enclosure |
| Short Description | HYGIENIC N4X 30MM 1PB |
| Replacement Gasket | HYG55 |
| 22mm Hole Equivalent | HYMPB1SSR |
| Pushbutton Hole Size | 30mm (30.5mm notched hole) |
| Number Of Pushbutton Holes | 1 |
Dimensions
| Enclosure Depth | 4.00 in (102 mm) |
| Enclosure Width | 4.98 in (126 mm) |
| Enclosure Height | 4.98 in (126 mm) |
| Door Size (Drawing) | 4.12 in x 4.12 in |
| Usable Depth (Drawing) | 3.43 in |
| Nominal Size (H X W X D) | 5 in x 5 in x 4 in (127 mm x 127 mm x 102 mm) |
| Pushbutton Hole Diameter (Drawing) | 1.21 in |
| Clear Space Available On Door (Drawing) | 2.37 in |
Identifiers
| UPC | 623980102887 |
| UNSPSC | 39121326 |
| Part Number | HYPB1SSR |
Packaging & Shipping
| Shipping Weight | 6 lbs (2.72 kg) |
Construction & Finish
| Cover | Hex head screw cover, completely removable for modifications |
| Seams | Continuously welded, ground smooth |
| Sides | Sloped 3° on all 4 sides |
| Finish | Natural stainless steel cover and enclosure, smooth #4 dairy finish |
| Gasket | Silicone gasket mounted around entire door edge; removable and re-installable for cleaning or replacement |
| Material | Formed 304 stainless steel |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Wall Mounting | No pre-drilled wall mounting holes; allows weld-in-place or stand-off mounting |
| Pushbutton Holes | Notched holes |
Compliance & Certifications
| UL | UL 508A Type 3R, 12, 4, 4X |
| CSA | CSA Type 3R, 12, 4, 4X |
| NSF | NSF/ANSI 169 (not all accessories maintain NSF standard) |
| NEMA | Complies with NEMA 3R, 12, 4, 4X |
| IP Rating | IEC 60529, IP69, IP69K |
| UL File # | E517628/E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Additional EU Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU |
| Safety Of Machinery Standard | EN 60204-1: 2006 / IEC 60204-1: 2005-10 (Electrical Equipment of Machines, Part 1: General Requirements) |
| Degrees Of Protection Standard | EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 (IP code) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the HYPB1SSR different from the HYPB1SS?▾
Both have one 30mm hole. The HYPB1SSR is a compact 4.98 x 4.98 x 4.00 in enclosure using gasket HYG55; the HYPB1SS is 7.94 x 4.88 x 4.00 in and uses HYG85.
What hole size is it?▾
One 30mm notched hole (30.5mm).
Which gasket fits?▾
The HYG55 replacement gasket.
Is it suitable for hose-down cleaning?▾
Yes. The series is designed for hose-down environments, with a door-edge silicone gasket, hex head screws and IP69/IP69K compliance.
What does it weigh?▾
6 lb (2.72 kg) shipping weight.
