NEMA12 P-Btn Enc 3.5X3.2
$61.26Backorder
Buy now
Type 12 Mild Steel Pushbutton Enclosures · 1435 Series
Brand: Hammond Manufacturing · 18 part numbers
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $59.55
18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1435 Series part number
Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
18 of 18 part numbers · 18 priced online
NEMA12 P-Btn Enc 5.7X3.2
$70.25Backorder
Buy now
NEMA12 P-Btn Enclosure 8 .0 X 3 .2
$80.48In stock
Buy now
NEMA12 P-Btn Enc 10.2X3.2
$90.72In stock
Buy now
NEMA12 P-Btn Enc 7.2X6.2
$102.31In stock
Buy now
NEMA12 P-Btn Enclosure 9 .5 X 6 .2
$115.95Backorder
Buy now
NEMA12 P-Btn Enc 9.5X8.5
$135.05In stock
Buy now
22MM P-Btn Enc 3.5X3.2
$59.55In stock
Buy now
22MM P-Btn Enc 5.7X3.2
$67.95In stock
Buy now
22MM P-Btn Enc 8.0X3.2
$77.07Backorder
Buy now
22MM P-Btn Enc 10.2X3.2
$85.26In stock
Buy now
22MM P-Btn Enc 7.2X6.2
$99.57Backorder
Buy now
22MM P-Btn Enc 9.5X6.2
$113.21In stock
Buy now
22MM P-Btn Enc 9.5X8.5
$153.47Backorder
Buy now
22MM P-Btn Enc 9.5X8.5
$148.02In stock
Buy now
22MM P-Byn Enc 11.7X10.7
$169.16Backorder
Buy now
NEMA12 P-Btn Enc 11.7X8.5
$151.43In stock
Buy now
NEMA12 P-Btn Enc 11.7X10.7
$173.93In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm

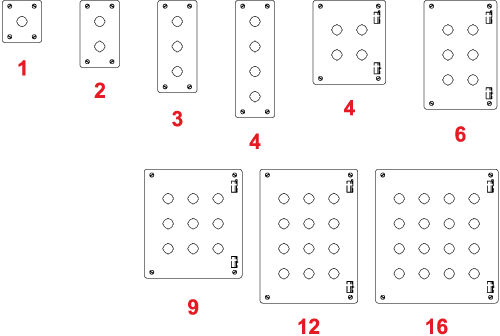

| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|

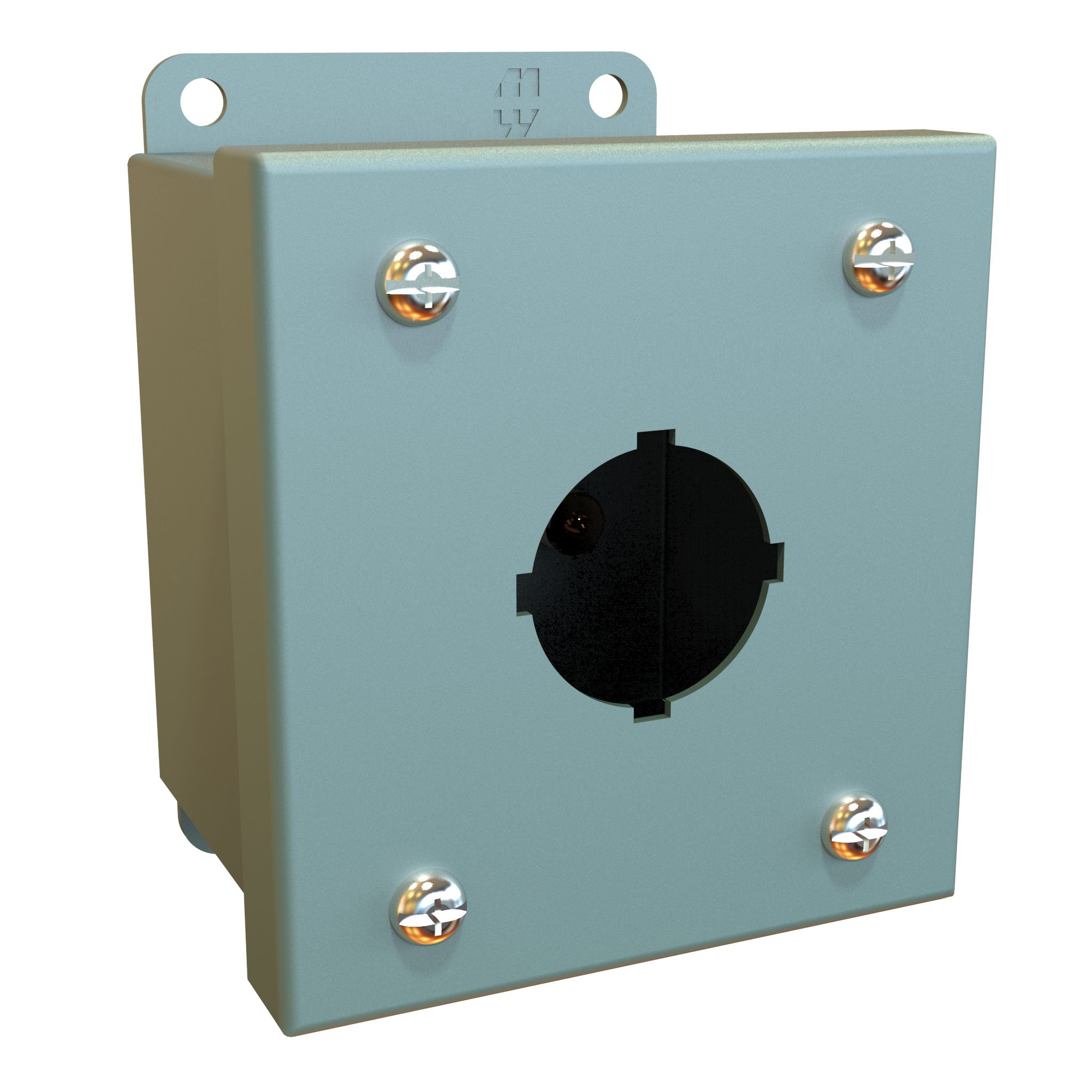

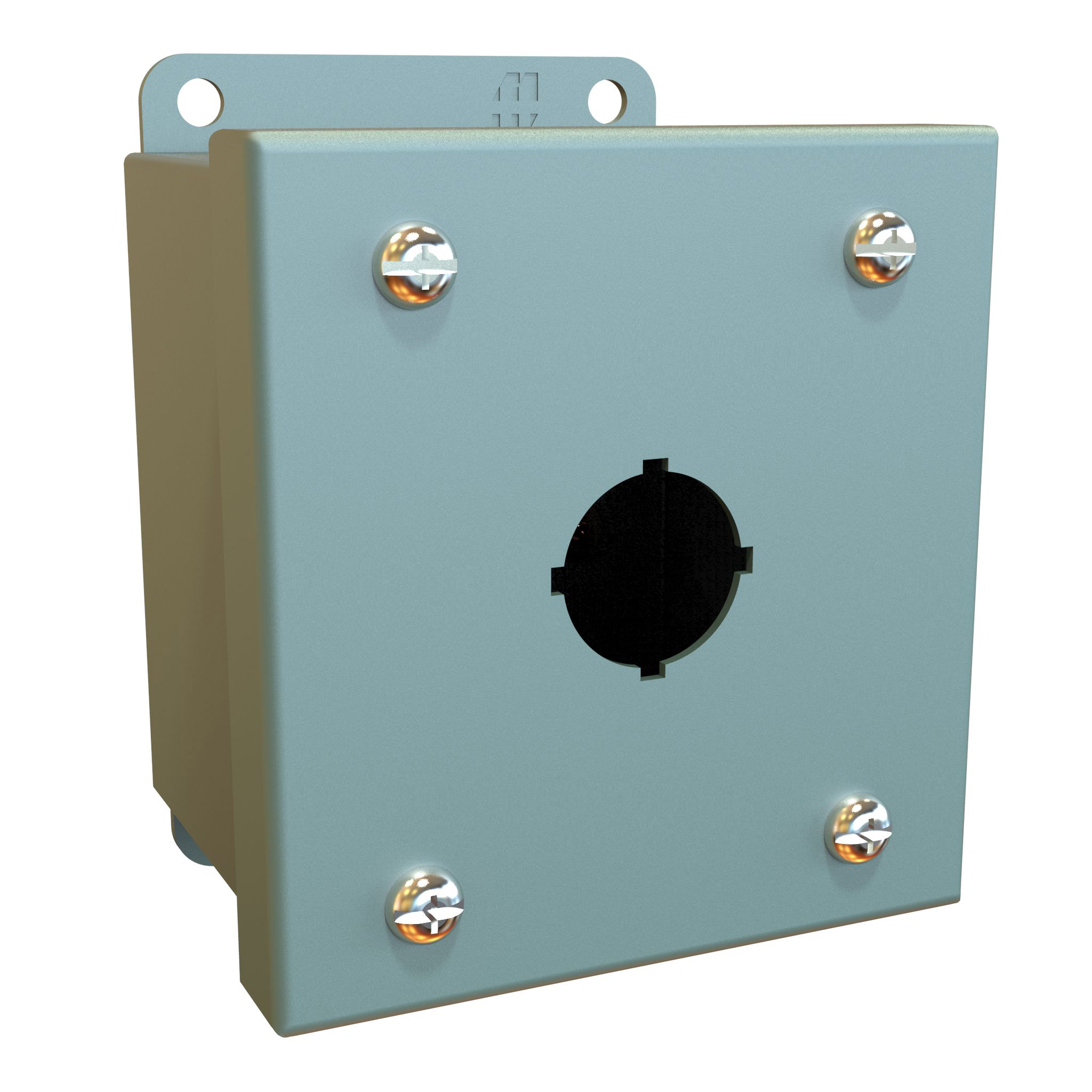

| 1435A | 1435MA | 1 | 3.50 | 3.25 | 2.75 | $61.26Backorder1435A | Buy now |

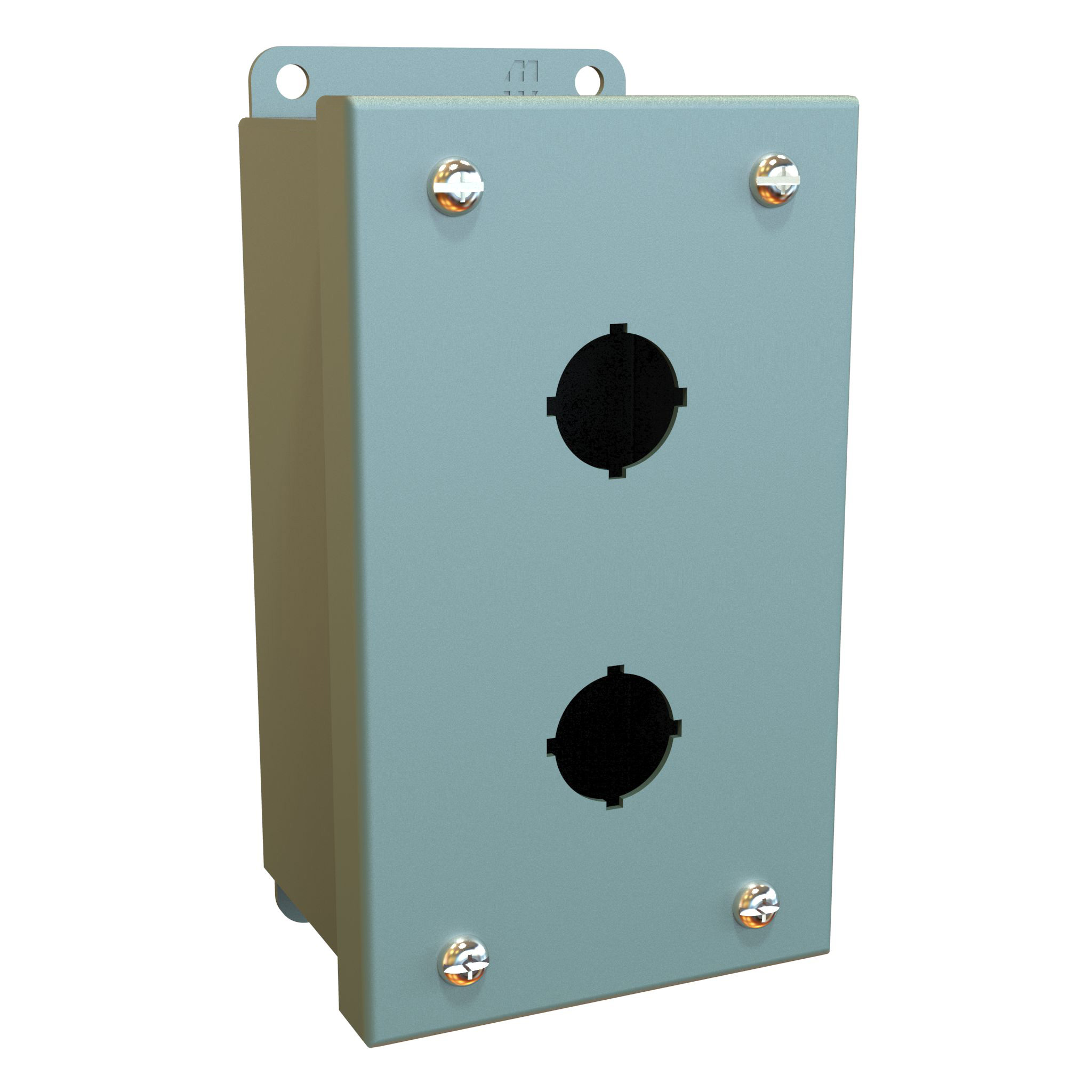

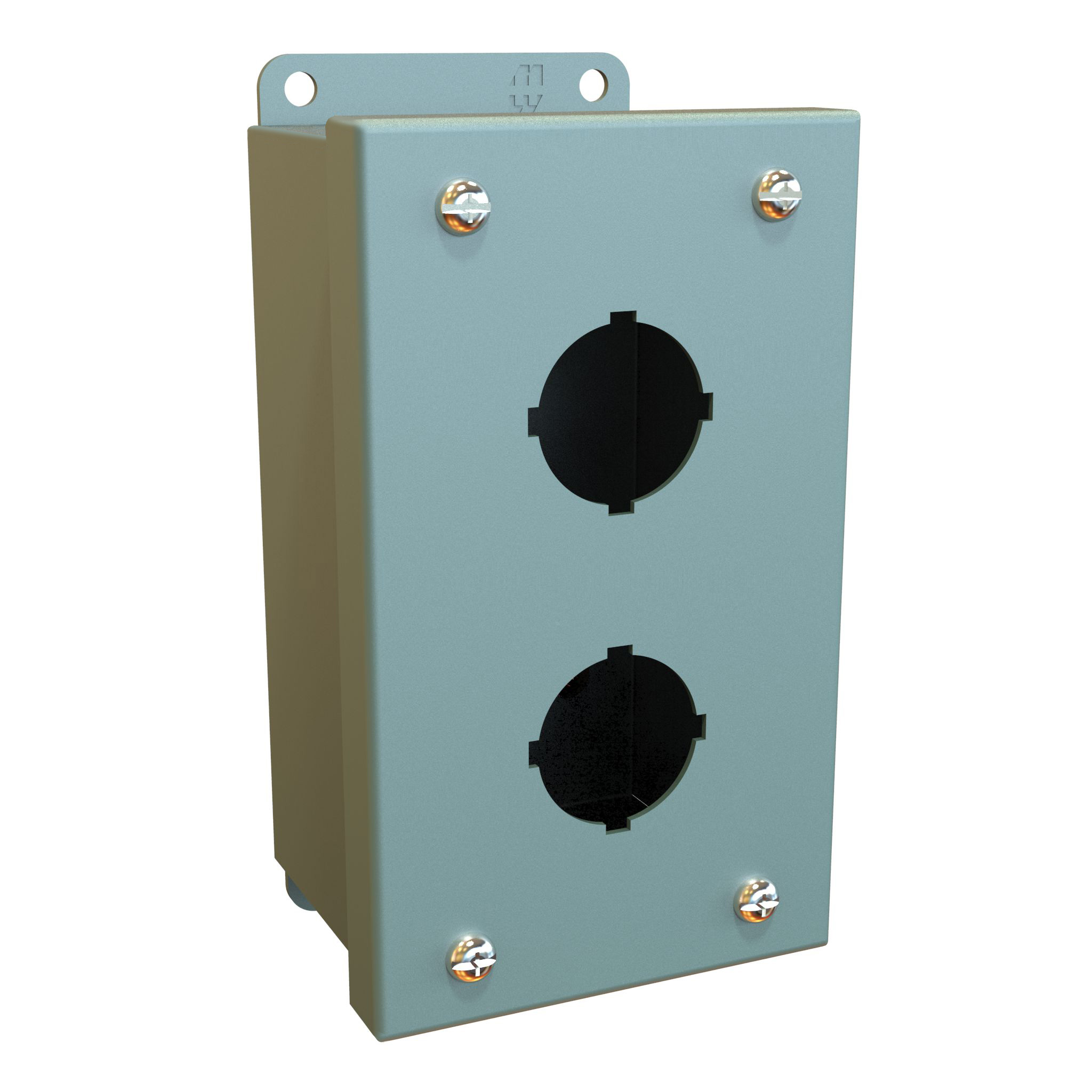

| 1435B | 1435MB | 2 | 5.75 | 3.25 | 2.75 | $70.25Backorder1435B | Buy now |

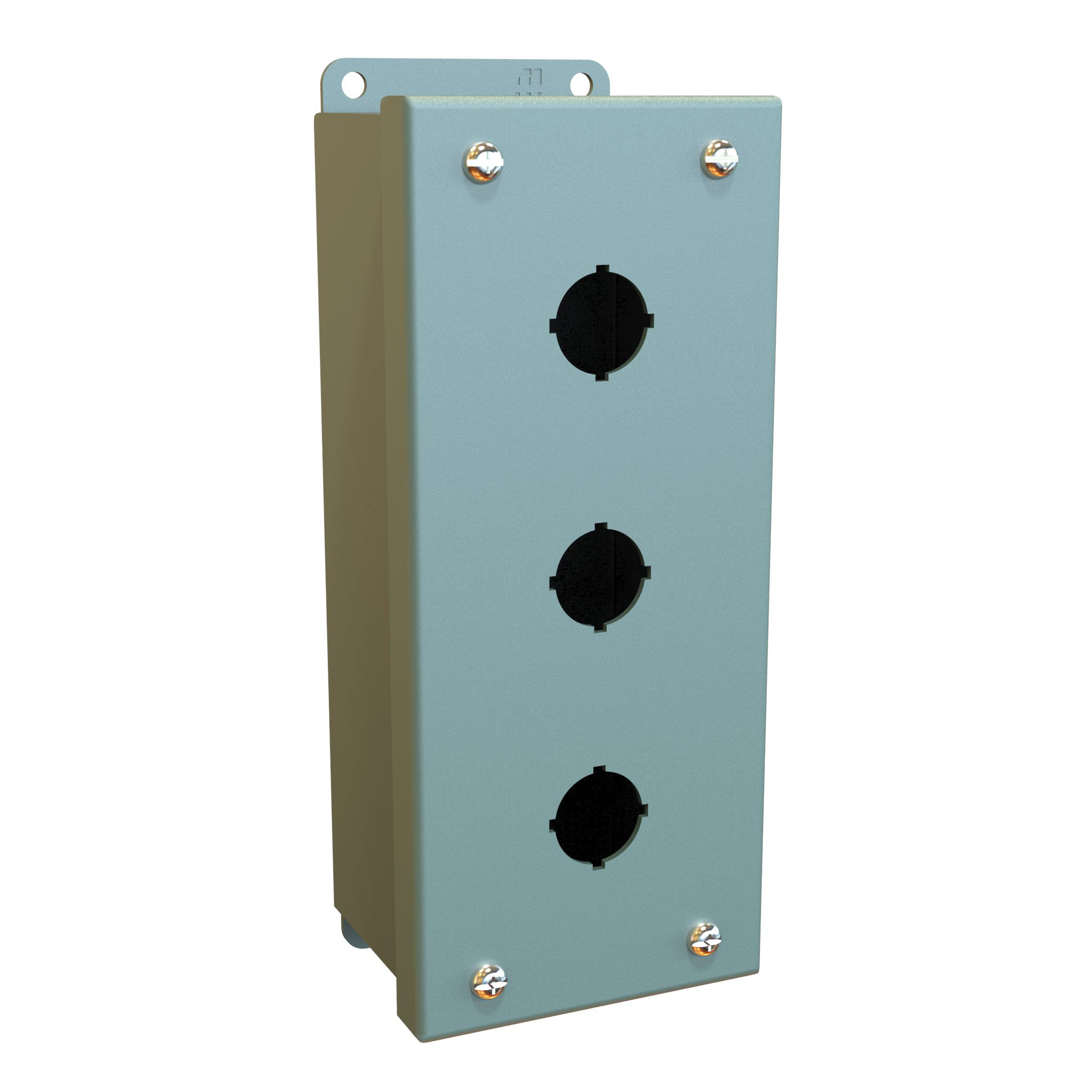

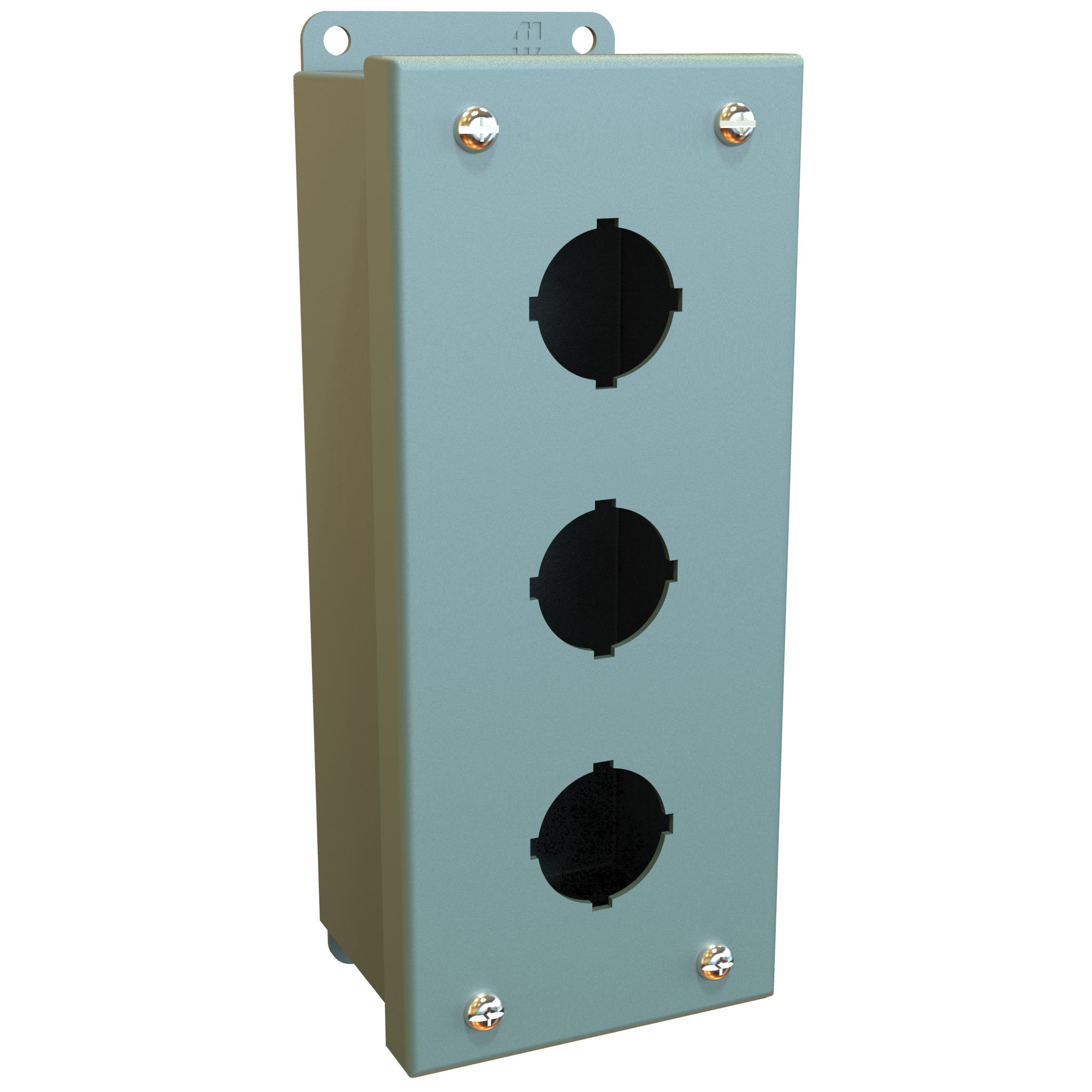

| 1435C | 1435MC | 3 | 8.00 | 3.25 | 2.75 | $80.48In stock1435C | Buy now |

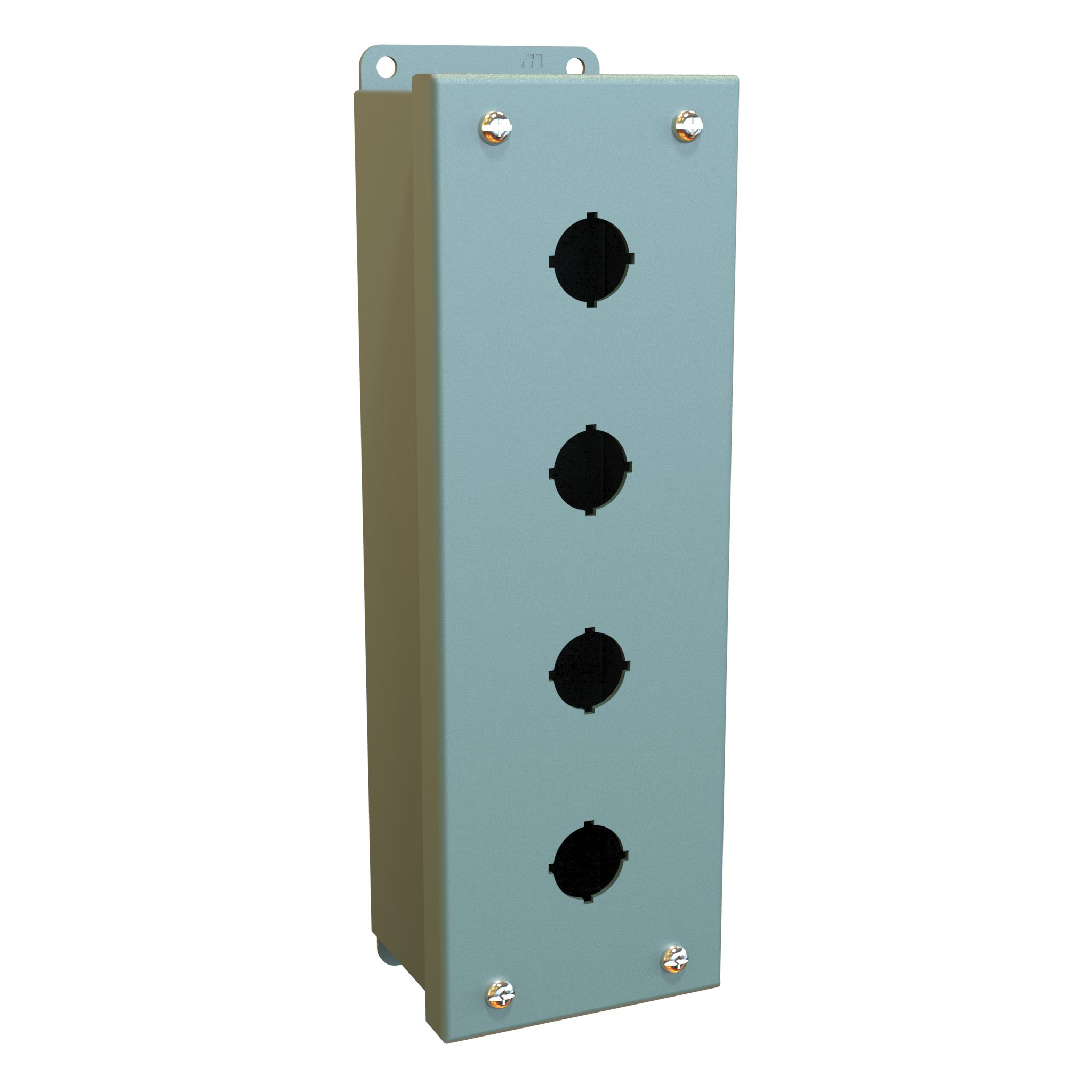

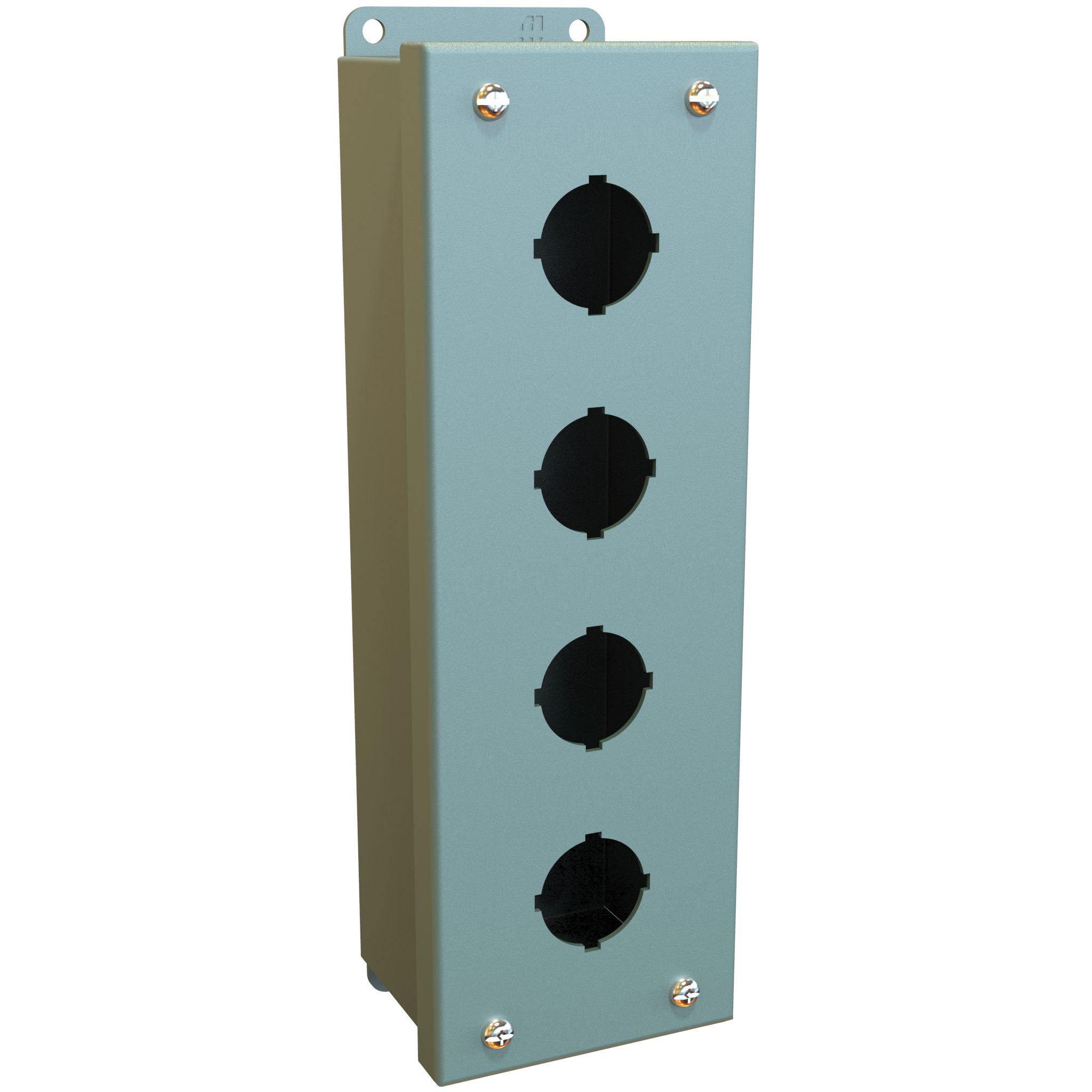

| 1435D | 1435MD | 4 | 10.25 | 3.25 | 2.75 | $90.72In stock1435D | Buy now |

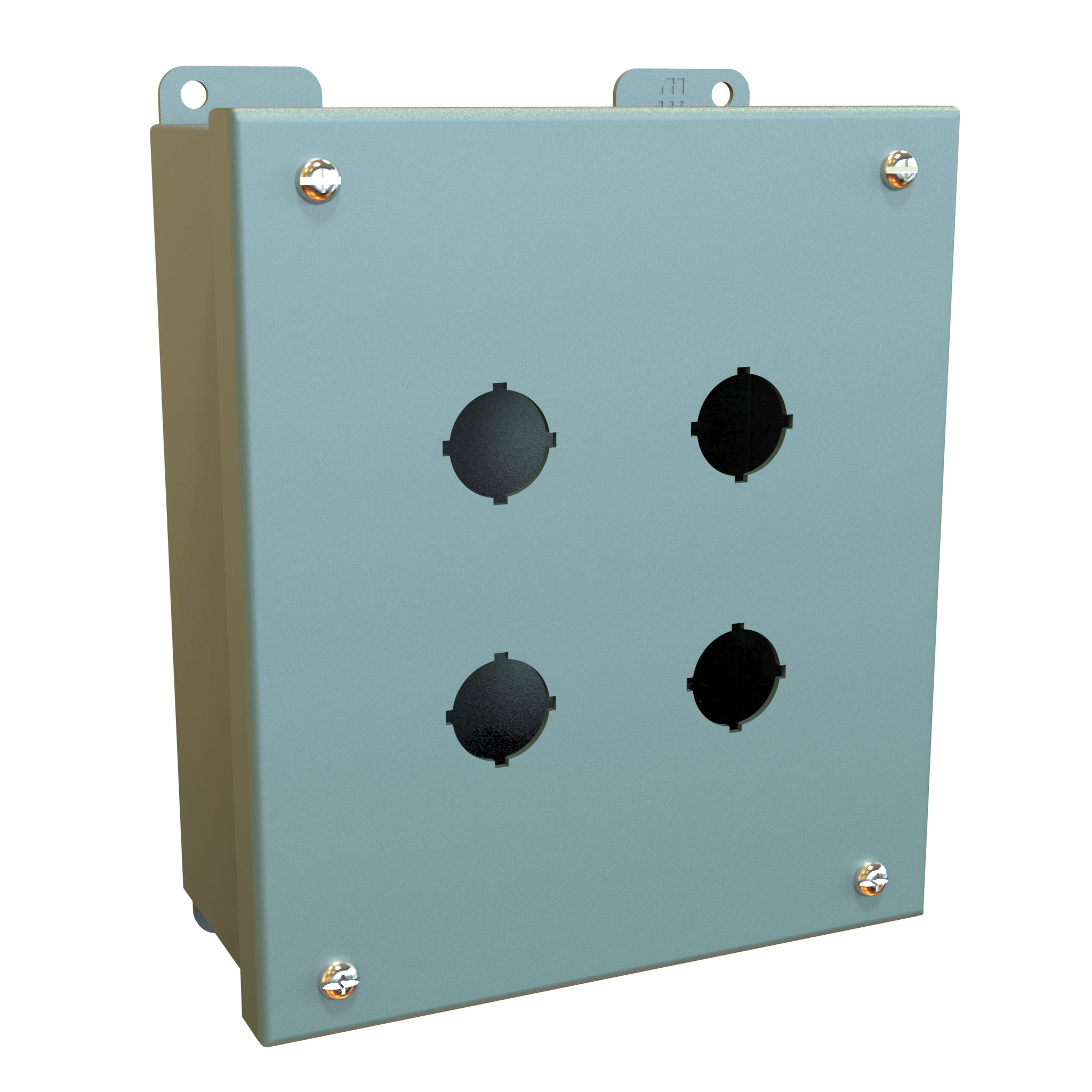

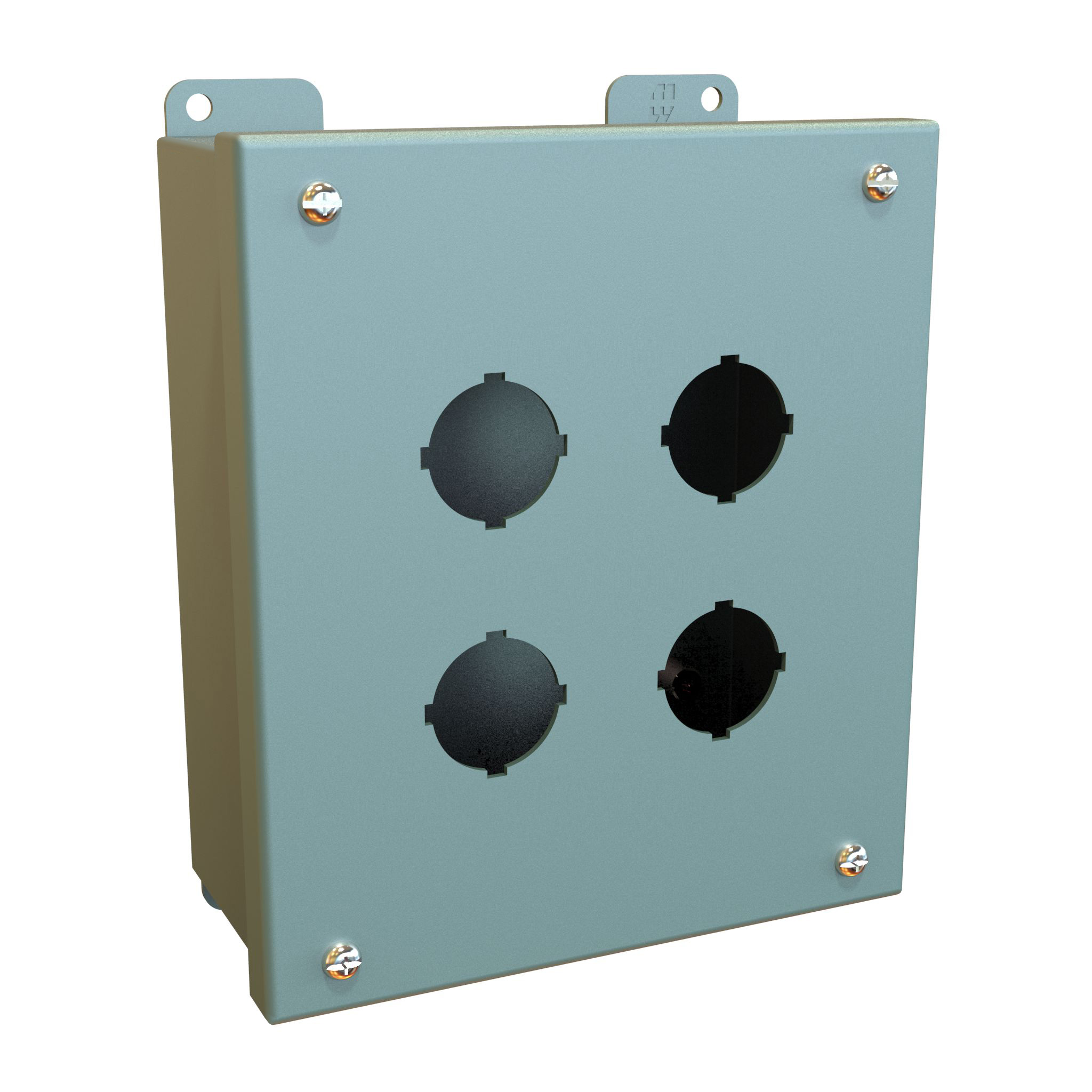

| 1435F | 1435MF | 4 | 7.25 | 6.25 | 3.00 | $102.31In stock1435F | Buy now |

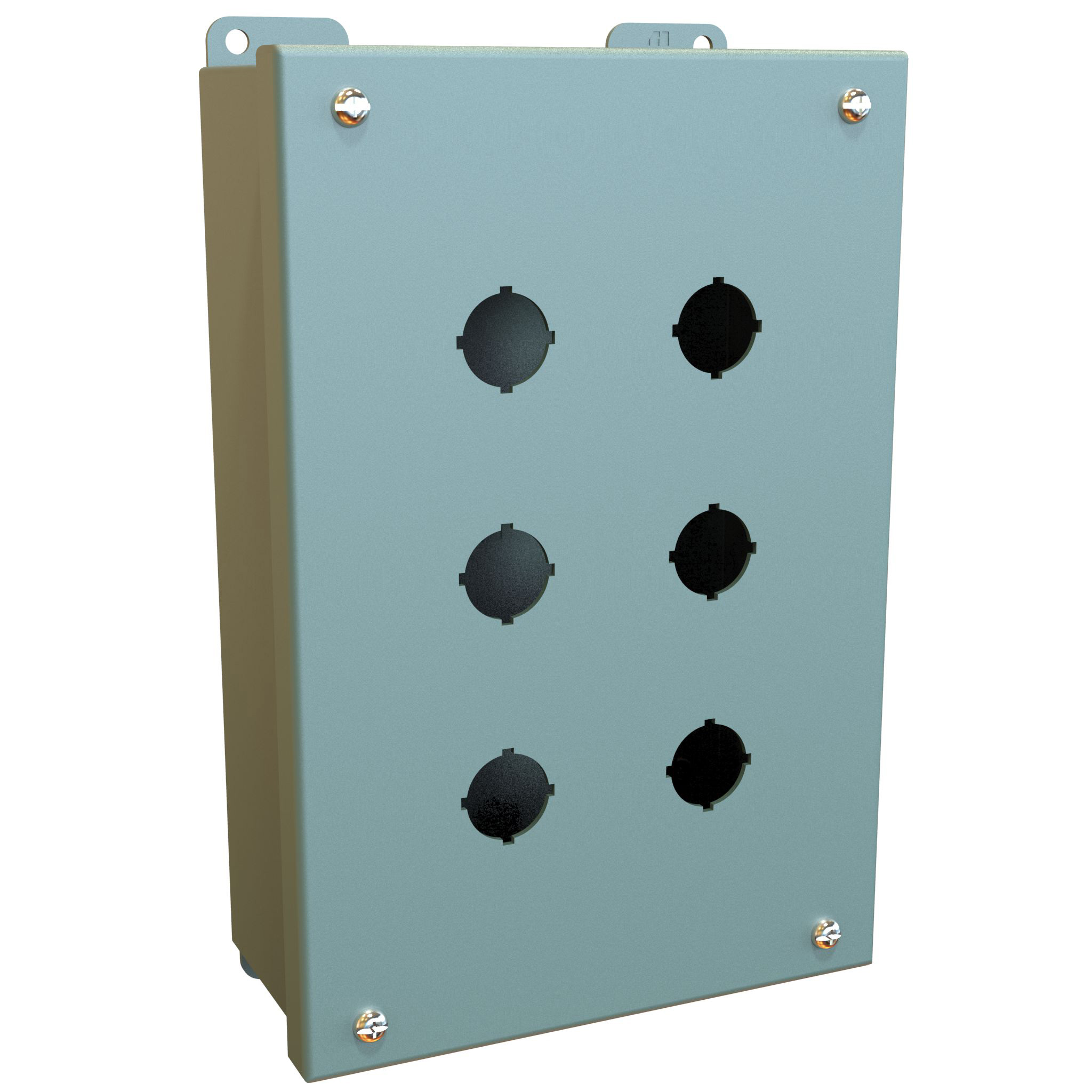

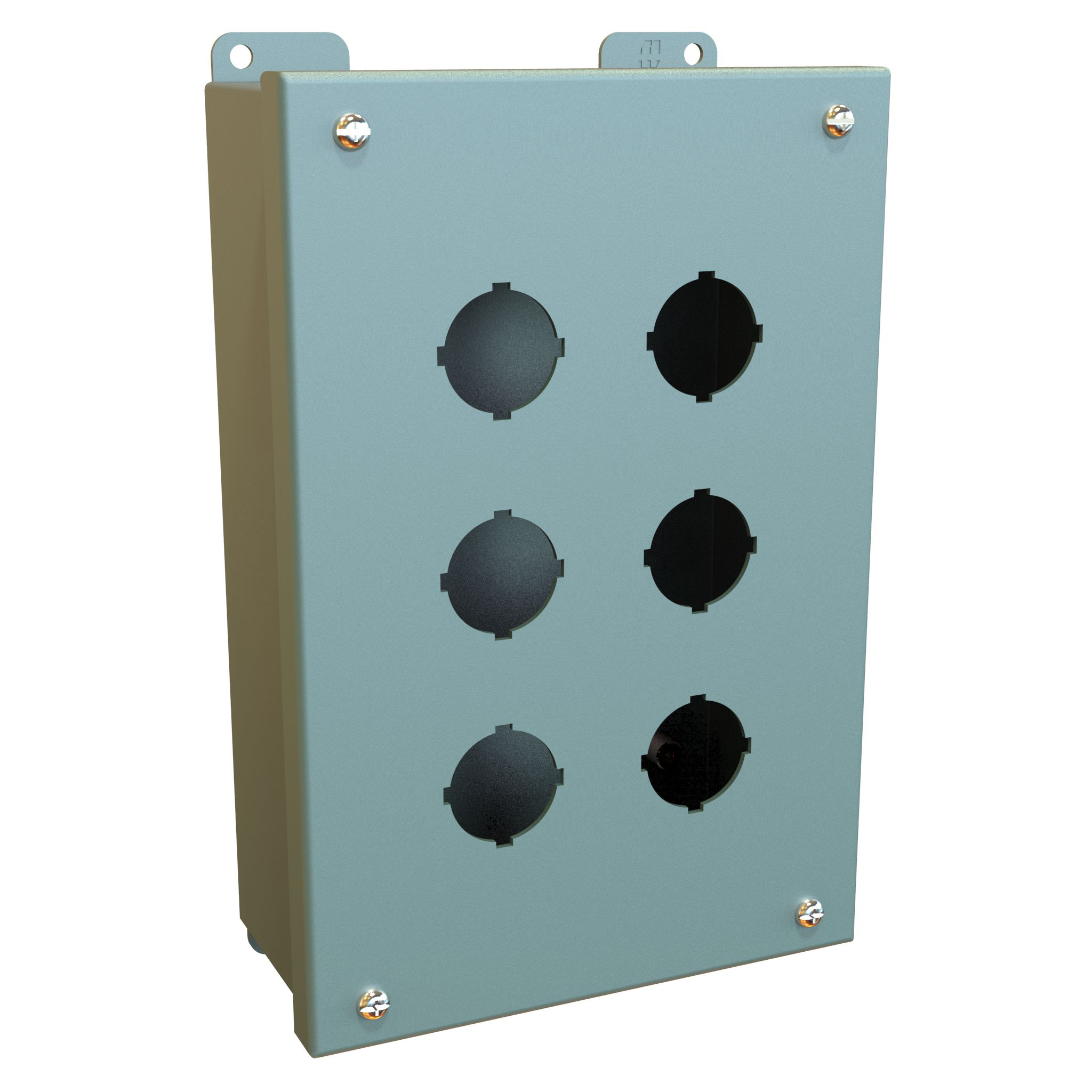

| 1435H | 1435MH | 6 | 9.50 | 6.25 | 3.00 | $115.95Backorder1435H | Buy now |

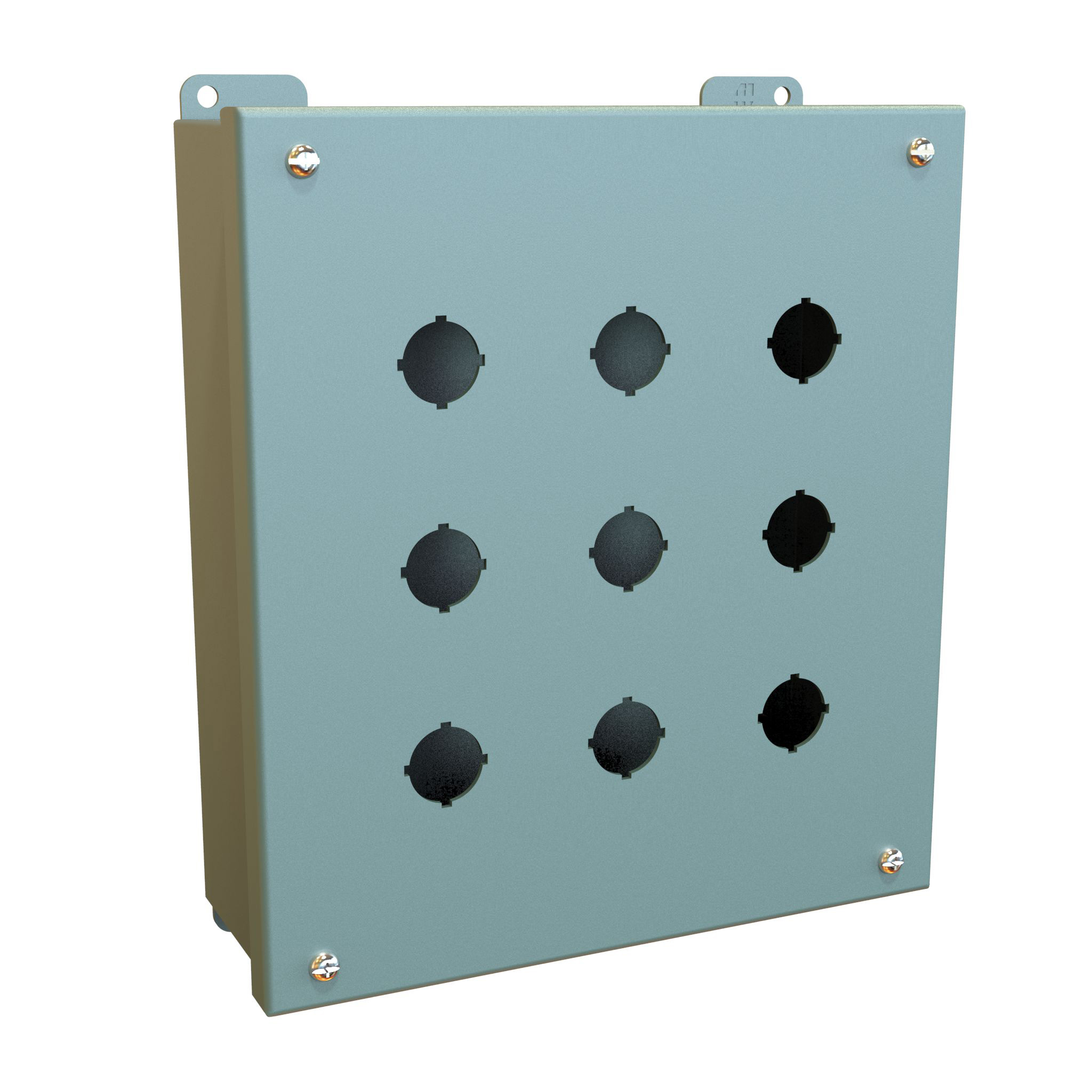

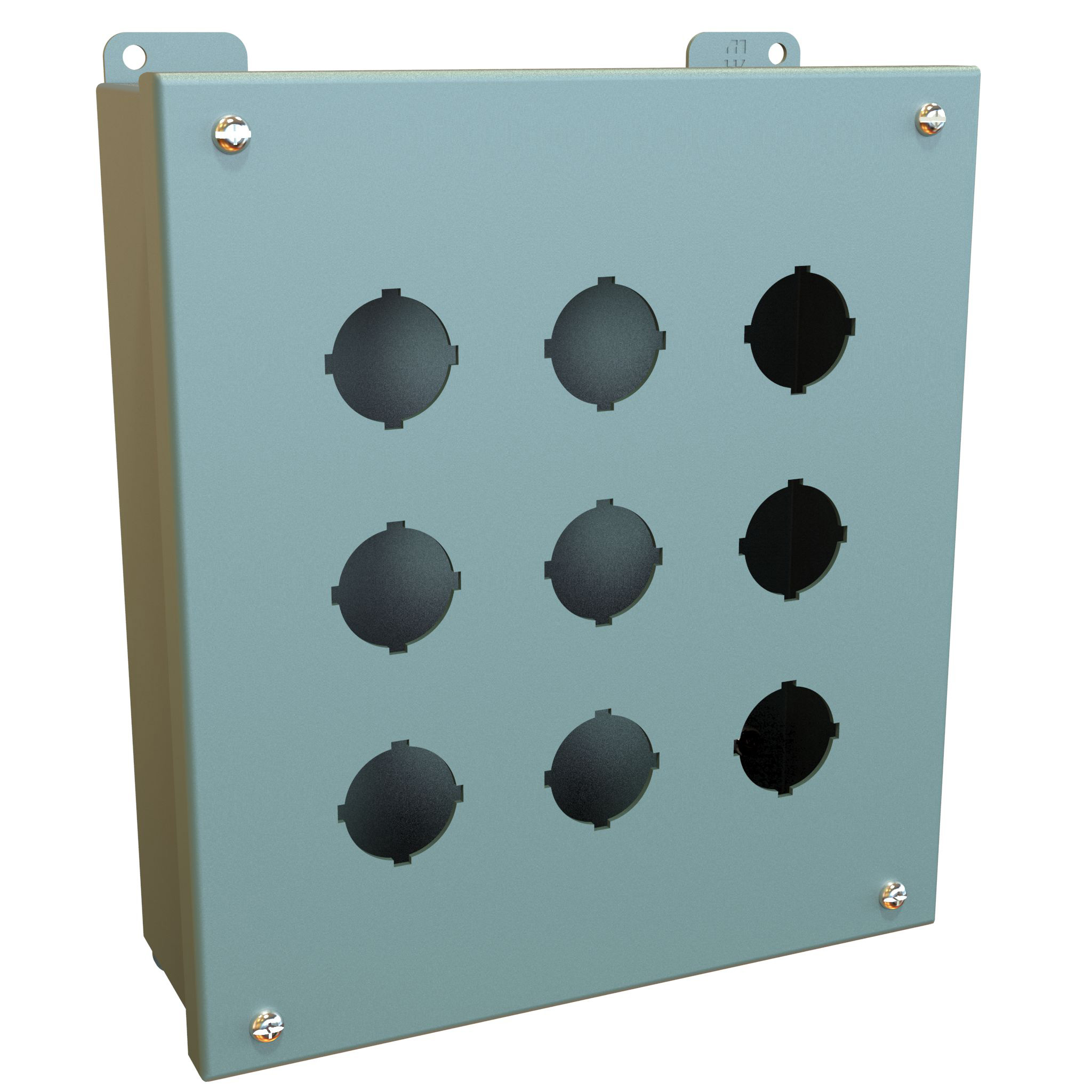

| 1435K | 1435MK | 9 | 9.50 | 8.50 | 3.00 | $135.05In stock1435K | Buy now |

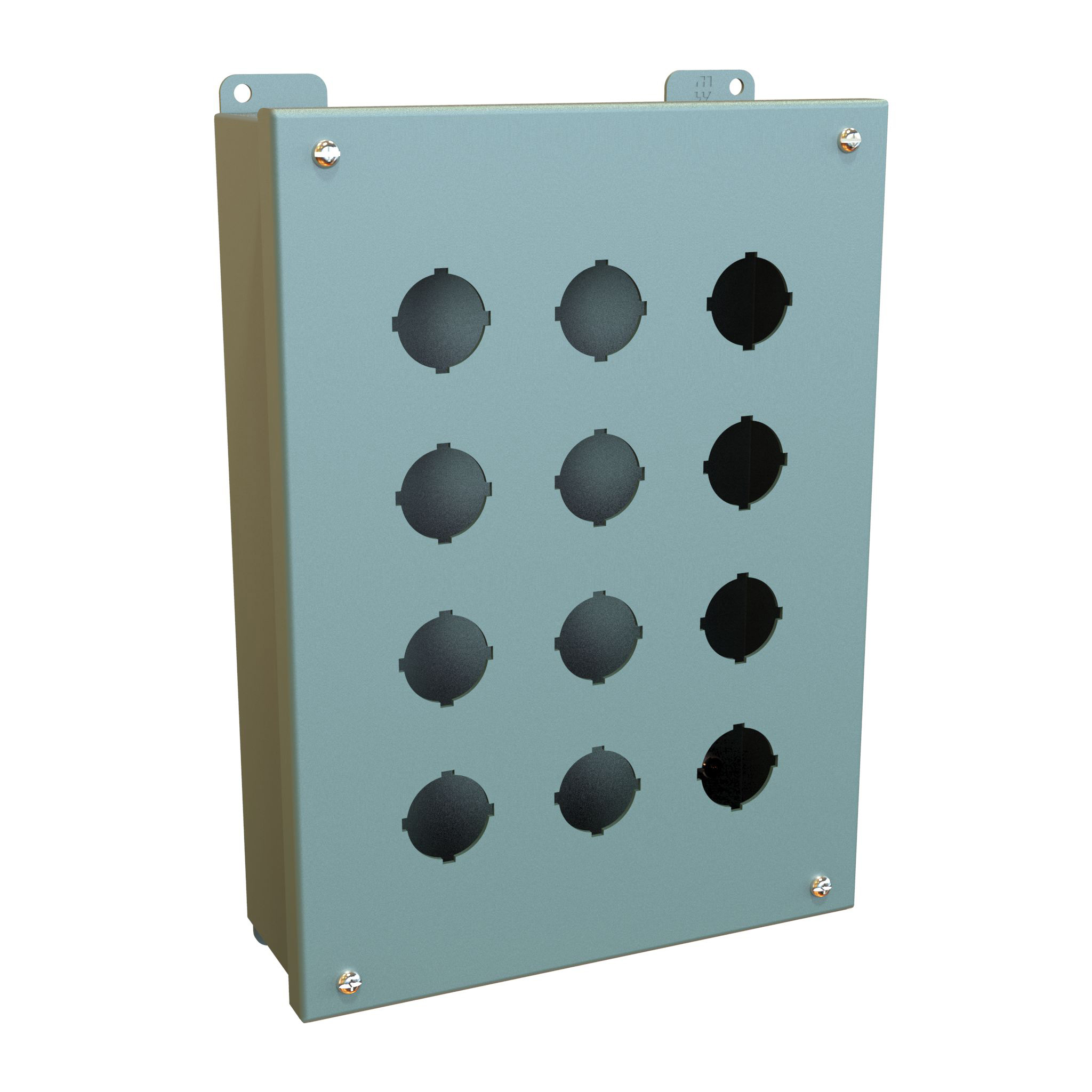

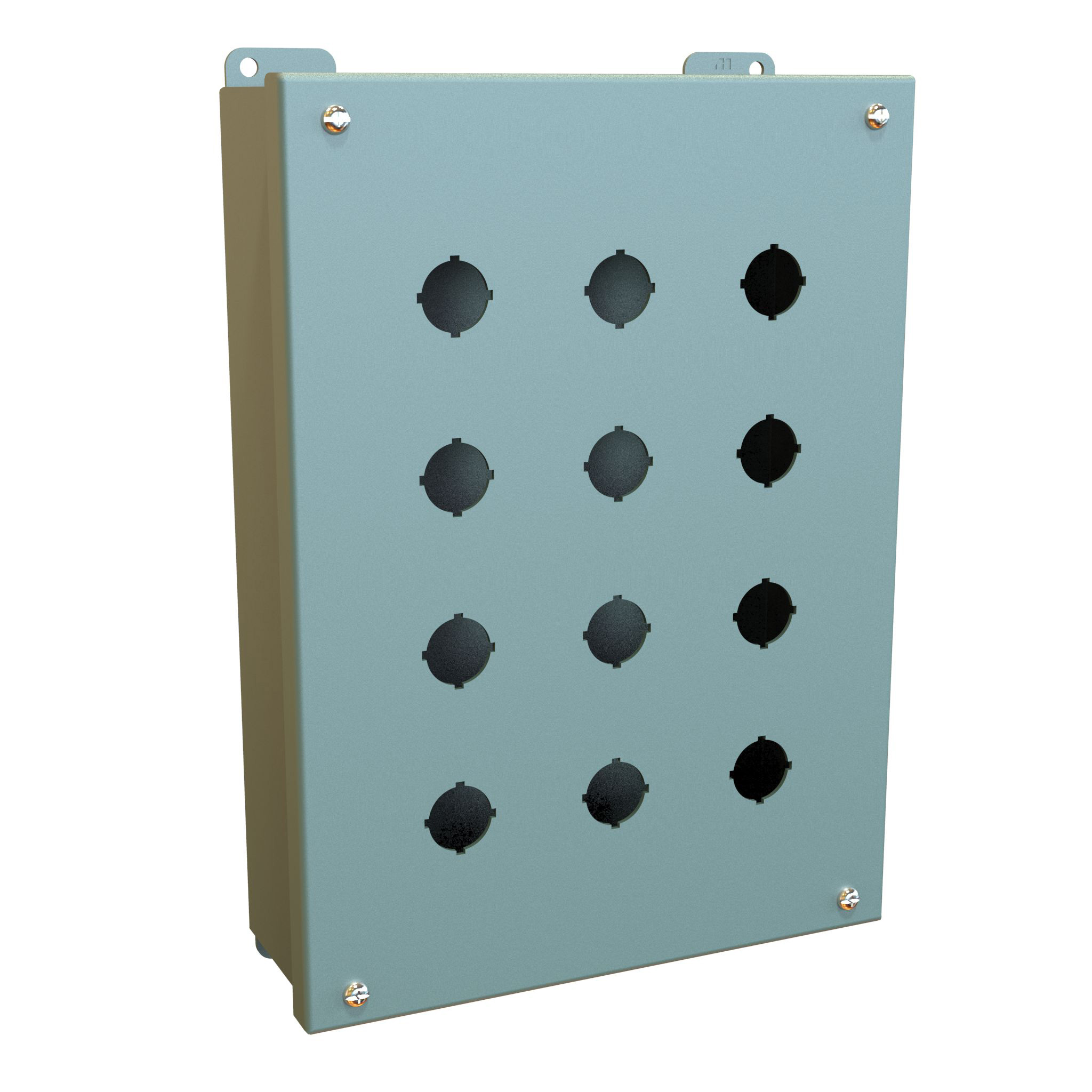

| 1435O | 1435MO | 12 | 11.75 | 8.50 | 3.00 | $151.43In stock1435O | Buy now |

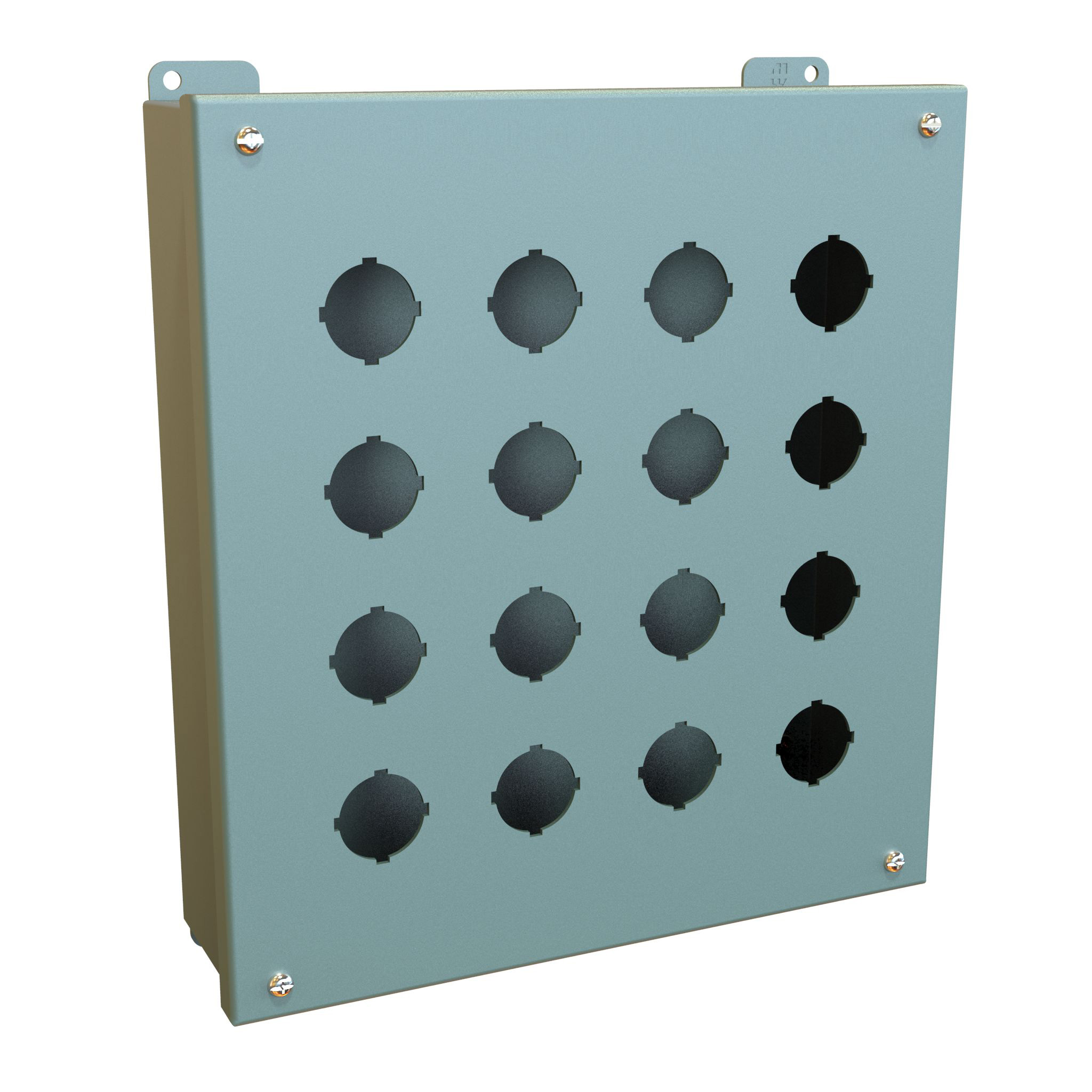

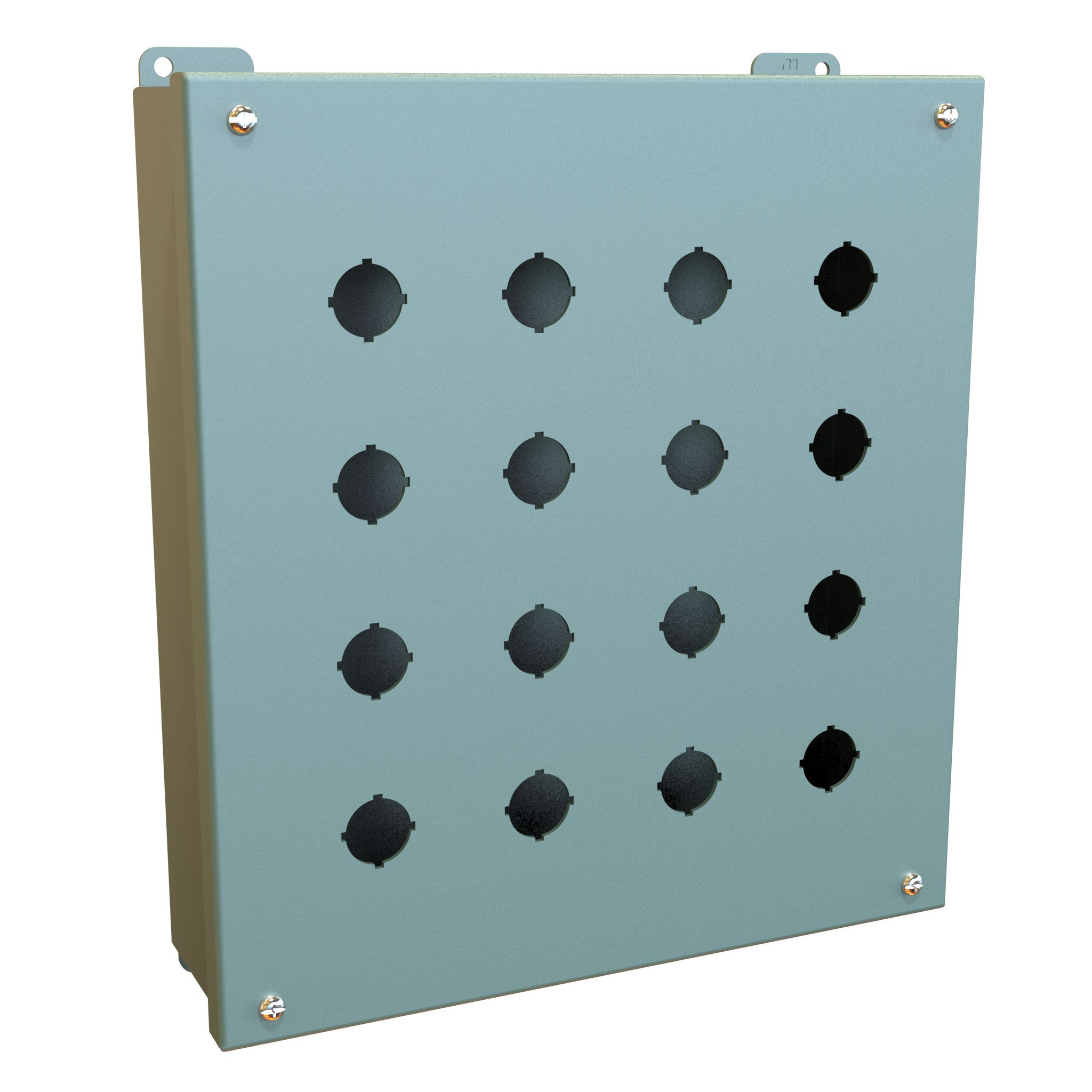

| 1435S | 1435MS | 16 | 11.75 | 10.75 | 3.00 | $173.93In stock1435S | Buy now |
Application
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 16 gauge steel.
- ■Smooth continuously welded seams.
- ■Welded brackets provide for enclosure mounting.
- ■Captive cover screws thread into sealed wells.
- ■Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see table).
- ■Oil resistant gasket and adhesive.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. of · Holes | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|
| 1435A ¹ | 1435MA ¹ | 1 | 3.50 | 3.25 | 2.75 |
| 1435B ¹ | 1435MB ¹ | 2 | 5.75 | 3.25 | 2.75 |
| 1435C ¹ | 1435MC ¹ | 3 | 8.00 | 3.25 | 2.75 |
| 1435D ¹ | 1435MD ¹ | 4 | 10.25 | 3.25 | 2.75 |
| 1435F | 1435MF | 4 | 7.25 | 6.25 | 3.00 |
| 1435H | 1435MH | 6 | 9.50 | 6.25 | 3.00 |
| 1435K | 1435MK | 9 | 9.50 | 8.50 | 3.00 |
| 1435O | 1435MO | 12 | 11.75 | 8.50 | 3.00 |
| 1435S | 1435MS | 16 | 11.75 | 10.75 | 3.00 |
