NEMA 12 Two Enc 24X42X10
$1,099.13In stock
Buy now
Type 12 Mild Steel Two Door Wallmount Enclosure · 1422 Series
Brand: Hammond Manufacturing · 13 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
from $916.15
13 of 13 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1422 Series part number
Filter 13 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
13 of 13 part numbers · 13 priced online
NEMA 12 Two Door Enclosure 24X42X8
$916.15In stock
Buy now
NEMA 12 Two Door Enclosure 24X48X8
$1,001.74In stock
Buy now
NEMA12 Two Dr Enc 30X42X10
$1,104.72In stock
Buy now
NEMA 12 Two Door Enclosure 30X48X10
$1,208.37In stock
Buy now
NEMA 12 Two Door Enclosure 30X60X10
$1,447.11Backorder
Buy now
NEMA 12 Two Door Enclosure 36X42X12
$1,325.40In stock
Buy now
NEMA 12 2 Dr 36X48X12
$1,416.35In stock
Buy now
NEMA 12 2DR Enclosure 36X60X12
$1,663.10In stock
Buy now
NEMA 12 Two Door Enclosure 42X42X12
$1,465.83In stock
Buy now
NEMA 12 Two Door Enclosure 42X48X12
$1,612.28In stock
Buy now
NEMA 12 Two Door Enclosure 42X60X12
$1,871.08Backorder
Buy now
NEMA 12 Two Door Enclosure 48X48X12
$1,748.70Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|

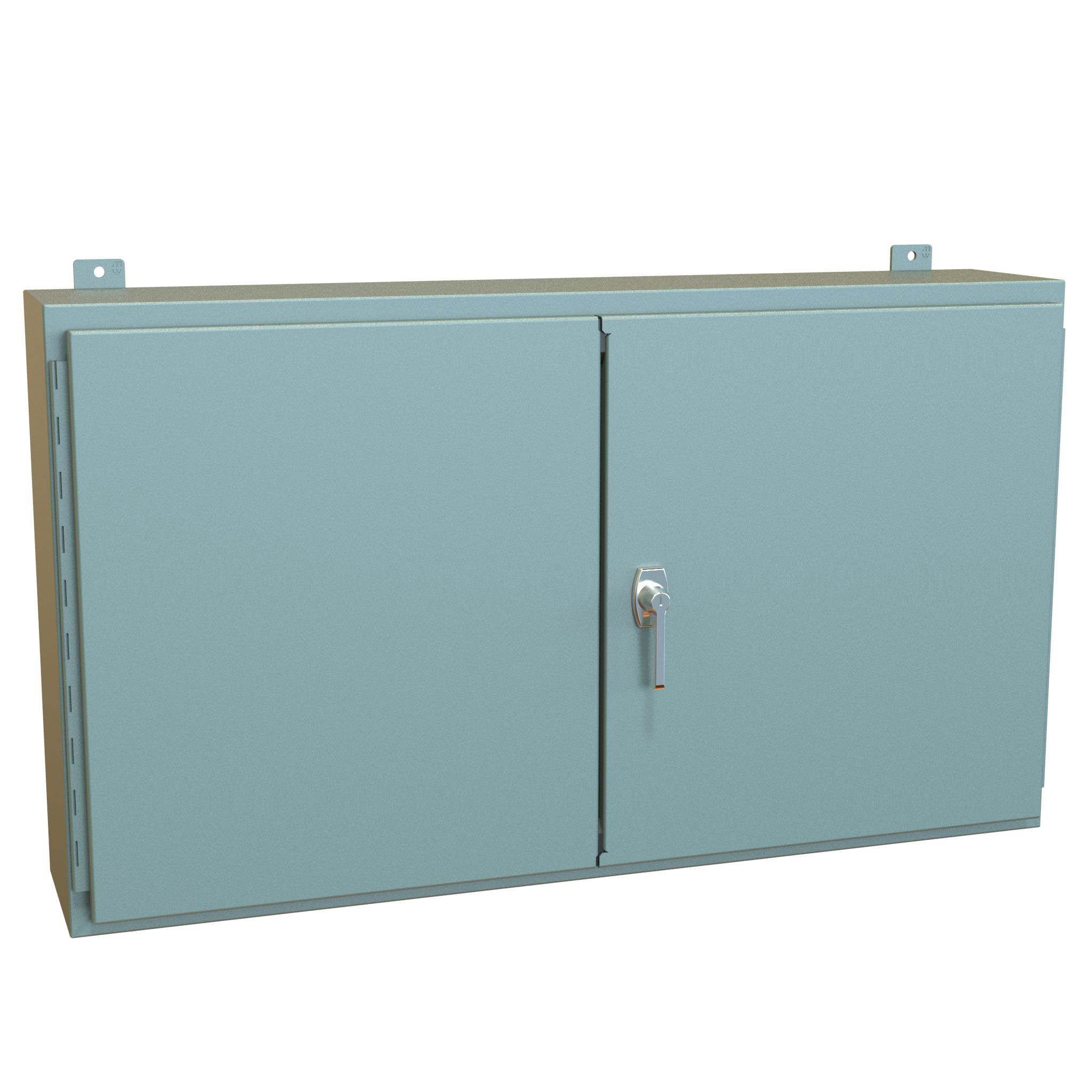

| 1422P8 | 24.00 | 42.00 | 8.00 | 21.00 | 39.00 | $916.15In stock | Buy now |

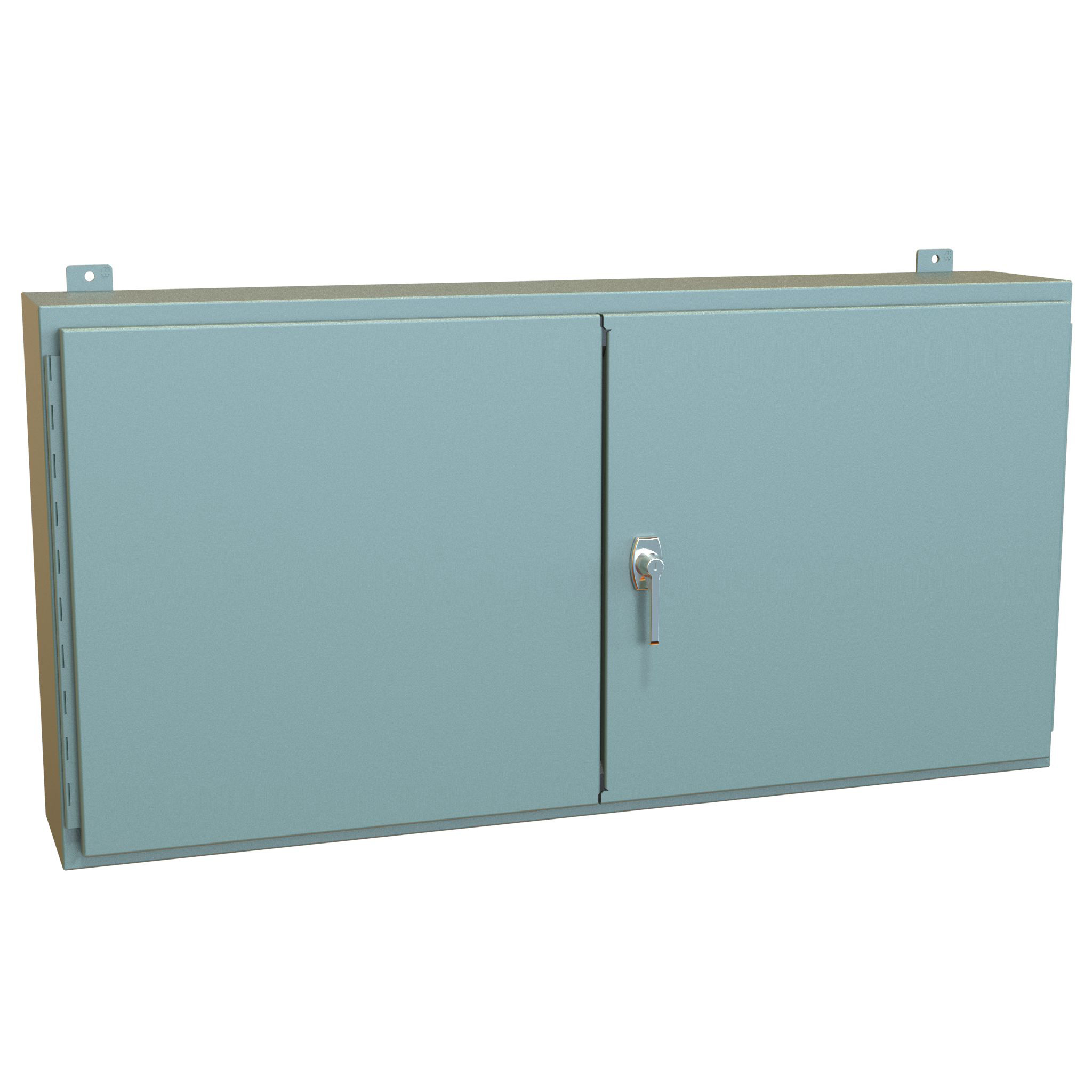

| 1422PW8 | 24.00 | 48.00 | 8.00 | 21.00 | 45.00 | $1,001.74In stock | Buy now |

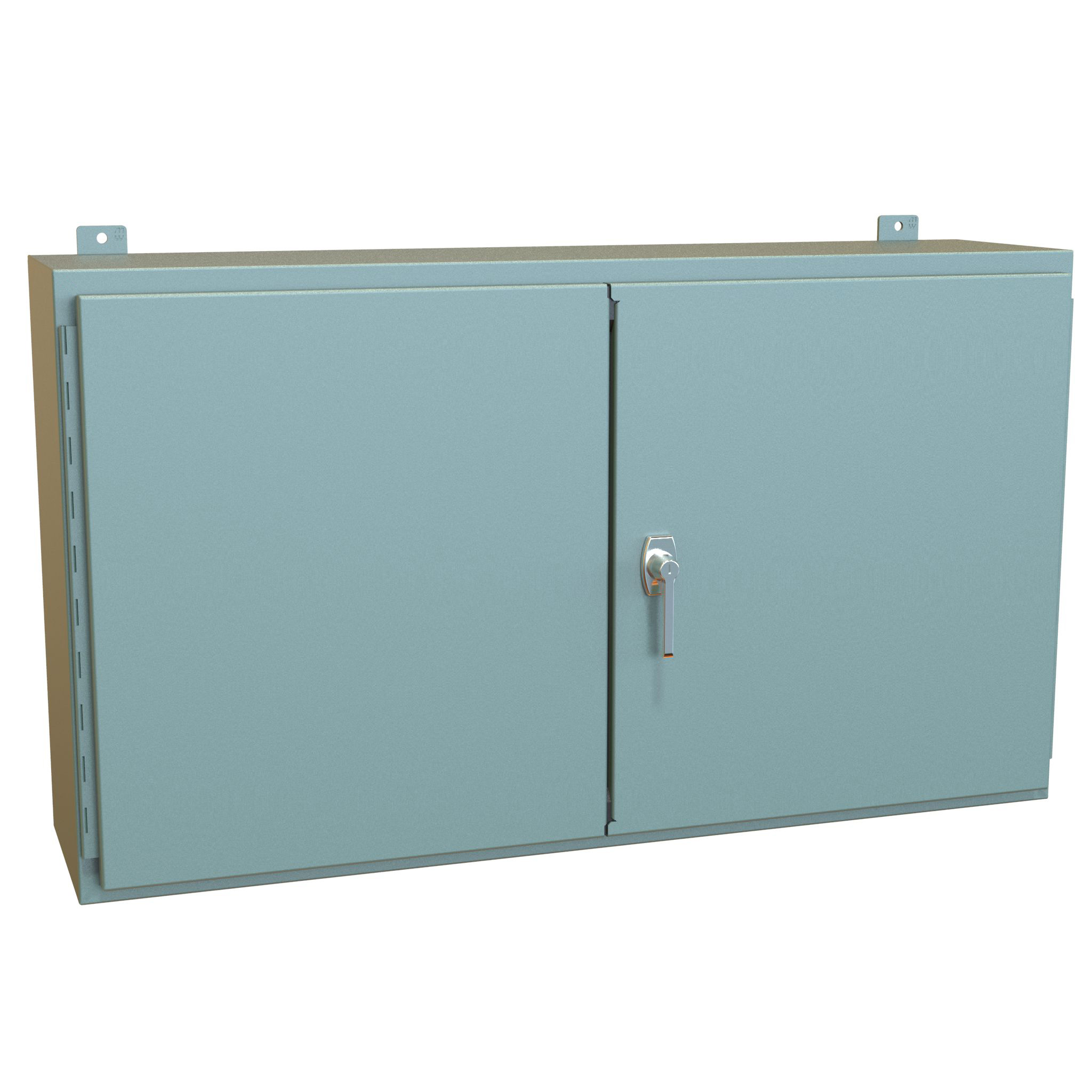

| 1422P10 | 24.00 | 42.00 | 10.00 | 21.00 | 39.00 | $1,099.13In stock | Buy now |

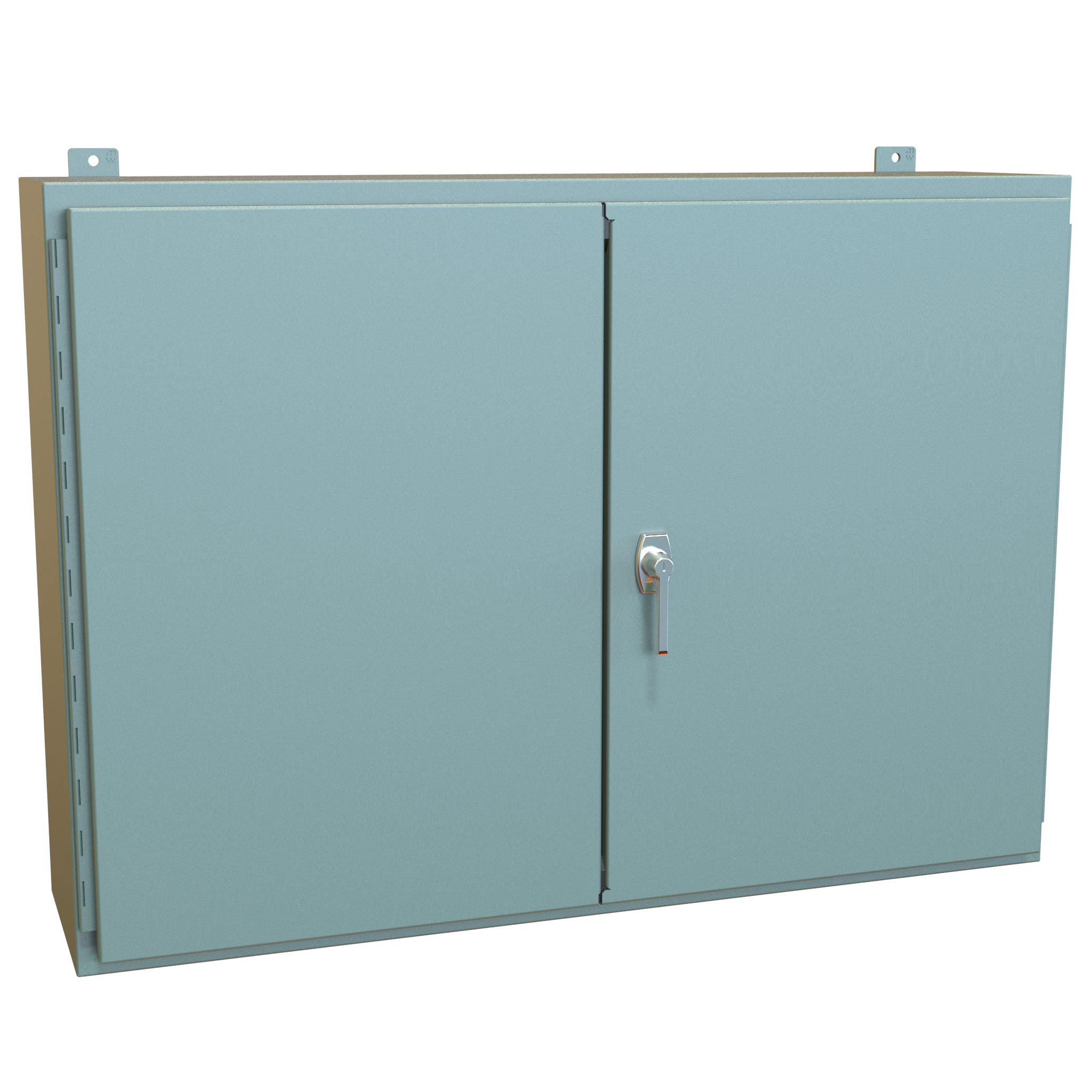

| 1422R10 | 30.00 | 42.00 | 10.00 | 27.00 | 39.00 | $1,104.72In stock | Buy now |

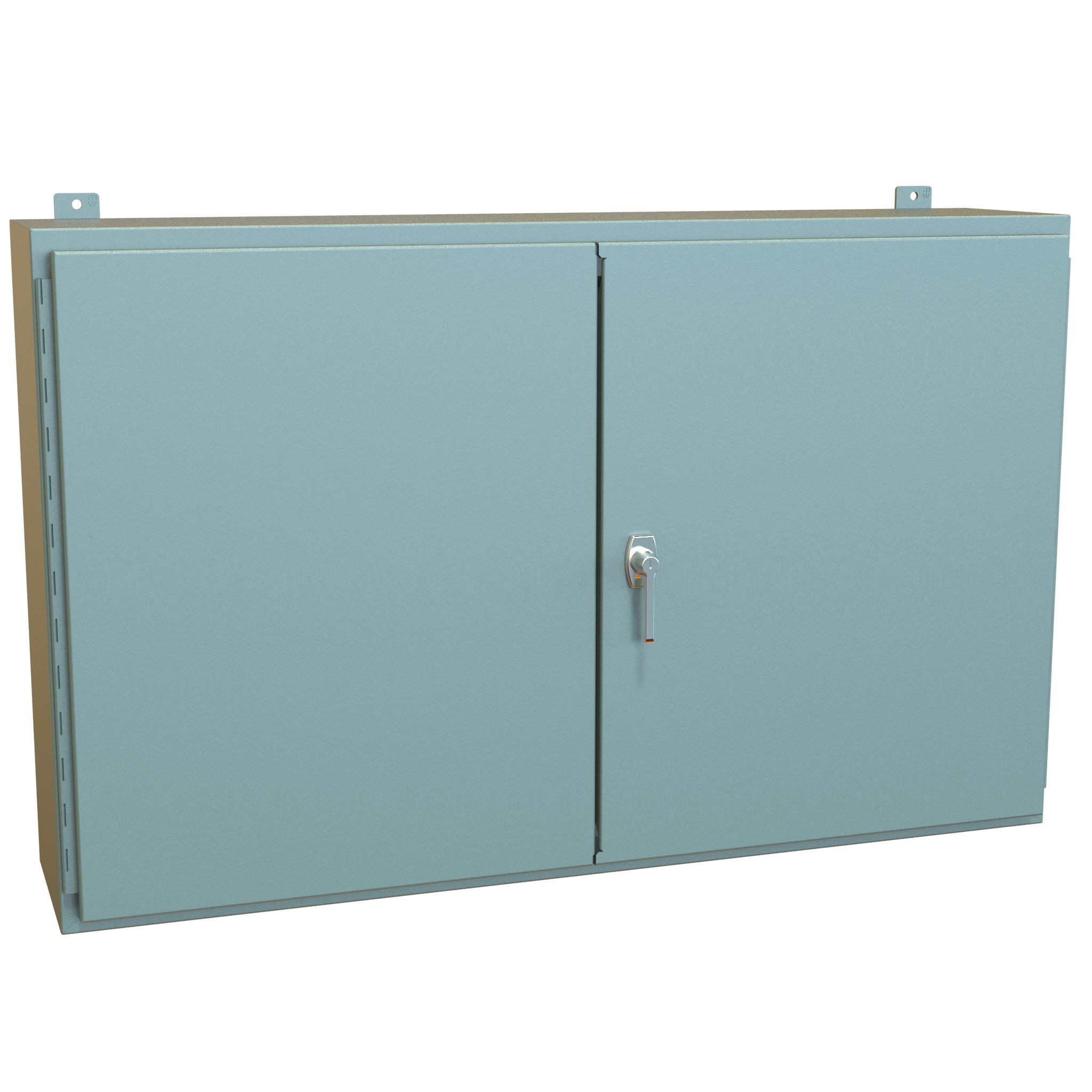

| 1422RW10 | 30.00 | 48.00 | 10.00 | 27.00 | 45.00 | $1,208.37In stock | Buy now |

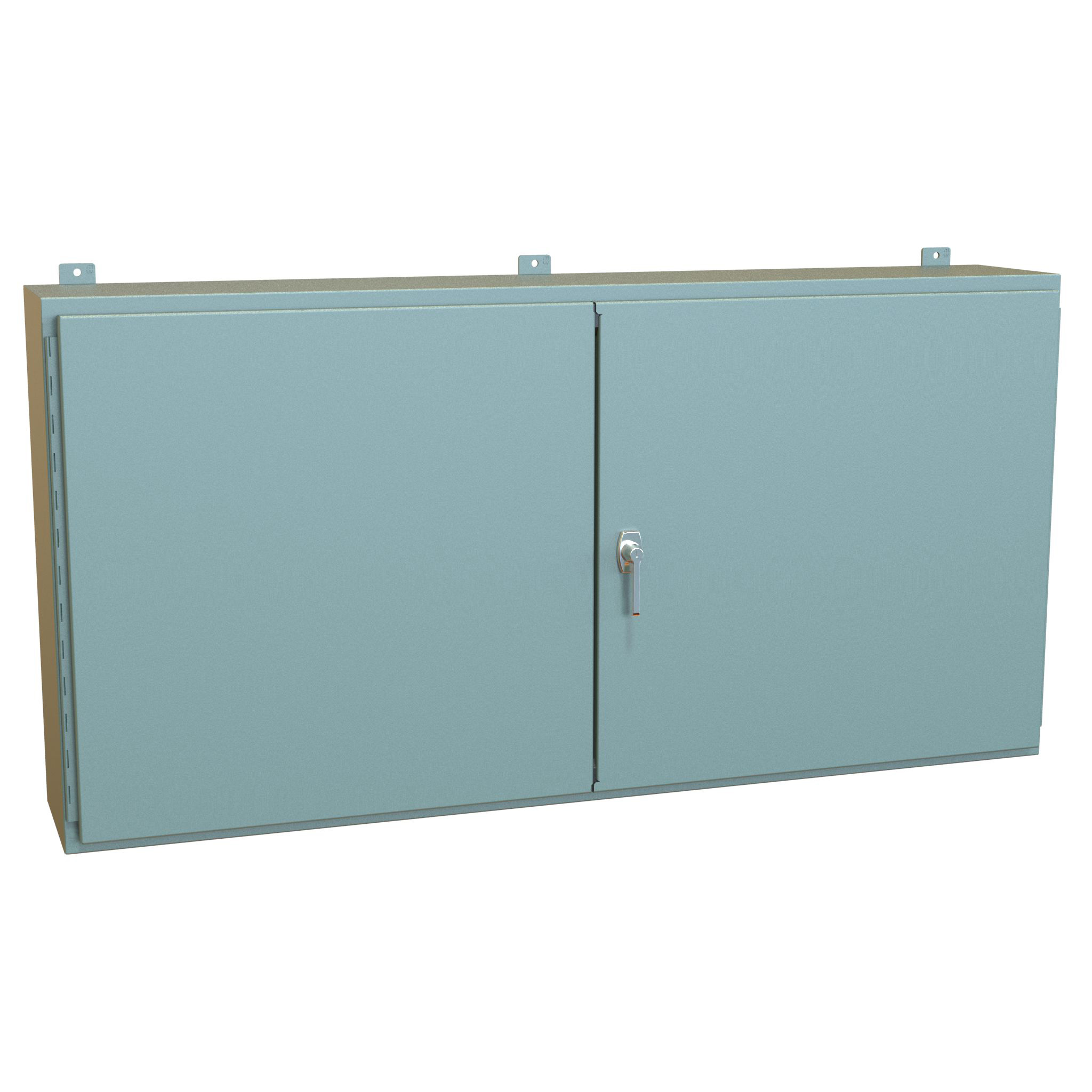

| 1422RX10 | 30.00 | 60.00 | 10.00 | 27.00 | 57.00 | $1,447.11Backorder | Buy now |

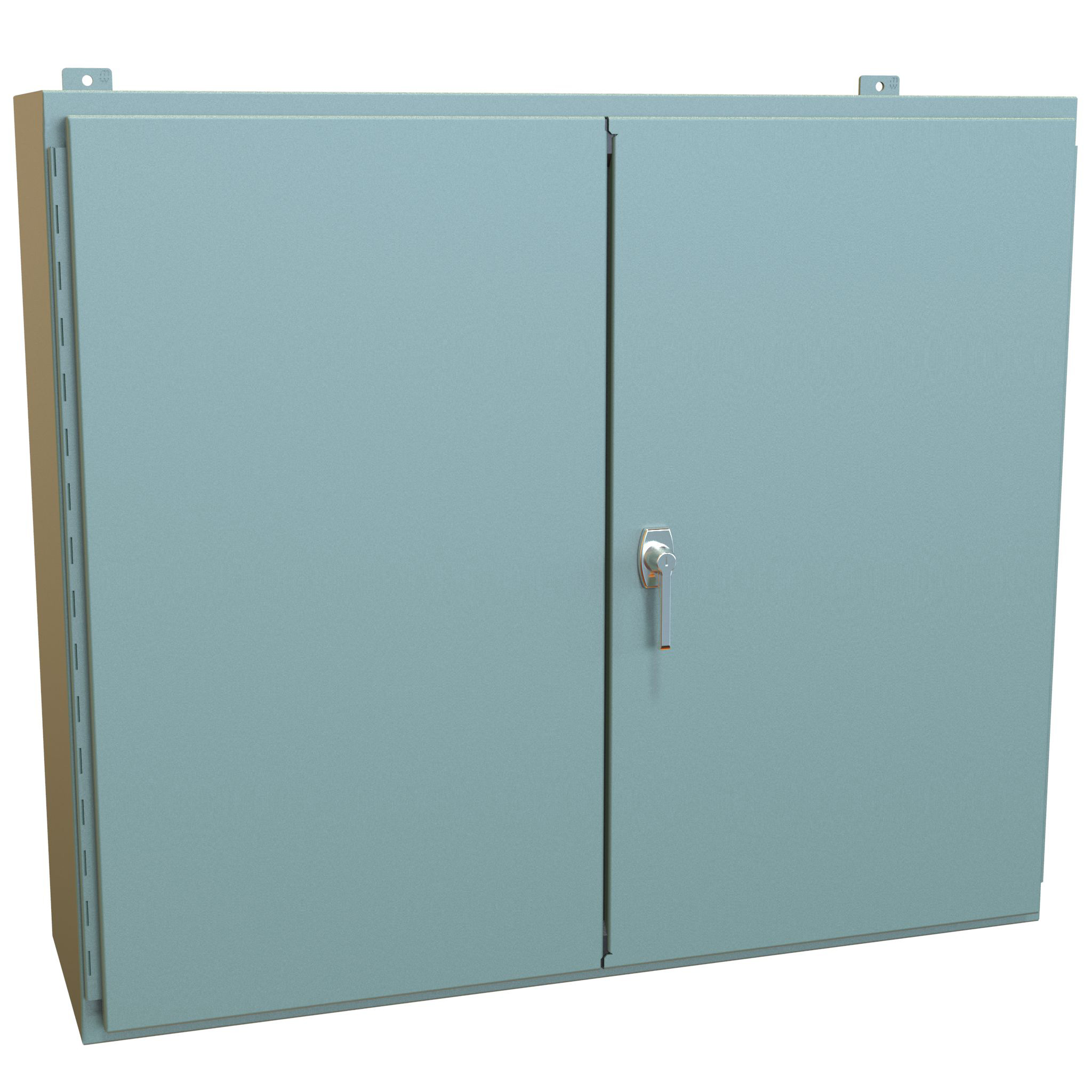

| 1422UV12 | 36.00 | 42.00 | 12.00 | 33.00 | 39.00 | $1,325.40In stock | Buy now |

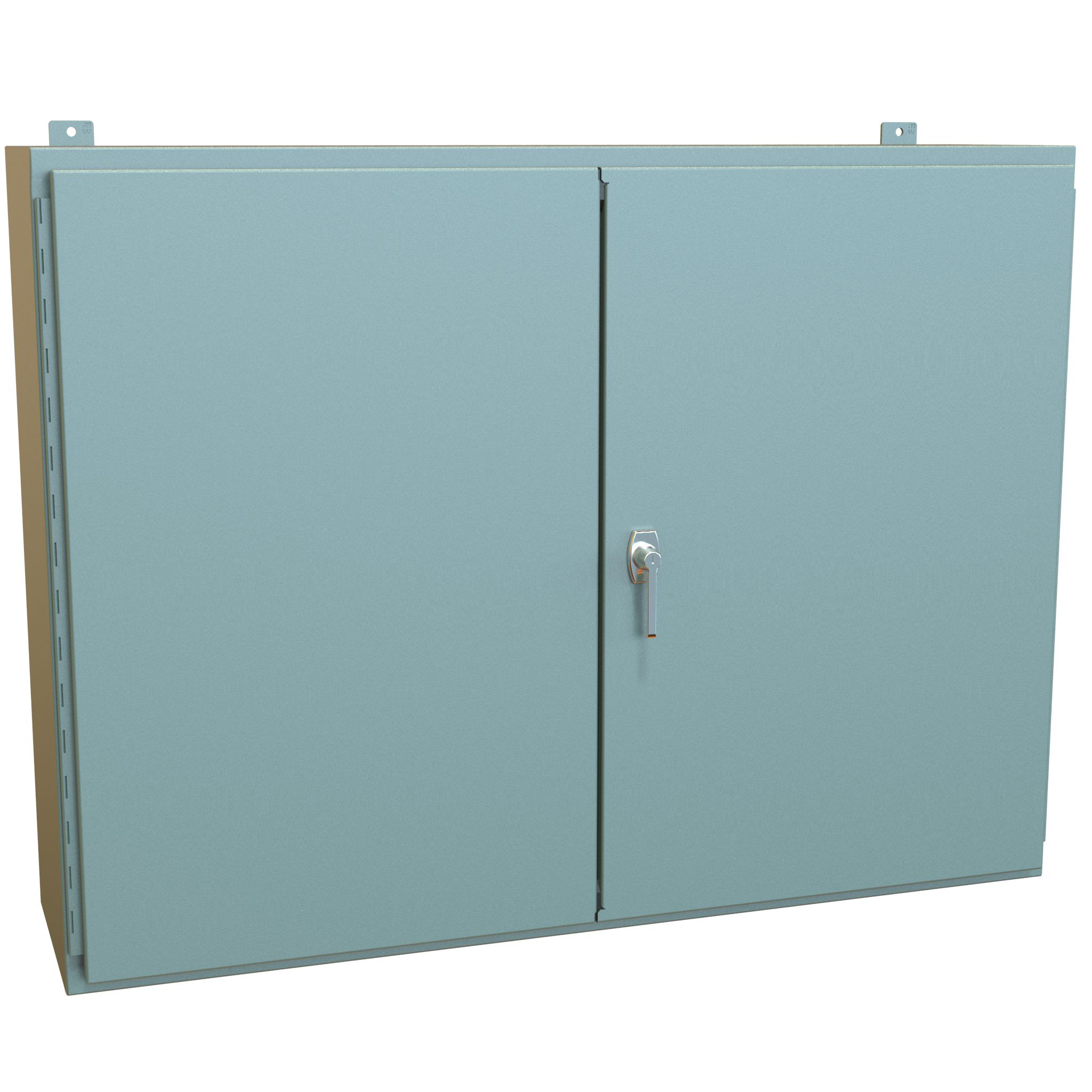

| 1422UW12 | 36.00 | 48.00 | 12.00 | 33.00 | 45.00 | $1,416.35In stock | Buy now |

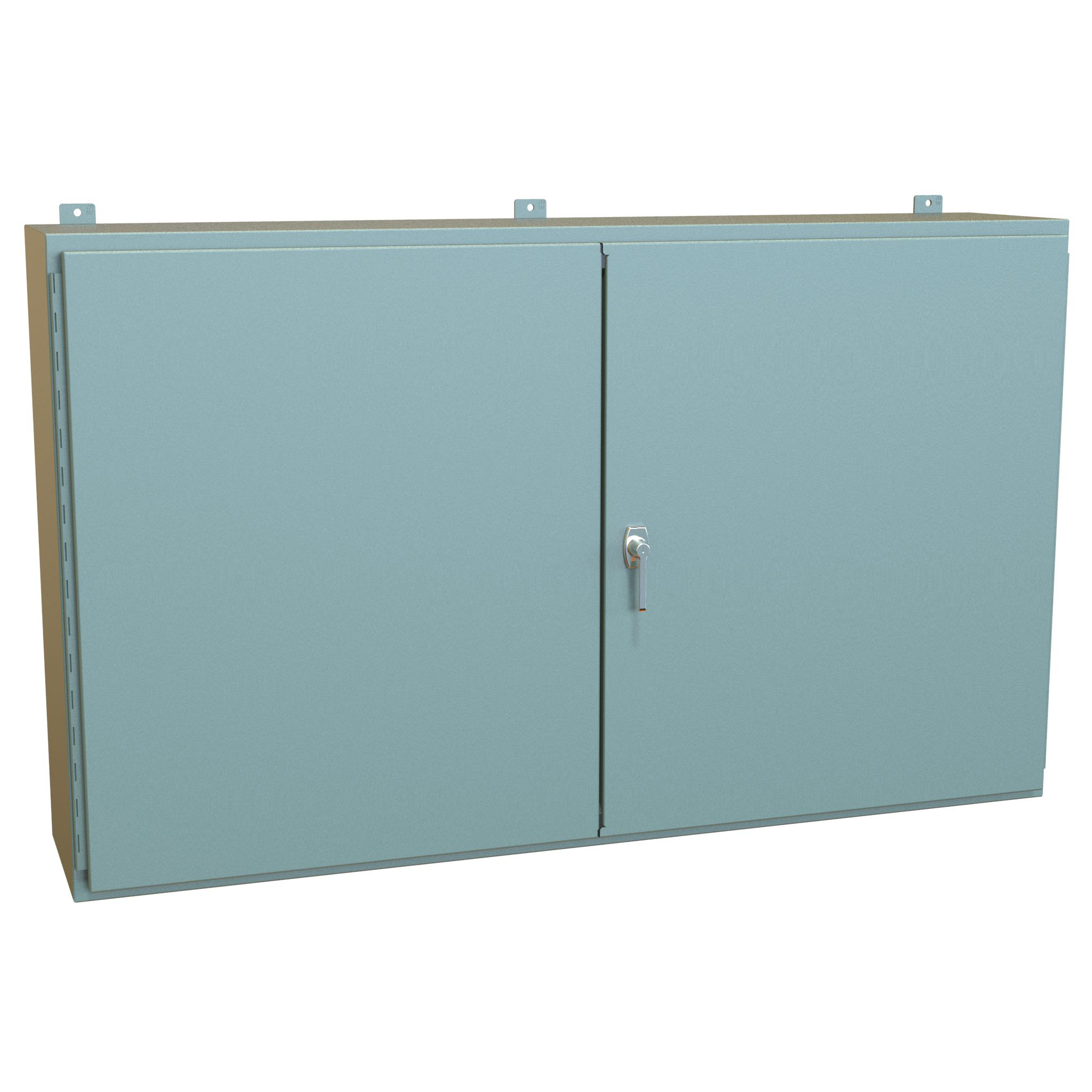

| 1422UX12 | 36.00 | 60.00 | 12.00 | 33.00 | 57.00 | $1,663.10In stock | Buy now |

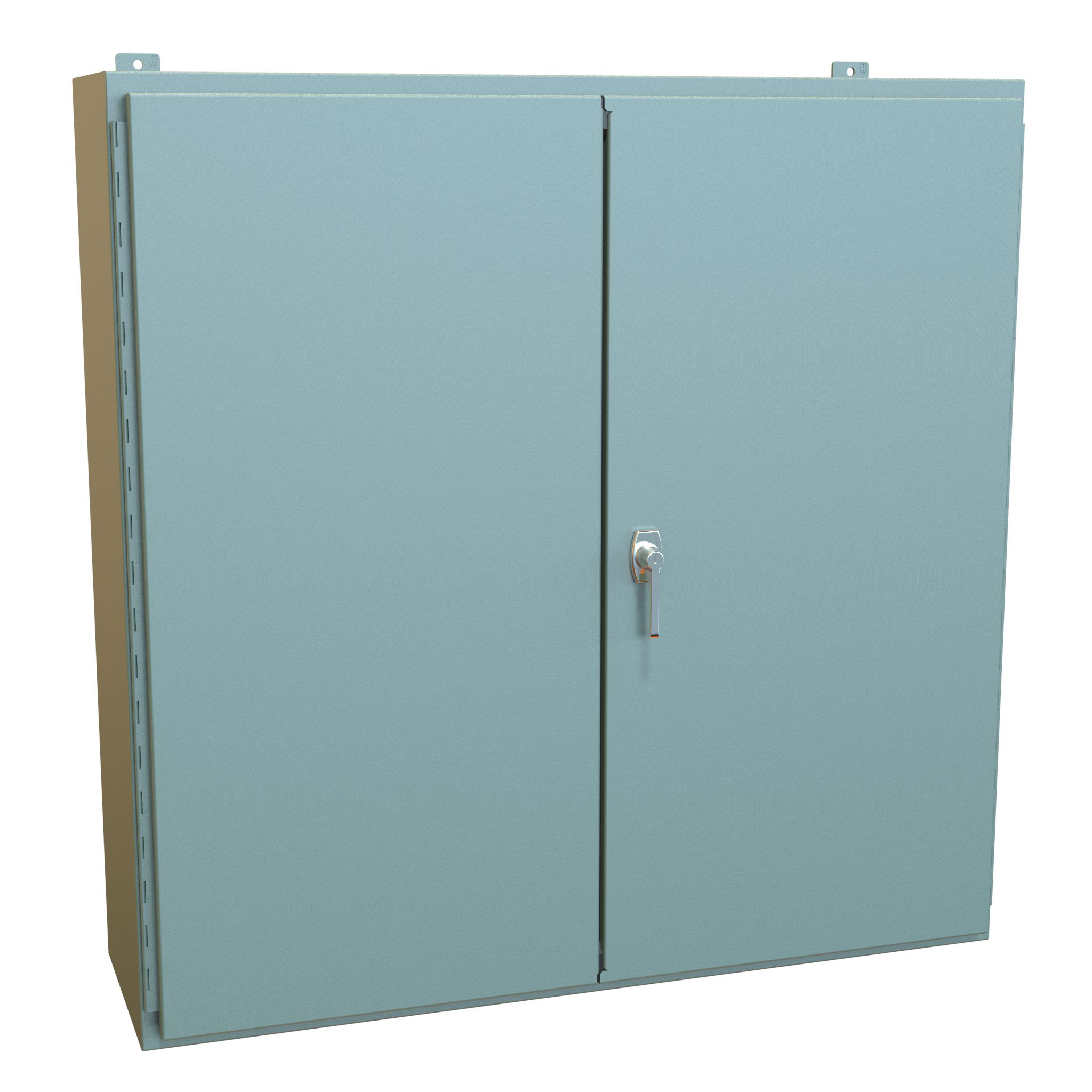

| 1422VV12 | 42.00 | 42.00 | 12.00 | 39.00 | 39.00 | $1,465.83In stock | Buy now |

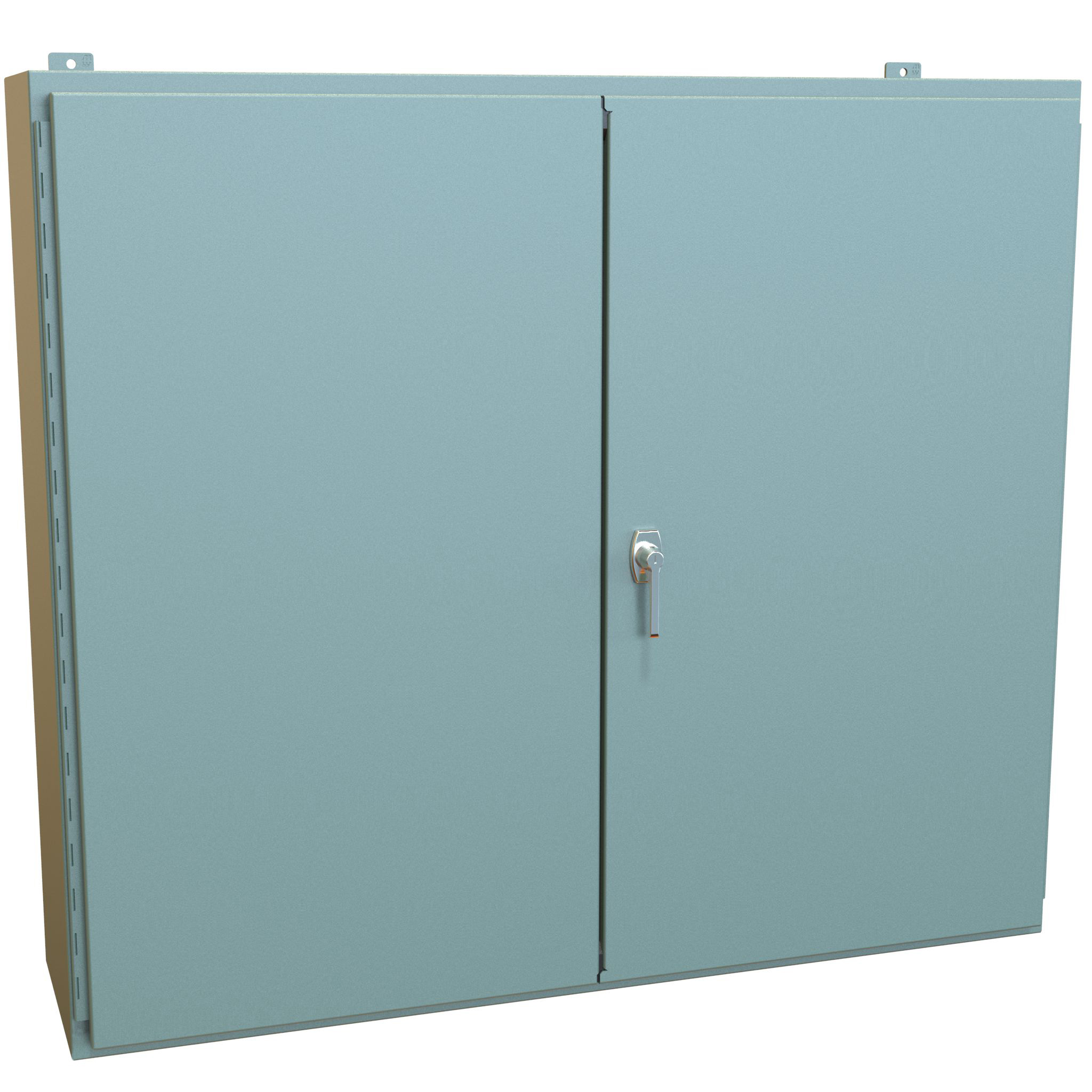

| 1422VW12 | 42.00 | 48.00 | 12.00 | 39.00 | 45.00 | $1,612.28In stock | Buy now |

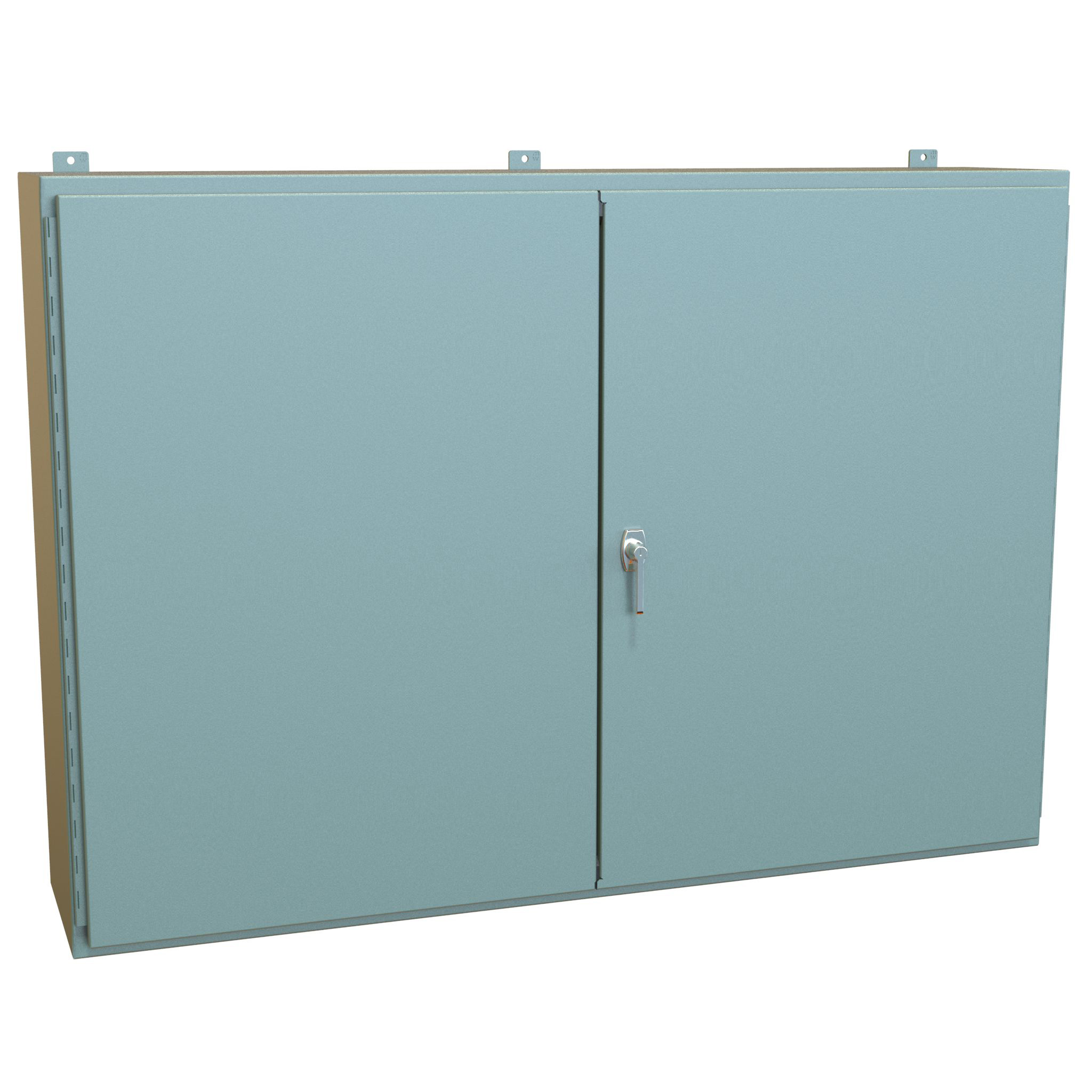

| 1422VX12 | 42.13 | 60.06 | 12.69 | 38.00 | 56.00 | $1,871.08Backorder | Buy now |

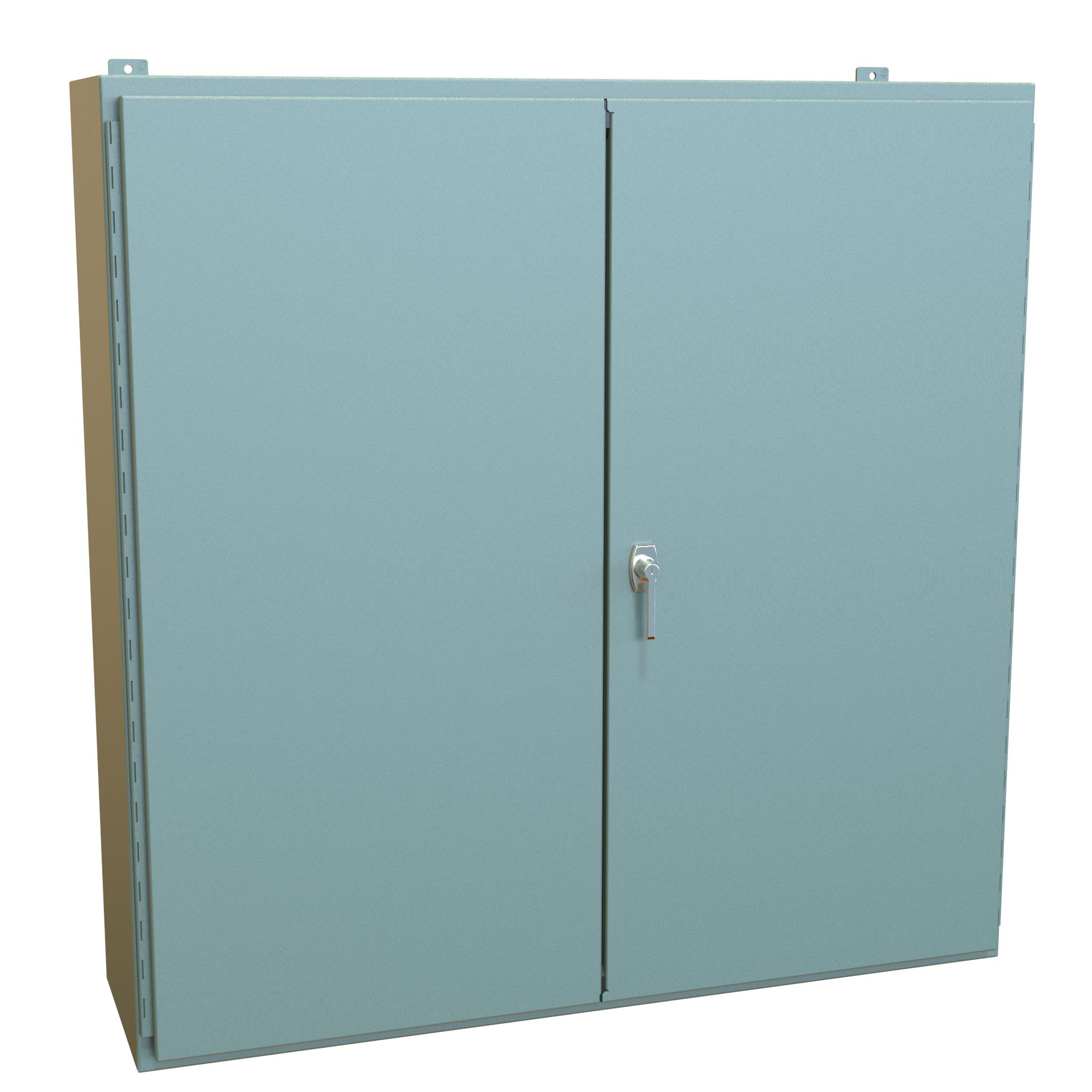

| 1422WW12 | 48.13 | 48.06 | 12.69 | 44.00 | 44.00 | $1,748.70Backorder | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
- ■IEC 60529, IP54
Construction
- ■Enclosures are formed 14 gauge steel with 12 gauge steel inner panels. Exceptions are 42"x60" and 48"x48" which are formed 12 gauge steel with 10 gauge steel inner panels.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Body stiffeners are provided in enclosures 30” high or more for extra rigidity.
- ■Welded brackets provide for enclosure mounting.
- ■Gasketed overlapping doors eliminate the need for a center post.
- ■Continuously hinged doors may be removed by pulling the hinge pin.
- ■Doors are secured with a three point latch and operated with a key locking automotive type handle.
- ■Latch rods are equipped with rollers for easier door closing.
- ■Oil resistant gaskets are permanently secured.
- ■A removable 10 gauge inner panel is included in enclosures as noted.
- ■Smaller sizes include a 12 gauge inner panel.
- ■Collar studs are provided for mounting inner panels.
- ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the inside and outside.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1422P8 | 24.00 | 42.00 | 8.00 | 21.00 | 39.00 |
| 1422PW8 | 24.00 | 48.00 | 8.00 | 21.00 | 45.00 |
| 1422P10 | 24.00 | 42.00 | 10.00 | 21.00 | 39.00 |
| 1422R10 | 30.00 | 42.00 | 10.00 | 27.00 | 39.00 |
| 1422RW10 | 30.00 | 48.00 | 10.00 | 27.00 | 45.00 |
| 1422RX10 | 30.00 | 60.00 | 10.00 | 27.00 | 57.00 |
| 1422UV12 | 36.00 | 42.00 | 12.00 | 33.00 | 39.00 |
| 1422UW12 | 36.00 | 48.00 | 12.00 | 33.00 | 45.00 |
| 1422UX12 | 36.00 | 60.00 | 12.00 | 33.00 | 57.00 |
| 1422VV12 | 42.00 | 42.00 | 12.00 | 39.00 | 39.00 |
| 1422VW12 | 42.00 | 48.00 | 12.00 | 39.00 | 45.00 |
| 1422VX12 | 42.13 | 60.06 | 12.69 | 38.00 | 56.00 |
| 1422WW12 | 48.13 | 48.06 | 12.69 | 44.00 | 44.00 |
