Panel Encl. 24HX12WX6D
$389.13In stock
Buy now
Type 4 Mild Steel Wallmount Enclosure · 1418 N4 Series
Brand: Hammond Manufacturing · 45 part numbers
Continuous Hinge Door with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■UL 508A Type 3R,12, 4
- ■CSA Type 3R, 12, 4
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
from $358.70
18 of 45 part numbers priced · in stock · ships by ground · volume pricing on request
NOTICE of Product Transition - This series is being discontinued and will be replaced by the 1418LP Series . Availability of individual part numbers is now limited to inventory on hand. Please consult Customer Service for availability or further information.
Configure & price
Find your 1418 N4 Series part number
Filter 45 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
45 of 45 part numbers · 18 priced online
NEMA4 Panel Enclosure 16X12X6
QuoteRequest a quote
NEMA4 Panel Enclosure 16X12X8
QuoteRequest a quote
1418N4 Panel Enclosure 20X16X10
QuoteRequest a quote
NEMA4 Panel Enclosure 20X16X6
$389.19In stock
Buy now
Panel Encl. 20X16X8
QuoteRequest a quote
1418N4 Panel Enclosure 16X20X6
$398.76In stock
Buy now
Panel Encl. 20HX20WX6D
$425.78In stock
Buy now
1418N4 Panel Enclosure
QuoteRequest a quote
NEMA4 Panel Enclosure 24X20X10
QuoteRequest a quote
NEMA4 Panel Enclosure 24X20X12
QuoteRequest a quote
NEMA4 Panel Enclosure 24X20X6
QuoteRequest a quote
NEMA4 Panel Enclosure 24X20X8
$489.80In stock
Buy now
Panel Encl. 20HX24WX8D
$489.80In stock
Buy now
Panel Enclosure
$534.78In stock
Buy now
NEMA 4 Panel Enclosure 30X20X8
QuoteRequest a quote
1418N4 Panel Enclosure 16X16X6
$358.70In stock
Buy now
1418N4 Panel Enclosure 24X16X6
$430.06In stock
Buy now
Panel Encl. 24HX24WX6D
QuoteRequest a quote
NEMA4 Panel Enclosure 24X24X8
QuoteRequest a quote
Panel Encl. 30X24X10
QuoteRequest a quote
NEMA4 Panel Enclosure 30X24X12
QuoteRequest a quote
NEMA4 Panel Enclosure 30X24X16
QuoteRequest a quote
NEMA4 Panel Enclosure 30X24X6
$586.60In stock
Buy now
NEMA4 Panel Enclosure 30X24X8
QuoteRequest a quote
1418N4 Panel Enclosure 30X30X8
QuoteRequest a quote
Panel Encl. 24HX30WX8D
$600.24In stock
Buy now
NEMA4 Panel Enclosure 36X24X12
QuoteRequest a quote
NEMA4 Panel Enclosure 36X24X6
$652.07In stock
Buy now
NEMA4 Panel Enclosure 36X24X8
QuoteRequest a quote
Panel Encl. 36X30X10
QuoteRequest a quote
1418N4 Panel Enclosure 36X30X12
QuoteRequest a quote
Enclosure TYPE4.36X30X16 Sgl Dr C80
$937.87In stock
Buy now
1418N4 Panel Enclosure 36X30X8
$774.84In stock
Buy now
NEMA4 Panel Enclosure 42X30X8
$876.48In stock
Buy now
NEMA4 Panel Enclosure 42X36X12
QuoteRequest a quote
1418N4 Panel Enclosure 42X36X8
$986.29In stock
Buy now
Panel Encl. 48NX30WX10D
QuoteRequest a quote
Panel Encl. 48X36X10
$1,103.62In stock
Buy now
NEMA4 Panel Enclosure 48X36X12
QuoteRequest a quote
1418N4 Panel Enclosure 48X36X16
$1,238.00In stock
Buy now
NEMA4 Panel Enclosure 48X36X8
QuoteRequest a quote
NEMA4 Panel Enclosure 60X36X10
QuoteRequest a quote
NEMA4 Panel Enclosure 60X36X16
QuoteRequest a quote
NEMA4 Panel Enclosure 60X36X8
QuoteRequest a quote
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1418N4B6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 | Quote | Quote |

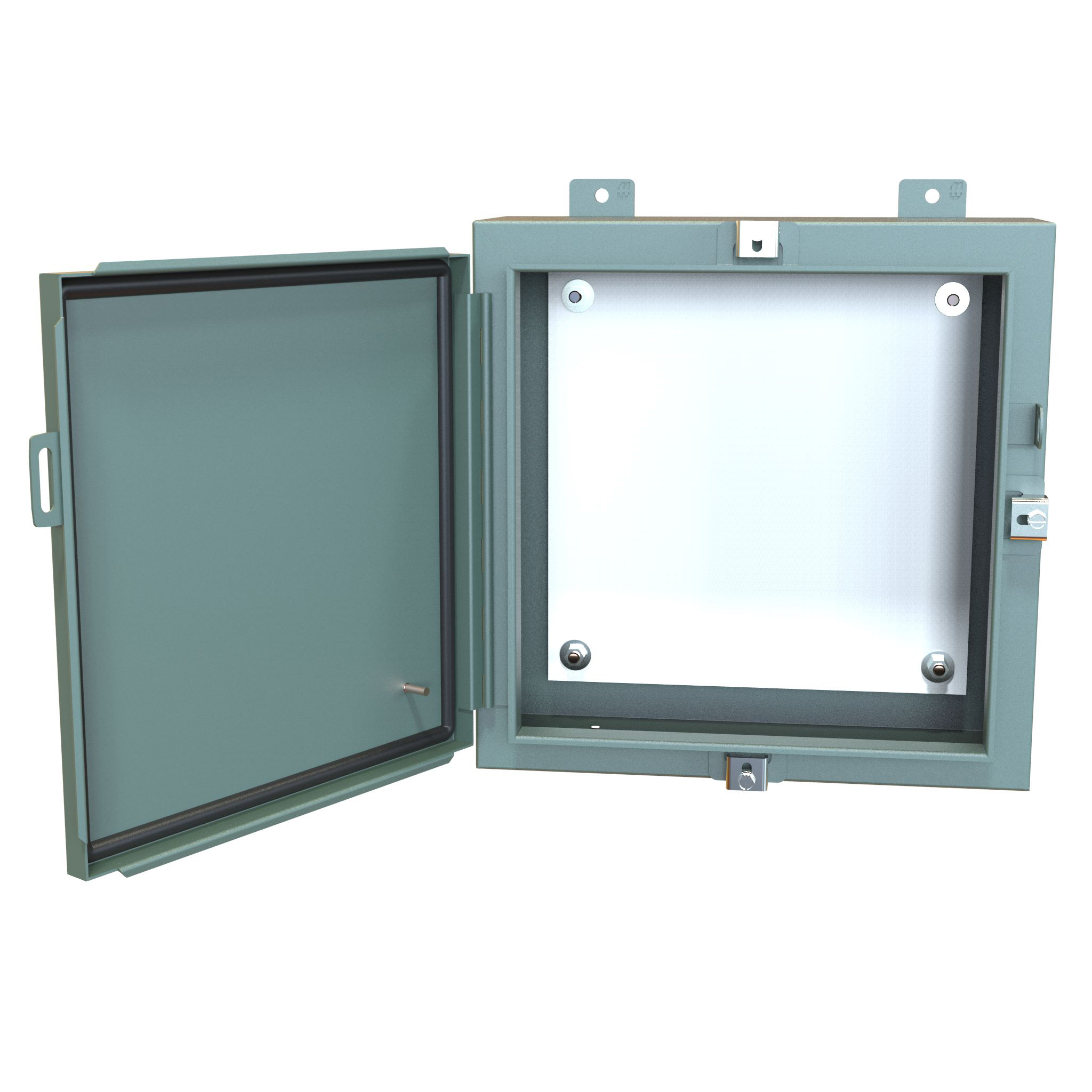

| 1418N4G6 | 16.00 | 16.00 | 6.00 | 13.00 | 13.00 | $358.70In stock | Buy now |
| 1418N4CR6 | 16.00 | 20.00 | 6.00 | 13.00 | 17.00 | $398.76In stock | Buy now |
| 1418N4C6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 | $389.19In stock | Buy now |
| 1418N4D6 | 20.00 | 20.00 | 6.00 | 17.00 | 17.00 | $425.78In stock | Buy now |

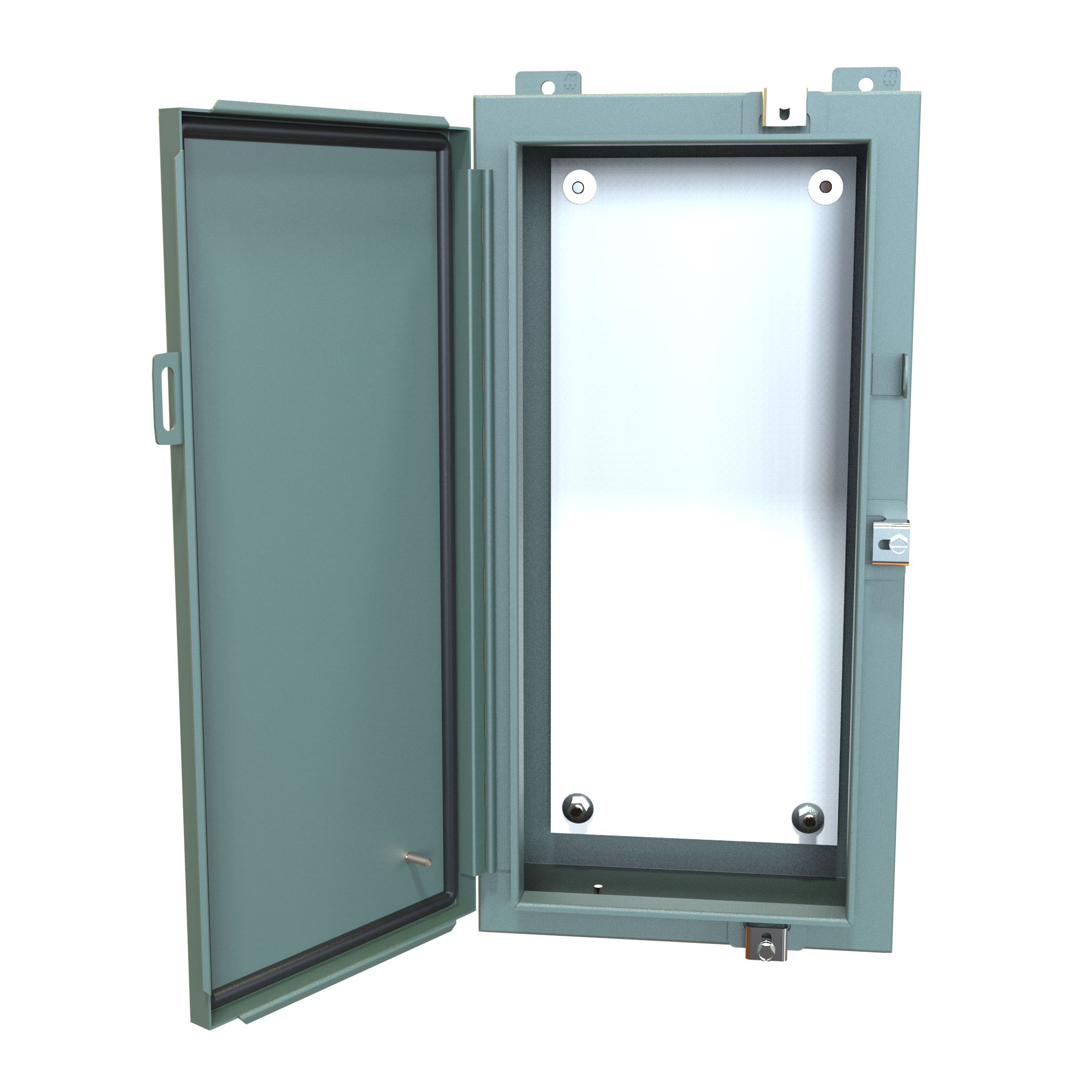

| 1418N4AR6 | 24.00 | 12.00 | 6.00 | 21.00 | 9.00 | $389.13In stock | Buy now |
| 1418N4H6 | 24.00 | 16.00 | 6.00 | 21.00 | 13.00 | $430.06In stock | Buy now |
| 1418N4E6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 | Quote | Quote |
| 1418N4J6 | 24.00 | 24.00 | 6.00 | 21.00 | 21.00 | Quote | Quote |
| 1418N4F6 | 30.00 | 20.00 | 6.00 | 27.00 | 17.00 | $534.78In stock | Buy now |
| 1418N4K6 | 30.00 | 24.00 | 6.00 | 27.00 | 21.00 | $586.60In stock | Buy now |

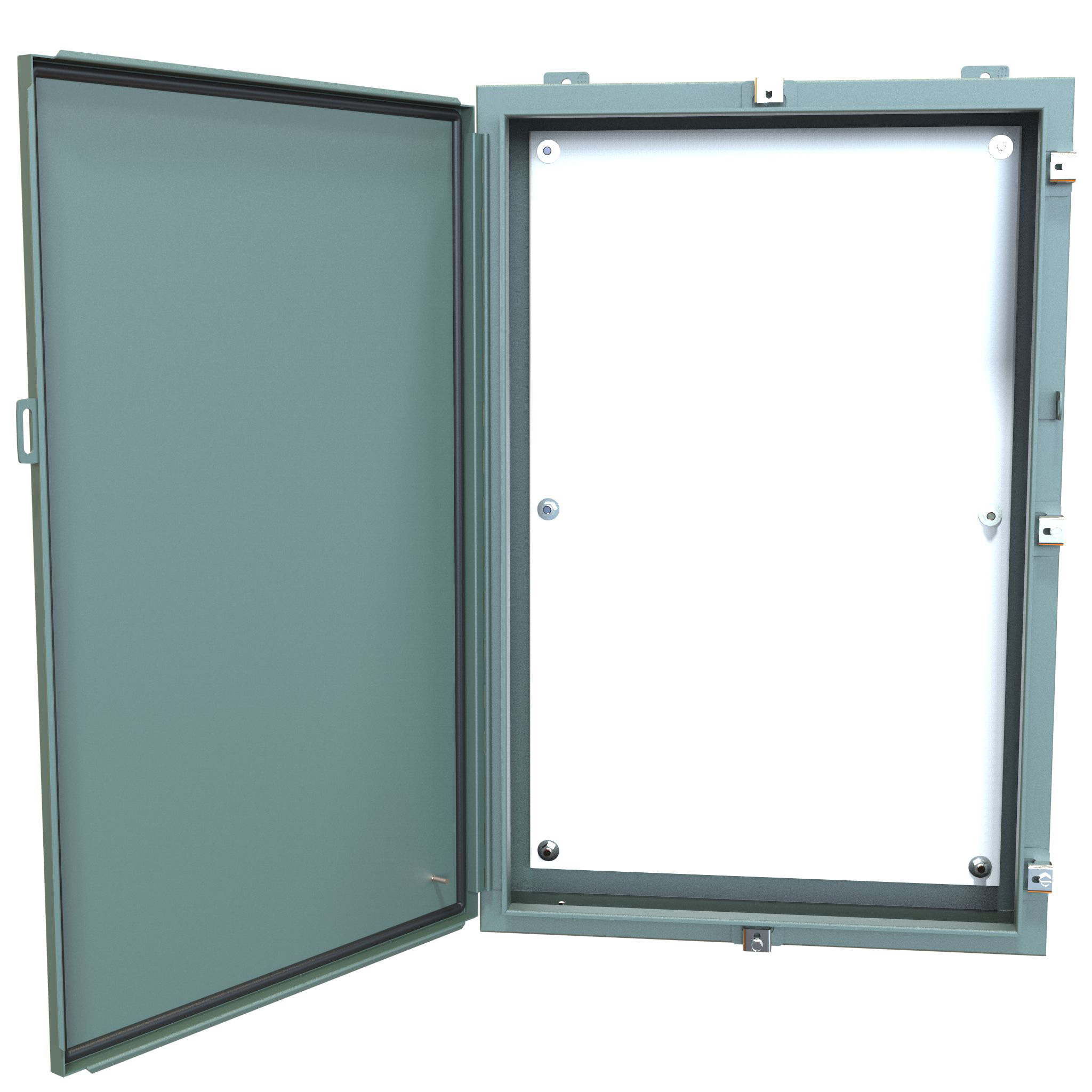

| 1418N4L6 | 36.00 | 24.00 | 6.00 | 33.00 | 21.00 | $652.07In stock | Buy now |

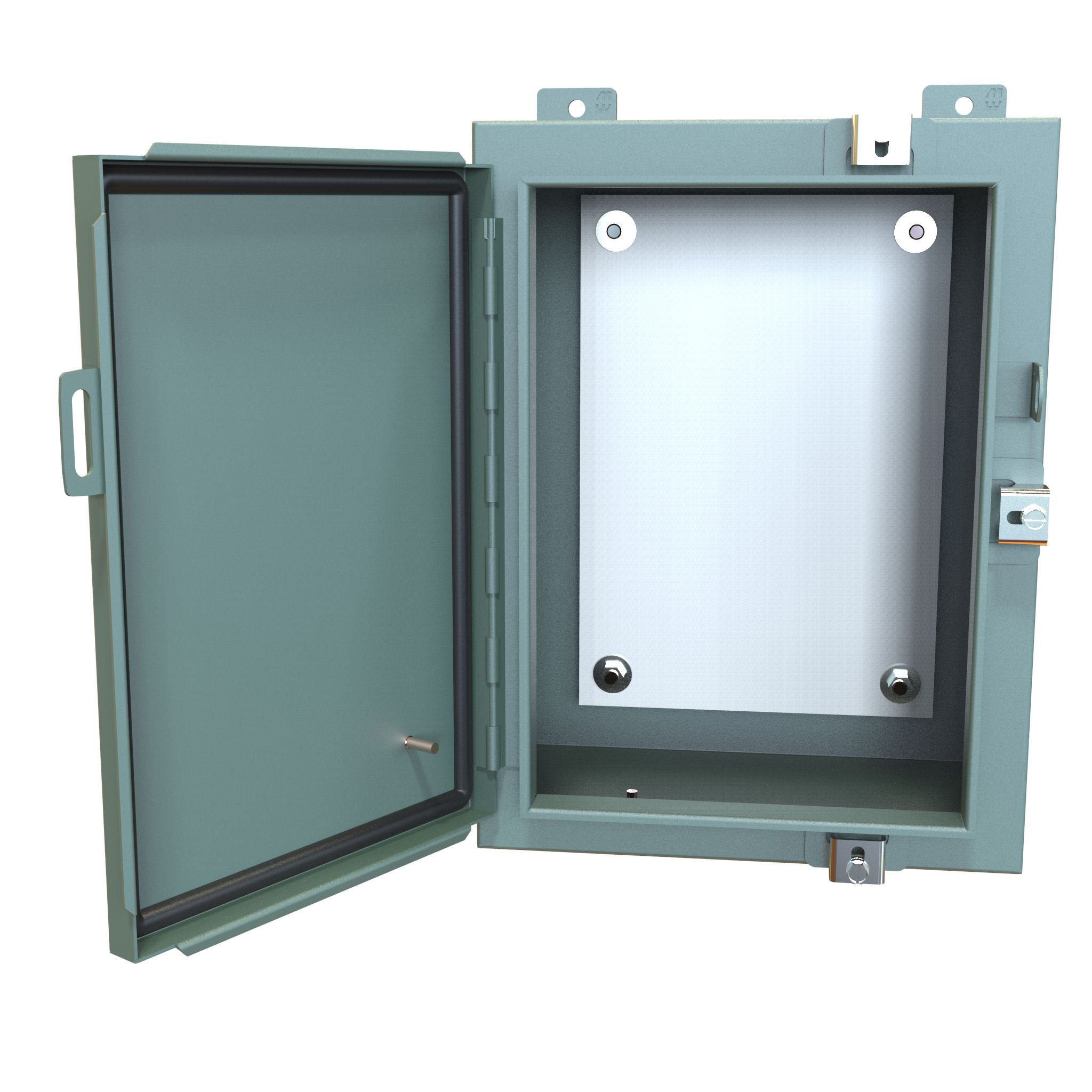

| 1418N4B8 | 16.00 | 12.00 | 8.00 | 13.00 | 9.00 | Quote | Quote |
| 1418N4C8 | 20.00 | 16.00 | 8.00 | 17.00 | 13.00 | Quote | Quote |

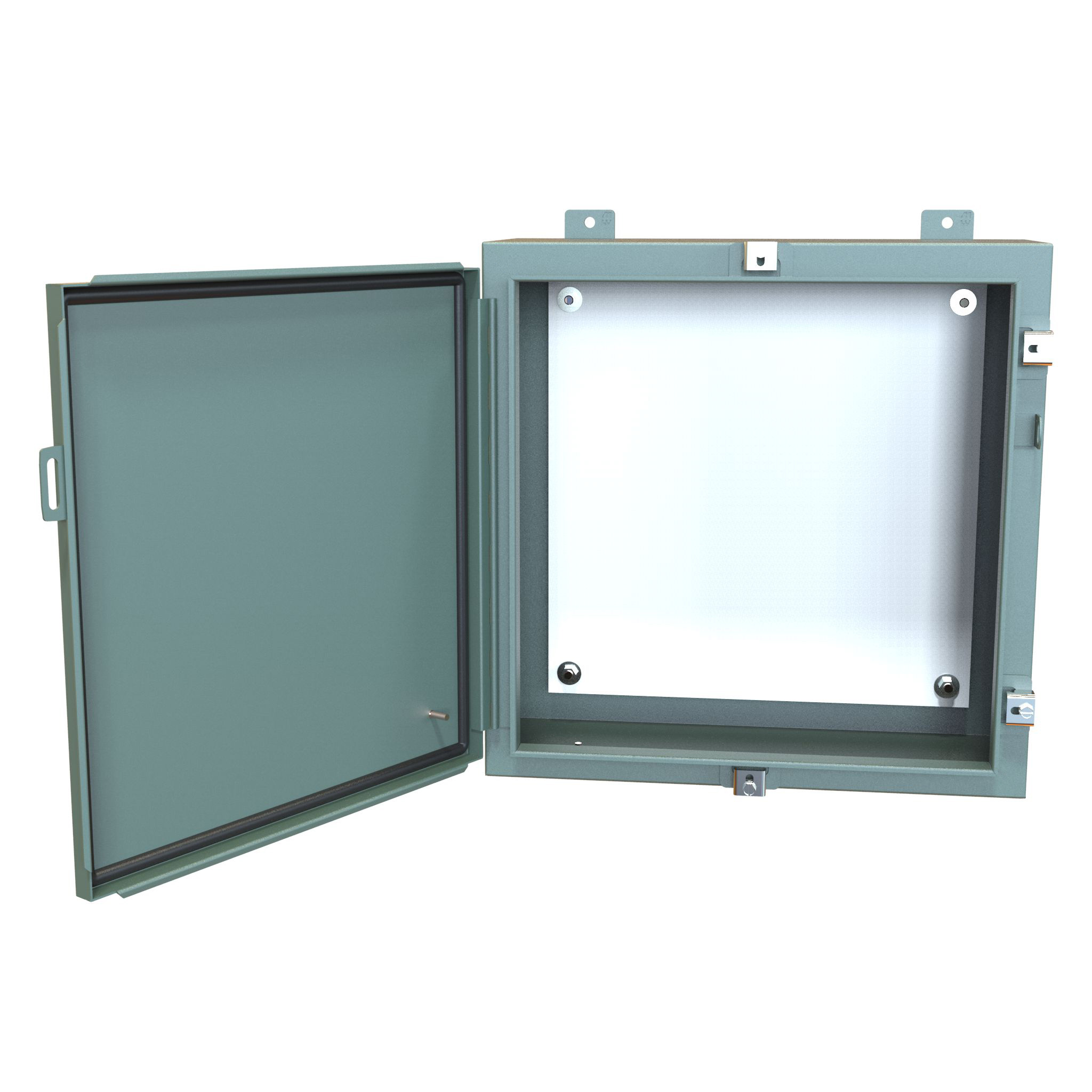

| 1418N4D8 | 20.00 | 20.00 | 8.00 | 17.00 | 17.00 | Quote | Quote |

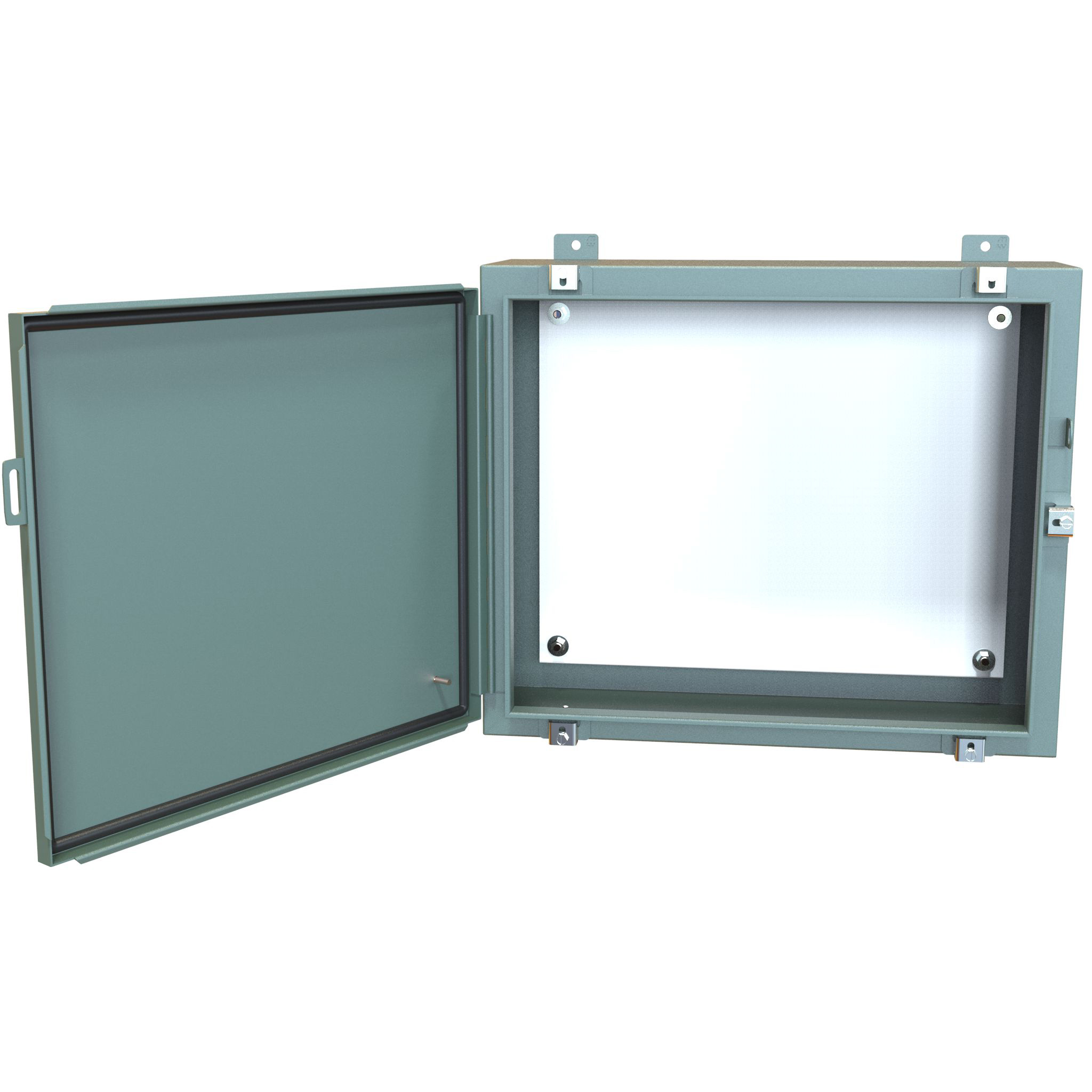

| 1418N4ER8 | 20.00 | 24.00 | 8.00 | 17.00 | 21.00 | $489.80In stock | Buy now |
| 1418N4E8 | 24.00 | 20.00 | 8.00 | 21.00 | 17.00 | $489.80In stock | Buy now |
| 1418N4J8 | 24.00 | 24.00 | 8.00 | 21.00 | 21.00 | Quote | Quote |
| 1418N4KR8 | 24.00 | 30.00 | 8.00 | 21.00 | 27.00 | $600.24In stock | Buy now |
| 1418N4F8 | 30.00 | 20.00 | 8.00 | 27.00 | 17.00 | Quote | Quote |
| 1418N4K8 | 30.00 | 24.00 | 8.00 | 27.00 | 21.00 | Quote | Quote |

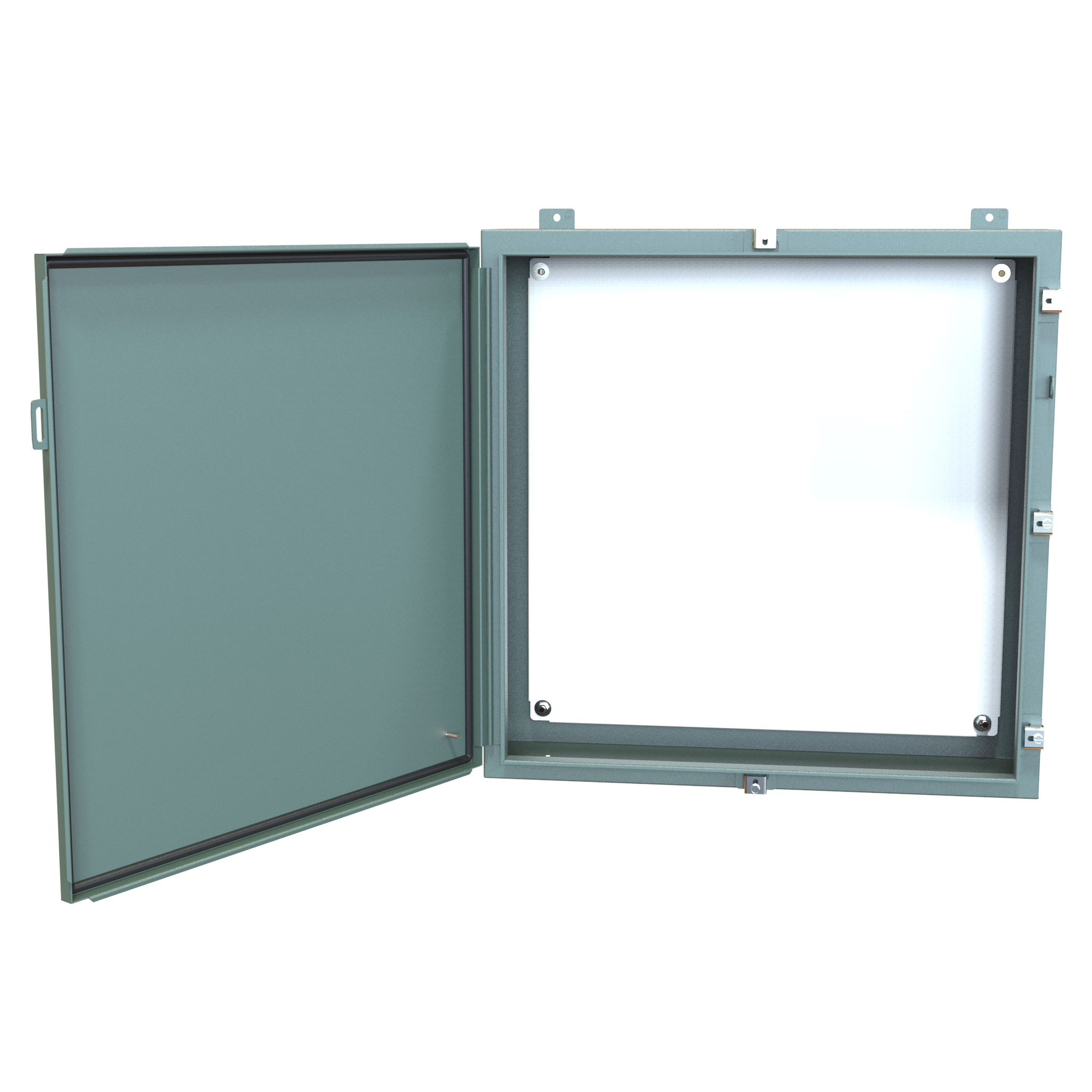

| 1418N4KK8 | 30.00 | 30.00 | 8.00 | 27.00 | 27.00 | Quote | Quote |
| 1418N4L8 | 36.00 | 24.00 | 8.00 | 33.00 | 21.00 | Quote | Quote |
| 1418N4M8 | 36.00 | 30.00 | 8.00 | 33.00 | 27.00 | $774.84In stock | Buy now |

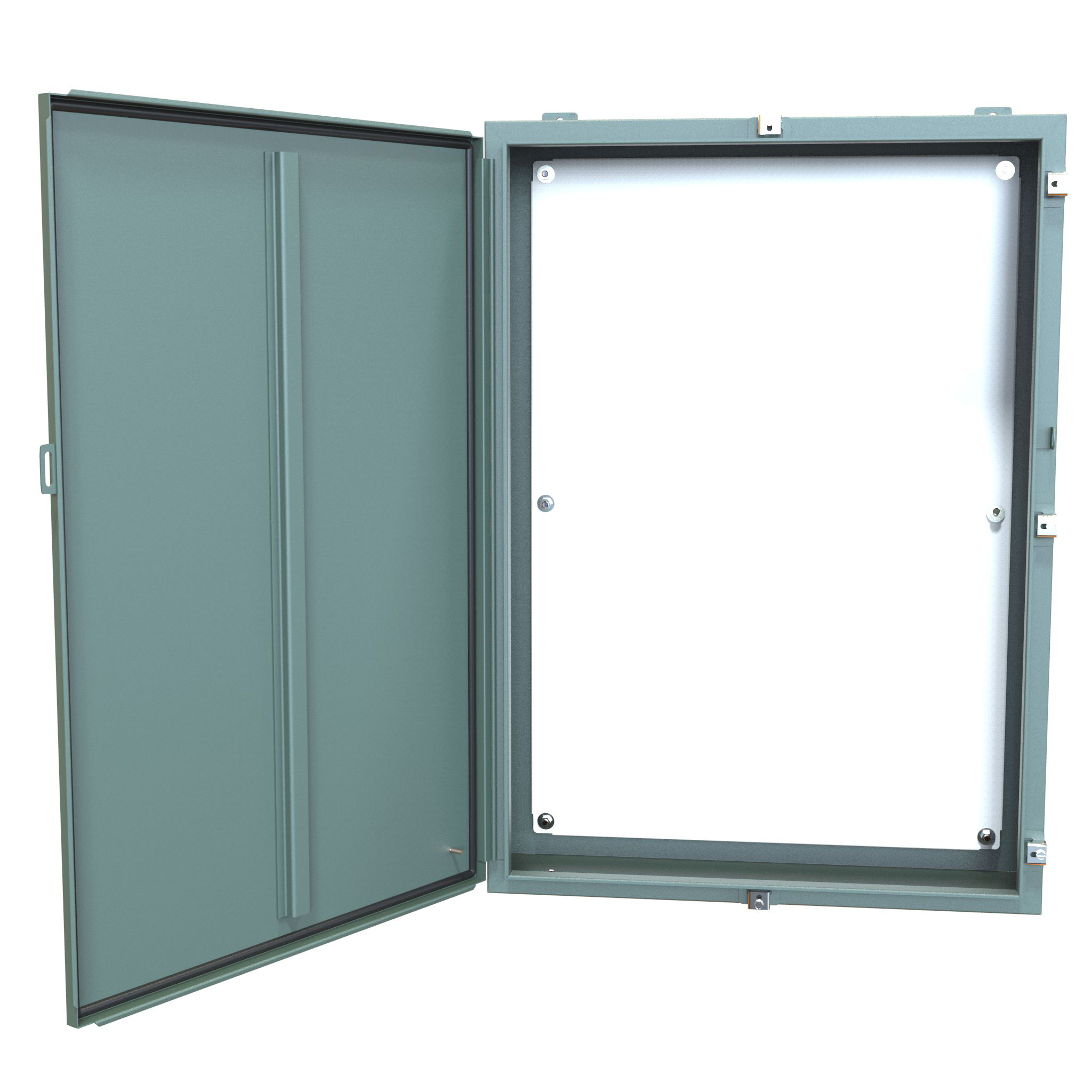

| 1418N4O8 | 42.00 | 30.00 | 8.00 | 39.00 | 27.00 | $876.48In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Standards
- ■UL 508A Type 3R,12, 4
- ■CSA Type 3R, 12, 4
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed 14 gauge steel bodies and doors.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Door and body stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting.
- ■Formed lip on door and enclosure exclude flowing liquids and contaminants.
- ■Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- ■Door is secured with easily operated stainless steel clamps.
- ■Provision for padlocking.
- ■Seamless poured-in place gasket.
- ■A removable 12 gauge inner panel is included.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|

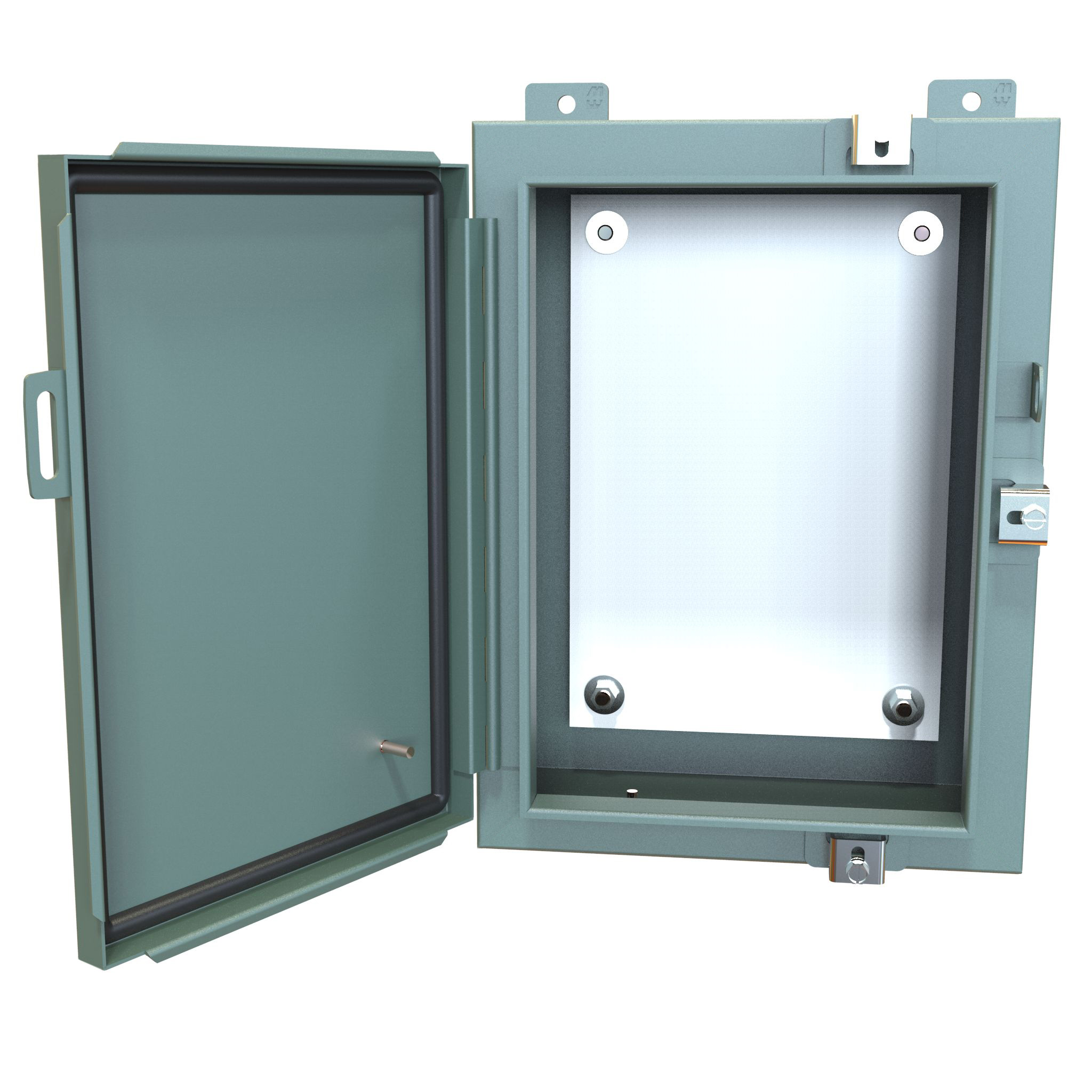

| 1418N4B6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 |
| 1418N4G6 | 16.00 | 16.00 | 6.00 | 13.00 | 13.00 |

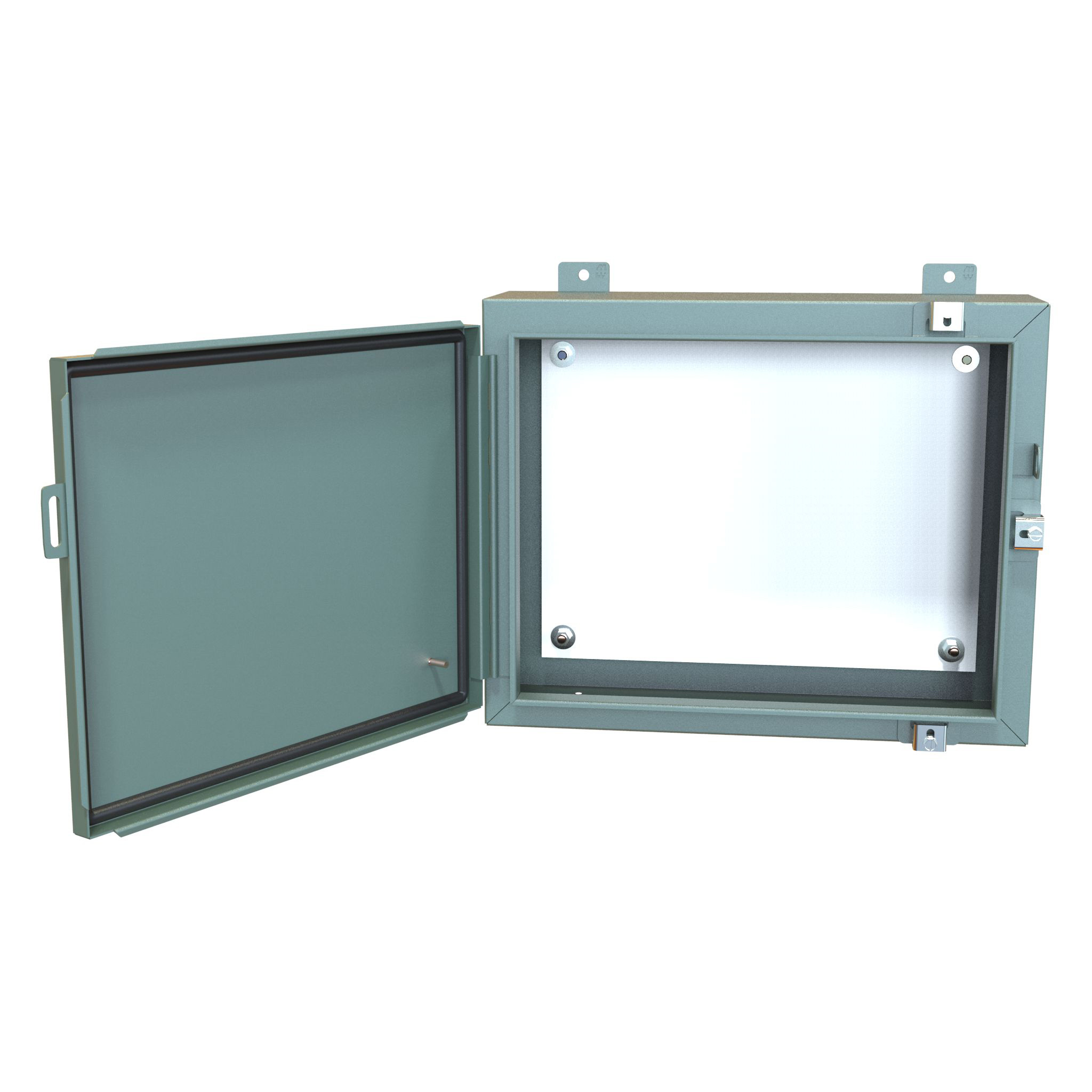

| 1418N4CR6 | 16.00 | 20.00 | 6.00 | 13.00 | 17.00 |

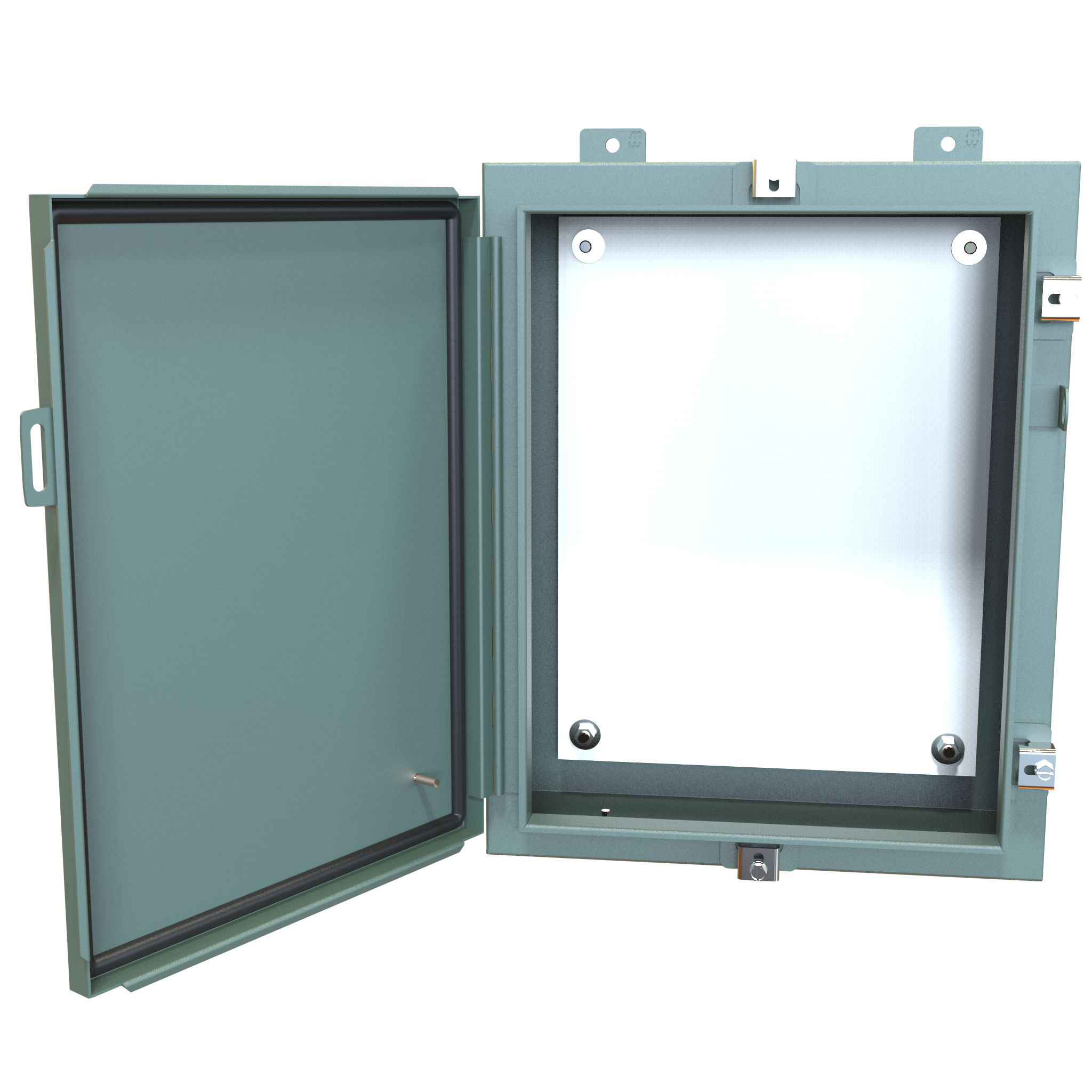

| 1418N4C6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 |

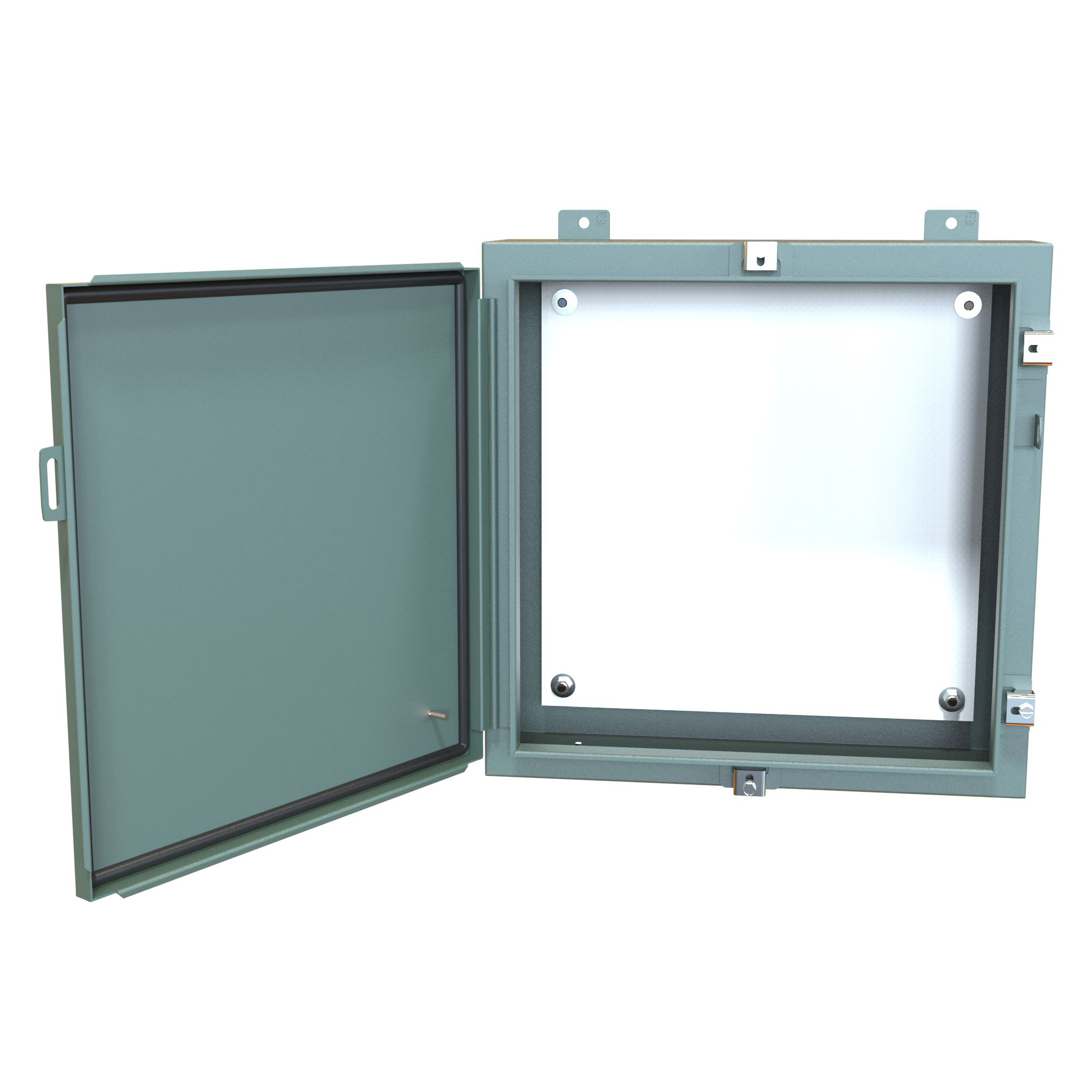

| 1418N4D6 | 20.00 | 20.00 | 6.00 | 17.00 | 17.00 |
| 1418N4AR6 | 24.00 | 12.00 | 6.00 | 21.00 | 9.00 |

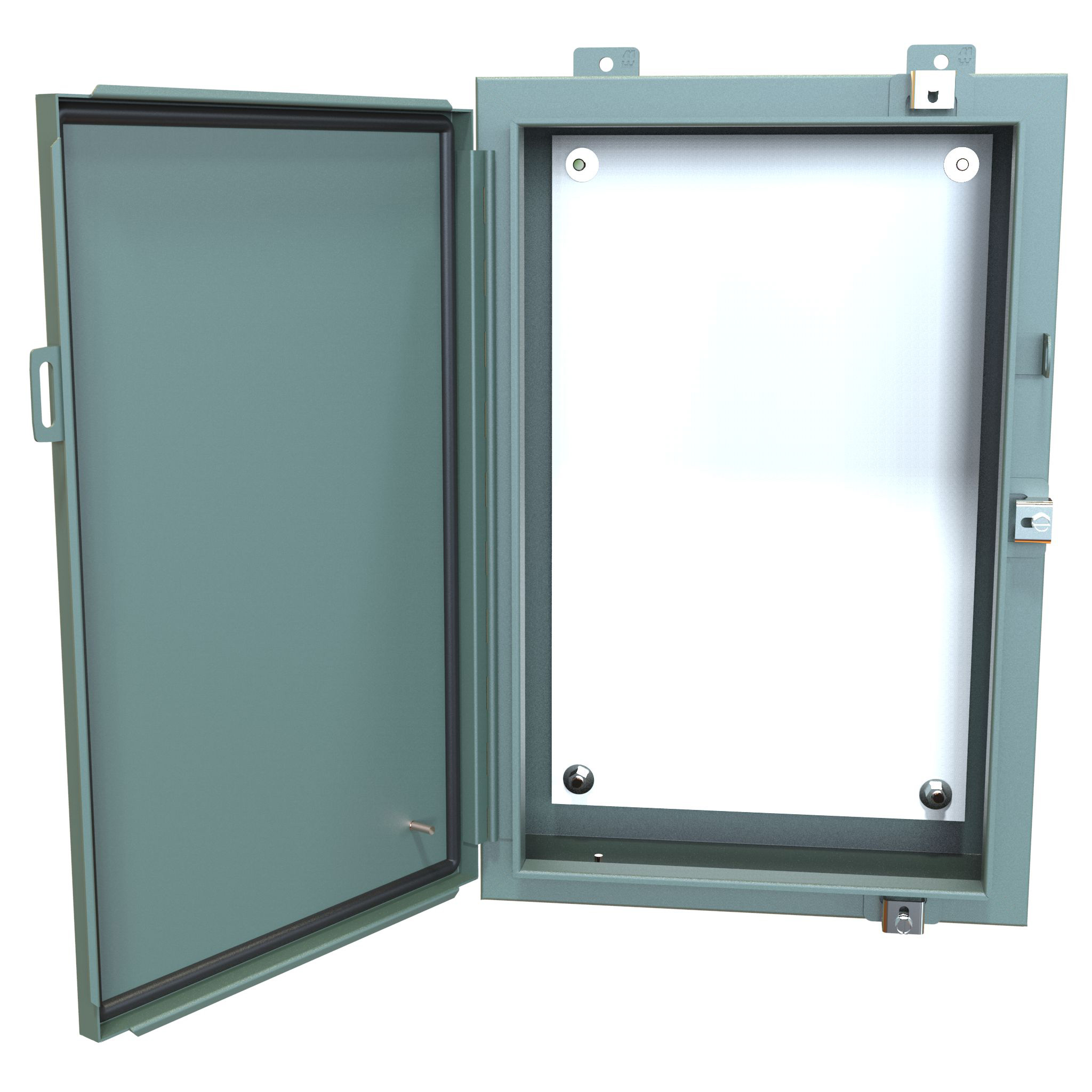

| 1418N4H6 | 24.00 | 16.00 | 6.00 | 21.00 | 13.00 |

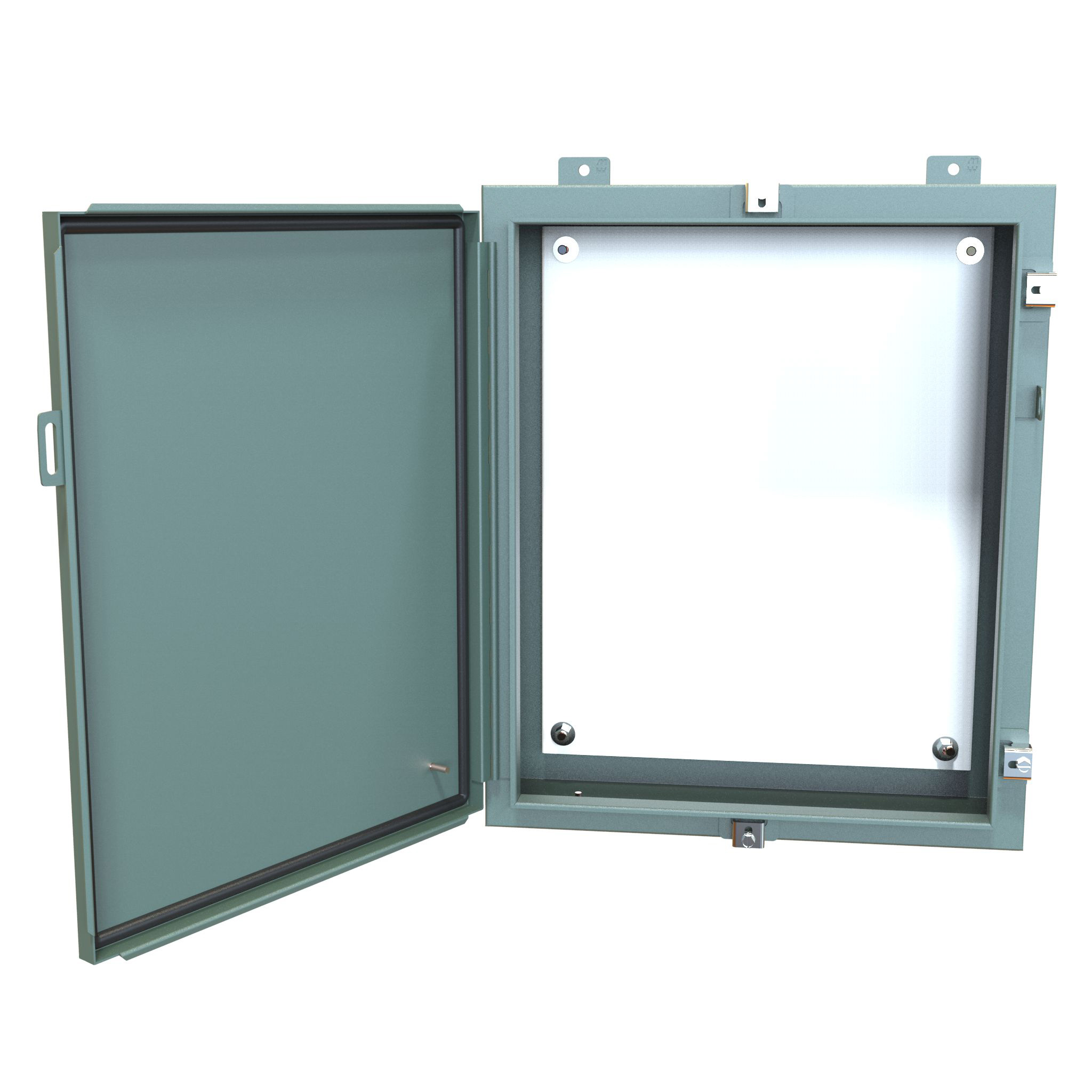

| 1418N4E6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 |

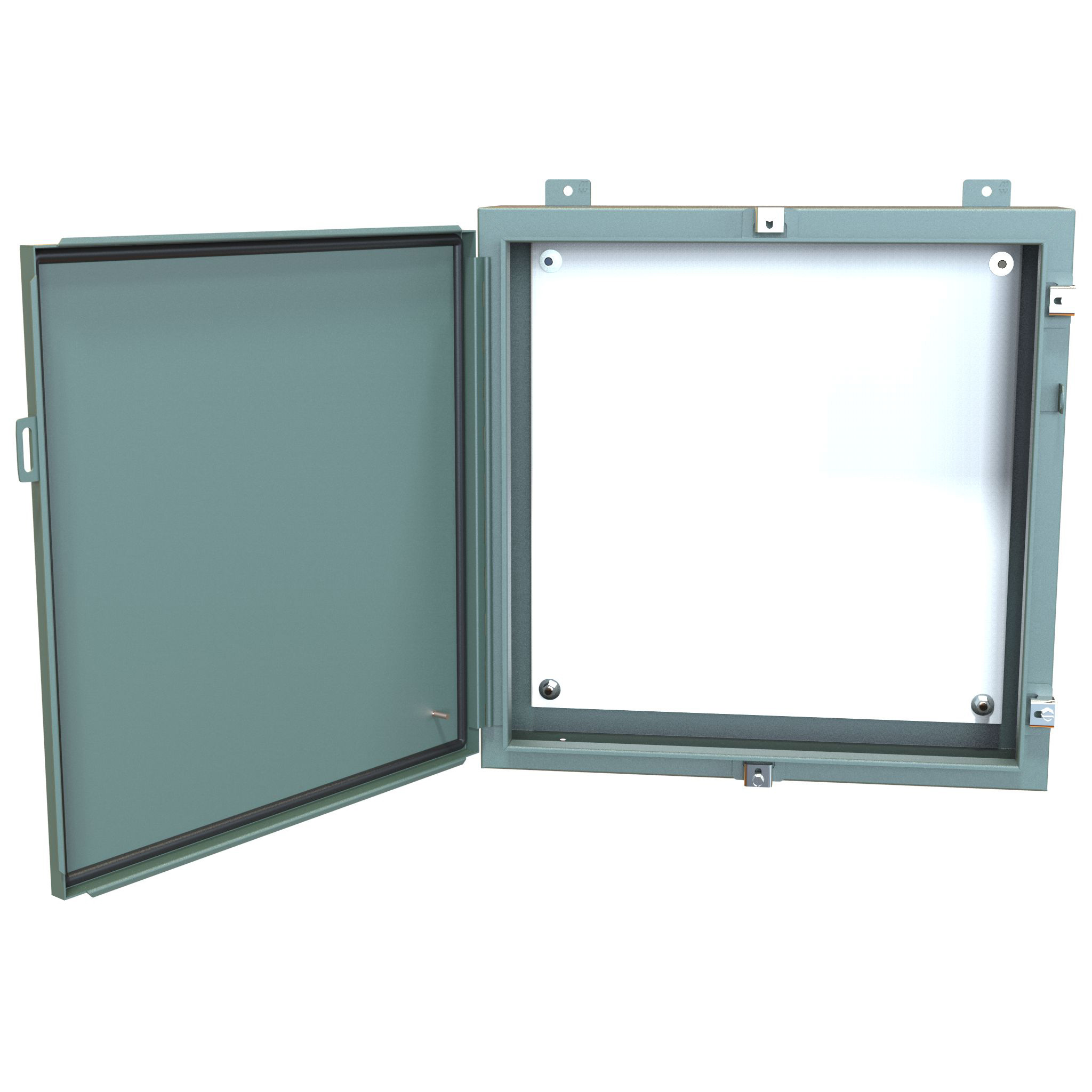

| 1418N4J6 | 24.00 | 24.00 | 6.00 | 21.00 | 21.00 |

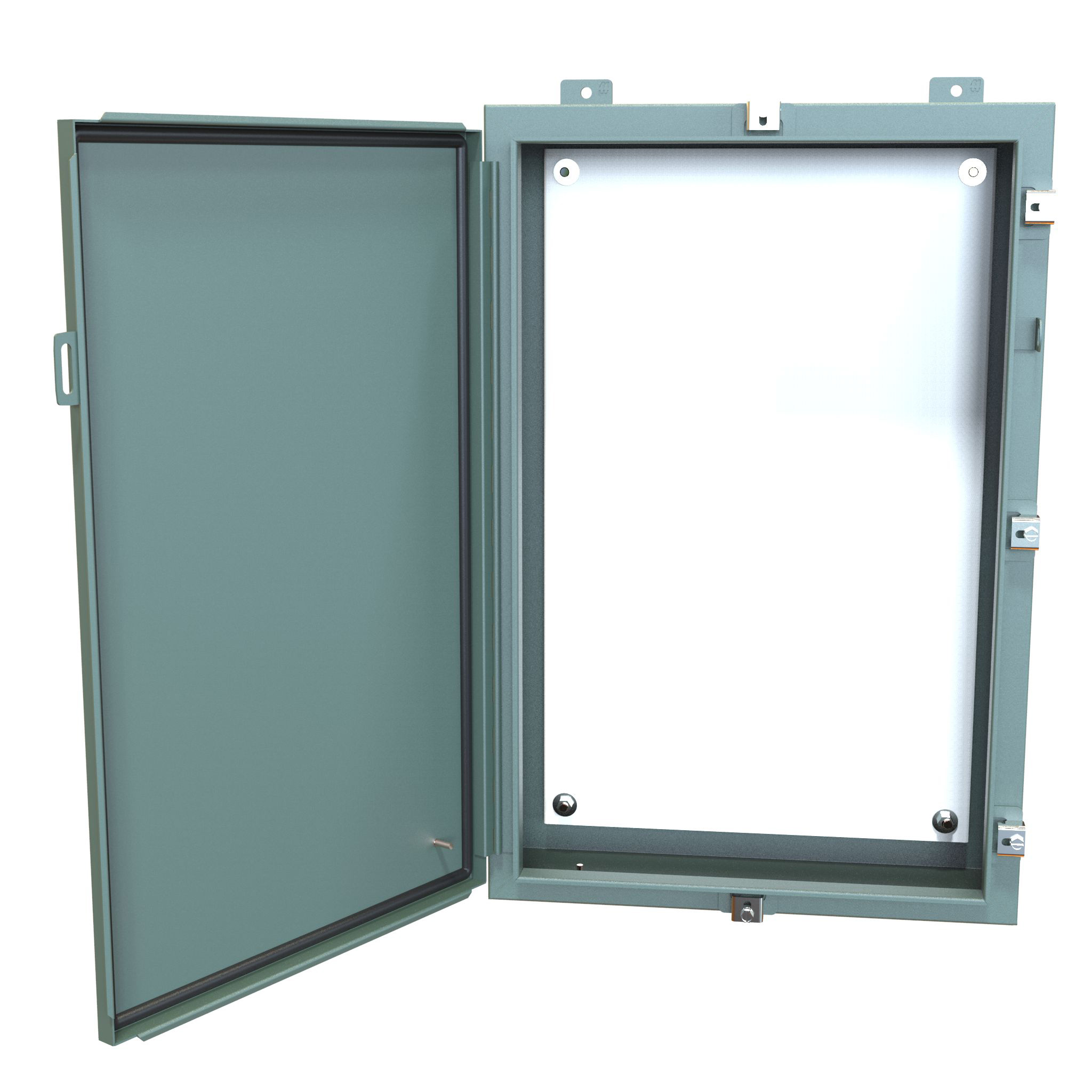

| 1418N4F6 | 30.00 | 20.00 | 6.00 | 27.00 | 17.00 |

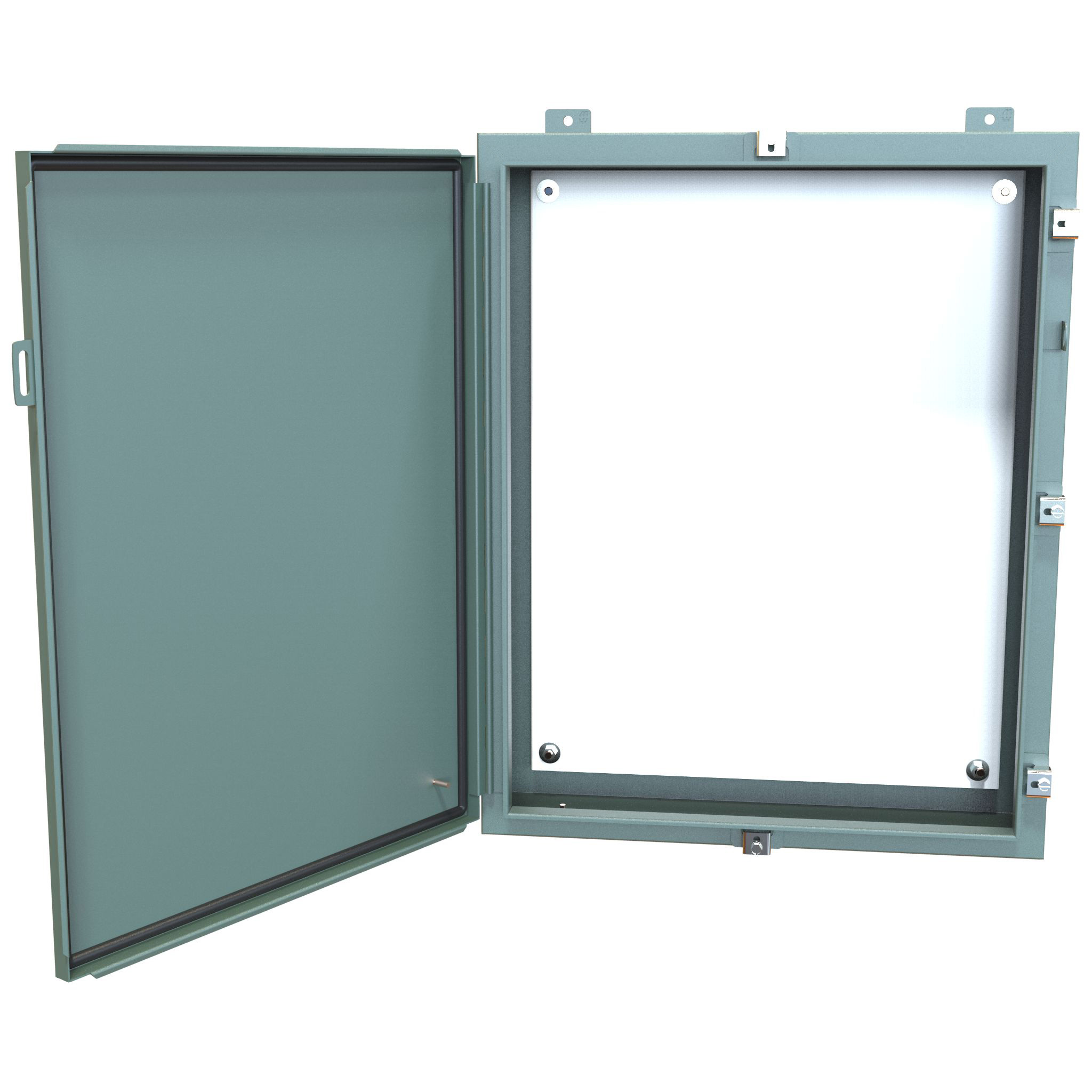

| 1418N4K6 | 30.00 | 24.00 | 6.00 | 27.00 | 21.00 |
| 1418N4L6 | 36.00 | 24.00 | 6.00 | 33.00 | 21.00 |
| 1418N4B8 | 16.00 | 12.00 | 8.00 | 13.00 | 9.00 |

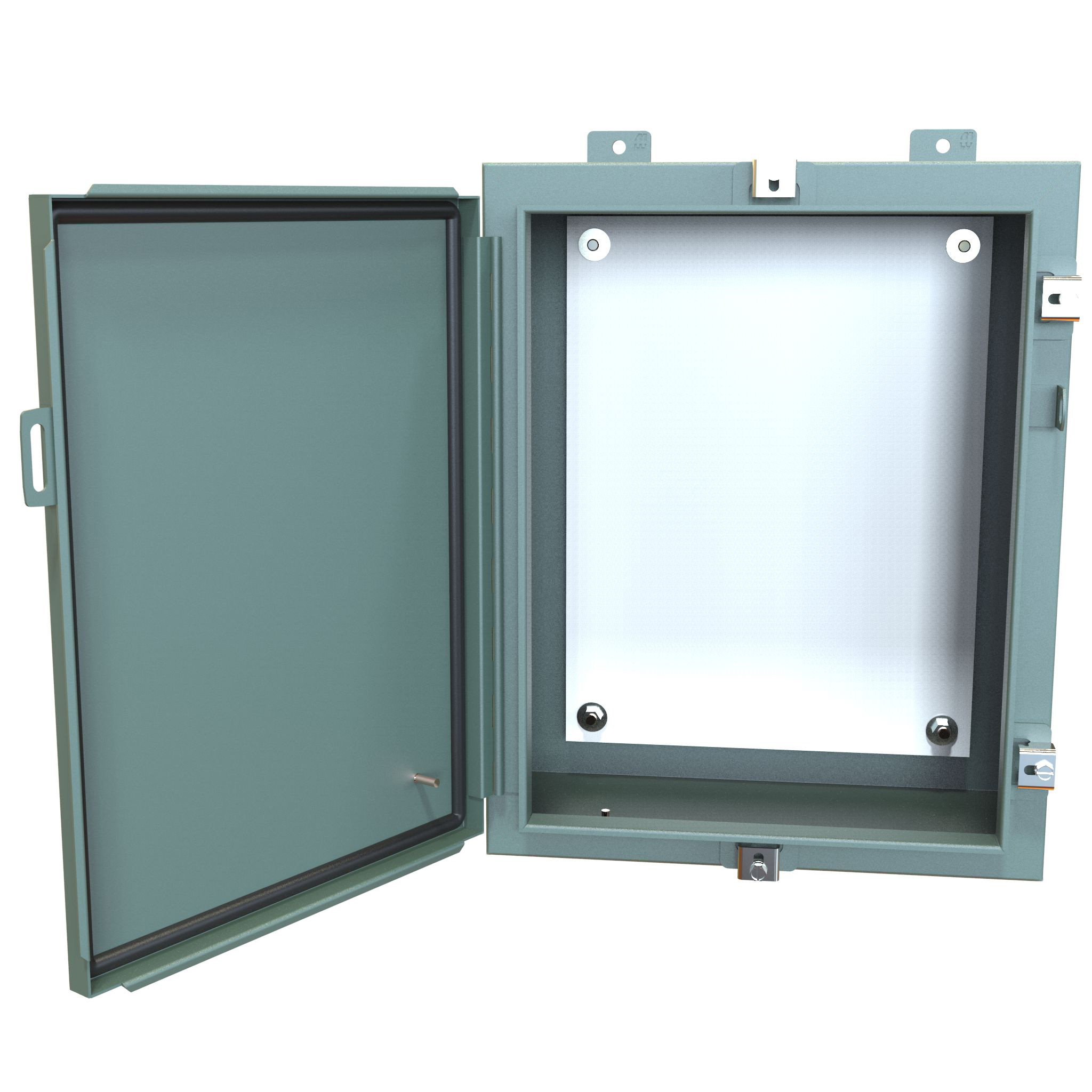

| 1418N4C8 | 20.00 | 16.00 | 8.00 | 17.00 | 13.00 |
| 1418N4D8 | 20.00 | 20.00 | 8.00 | 17.00 | 17.00 |
| 1418N4ER8 | 20.00 | 24.00 | 8.00 | 17.00 | 21.00 |

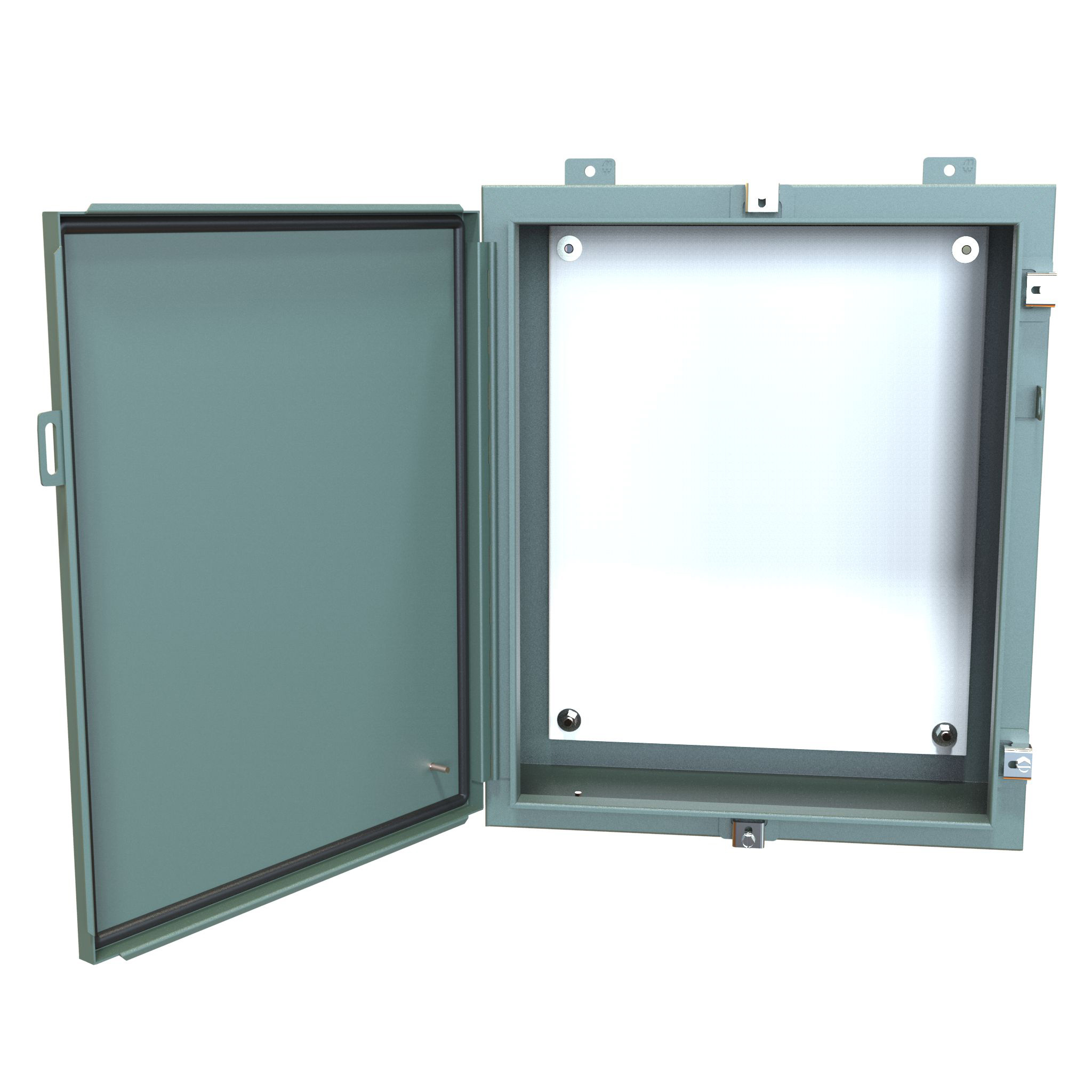

| 1418N4E8 | 24.00 | 20.00 | 8.00 | 21.00 | 17.00 |

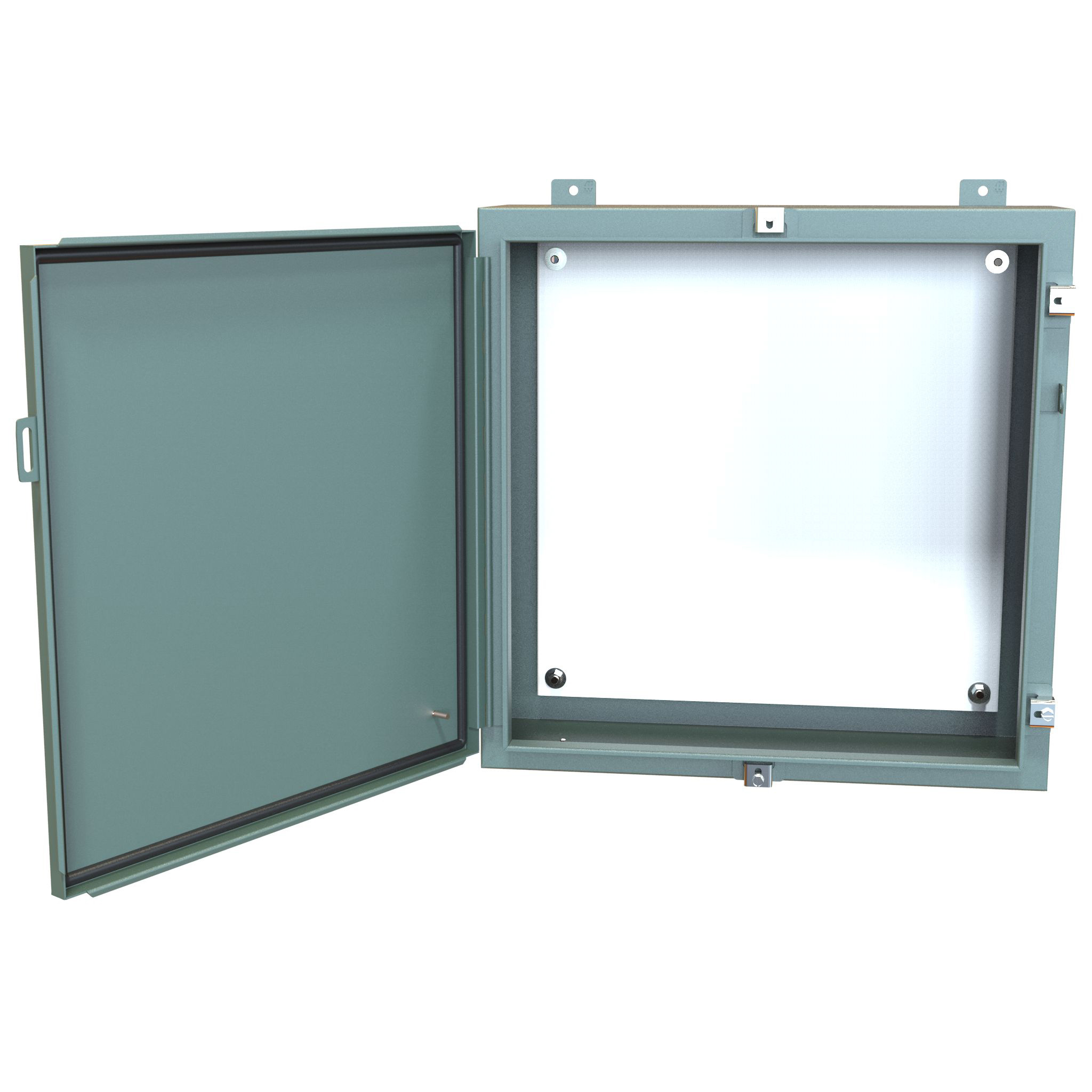

| 1418N4J8 | 24.00 | 24.00 | 8.00 | 21.00 | 21.00 |

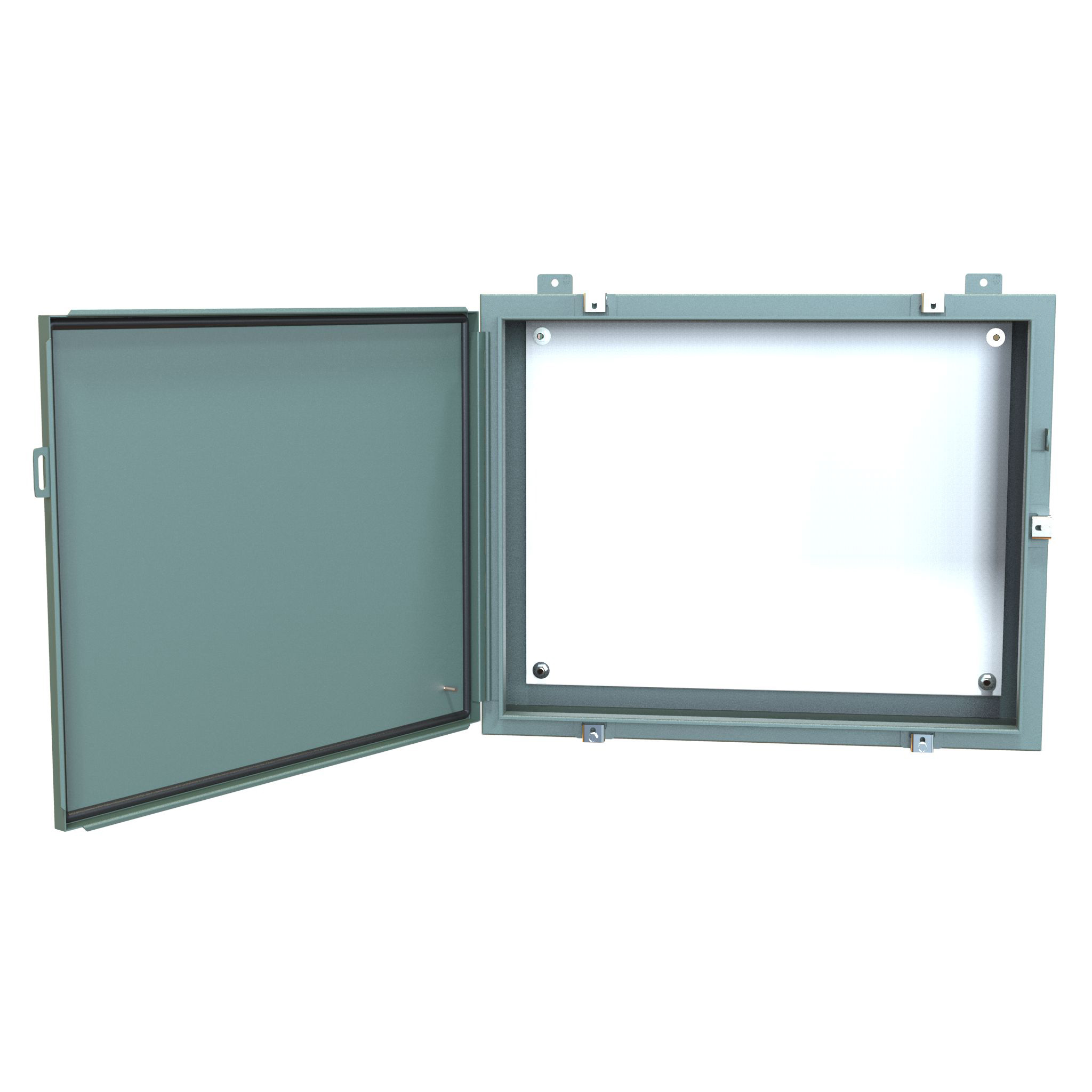

| 1418N4KR8 | 24.00 | 30.00 | 8.00 | 21.00 | 27.00 |

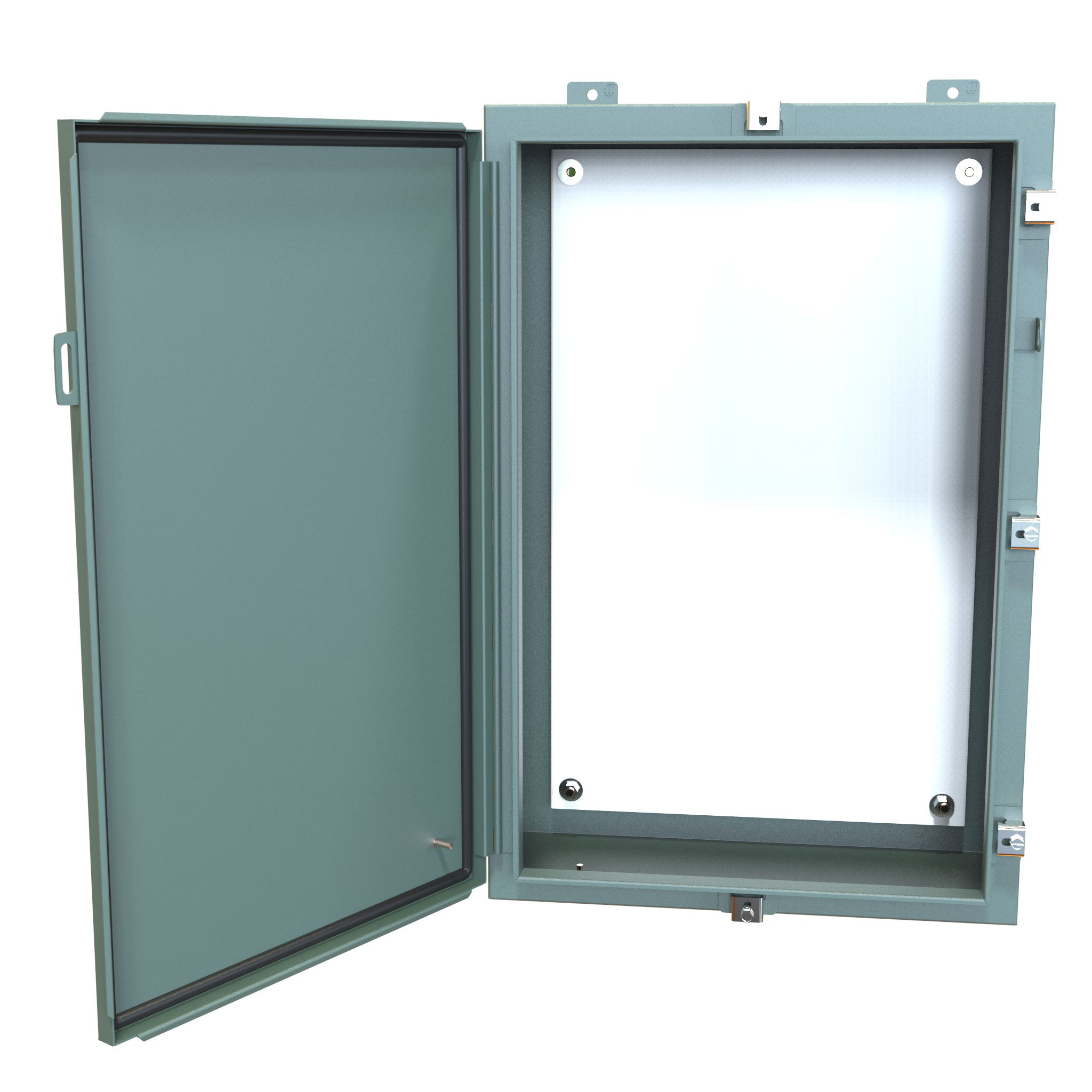

| 1418N4F8 | 30.00 | 20.00 | 8.00 | 27.00 | 17.00 |

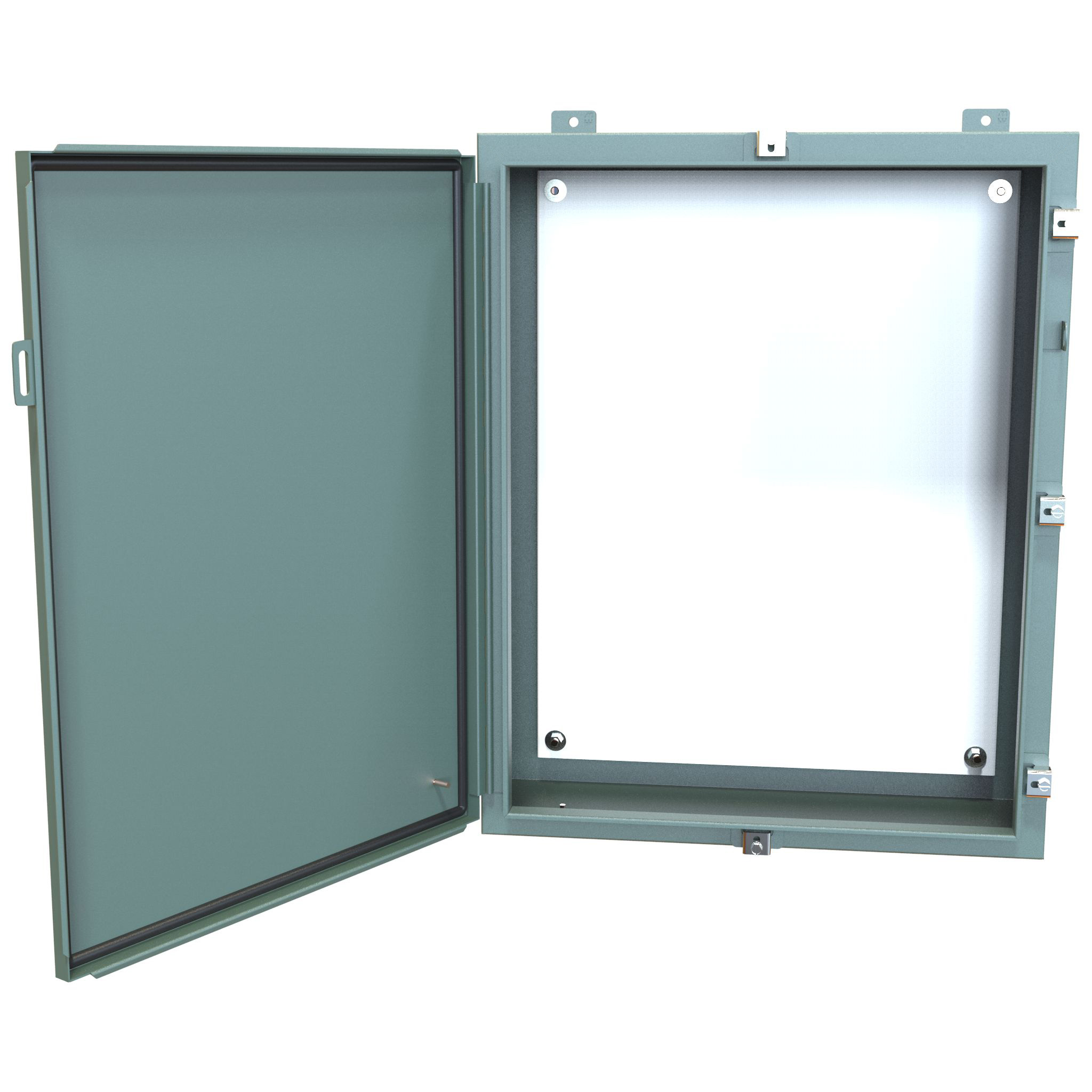

| 1418N4K8 | 30.00 | 24.00 | 8.00 | 27.00 | 21.00 |
| 1418N4KK8 | 30.00 | 30.00 | 8.00 | 27.00 | 27.00 |

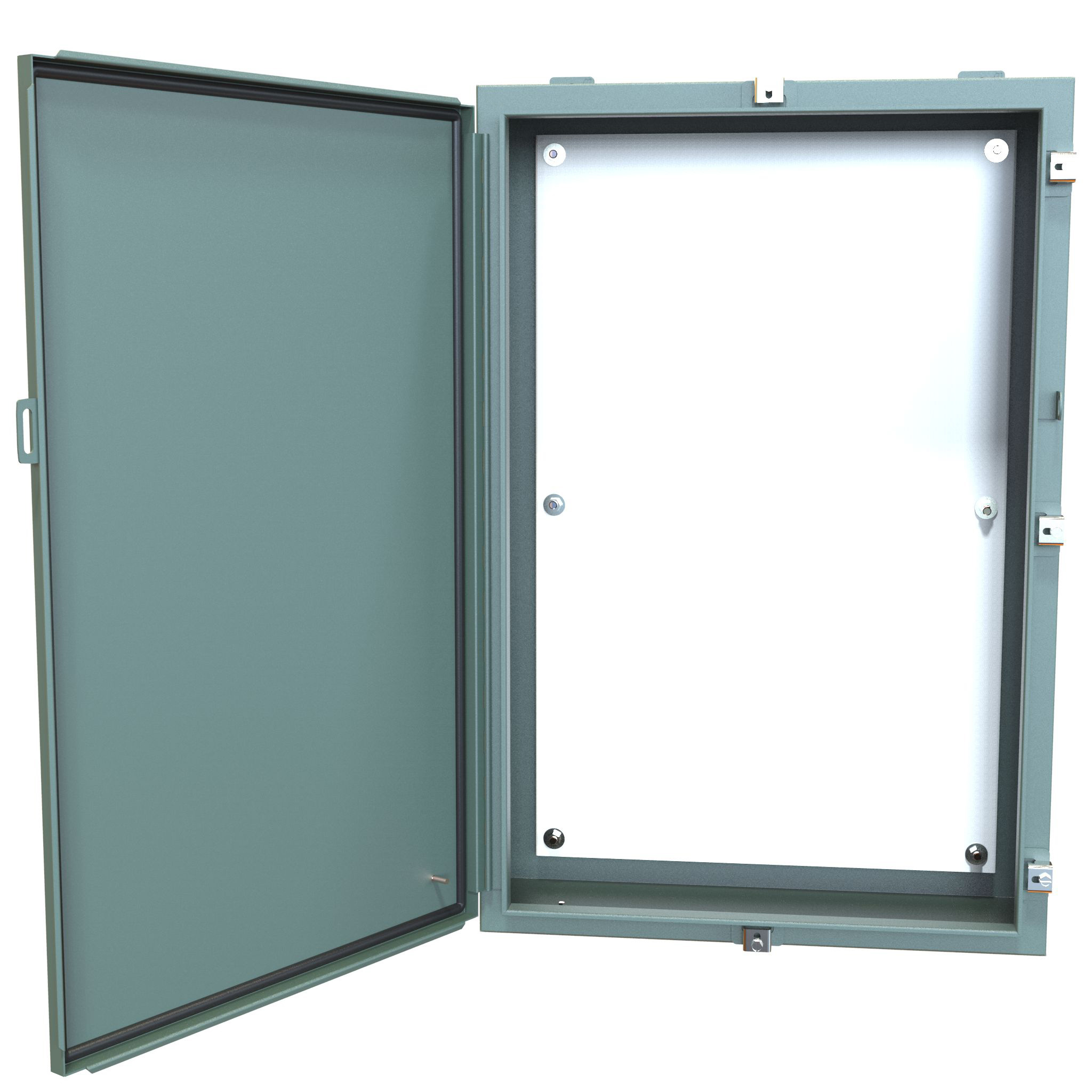

| 1418N4L8 | 36.00 | 24.00 | 8.00 | 33.00 | 21.00 |

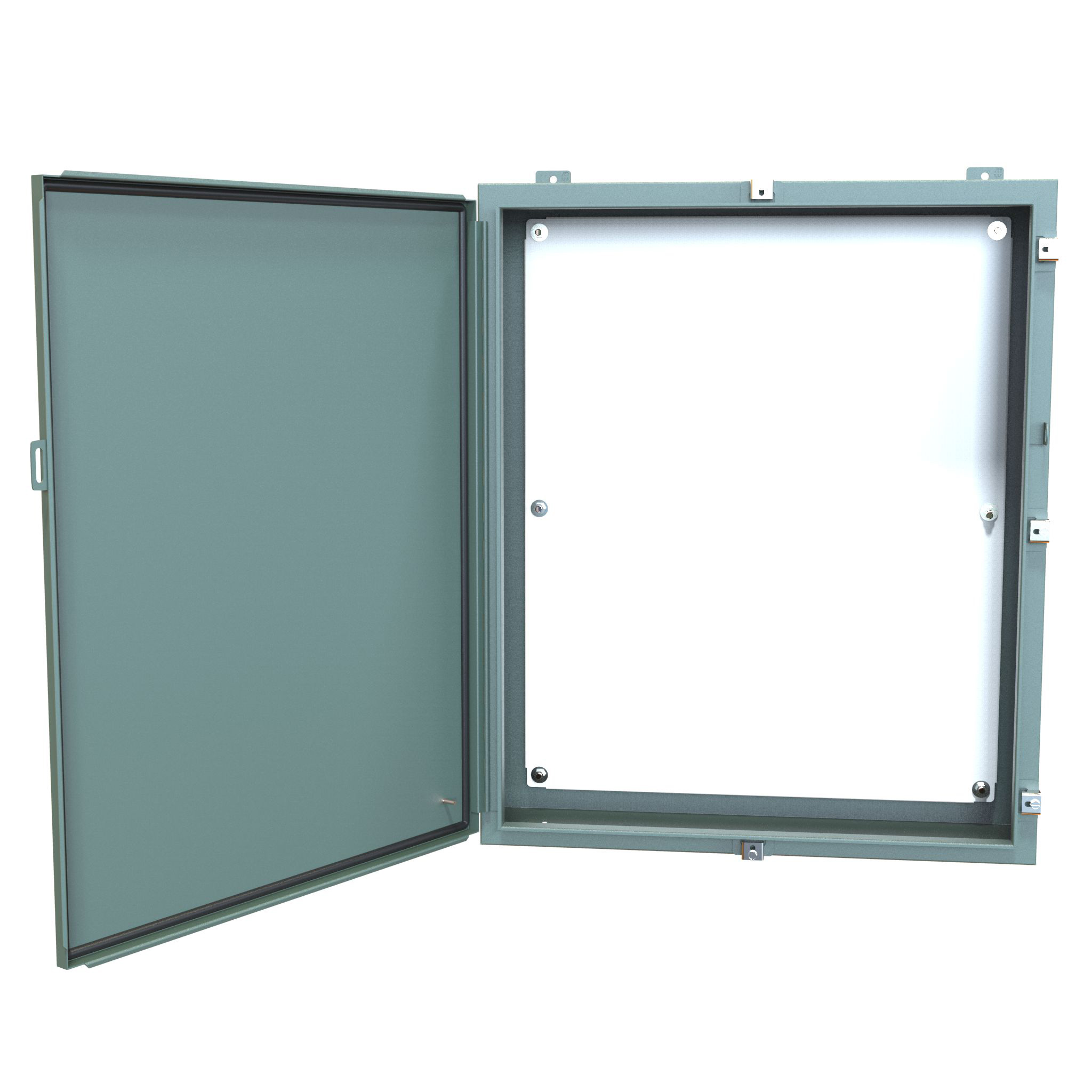

| 1418N4M8 | 36.00 | 30.00 | 8.00 | 33.00 | 27.00 |
| 1418N4O8 | 42.00 | 30.00 | 8.00 | 39.00 | 27.00 |

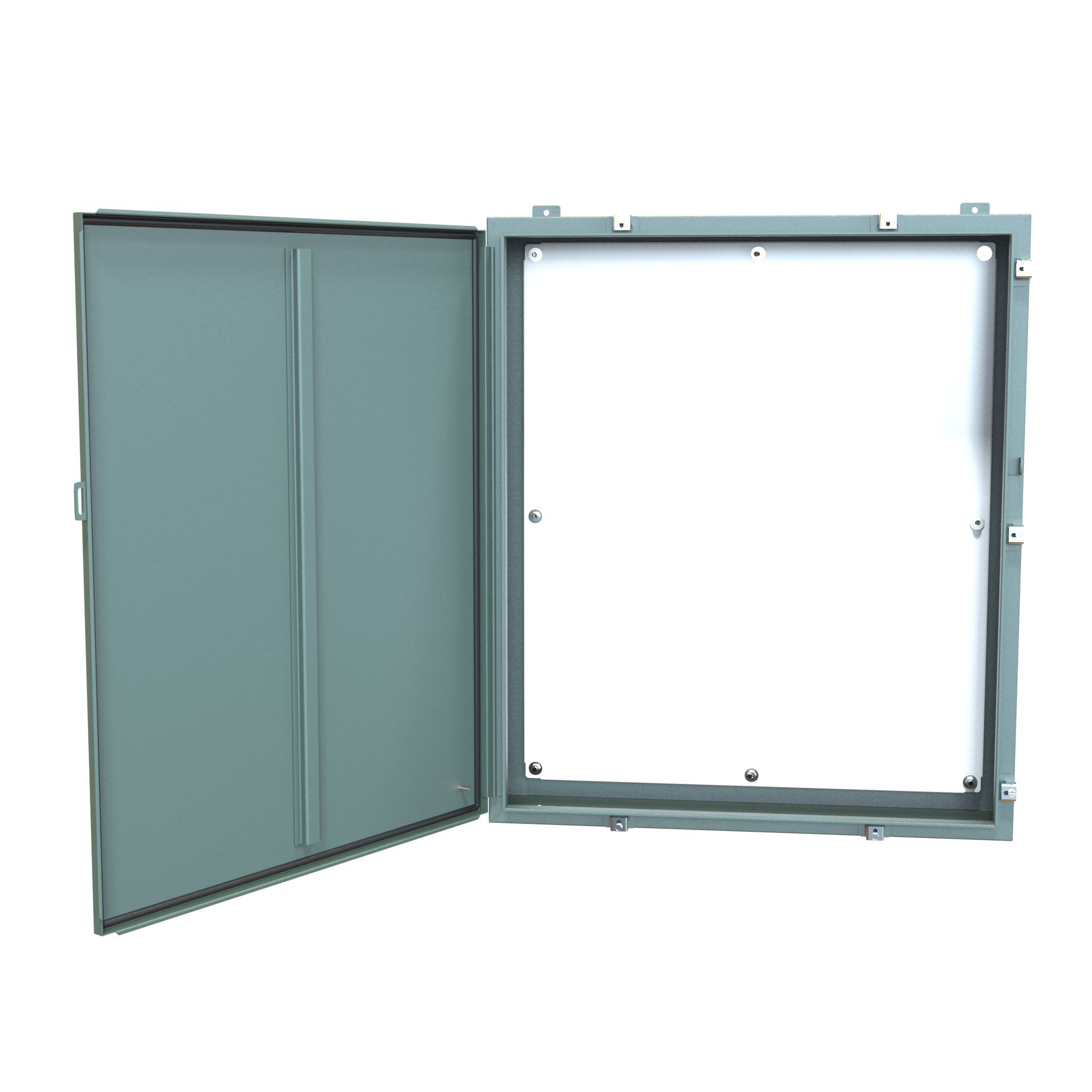

| 1418N4P8 | 42.00 | 36.00 | 8.00 | 39.00 | 33.00 |

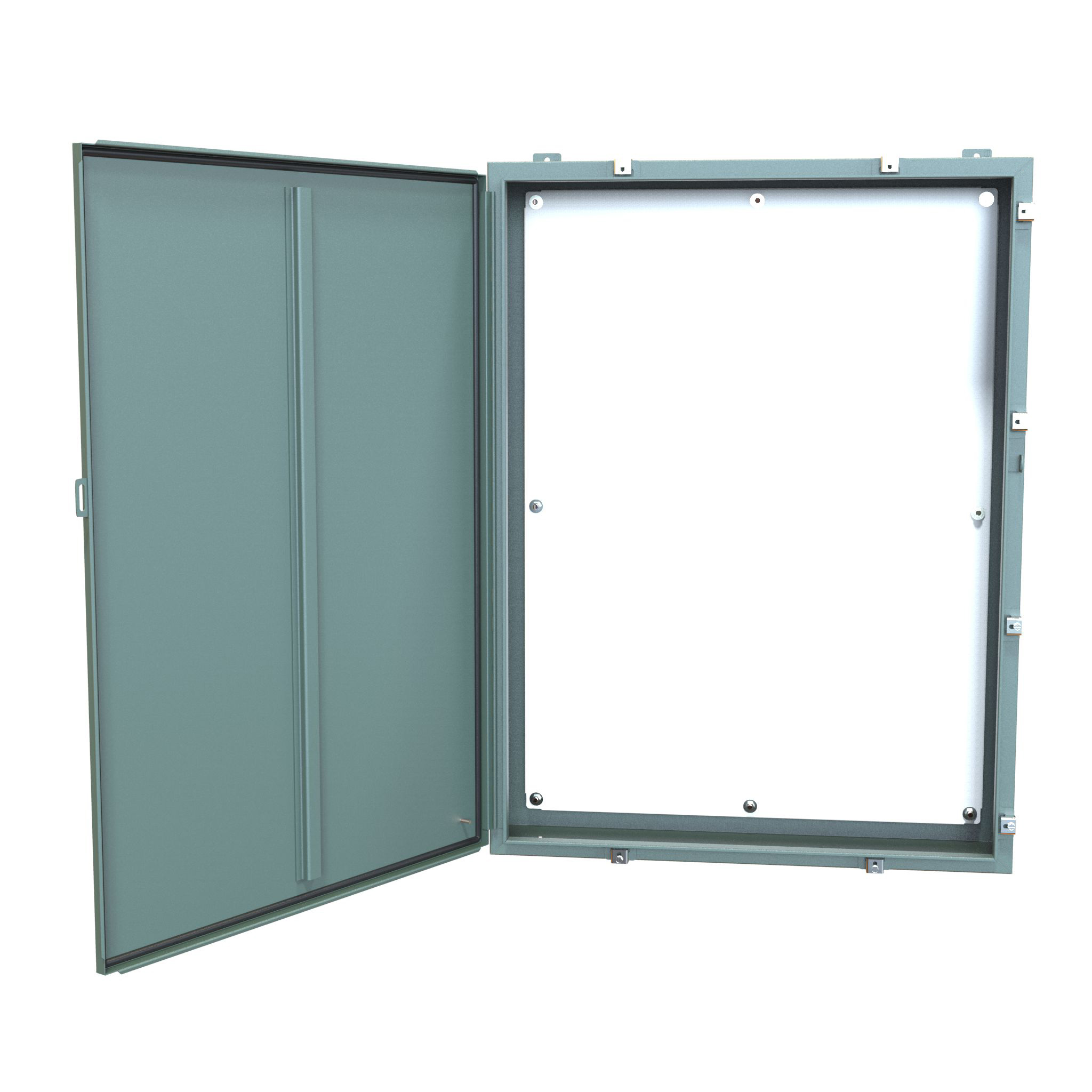

| 1418N4S8 | 48.00 | 36.00 | 8.00 | 45.00 | 33.00 |

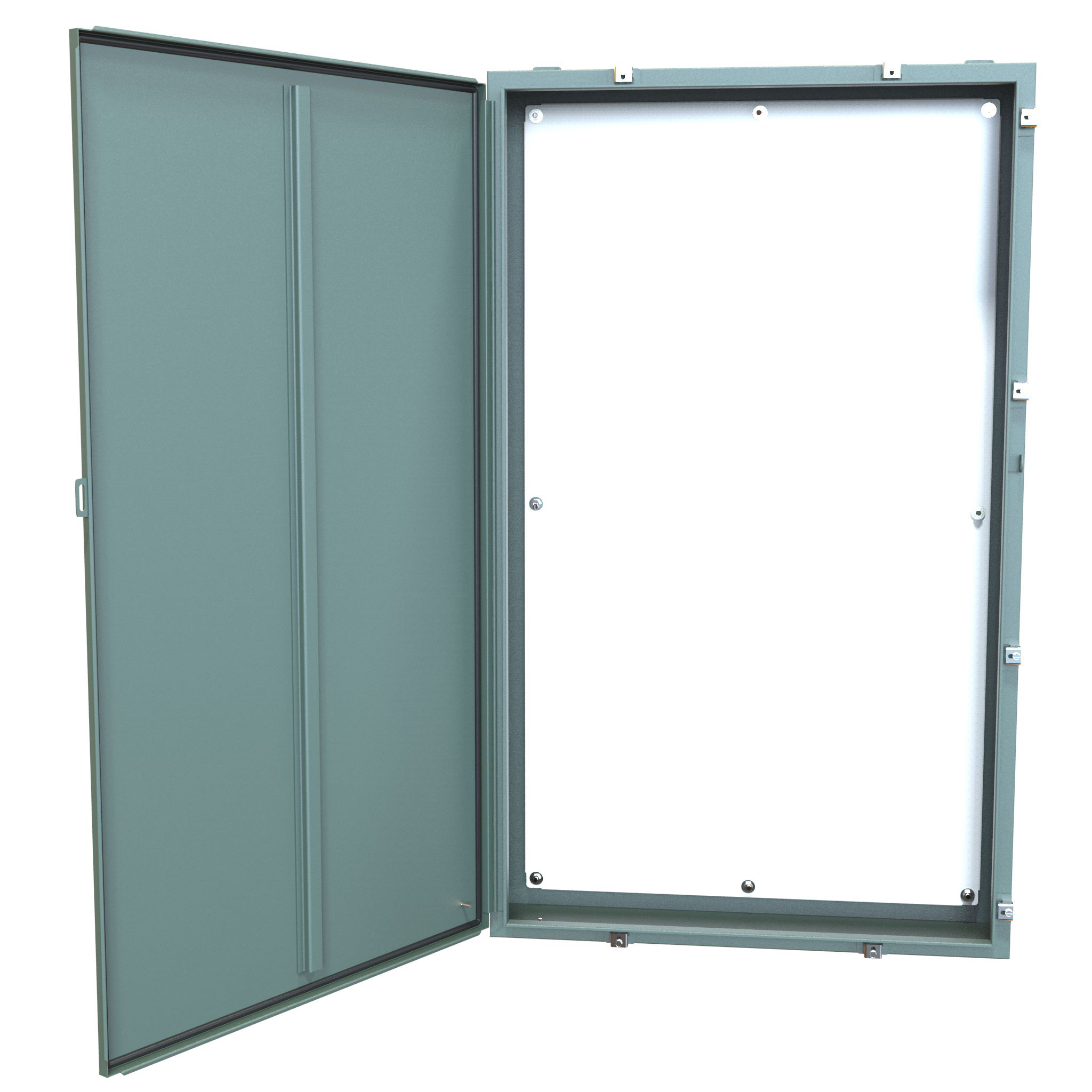

| 1418N4T8 | 60.00 | 36.00 | 8.00 | 57.00 | 33.00 |

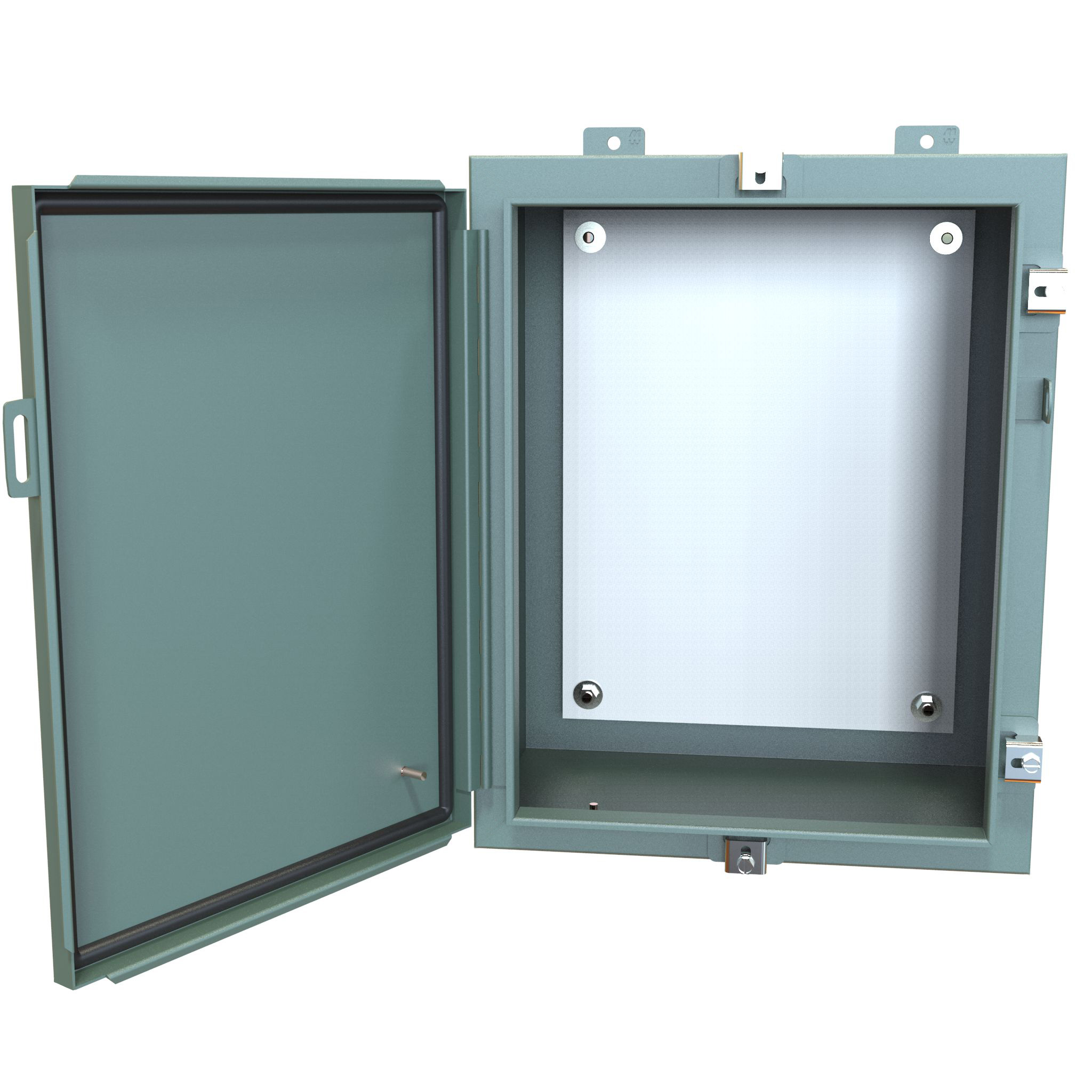

| 1418N4C10 | 20.00 | 16.00 | 10.00 | 17.00 | 13.00 |

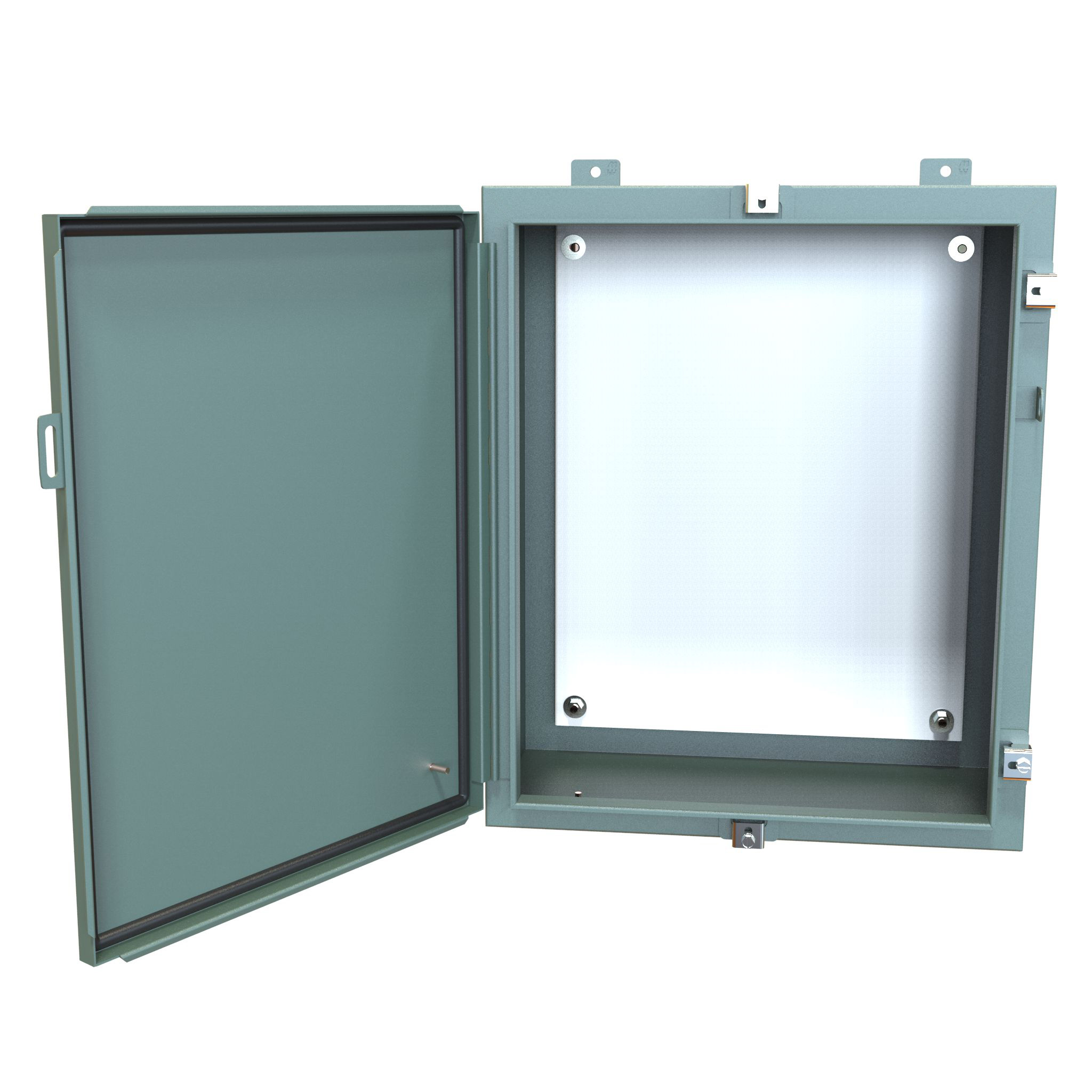

| 1418N4E10 | 24.00 | 20.00 | 10.00 | 21.00 | 17.00 |

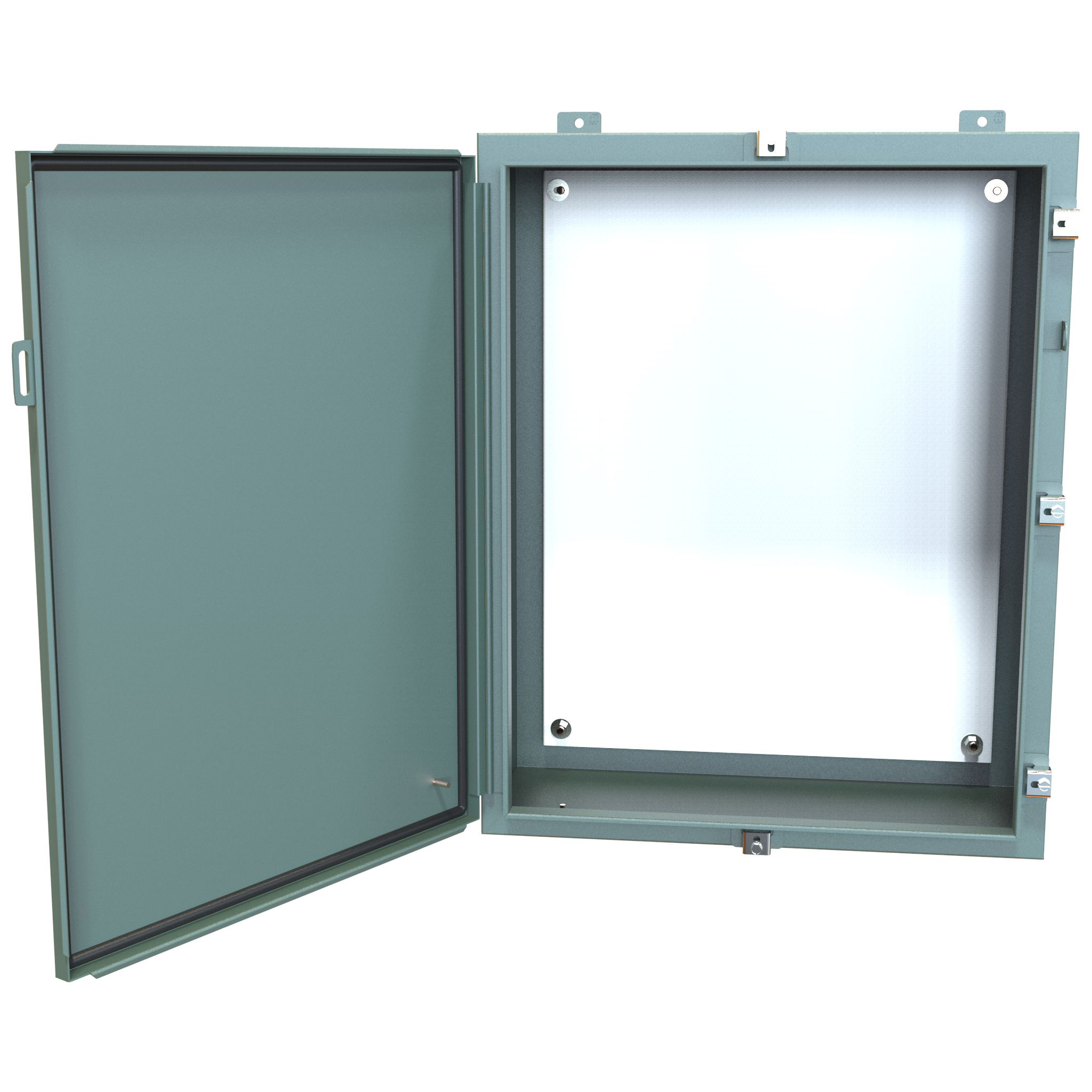

| 1418N4K10 | 30.00 | 24.00 | 10.00 | 27.00 | 21.00 |

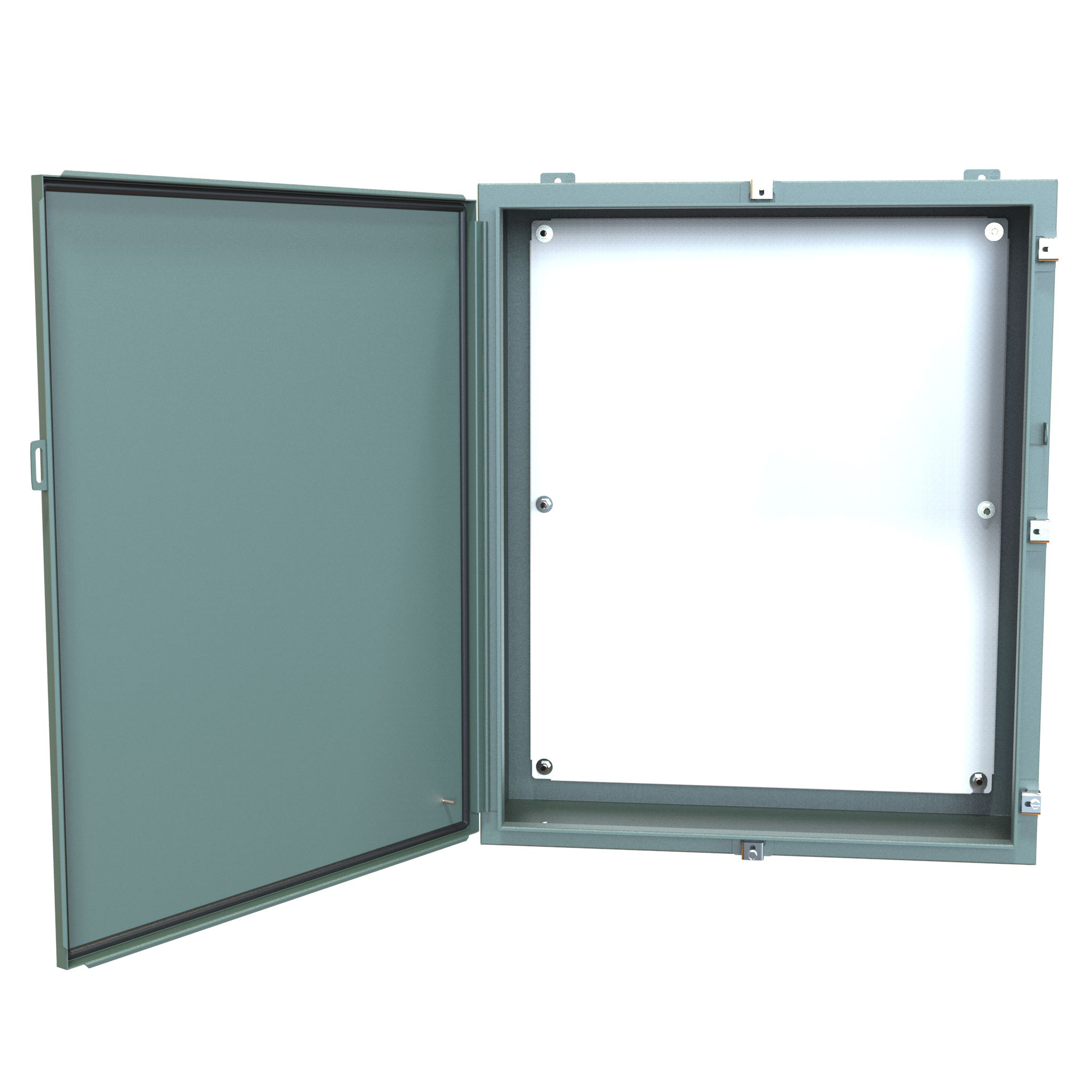

| 1418N4M10 | 36.00 | 30.00 | 10.00 | 33.00 | 27.00 |

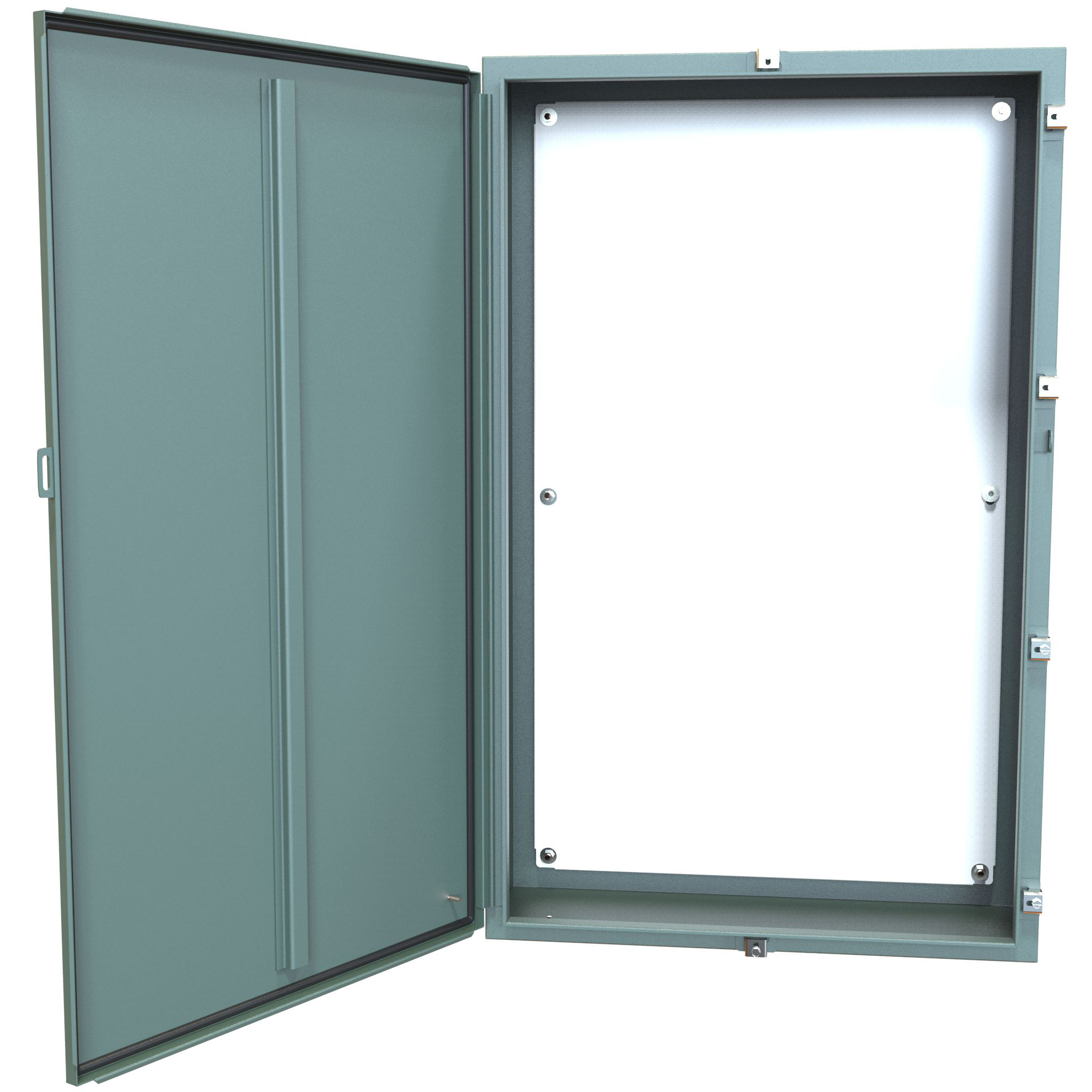

| 1418N4R10 | 48.00 | 30.00 | 10.00 | 45.00 | 27.00 |

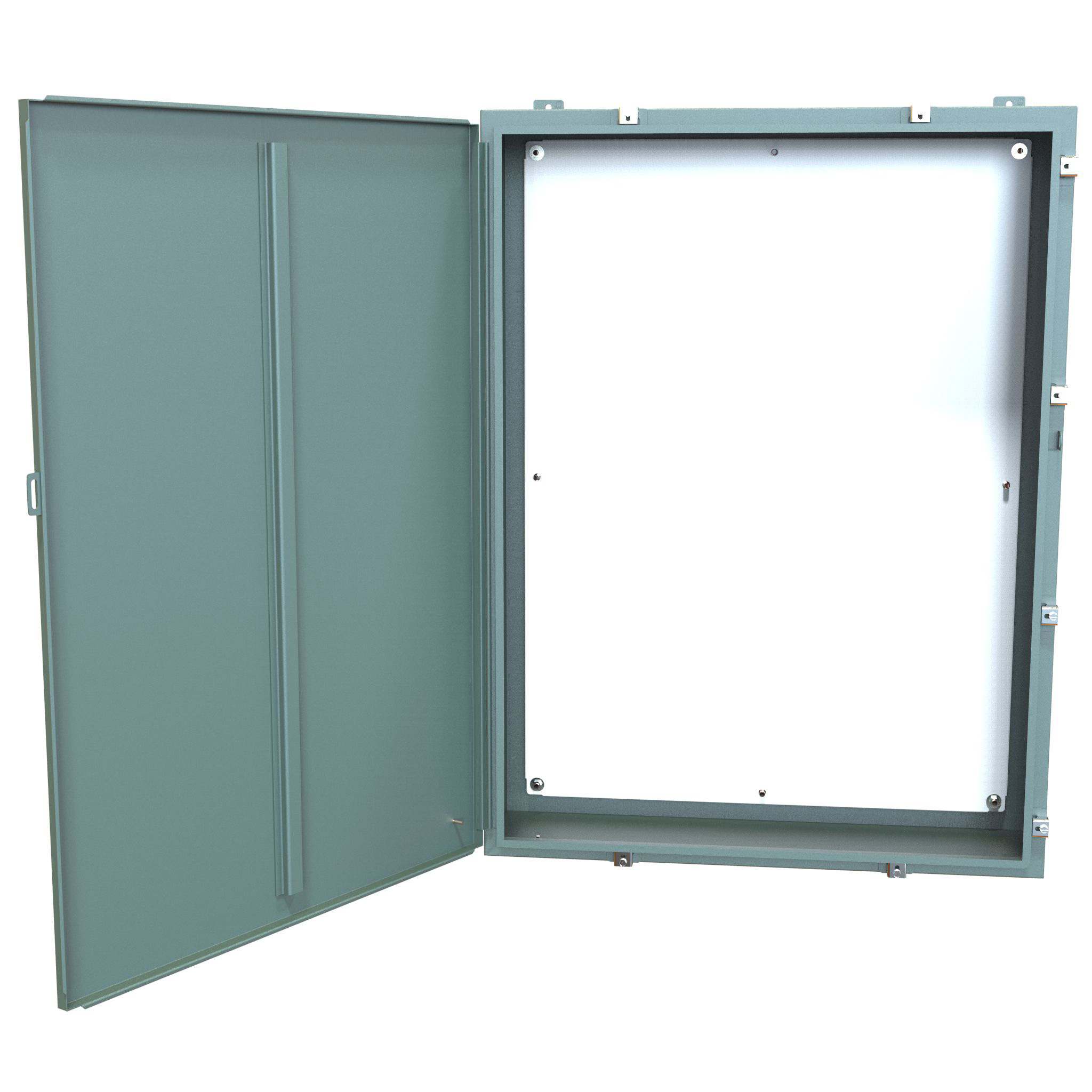

| 1418N4S10 | 48.00 | 36.00 | 10.00 | 45.00 | 33.00 |

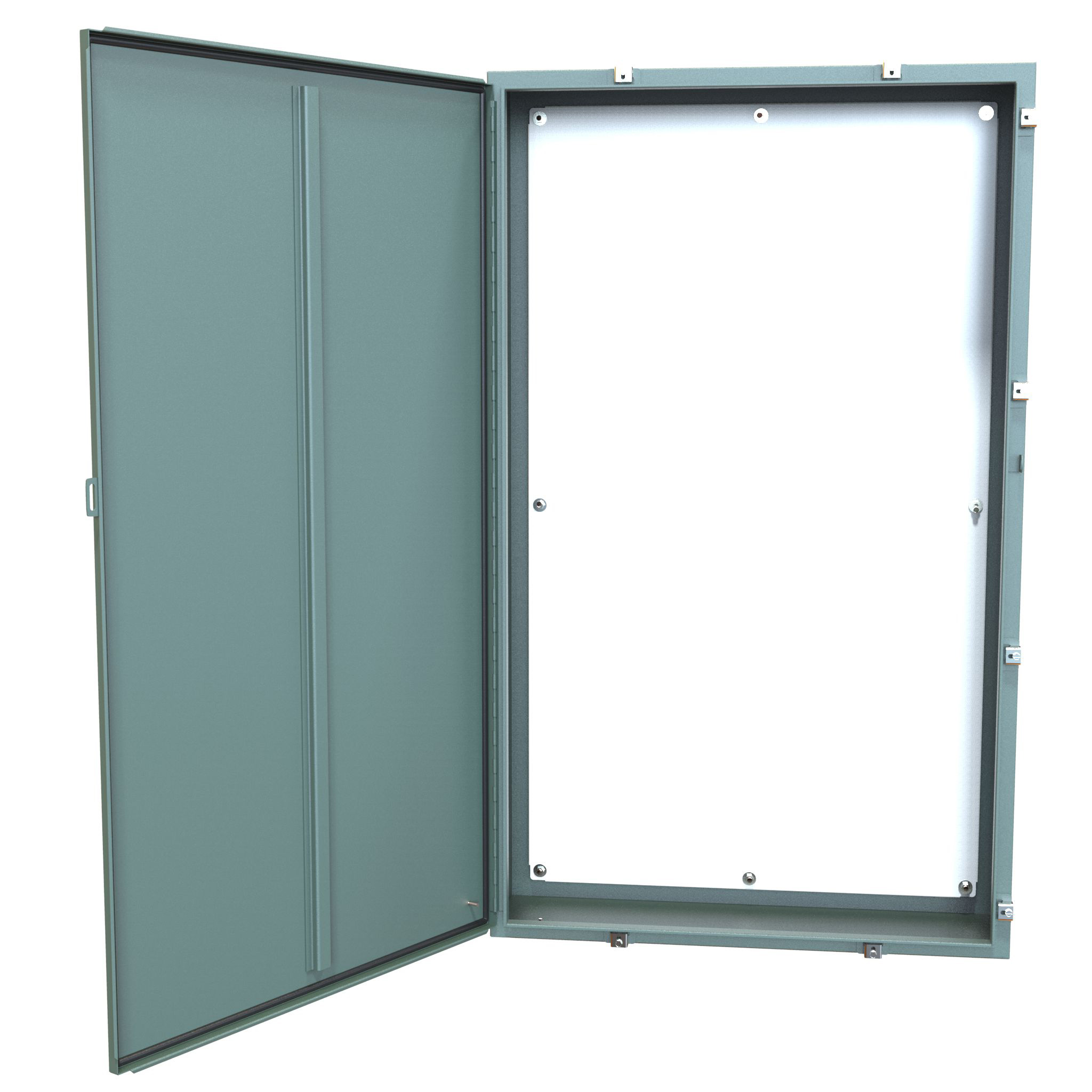

| 1418N4T10 | 60.00 | 36.00 | 10.00 | 57.00 | 33.00 |

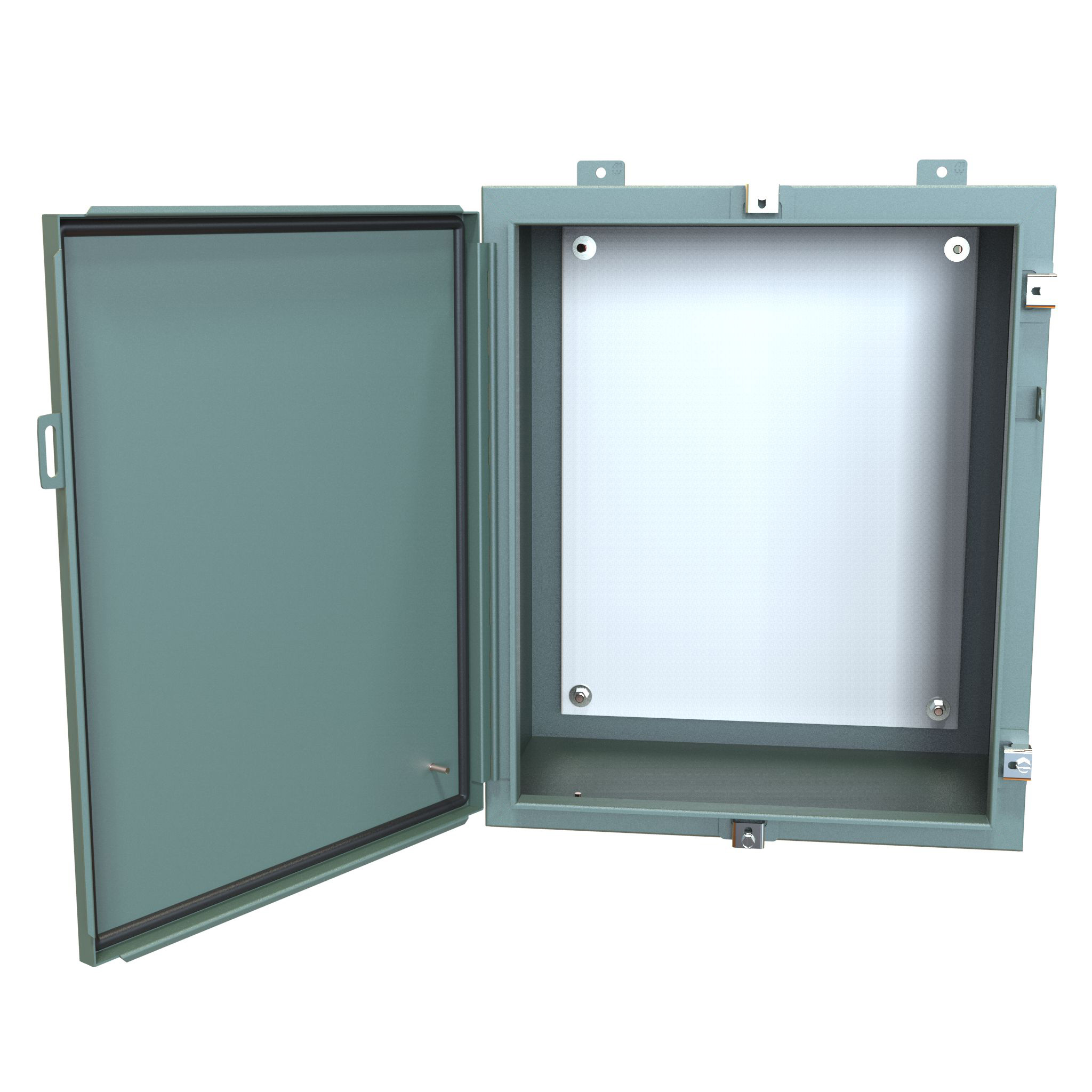

| 1418N4E12 | 24.00 | 20.00 | 12.00 | 21.00 | 17.00 |
| 1418N4K12 | 30.00 | 24.00 | 12.00 | 27.00 | 21.00 |

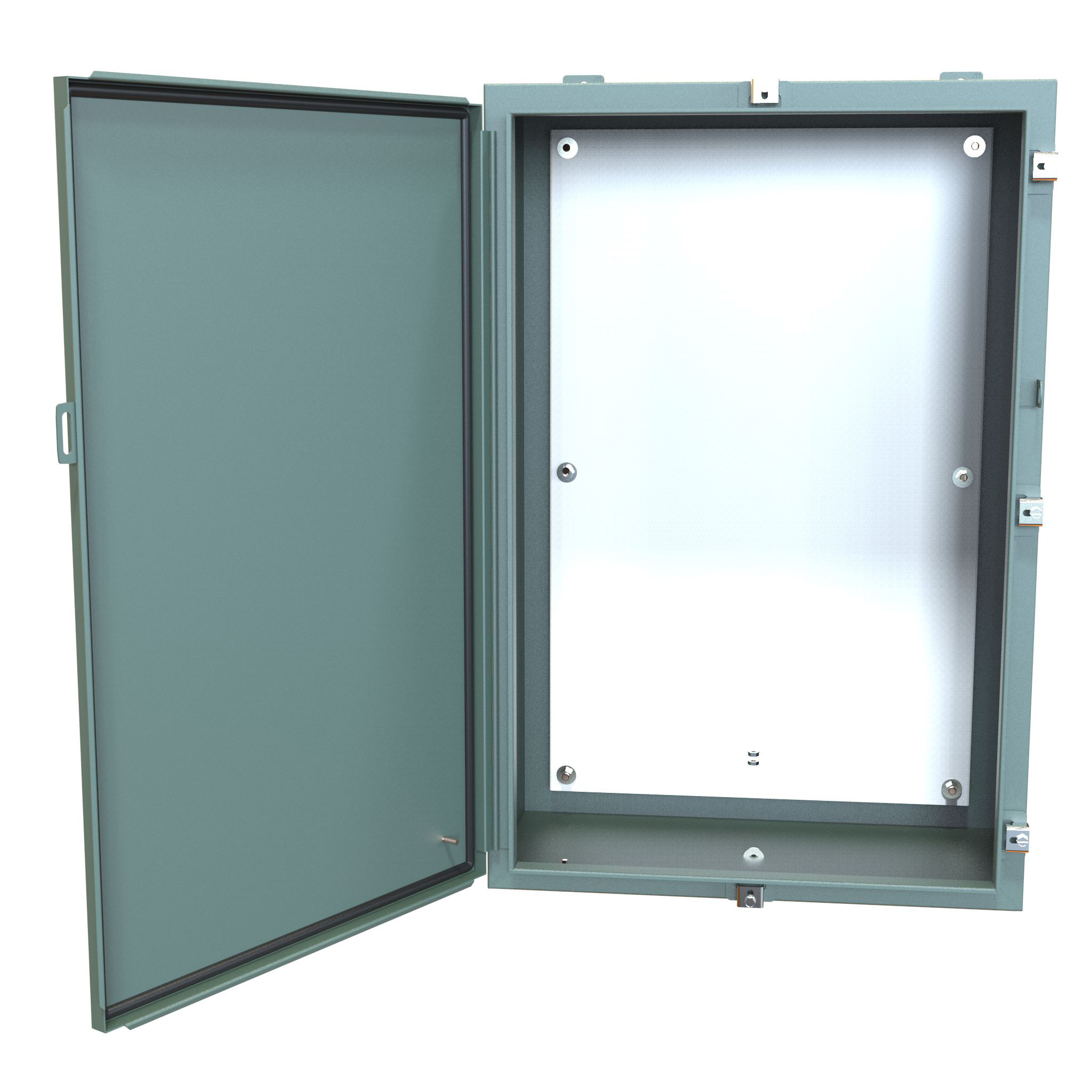

| 1418N4L12 | 36.00 | 24.00 | 12.00 | 33.00 | 21.00 |

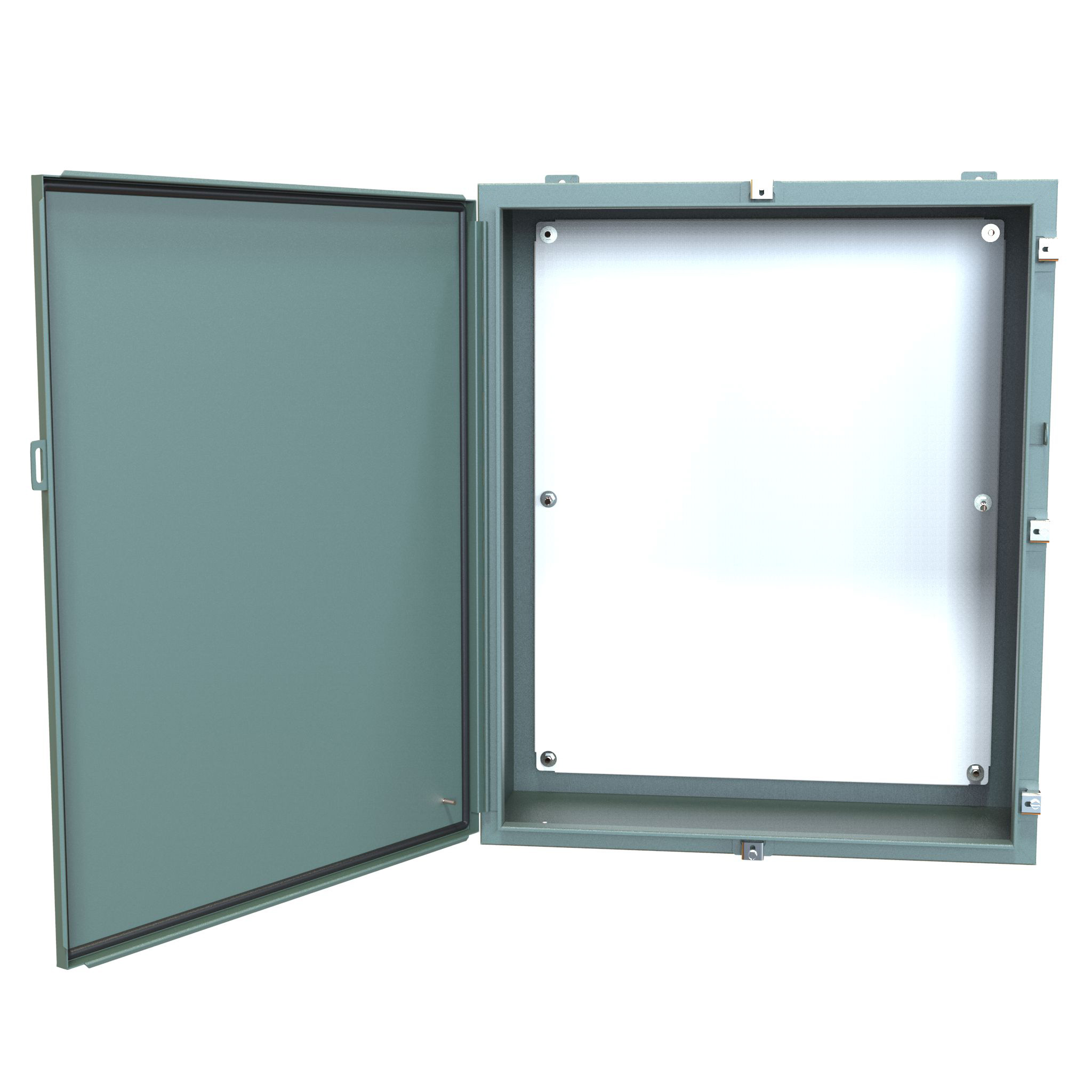

| 1418N4M12 | 36.00 | 30.00 | 12.00 | 33.00 | 27.00 |

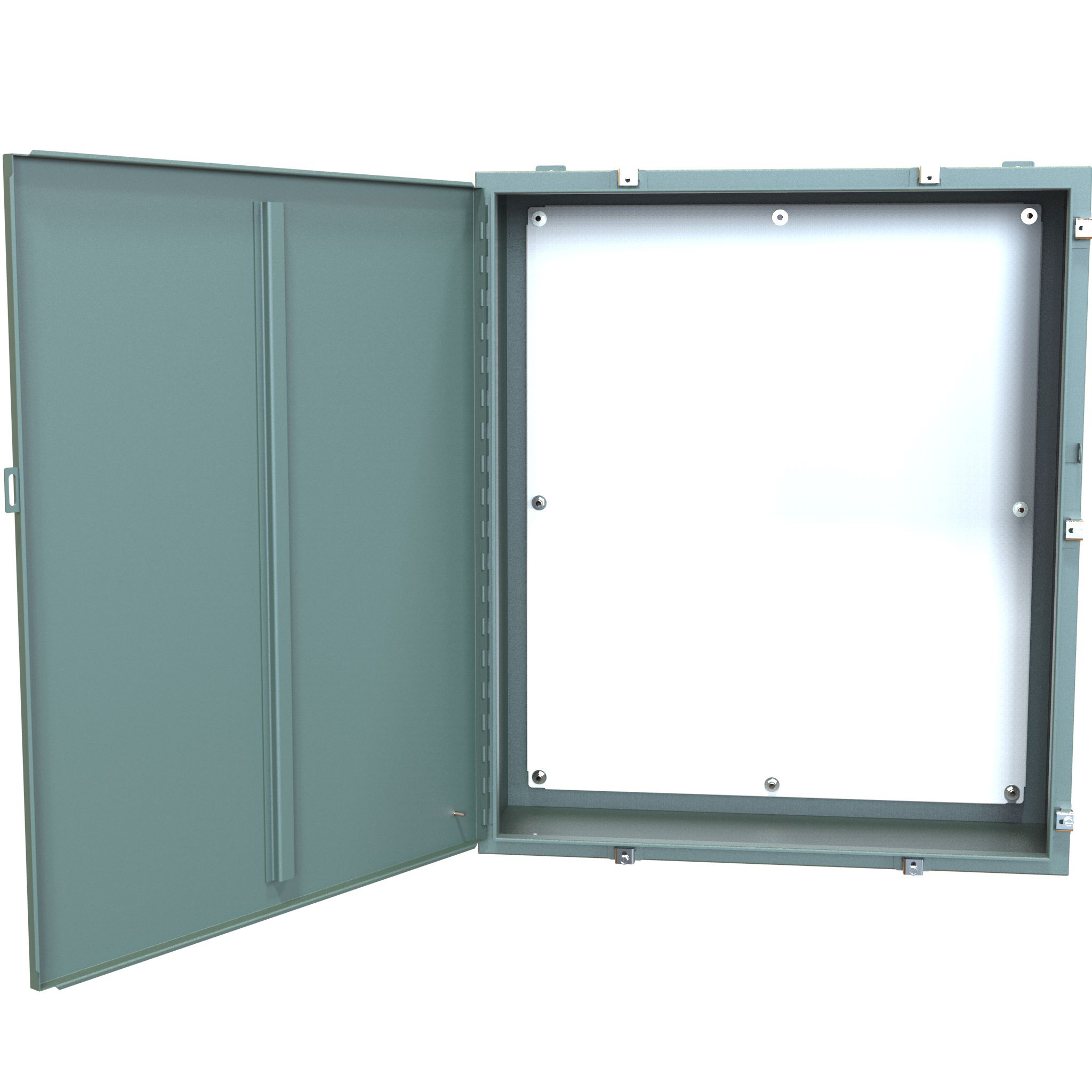

| 1418N4P12 | 42.00 | 36.00 | 12.00 | 39.00 | 33.00 |

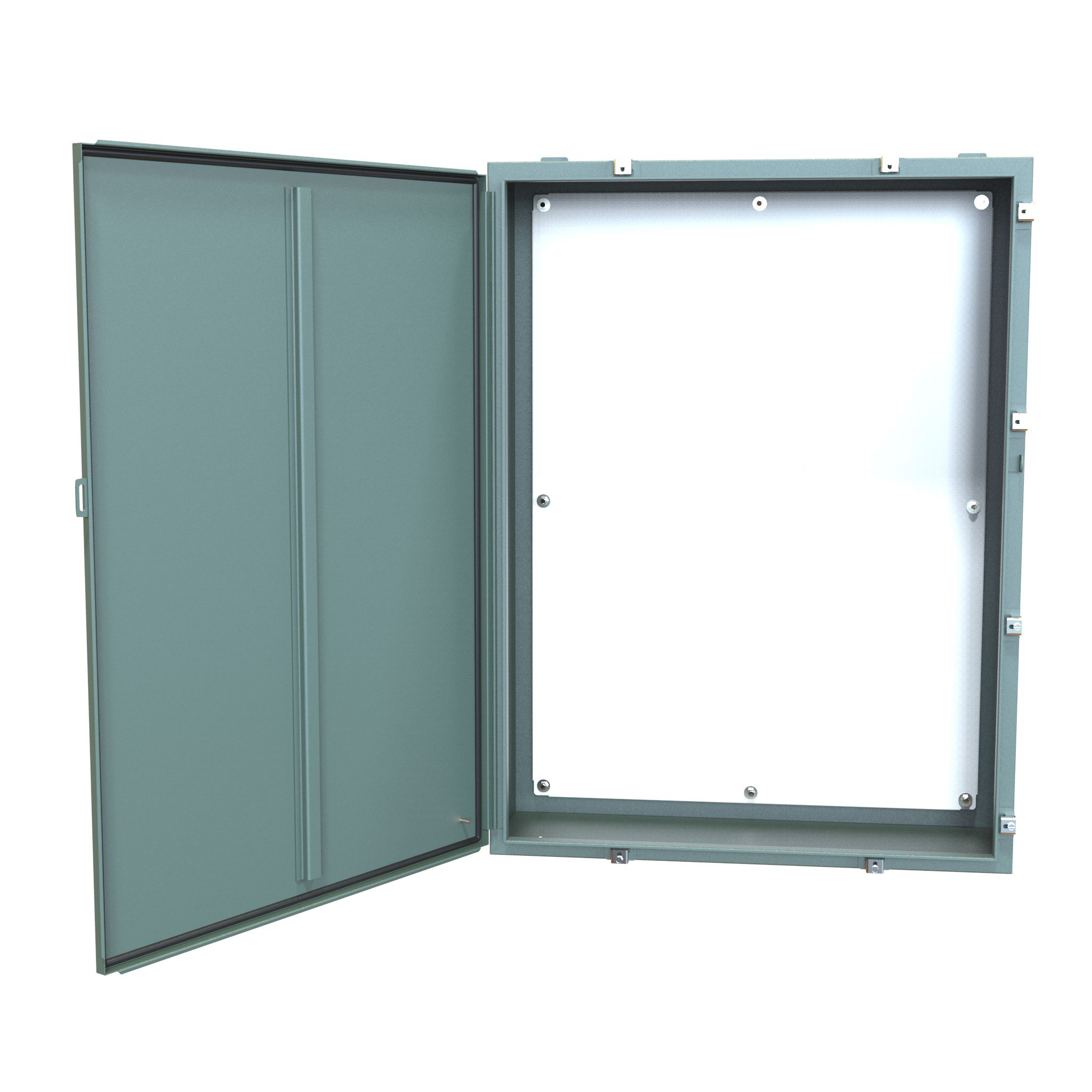

| 1418N4S12 | 48.00 | 36.00 | 12.00 | 45.00 | 33.00 |

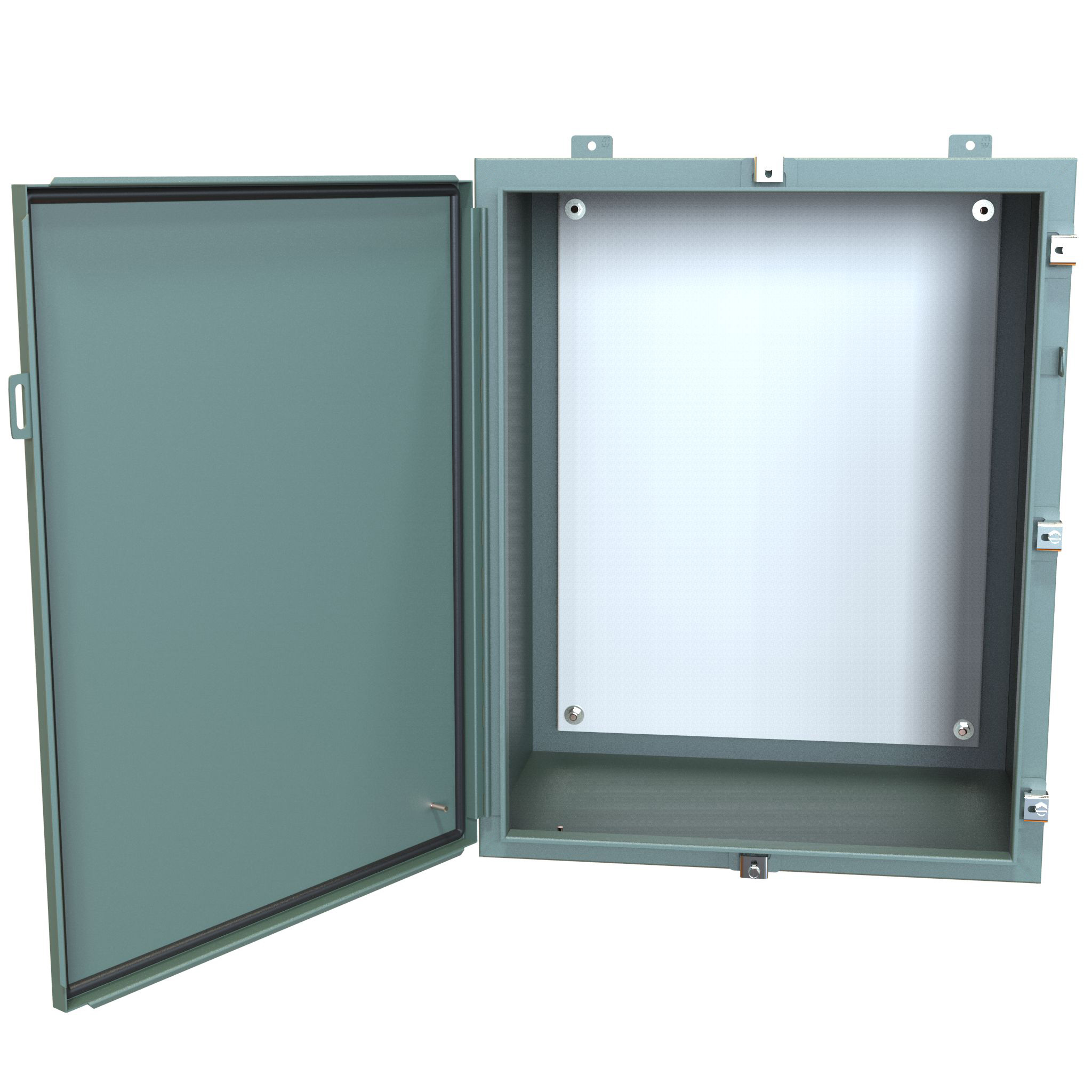

| 1418N4K16 | 30.00 | 24.00 | 16.00 | 27.00 | 21.00 |

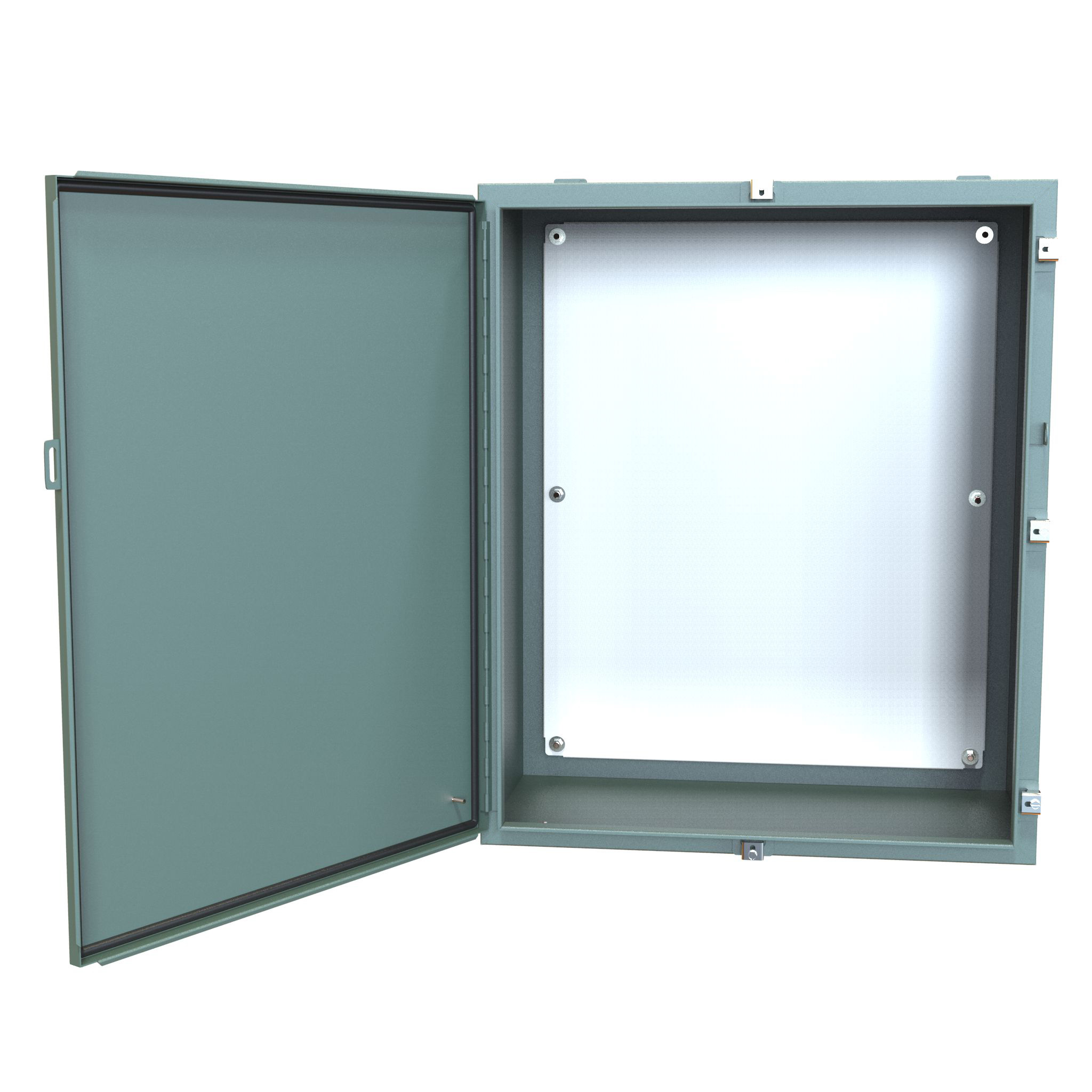

| 1418N4M16 | 36.00 | 30.00 | 16.00 | 33.00 | 27.00 |

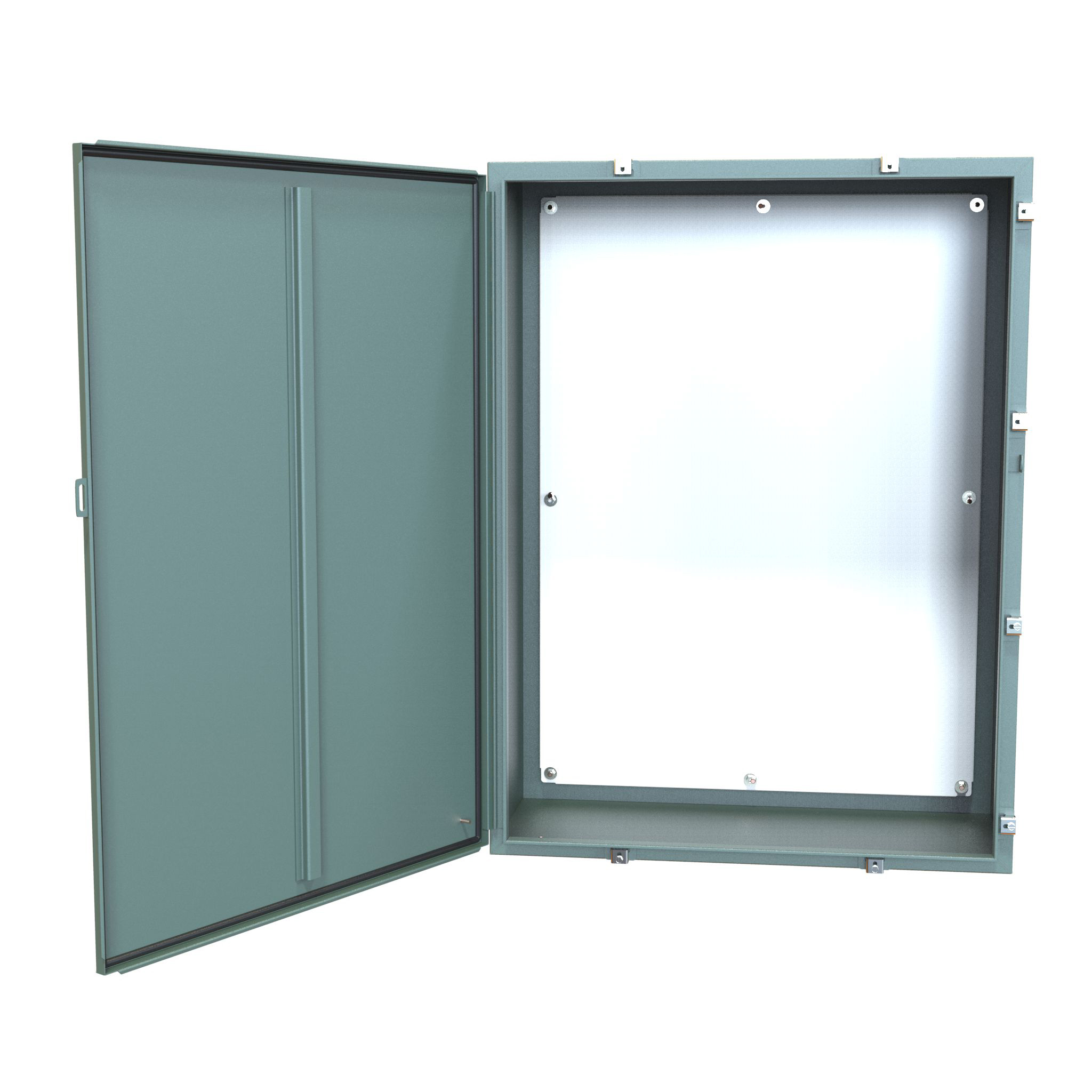

| 1418N4S16 | 48.00 | 36.00 | 16.00 | 45.00 | 33.00 |

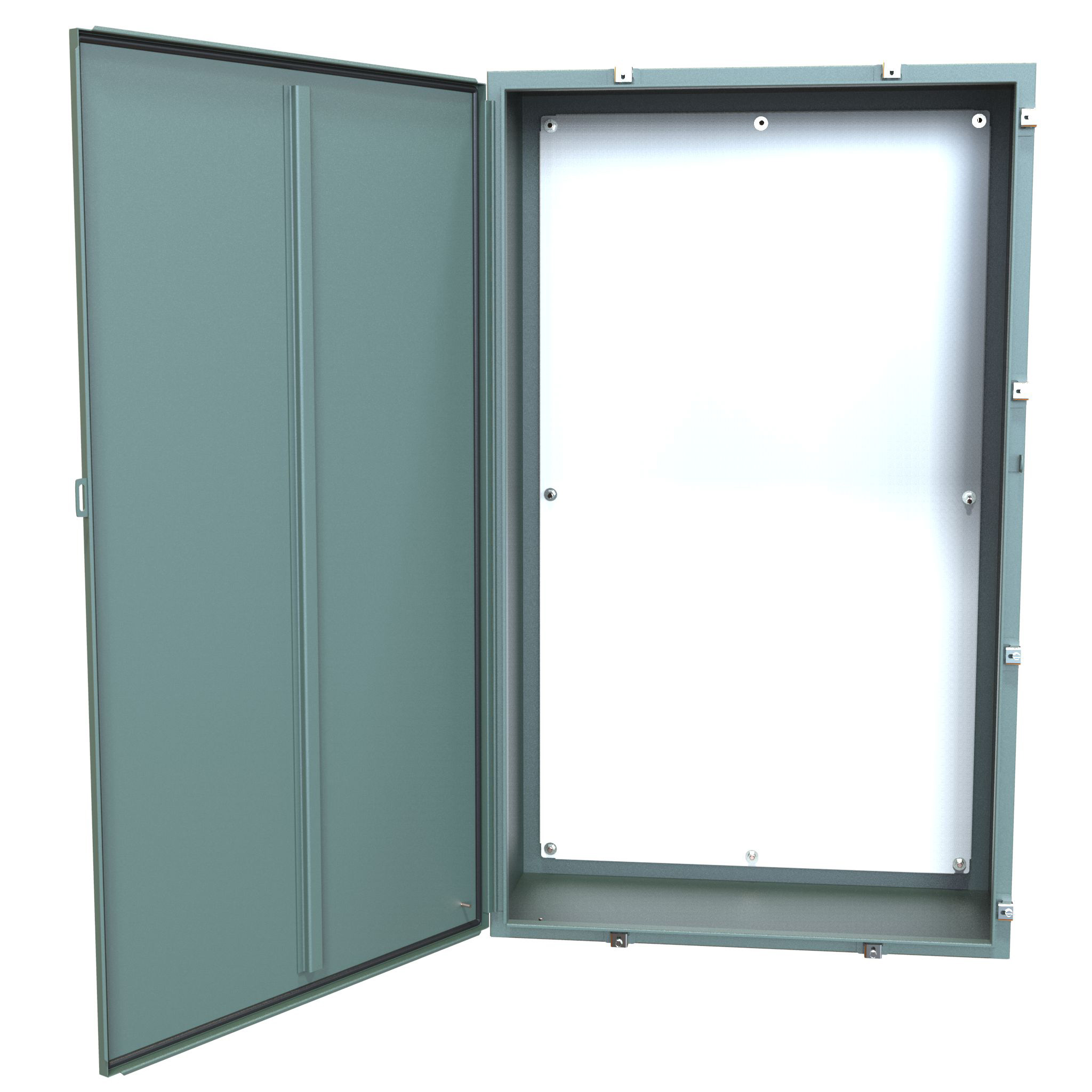

| 1418N4T16 | 60.00 | 36.00 | 16.00 | 57.00 | 33.00 |
