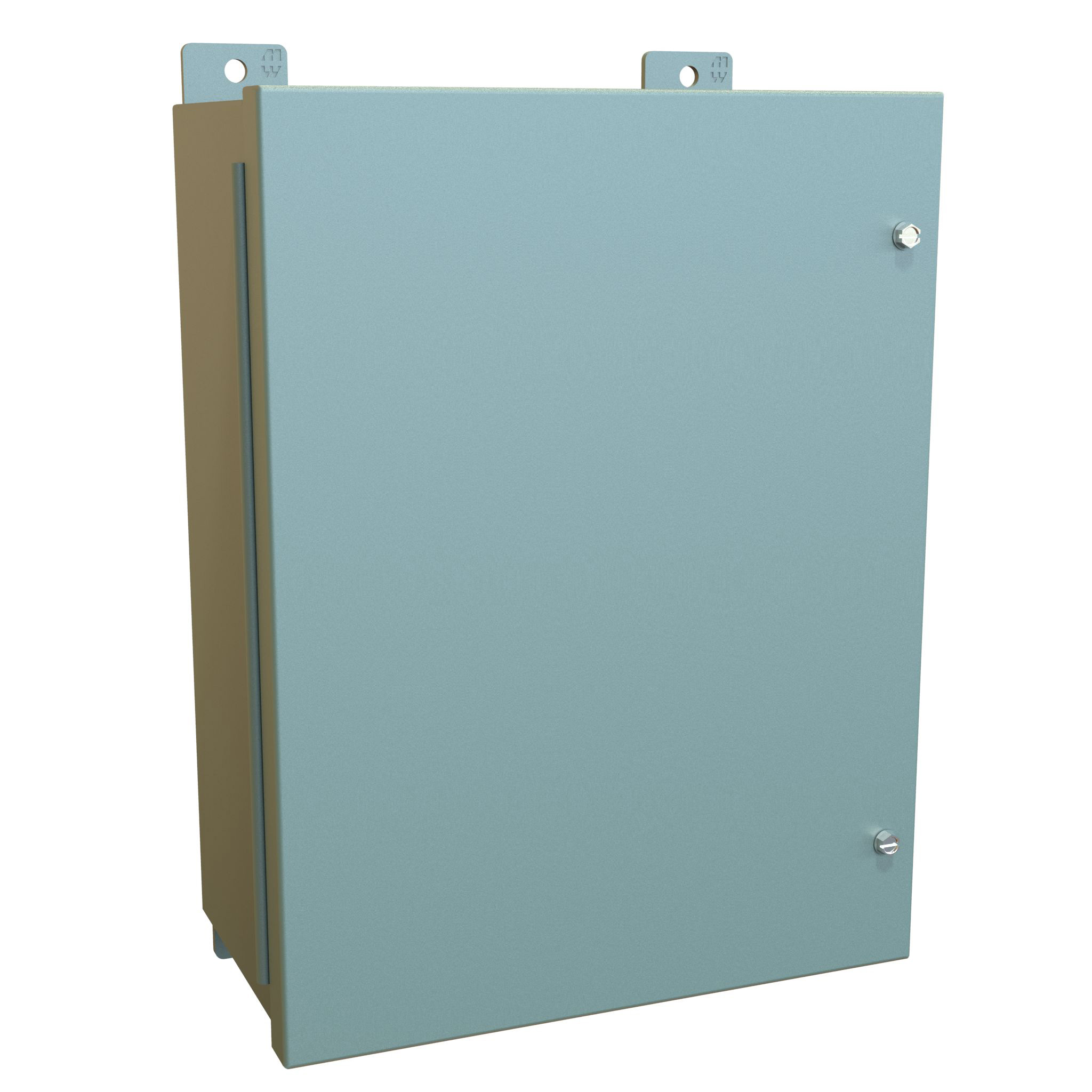

Large Jic Enclosure 16HX12WX7D
$375.32Backorder
Buy now
Type 12 Mild Steel Wallmount Enclosure · 1418J Series
Brand: Hammond Manufacturing · 23 part numbers
Continuous Hinge Door with Screws
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12
- ■Complies with NEMA Type 12 EC 60529, IP54
- ■NEMA Type 12
- ■EC 60529, IP54
from $375.32
23 of 23 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1418J Series part number
Filter 23 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
23 of 23 part numbers · 23 priced online
Large Jic Enclosure 20H X 16W X 7D
$392.98In stock
Buy now
Large Jic Enclosure 20H X 16W X 9D
$418.08Backorder
Buy now
Large Jic Enclosure 20HX20WX7D
$439.38In stock
Buy now
Large Jic Enclosure 20H X 20W X 9D
$467.43In stock
Buy now
Large Jic Enclosure 24HX20WX7D
$492.04In stock
Buy now
Large Jic Enclosure 24H X 20W X9D
$522.60In stock
Buy now
Large Jic Enclosure 30HX20WX7D
$561.89In stock
Buy now
Large Jic Enclosure 30HX20WX9D
$596.46In stock
Buy now
Large Jic Enclosure
$641.93In stock
Buy now
Large Jic Enclosure
$545.07In stock
Buy now
Large Jic Enclosure 24HX24WX9D
$578.81In stock
Buy now
Large Jic Enclosure
$739.00In stock
Buy now
Large Jic Enclosure 30HX24WX7D
$626.05In stock
Buy now
Large Jic Enclosure 30HX24WX9D
$663.47Backorder
Buy now
Large Jic Enclosure
$793.23Backorder
Buy now
Large Jic Enclosure 36HX24WX7D
$709.21In stock
Buy now
Large Jic Enclosure 36HX24WX9D
$751.04Backorder
Buy now
Large Jic Enclosure
$973.69In stock
Buy now
Large Jic Enclosure 36HX30WX9D
$882.04In stock
Buy now
Large Jic Enclosure 42HX30WX9D
$1,009.39In stock
Buy now
Large Jic Enclosure 42HX36WX9D
$1,152.64In stock
Buy now
Large Jic Enclosure
$1,265.51In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1418JB7 | 16.00 | 12.00 | 7.00 | 13.00 | 9.00 | $375.32Backorder | Buy now |

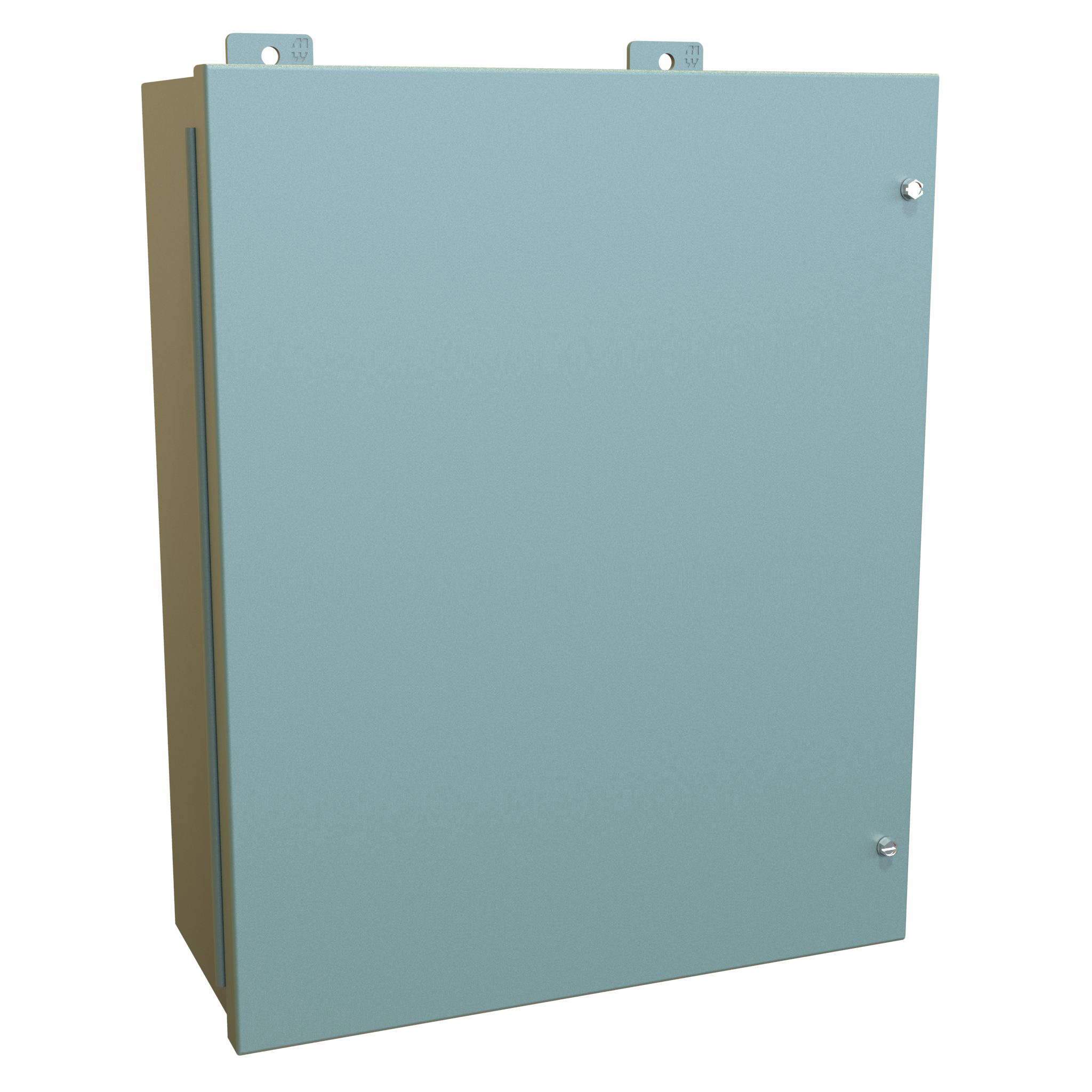

| 1418JC7 | 20.00 | 16.00 | 7.00 | 17.00 | 13.00 | $392.98In stock | Buy now |
| 1418JD7 | 20.00 | 20.00 | 7.00 | 17.00 | 17.00 | $439.38In stock | Buy now |

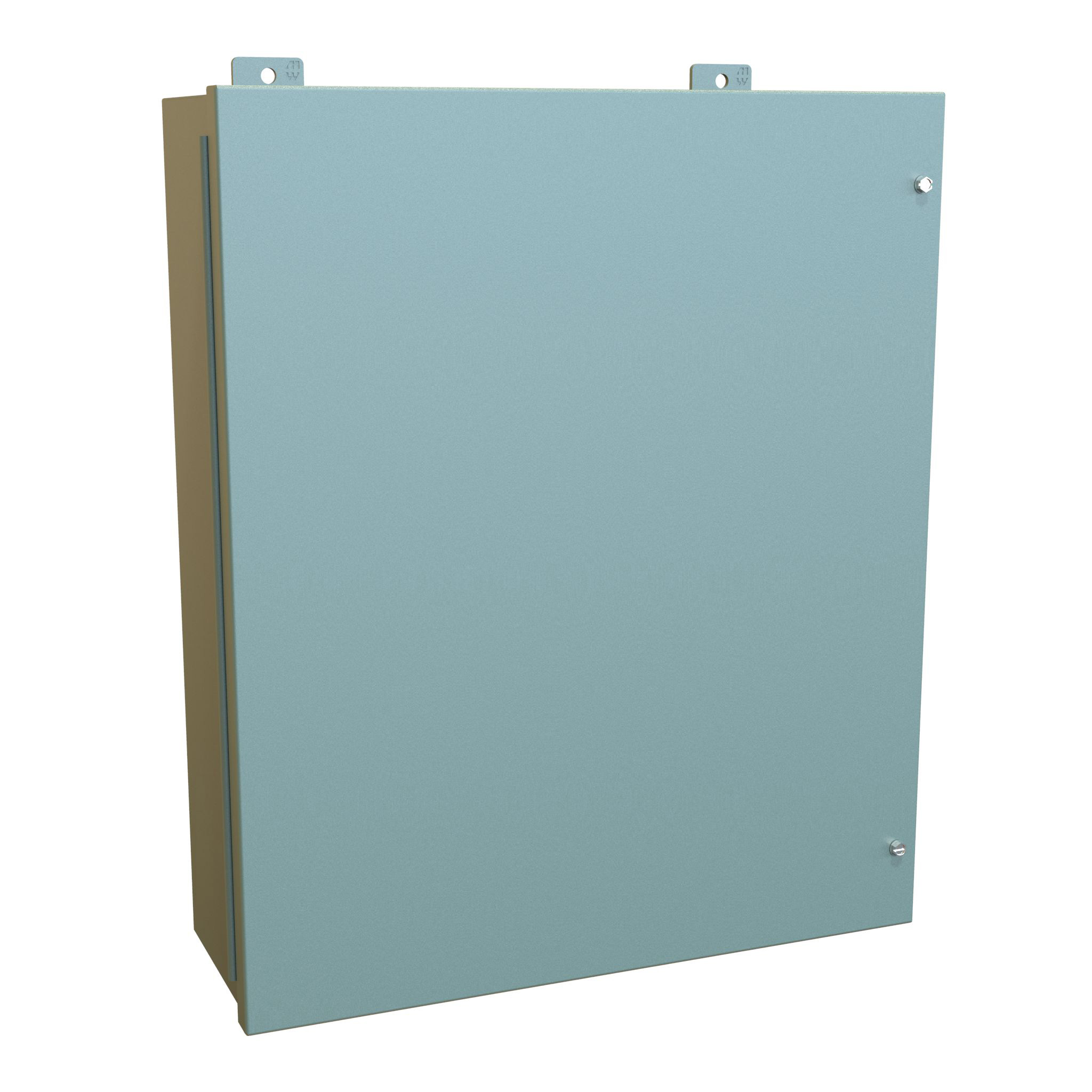

| 1418JE7 | 24.00 | 20.00 | 7.00 | 21.00 | 17.00 | $492.04In stock | Buy now |

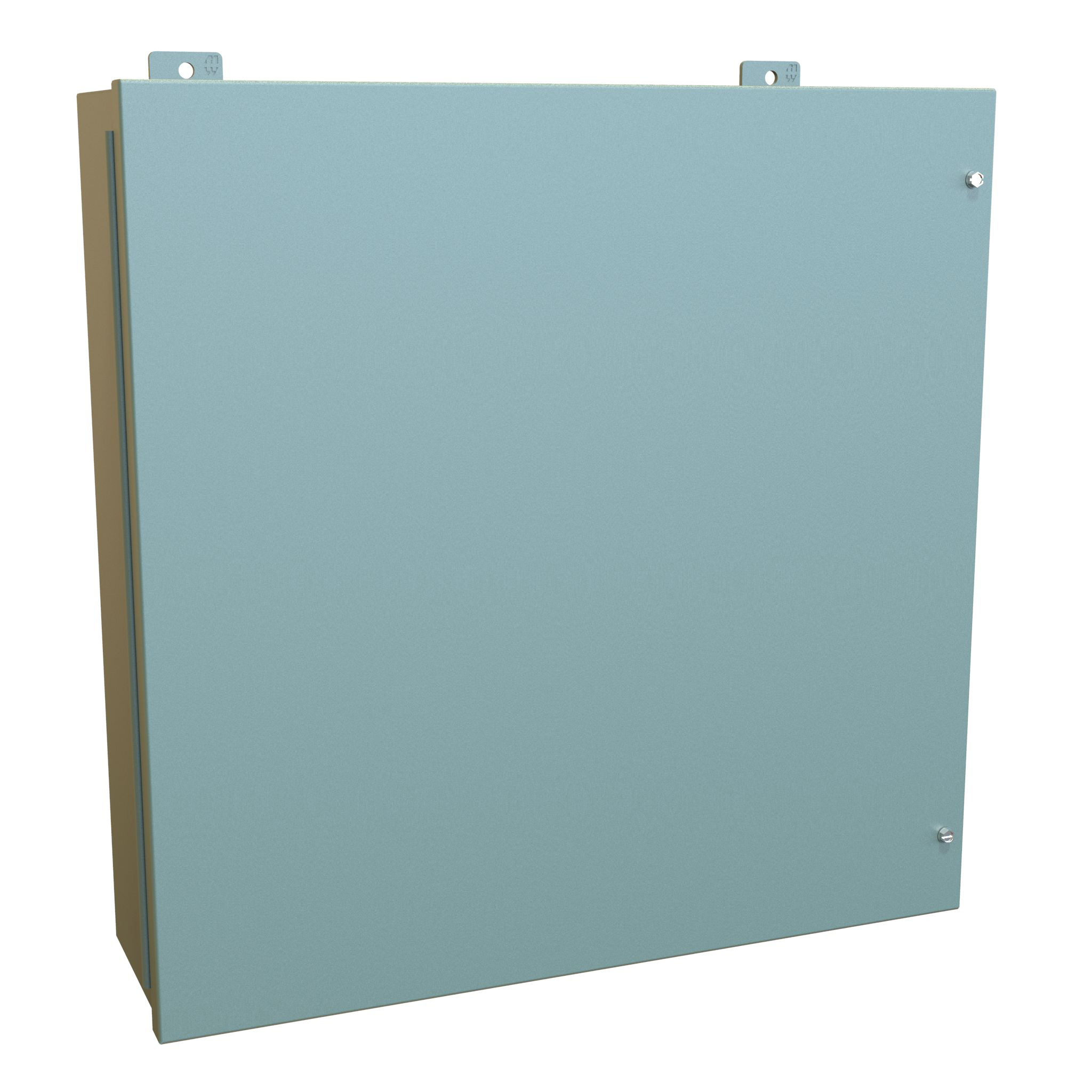

| 1418JJ7 | 24.00 | 24.00 | 7.00 | 21.00 | 21.00 | $545.07In stock | Buy now |
| 1418JF7 | 30.00 | 20.00 | 7.00 | 27.00 | 17.00 | $561.89In stock | Buy now |
| 1418JK7 | 30.00 | 24.00 | 7.00 | 27.00 | 21.00 | $626.05In stock | Buy now |

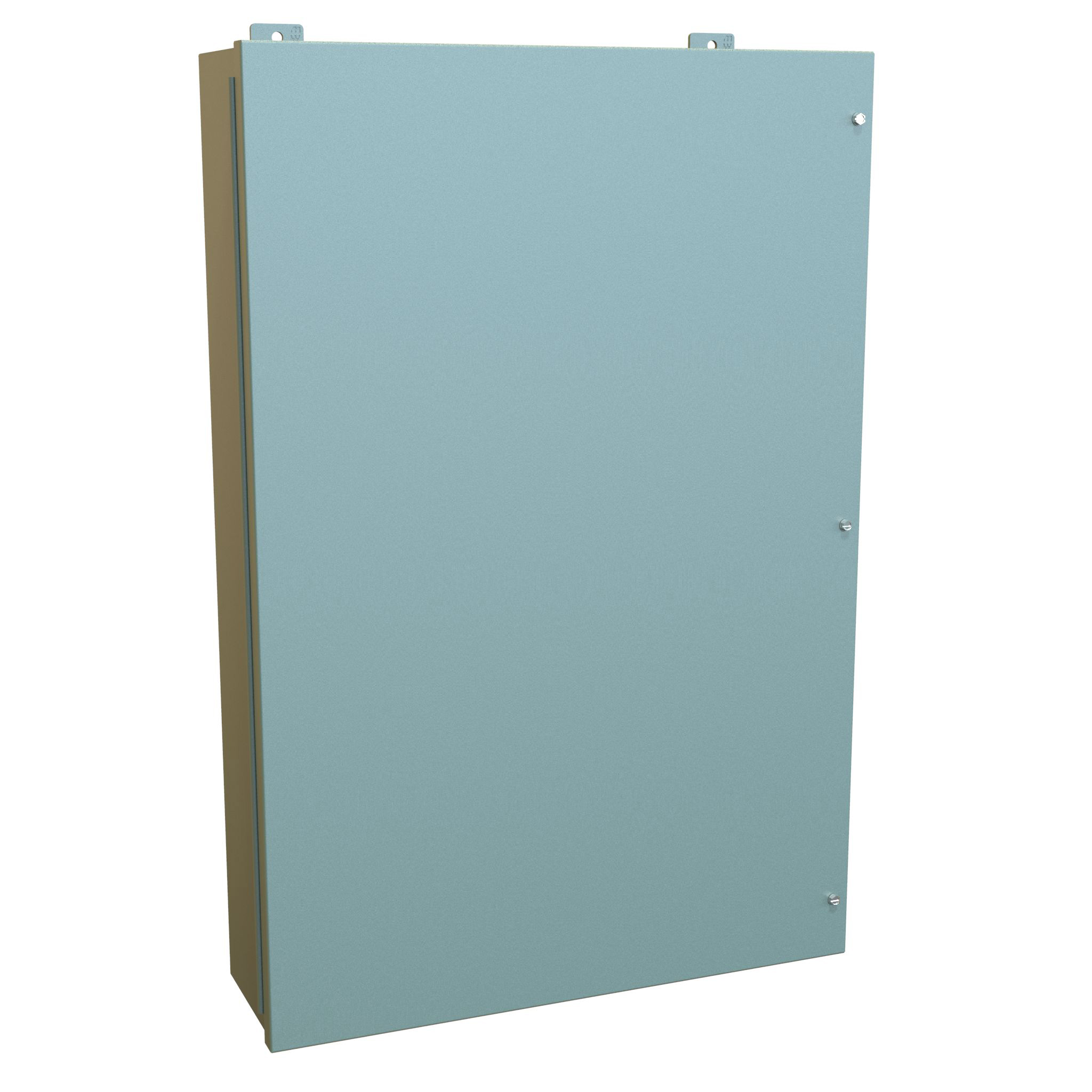

| 1418JL7 | 36.00 | 24.00 | 7.00 | 33.00 | 21.00 | $709.21In stock | Buy now |

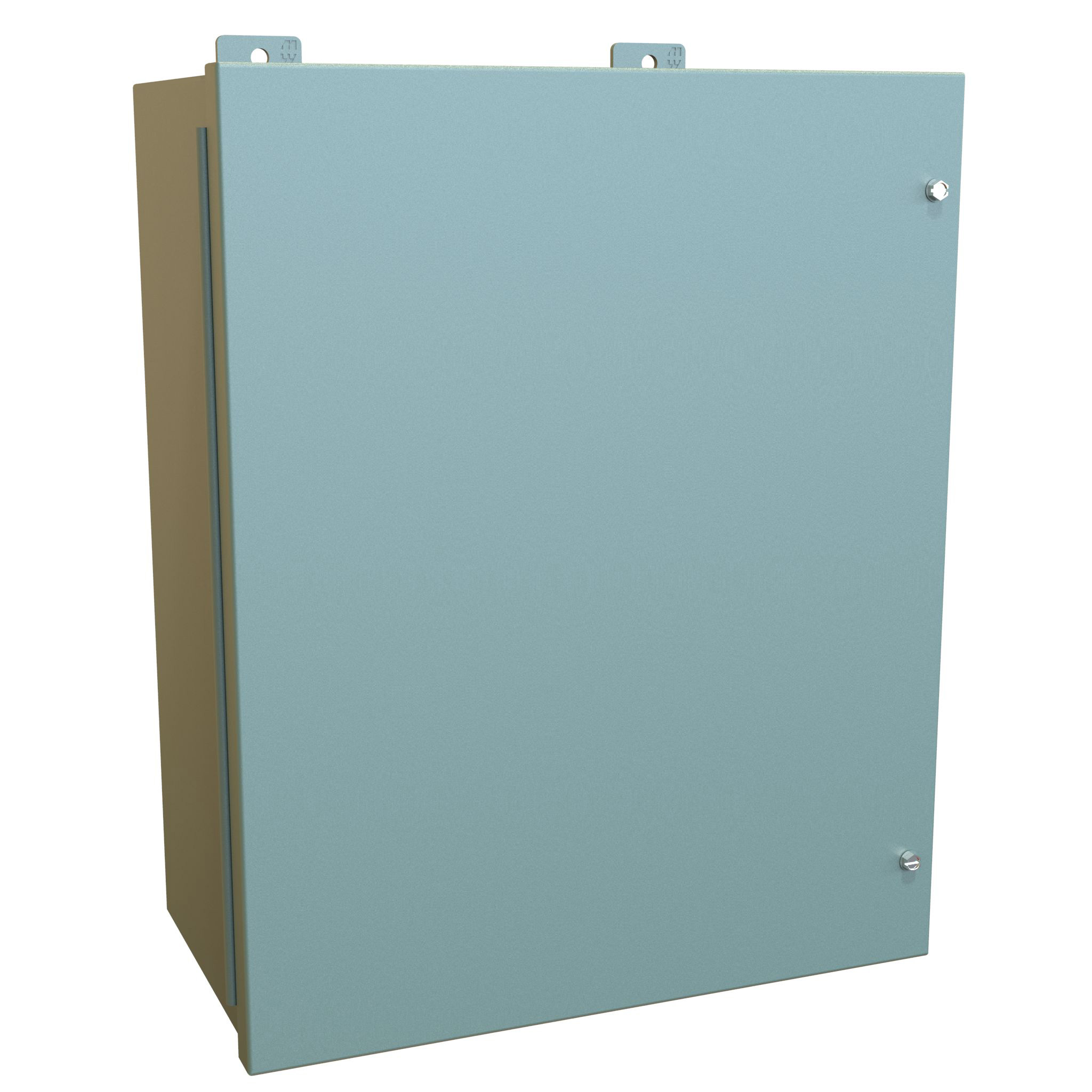

| 1418JC9 | 20.00 | 16.00 | 9.00 | 17.00 | 13.00 | $418.08Backorder | Buy now |
| 1418JD9 | 20.00 | 20.00 | 9.00 | 17.00 | 17.00 | $467.43In stock | Buy now |

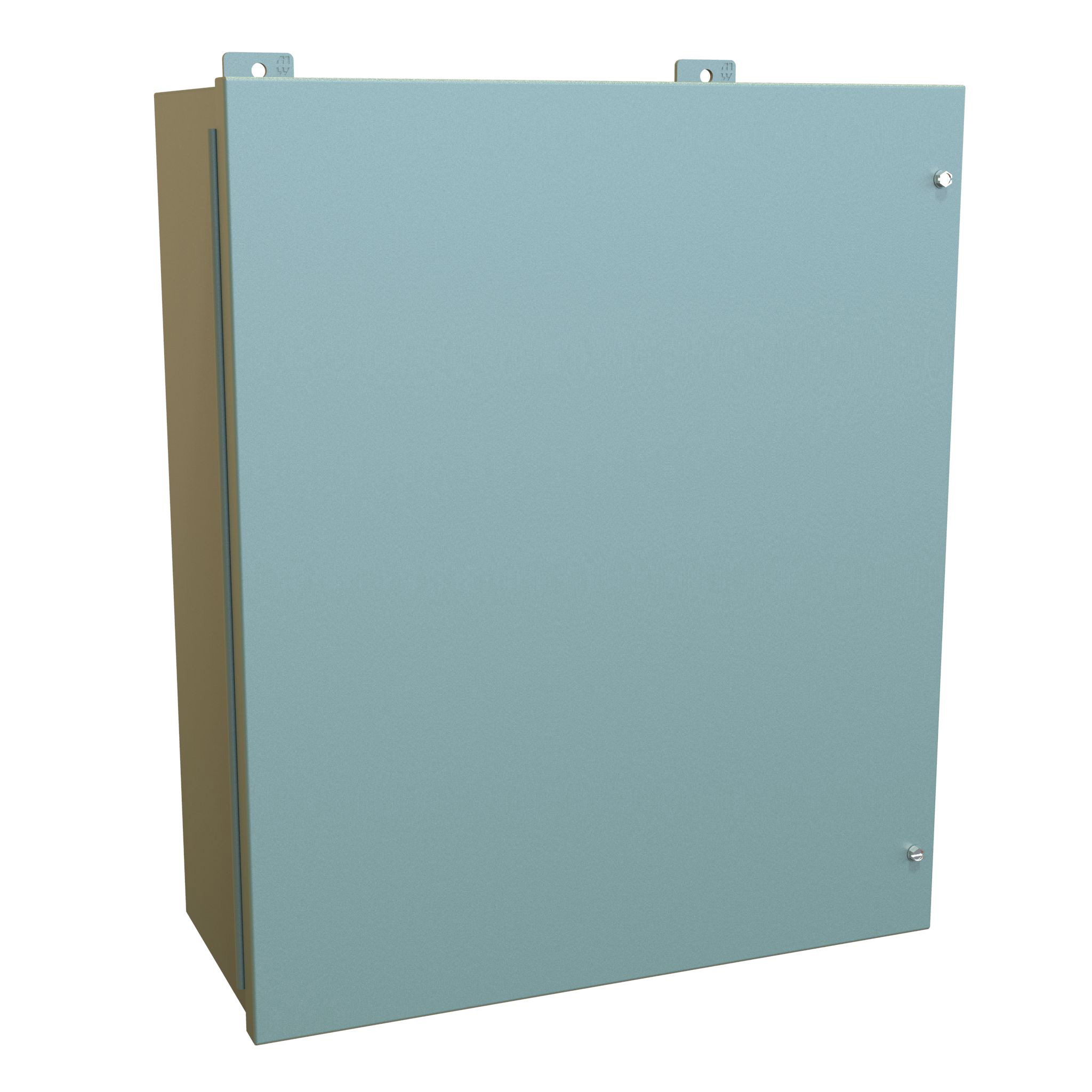

| 1418JE9 | 24.00 | 20.00 | 9.00 | 21.00 | 17.00 | $522.60In stock | Buy now |

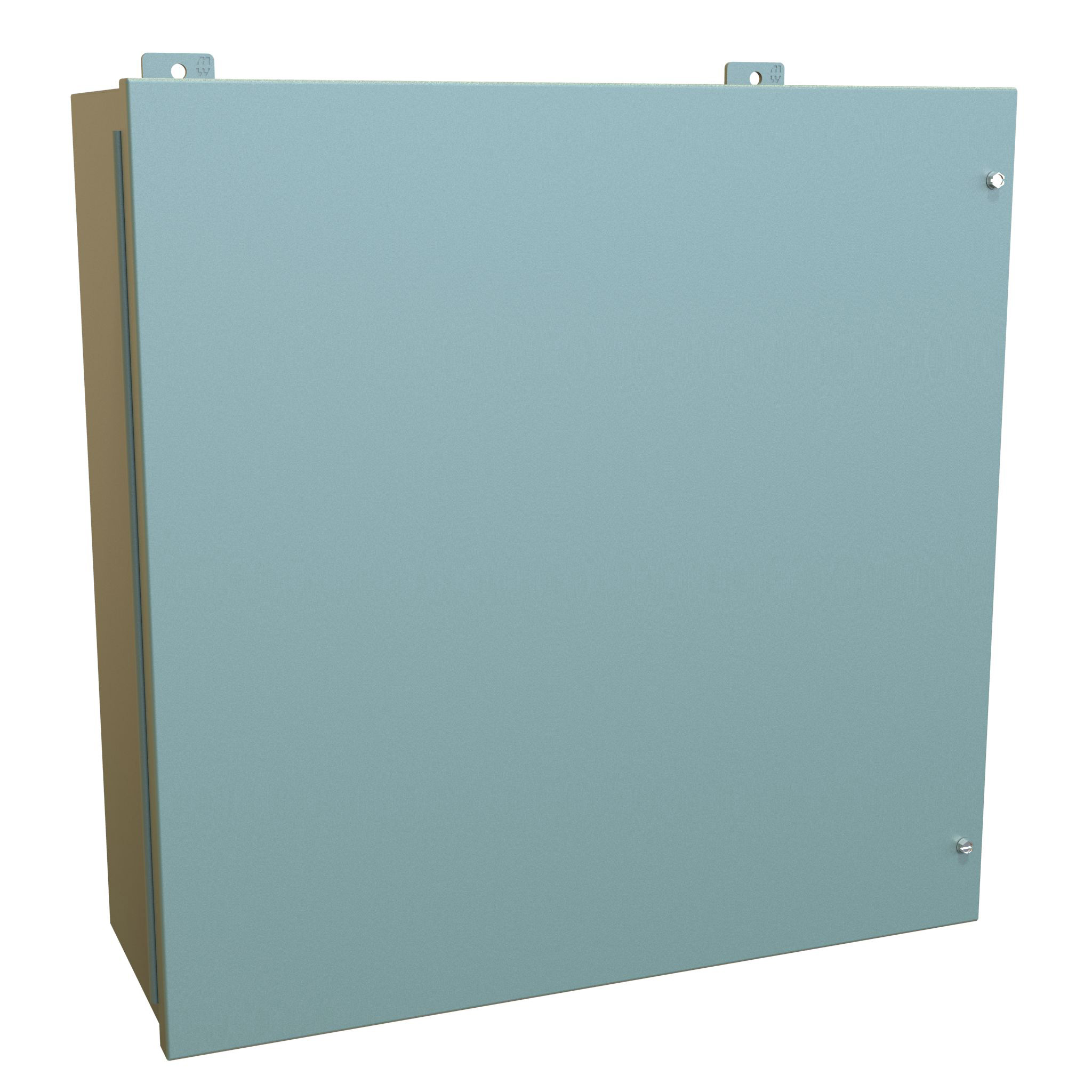

| 1418JJ9 | 24.00 | 24.00 | 9.00 | 21.00 | 21.00 | $578.81In stock | Buy now |

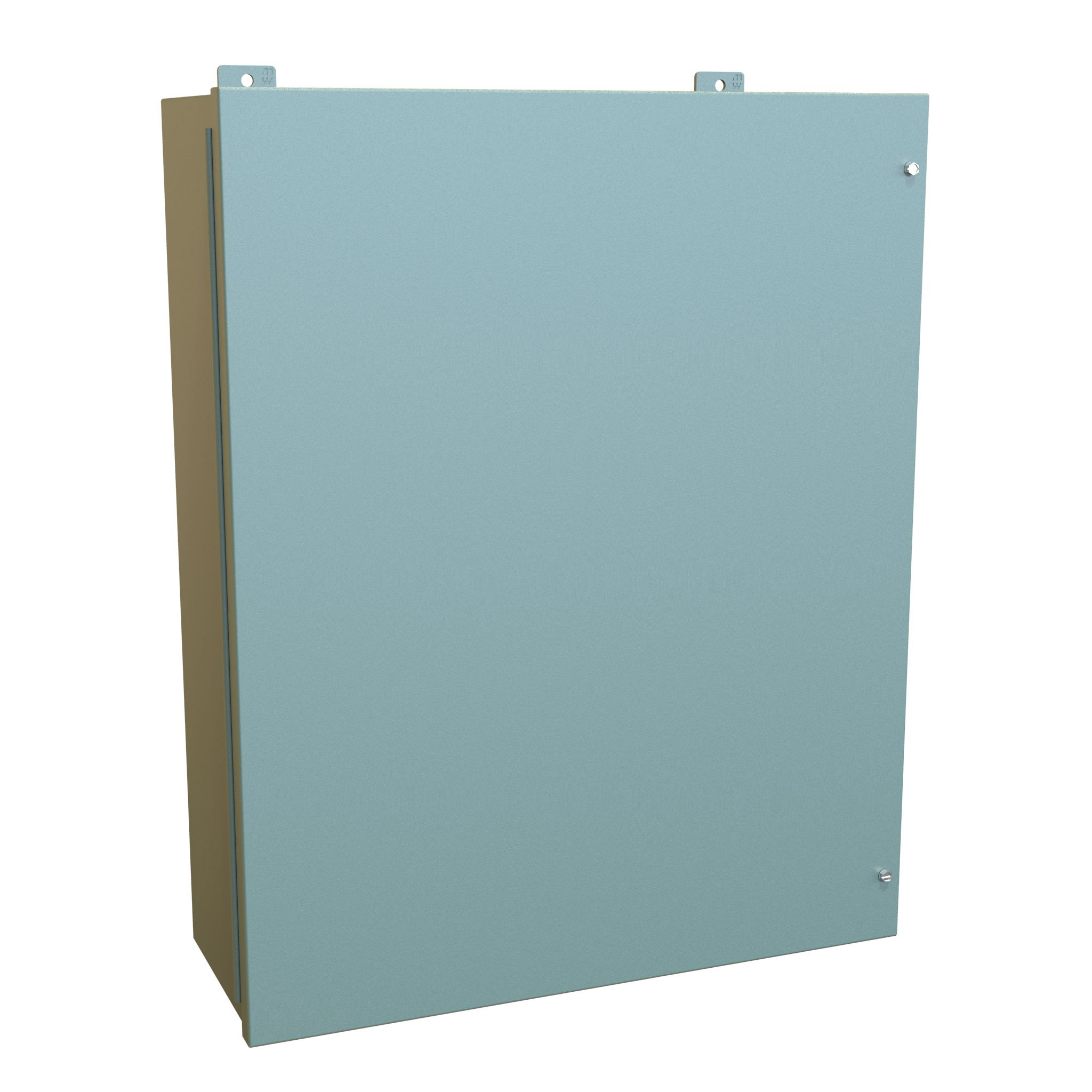

| 1418JK9 | 30.00 | 24.00 | 9.00 | 27.00 | 21.00 | $663.47Backorder | Buy now |
| 1418JF9 | 30.00 | 20.00 | 9.00 | 27.00 | 17.00 | $596.46In stock | Buy now |
| 1418JM9 | 36.00 | 30.00 | 9.00 | 33.00 | 27.00 | $882.04In stock | Buy now |

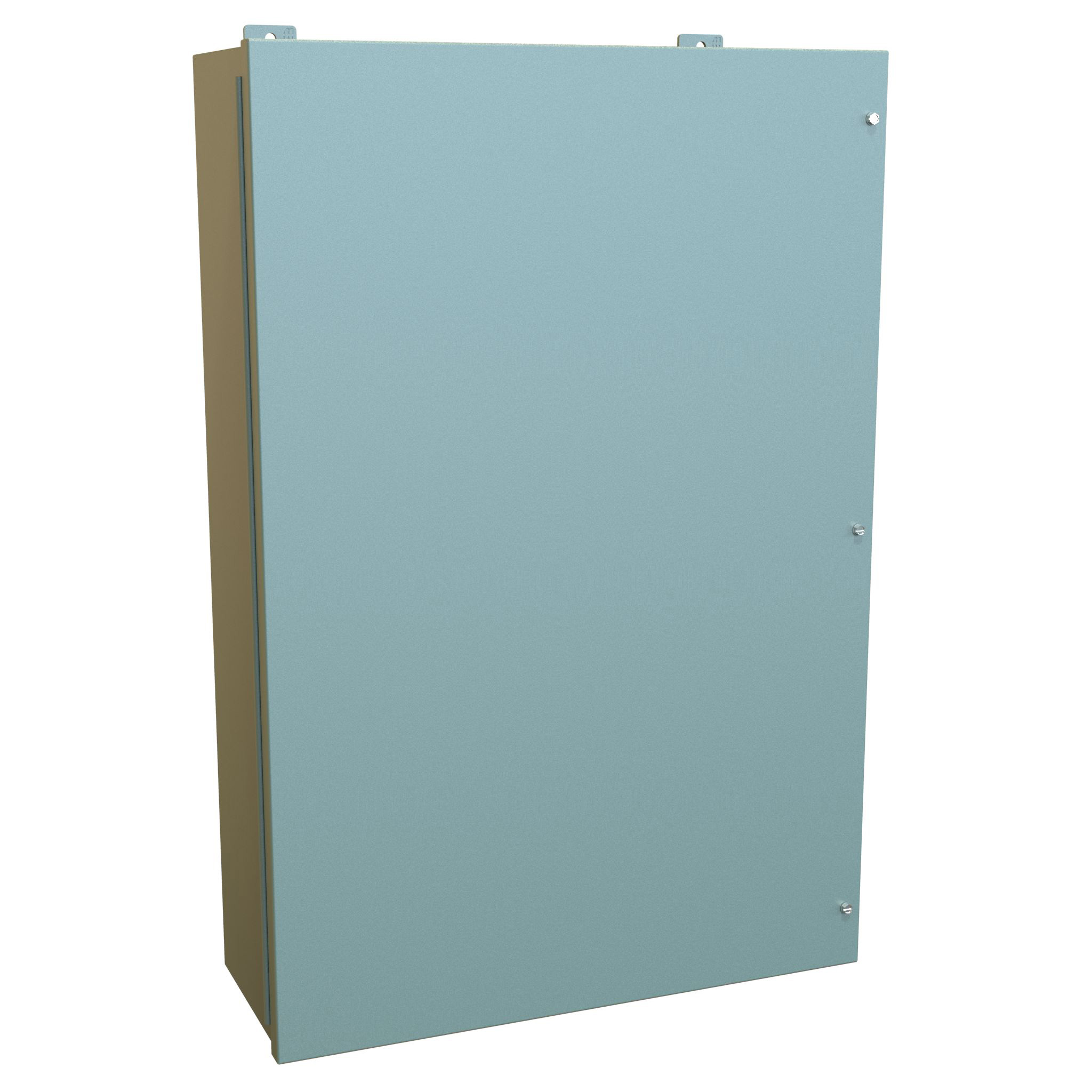

| 1418JL9 | 36.00 | 24.00 | 9.00 | 33.00 | 21.00 | $751.04Backorder | Buy now |
| 1418JO9 | 42.00 | 30.00 | 9.00 | 39.00 | 27.00 | $1,009.39In stock | Buy now |
| 1418JP9 | 42.00 | 36.00 | 9.00 | 39.00 | 33.00 | $1,152.64In stock | Buy now |

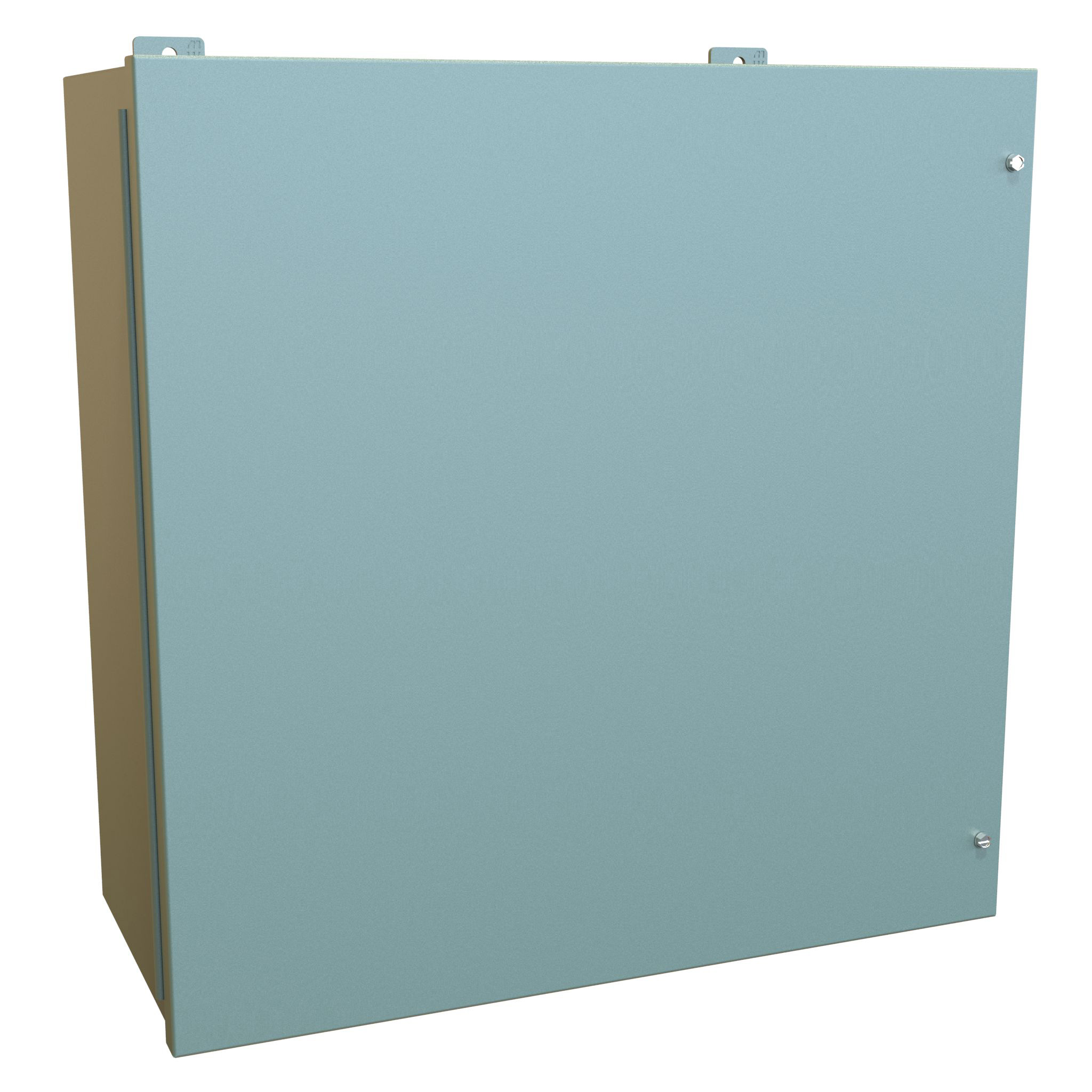

| 1418JJ11 | 24.00 | 24.00 | 11.00 | 21.00 | 21.00 | $641.93In stock | Buy now |

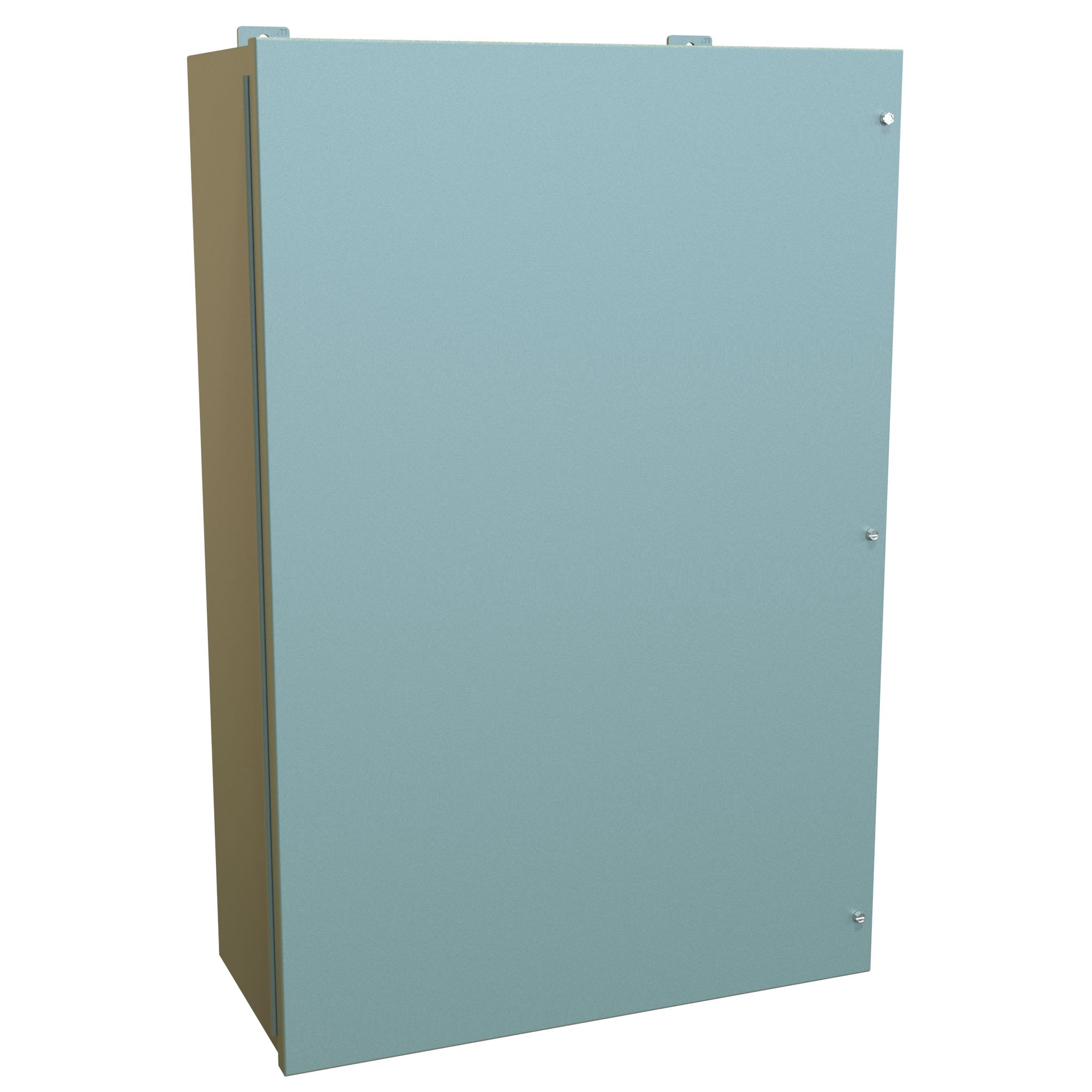

| 1418JL11 | 36.00 | 24.00 | 11.00 | 33.00 | 21.00 | $793.23Backorder | Buy now |
| 1418JS11 | 48.00 | 36.00 | 11.00 | 45.00 | 33.00 | $1,265.51In stock | Buy now |
| 1418JK13 | 30.00 | 24.00 | 13.00 | 27.00 | 21.00 | $739.00In stock | Buy now |
| 1418JM13 | 36.00 | 30.00 | 13.00 | 33.00 | 27.00 | $973.69In stock | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12
- ■Complies with NEMA Type 12 EC 60529, IP54
- ■NEMA Type 12
- ■EC 60529, IP54
Construction
- ■Formed from 14 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Door and body stiffeners are provided in the larger enclosures for extra rigidity.
- ■Welded brackets provide for enclosure mounting.
- ■Continuously hinged cover is secured with plated screws, threaded into sealed wells.
- ■Oil resistant gaskets are permanently secured.
- ■A removable 12 gauge inner panel is included.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1418JB7 | 16.00 | 12.00 | 7.00 | 13.00 | 9.00 |
| 1418JC7 | 20.00 | 16.00 | 7.00 | 17.00 | 13.00 |
| 1418JD7 | 20.00 | 20.00 | 7.00 | 17.00 | 17.00 |
| 1418JE7 | 24.00 | 20.00 | 7.00 | 21.00 | 17.00 |
| 1418JJ7 | 24.00 | 24.00 | 7.00 | 21.00 | 21.00 |
| 1418JF7 | 30.00 | 20.00 | 7.00 | 27.00 | 17.00 |
| 1418JK7 | 30.00 | 24.00 | 7.00 | 27.00 | 21.00 |
| 1418JL7 | 36.00 | 24.00 | 7.00 | 33.00 | 21.00 |
| 1418JC9 | 20.00 | 16.00 | 9.00 | 17.00 | 13.00 |
| 1418JD9 | 20.00 | 20.00 | 9.00 | 17.00 | 17.00 |
| 1418JE9 | 24.00 | 20.00 | 9.00 | 21.00 | 17.00 |
| 1418JJ9 | 24.00 | 24.00 | 9.00 | 21.00 | 21.00 |
| 1418JK9 | 30.00 | 24.00 | 9.00 | 27.00 | 21.00 |
| 1418JF9 | 30.00 | 20.00 | 9.00 | 27.00 | 17.00 |
| 1418JM9 | 36.00 | 30.00 | 9.00 | 33.00 | 27.00 |
| 1418JL9 | 36.00 | 24.00 | 9.00 | 33.00 | 21.00 |
| 1418JO9 | 42.00 | 30.00 | 9.00 | 39.00 | 27.00 |
| 1418JP9 | 42.00 | 36.00 | 9.00 | 39.00 | 33.00 |
| 1418JJ11 | 24.00 | 24.00 | 11.00 | 21.00 | 21.00 |
| 1418JL11 | 36.00 | 24.00 | 11.00 | 33.00 | 21.00 |
| 1418JS11 | 48.00 | 36.00 | 11.00 | 45.00 | 33.00 |
| 1418JK13 | 30.00 | 24.00 | 13.00 | 27.00 | 21.00 |
| 1418JM13 | 36.00 | 30.00 | 13.00 | 33.00 | 27.00 |
