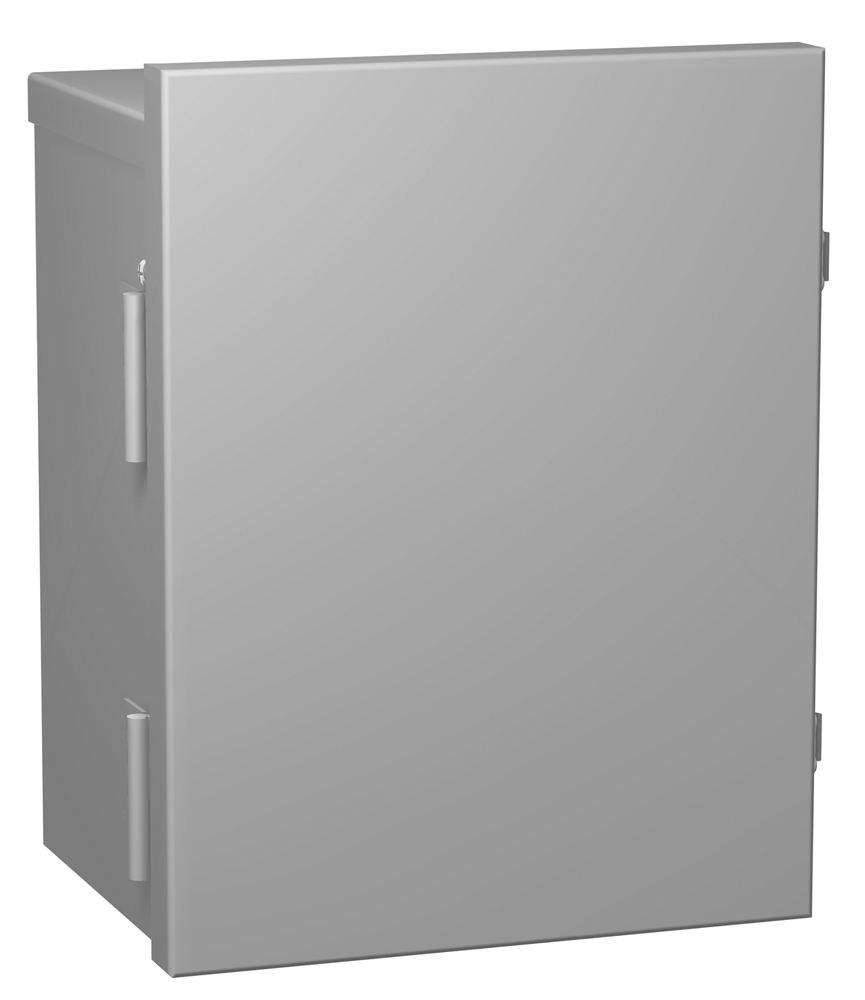

Type 3R Painted Galvanized Steel Enclosure C3R HCLO Series

Type 3R Painted Galvanized Steel Enclosure · C3R HCLO Series

Brand: Hammond Manufacturing · 28 part numbers

Lift-Off Hinge Door with Snap Latch

  • ■Designed for use as a wiring/junction box.
  • ■Provides protection against rain, sleet, snow and dripping water.
  • ■UL-50 Type 3R
  • ■CSA Type 3R
  • ■Complies with NEMA Type 3R IEC 60529, IP24
  • ■NEMA Type 3R

from $5.35

28 of 28 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your C3R HCLO Series part number

Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

16 of 16 part numbers · 16 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · Part No.Optional Inner Panel · HOptional Inner Panel · WOptional Panel · Mounting Kit (Part No.)Optional Mount · Foot Kit (Part No.)PriceOrder
C3R864HCLO8.006.004.0014R05054.884.88C3RHCLOPK1C3RHCLOMFK1$44.34BackorderC3R864HCLOBuy now
C3R886HCLO8.008.006.0014R07056.754.88C3RHCLOPK1C3RHCLOMFK1$56.30In stockC3R886HCLOBuy now
C3R1086HCLO10.008.006.0014R07076.756.88C3RHCLOPK1C3RHCLOMFK1$62.13In stockC3R1086HCLOBuy now
C3R12106HCLO12.0010.006.0014R09098.758.88C3RHCLOPK1C3RHCLOMFK1$75.93In stockC3R12106HCLOBuy now
C3R12126HCLO12.0012.006.0014R110910.758.88C3RHCLOPK1C3RHCLOMFK1$83.47In stockC3R12126HCLOBuy now
C3R16126HCLO16.0012.006.0014R131112.7510.88C3RHCLOPK1C3RHCLOMFK1$108.55In stockC3R16126HCLOBuy now
C3R16166HCLO16.0016.006.0018P131313.0013.00C3RHCLOPK2C3RHCLOMFK2$138.53In stockC3R16166HCLOBuy now
C3R20166HCLO20.0016.006.0018P171317.0013.00C3RHCLOPK2C3RHCLOMFK2$157.63In stockC3R20166HCLOBuy now
C3R20208HCLO20.0020.008.0018P171717.0017.00C3RHCLOPK2C3RHCLOMFK2$198.86In stockC3R20208HCLOBuy now
C3R24208HCLO24.0020.008.0018P211721.0017.00C3RHCLOPK2C3RHCLOMFK2$223.77In stockC3R24208HCLOBuy now
C3R24248HCLO24.0024.008.0018P212121.0021.00C3RHCLOPK2C3RHCLOMFK2$252.33In stockC3R24248HCLOBuy now
C3R30248HCLO30.0024.008.0018P272127.0021.00C3RHCLOPK2C3RHCLOMFK2$294.81In stockC3R30248HCLOBuy now

Application

  • ■Designed for use as a wiring/junction box.
  • ■Provides protection against rain, sleet, snow and dripping water.

Standards

  • ■UL-50 Type 3R
  • ■CSA Type 3R
  • ■Complies with NEMA Type 3R IEC 60529, IP24
  • ■NEMA Type 3R
  • ■IEC 60529, IP24

Construction

  • ■Formed and spot welded from 16 gauge galvanized steel (14 gauge when 24" wide)
  • ■Extended height door and seam-free sides, front and back.
  • ■Galvanized steel lift-off hinges with stainless steel pins.
  • ■Cover fastened securely with zinc plated draw pull catches.
  • ■Provisions for padlocking on zinc-plated draw pull catch.
  • ■Embossed mounting holes on back.
  • ■Foam gasket seal around door opening.

Finish

  • ■Enclosure and cover are finished in ANSI 61 gray powder coating.

Documents

Specification Sheet

Additional information

Part Details

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · Part No.Optional Inner Panel · HOptional Inner Panel · WOptional Panel · Mounting KitOptional Mount · Foot Kit
C3R864HCLO8.006.004.0014R05054.884.88C3RHCLOPK1C3RHCLOMFK1
C3R886HCLO8.008.006.0014R07056.754.88C3RHCLOPK1C3RHCLOMFK1
C3R1086HCLO10.008.006.0014R07076.756.88C3RHCLOPK1C3RHCLOMFK1
C3R12106HCLO12.0010.006.0014R09098.758.88C3RHCLOPK1C3RHCLOMFK1
C3R12126HCLO12.0012.006.0014R110910.758.88C3RHCLOPK1C3RHCLOMFK1
C3R16126HCLO16.0012.006.0014R131112.7510.88C3RHCLOPK1C3RHCLOMFK1
C3R16166HCLO16.0016.006.0018P131313.0013.00C3RHCLOPK2C3RHCLOMFK2
C3R20166HCLO20.0016.006.0018P171317.0013.00C3RHCLOPK2C3RHCLOMFK2
C3R20208HCLO20.0020.008.0018P171717.0017.00C3RHCLOPK2C3RHCLOMFK2
C3R24208HCLO24.0020.008.0018P211721.0017.00C3RHCLOPK2C3RHCLOMFK2
C3R24248HCLO24.0024.008.0018P212121.0021.00C3RHCLOPK2C3RHCLOMFK2
C3R30248HCLO30.0024.008.0018P272127.0021.00C3RHCLOPK2C3RHCLOMFK2
