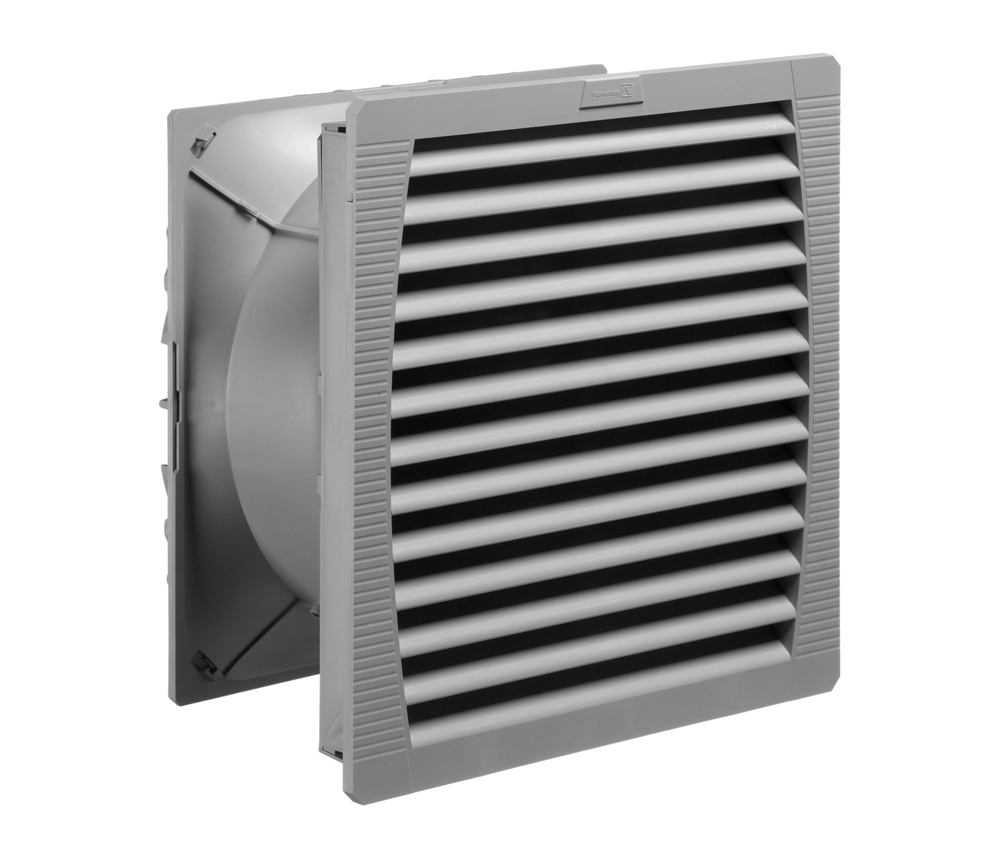

297-560 CFM Filterfans PF GEN4 Series

297-560 CFM Filterfans · PF GEN4 Series

Brand: Hammond Manufacturing · 35 part numbers

Type 12

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware-free installation
  • ■Plastic made from strong, heat resistant ABS-FR, UL 94 V0 fire approved material
  • ■Fan ships with one filter. Additional filters can be purchased separately
  • ■Fan Motor is CSA Approved

from $79.61

33 of 35 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your PF GEN4 Series part number

Filter 33 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

33 of 33 part numbers · 31 priced online

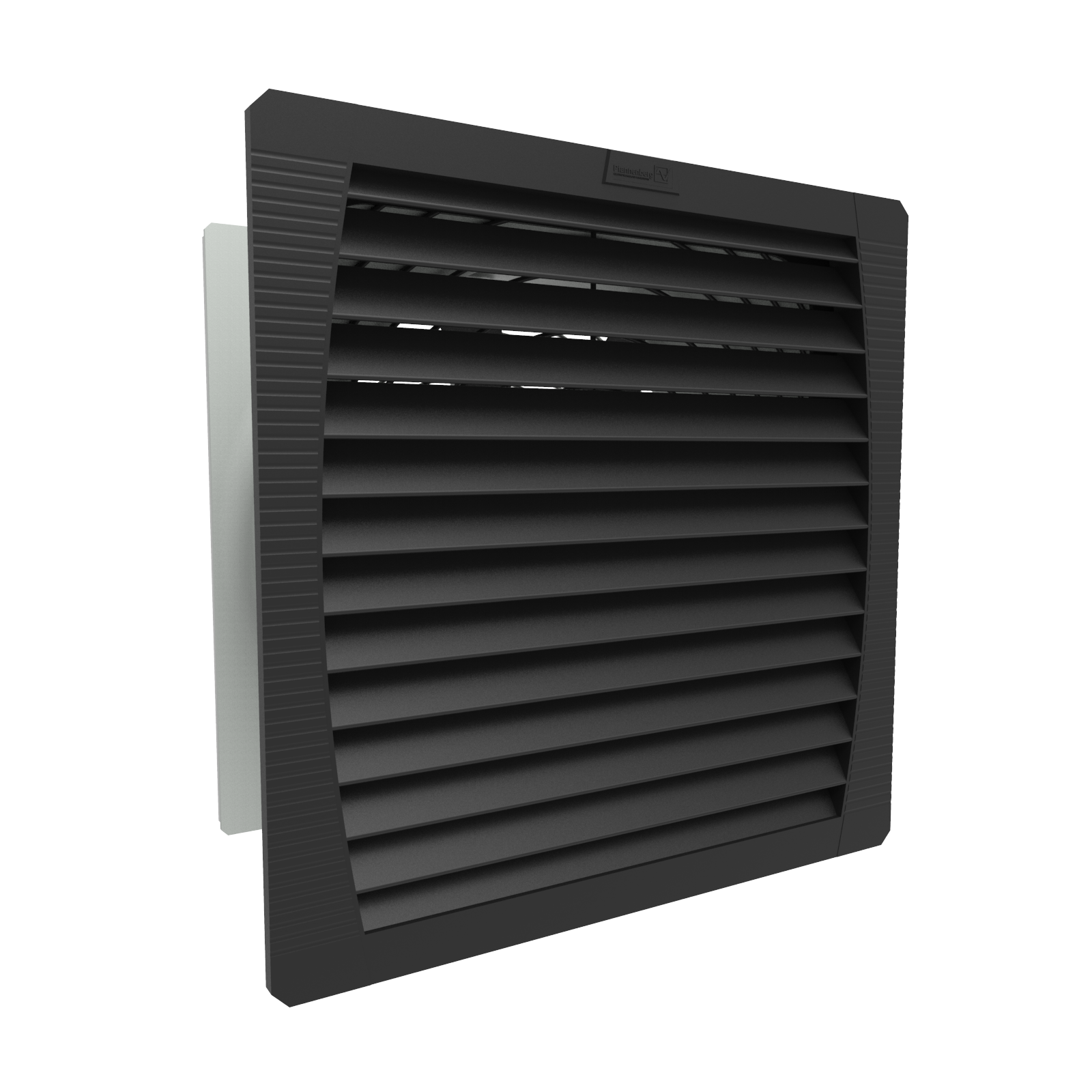

PF65000T12BK

297 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 90W
$359.29In stock
Buy now
PF6500AT12BK

297 Cfm Filter Fan T12 RF

  • Voltage 115V AC
  • Power 90W
$385.43In stock
Buy now
PF6500AT12LG

297 Cfm Filter Fan T12 RF

  • Voltage 115V AC
  • Power 90W
$367.02Backorder
Buy now
PF66000T12BK

462 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 160W
$392.00In stock
Buy now
PF66000T12LG

462 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 160W
$392.00In stock
Buy now
PF6600AT12BK

462 Cfm Filter Fan T12 RF

  • Voltage 115V AC
  • Power 160W
$415.61Backorder
Buy now
PF6600AT12LG

462 Cfm Filter Fan T12 RF

  • Voltage 115V AC
  • Power 160W
$415.61Backorder
Buy now
PF67000T12BK

560 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 195W
$590.62In stock
Buy now
PF6700AT12BK

560 Cfm Filter Fan T12 RF

  • Voltage 115V AC
  • Power 195W
$638.30Backorder
Buy now
PF6700AT12LG

560 Cfm Filter Fan T12 RF

  • Voltage 115V AC
  • Power 195W
$638.30Backorder
Buy now
PFA60000BK

13" Exhaust Filter T12

  • Voltage 115V AC
  • Power 90W
$79.61In stock
Buy now
Dimension tables (inches / mm)

Standard Flow (Pressurize) Design

RAL7035 · Light GrayPart No · RAL9011 · BlackVoltagePowerExhaust Filter · RAL7035 · Light Gray (Part No.)Exhaust Filter · RAL9011 · Black (Part No.)Replacement · FilterPriceOrder
PF65000T12LGPF65000T12BK115V AC90WPFA60000LGPFA60000BKPFF60000$359.29In stockPF65000T12BKBuy now
PF65000T12LG230PF65000T12BK230230V AC80WPFA60000LGPFA60000BKPFF60000$385.43In stockPF65000T12LG230Buy now
PF66000T12LGPF66000T12BK115V AC160WPFA60000LGPFA60000BKPFF60000$392.00In stockPF66000T12LGBuy now
PF66000T12LG230PF66000T12BK230230V AC150WPFA60000LGPFA60000BKPFF60000$415.61In stockPF66000T12LG230Buy now
PF66000T12LG460PF66000T12BK460460V AC155WPFA60000LGPFA60000BKPFF60000$469.61BackorderPF66000T12LG460Buy now
PF67000T12LGPF67000T12BK115V AC195WPFA60000LGPFA60000BKPFF60000$590.62In stockPF67000T12BKBuy now
PF67000T12LG230PF67000T12BK230230V AC200WPFA60000LGPFA60000BKPFF60000$638.30BackorderPF67000T12LG230Buy now
PF67000T12LG460PF67000T12BK460460V AC170WPFA60000LGPFA60000BKPFF60000$701.51BackorderPF67000T12LG460Buy now

Reverse Flow Design

RAL7035 · Light GrayPart No · RAL9011 · BlackVoltagePowerExhaust Filter · RAL7035 · Light Gray (Part No.)Exhaust Filter · RAL9011 · Black (Part No.)Replacement · FilterPriceOrder
PF6500AT12LGPF6500AT12BK115V AC90WPFA60000LGPFA60000BKPFF60000$367.02BackorderPF6500AT12LGBuy now
PF6500AT12LG230PF6500AT12BK230230V AC80WPFA60000LGPFA60000BKPFF60000$377.78BackorderPF6500AT12LG230Buy now
PF6600AT12LGPF6600AT12BK115V AC160WPFA60000LGPFA60000BKPFF60000$415.61BackorderPF6600AT12LGBuy now
PF6600AT12LG230PF6600AT12BK230230V AC150WPFA60000LGPFA60000BKPFF60000$426.62BackorderPF6600AT12LG230Buy now
PF6600AT12LG460PF6600AT12BK460460V AC155WPFA60000LGPFA60000BKPFF60000$480.37BackorderPF6600AT12LG460Buy now
PF6700AT12LGPF6700AT12BK115V AC195WPFA60000LGPFA60000BKPFF60000$638.30BackorderPF6700AT12LGBuy now
PF6700AT12LG230PF6700AT12BK230230V AC200WPFA60000LGPFA60000BKPFF60000$650.80BackorderPF6700AT12LG230Buy now
PF6700AT12LG460PF6700AT12BK460460V AC170WPFA60000LGPFA60000BKPFF60000$715.62BackorderPF6700AT12LG460Buy now

Reverse Flow Design

Airflow dataPF 65000PF 66000PF 67000PFA 60000PriceOrder
Filter materialType 12 FiltermatType 12 FiltermatType 12 FiltermatType 12 FiltermatQuoteQuote
Unimpeded airflow297 CFM462 CFM560 CFM-QuoteQuote
Capacity free-flowIP 54: 160 W/K / 160 W/KIP 54: 213 W/K / 218 W/KIP 54: 282 W/K / 292 W/K-QuoteQuote
IP 55: 168 W/K / 168 W/KIP 55: 257 W/K / 262 W/KIP 55: 308 W/K / 317 W/K-QuoteQuote
Airflow in combination230 CFM295 CFM368 CFM-QuoteQuote
(Filterfan + Exhaust Filter)(PF 65000 + PFA 60000)(PF 66000 + PFA 60000)(PF 67000 + PFA 60000)-QuoteQuote
Capacity in combination127 W/K167 W/K208 W/K-QuoteQuote
(Filterfan + Exhaust Filter)(PF 65000 + PFA 60000)(PF 66000 + PFA 60000)(PF 67000 + PFA 60000)-QuoteQuote
Max. static pressure (Airflow = 0)74 Pa134 Pa187 Pa-QuoteQuote
Filtration efficiency0.910.910.910.91QuoteQuote
Filter material gradeG 4 (DIN EN 779)G 4 (DIN EN 779)G 4 (DIN EN 779)G 4 (DIN EN 779)QuoteQuote
Duty cycle111-QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Reverse Flow Design

Technical dataPF 65000PF 66000PF 67000PFA 60000PriceOrder
Outside dimensions in mm320 x 320 x 150320 x 320 x 150320 x 320 x 150320 x 320 x 39QuoteQuote
(height x width x installation depth)QuoteQuote
Bearing typeball bearingsball bearingsball bearings-QuoteQuote
Fitting positionany, horizontal airflow preferredany, horizontal airflow preferredany-QuoteQuote
Constructionhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOQuoteQuote
Weight3.2 kg3.2 kg3.7 kg0.7 kgQuoteQuote
Safety protectionin accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001-QuoteQuote
ColorRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyQuoteQuote
Connectionscage clampcage clampcage clamp-QuoteQuote
Noise Level (EN ISO 3741)52 dB (A)64 dB (A)69 db (A)QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Reverse Flow Design

Supplementary dataPF 65000PF 66000PF 67000PriceOrder
Operating temperature– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)QuoteQuote
Storage temperature– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)QuoteQuote
Max. relative humidity0.90.90.9QuoteQuote
System of protectionNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedQuoteQuote
Basic Accessoriesparts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostatparts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostatparts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostatQuoteQuote
ApprovalsUL RecognizedUL RecognizedUL RecognizedQuoteQuote
* Tolerance installation cutout291 + 1/-0 thickness of material to 2 mm291 + 1/-0 thickness of material to 2 mm291 + 1/-0 thickness of material to 2 mmQuoteQuote
292 + 1/-0 thickness of material > 2 mm < 3 mm292 + 1/-0 thickness of material > 2 mm < 3 mm292 + 1/-0 thickness of material > 2 mm < 3 mmQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware-free installation
  • ■Plastic made from strong, heat resistant ABS-FR, UL 94 V0 fire approved material
  • ■Fan ships with one filter. Additional filters can be purchased separately
  • ■Fan Motor is CSA Approved

Documents

Specification SheetReversing Filter Fan AirflowPF Manual
