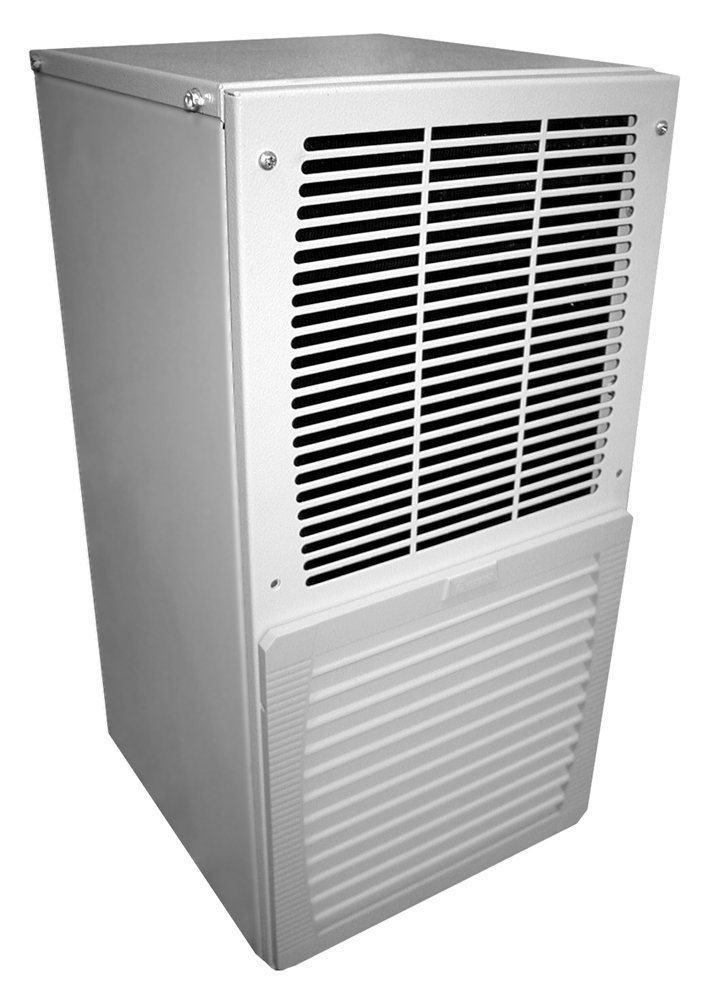

2000-3000 BTU/H Indoor Air Conditioner · DTS Series

Brand: Hammond Manufacturing · 3 part numbers

Type 12, Side Mounting

■Compact design for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
■Maintains enclosure's NEMA 12 rating
■IP 54
■UR, cUR and CE
■R134a refrigerant.

from $2,506.28

1 of 3 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your DTS Series part number

Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

3 of 3 part numbers · 1 priced online

DTS3041A115LG

Air Condit 2500BTU 115V Lg

$2,506.28In stock

Buy now

DTS3041A230LG

Air Condit 2500BTU 230V Lg

QuoteRequest a quote

DTS3041A460LG

Air Condit 2500BTU 460V Lg

QuoteRequest a quote

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Overall Dimensions · H	Overall Dimensions · W	Overall Dimensions · D	Price	Order
DTS3041A115LG	20.15	10.05	10.74	$2,506.28In stock	Buy now
DTS3041A230LG	20.15	10.05	10.74	Quote	Quote
DTS3041A460LG	22.96	10.05	10.74	Quote	Quote

Electrical Data	DTS3041A115LG	DTS3041A230LG	DTS3041A460LG	Price	Order
Rated Voltage	115 V 60 Hz	230 V 50/60 Hz	460 V 50/60 Hz	Quote	Quote
Range of Operation	103-127 V	207-253 V	360-506 V	Quote	Quote
Power Consumption	789 W	789 W	789 W	Quote	Quote
Running Amps	3.12 A	1.52 A	0.76 A	Quote	Quote
Starting Current	12.2 A	10.4 A	10.4 A	Quote	Quote
Line Cord	Terminal Block	Terminal Block	Terminal Block	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Refrigeration Data	Refrigeration Data (2)	Price	Order
Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C	2610 BTU/h (765 Watts)	Quote	Quote
Type of Refrigerant	R134a	Quote	Quote
Refrigerant Charge	400 g	Quote	Quote
Adjustable Control Range	+50F..+104F +10C..+40C Factory setting +95°F/+35C	Quote	Quote
Max. Ambient Air Temp.	+114F (+45°C)	Quote	Quote
Min. Ambient Air Temp.	+46°F (+8°C)	Quote	Quote
Air Capacity (unrestricted)	Internal Circulation 191 CFM	Quote	Quote
	External Circulation 88 CFM	Quote	Quote
Condensation Discharge	Condensate Drain	Quote	Quote
Filter Mat	Filterless	Quote	Quote
Db Noise Level	<64 dB (A)	Quote	Quote
Unit Weight	61.7 lbs (28 kg)	Quote	Quote
Exterior Case	Galvanized sheet metal	Quote	Quote
Finish LG	RAL7035 light gray	Quote	Quote
Finish GY	ANSI 61 Gray	Quote	Quote
NEMA Rating	Enclosures IP 54/NEMA 12	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

■Compact design for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.

Standards

■Maintains enclosure's NEMA 12 rating
■IP 54
■UR, cUR and CE

Features

■R134a refrigerant.
■Thermostat control accessible from inside enclosure.
■Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
■Continuous air circulation from high capacity fans.
■EMI/RFI suppression meets CE.
■Self-diagnostics on startup.
■Fault indication via LED light.
■Door contact for power down when enclosure door is opened.
■Gasket, mounting kit and template for cutout and drilling are included.
■Direct condensate discharge via 1/2" NPT threaded port.
