Air Condit 4000BTU 115V Lg
$2,777.78In stock
Buy now

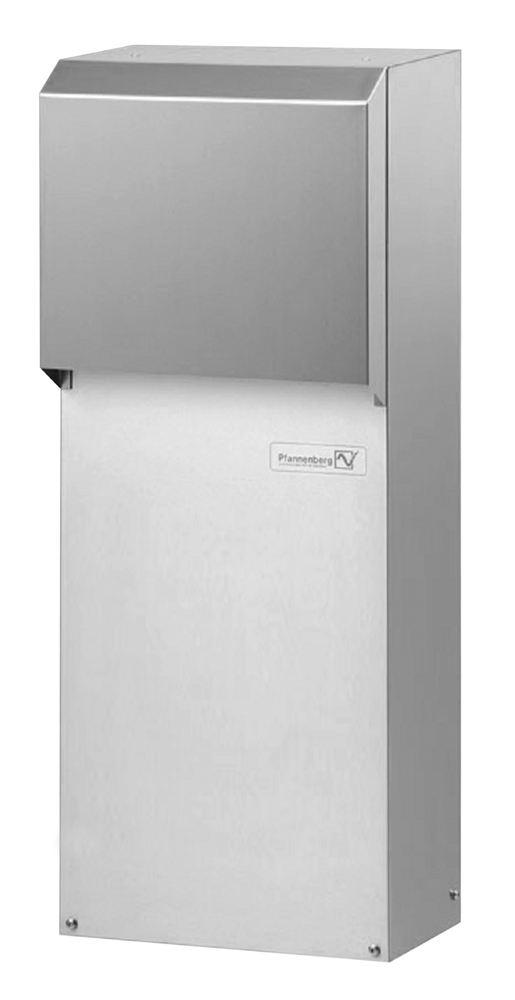

4000-7000 BTU/H Indoor Air Conditioner · DTS Series
Brand: Hammond Manufacturing · 6 part numbers
Type 12, Side Mounting
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
- ■Maintains enclosure's NEMA 12 rating
- ■IP 54
- ■UL, cUL and CE
from $2,777.78
3 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DTS Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 3 priced online
Air Condit 230V Lg
QuoteRequest a quote
Air Condit 460V Lg
$2,913.46In stock
Buy nowAir Condit 115V Lg
QuoteRequest a quote
Air Condit 230V Lg
$3,447.29Backorder
Buy nowAir Condit 460V Lg
QuoteRequest a quote
Dimension tables (inches / mm)
| Part No. | Price | Order |
|---|---|---|
| DTS3141A115LG | $2,777.78In stock | Buy now |
| DTS3141A230LG | Quote | Quote |
| DTS3141A460LG | $2,913.46In stock | Buy now |
| DTS3241A115LG | Quote | Quote |
| DTS3241A230LG | $3,447.29Backorder | Buy now |
| DTS3241A460LG | Quote | Quote |
| Electrical Data | DTS3141A115LG | DTS3141A230LG | DTS3141A460LG | DTS3241A115LG | DTS3241A230LG | DTS3241A460LG | Price | Order |
|---|---|---|---|---|---|---|---|---|
| Rated Voltage | 115 V 60Hz | 230 V 50/60 Hz | 460 V 50/60 Hz | 115 V 60 Hz | 230 V 50/60 Hz | 460 V 50/60 Hz | Quote | Quote |
| Range of Operation | 103-127 V | 198-253 V | 360-506 V | 103-127 V | 198-253 V | 360-506 V | Quote | Quote |
| Power Consumption | 845 W | 795 W | 1200 W | 1680 W | 1425 W | 1400 W | Quote | Quote |
| Running Amps | 7.51 A | 4.49 A | 2.25 A | 11.6 A | 5.55 A | 2.6 A | Quote | Quote |
| Starting Current | 15 A | 10 A | 15 A | 53 A | 21.8 A | 16 A | Quote | Quote |
| Line Cord | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
| Refrigeration Data | DTS3141A115LG · DTS3141A230LG · DTS3141A460LG | DTS3241A115LG · DTS3241A230LG · DTS3241A460LG | Price | Order |
|---|---|---|---|---|
| Cooling Capacity BTU/h (Watts) +95/+95F +35/+35 C | 4100 BTU/h (1200 Watts) | 6825 BTU/h (2000 Watts) | Quote | Quote |
| Type of Refrigerant | R134a | R134a | Quote | Quote |
| Regrigerant Charge | 400 g | 700 g | Quote | Quote |
| Adjustable Control Range | +77..+113°F +25..+45°C Factory setting +95°F/+35°C | +77..+113°F +25..+45°C Factory setting +95°F/+35°C | Quote | Quote |
| Max. Ambient Air Temp. | +131°F (+55°C) | +131°F (+55°C) | Quote | Quote |
| Min. Ambient Air Temp. | +59°F (+15°C) | +59°F (+15°C) | Quote | Quote |
| Air Capacity (unrestricted) | Internal Circulation 177 CFM | Internal Circulation 450 CFM | Quote | Quote |
| External Circulation 100 CFM | External Circulation 450 CFM | Quote | Quote | |
| Condensation Discharge | Condensate Evaporator | Condensate Evaporator | Quote | Quote |
| Filter Mat | 150 g/m² | 150 g/m² | Quote | Quote |
| Db Noise Level | <70 dB(A) | <73 dB(A) | Quote | Quote |
| Unit Weight | 89 lbs (40 kg) | 119 lbs (54 kg) | Quote | Quote |
| Exterior Case | Galvanized Steel Powdercoat finish | Galvanized Steel Powdercoat finish | Quote | Quote |
| Finish LG | RAL7035 Light Gray | RAL7035 Light Gray | Quote | Quote |
| Finish GY | ANSI 61 Gray | ANSI 61 Gray | Quote | Quote |
| NEMA Rating | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
Standards
- ■Maintains enclosure's NEMA 12 rating
- ■IP 54
- ■UL, cUL and CE
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
- ■Built in condensate evaporator.
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Provision for door contact allowing power down when enclosure door is opened.
- ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
- ■Condensate drain hose and clamp provided.
Documents
