AC Unit 5-7,000BTU/H 115V Lg
$3,311.53In stock
Buy now

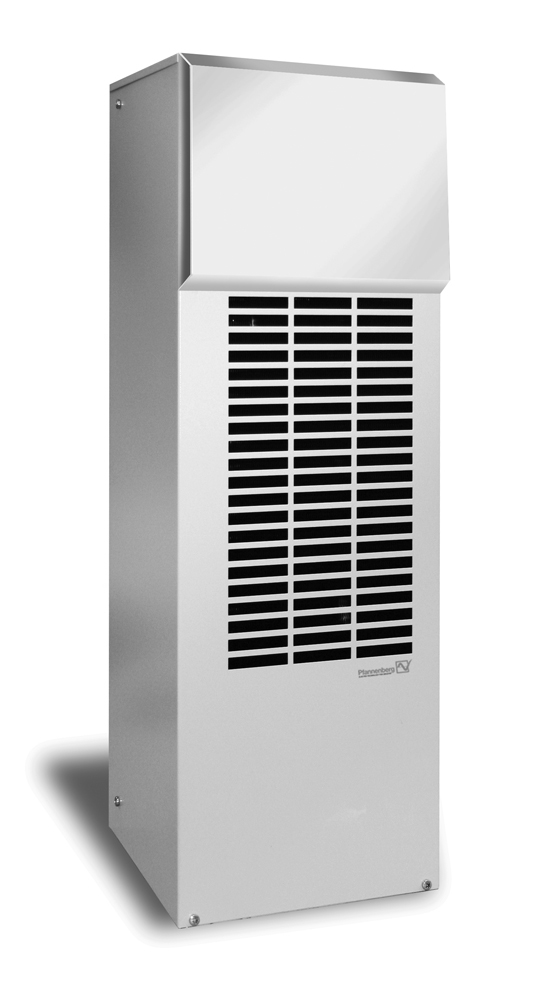

5000-12000 BTU/H Indoor Air Conditioner · DTS Series
Brand: Hammond Manufacturing · 6 part numbers
Type 12, Side Mounting
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
- ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air
- ■Maintains enclosure's NEMA 12 rating
- ■IP 54
from $3,311.53
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DTS Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part Number | A | B | C | Price | Order |
|---|---|---|---|---|---|
| DTS3145A115LG | 36.65 | 11.89 | 14.40 | $3,311.53In stock | Buy now |
| DTS3145A230LG | 36.65 | 11.89 | 14.40 | $3,356.79Backorder | Buy now |
| DTS3145A460LG | 36.65 | 11.89 | 14.40 | $3,447.29In stock | Buy now |
| DTS3245A115LG | 53.00 | 16.00 | 14.40 | $4,279.72Backorder | Buy now |
| DTS3245A230LG | 54.00 | 16.00 | 14.40 | $4,433.52Backorder | Buy now |
| DTS3245A460LG | 54.00 | 16.00 | 14.40 | $4,524.01In stock | Buy now |
| Electrical Data | DTS3145A115LG | DTS3145A230LG | DTS3145A460LG | DTS3245A115LG | DTS3245A230LG | DTS3245A460LG | Price | Order |
|---|---|---|---|---|---|---|---|---|
| Rated Voltage | 115 V 60 Hz | 230 V 50/60 Hz | 460 V 50/60 Hz | 115 V 60 Hz | 230 V 50/60 Hz | 460 V 50/60 Hz | Quote | Quote |
| Range of Operation | 103-127 V | 206-254 V | 360-506 V | 103-127 V | 198-253 V | 360-506 V | Quote | Quote |
| Power Consumption | 1224 W | 1283 W | 1496 W | 1850 W | 1608 W | 1700 W | Quote | Quote |
| Running Amps | 10.64 A | 5.58 A | 1.88 A | 16.9 A | 7.3 A | 3.14 A | Quote | Quote |
| Starting Current | 48 A | 26 A | 16 A | 57 A | 30 A | 8 A | Quote | Quote |
| Line Cord | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
| Refrigeration Data | DTS3145A115LG | DTS3145A230LG | DTS3145A460LG | DTS3245A115LG | DTS3245A230LG | DTS3245A460LG | Price | Order |
|---|---|---|---|---|---|---|---|---|
| Cooling Capacity | 6142 BTU (1800 W) | 6995 BTU (2050 W) | 6995 BTU (2050 W) | 12472 BTU (3657 W) | 12007 BTU (3515 W) | 12000 BTU (3500 W) | Quote | Quote |
| Type of Refrigerant | 134a | 134a | 134a | 134a | 134a | 134a | Quote | Quote |
| Refrigerant Charge | 650 g | 900 g | 825 g | 1200 g | 1200 g | 1200 g | Quote | Quote |
| Adjustable Control Range | + 77…+ 131°F/ + 25… + 45°C Factory setting +95°F/+35°C | + 77…+ 131°F/ + 25… + 45°C Factory setting +95°F/+35°C | + 77…+ 131°F/ + 25… + 45°C Factory setting +95°F/+35°C | + 77…+ 131°F/ + 25… + 45°C Factory setting +95°F/+35°C | + 77…+ 131°F/ + 25… + 45°C Factory setting +95°F/+35°C | + 77…+ 131°F/ + 25… + 45°C Factory setting +95°F/+35°C | Quote | Quote |
| Max. Ambient Air Temp | +131°F (+55°C) | +131°F (+55°C) | +131°F (+55°C) | +131°F (+55°C) | +131°F (+55°C) | +131°F (+55°C) | Quote | Quote |
| Min. Ambient Air Temp | +59°F (+15°C) | +59°F (+15°C) | +59°F (+15°C) | +59°F (+15°C) | +59°F (+15°C) | +59°F (+15°C) | Quote | Quote |
| Air Capacity (unrestricted) | Internal Circulation 341CFM | Internal Circulation 341CFM | Internal Circulation 341CFM | Internal Circulation 765CFM | Internal Circulation 706CFM | Internal Circulation 706CFM | Quote | Quote |
| Internal Circulation 706CFM | Internal Circulation 706CFM | Internal Circulation 706CFM | External Circulation 765CFM | Internal Circulation 706CFM | Internal Circulation 706CFM | Quote | Quote | |
| Condonsate Discharge | Condensate Evaporator | Condensate Evaporator | Condensate Evaporator | Condensate Evaporator | Condensate Evaporator | Condensate Evaporator | Quote | Quote |
| Filter Mat | Filterless | Filterless | Filterless | Filterless | Filterless | Filterless | Quote | Quote |
| Db Noise Level | <70 dB(A) | <70 dB(A) | <70 dB(A) | <70 dB(A) | <70 dB(A) | <70 dB(A) | Quote | Quote |
| Unit Weight | 108 lbs/49 kg | 108 lbs/49 kg | 108 lbs/49 kg | 150 lbs/ 68 kg | 150 lbs/ 68 kg | 150 lbs/ 68 kg | Quote | Quote |
| Exterior Case | Galvanized Sheet Steel | Galvanized Sheet Steel | Galvanized Sheet Steel | Galvanized Sheet Steel | Galvanized Sheet Steel | Galvanized Sheet Steel | Quote | Quote |
| Finish LG | RAL7035 Light Gray | RAL7035 Light Gray | RAL7035 Light Gray | RAL7035 Light Gray | RAL7035 Light Gray | RAL7035 Light Gray | Quote | Quote |
| Finish GY | ANSI 61 Gray | ANSI 61 Gray | ANSI 61 Gray | ANSI 61 Gray | ANSI 61 Gray | ANSI 61 Gray | Quote | Quote |
| Nema Rating | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
- ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air
Standards
- ■Maintains enclosure's NEMA 12 rating
- ■IP 54
- ■UL, cUL and CE
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
- ■Built in condensate evaporator.
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Provision for door contact allowing power down when enclosure door is opened.
- ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
- ■Condensate drain hose and clamp provided.
