AC Unit 12-20000BTU230V-N12 Lg
$5,545.06Backorder
Buy now

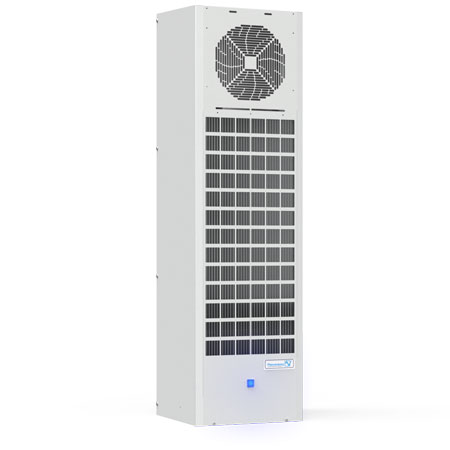

20,000-25,000 BTU/H Indoor Air Conditioner · DTS Series
Brand: Hammond Manufacturing · 4 part numbers
Type 12, Side Mounting
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
- ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air
- ■Maintains enclosure's NEMA 12 rating
- ■IP 54
from $5,545.06
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DTS Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part Number | H | W | D | Price | Order |
|---|---|---|---|---|---|
| DTS3441CA230LG | 57.20 | 15.80 | 16.10 | $5,545.06Backorder | Buy now |
| DTS3441CA460LG | 57.20 | 15.80 | 16.10 | $5,740.15Backorder | Buy now |
| DTS3641CA230LG | 57.20 | 15.80 | 16.10 | $6,954.07Backorder | Buy now |
| DTS3641CA460LG | 57.20 | 15.80 | 16.10 | $7,209.87In stock | Buy now |
| Electrical Data | DTS3441CA230LG | DTS3441CA460LG | DTS3641CA230LG | DTS3641CA460LG | Price | Order |
|---|---|---|---|---|---|---|
| Rated Voltage | 230V 50/60 Hz | 460V 50/60 Hz | 230V 50/60 Hz | 460V 50/60 Hz | Quote | Quote |
| Range of Operation | 207-253V | 414-506V | 207-253V | 414-506V | Quote | Quote |
| Power Consumption | 2674W | 2316W | 3205W | 2843W | Quote | Quote |
| Running Amps | 11.82A | 4.06A | 16.06A | 5.18A | Quote | Quote |
| Starting Current | 23A | 7A | 32A | 10A | Quote | Quote |
| Line Cord | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
| Refrigeration Data | DTS3441CA230LG | DTS3441CA460LG | DTS3641CA230LG | DTS3641CA460LG | Price | Order |
|---|---|---|---|---|---|---|
| Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C | 20840 BTU/h (6103 Watts) | 20434 BTU/h (5952 Watts) | 25181 BTU/h (7374 Watts) | 25526 BTU/h (7475 Watts) | Quote | Quote |
| Type of Refrigerant | R-134a | R-134a | R-134a | R-134a | Quote | Quote |
| Adjustable Control Range | +77…+113 / + 25…+ 45C Factory setting +95/+35C | +77…+113 / + 25…+ 45C Factory setting +95/+35C | +77…+113 / + 25…+ 45C Factory setting +95/+35C | +77…+113 / + 25…+ 45C Factory setting +95/+35C | Quote | Quote |
| Max. Ambient Air Temp | +131 F (+55 C) | +131 F (+55 C) | +131 F (+55 C) | +131 F (+55 C) | Quote | Quote |
| Min. Ambient Air Temp | +46 F ( +8 C) | +46 F ( +8 C) | +46 F ( +8 C) | +46 F ( +8 C) | Quote | Quote |
| Air Capacity (unrestricted) | Internal Circulation 1244 CFM | Internal Circulation 1418 CFM | Internal Circulation 1546 CFM | Internal Circulation 1653 CFM | Quote | Quote |
| External Circulation 565 CFM | External Circulation 534 CFM | External Circulation 659 CFM | External Circulation 627 CFM | Quote | Quote | |
| Condonsate Discharge | Condensate Evaporator | Condensate Evaporator | Condensate Evaporator | Condensate Evaporator | Quote | Quote |
| Filter Mat | Filterless | Filterless | Filterless | Filterless | Quote | Quote |
| Db Noise Level | 81 dB(A) | 81 dB(A) | 81 dB(A) | 81 dB(A) | Quote | Quote |
| Unit Weight | 201.5 lbs/91.4 kg | 201.5 lbs/91.4 kg | 226.2 lbs/102.6 kg | 226.2 lbs/102.6 kg | Quote | Quote |
| Exterior Case | Galvanized Sheet Steel | Galvanized Sheet Steel | Galvanized Sheet Steel | Galvanized Sheet Steel | Quote | Quote |
| Finish LG | RAL7035 Light Gray | RAL7035 Light Gray | RAL7035 Light Gray | RAL7035 Light Gray | Quote | Quote |
| Finish GY | ANSI 61 Gray | ANSI 61 Gray | ANSI 61 Gray | ANSI 61 Gray | Quote | Quote |
| Nema Rating | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Enclosures IP 54 / Nema 12 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Designed for side mounting on any enclosure surface where high capacity system cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
- ■Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air
Standards
- ■Maintains enclosure's NEMA 12 rating
- ■IP 54
- ■UL, cUL and CE
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
- ■Built in condensate evaporator.
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Provision for door contact allowing power down when enclosure door is opened.
- ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
- ■Condensate drain hose and clamp provided.
