Air Condit 5300BTU 115V Lg
$3,649.34Backorder
Buy now

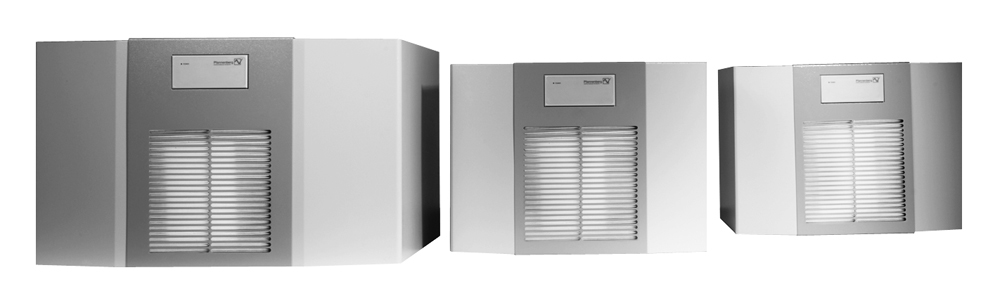

4000-7000 BTU/H Indoor Air Conditioner · DTT Series
Brand: Hammond Manufacturing · 5 part numbers
Type 12, Top Mounting
- ■Designed for top mounting where space limitations do not allow side mounting on the enclosure surface.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Excellent security level due to patented condensate management system, which prevents condensate from penetrating the enclosure.
- ■High reliability and long maintenance intervals
- ■Maintains NEMA 12 rating
- ■IP 54
from $3,649.34
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DTT Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 5 priced online
Air Condit 5300BTU 230V Lg
$3,649.34Backorder
Buy nowAir Condit 5300BTU 460V Lg
$3,981.10In stock
Buy nowAir Condit 7100BTU 230V Lg
$4,862.64Backorder
Buy nowAir Condit 7100BTU 460V Lg
$4,983.84Backorder
Buy nowDTT6401B115LG
Air Condit 7100BTU 115V Lg
QuoteRequest a quote
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Cut Out Dimensions · W | Cut Out Dimensions · D | Price | Order |
|---|---|---|---|---|---|---|---|
| DTT6301B115LG | 17.13 | 23.43 | 19.49 | 19.29 | 15.50 | $3,649.34Backorder | Buy now |
| DTT6301B230LG | 17.13 | 23.43 | 19.49 | 19.29 | 15.50 | $3,649.34Backorder | Buy now |
| DTT6301B460LG | 17.13 | 23.43 | 19.49 | 19.29 | 15.50 | $3,981.10In stock | Buy now |
| DTT6401B230LG | 17.13 | 23.43 | 19.49 | 19.29 | 15.50 | $4,862.64Backorder | Buy now |
| DTT6401B460LG | 17.13 | 23.43 | 19.49 | 19.29 | 15.50 | $4,983.84Backorder | Buy now |
| col1 | DTT6301B115LG | DTT6301B230LG | DTT6301B460LG | DTT6401B230LG | DTT6401B460LG | Price | Order |
|---|---|---|---|---|---|---|---|
| Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C | 5520 BTU/h (1620Watts) | 5520 BTU/h (1620Watts) | 5520 BTU/h (1620 Watts) | 7160 BTU/h (2100 Watts) | 7160 BTU/h (2100 Watts) | Quote | Quote |
| Adjustable Control Range Factory setting +95F / +35C | +77… +113F +25…+45C | +77… +113F +25…+45C | +77… +113F +25…+45C | +77… +113F +25…+45C | +77… +113F +25…+45C | Quote | Quote |
| Rated Voltage +/- 10% | 115 | 230 | 400/460 | 230 | 400/460 | Quote | Quote |
| Frequency Hz | 60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | Quote | Quote |
| Power Consumption (W) | 1027 | 980/1140 | 962/1150 | 1049/1275 | 1300/1598 | Quote | Quote |
| Running Amps (A) | 15 | 5.73 / 7 | 3.75 / 3.6 | 6.2 / 7 | 3.35 / 3.3 | Quote | Quote |
| Starting Current (A) | 32 | 19.7 / 23.2 | 9.8 / 11.6 | 16.8 / 20 | 10.1 / 12 | Quote | Quote |
| Electrical Connection | Terminal Block with Plug | Terminal Block with Plug | Terminal Block with Plug | Terminal Block with Plug | Terminal Block with Plug | Quote | Quote |
| Min/Max Ambient Temp | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | Quote | Quote |
| Finish (LG) | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Designed for top mounting where space limitations do not allow side mounting on the enclosure surface.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Excellent security level due to patented condensate management system, which prevents condensate from penetrating the enclosure.
- ■High reliability and long maintenance intervals
Standards
- ■Maintains NEMA 12 rating
- ■IP 54
- ■UR, cUR and CE
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
- ■Built in condensate evaporator.
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Provision for door contact allowing power down when enclosure door is opened.
- ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
- ■Condensate drain hose and clamp provided.
- ■Mounting via tool-less sash fasteners
