Air Condit 3500BTU 115V Lg
$2,985.83Backorder
Buy now

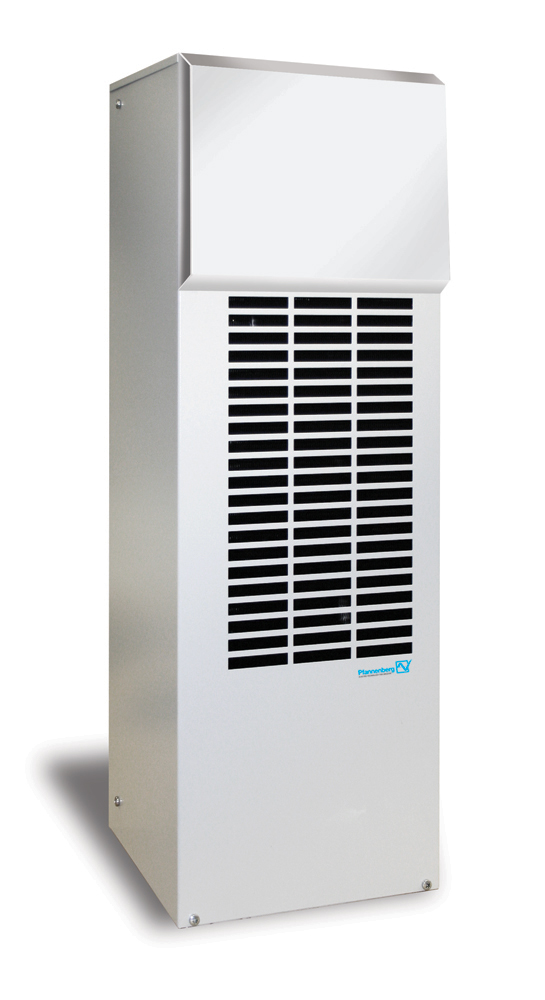

3000-5000 BTU/H Indoor Slimline Air Conditioner · DTS SL Series
Brand: Hammond Manufacturing · 3 part numbers
Type 12, Side Mounting
- ■Narrow design for side mounting on any enclosure surface where hot spot or low capacity cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Maintains NEMA 12 rating
- ■IP 54
- ■UL, cUL and CE
- ■R134a refrigerant.
from $2,985.83
2 of 3 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your DTS SL Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
5 of 5 part numbers · 2 priced online
Air Condit 3500BTU 230V Lg
QuoteRequest a quote
Air Condit 3500BTU 460V Lg
$3,130.61Backorder
Buy nowDTS3161SLA4N3LG
Air Condit 3500BTU 460V Lg
QuoteRequest a quote
DTS3181SLA4N4SS
Air Condit 3500BTU 460V Lg
QuoteRequest a quote
Dimension tables (inches / mm)
| Part Number | Price | Order |
|---|---|---|
| DTS3141SLA115LG | $2,985.83Backorder | Buy now |
| DTS3141SLA230LG | Quote | Quote |
| DTS3141SLA460LG | $3,130.61Backorder | Buy now |
| Electrical Data | DTS3141SLA115LG | DTS3141SLA230LG | DTS3141SLA460LG | Price | Order |
|---|---|---|---|---|---|
| Rated Voltage | 115 V 60 Hz | 230 V 50/60 Hz | 460 V 50/60 Hz | Quote | Quote |
| Range of Operation | 103 -127 V | 198-253 V | 360-506 V | Quote | Quote |
| Power Consumption | 917 W | 890 W | 751 W | Quote | Quote |
| Running Amps | 7.51 A | 4.49 A | 2.25 A | Quote | Quote |
| Starting Current | 28 A | 14.8 A | 14.8 A | Quote | Quote |
| Line Cord | Terminal Block | Terminal Block | Terminal Block | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
| Refrigeration Data | 115V | 230V | 460V | Price | Order |
|---|---|---|---|---|---|
| Cooling Capacity BTU/h ( Watts) +95/+95F +35/+35C | 5097 BTU/h (1493 Watts) | 5648 BTU/h (1654 Watts) | 5301 BTU/h (1552 Watts) | Quote | Quote |
| Type of Refrigerant | R134a | R134a | R134a | Quote | Quote |
| Refrigerant Charge | 700g | 700g | 900g | Quote | Quote |
| Adjustable Control Range | + 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C | + 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C | + 77…+ 113°F / + 25…+ 45°C Factory setting +95°F/+35°C | Quote | Quote |
| Max Ambient Air Temp | +131°F (+55°C) | +131°F (+55°C) | +131°F (+55°C) | Quote | Quote |
| Min Ambient Air Temp | +59°F (+15°C) | +59°F (+15°C) | +59°F (+15°C) | Quote | Quote |
| Air Capacity (unrestricted) | Internal Circulation 350 CFM | Internal Circulation 350 CFM | Internal Circulation 350 CFM | Quote | Quote |
| External Circulation 350 CFM | External Circulation 350 CFM | External Circulation 350 CFM | Quote | Quote | |
| Condensate Discharge | Condensate Evaporator | Condensate Evaporator | Condensate Evaporator | Quote | Quote |
| Filter Mat | Filterless | Filterless | Filterless | Quote | Quote |
| Db Noise Level | <70 dB (A) | <70 dB (A) | <70 dB (A) | Quote | Quote |
| Unit Weight | 108 lbs (49 kg) | 108 lbs (49 kg) | 108 lbs (49 kg) | Quote | Quote |
| Exterior Case | Galvanized Sheet Steel | Galvanized Sheet Steel | Galvanized Sheet Steel | Quote | Quote |
| Finish LG | RAL7035 light gray finish | RAL7035 light gray finish | RAL7035 light gray finish | Quote | Quote |
| Finish GY | ANSI 61 Gray | ANSI 61 Gray | ANSI 61 Gray | Quote | Quote |
| Nema Rating | Enclosures IP 54/Nema 12 | Enclosures IP 54/Nema 12 | Enclosures IP 54/Nema 12 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Narrow design for side mounting on any enclosure surface where hot spot or low capacity cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
Standards
- ■Maintains NEMA 12 rating
- ■IP 54
- ■UL, cUL and CE
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
- ■Built in condensor/evaporator
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Door contact for power down when enclosure door is opened.
- ■Gasket, mounting kit and template for cutout and drilling are included.
- ■Condensate drain hose and clamp.
Documents
