Air Condit 1700BTU 115V Lg
$3,042.70In stock
Buy now

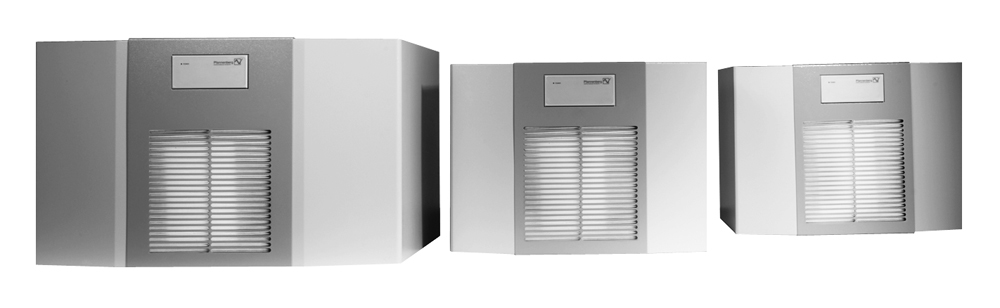

1200-4000 BTU/H Indoor Air Conditioner · DTT Series
Brand: Hammond Manufacturing · 5 part numbers
Type 12, Top Mounting
- ■Designed for top mounting where space limitations do not allow side mounting on the enclosure surface.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Excellent security level due to patented condensate management system, which prevents condensate from penetrating the enclosure.
- ■High reliability and long maintenance intervals
- ■Maintains NEMA 12 rating
- ■IP 54
from $3,042.70
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DTT Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Cut Out Dimensions · W | Cut Out Dimensions · D | Price | Order |
|---|---|---|---|---|---|---|---|
| DTT6101B115LG | 17.13 | 23.41 | 15.55 | 19.37 | 10.24 | $3,042.70In stock | Buy now |
| DTT6101B230LG | 17.13 | 23.41 | 15.55 | 19.37 | 10.24 | $3,042.70Backorder | Buy now |
| DTT6201B115LG | 17.13 | 23.41 | 15.55 | 19.37 | 10.24 | $3,421.92Backorder | Buy now |
| DTT6201B230LG | 17.13 | 23.41 | 15.55 | 19.37 | 10.24 | $3,421.92Backorder | Buy now |
| DTT6201B460LG | 17.13 | 23.41 | 15.55 | 19.37 | 10.24 | $3,753.63Backorder | Buy now |
| col1 | DTT6101B115LG | DTT6101B230LG | DTT6201B115LG | DTT6201B230LG | DTT6201B460LG | Price | Order |
|---|---|---|---|---|---|---|---|
| Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C | 2250 BTU/h (665 Watts) | 2300 BTU/h (680 Watts) | 3500 BTU/h (1025 Watts) | 3680 BTU/h (1080 Watts) | 3500 BTU/h (1025 Watts) | Quote | Quote |
| Adjustable Control Range Factory setting +95F / +35C | +77… +113F +25…+45C | +77… +113F +25…+45C | +77… +113F +25…+45C | +77… +113F +25…+45C | +77… +113F +25…+45C | Quote | Quote |
| Rated Voltage +/- 10% | 115 | 230 | 115 | 230 | 400/460 | Quote | Quote |
| Frequency Hz | 60 Hz | 50/60 Hz | 60 Hz | 50/60 Hz | 50/60 Hz | Quote | Quote |
| Power Consumption (W) | 452 | 450 / 540 | 655 | 440 / 570 | 706/845 | Quote | Quote |
| Running Amps (A) | 3.93 | 2.1 / 2.3 | 5.7 | 2.4 / 2.7 | 2.82 / 2.5 | Quote | Quote |
| Starting Current (A) | 47.6 | 19.7 / 23 | 23.8 | 9.1 / 11.5 | 8.5 / 9.3 | Quote | Quote |
| Electrical Connection | Terminal Block with Plug | Terminal Block with Plug | Terminal Block with Plug | Terminal Block with Plug | Terminal Block with Plug | Quote | Quote |
| Min/Max Ambient Temp | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | +59...+131 F / +15...+55 C | Quote | Quote |
| Finish (LG) | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Galvanized Sheet Steel Color RAL 7035 Powder Finish | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Designed for top mounting where space limitations do not allow side mounting on the enclosure surface.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Excellent security level due to patented condensate management system, which prevents condensate from penetrating the enclosure.
- ■High reliability and long maintenance intervals
Standards
- ■Maintains NEMA 12 rating
- ■IP 54
- ■UR, cUR and CE
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
- ■Built in condensate evaporator.
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Provision for door contact allowing power down when enclosure door is opened.
- ■Gasket, mounting kit and template for enclosure cutout and drilling are included.
- ■Condensate drain hose and clamp provided.
- ■Mounting via tool-less sash fasteners
