Filterfan Rainhoods - 4/4X RHN4 Series

Filterfan Rainhoods - 4/4X · RHN4 Series

Brand: Hammond Manufacturing · 28 part numbers

  • ■Type 4/4X (IPx6) Rainhoods (when used with PF Series Filterfans)
  • ■Ideal for locations with high exposure to spraying water
  • ■Painted galvanized steel version for Type 4

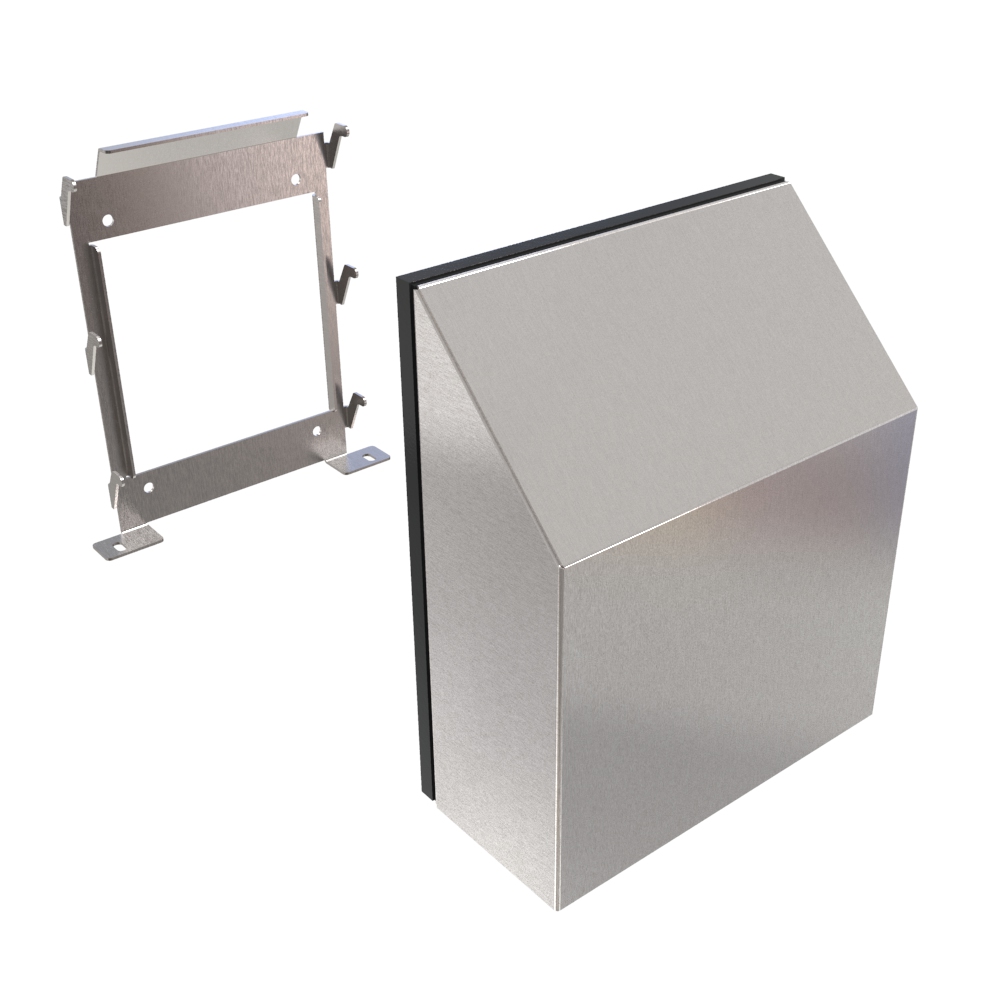

  • ■304 and 316 stainless steel versions for Type 4X
  • ■Specially gasketed, 316 stainless steel, sanitary version for FDA compatible Type 4X
  • ■Sold individually

from $13.52

28 of 28 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your RHN4 Series part number

Filter 28 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

28 of 28 part numbers · 28 priced online

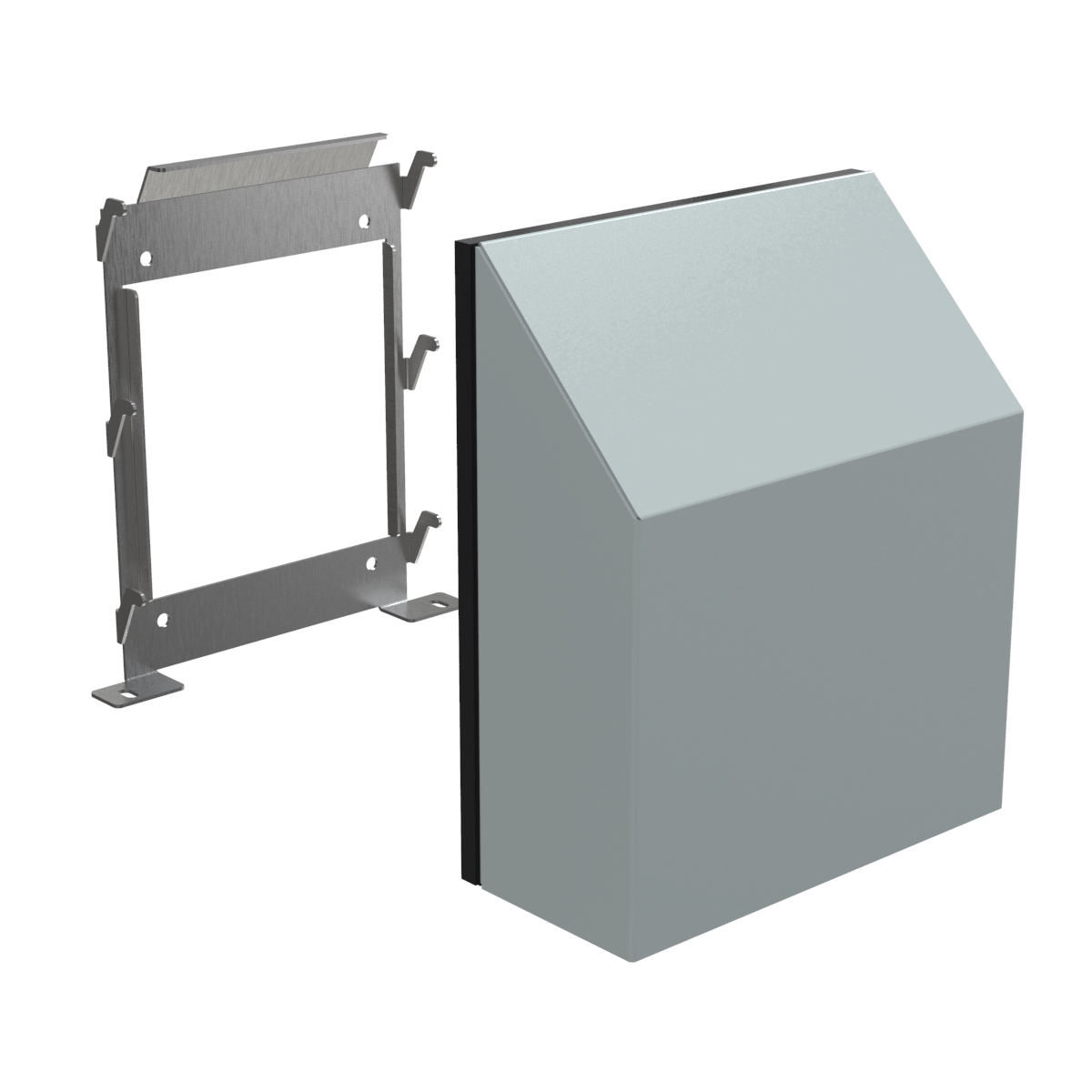

RH20000N4GY

Rainhood N4 GY

  • Use with PF22000/PFA20000
  • Rating/Finish Type 4 / ANSI 61 Gray
$104.86Backorder
Buy now
RH20000N4LG

Rainhood N4 Lg

  • Use with PF22000/PFA20000
  • Rating/Finish Type 4 / RAL7035
$104.86Backorder
Buy now

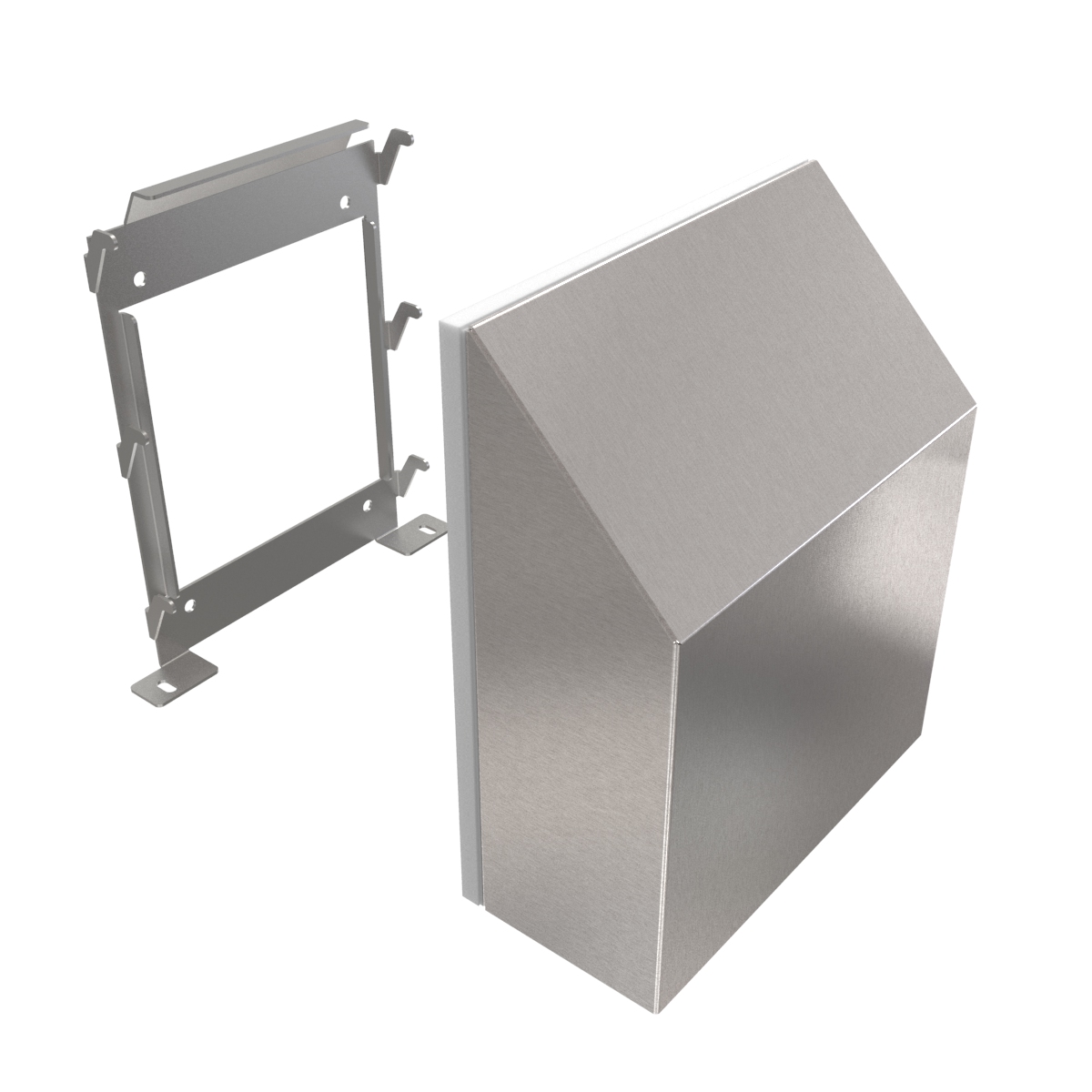

RH20000N4S16

Rainhood N4 S16

  • Use with PF22000/PFA20000
  • Rating/Finish Type 4X / 316 Stainless Steel
$184.18Backorder
Buy now

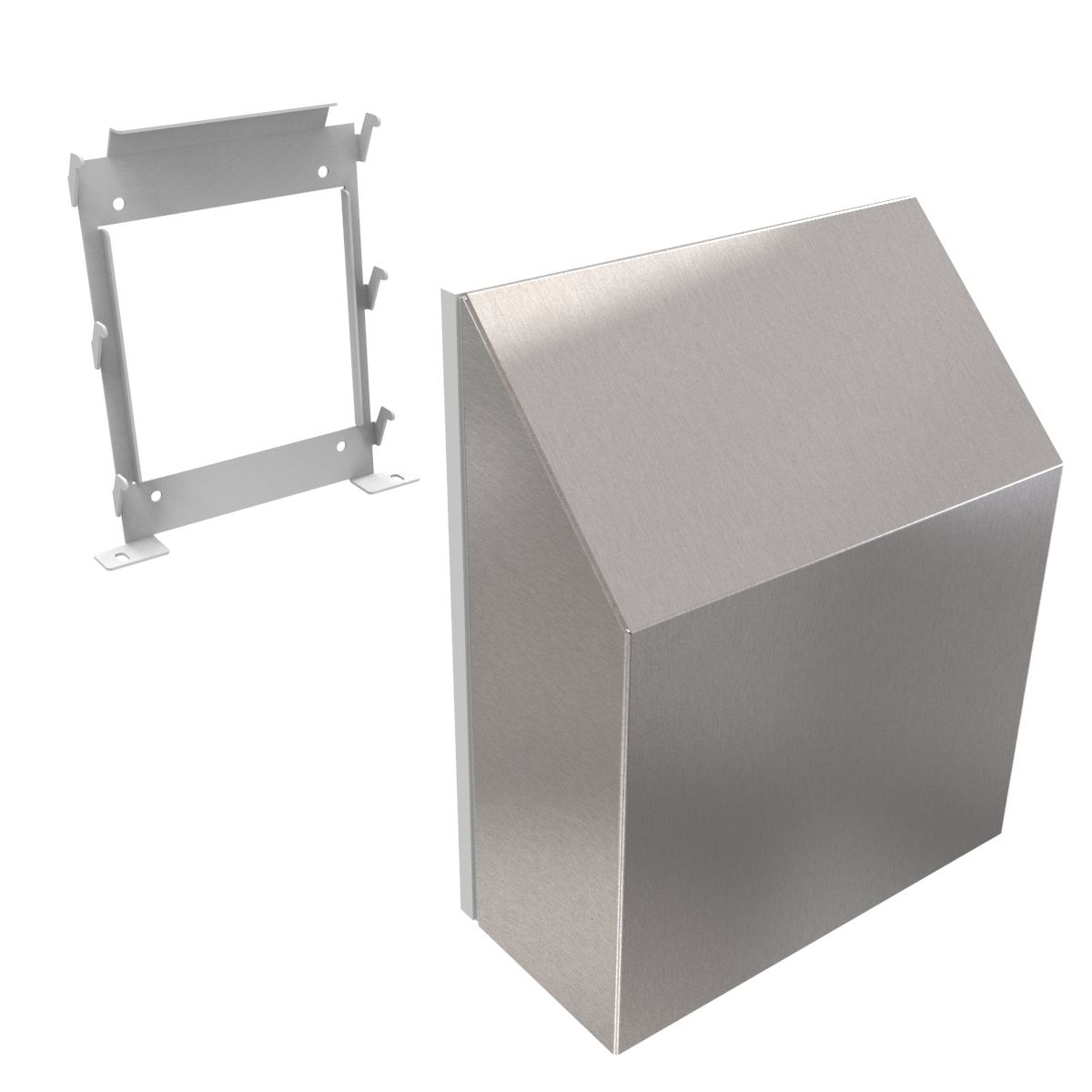

RH20000N4S16FDA

Rainhood N4 S16 Fda

  • Use with PF22000/PFA20000
  • Rating/Finish Sanitary Type 4X / 316 Stainless Steel
$191.28In stock
Buy now
RH20000N4SS

Rainhood N4 SS

  • Use with PF22000/PFA20000
  • Rating/Finish Type 4X / 304 Stainless Steel
$170.05Backorder
Buy now

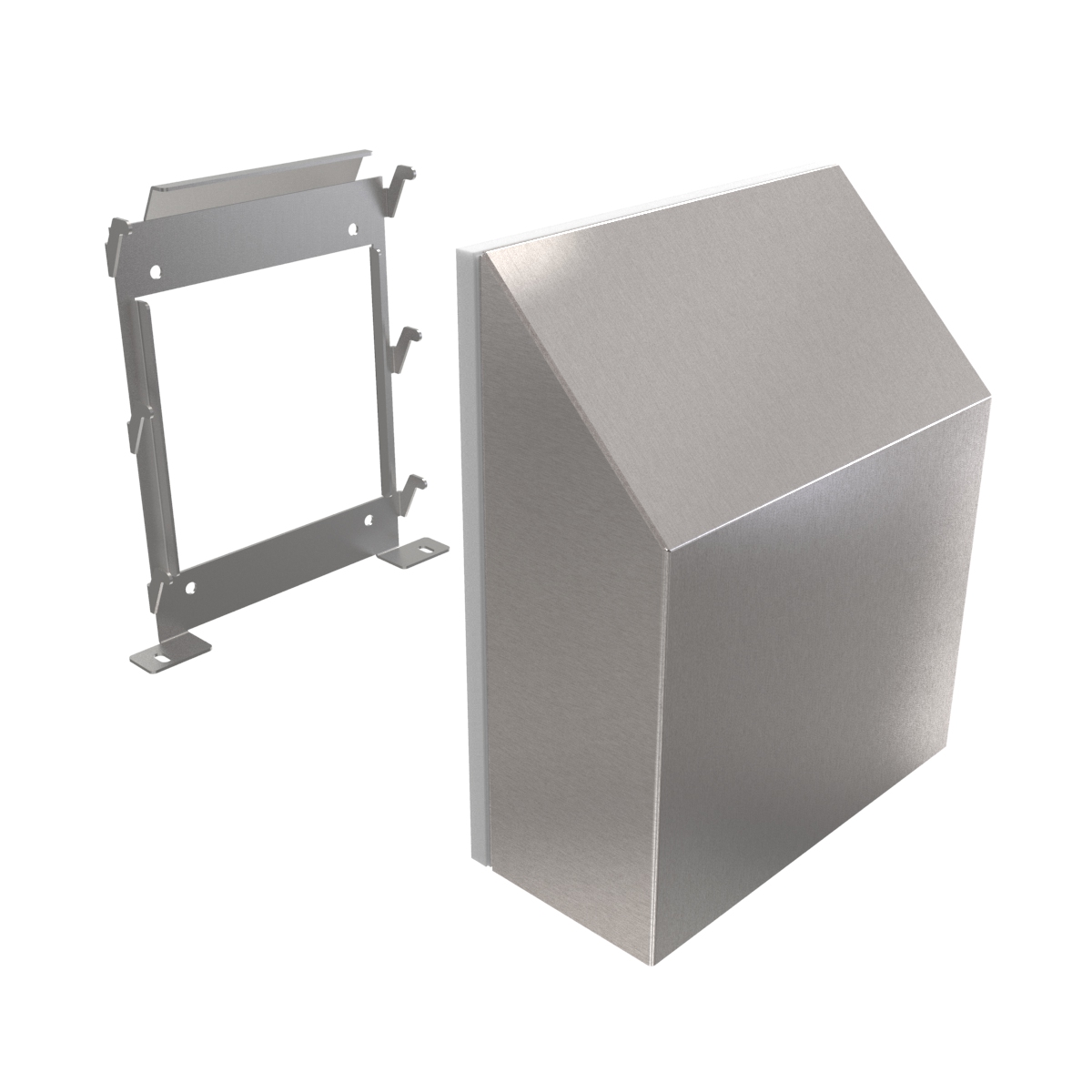

RH20000N4SSFDA

Rainhood N4 SS Fda

  • Use with PF22000/PFA20000
  • Rating/Finish Sanitary Type 4X / 304 Stainless Steel
$177.09In stock
Buy now

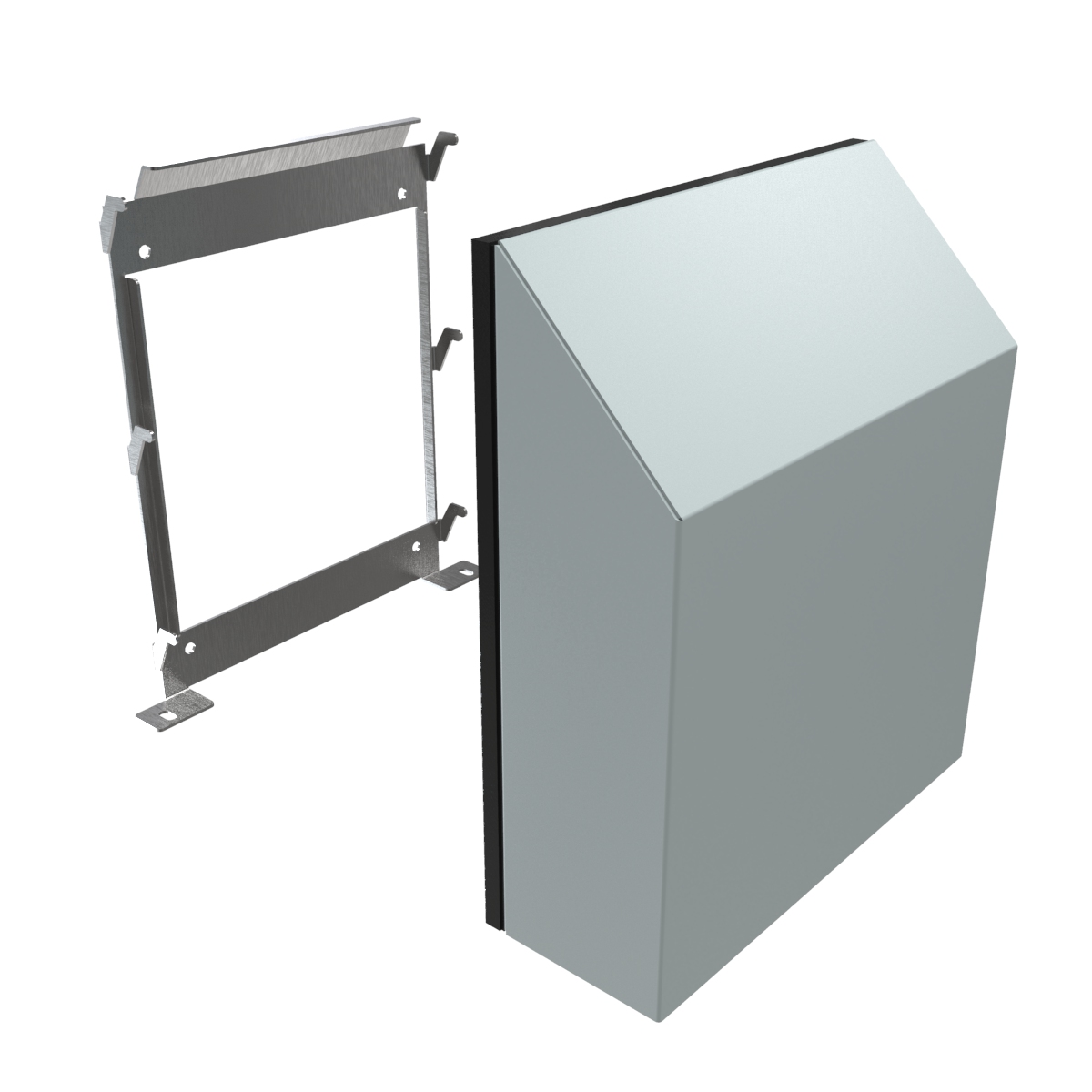

RH30000N4GY

Rainhood N4 GY

  • Use with PF3X000/PFA30000
  • Rating/Finish Type 4 / ANSI 61 Gray
$116.20In stock
Buy now

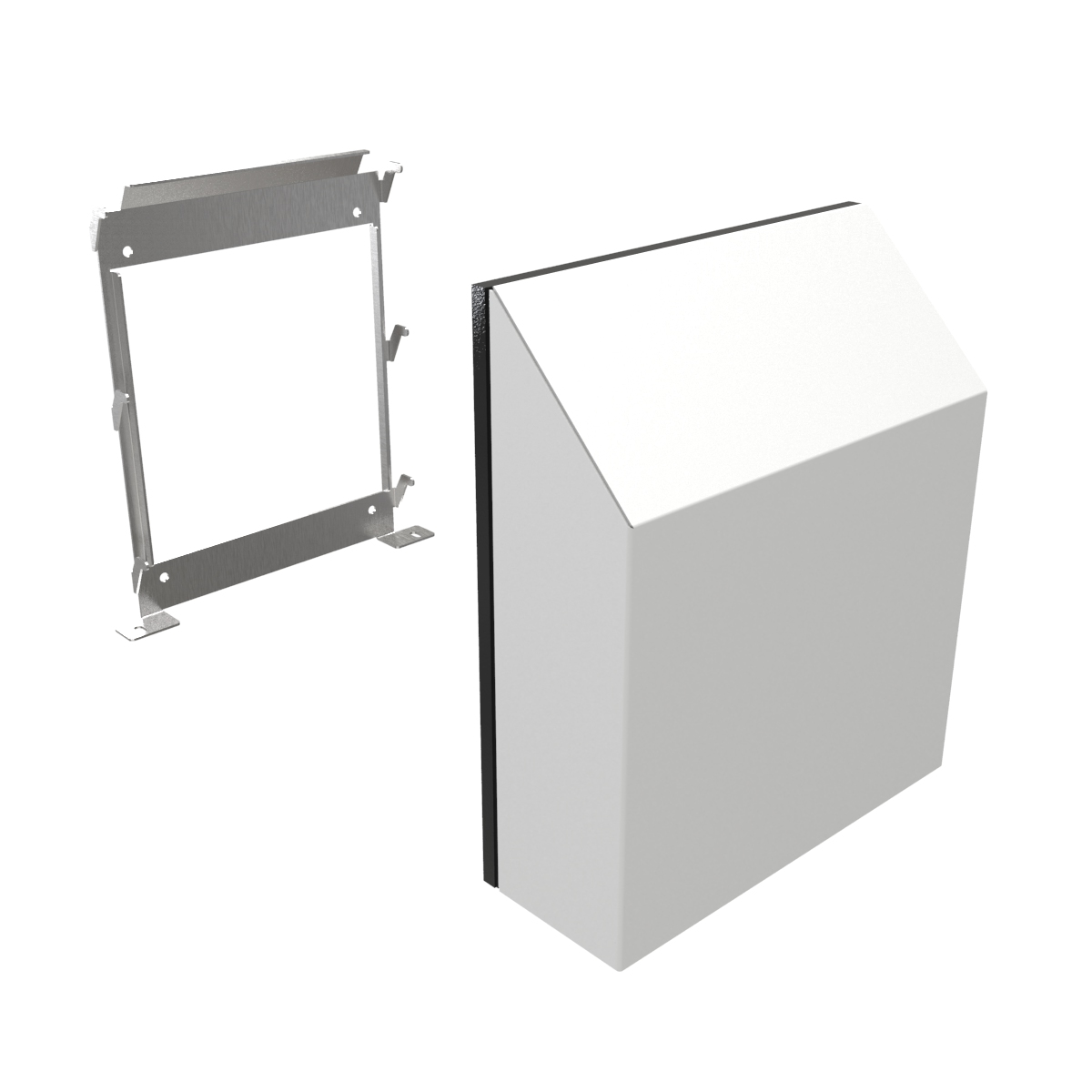

RH30000N4LG

Rainhood N4 Lg

  • Use with PF3X000/PFA30000
  • Rating/Finish Type 4 / RAL7035
$116.20Backorder
Buy now
RH30000N4S16

Rainhood N4 S16

  • Use with PF3X000/PFA30000
  • Rating/Finish Type 4X / 316 Stainless Steel
$223.81In stock
Buy now

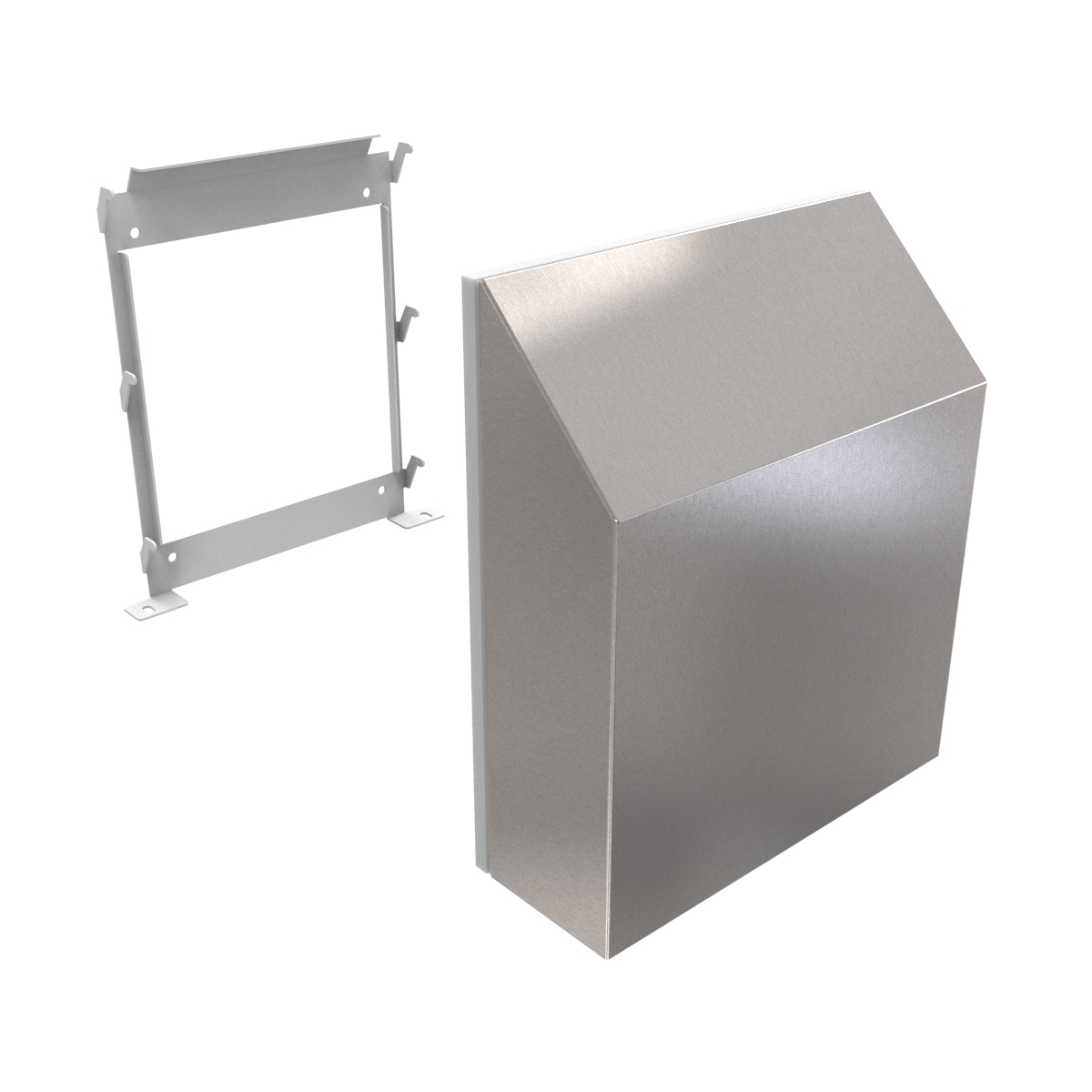

RH30000N4S16FDA

Rainhood N4 S16 Fda

  • Use with PF3X000/PFA30000
  • Rating/Finish Sanitary Type 4X / 316 Stainless Steel
$230.98In stock
Buy now

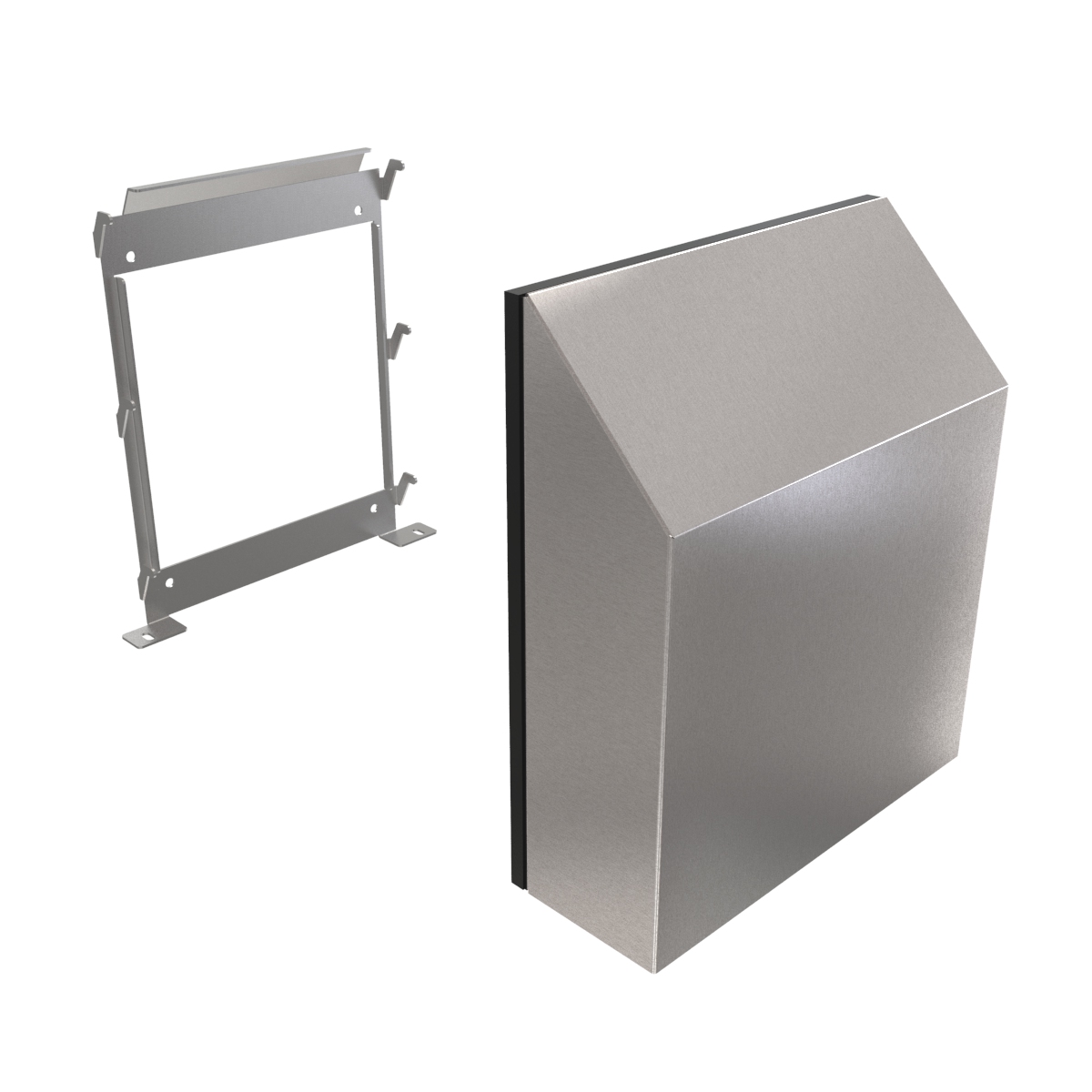

RH30000N4SS

Rainhood N4 SS

  • Use with PF3X000/PFA30000
  • Rating/Finish Type 4X / 304 Stainless Steel
$209.67In stock
Buy now

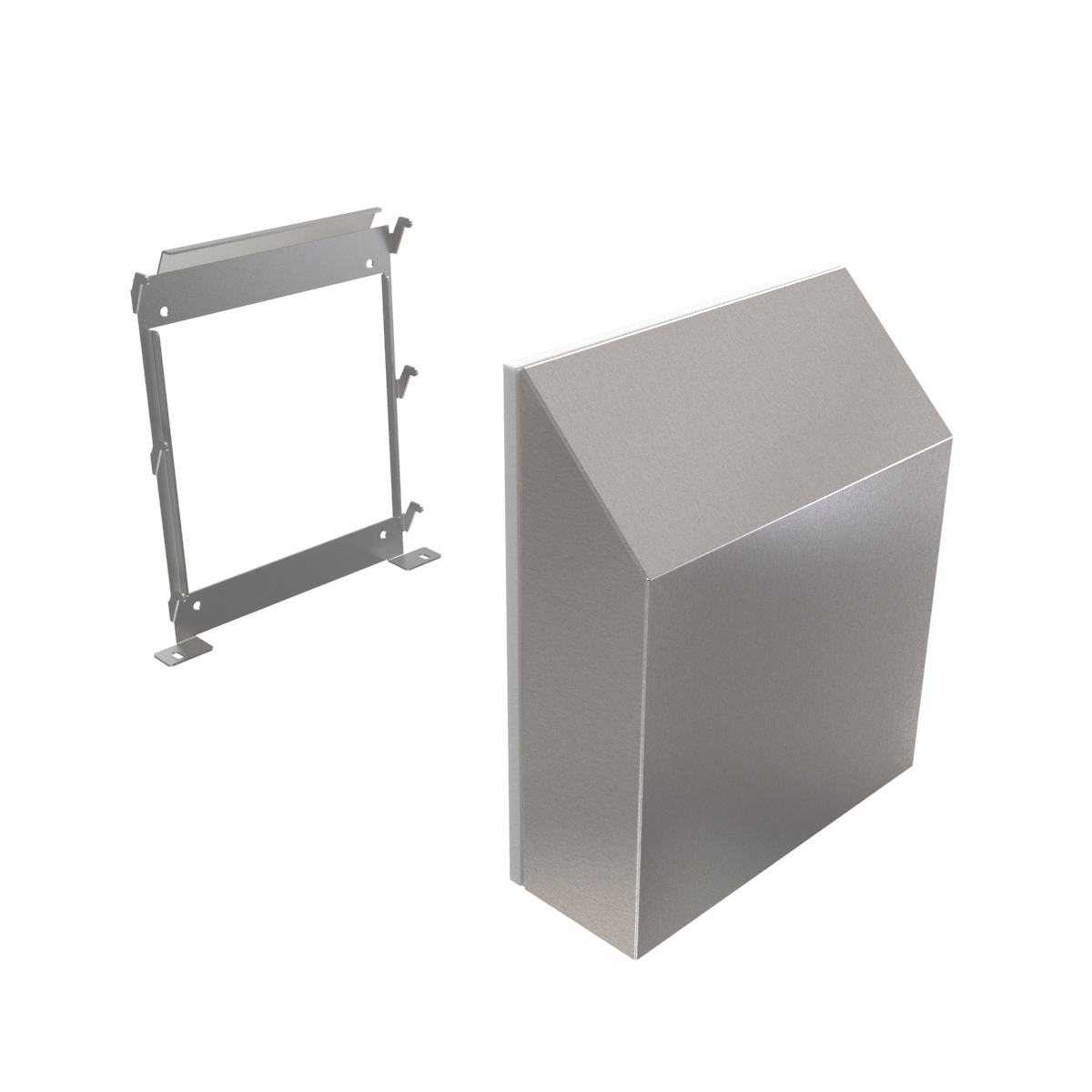

RH30000N4SSFDA

Rainhood N4 SS Fda

  • Use with PF3X000/PFA30000
  • Rating/Finish Sanitary Type 4X / 304 Stainless Steel
$216.80In stock
Buy now

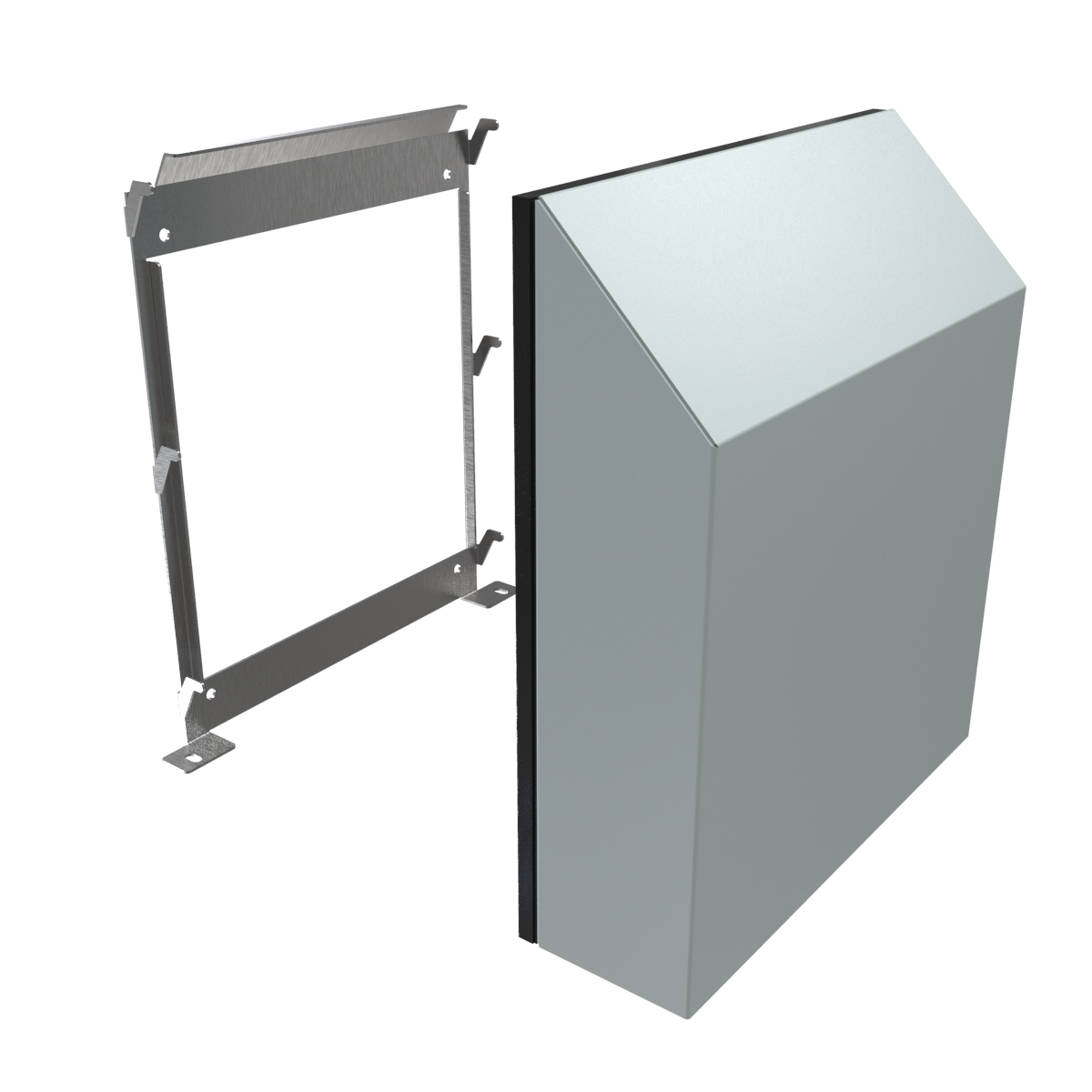

RH40000N4GY

Rainhood N4 GY

  • Use with PF4XX00/PFA40000
  • Rating/Finish Type 4 / ANSI 61 Gray
$131.77Backorder
Buy now
RH40000N4LG

Rainhood N4 Lg

  • Use with PF4XX00/PFA40000
  • Rating/Finish Type 4 / RAL7035
$131.77Backorder
Buy now

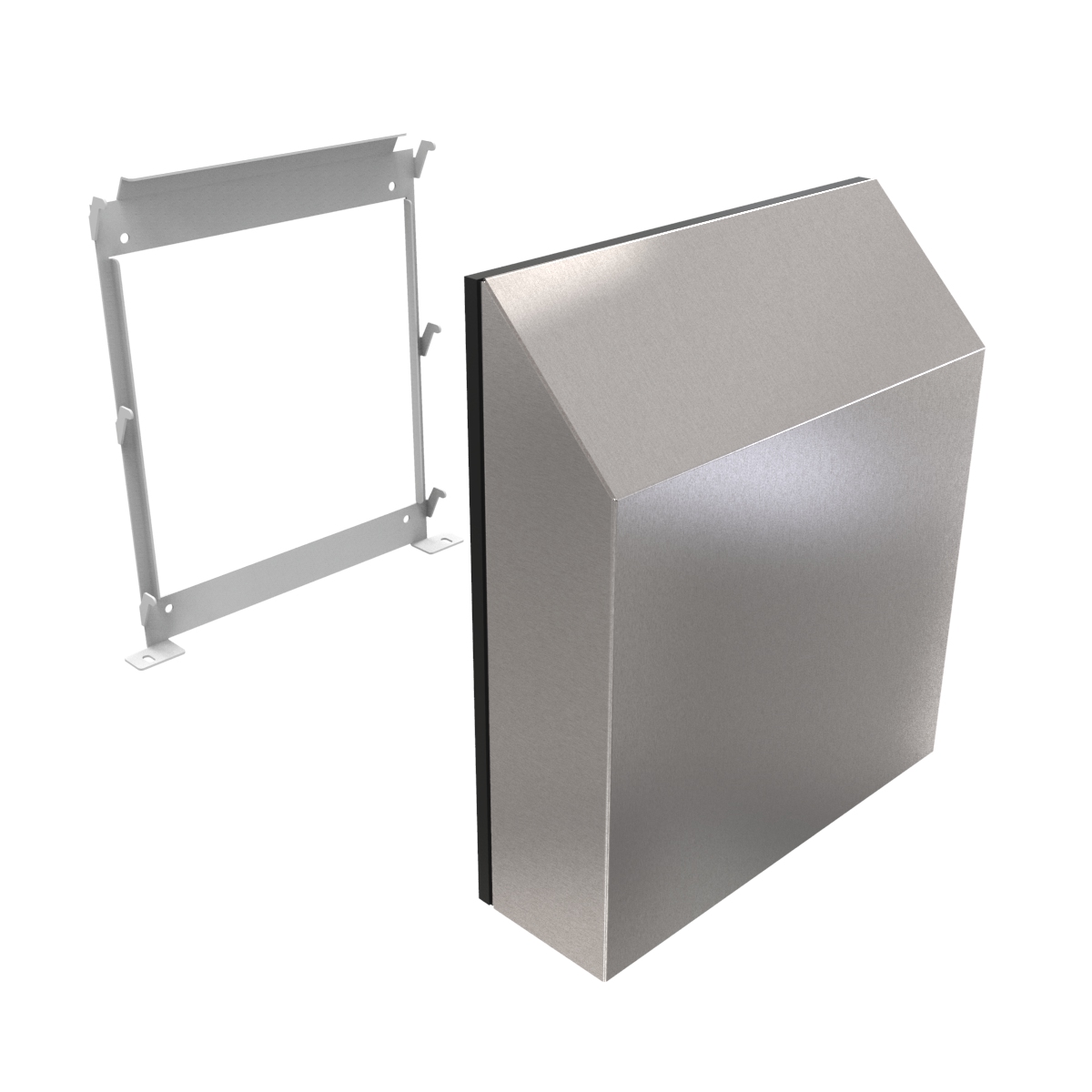

RH40000N4S16

Rainhood N4 S16

  • Use with PF4XX00/PFA40000
  • Rating/Finish Type 4X / 316 Stainless Steel
$253.68Backorder
Buy now

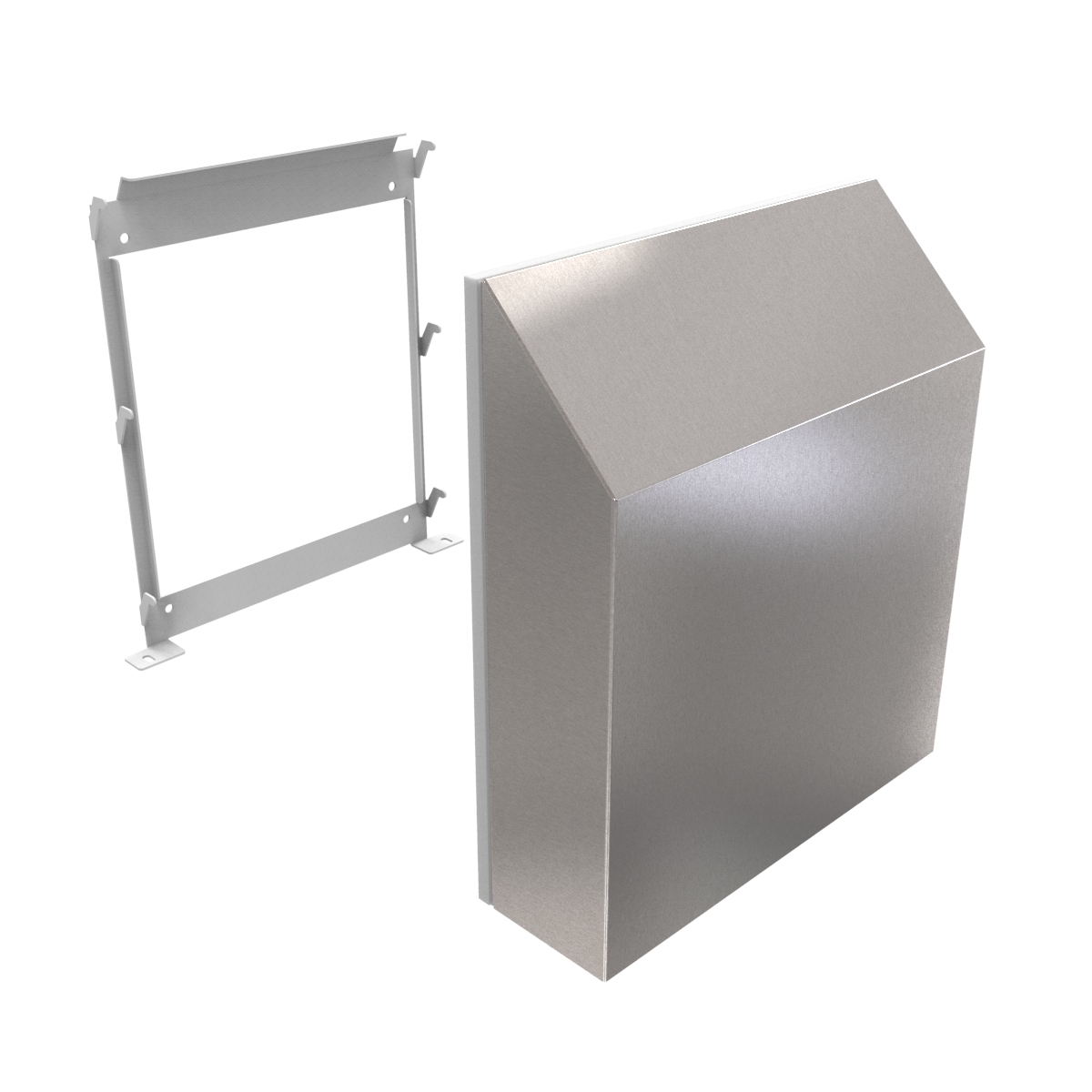

RH40000N4S16FDA

Rainhood N4 S16 Fda

  • Use with PF4XX00/PFA40000
  • Rating/Finish Sanitary Type 4X / 316 Stainless Steel
$262.12In stock
Buy now

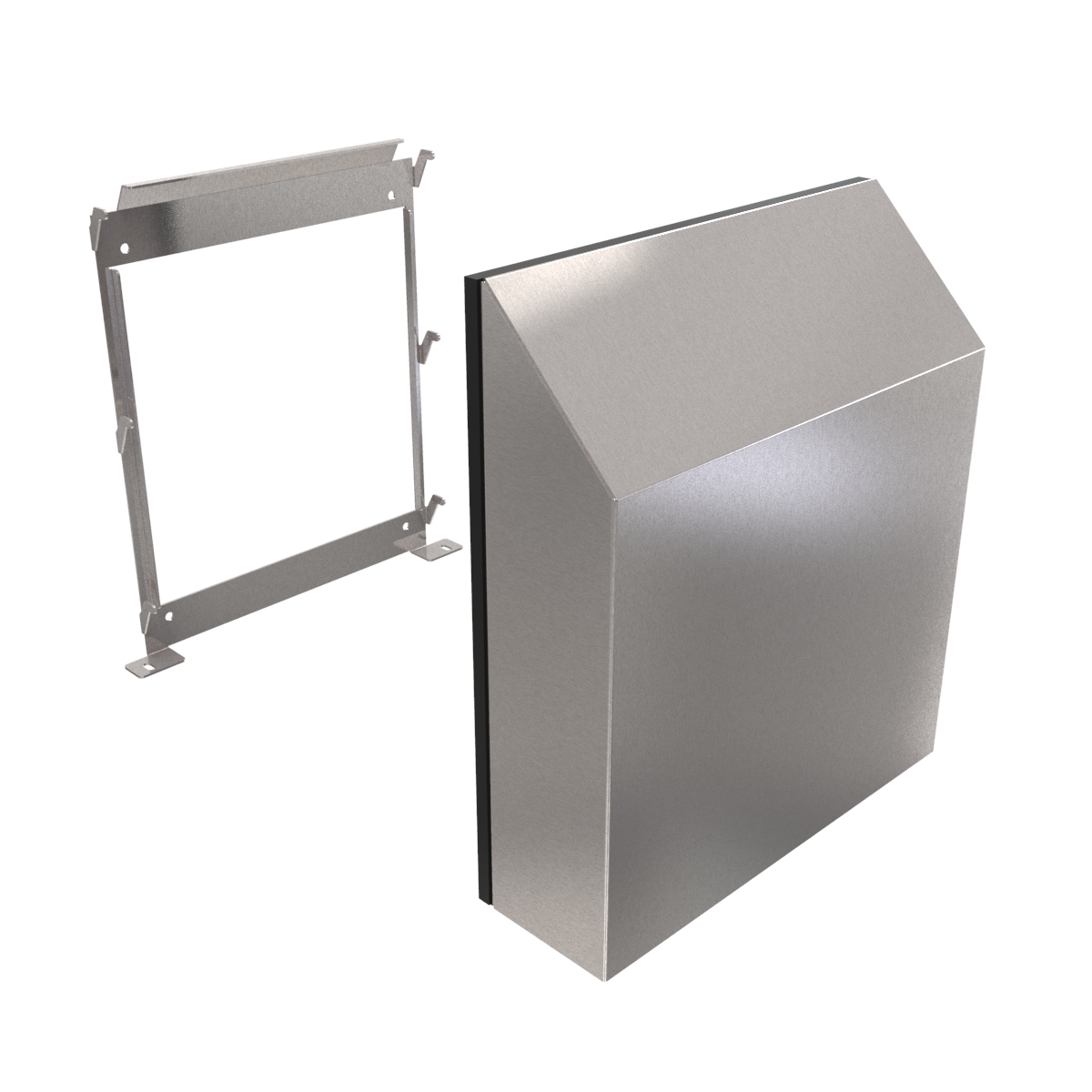

RH40000N4SS

Rainhood N4 SS

  • Use with PF4XX00/PFA40000
  • Rating/Finish Type 4X / 304 Stainless Steel
$236.63In stock
Buy now

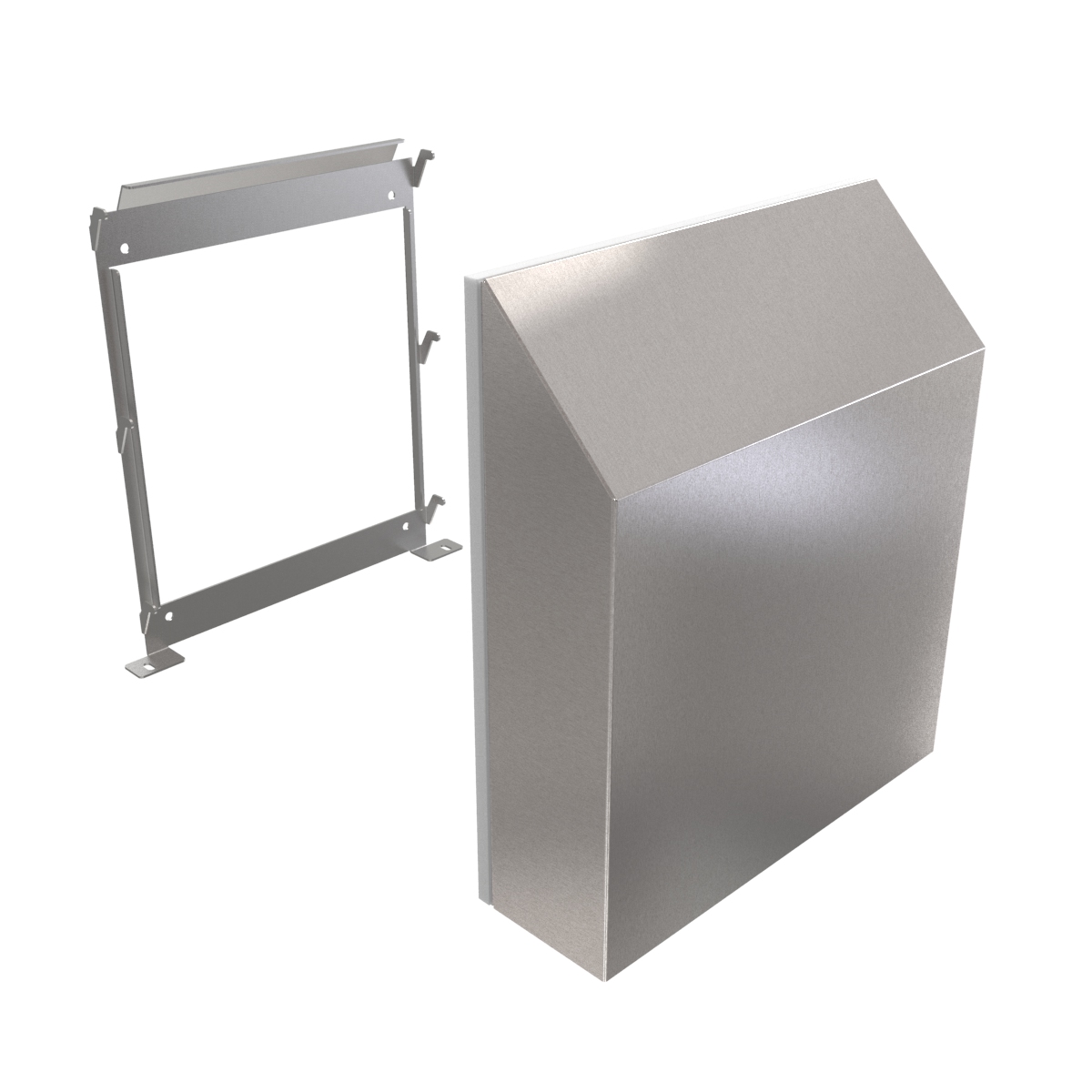

RH40000N4SSFDA

Rainhood N4 SS Fda

  • Use with PF4XX00/PFA40000
  • Rating/Finish Sanitary Type 4X / 304 Stainless Steel
$245.11Backorder
Buy now

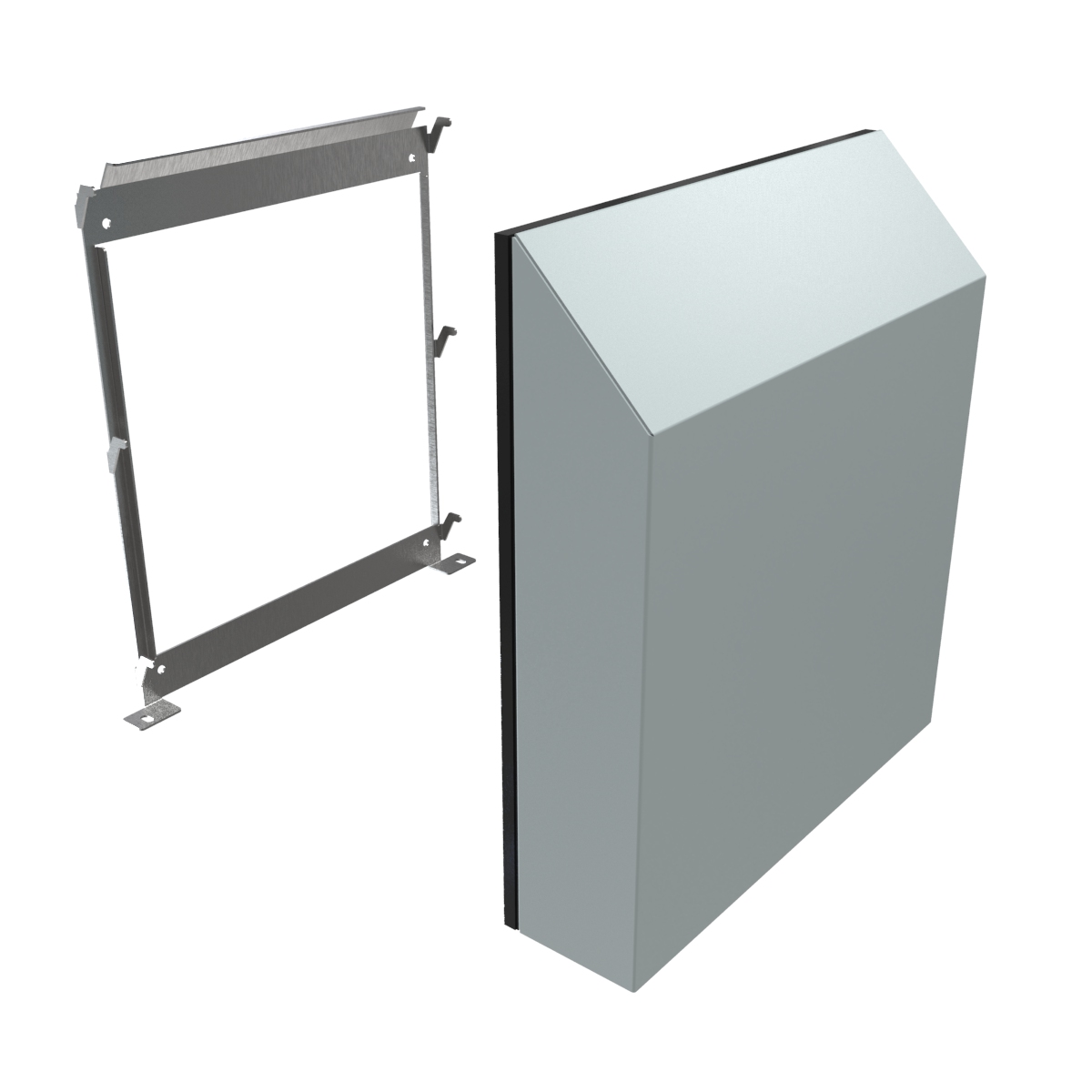

RH60000N4GY

Rainhood N4 GY

  • Use with PF6XX00/PFA60000
  • Rating/Finish Type 4 / ANSI 61 Gray
$144.52Backorder
Buy now
RH60000N4LG

Rainhood N4 Lg

  • Use with PF6XX00/PFA60000
  • Rating/Finish Type 4 / RAL7035
$144.52In stock
Buy now
RH60000N4S16

Rainhood N4 S16

  • Use with PF6XX00/PFA60000
  • Rating/Finish Type 4X / 316 Stainless Steel
$330.18In stock
Buy now

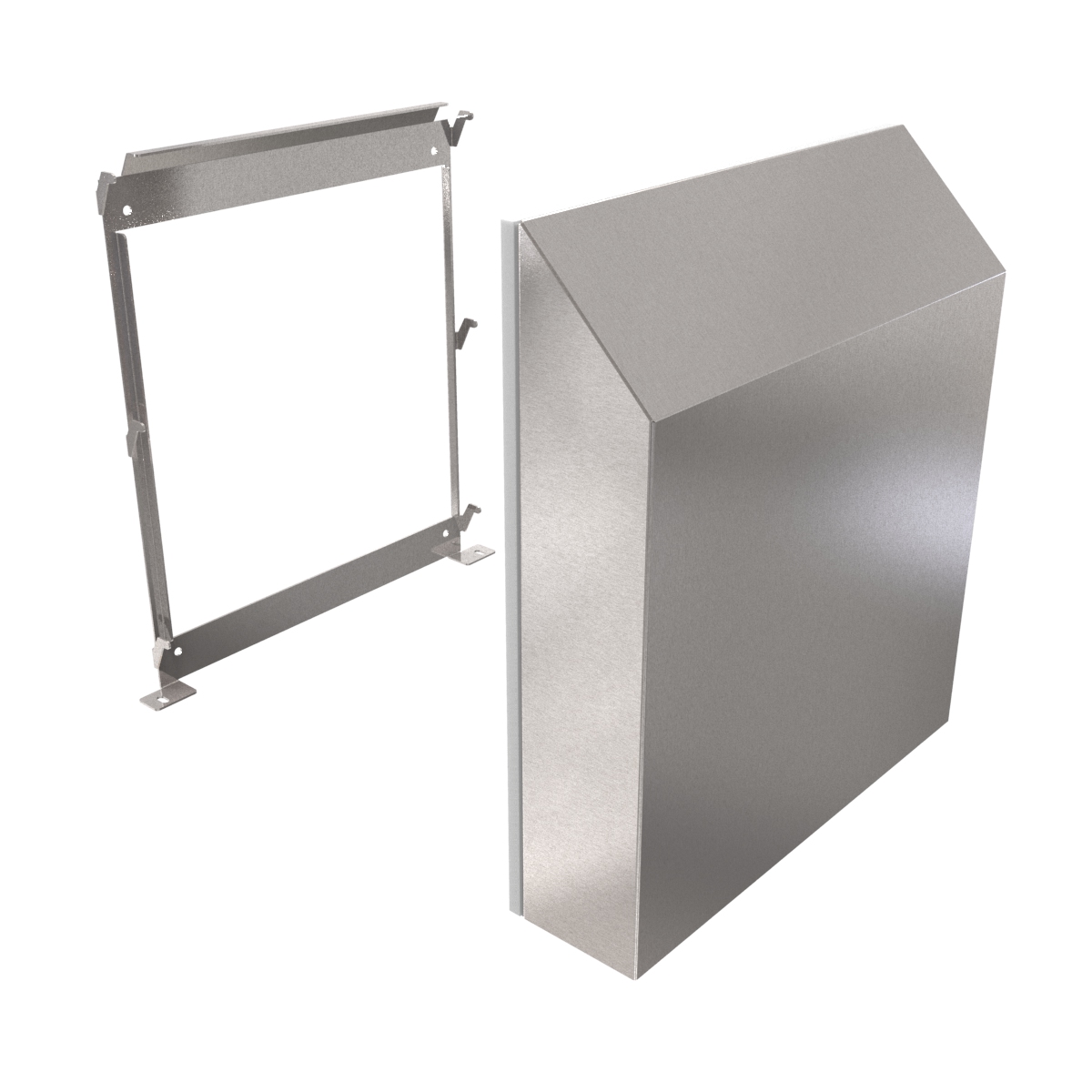

RH60000N4S16FDA

Rainhood N4 S16 Fda

  • Use with PF6XX00/PFA60000
  • Rating/Finish Sanitary Type 4X / 316 Stainless Steel
$340.01In stock
Buy now

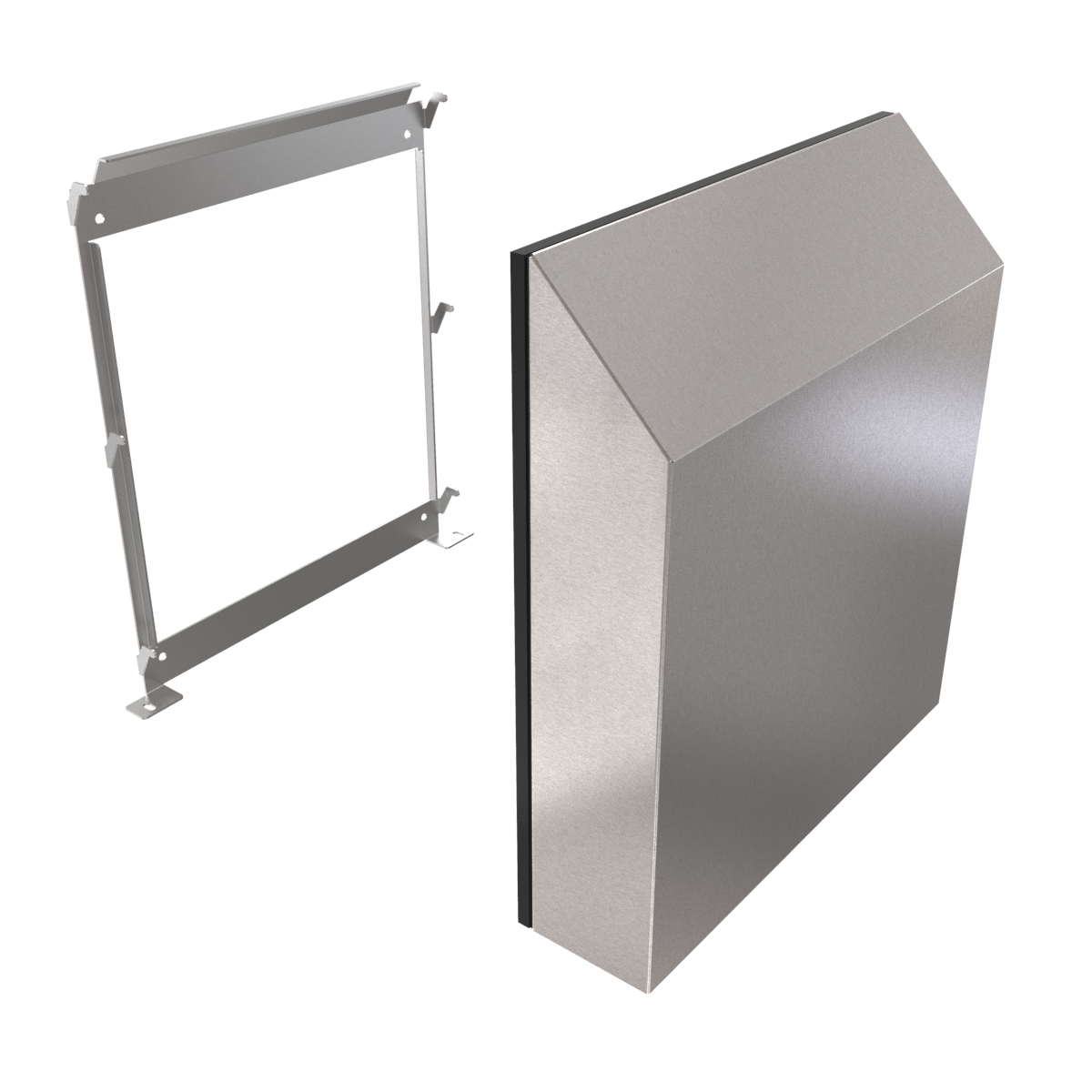

RH60000N4SS

Rainhood N4 SS

  • Use with PF6XX00/PFA60000
  • Rating/Finish Type 4X / 304 Stainless Steel
$310.30In stock
Buy now
RH60000N4SSFDA

Rainhood N4 SS Fda

  • Use with PF6XX00/PFA60000
  • Rating/Finish Sanitary Type 4X / 304 Stainless Steel
$320.25Backorder
Buy now
RHA20000N4G

Mesh & Snow Plug Galv N4

  • Use With RH20000N4GY,LG,SS
$13.52In stock
Buy now
RHA30000N4G

Mesh & Snow Plug Galv N4

  • Use With RH30000N4GY,LG,SS
$16.35In stock
Buy now
RHA40000N4G

Mesh & Snow Plug Galv N4

  • Use With RH40000N4GY,LG,SS
$18.07Backorder
Buy now
RHA60000N4G

Mesh & Snow Plug Galv N4

  • Use With RH60000N4GY,LG,SS
$25.12Backorder
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Overall Dimensions · HOverall Dimensions · WOverall Dimensions · DUse withRating/FinishPriceOrder
RH20000N4GY10.448.703.56PF22000/PFA20000Type 4 / ANSI 61 Gray$104.86BackorderBuy now
RH30000N4GY12.6810.873.56PF3X000/PFA30000Type 4 / ANSI 61 Gray$116.20In stockBuy now
RH40000N4GY14.6512.843.56PF4XX00/PFA40000Type 4 / ANSI 61 Gray$131.77BackorderBuy now
RH60000N4GY17.3315.513.56PF6XX00/PFA60000Type 4 / ANSI 61 Gray$144.52BackorderBuy now
RH20000N4LG10.448.703.56PF22000/PFA20000Type 4 / RAL7035$104.86BackorderBuy now
RH30000N4LG12.6810.873.56PF3X000/PFA30000Type 4 / RAL7035$116.20BackorderBuy now
RH40000N4LG14.6512.843.56PF4XX00/PFA40000Type 4 / RAL7035$131.77BackorderBuy now
RH60000N4LG17.3315.513.56PF6XX00/PFA60000Type 4 / RAL7035$144.52In stockBuy now
RH20000N4SS10.448.703.56PF22000/PFA20000Type 4X / 304 Stainless Steel$170.05BackorderBuy now
RH30000N4SS12.6810.873.56PF3X000/PFA30000Type 4X / 304 Stainless Steel$209.67In stockBuy now
RH40000N4SS14.6512.843.56PF4XX00/PFA40000Type 4X / 304 Stainless Steel$236.63In stockBuy now
RH60000N4SS17.3315.513.56PF6XX00/PFA60000Type 4X / 304 Stainless Steel$310.30In stockBuy now
RH20000N4S1610.448.703.56PF22000/PFA20000Type 4X / 316 Stainless Steel$184.18BackorderBuy now
RH30000N4S1612.6810.873.56PF3X000/PFA30000Type 4X / 316 Stainless Steel$223.81In stockBuy now
RH40000N4S1614.6512.843.56PF4XX00/PFA40000Type 4X / 316 Stainless Steel$253.68BackorderBuy now
RH60000N4S1617.3315.513.56PF6XX00/PFA60000Type 4X / 316 Stainless Steel$330.18In stockBuy now
RH20000N4SSFDA10.448.703.56PF22000/PFA20000Sanitary Type 4X / 304 Stainless Steel$177.09In stockBuy now
RH30000N4SSFDA12.6810.873.56PF3X000/PFA30000Sanitary Type 4X / 304 Stainless Steel$216.80In stockBuy now
RH40000N4SSFDA14.6512.843.56PF4XX00/PFA40000Sanitary Type 4X / 304 Stainless Steel$245.11BackorderBuy now
RH60000N4SSFDA17.3315.513.56PF6XX00/PFA60000Sanitary Type 4X / 304 Stainless Steel$320.25BackorderBuy now
RH20000N4S16FDA10.448.703.56PF22000/PFA20000Sanitary Type 4X / 316 Stainless Steel$191.28In stockBuy now
RH30000N4S16FDA12.6810.873.56PF3X000/PFA30000Sanitary Type 4X / 316 Stainless Steel$230.98In stockBuy now
RH40000N4S16FDA14.6512.843.56PF4XX00/PFA40000Sanitary Type 4X / 316 Stainless Steel$262.12In stockBuy now
RH60000N4S16FDA17.3315.513.56PF6XX00/PFA60000Sanitary Type 4X / 316 Stainless Steel$340.01In stockBuy now

Grill/Solid Cover Kit

Part No.Use WithFinishcol4col5col6col7col8col9PriceOrder
RHA20000N4GRH20000N4GY,LG,SSGalvanized Steel$13.52In stockBuy now
RHA30000N4GRH30000N4GY,LG,SSGalvanized Steel$16.35In stockBuy now
RHA40000N4GRH40000N4GY,LG,SSGalvanized Steel$18.07BackorderBuy now
RHA60000N4GRH60000N4GY,LG,SSGalvanized Steel$25.12BackorderBuy now

Application

  • ■Type 4/4X (IPx6) Rainhoods (when used with PF Series Filterfans)
  • ■Ideal for locations with high exposure to spraying water
  • ■Painted galvanized steel version for Type 4
  • ■304 and 316 stainless steel versions for Type 4X
  • ■Specially gasketed, 316 stainless steel, sanitary version for FDA compatible Type 4X
  • ■Sold individually

Features

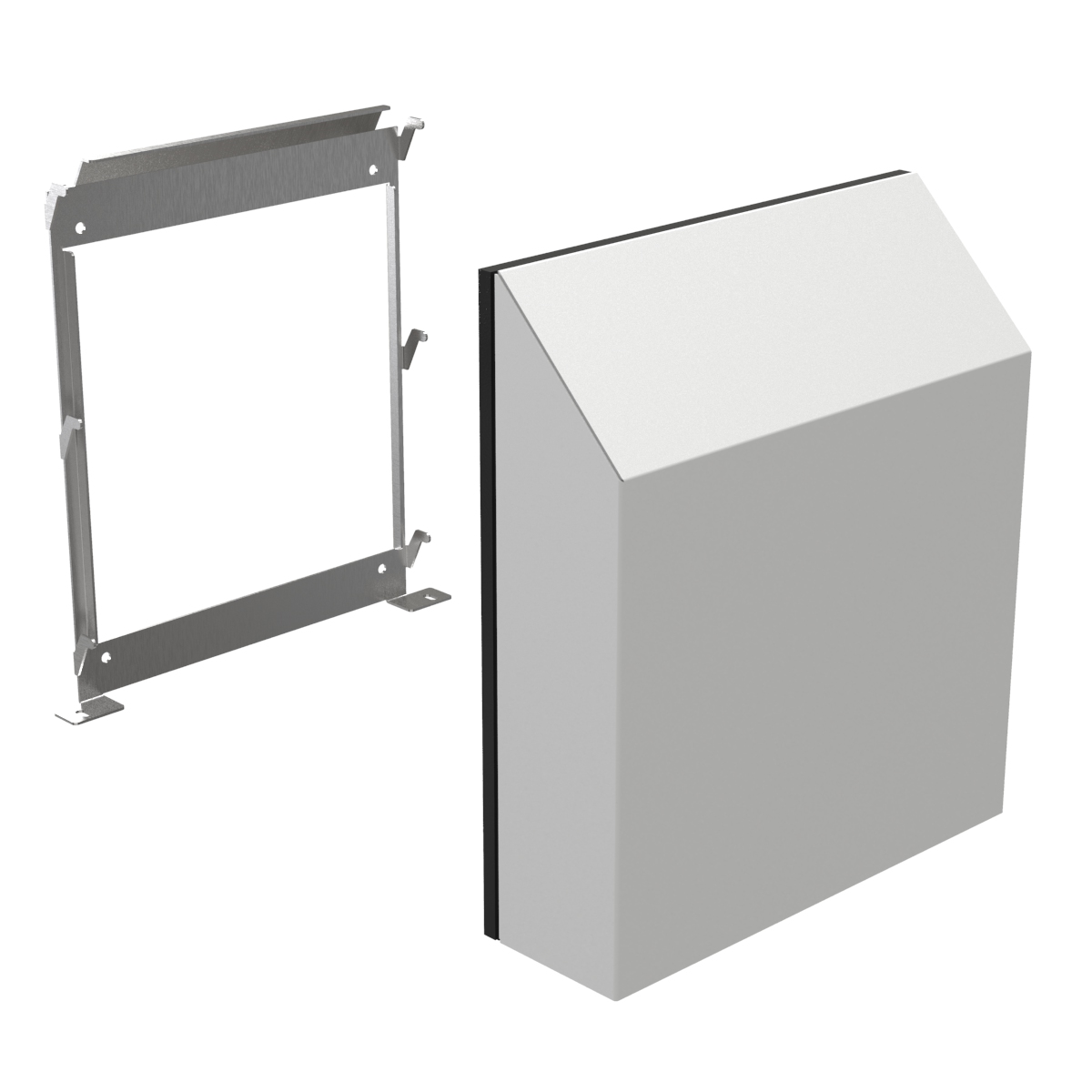

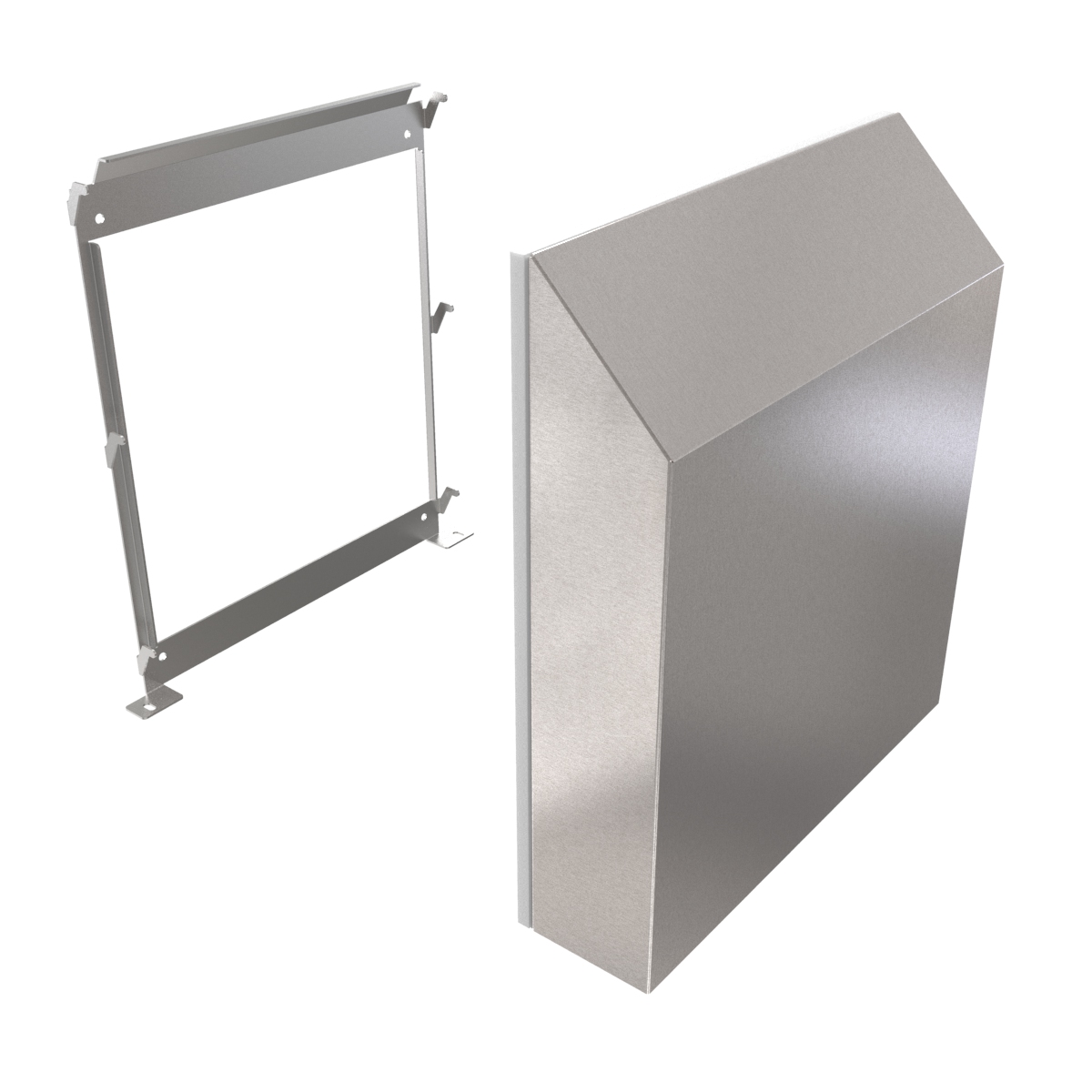

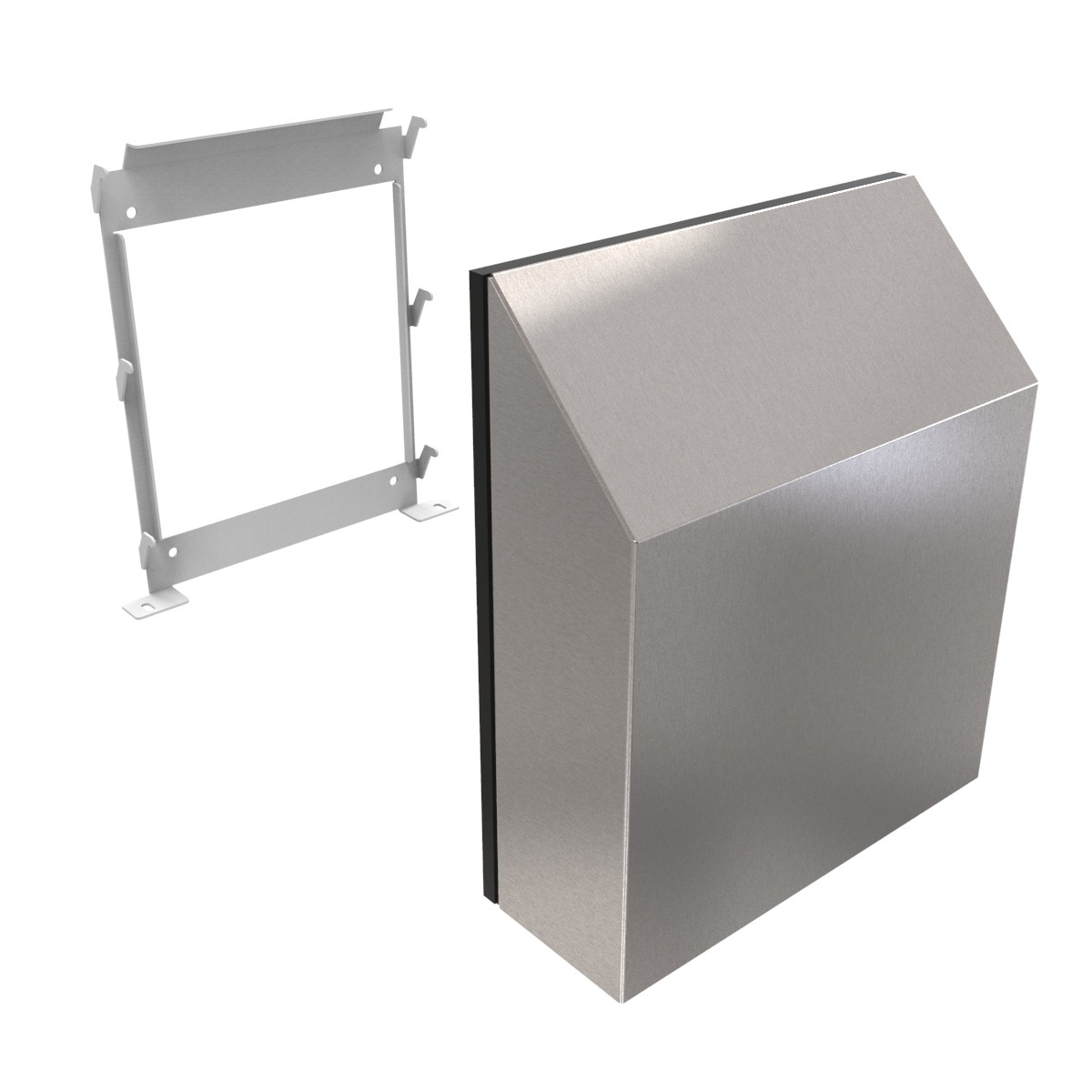

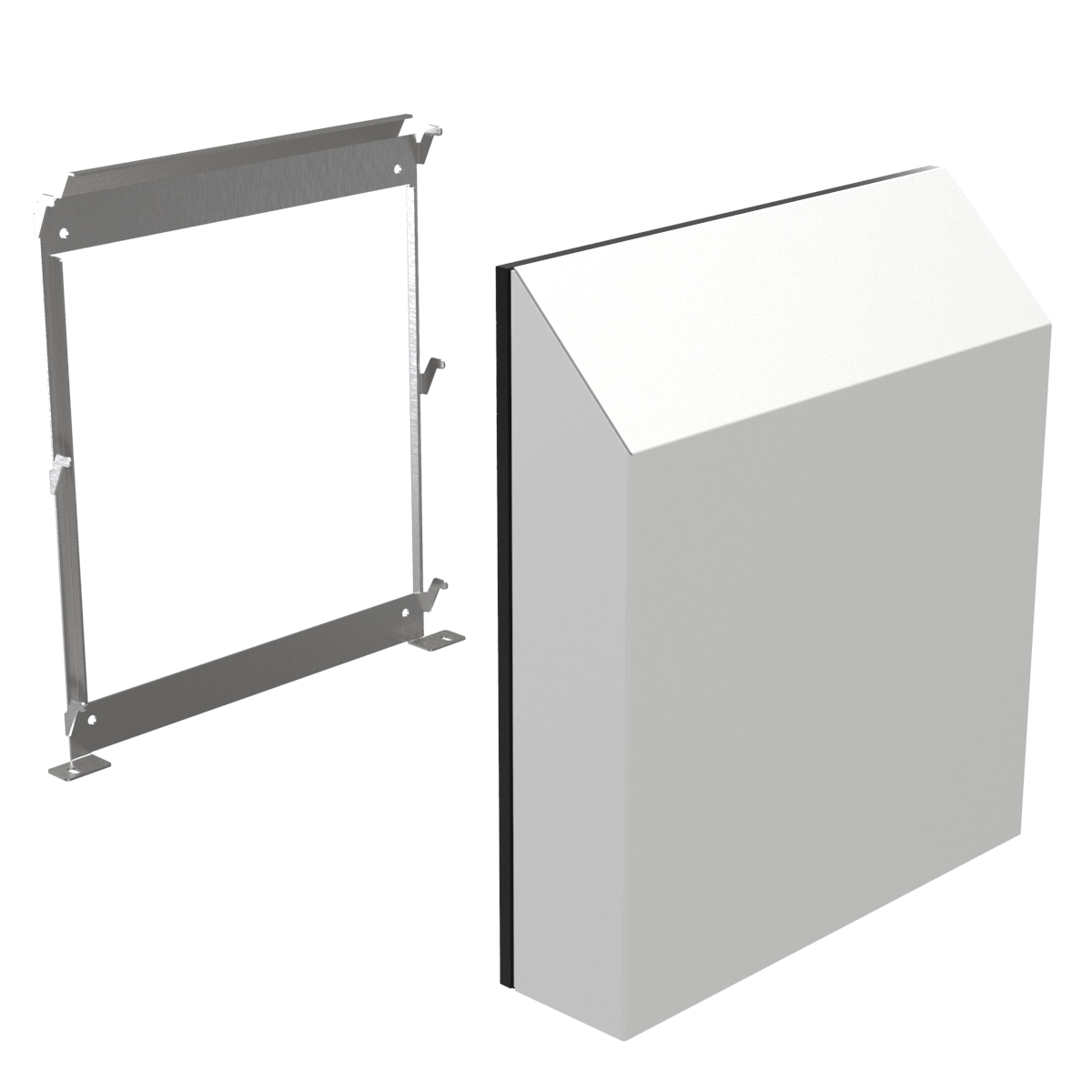

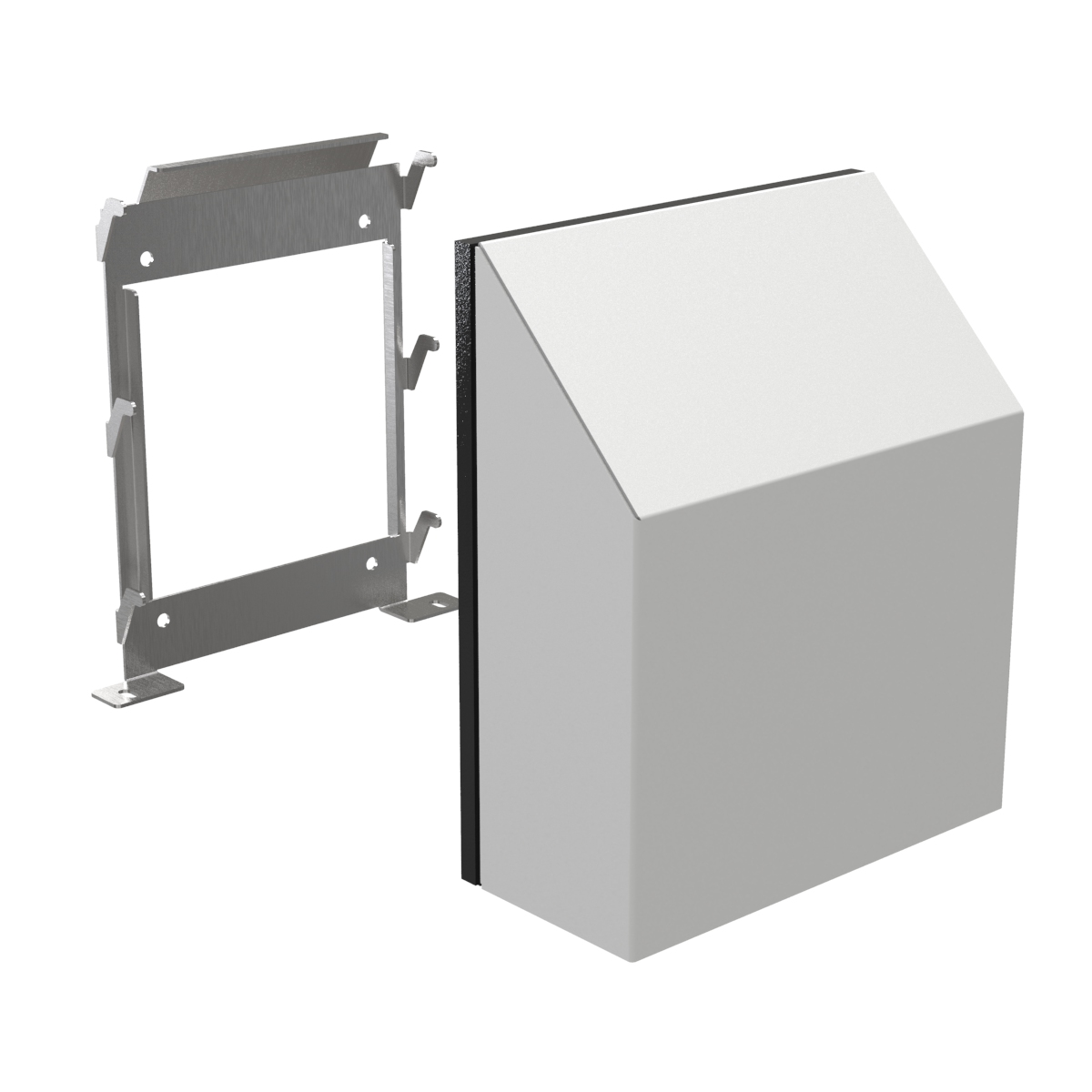

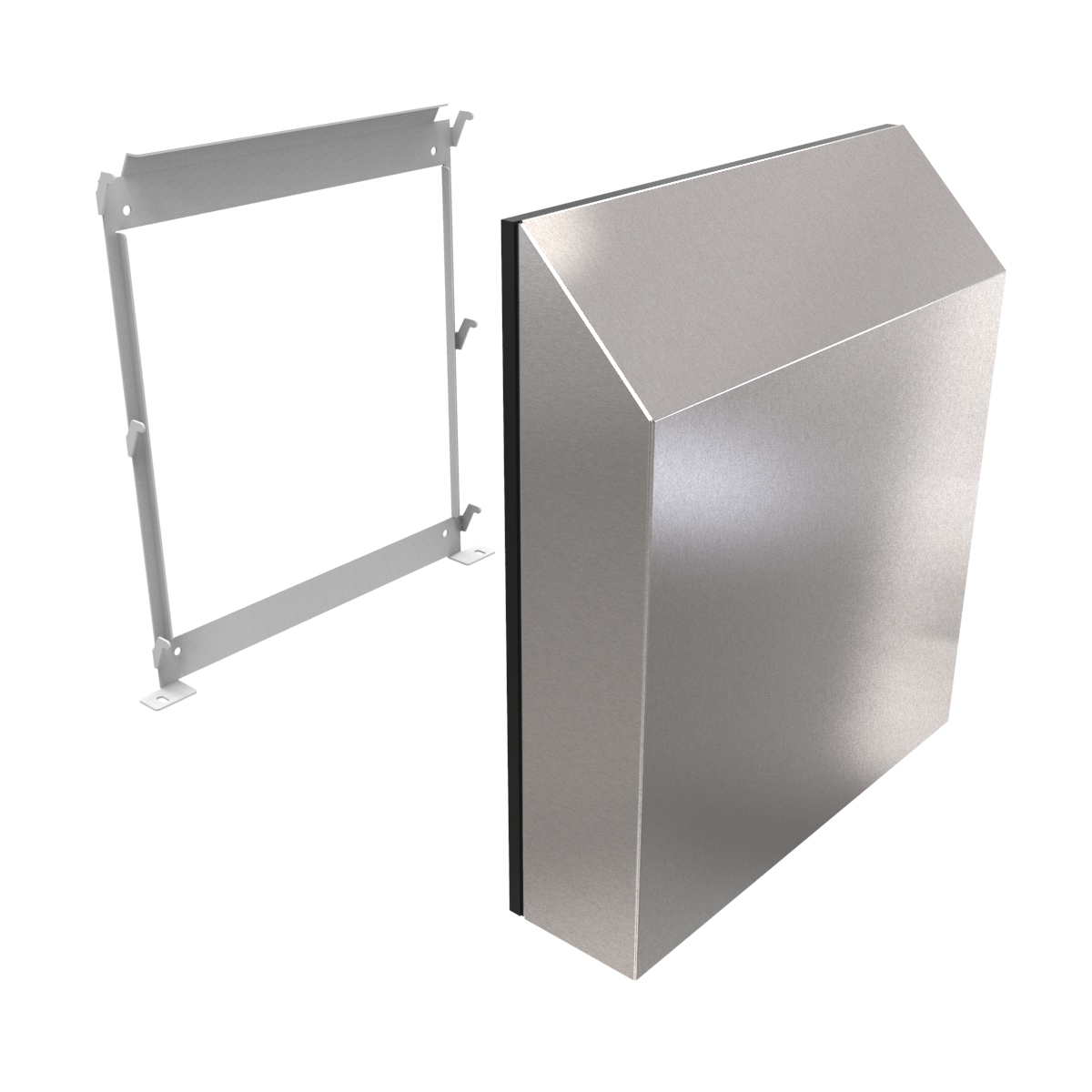

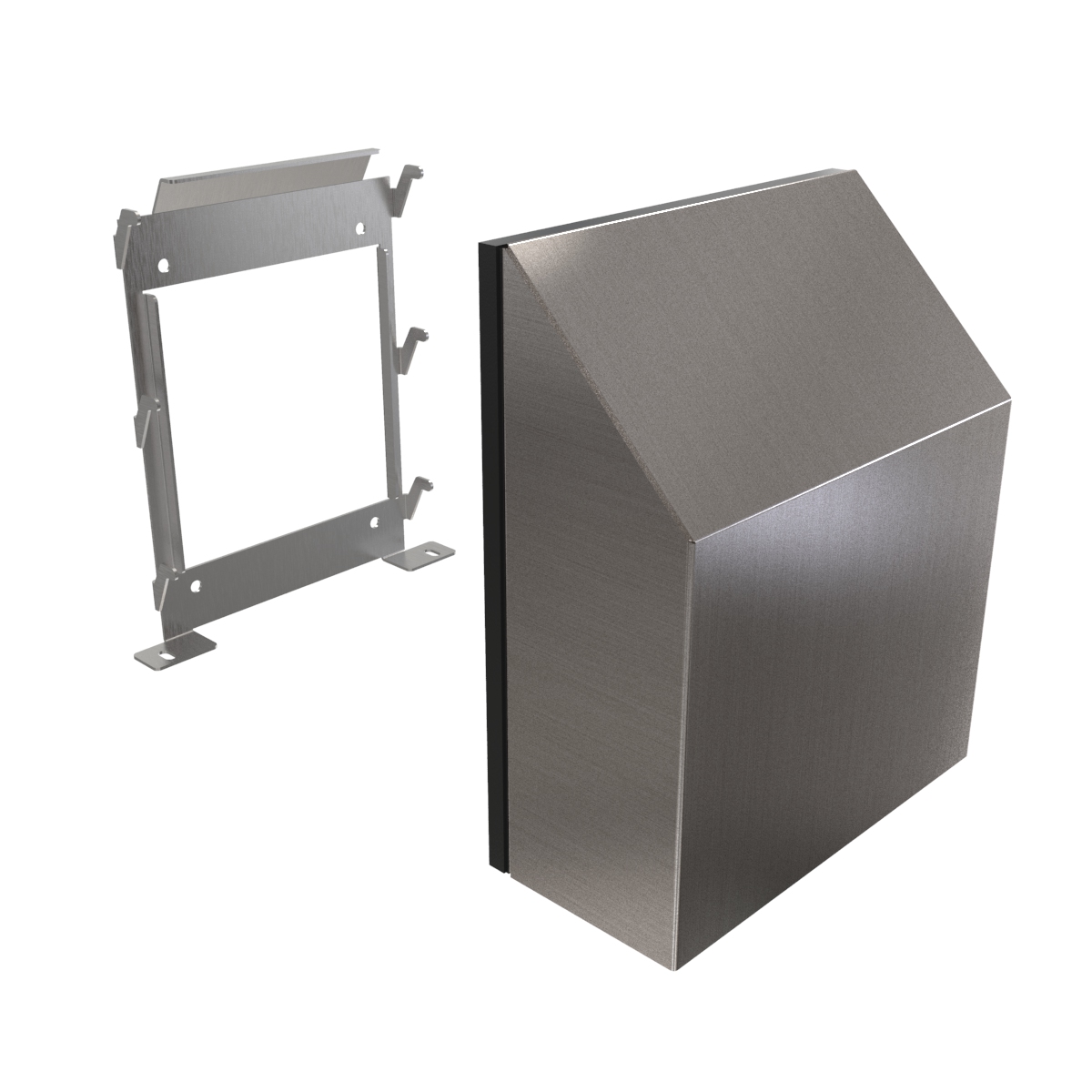

  • ■Easy installation - mounting bracket installed around cutout and rainhood slides down over bracket
  • ■High compression, closed cell black gasket with multiple seal dams ensure tight, waterproof seal Sanitary version has special FDA compatible, white multiple seal gasket
  • ■Sanitary version has special FDA compatible, white multiple seal gasket
  • ■Direct spray barrier/baffle designed to maximize airflow while providing superior protection from overspray

Standards

  • ■UL / cUL Listed Type 4 or 4X (as noted) must be used in combination with PF Series Filterfan
  • ■must be used in combination with PF Series Filterfan

Finish

  • ■Base mounting bracket - unpainted 304 SS
  • ■Rainhood Covers Type 4 - ANSI61 Gray (GY) or RAL7035 Light Gray (LG) powder coated finish on galvanized steel Type 4X - 304 or 316 stainless steel with #4 brushed finish Sanitary Type 4X - 316 stainless steel with #4 brushed finish
  • ■Type 4 - ANSI61 Gray (GY) or RAL7035 Light Gray (LG) powder coated finish on galvanized steel
  • ■Type 4X - 304 or 316 stainless steel with #4 brushed finish
  • ■Sanitary Type 4X - 316 stainless steel with #4 brushed finish

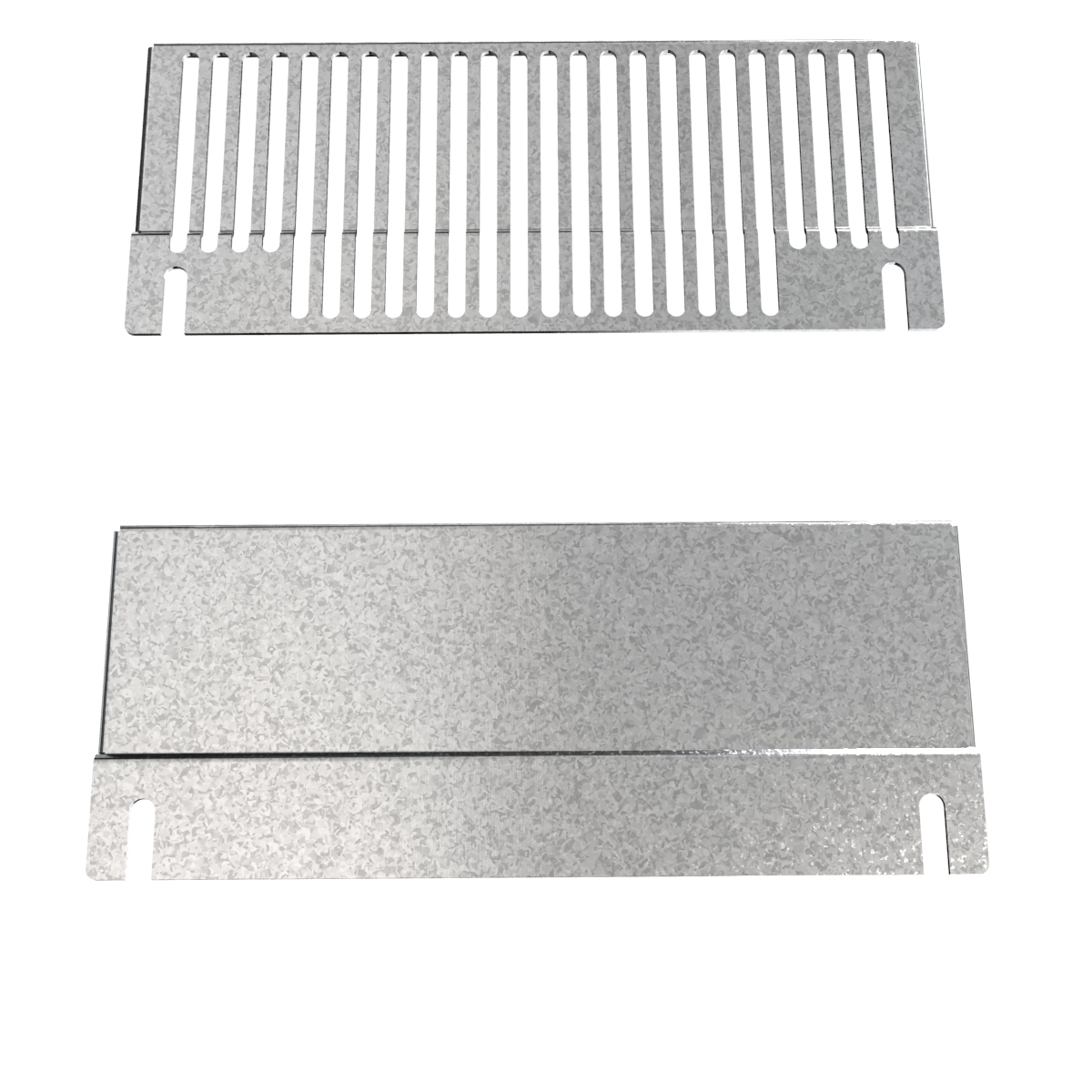

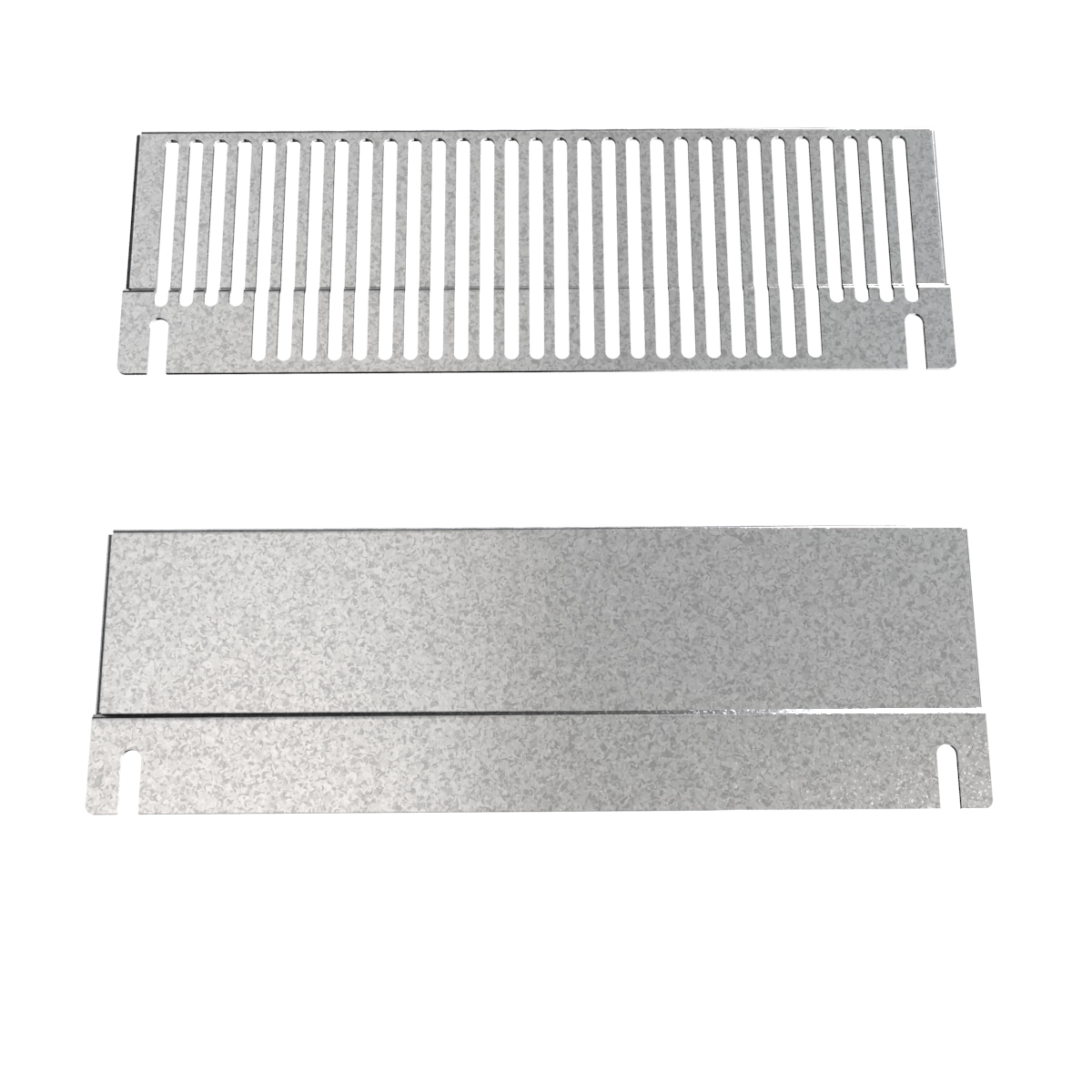

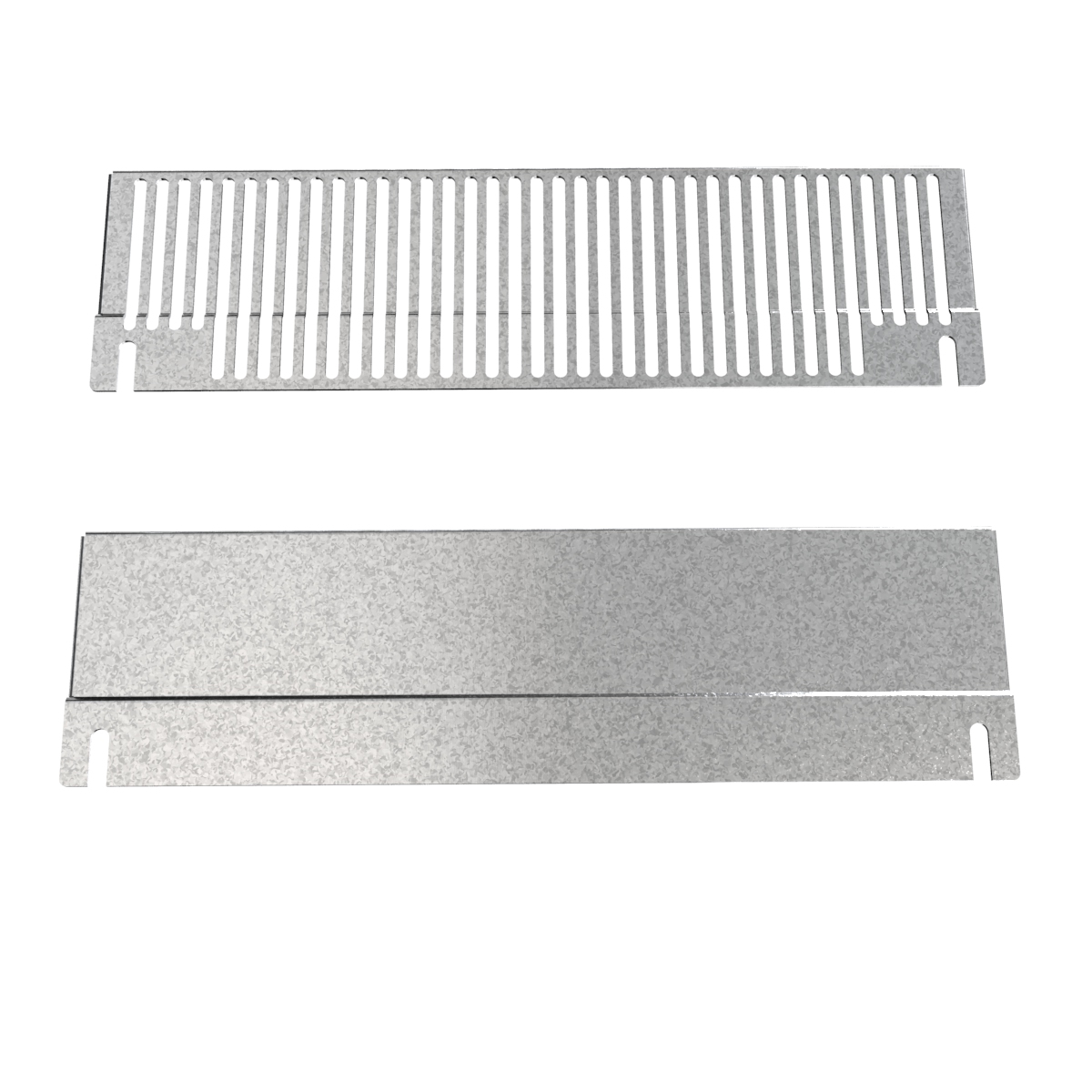

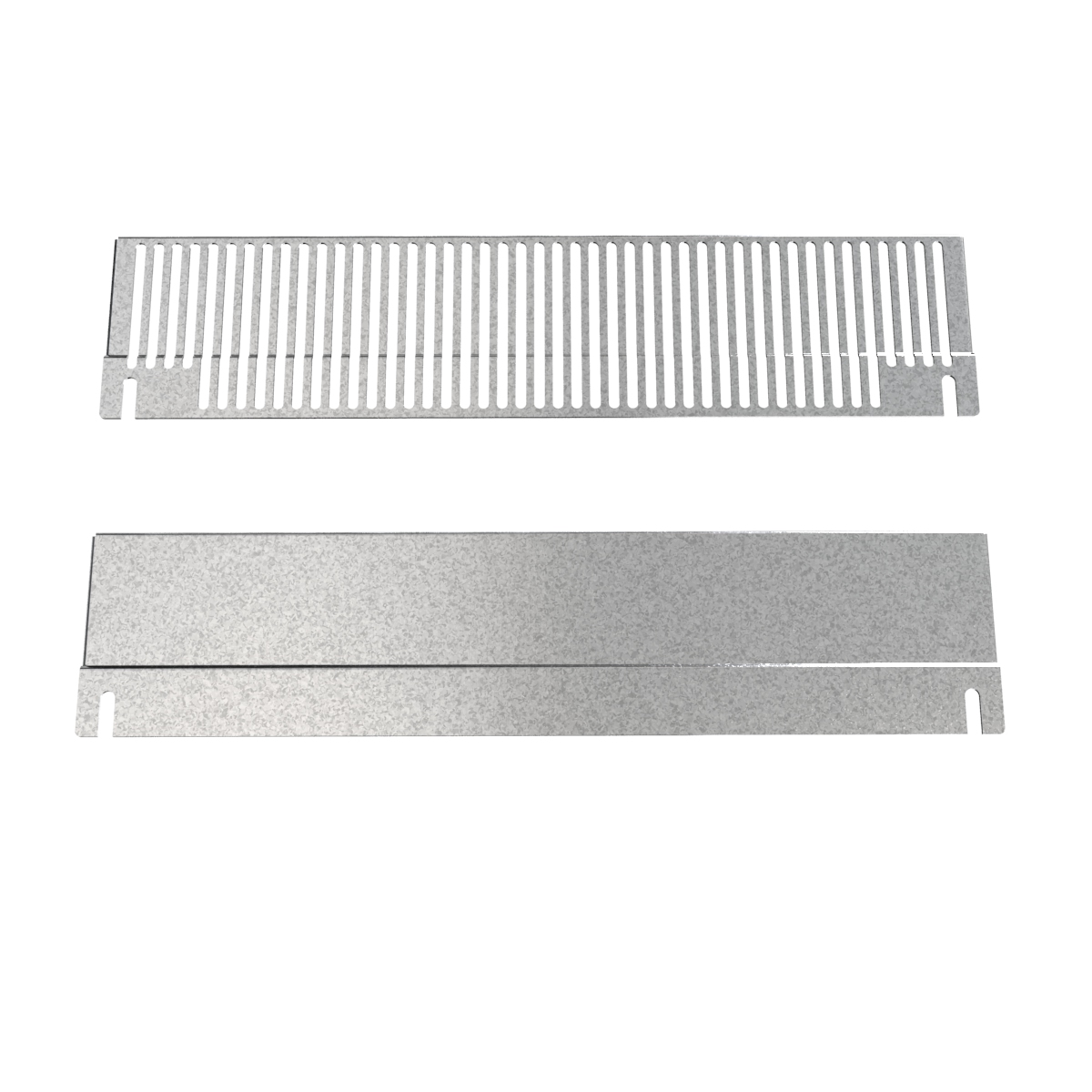

Grill/Solid Cover Kit

  • ■Can be installed in bottom opening of rain hood
  • ■Grill allows ventilation while preventing unwanted entry of large contaminants
  • ■Solid cover allows sealing of opening when fan/filter not in use

Documents

Specification SheetFlyer - Type 4 Rainhood
