Rainhood Use W-PF22000
- Use with PF2000/PF22000 Series
- Finish ANSI 61 Gray
$79.29Backorder
Buy now

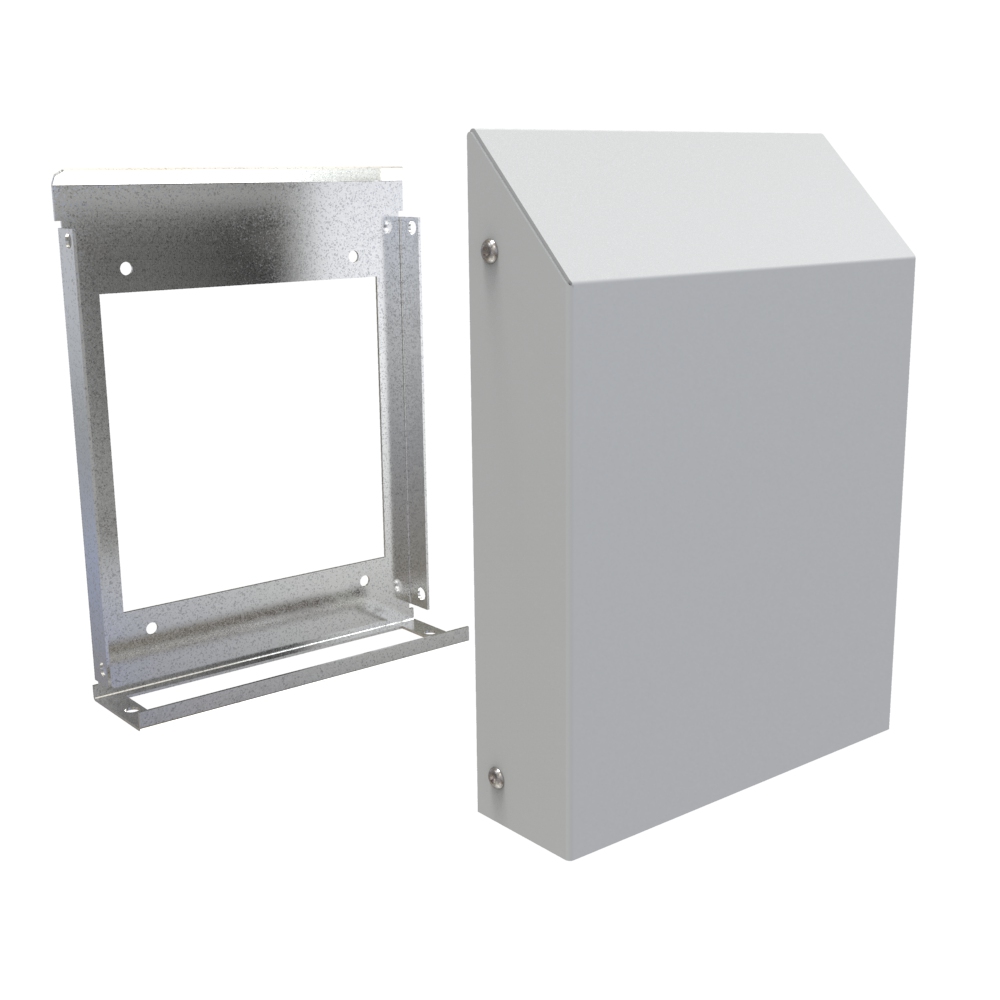

Filterfan Rainhoods - 3R · RH Series
Brand: Hammond Manufacturing · 15 part numbers
- ■Type 3R / Outdoor Rainhoods
- ■Protection against rain and snow or large airborne debris
- ■Sold individually
- ■Easy installation
- ■Covers many externally mounted Fans & Grills
- ■Fits PF2000/PF22000 thru PF5/6/7000 series Filterfans
from $11.59
15 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RH Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 15 priced online
Rainhood Use W-PF22000
- Use with PF2000/PF22000 Series
- Finish RAL7035
$79.29Backorder
Buy now
Rainhood Use W-PF22000
- Use with PF2000/PF22000 Series
- Finish Stainless Steel
$136.41In stock
Buy now
Rainhood Use W-PF32-43000
- Use with PF25, 30, 32, 43000 Series
- Finish ANSI 61 Gray
$88.64In stock
Buy now
Rainhood Use W-PF32-43000
- Use with PF25, 30, 32, 43000 Series
- Finish RAL7035
$88.64Backorder
Buy now
Rainhood Use W-PF32-43000
- Use with PF25, 30, 32, 43000 Series
- Finish Stainless Steel
$212.91Backorder
Buy now
Rainhood Use W-PF65-67000
- Use with PF5,6,7000, 65, 67000 Series
- Finish ANSI 61 Gray
$97.98In stock
Buy now
Rainhood Use W-PF65-67000
- Use with PF5,6,7000, 65, 67000 Series
- Finish RAL7035
$97.98In stock
Buy now
Rainhood Use W-PF65-67000
- Use with PF5,6,7000, 65, 67000 Series
- Finish Stainless Steel
$257.98In stock
Buy now
Mesh & Snow Plug Galv 3R
- Finish Galvanized Steel
- Description Vented grill and solid plate
- Use With RH20000GY,LG
$11.59In stock
Buy now
Mesh Plug 316 SS 3R
- Finish Stainless Steel
- Description Vented grill only
- Use With RH20000SS
$21.88In stock
Buy now
Mesh & Snow Plug Galv 3R
- Finish Galvanized Steel
- Description Vented grill and solid plate
- Use With RH40000GY, LG
$15.44In stock
Buy now
Mesh Plug 316 SS 3R
- Finish Stainless Steel
- Description Vented grill only
- Use With RH40000SS
$34.05In stock
Buy now
Mesh & Snow Plug Galv Kit
- Finish Galvanized Steel
- Description Vented grill and solid plate
- Use With RH60000GY,LG
$21.52In stock
Buy now
Mesh Plug 316 SS
- Finish Stainless Steel
- Description Vented grill only
- Use With RH60000SS
$50.73In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · H | Overall Dimensions · W | Overall Dimensions · D | Use with | Finish | Price | Order |
|---|---|---|---|---|---|---|---|

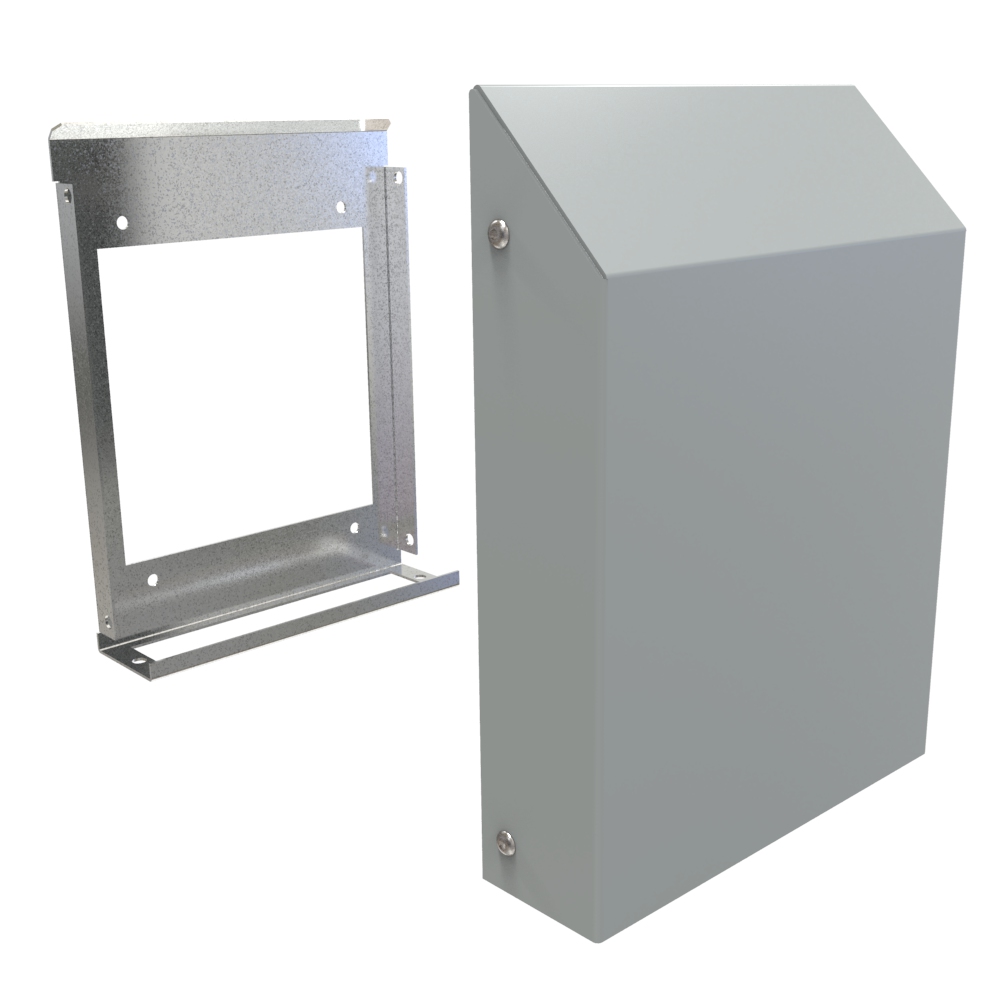

| RH20000GY | 10.44 | 7.77 | 2.17 | PF2000/PF22000 Series | ANSI 61 Gray | $79.29Backorder | Buy now |

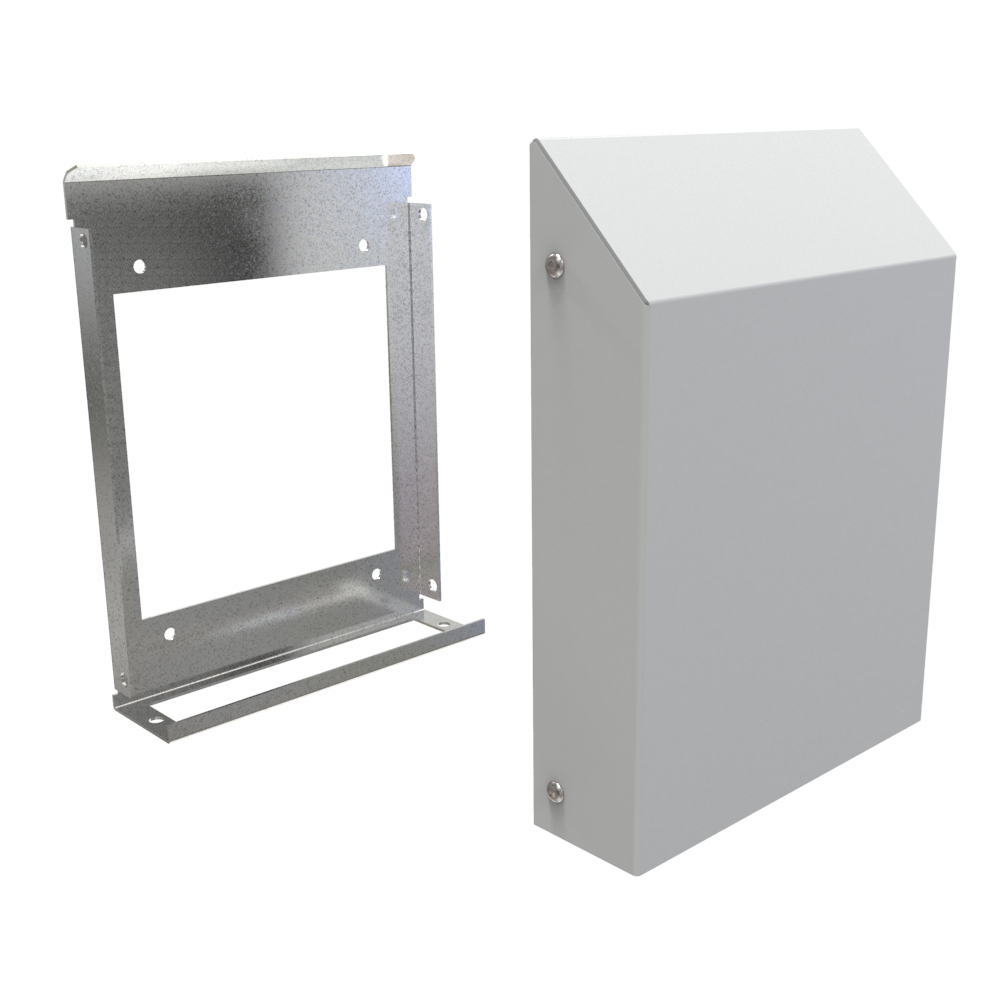

| RH20000LG | 10.44 | 7.77 | 2.17 | PF2000/PF22000 Series | RAL7035 | $79.29Backorder | Buy now |

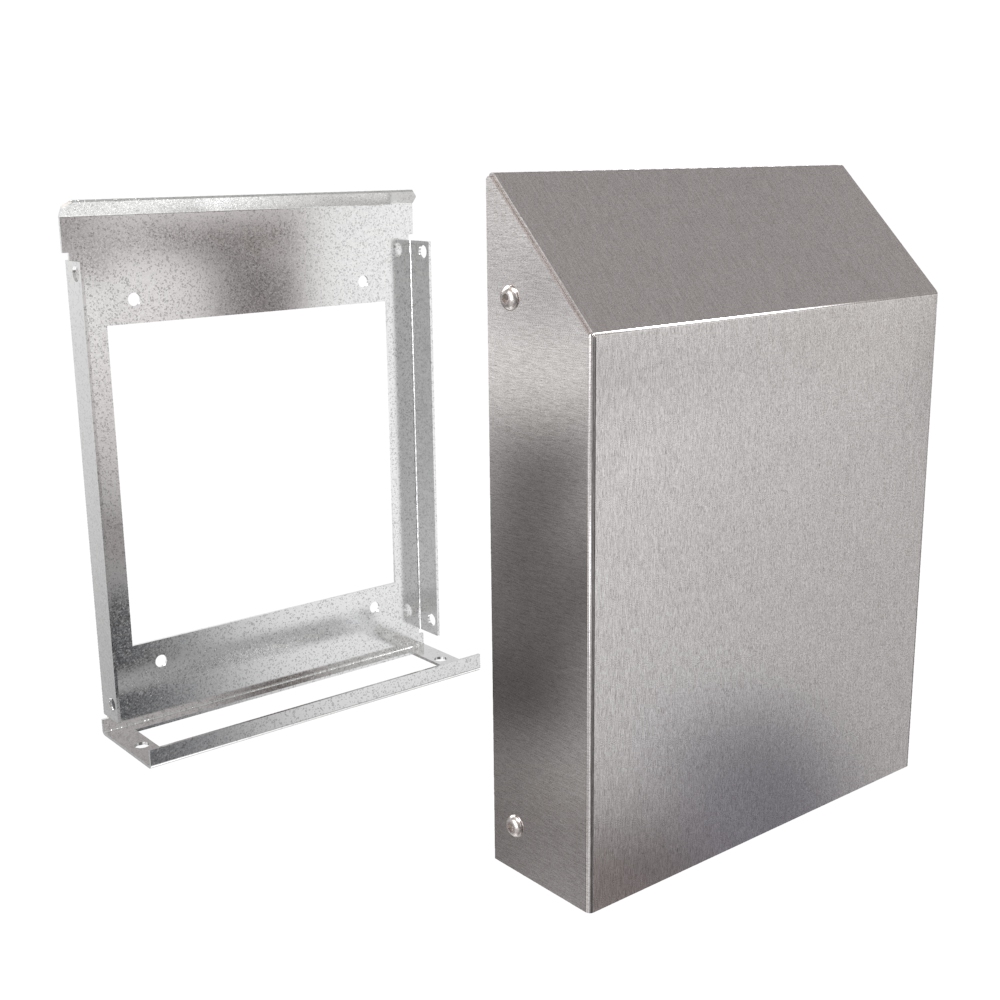

| RH20000SS | 10.44 | 7.77 | 2.17 | PF2000/PF22000 Series | Stainless Steel | $136.41In stock | Buy now |

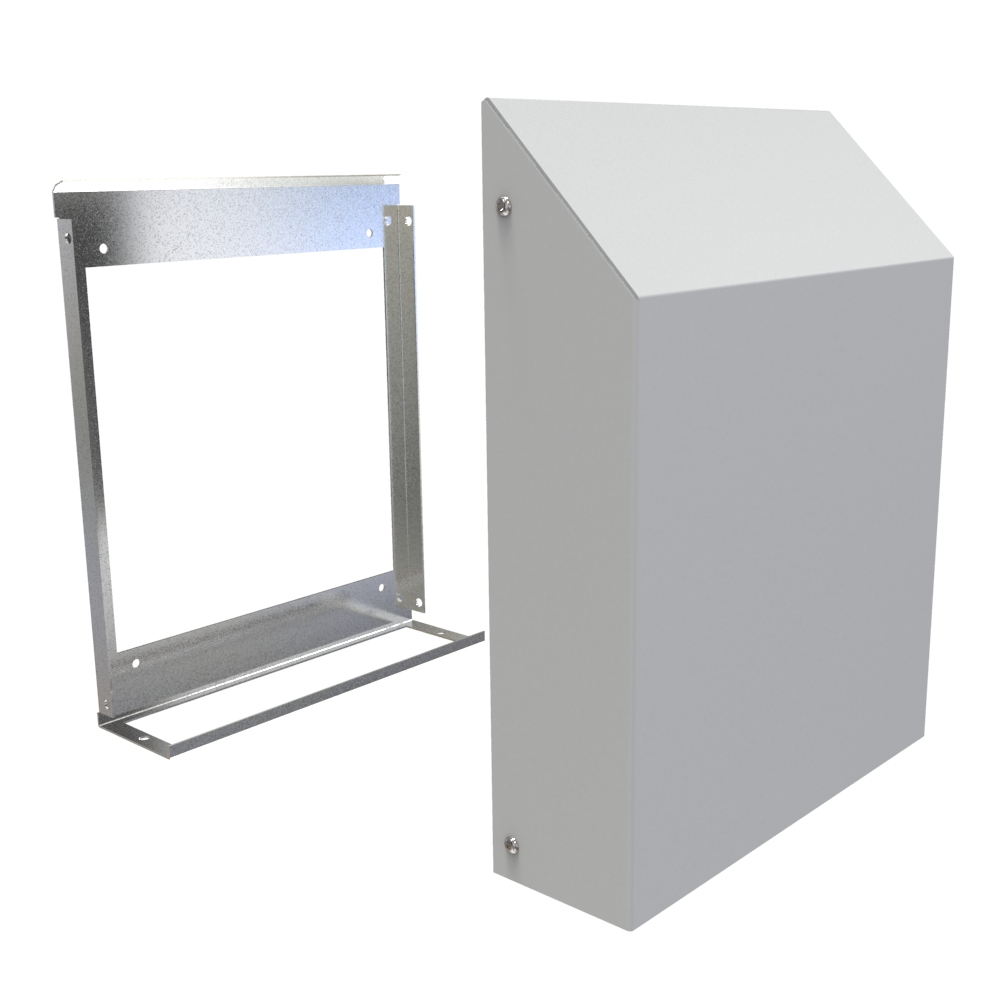

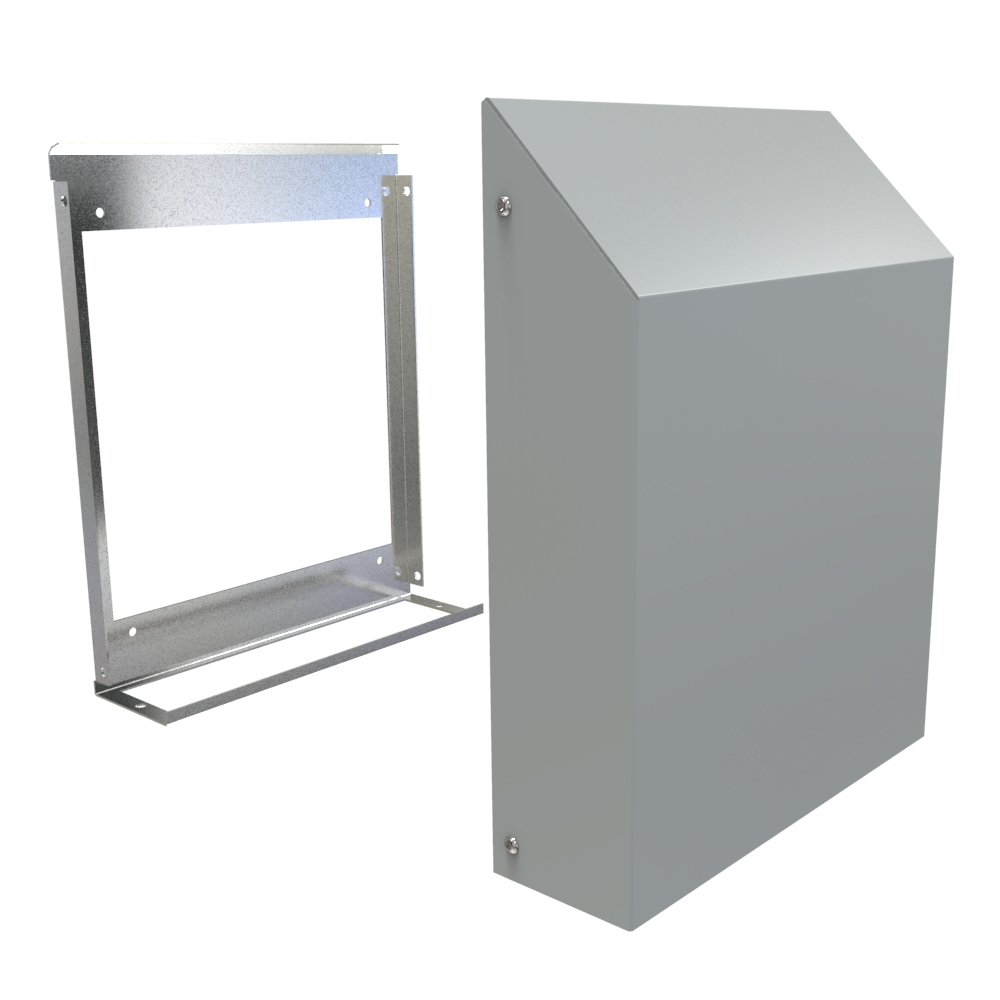

| RH40000GY | 14.57 | 11.71 | 3.35 | PF25, 30, 32, 43000 Series | ANSI 61 Gray | $88.64In stock | Buy now |
| RH40000LG | 14.57 | 11.71 | 3.35 | PF25, 30, 32, 43000 Series | RAL7035 | $88.64Backorder | Buy now |

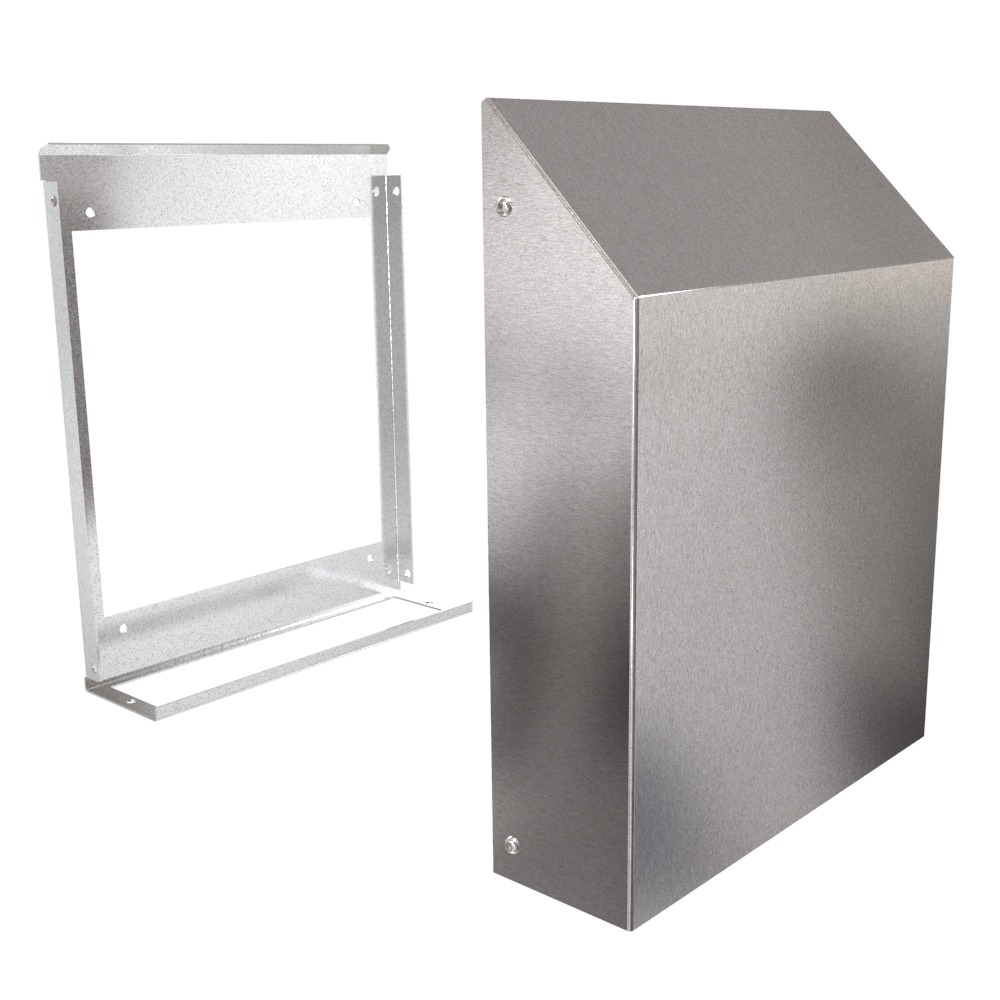

| RH40000SS | 14.57 | 11.71 | 3.35 | PF25, 30, 32, 43000 Series | Stainless Steel | $212.91Backorder | Buy now |

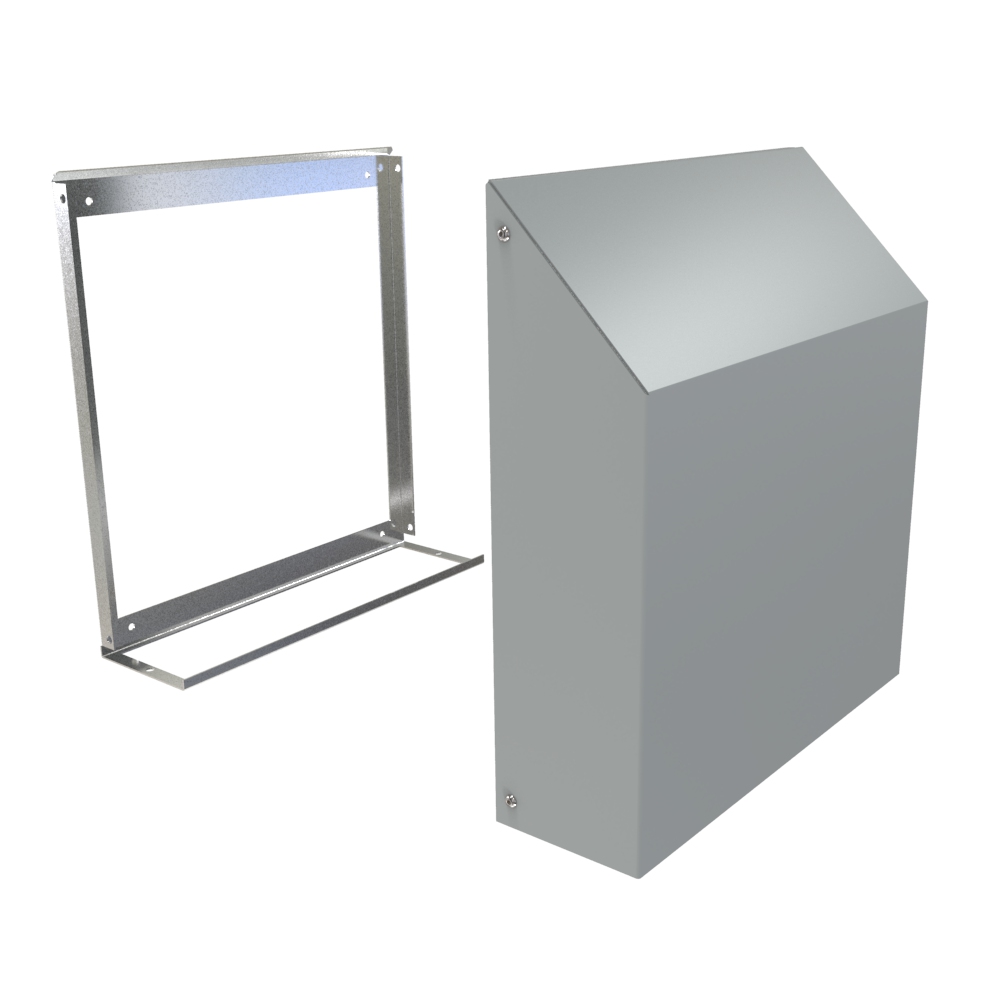

| RH60000GY | 15.88 | 14.66 | 4.33 | PF5,6,7000, 65, 67000 Series | ANSI 61 Gray | $97.98In stock | Buy now |

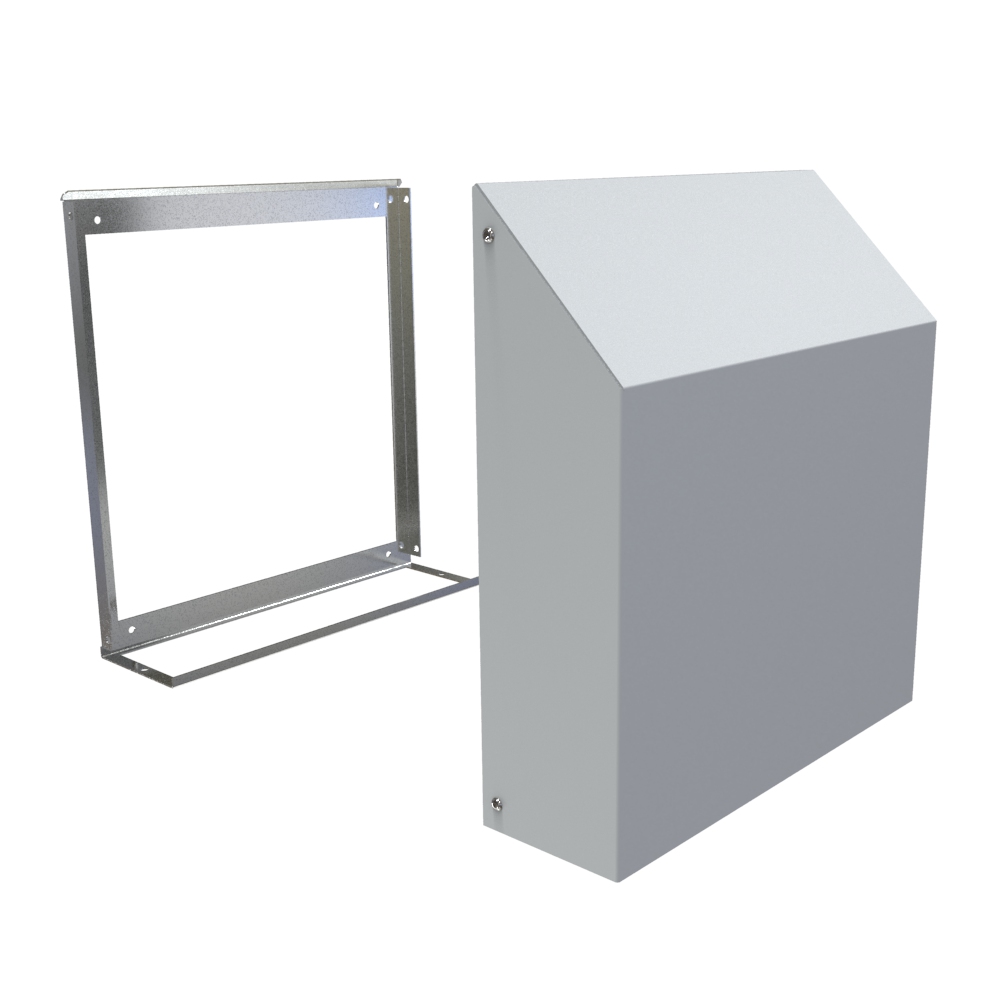

| RH60000LG | 15.88 | 14.66 | 4.33 | PF5,6,7000, 65, 67000 Series | RAL7035 | $97.98In stock | Buy now |

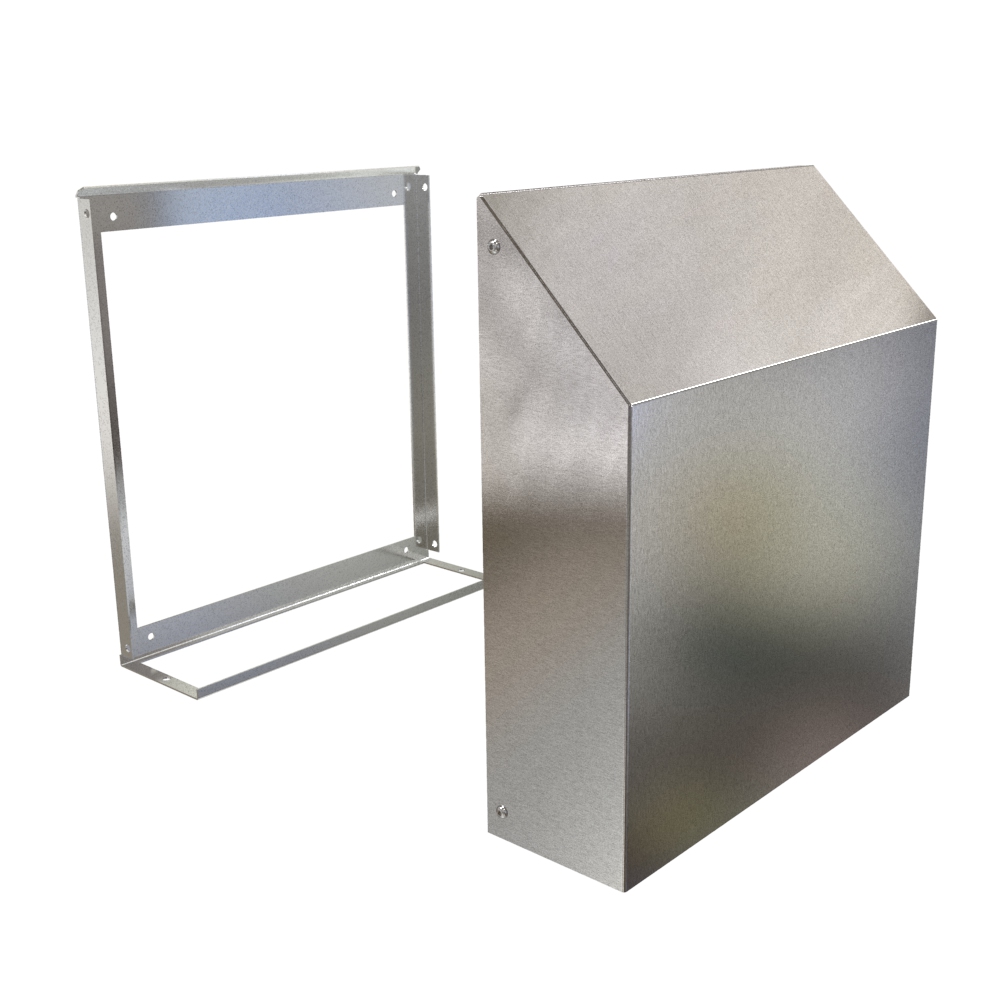

| RH60000SS | 15.88 | 14.66 | 4.33 | PF5,6,7000, 65, 67000 Series | Stainless Steel | $257.98In stock | Buy now |
Grill/Solid Cover Kit
| Part No. | Description | Use With | Finish | Price | Order |
|---|---|---|---|---|---|

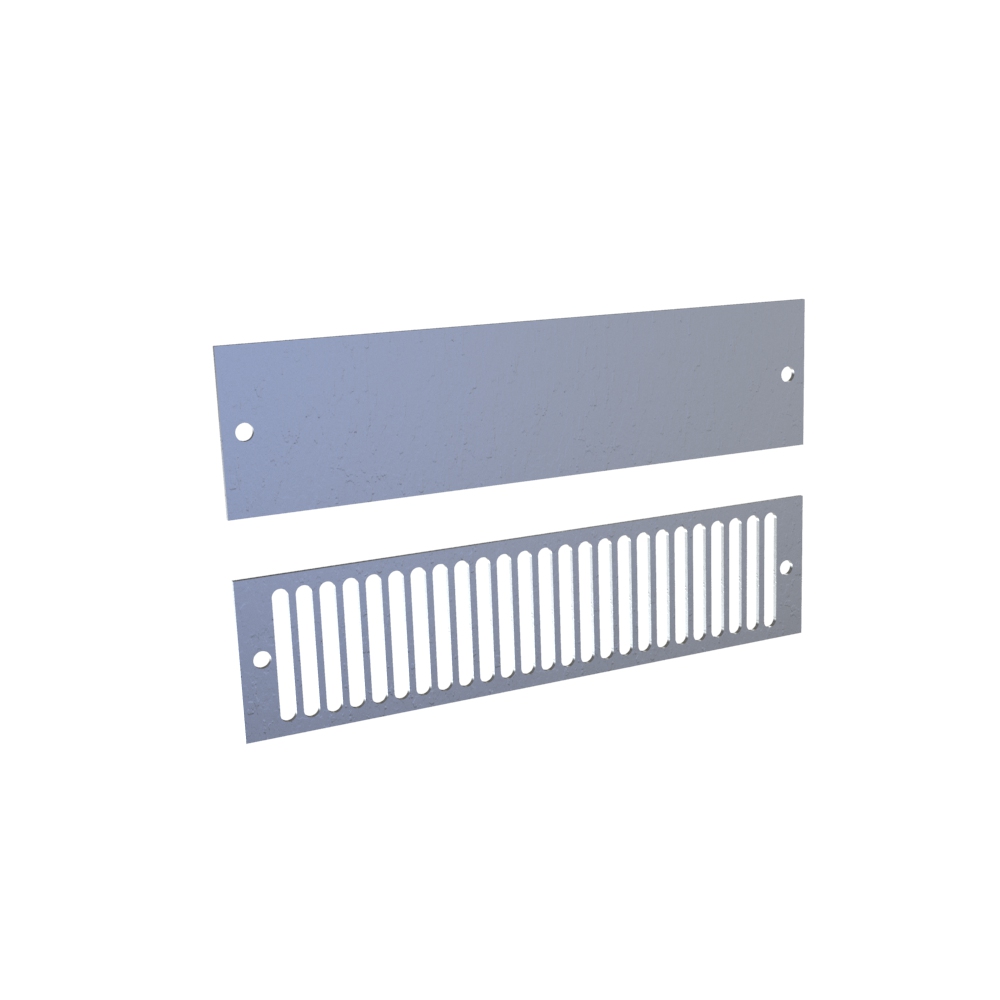

| RHA20000G | Vented grill and solid plate | RH20000GY,LG | Galvanized Steel | $11.59In stock | Buy now |

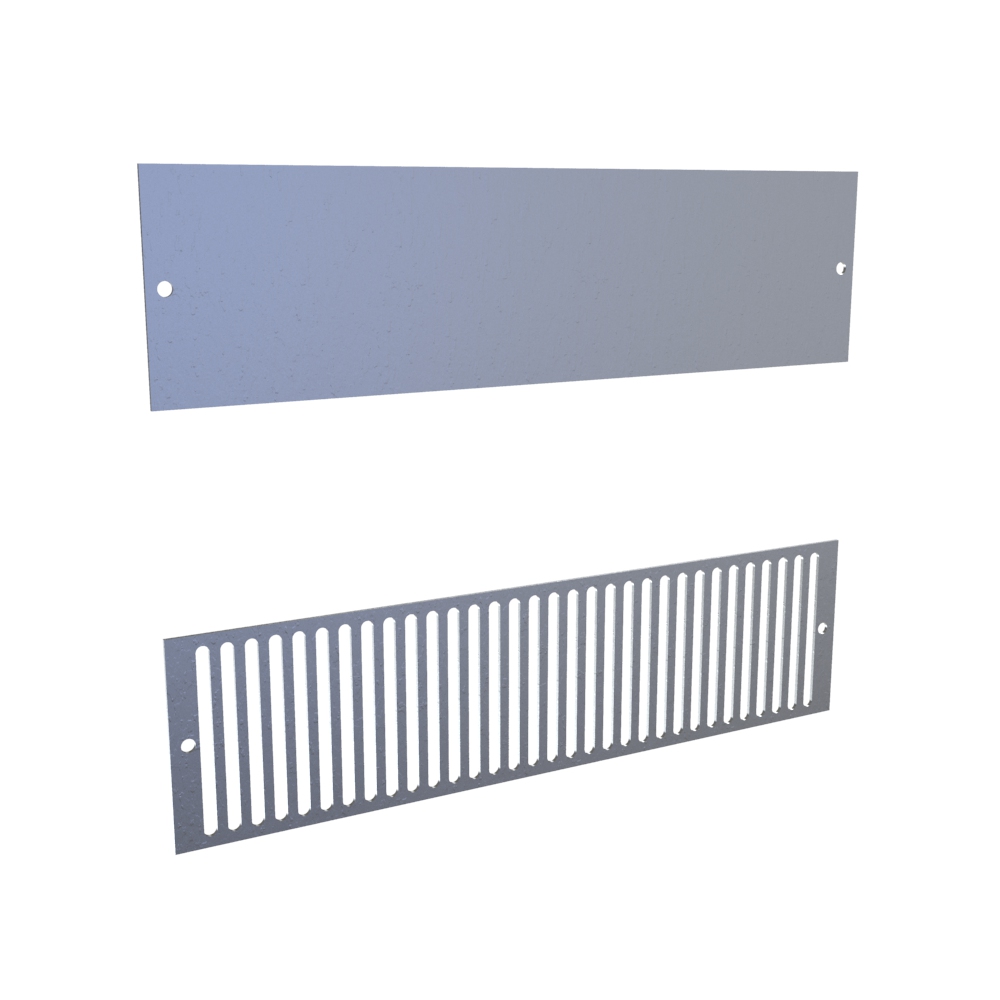

| RHA40000G | Vented grill and solid plate | RH40000GY, LG | Galvanized Steel | $15.44In stock | Buy now |

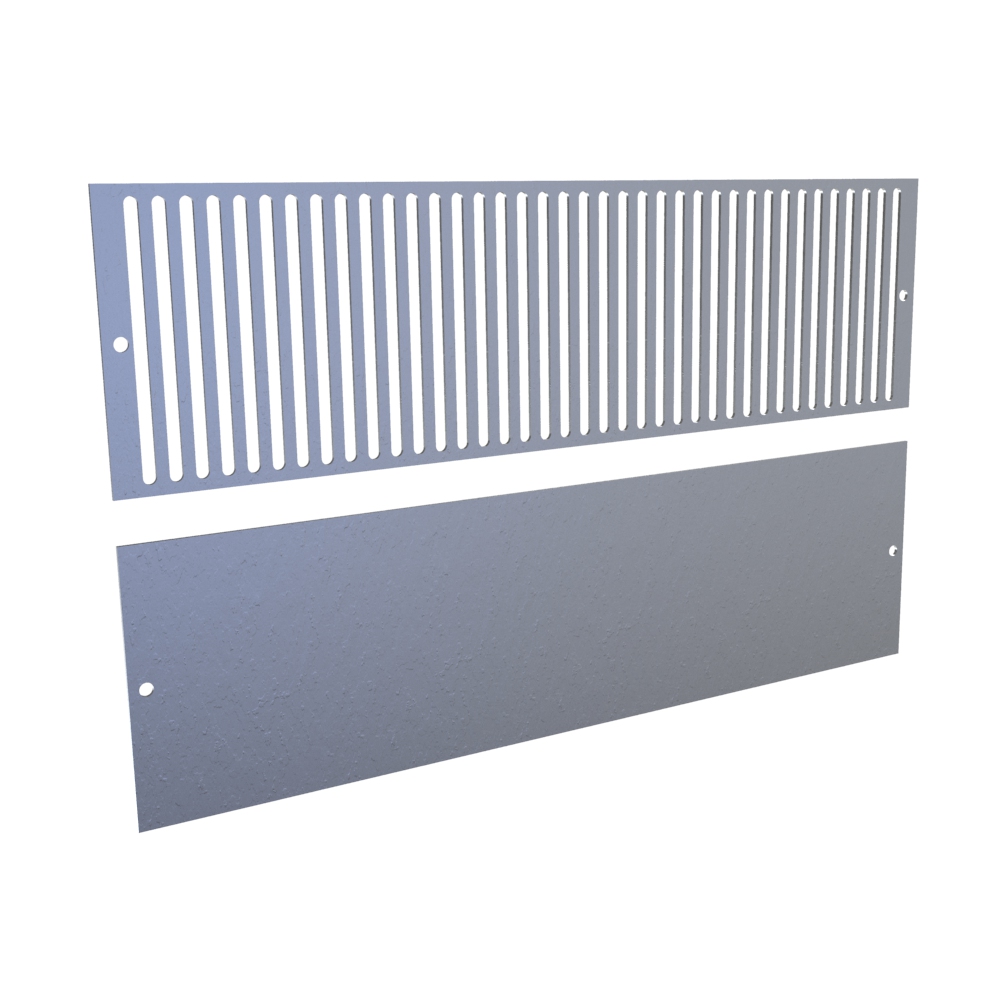

| RHA60000G | Vented grill and solid plate | RH60000GY,LG | Galvanized Steel | $21.52In stock | Buy now |

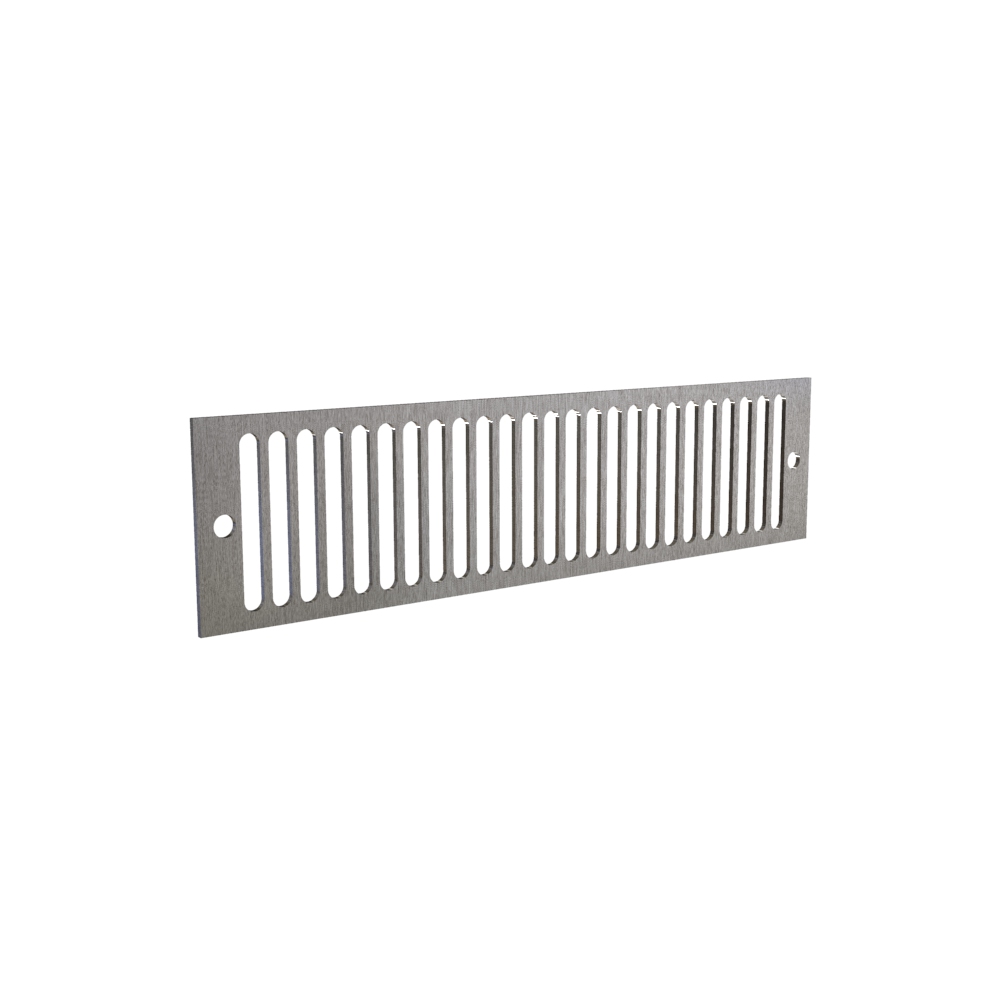

| RHA20000S16 | Vented grill only | RH20000SS | Stainless Steel | $21.88In stock | Buy now |

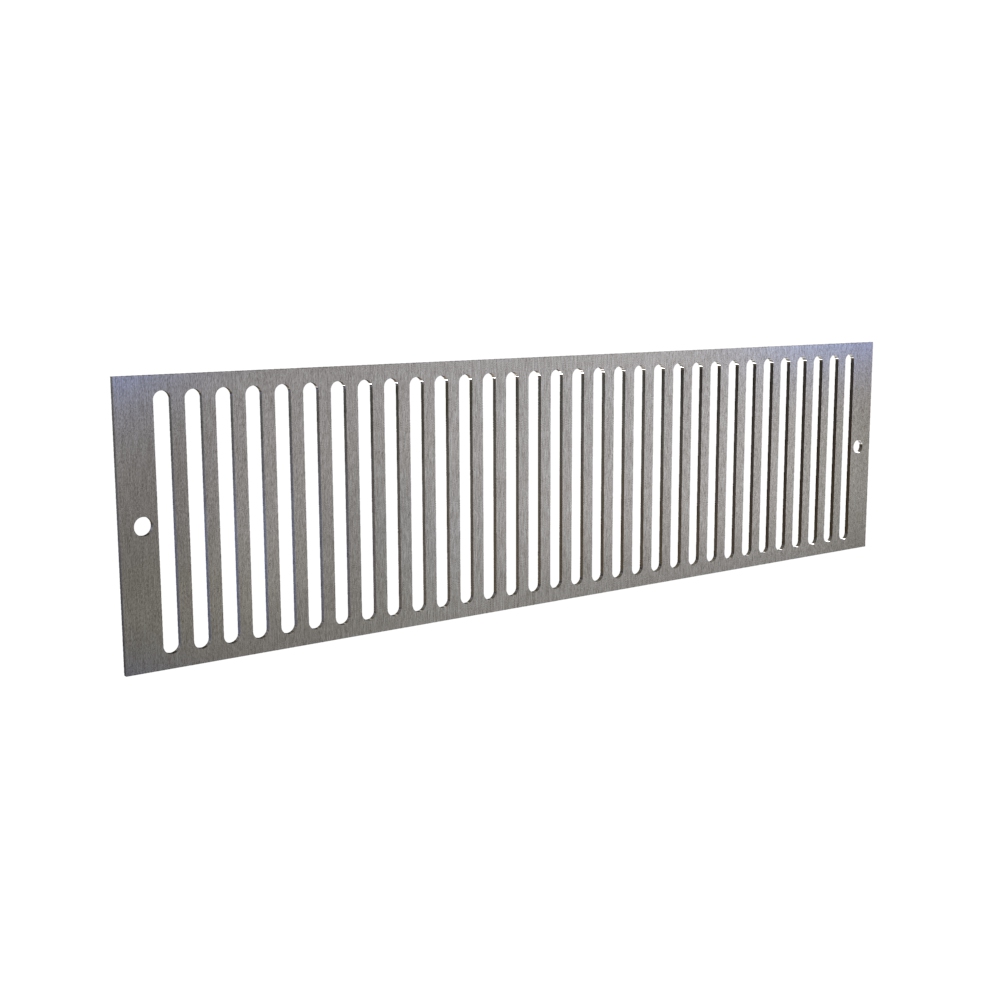

| RHA40000S16 | Vented grill only | RH40000SS | Stainless Steel | $34.05In stock | Buy now |

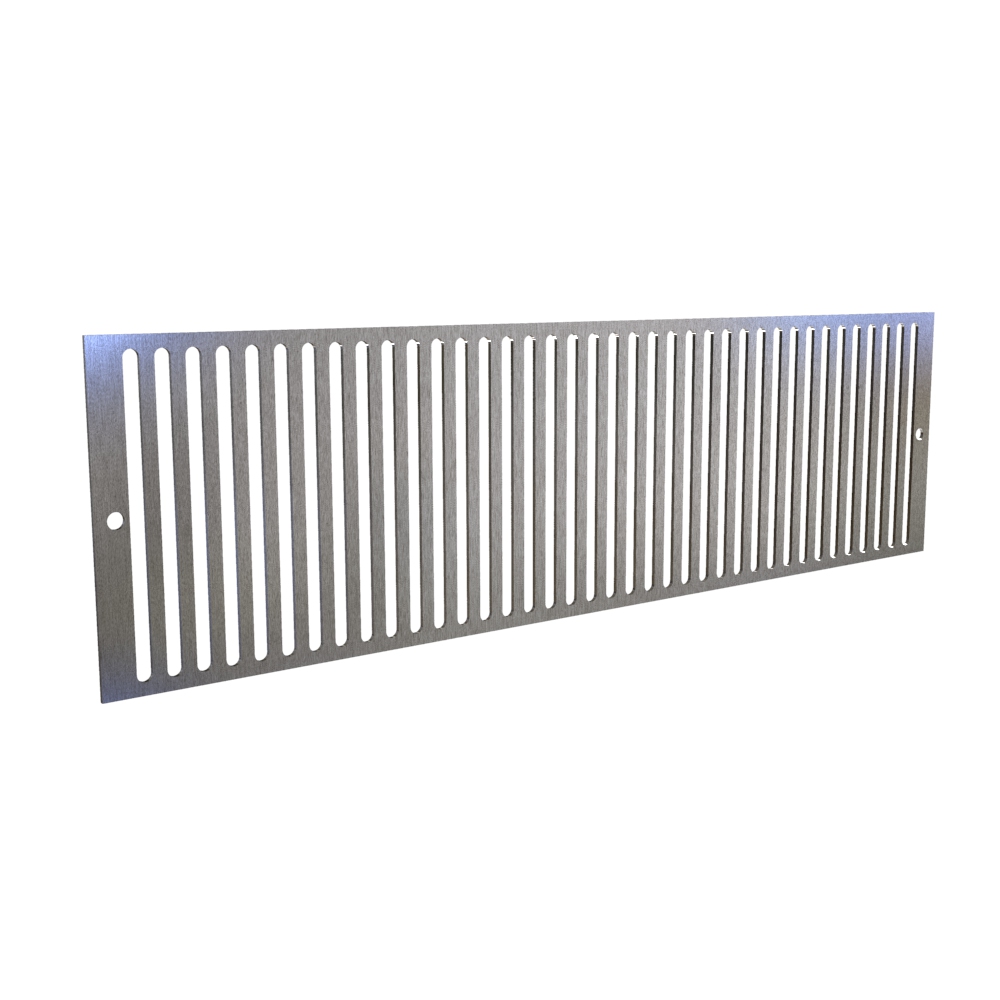

| RHA60000S16 | Vented grill only | RH60000SS | Stainless Steel | $50.73In stock | Buy now |
Application
- ■Type 3R / Outdoor Rainhoods
- ■Protection against rain and snow or large airborne debris
- ■Sold individually
Features
- ■Easy installation
- ■Covers many externally mounted Fans & Grills
- ■Fits PF2000/PF22000 thru PF5/6/7000 series Filterfans
- ■Tamperproof hardware and sealing gasket provided
Standards
- ■UL 508A type 3R
- ■CSA C22.2 #94-M1
Finish
- ■Cover offered in ANSI61 gray or RAL7035 light gray powder coated finish on mild steel. Base in Galvanized sheet steel.
- ■Also offered in stainless steel 304 #4 finish
Grill/Solid Cover Kit
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Offered in galvanized steel and stainless steel versions
- ■Can be installed in bottom opening of rain hood
- ■Grill allows ventilation while preventing unwanted entry of large contaminants
- ■Solid cover allows sealing of opening when fan/filter not in use (offered only with the galvanized steel kits)
Documents
Additional information
Part Details
| Part No. | Overall Dimensions · H | Overall Dimensions · W | Overall Dimensions · D | Use with | Finish |
|---|---|---|---|---|---|
| RH20000GY | 10.44 | 7.77 | 2.17 | PF2000/PF22000 Series | ANSI 61 Gray |
| RH20000LG | 10.44 | 7.77 | 2.17 | PF2000/PF22000 Series | RAL7035 |
| RH20000SS | 10.44 | 7.77 | 2.17 | PF2000/PF22000 Series | Stainless Steel |
| RH40000GY | 14.57 | 11.71 | 3.35 | PF25, 30, 32, 43000 Series | ANSI 61 Gray |
| RH40000LG | 14.57 | 11.71 | 3.35 | PF25, 30, 32, 43000 Series | RAL7035 |
| RH40000SS | 14.57 | 11.71 | 3.35 | PF25, 30, 32, 43000 Series | Stainless Steel |
| RH60000GY | 15.88 | 14.66 | 4.33 | PF5,6,7000, 65, 67000 Series | ANSI 61 Gray |
| RH60000LG | 15.88 | 14.66 | 4.33 | PF5,6,7000, 65, 67000 Series | RAL7035 |
| RH60000SS | 15.88 | 14.66 | 4.33 | PF5,6,7000, 65, 67000 Series | Stainless Steel |
Grill/Solid Cover Kit
| Part No. | Description | Use With | Finish |
|---|---|---|---|
| RHA20000G | Vented grill and solid plate | RH20000GY,LG | Galvanized Steel |
| RHA40000G | Vented grill and solid plate | RH40000GY, LG | Galvanized Steel |
| RHA60000G | Vented grill and solid plate | RH60000GY,LG | Galvanized Steel |
| RHA20000S16 | Vented grill only | RH20000SS | Stainless Steel |
| RHA40000S16 | Vented grill only | RH40000SS | Stainless Steel |
| RHA60000S16 | Vented grill only | RH60000SS | Stainless Steel |
