Rack Cabinet Fan Top Panel with Cooling and Cable Entry Options · C2TF Series

Key Features and Benefits

The C2TF Series fan top panels provide a flexible solution for managing airflow, cooling, and cable entry in rack cabinets. Designed as a configurable platform, the series supports multiple configurations including open fan cutouts, passive venting, and fully integrated pre-wired fan systems.

Unlike standard top panels, the C2TF Series allows users to customize their cooling strategy. Open cutouts can be used for cable entry or fitted with fans, while pre-wired options provide active cooling for high-density environments. This flexibility makes the C2TF Series ideal for applications requiring scalable thermal management and adaptable cabinet configurations.

• ■14-gauge steel construction provides durable enclosure protection and long-term reliability.

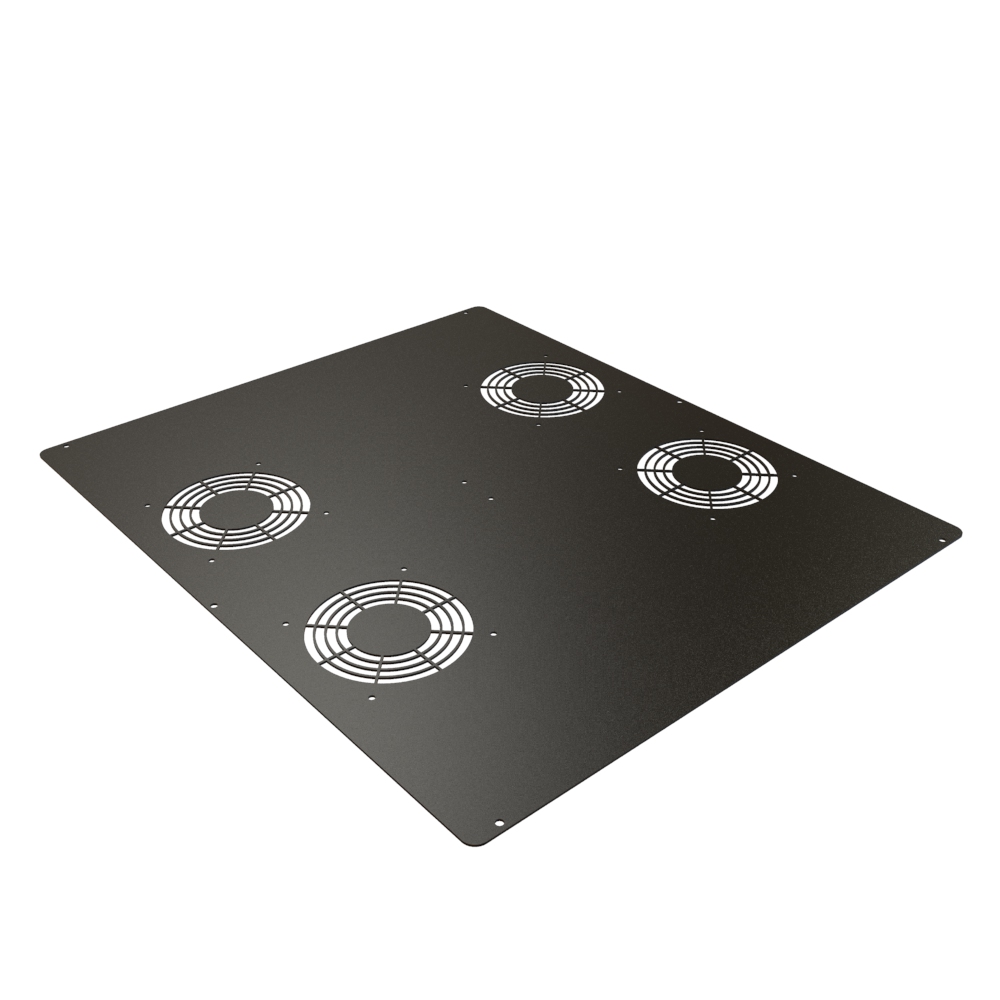

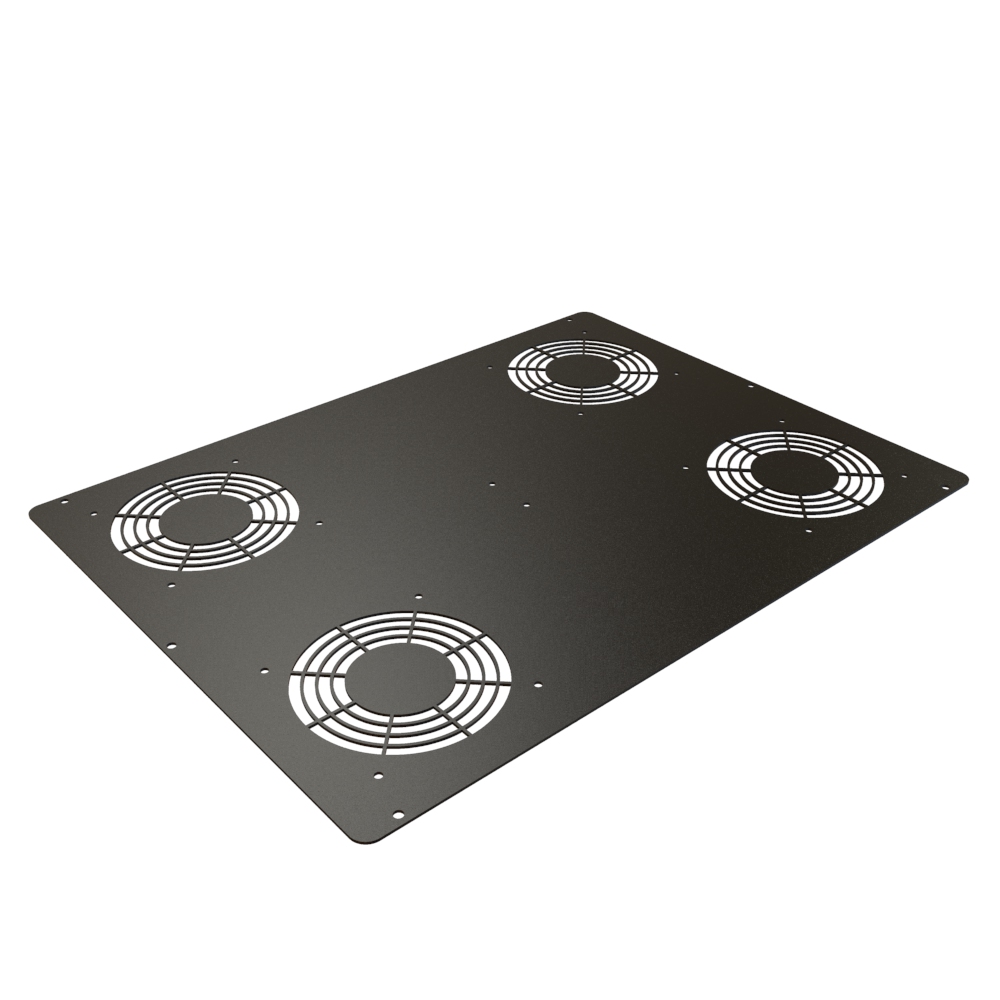

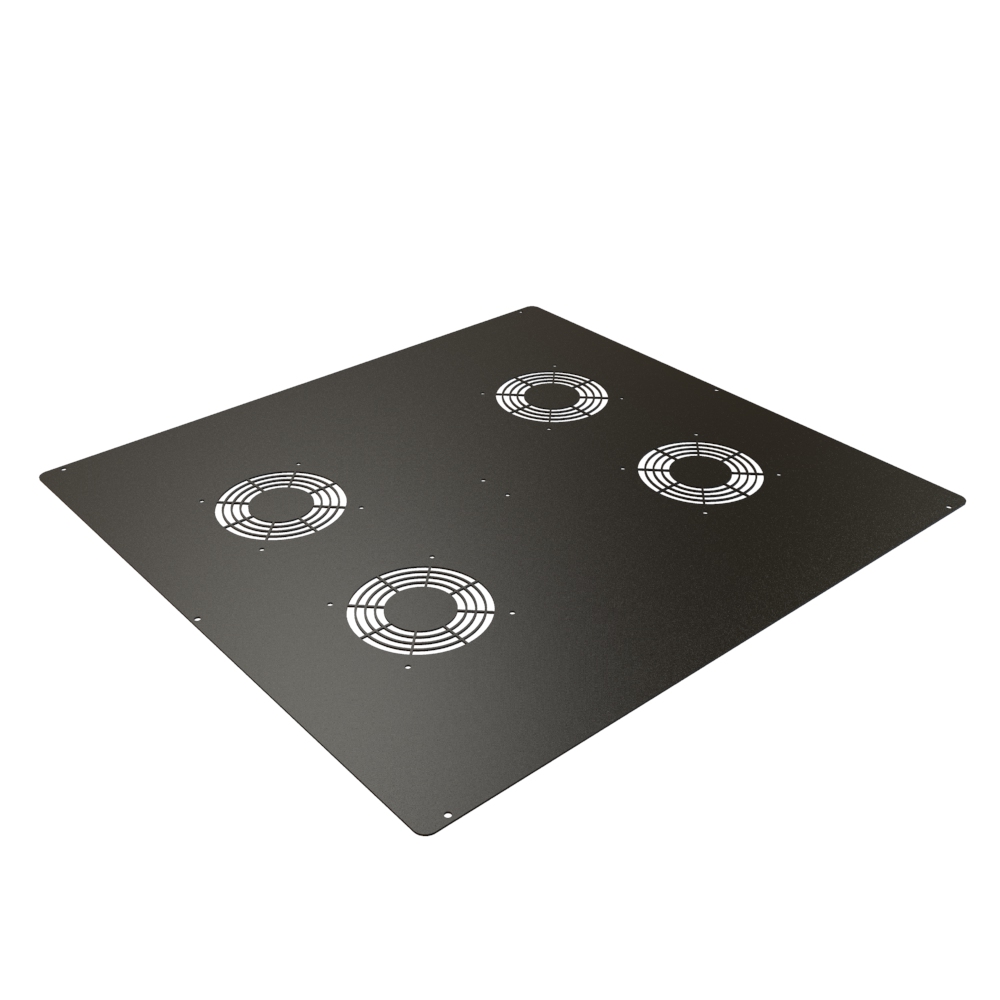

• ■Modular design supports multiple configurations including fan cutouts, fan grills, and pre-wired fan assemblies.

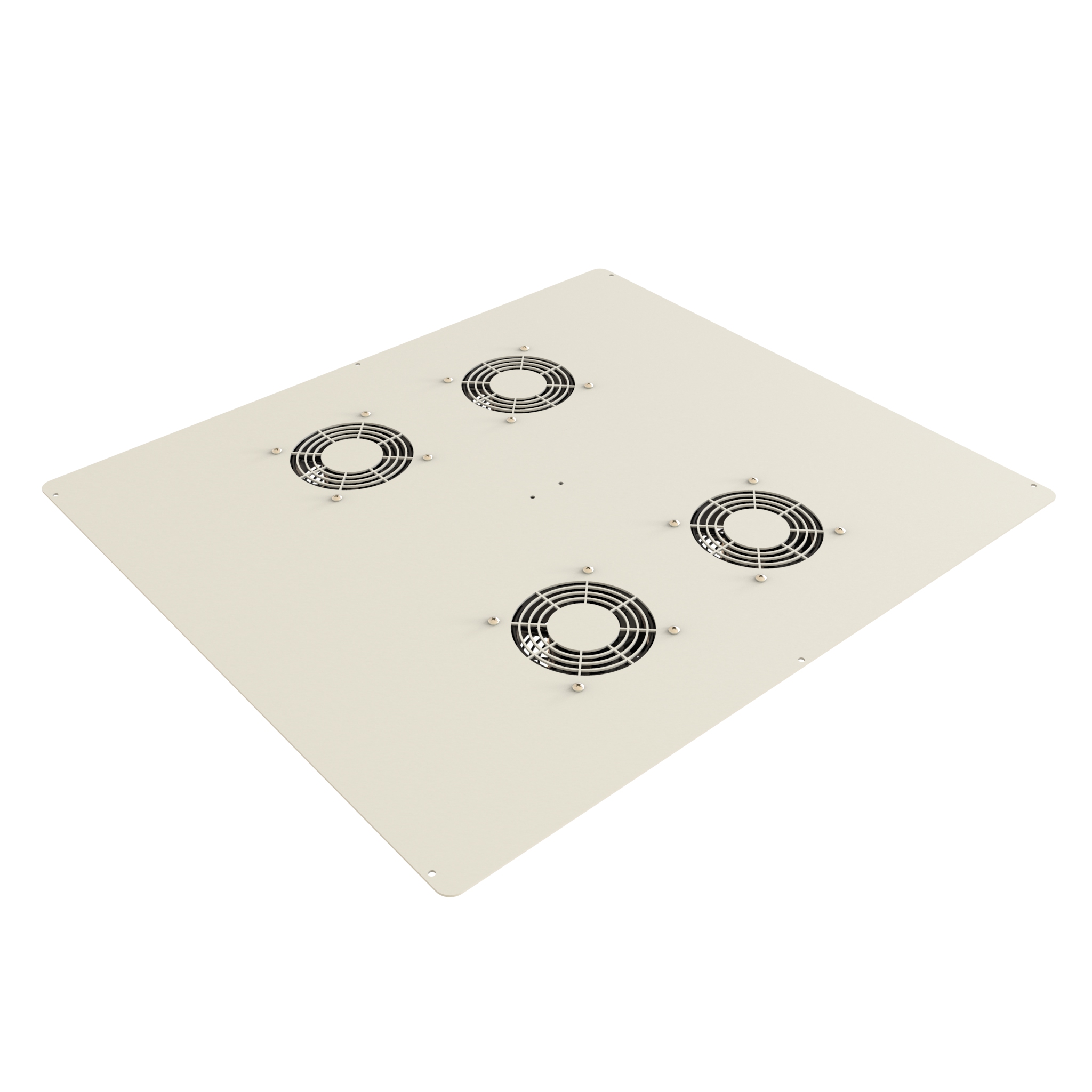

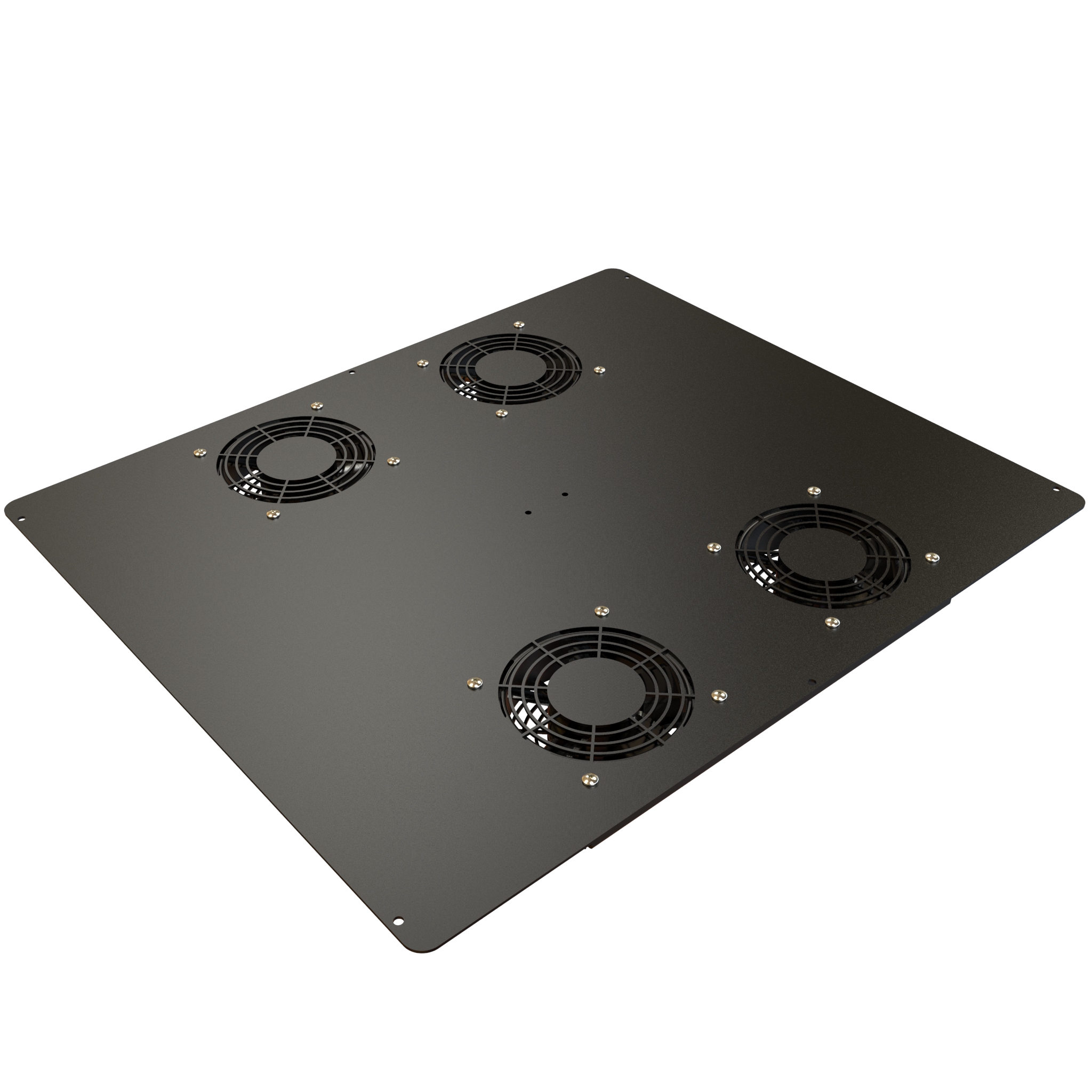

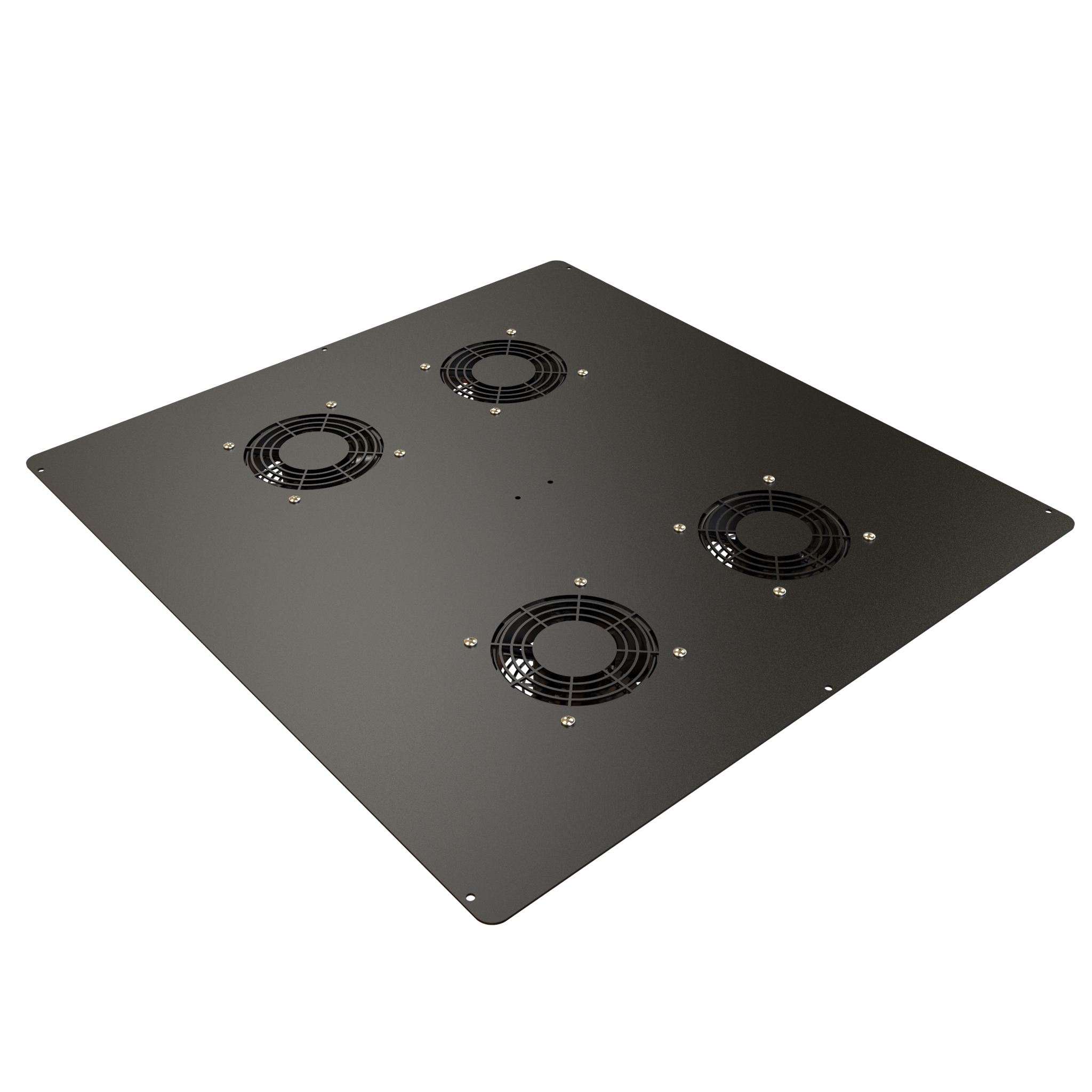

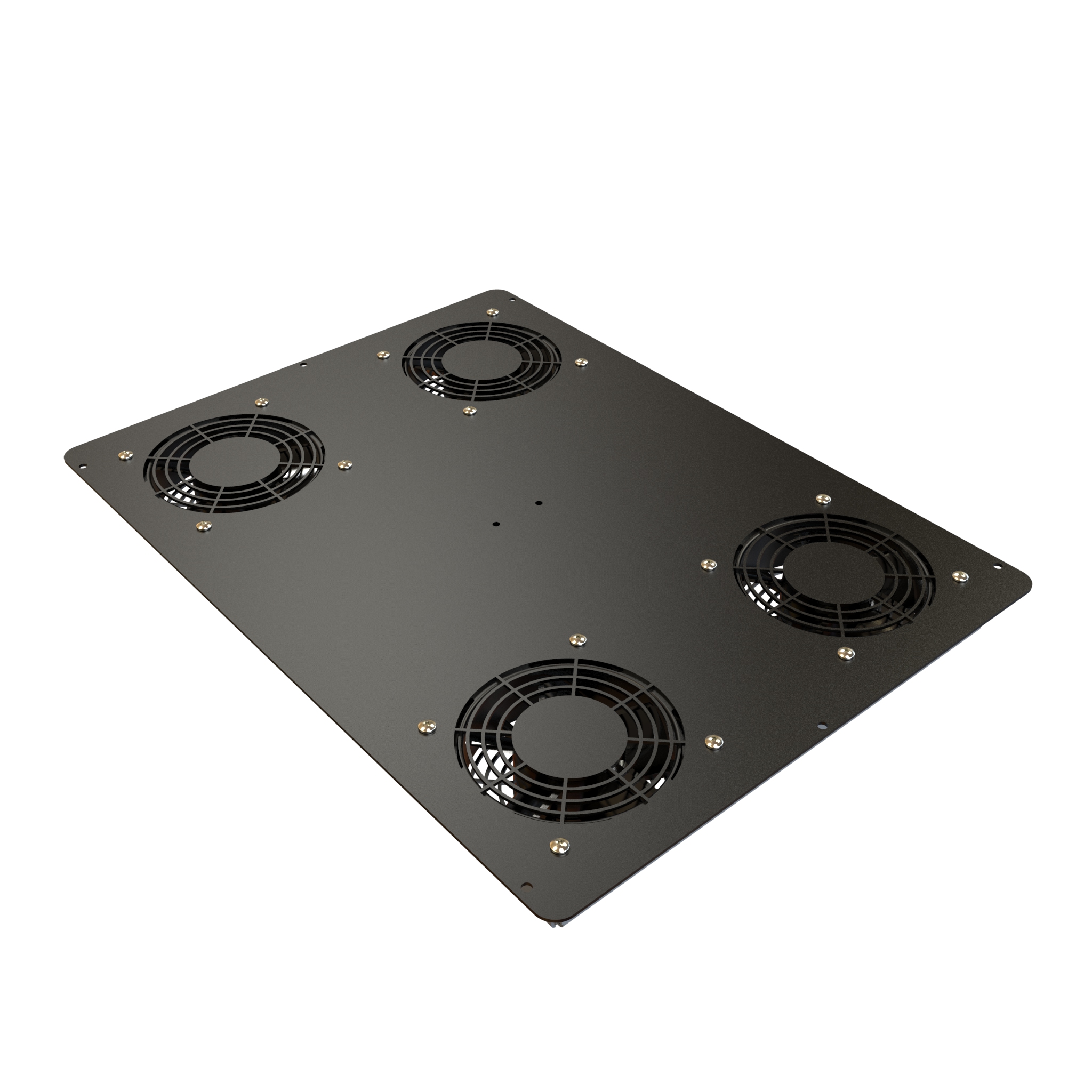

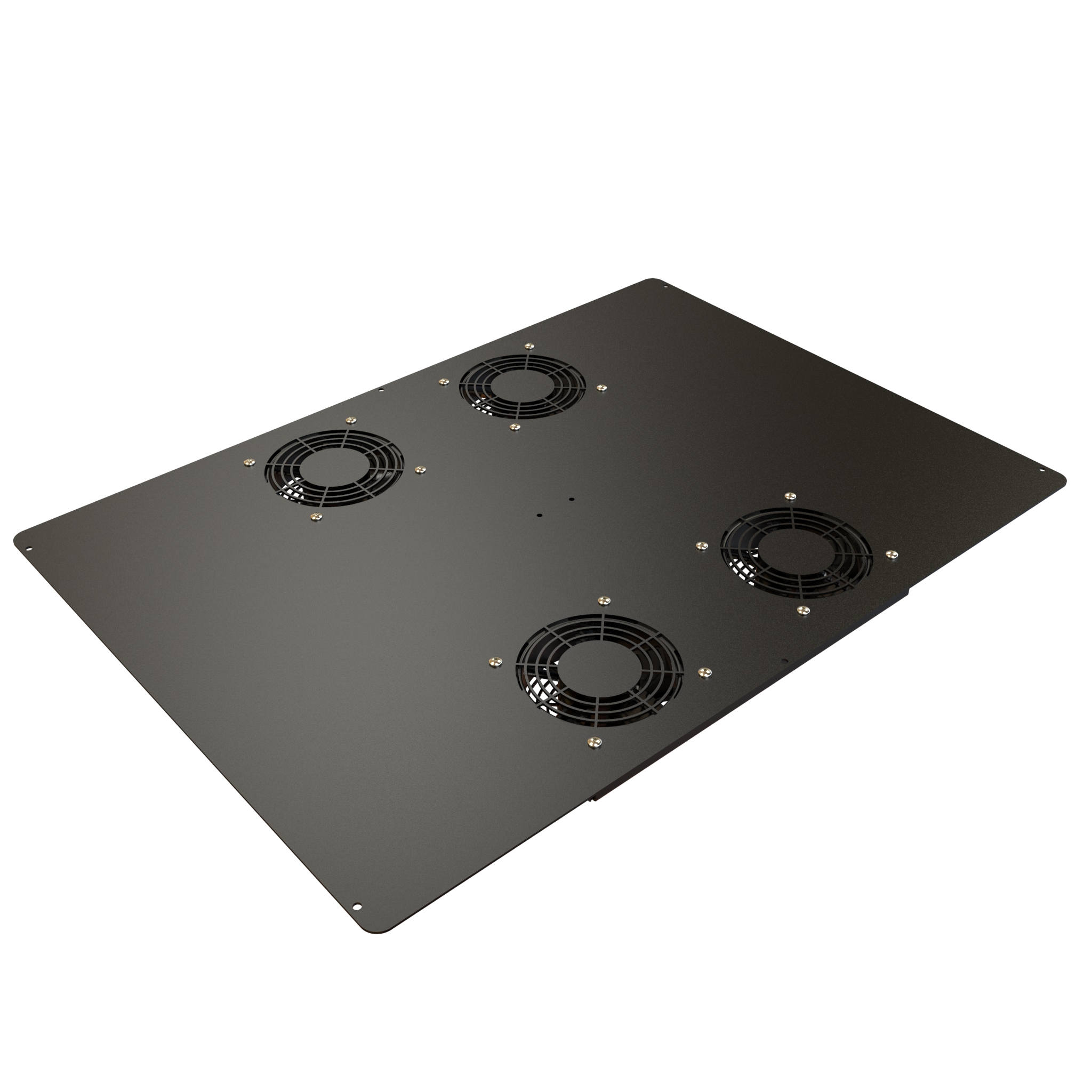

• ■Pre-wired fan options available with (4) 4-inch fans or (1) 10-inch fan for active cooling.
• ■Optional thermostat-controlled versions provide automatic temperature-based cooling.
• ■Select models include cable entry holes with grommets for combined cooling and cable routing.
• ■Includes CLPKIT832-6 cabinet mounting hardware for quick installation.
• ■Designed for use with C2 , C2RR , C4 , C4RR_A , C4RR_S , C4RR_D , H1 , RCK or CLC cabinet series. H1 requires H1TC Series for mounting.
• ■H1 requires H1TC Series for mounting.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black or light gray powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

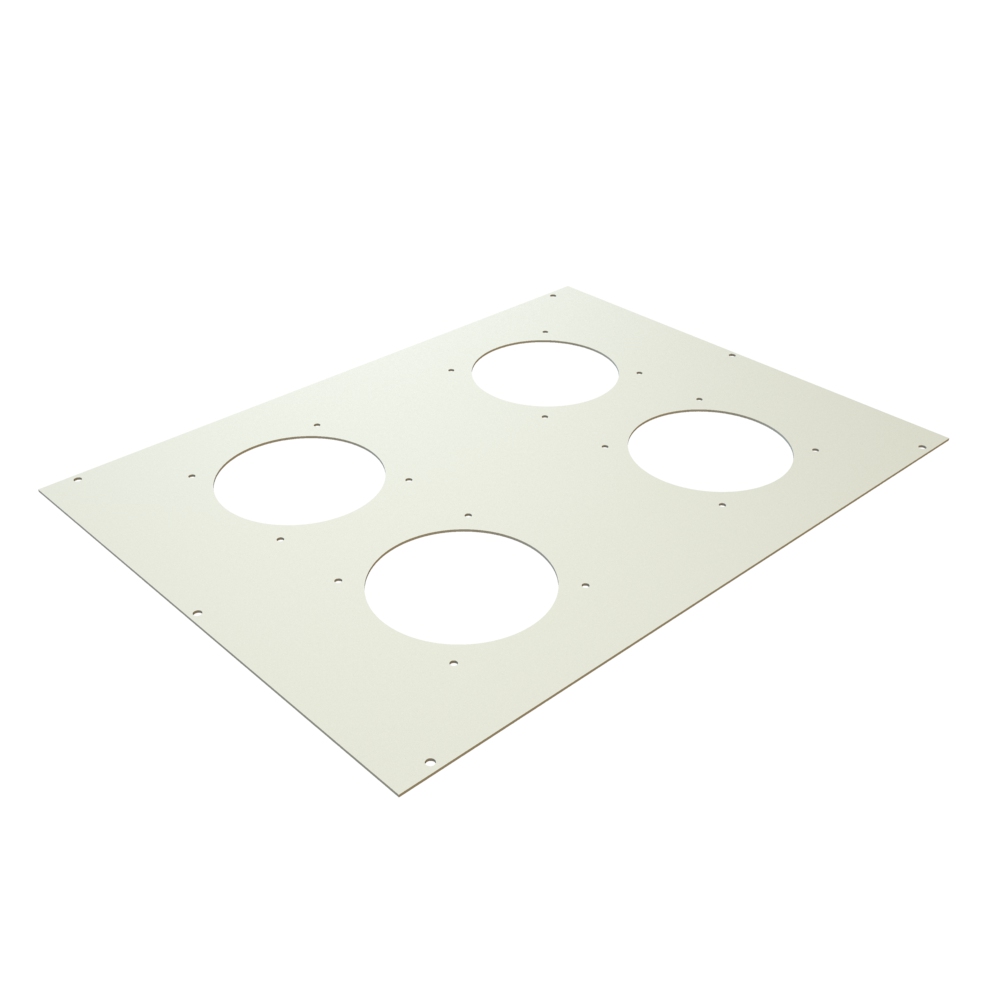

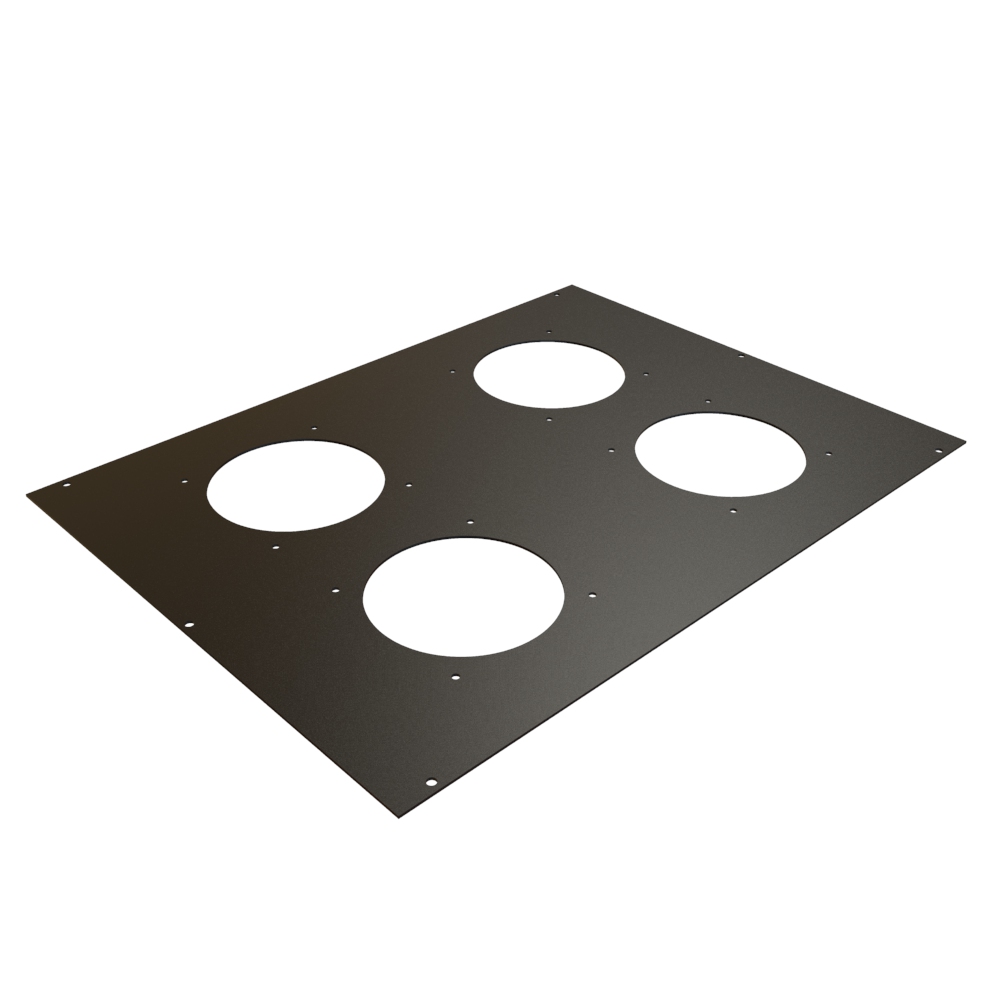

• ■4" fan top panel - fans not included ( DNFK4AC120 Sold separately).

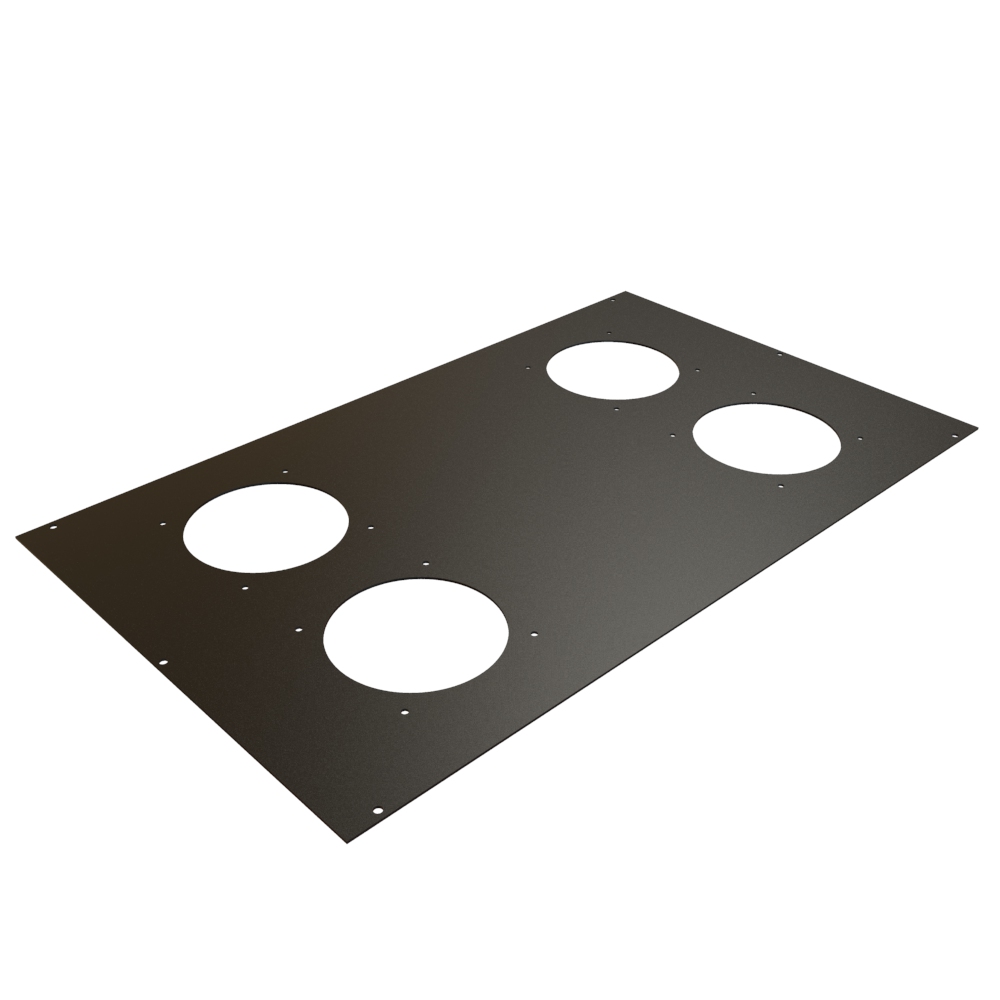

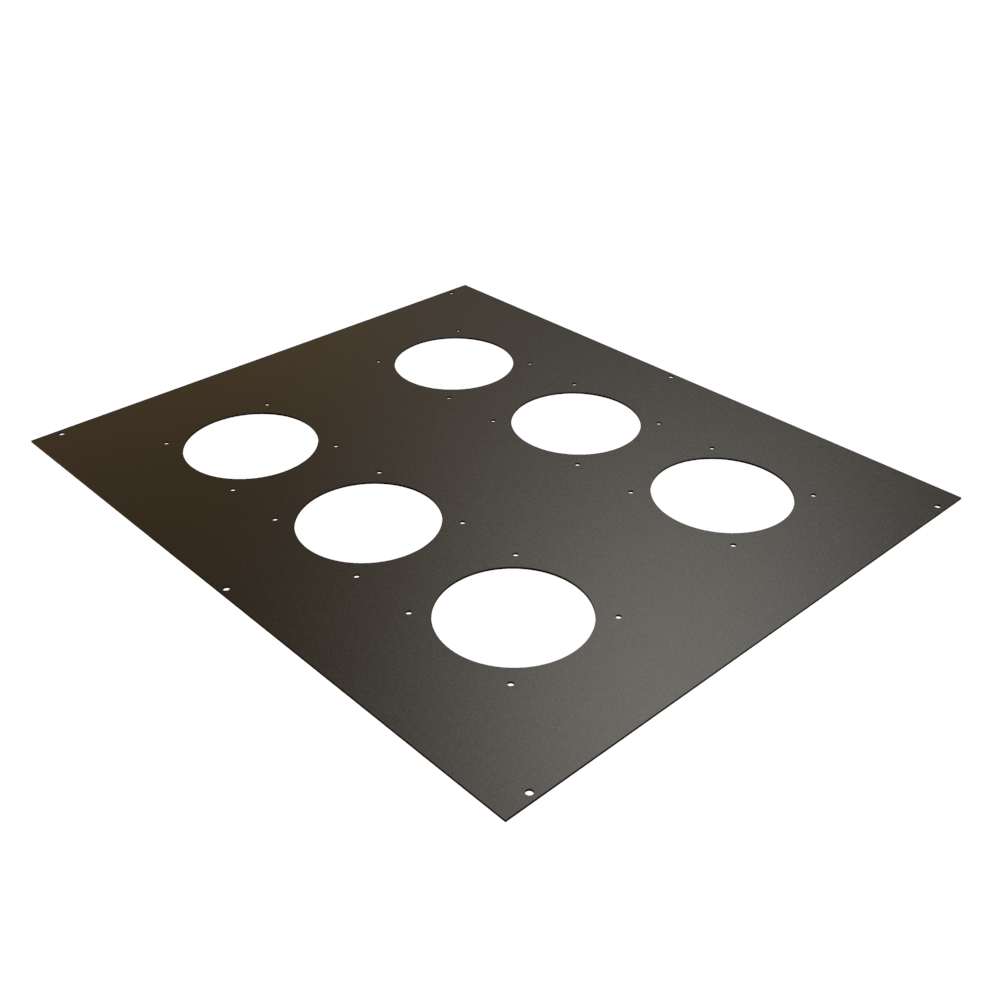

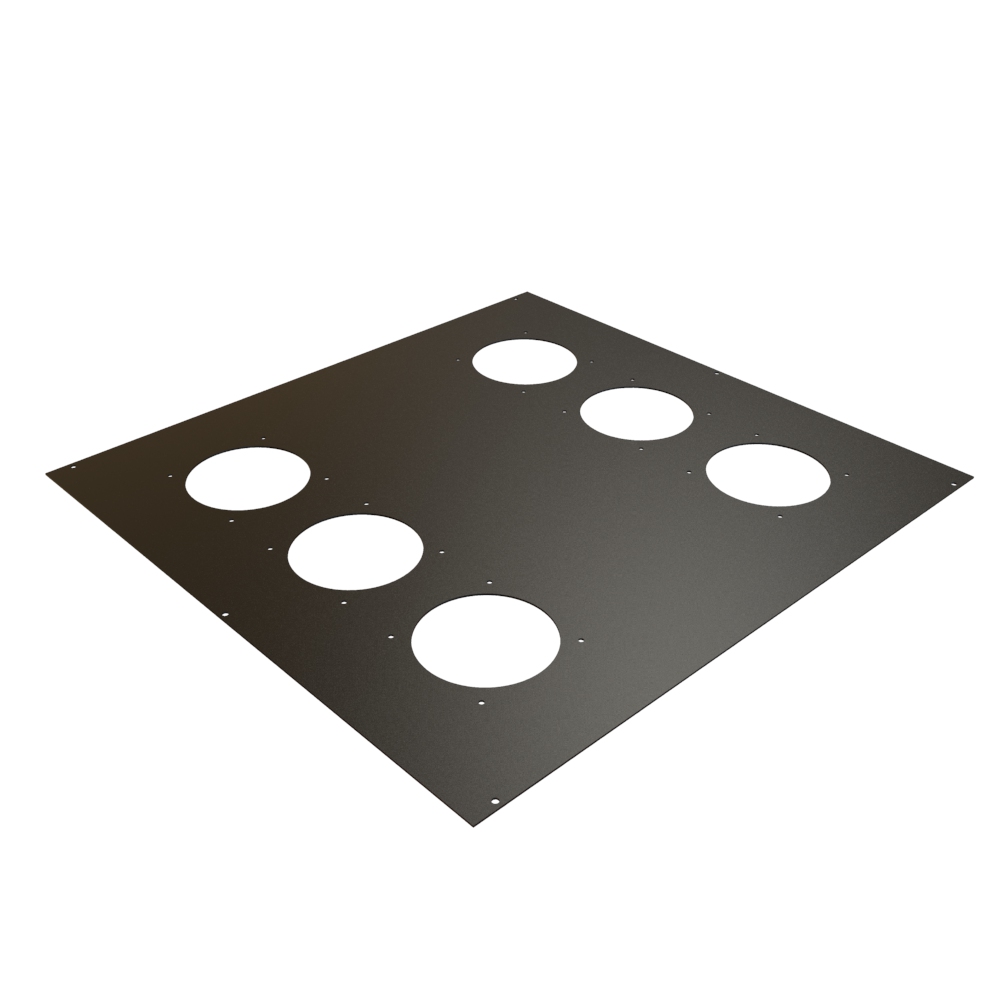

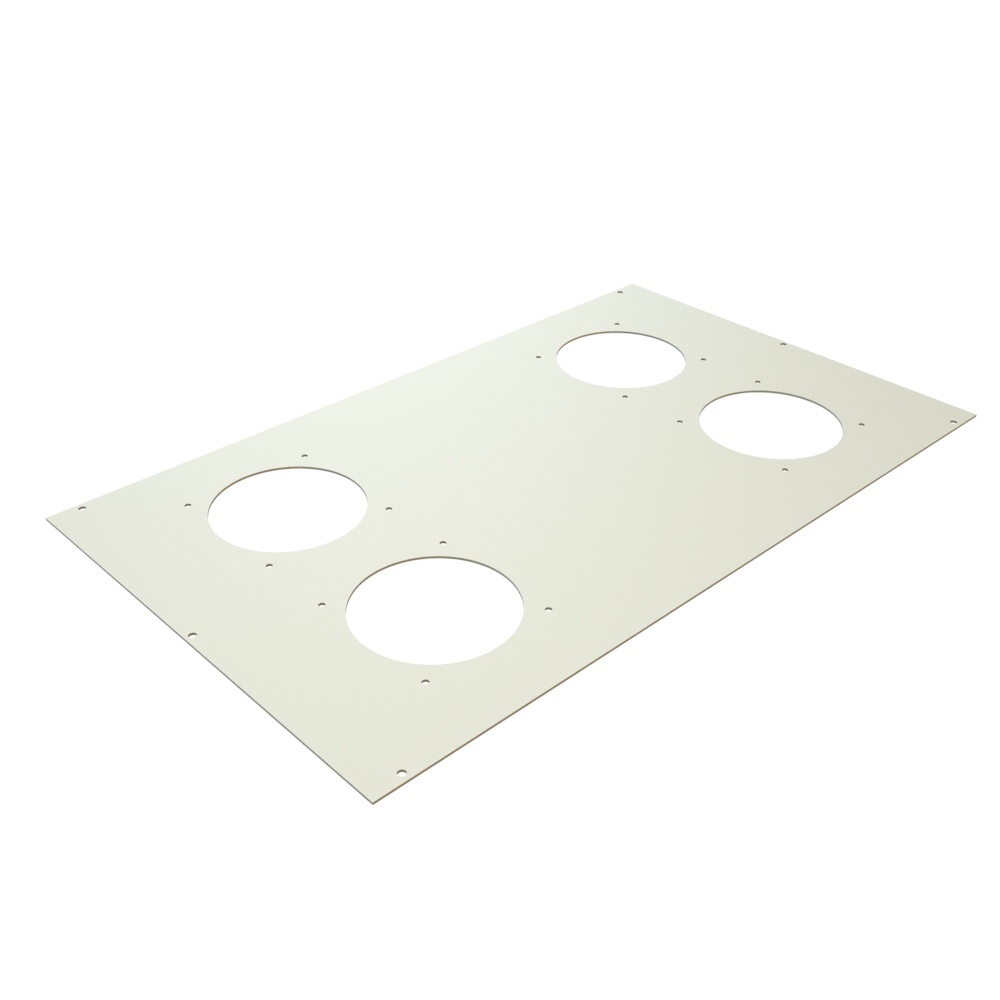

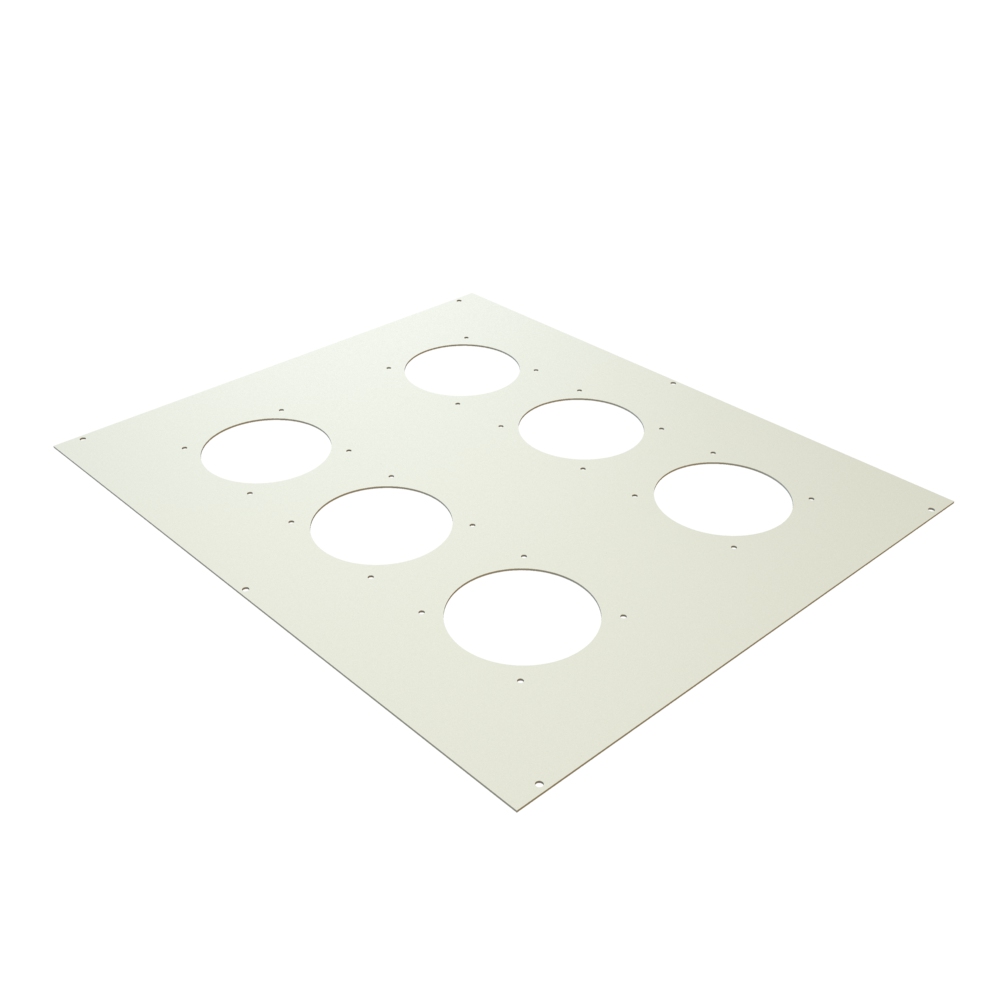

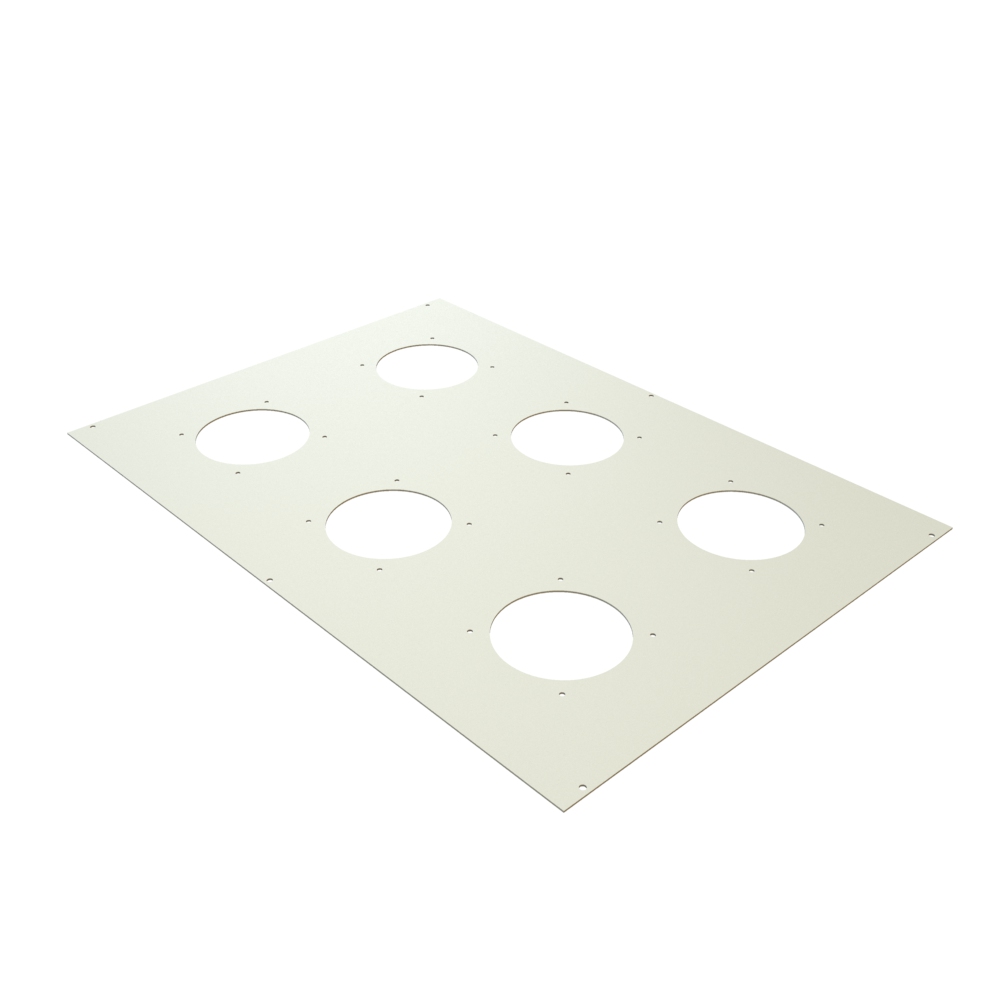

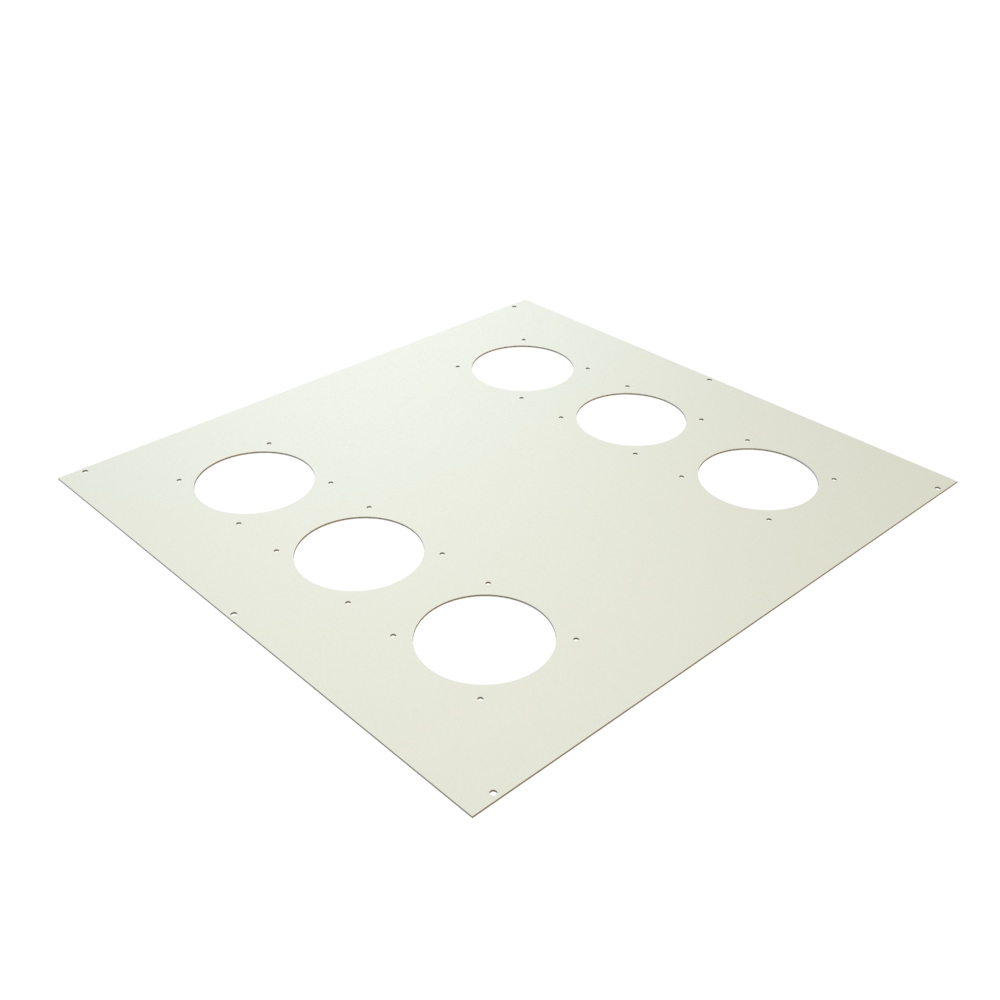

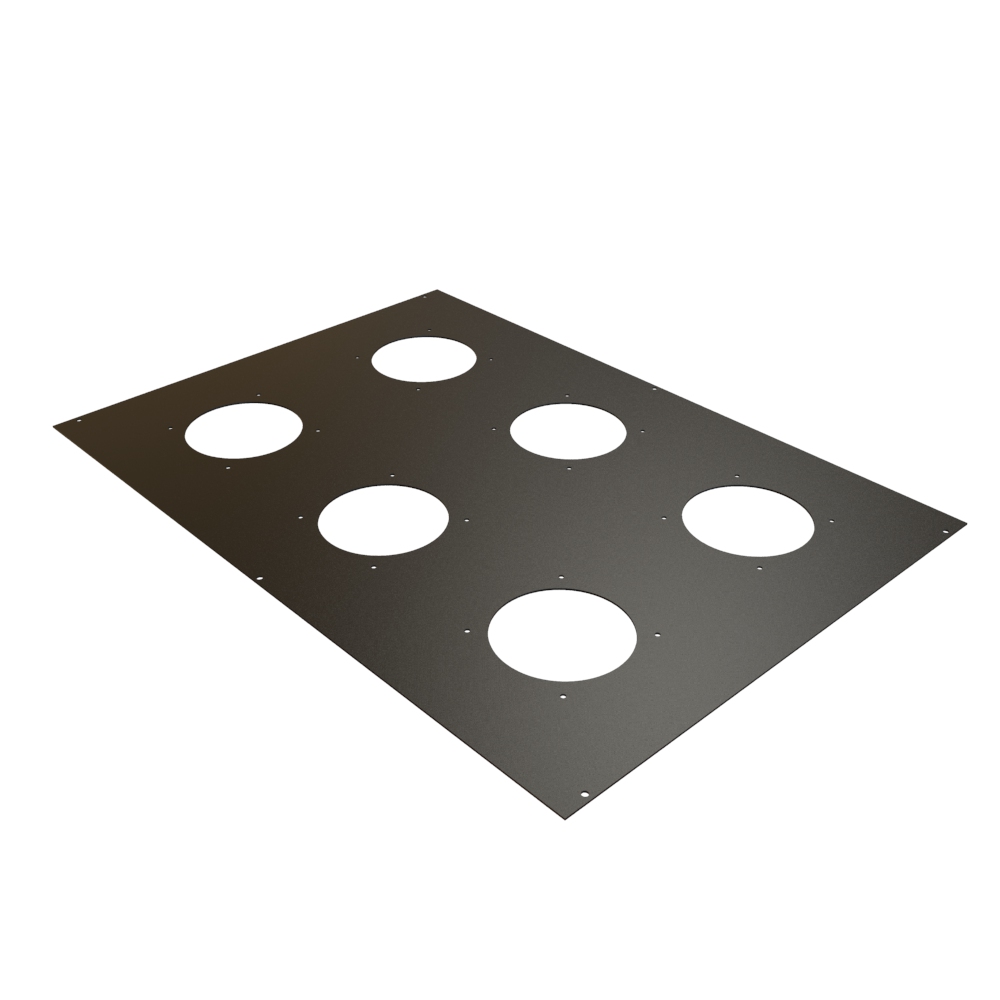

• ■4 or 6 openings, depending on the depth of the rack.
• ■Maximum flexibility - add fans OR leave holes open (for cable access) OR use covers (see below) OR any combination.

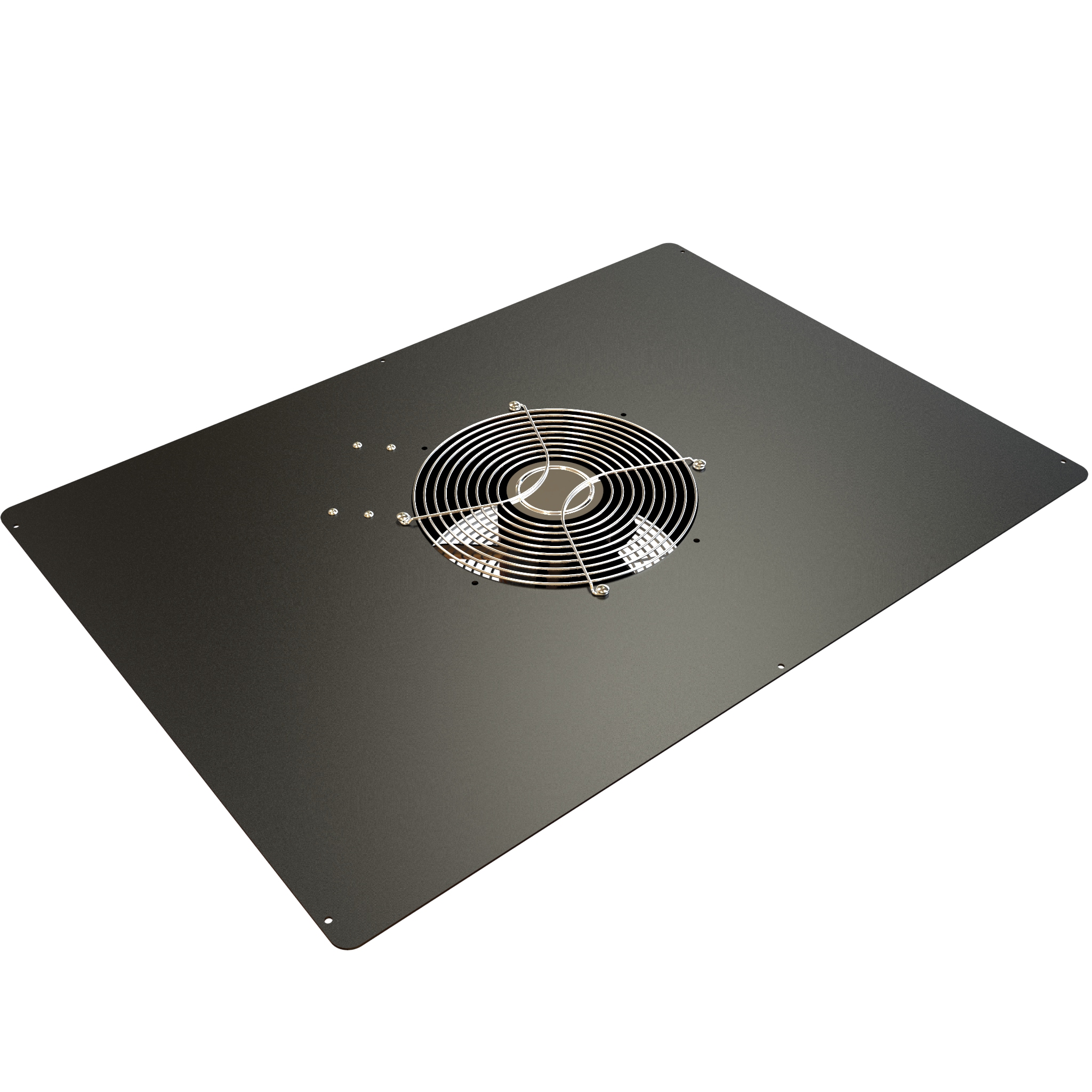

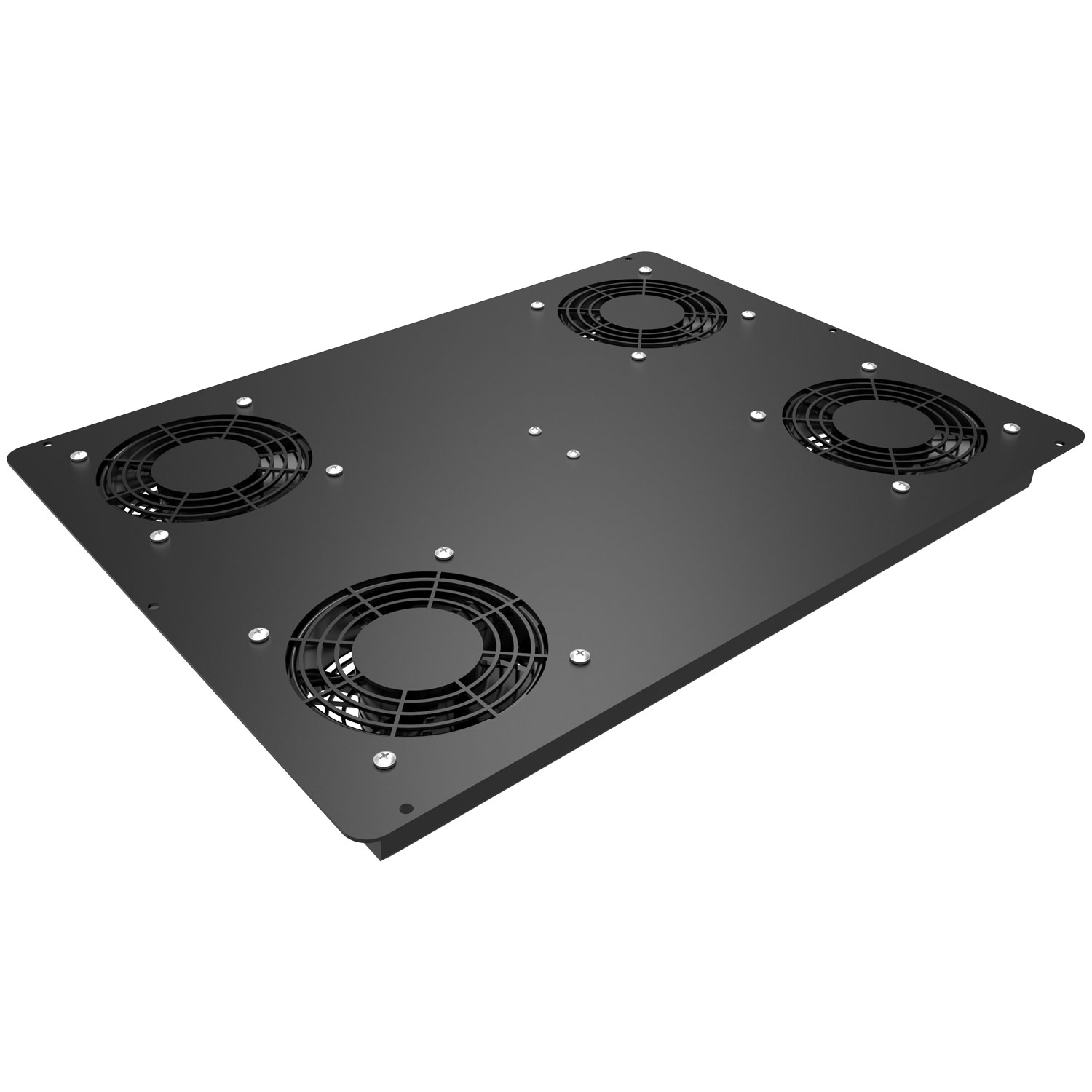

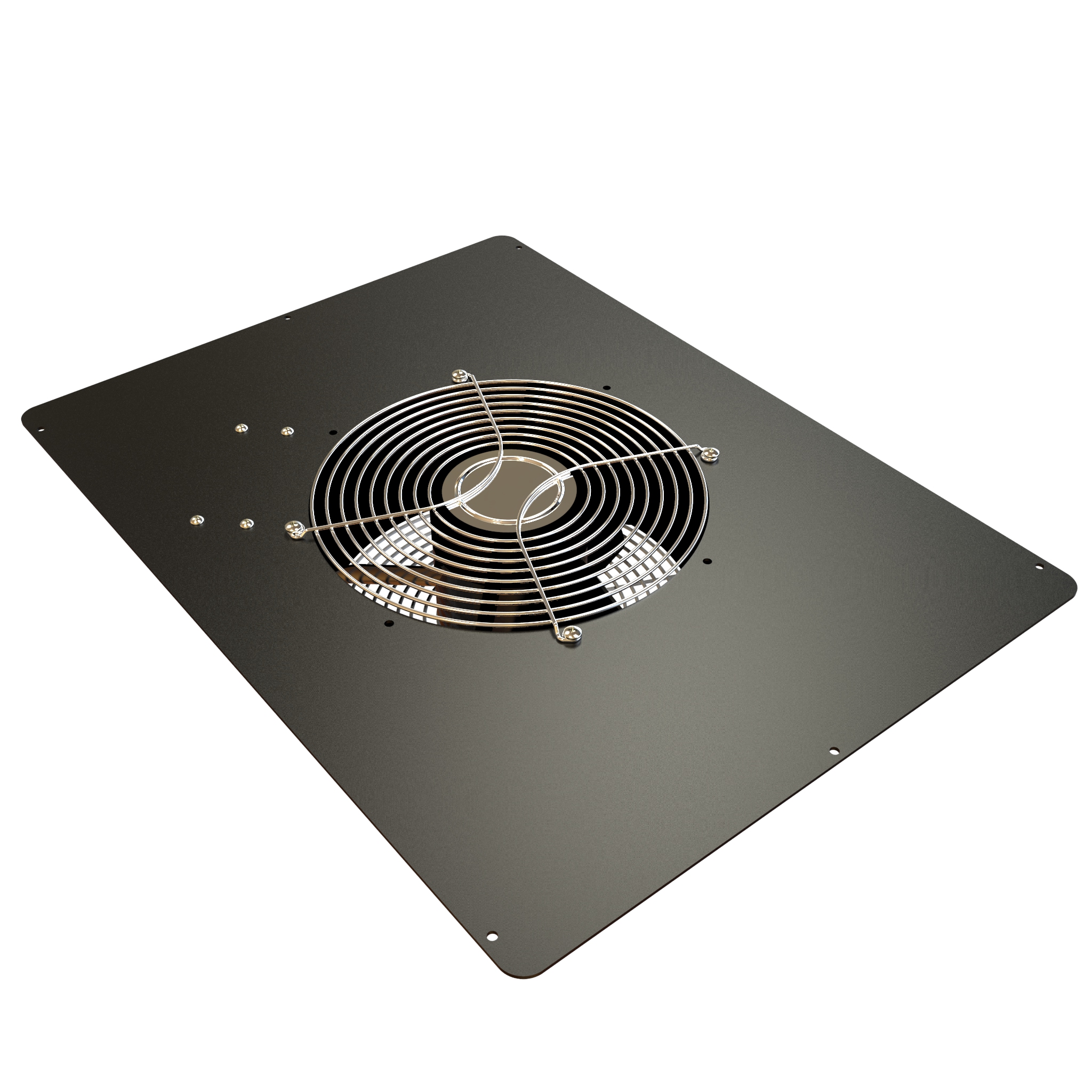

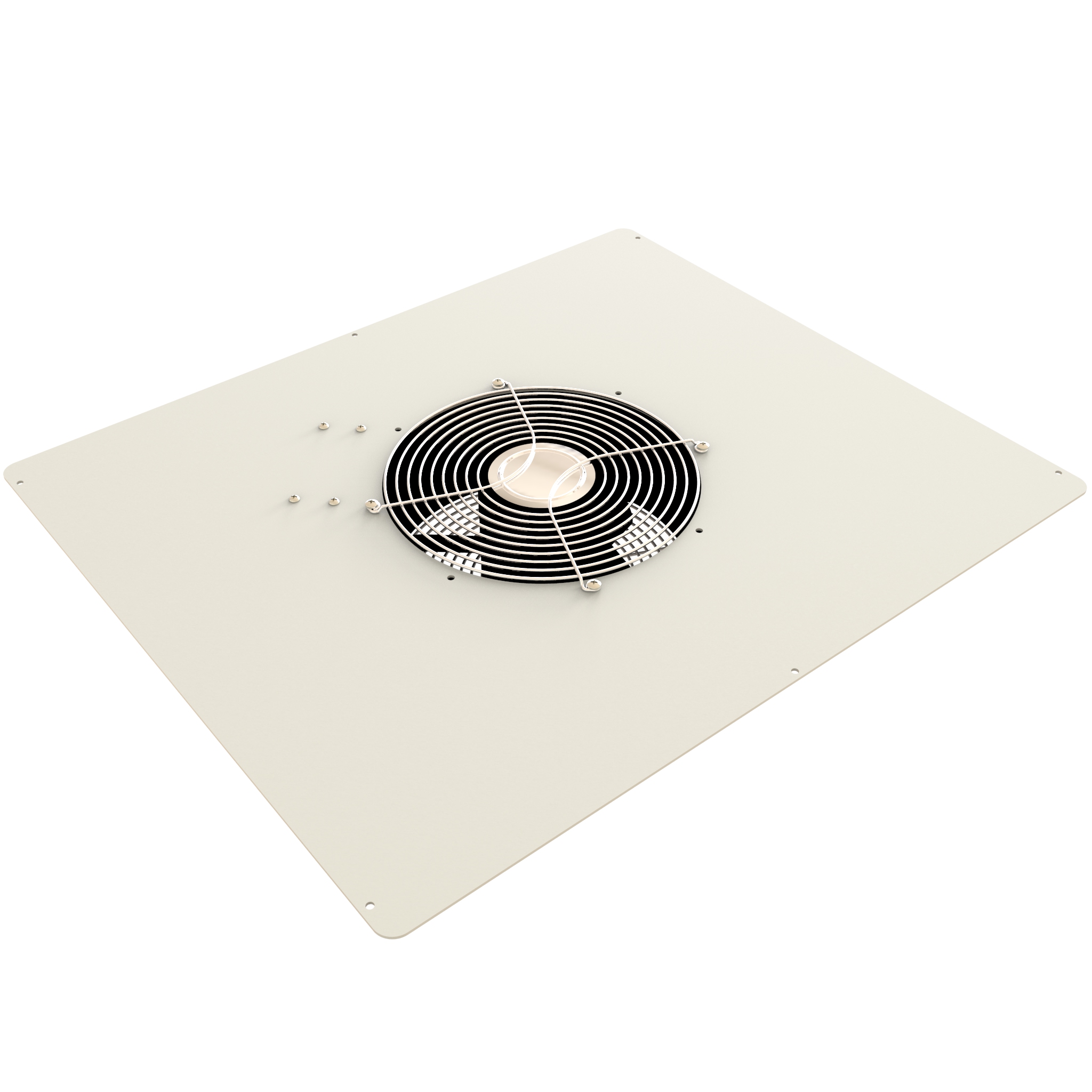

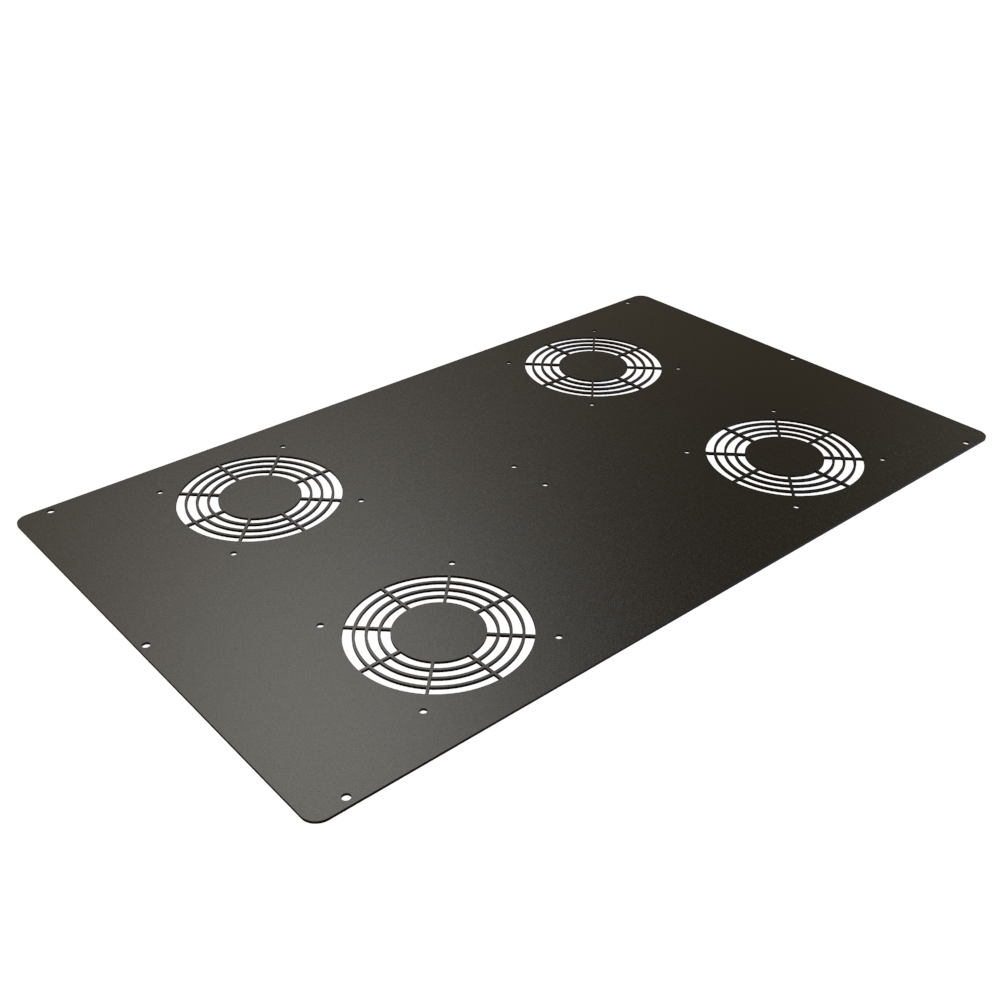

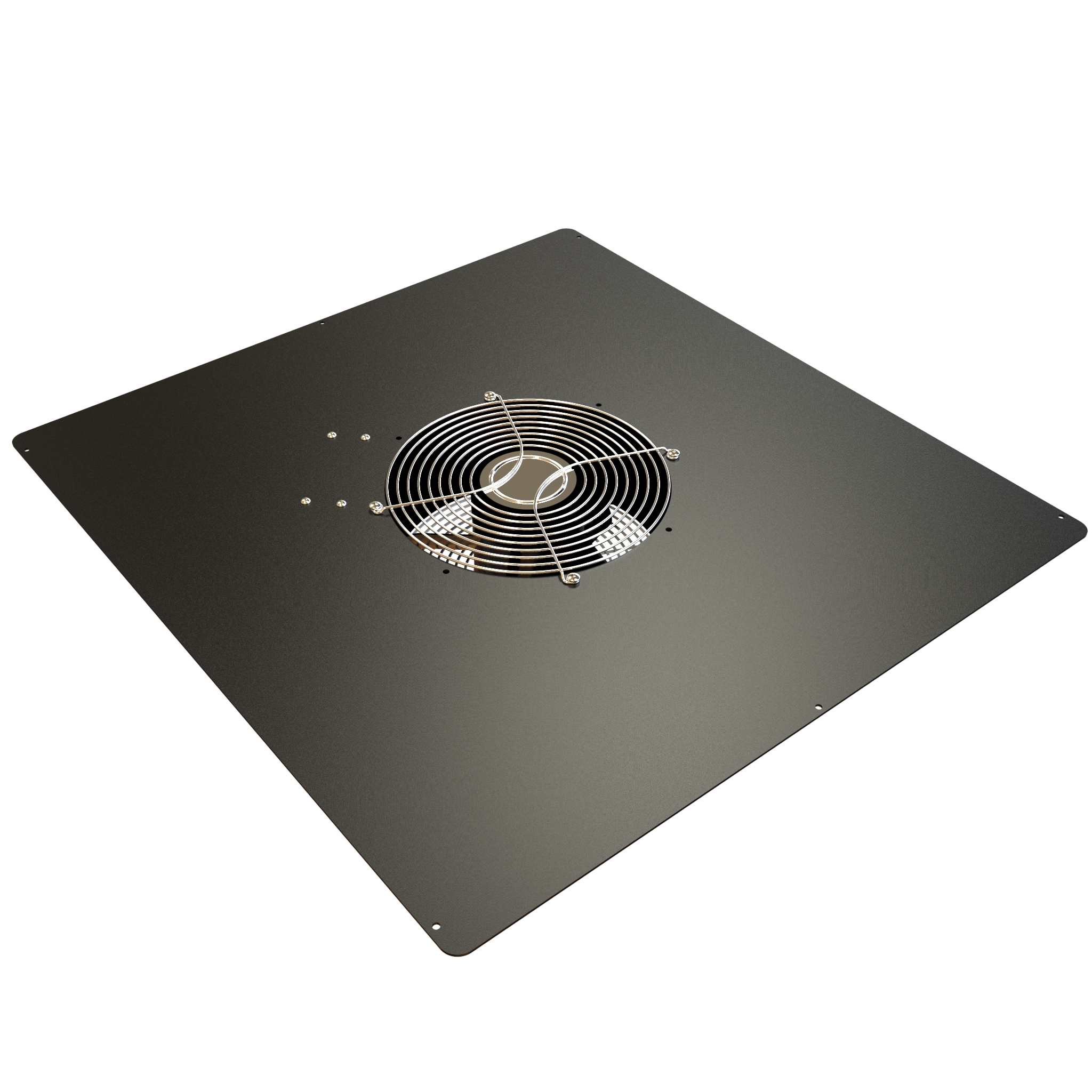

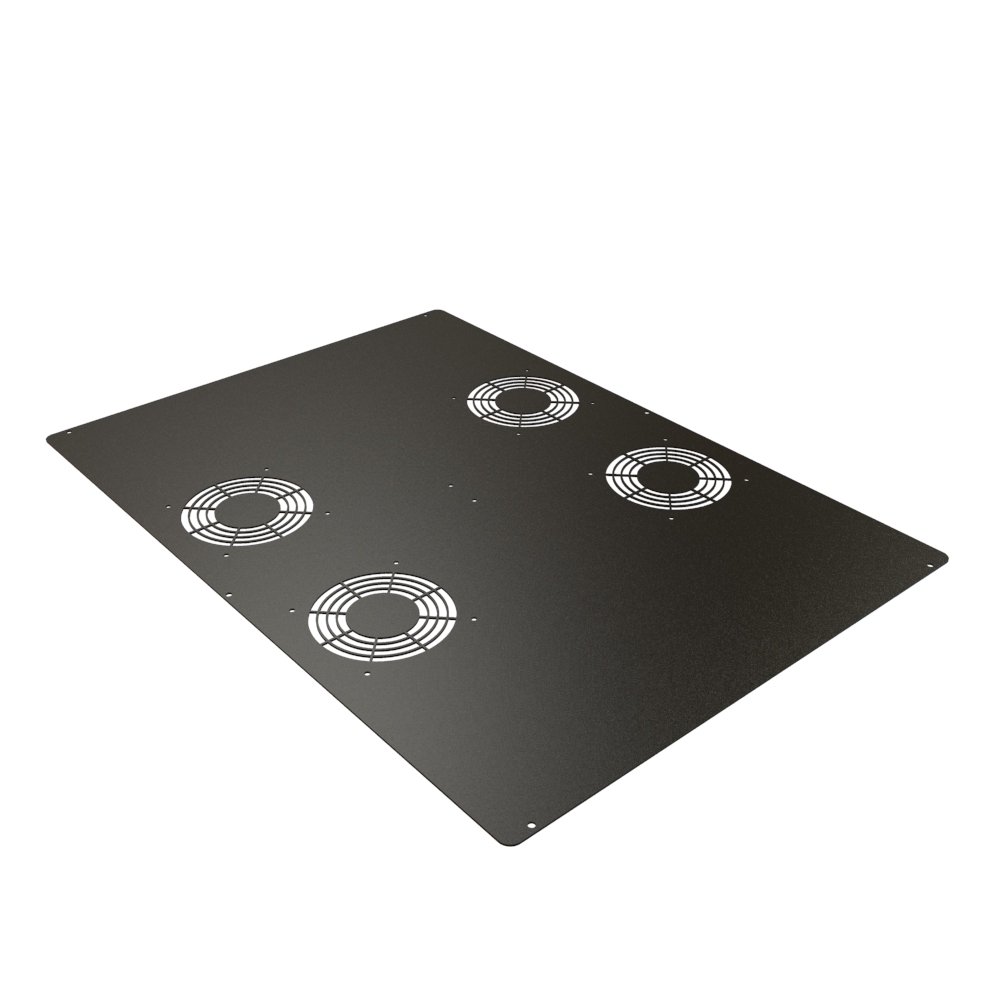

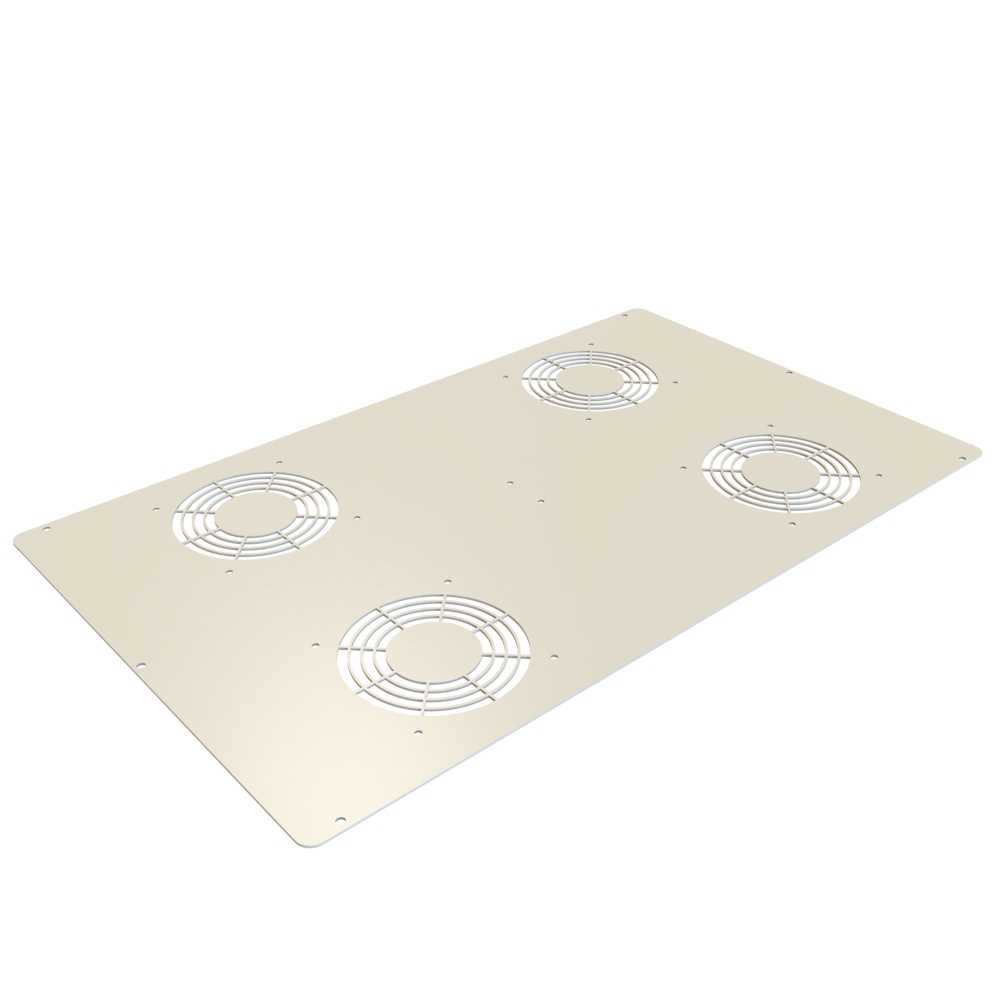

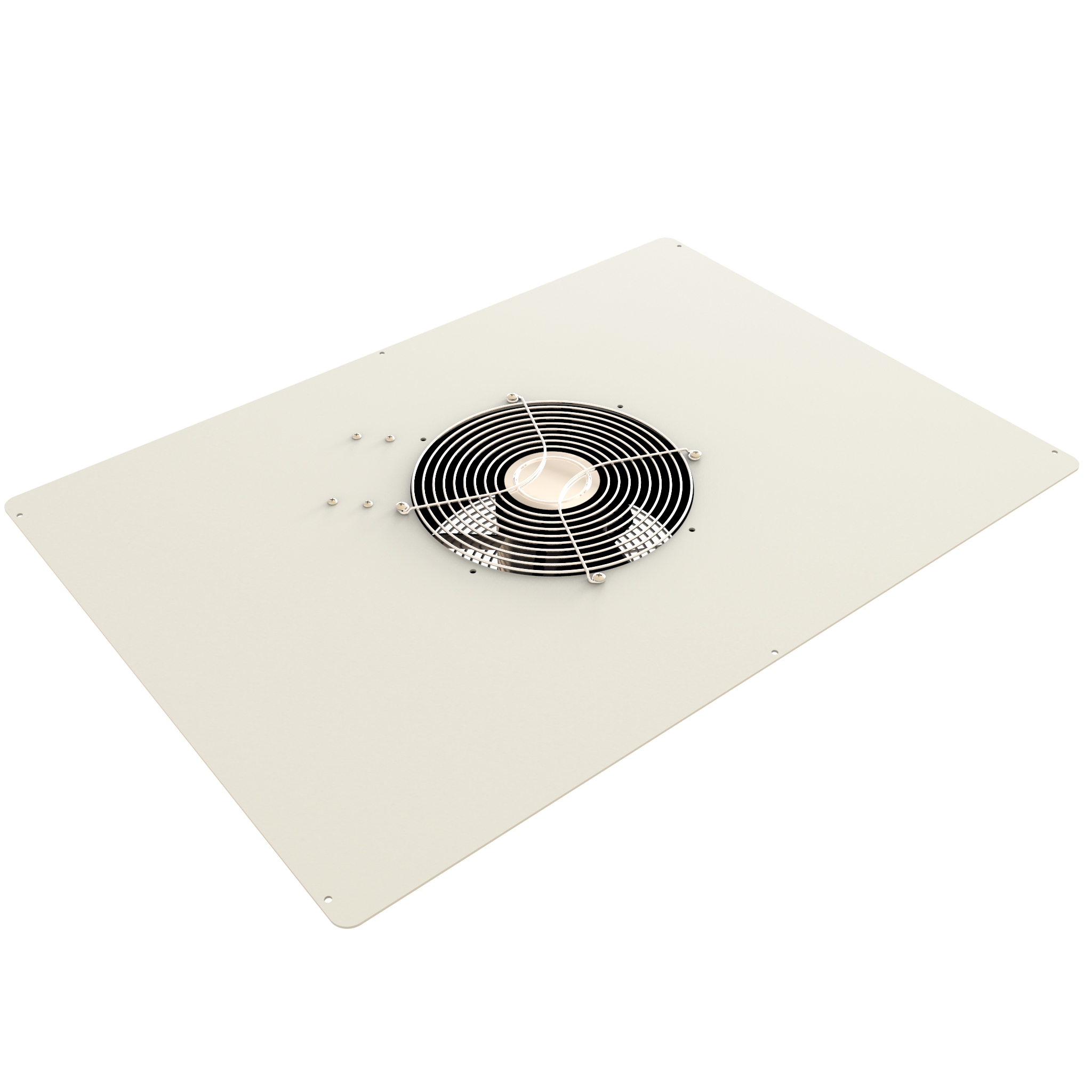

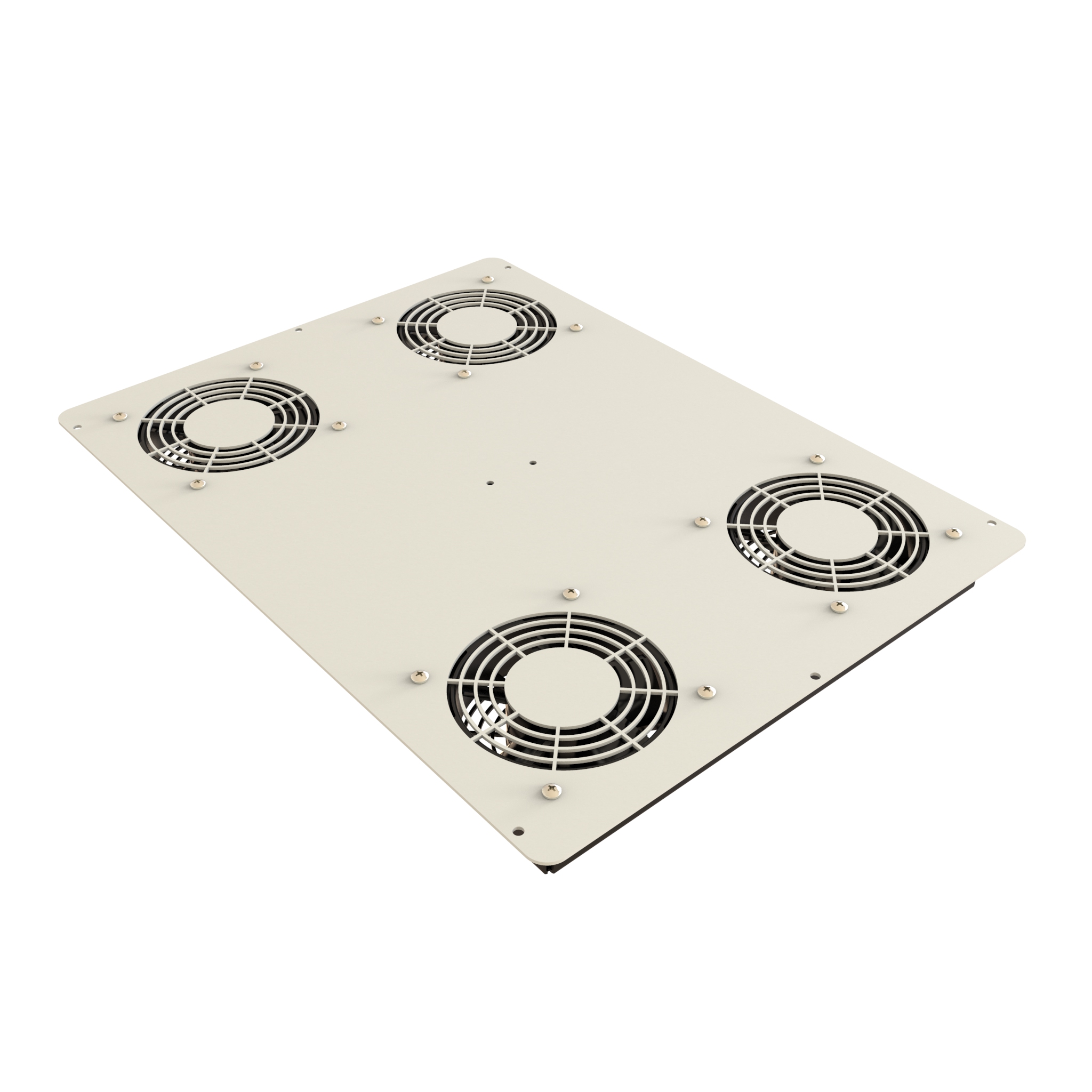

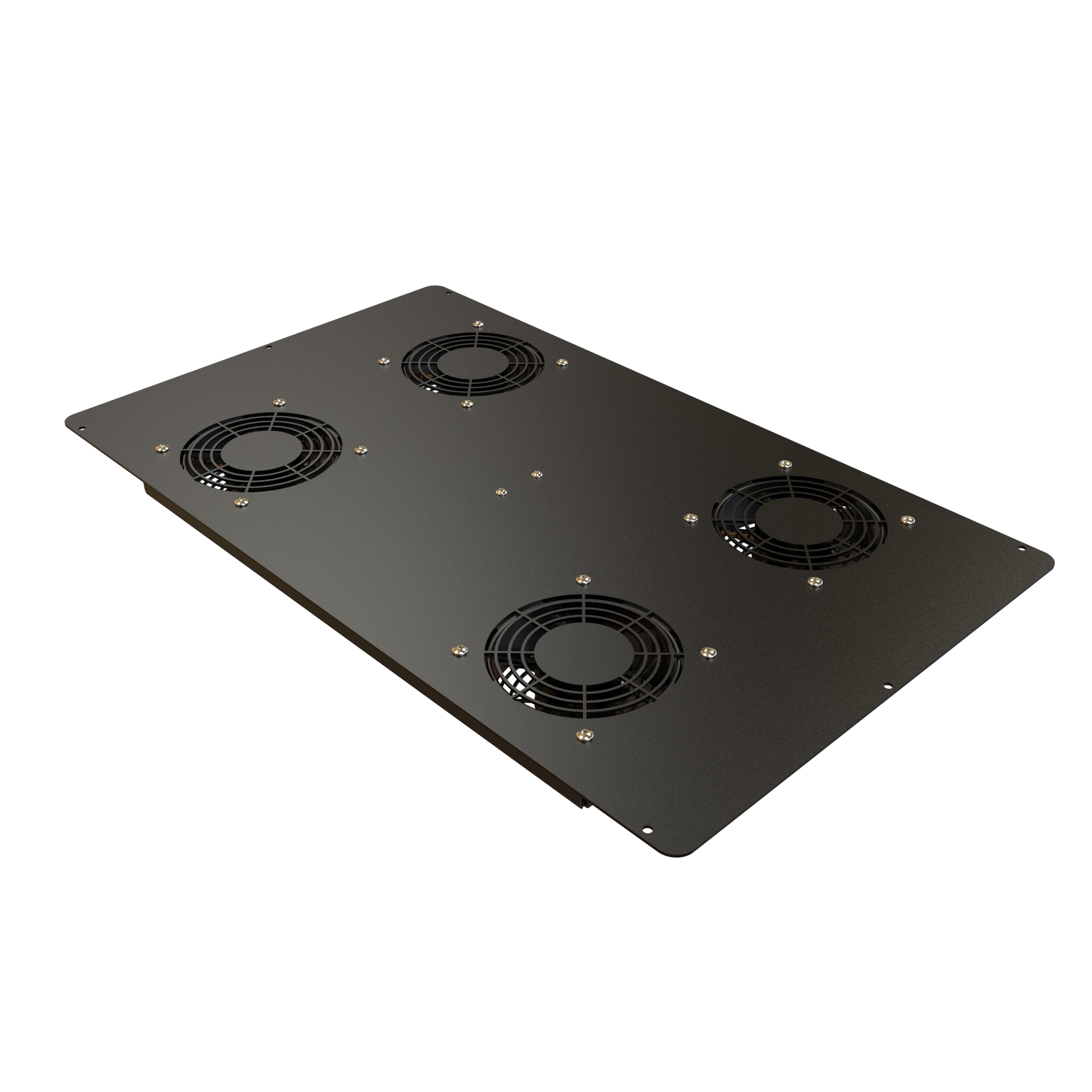

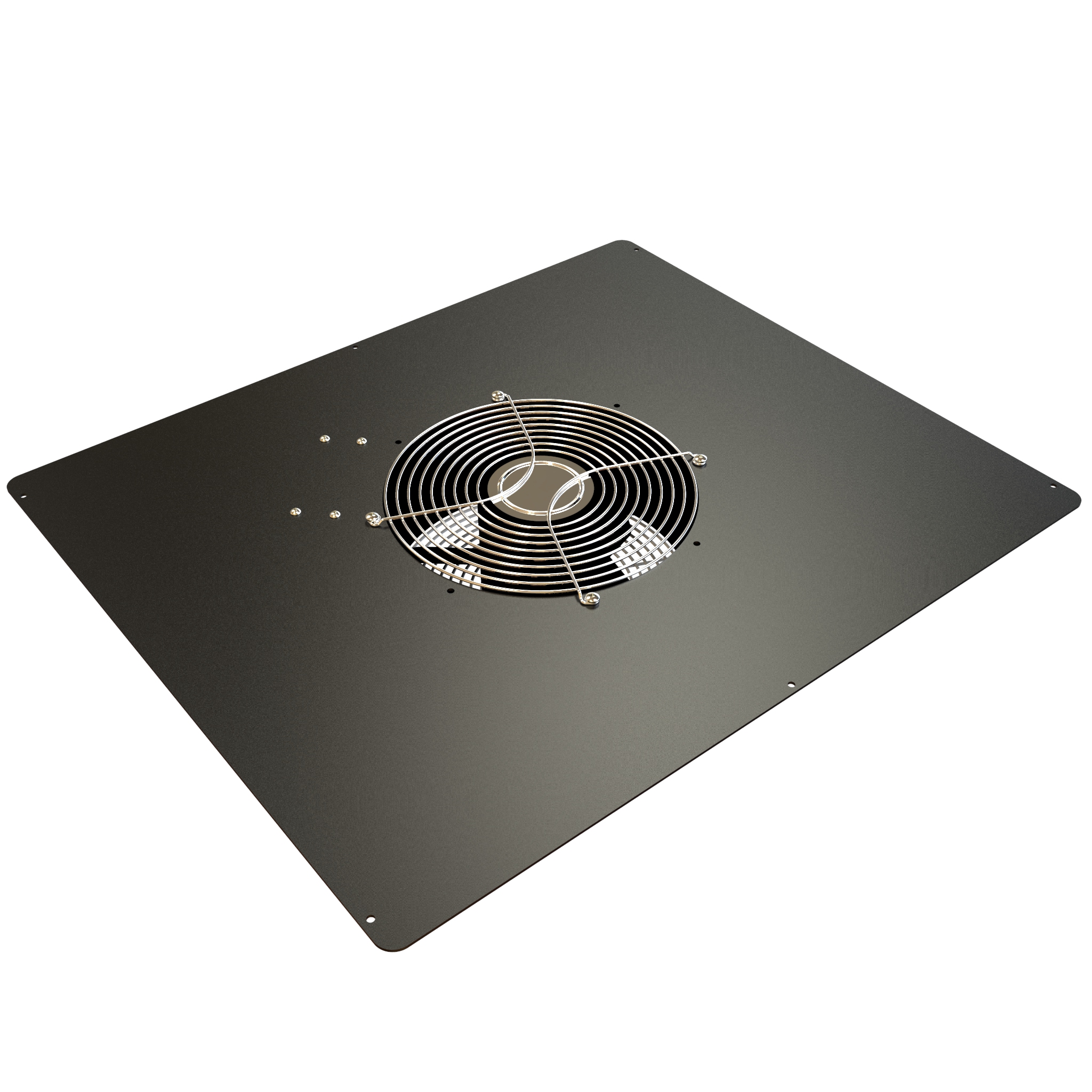

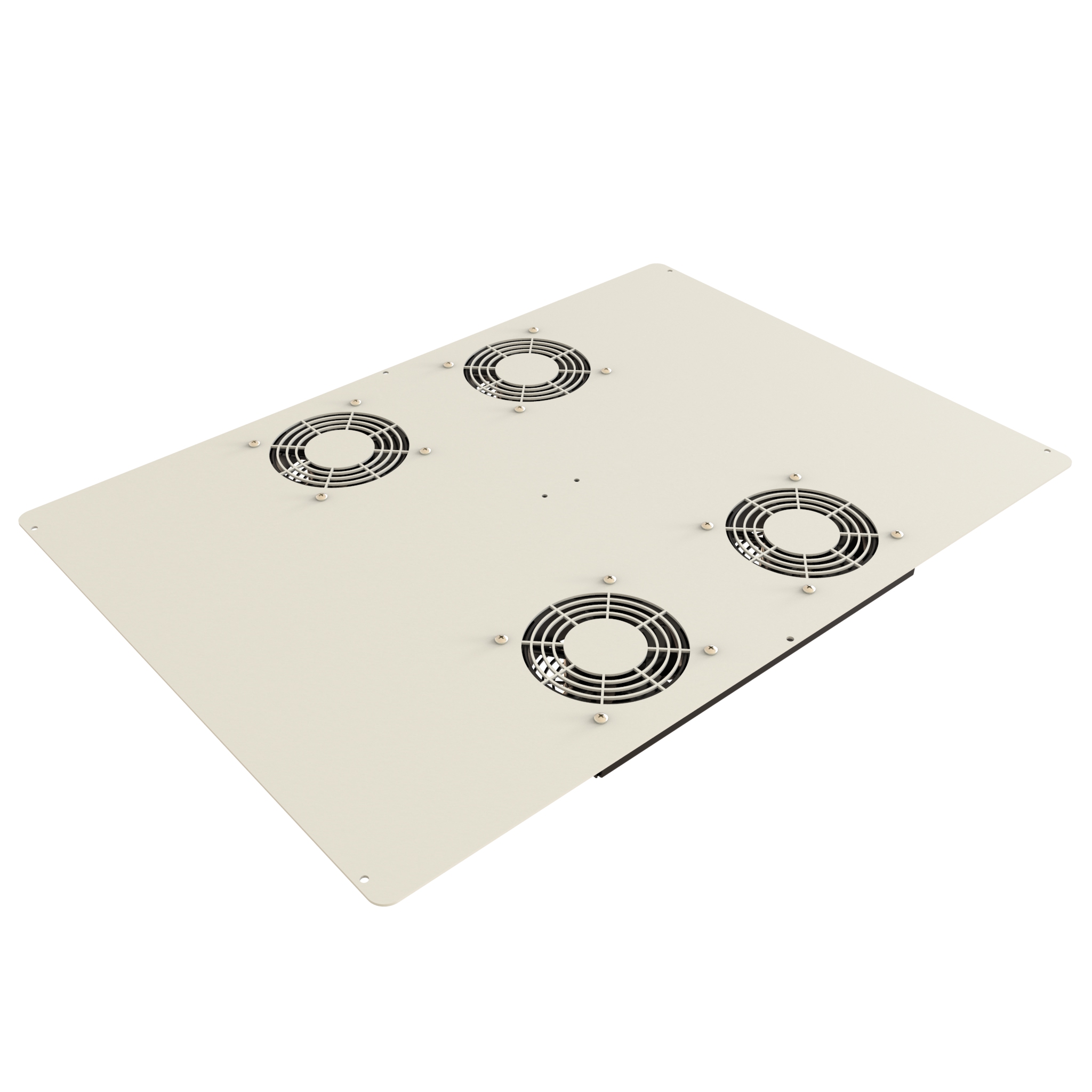

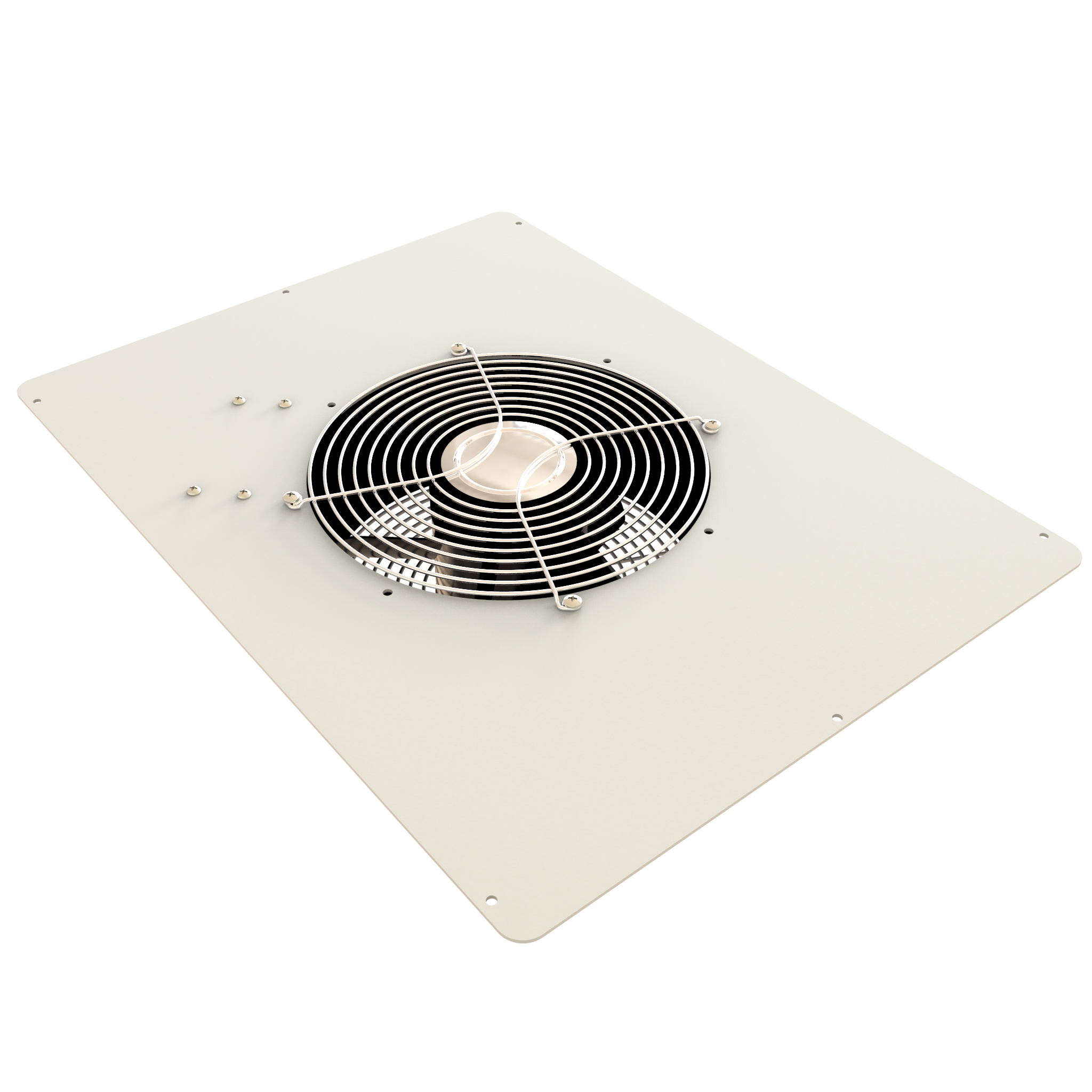

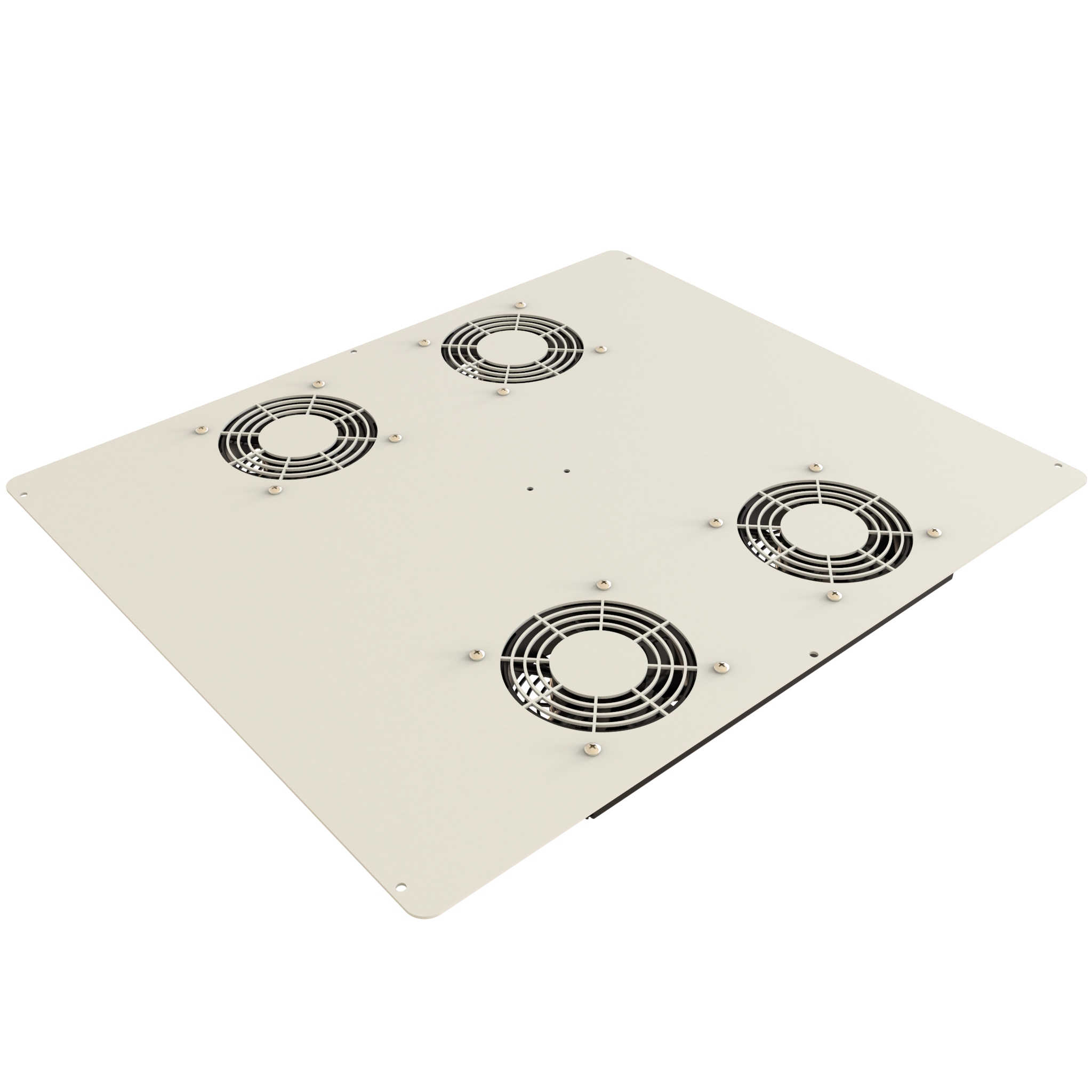

• ■Available with (4) 4" fans or (1) 10" fan (factory wired).
• ■Long life, ball bearing, 4", 115 volts, 50/60 Hz. AC fan(s).
• ■Available in three depths and two colors.

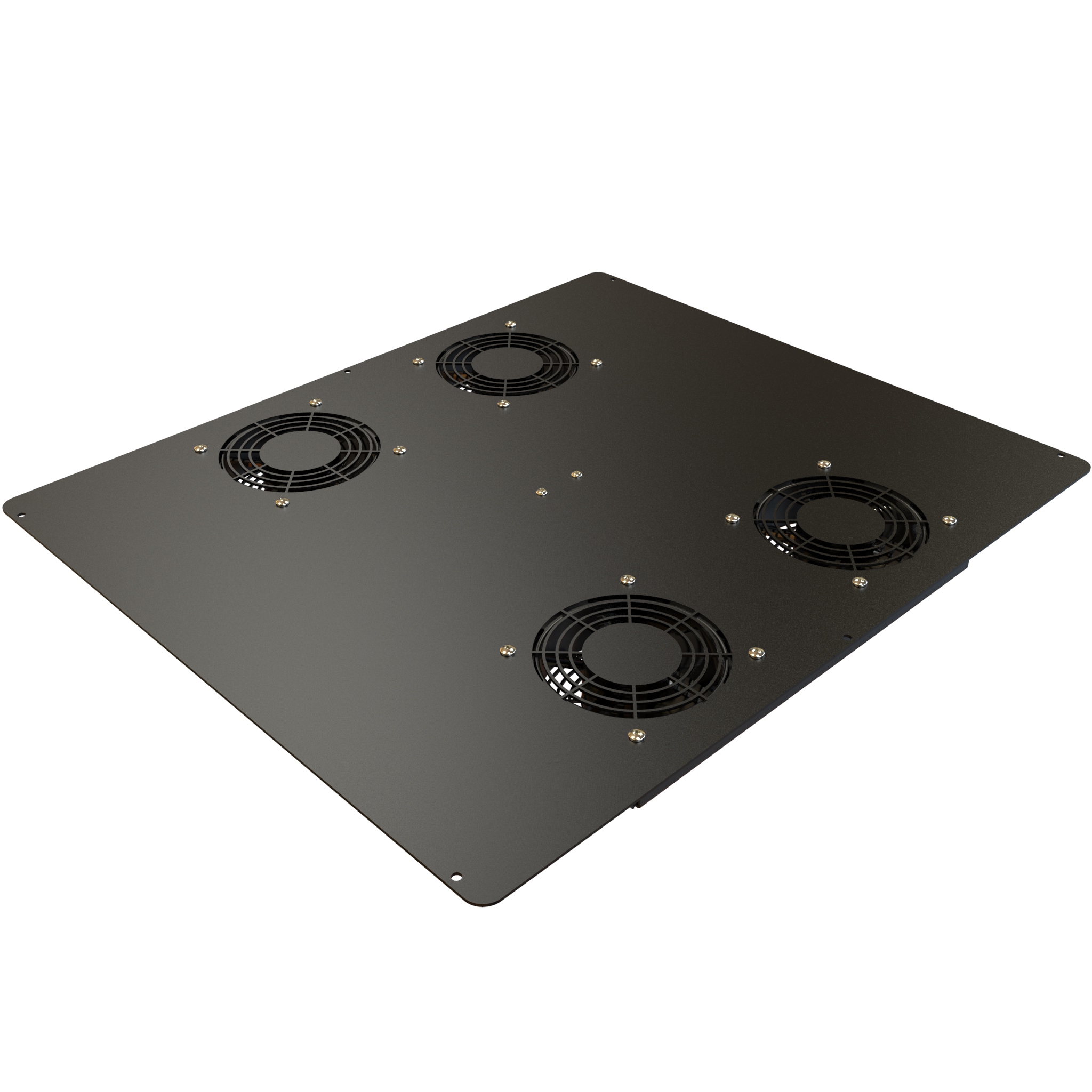

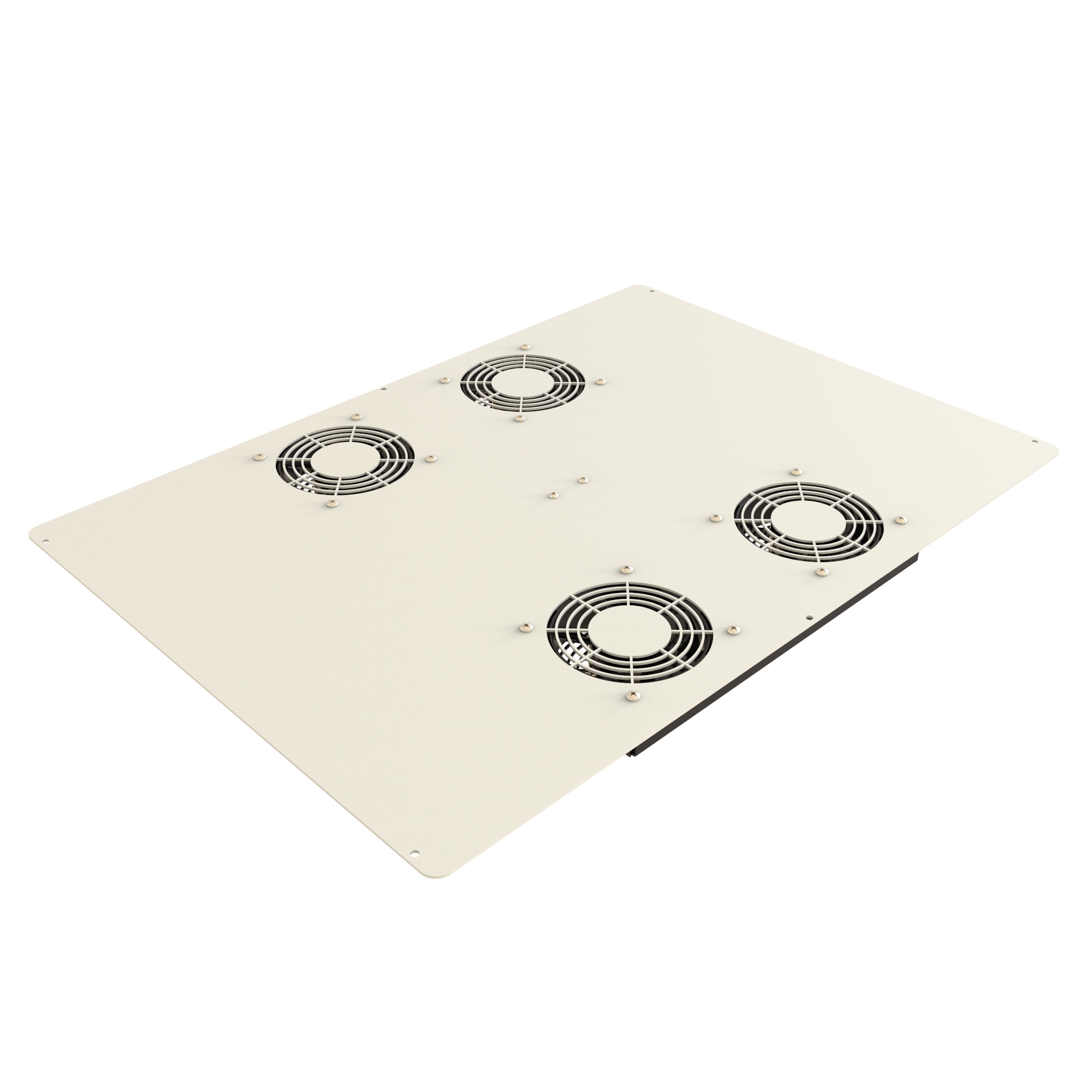

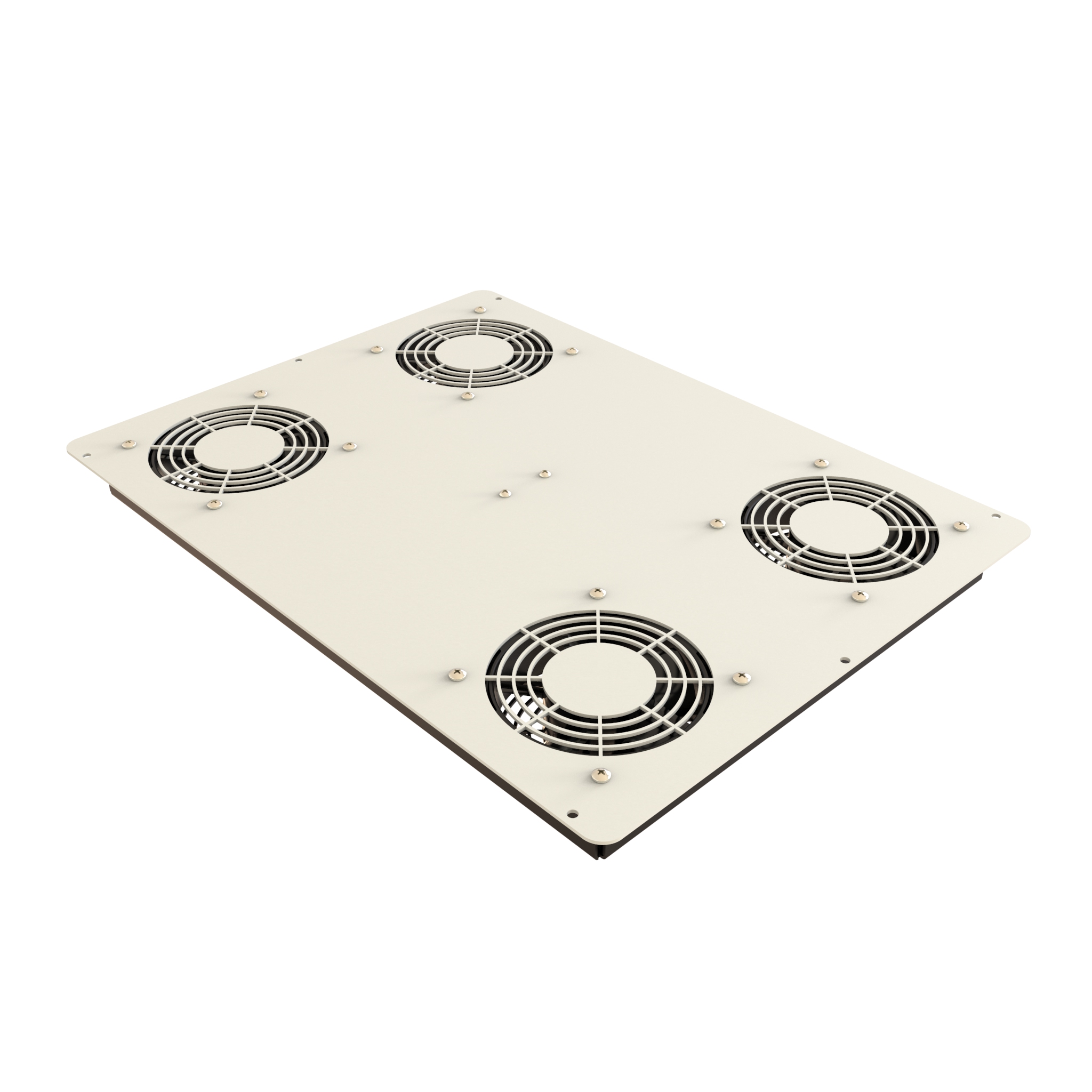

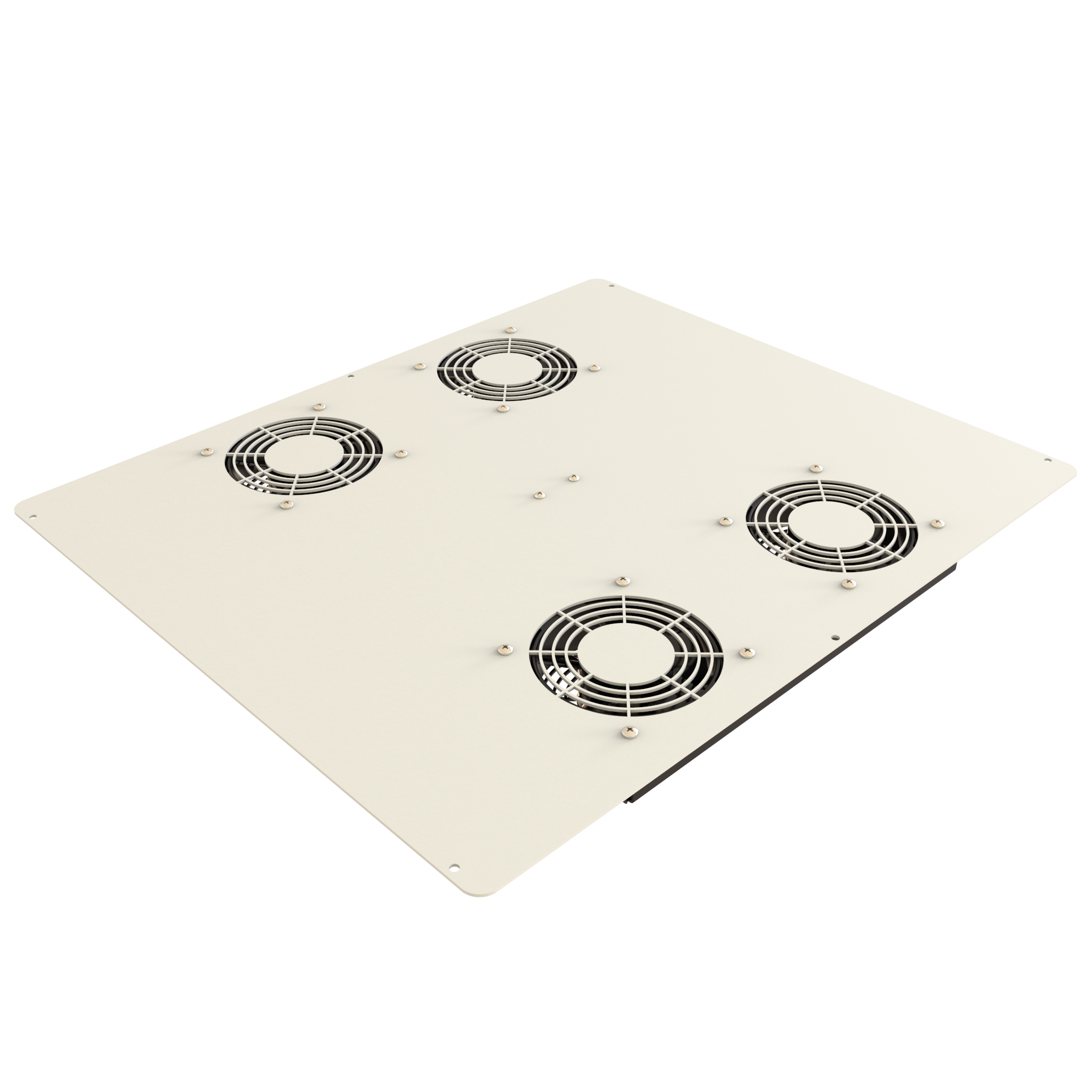

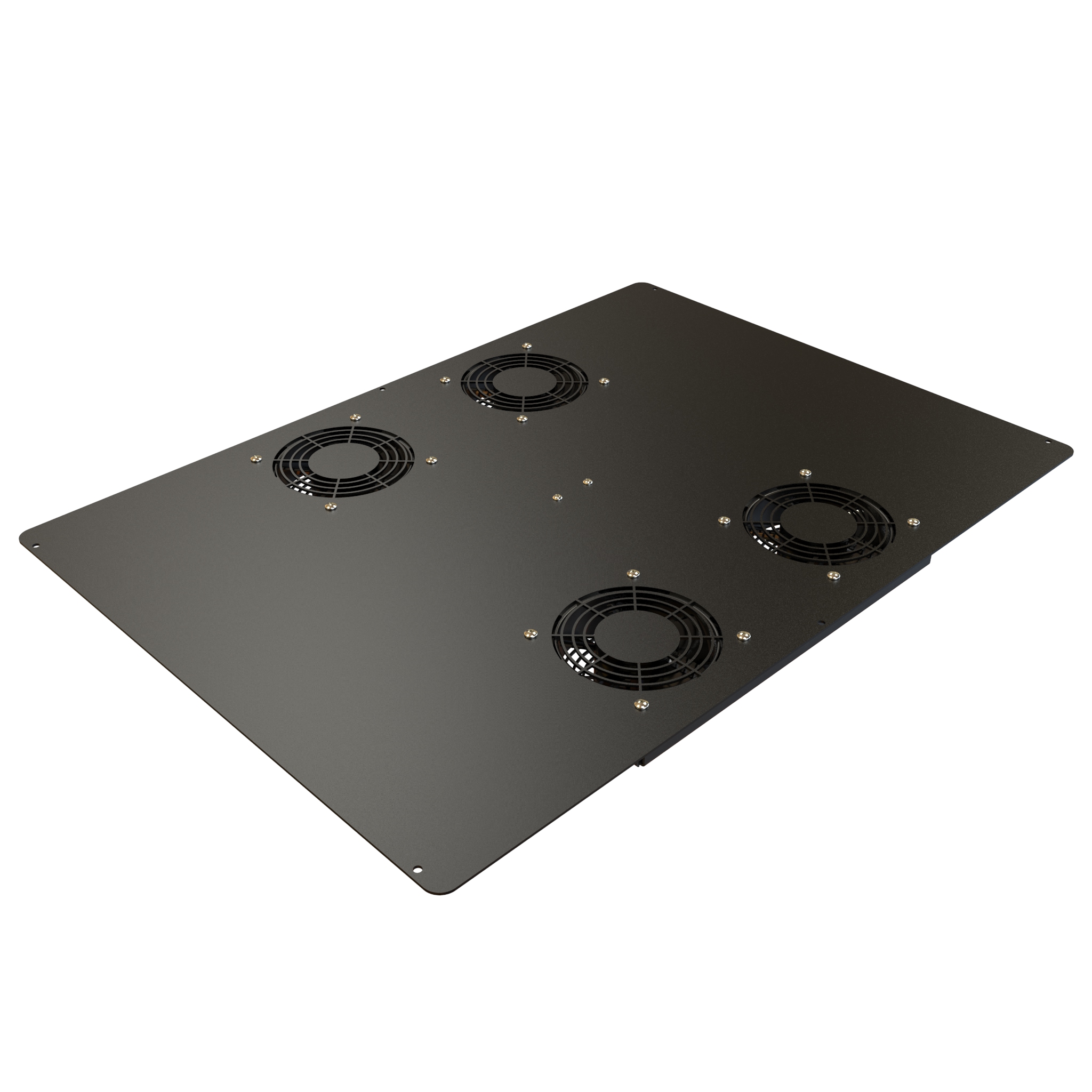

• ■4.7" versions are available with or without adjustable thermostats.

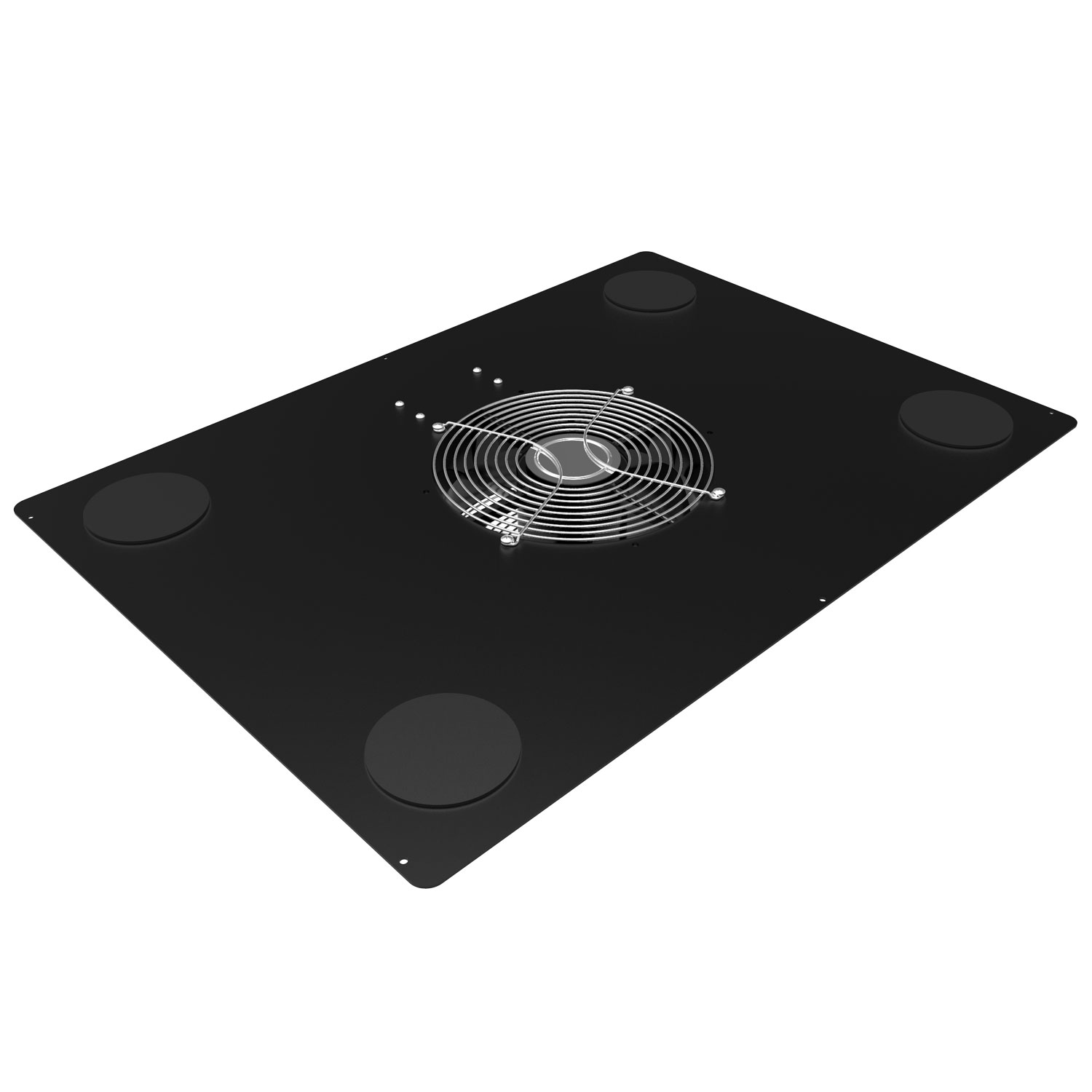

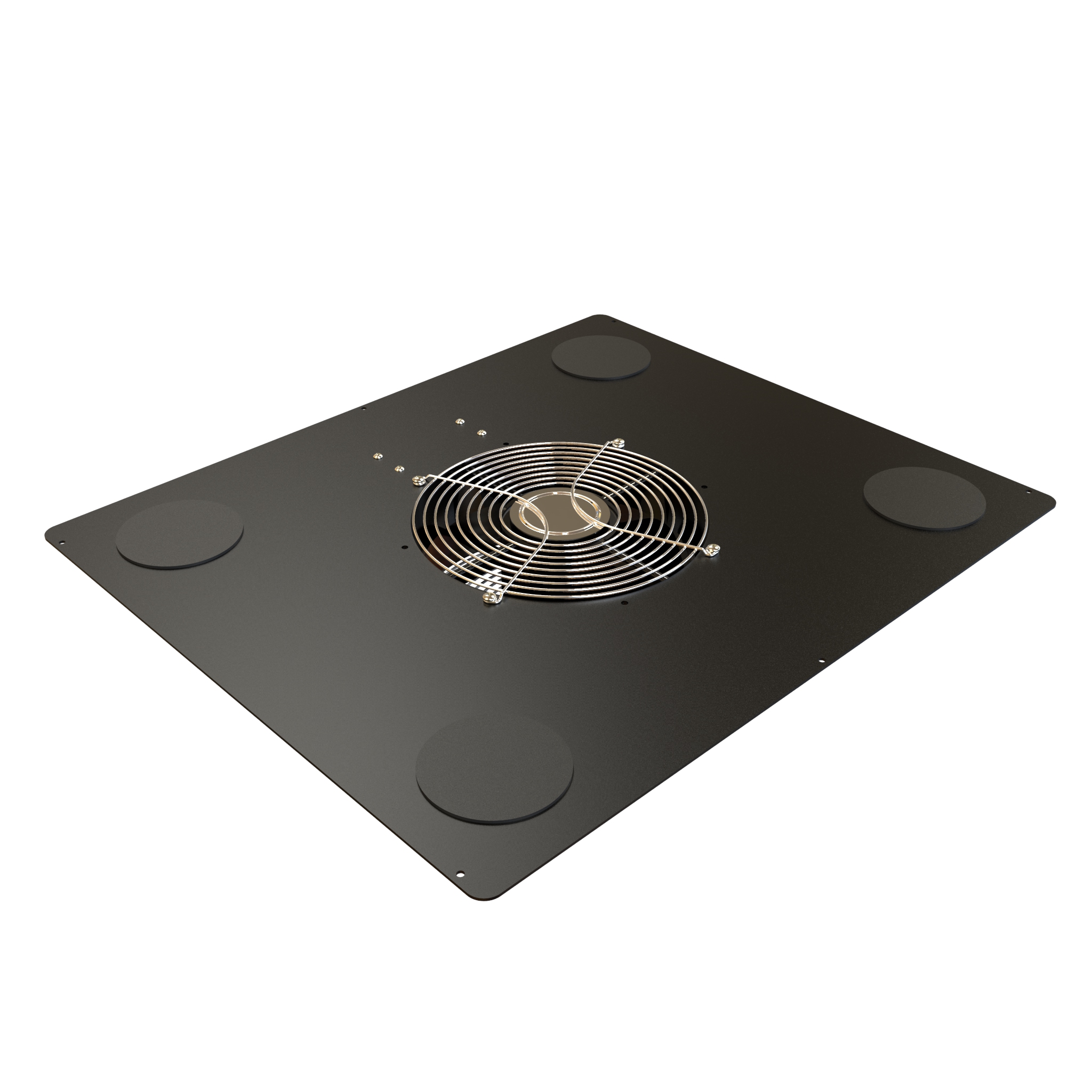

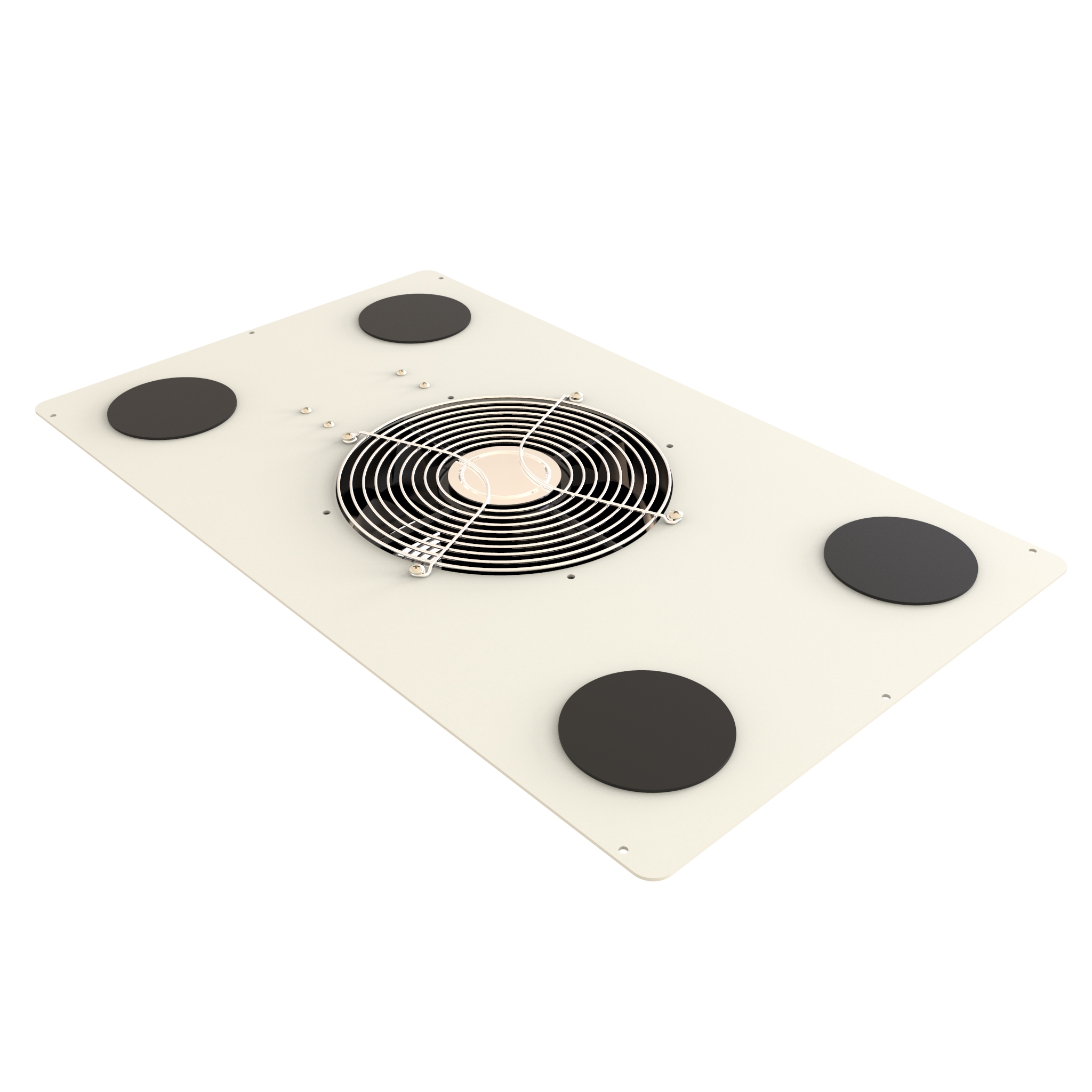

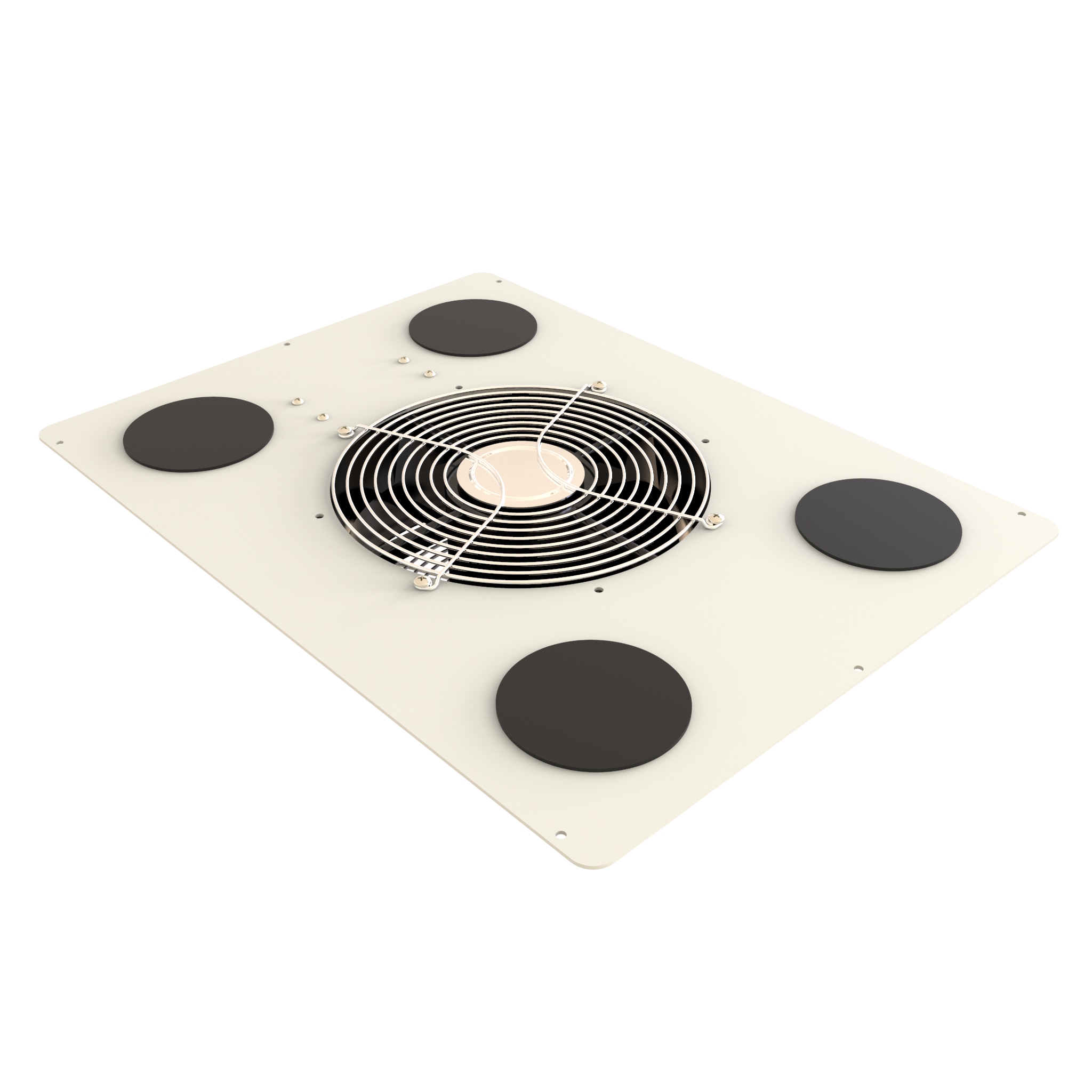

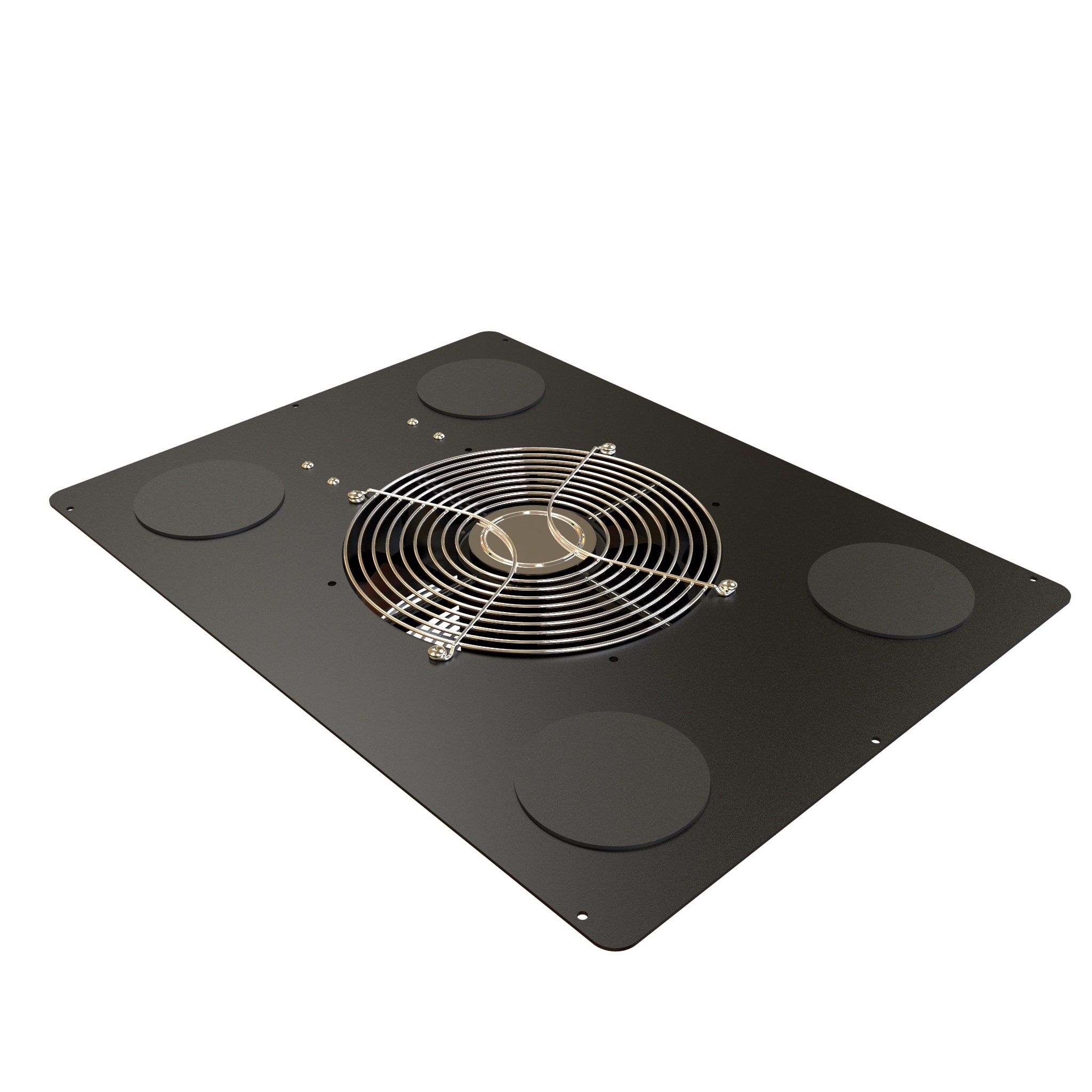

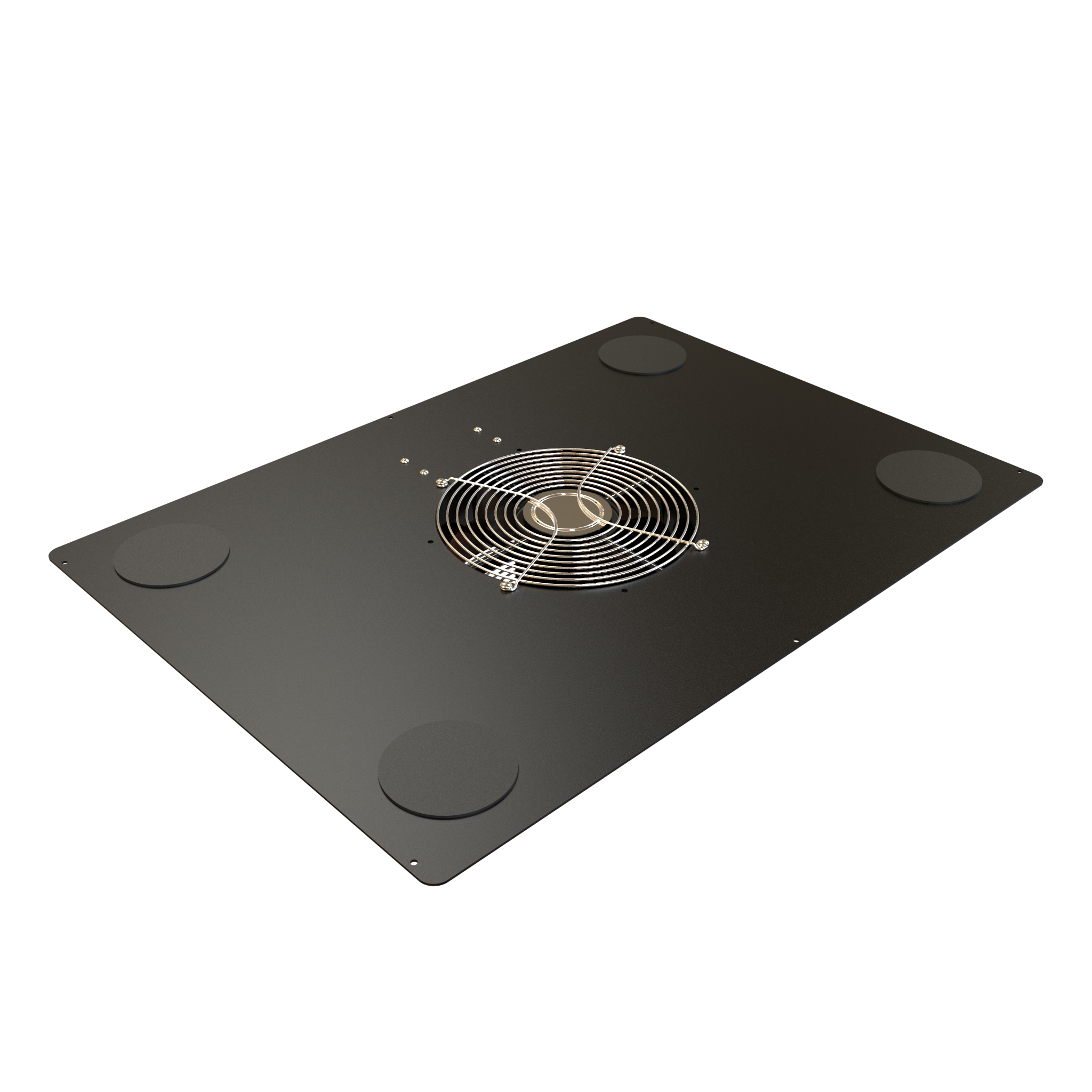

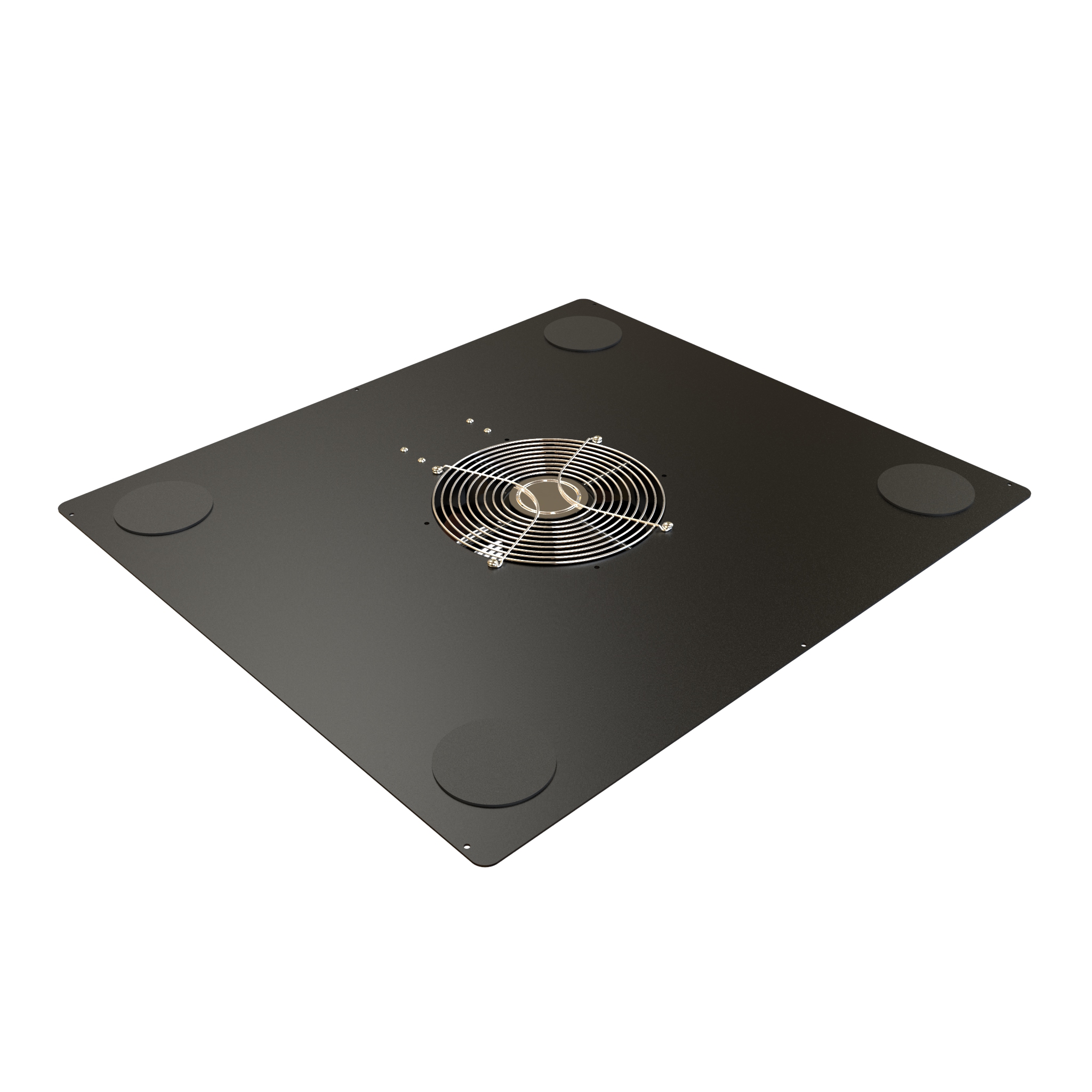

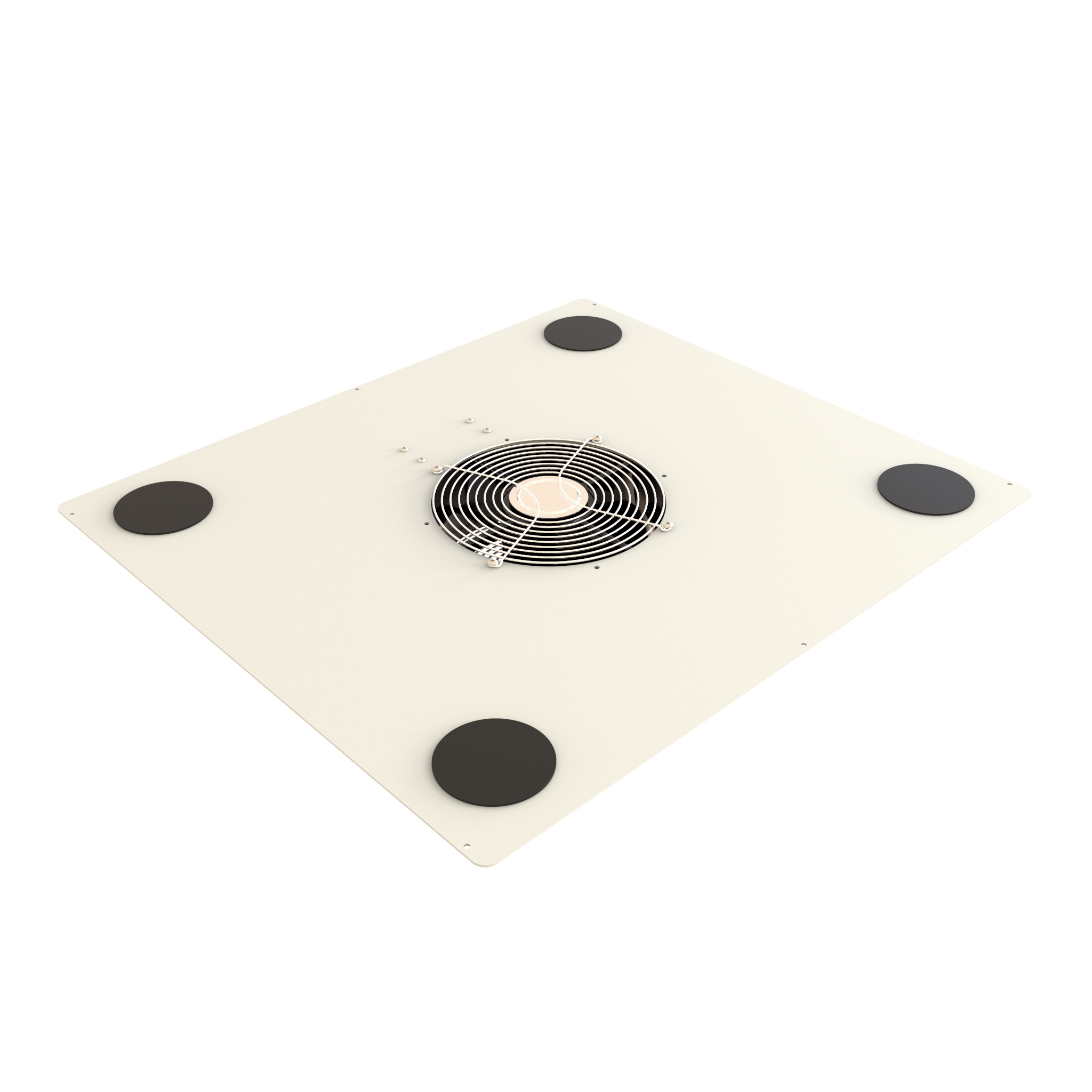

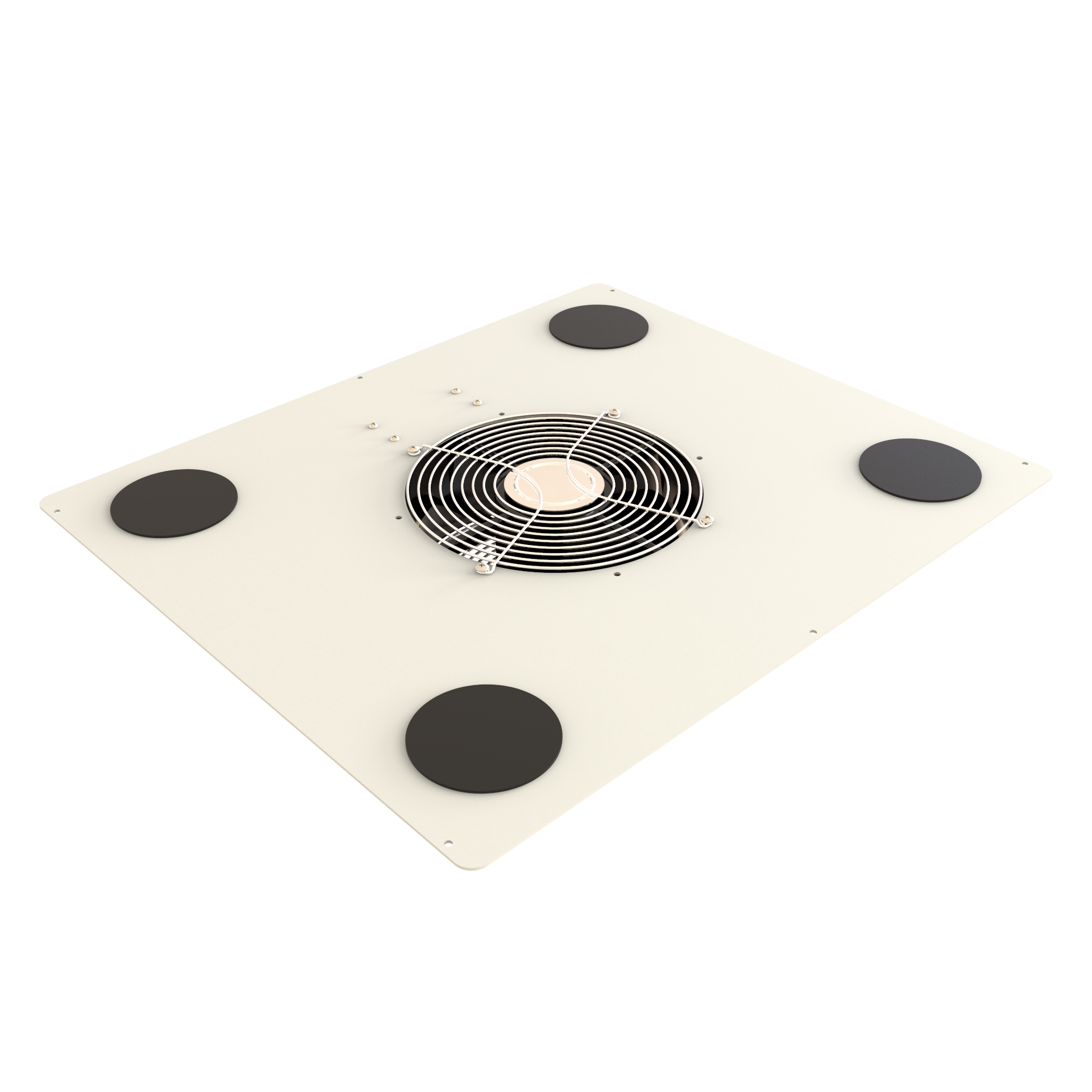

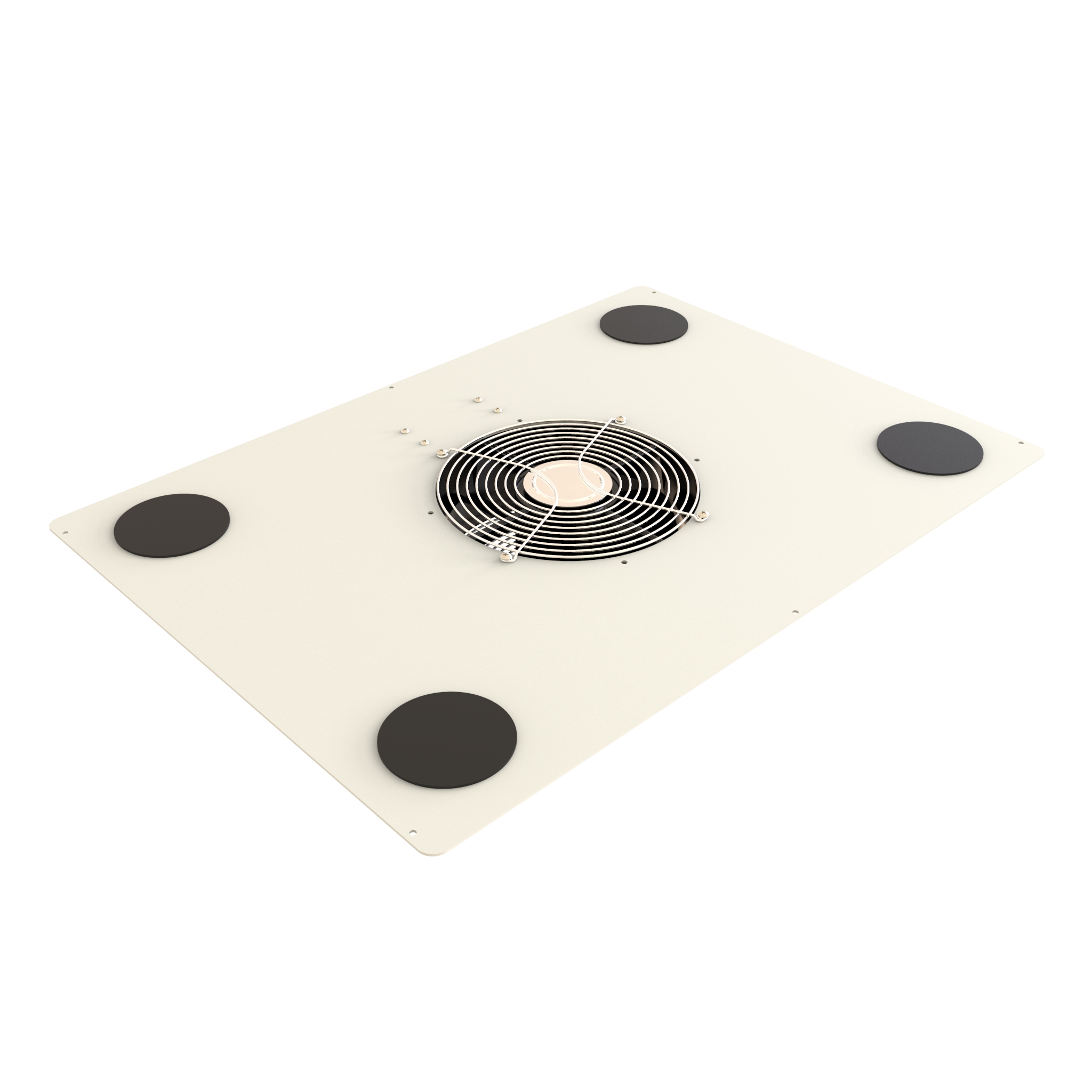

• ■10" versions are available with or without cable entry holes.

Where the C2TF Series Works Best

• ■Data centers and IT rooms.
• ■High-density rack deployments.
• ■Network and telecom installations.
• ■AV and broadcast environments.
• ■Installations requiring active cooling or flexible airflow strategies.

Best Applications for the C2TF Series

• ■Adding active cooling to rack cabinets using integrated fan systems.
• ■Supporting high heat load equipment installations.
• ■Configuring cabinet tops for mixed airflow and cable entry requirements.
• ■Upgrading passive cabinets to active cooling environments.
• ■Managing thermal performance in dense IT and network deployments.

When Another Product May Be a Better Choice

• ■When you need a fully sealed cabinet top for controlled airflow environments, consider our C2TS Series.
• ■When you need cable entry from overhead pathways with airflow restriction, consider our C2T_BF Series.
• ■When you need passive airflow through the top of the cabinet without active cooling, consider our C2TV Series.
