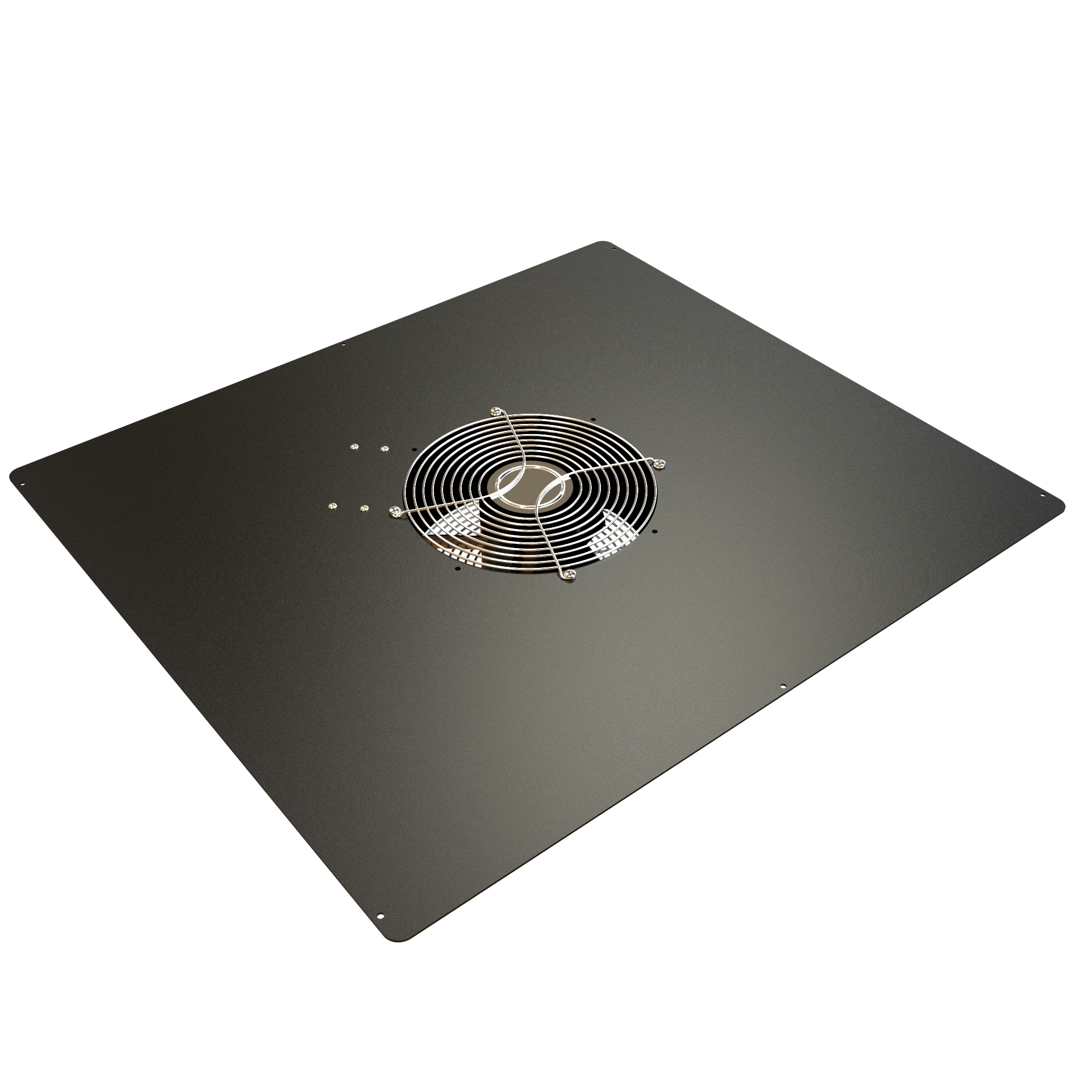

Hammond C2T2436F10BK1 550 CFM Pre-Wired 10-Inch Cabinet Fan Top Panel

The C2T2436F10BK1 is a pre-wired fan top panel for rack cabinets, supplied with one factory-wired 10 in (254 mm) fan that delivers 550 CFM of free flow air delivery at 60 dB. It is intended for IT, network, telecom, AV and broadcast teams who need to move heat out of the top of an equipment cabinet without building a cooling assembly from loose parts. This version has no thermostat and no cable entry grommets, so the top is dedicated to continuous exhaust airflow.

Construction is 14-gauge steel with a painted steel top in RAL9005 Black powder coat; the fan finger guard is chrome plated. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental compliance requirements. The panel measures 635.00 mm (25.000 in) by 717.55 mm (28.250 in) overall, with a 226.50 mm (8.917 in) diameter fan opening, and ships at 28 lbs (12.70 kg).

The fan is rated 115 VAC, 50/60 Hz, 0.29 Amps and comes with a 6 foot power cord, so the assembly only needs a nearby receptacle or cabinet PDU outlet to run. Approvals are cURus Recognized to UL507 and CSA C22.2 No. 113, and the part is TAA-compliant and manufactured in North America (country of origin CA) for government procurement requirements.

Installation is straightforward: install the 8-32 U-clip (speed) nuts on top of the cabinet frame, set the top panel assembly in place, loosely start the supplied 8-32 x 1/2 in round head screws, then tighten with a Phillips screwdriver. Six screws and six speed nuts are supplied, and the series includes CLPKIT832-6 cabinet mounting hardware. C2T2436F10BK1 is designed for use with C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK or CLC cabinet series; H1 cabinets require the H1TC Series for mounting.
